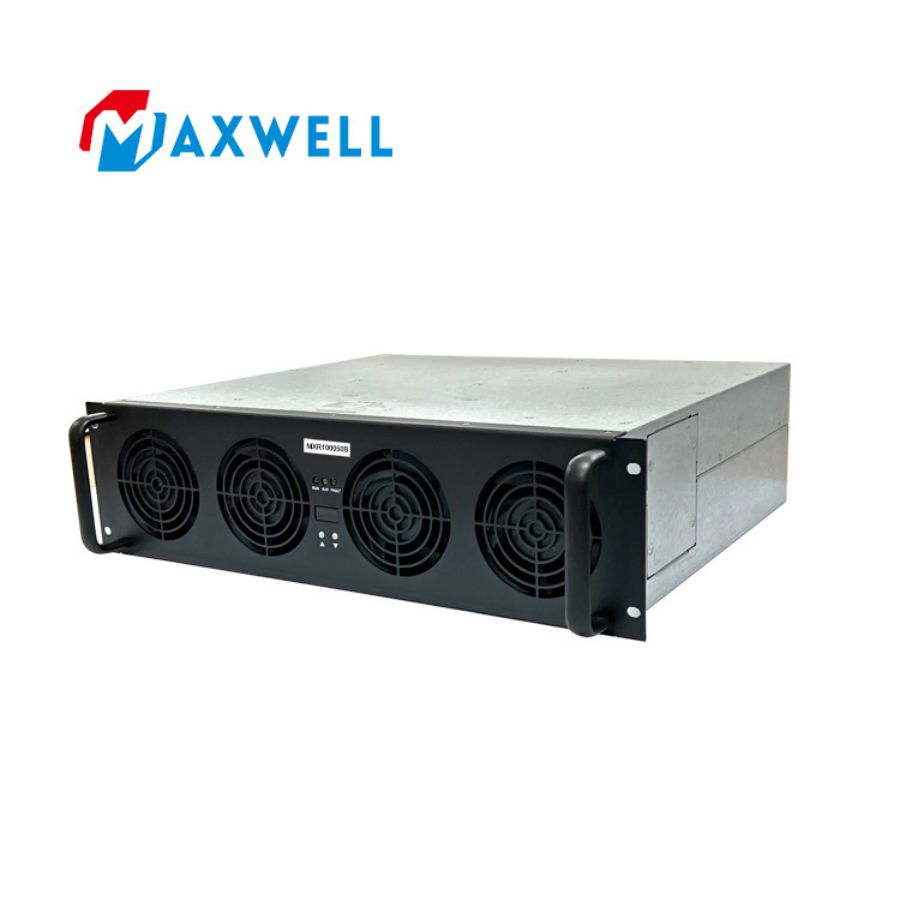

50kw UL Listed EV DC Fast Charger Module Rectifier

1 / 5

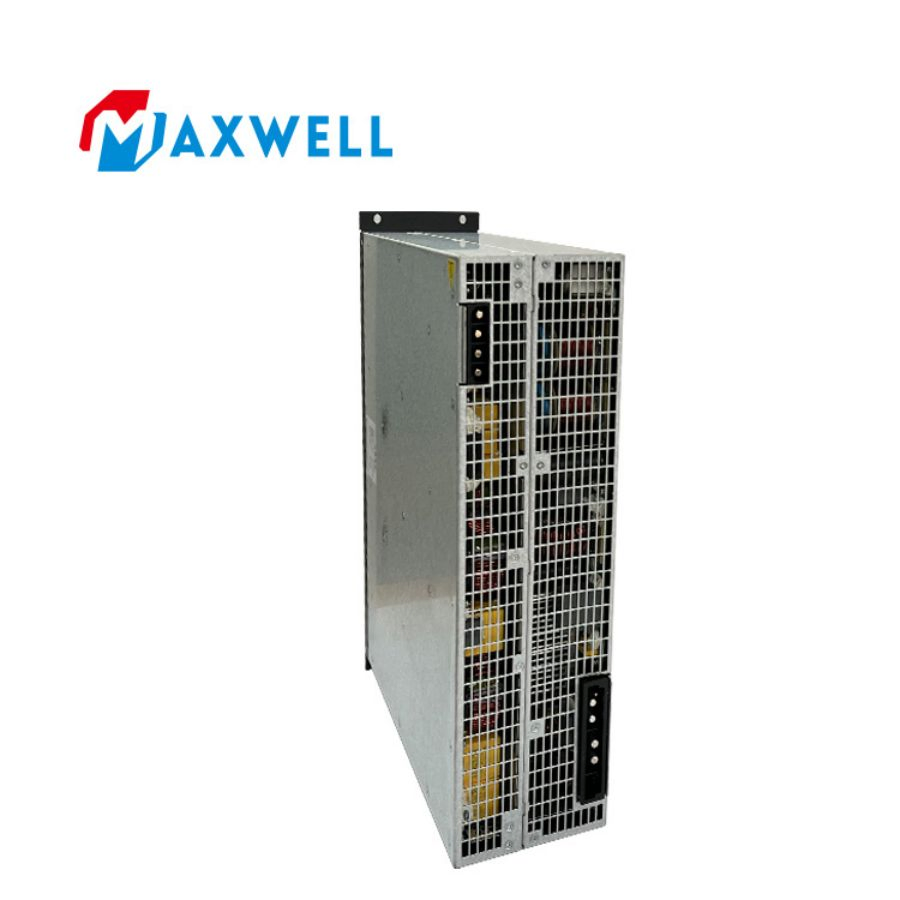

50kw UL Listed EV DC Fast Charger Module Rectifier

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📊 Basic Information

Model NO.

MXR100050B

Input Voltage

260VAC-530VAC

Input Current

<100A

Output Current

0-167A

Certifications

CE, UL, EMC, TUV, RoHS

Power Supply

3phase+PE

Communication

Can Bus

Type

Fast EV Charging Station

Warranty

12 Months

HS Code

8504409999

📝 Product Description

MXR100050B is a charging power module developed for the shortage of charging pile industry. It has prominent advantages in ultra-high full-load operating temperature and ultra-wide constant power range. High reliability, high efficiency, high power factor, and high power density make it a leading choice in the market.

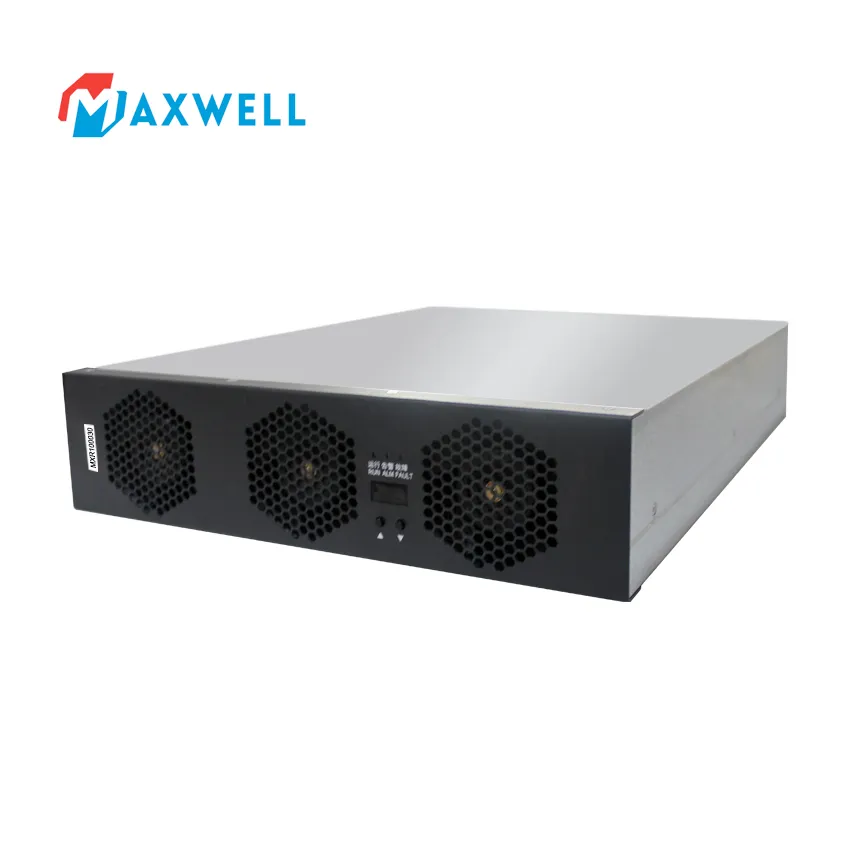

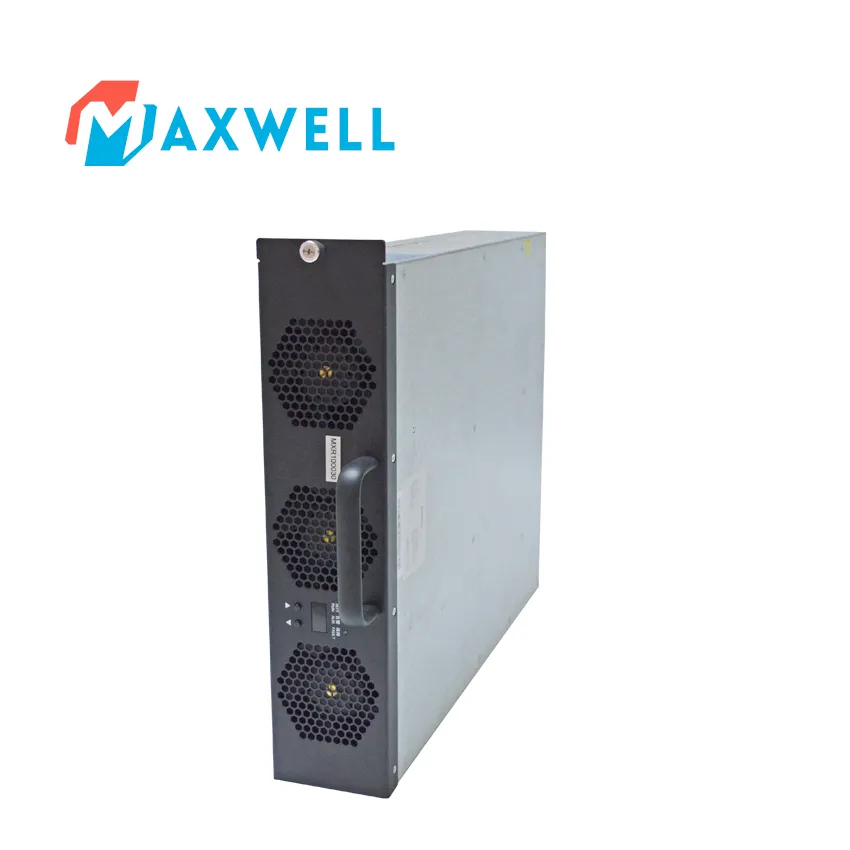

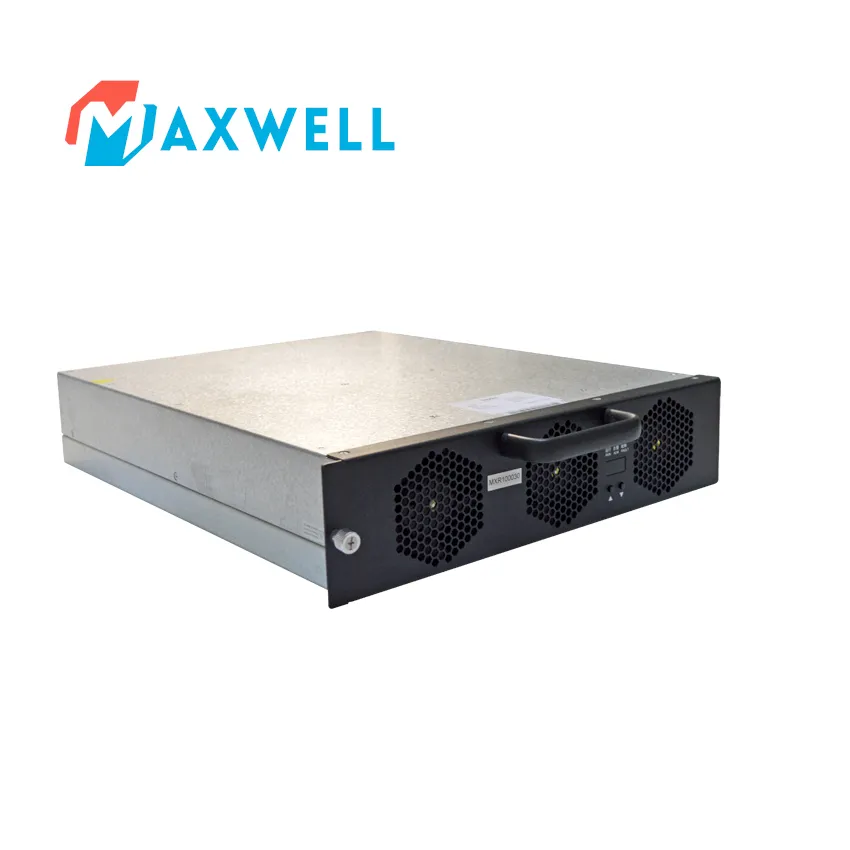

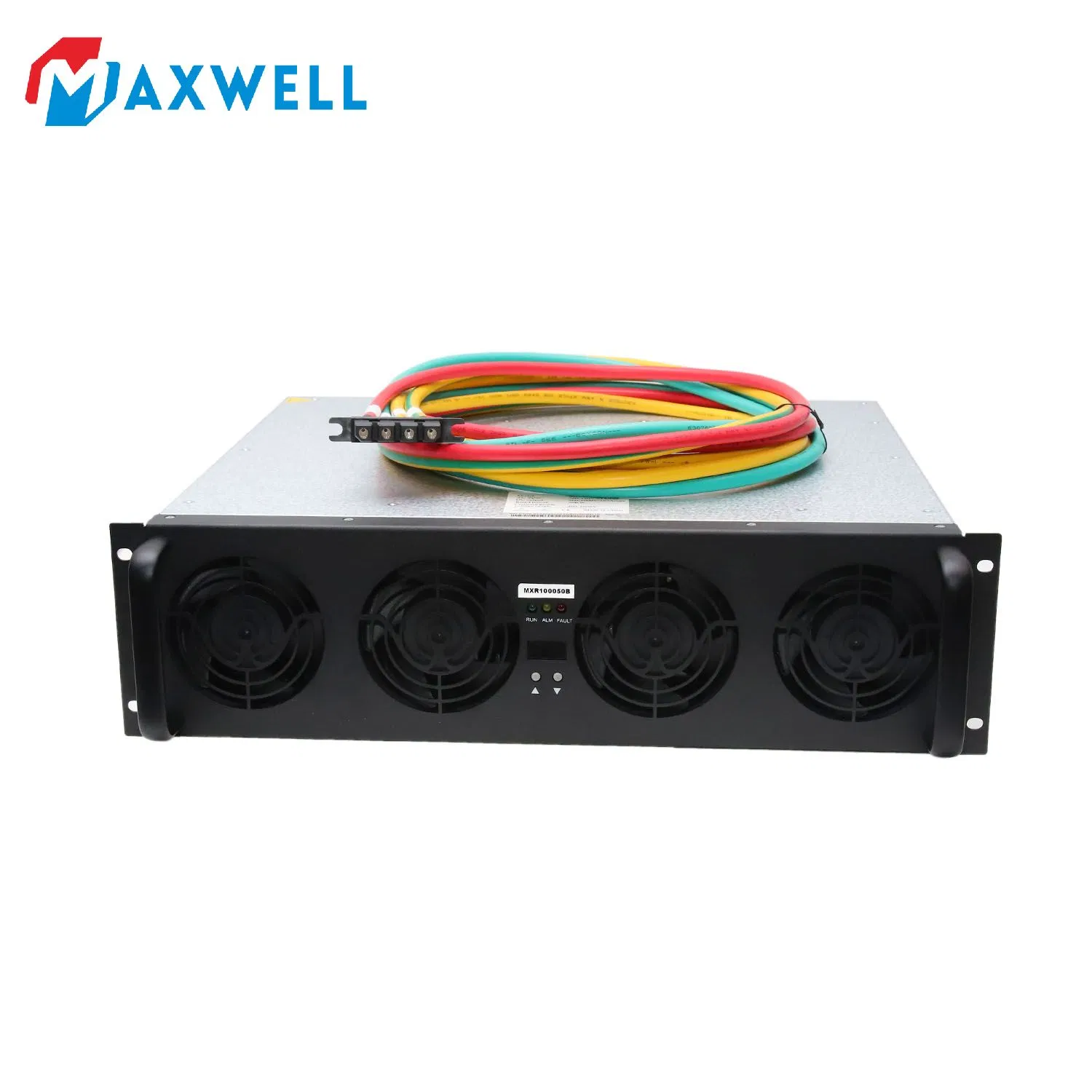

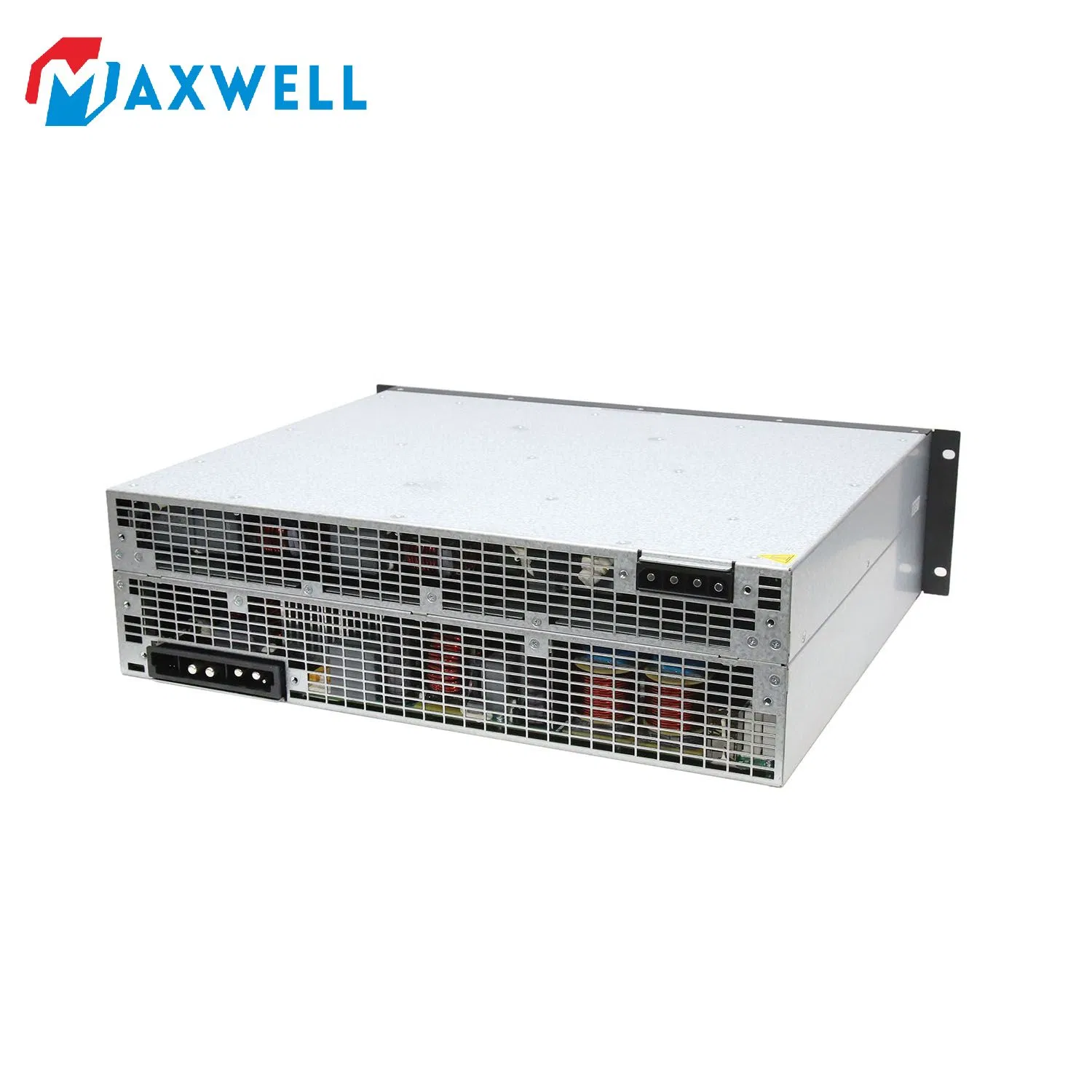

📸 Detailed Photos

⚙️ Product Parameters

Dimensions	125mm(H) * 380mm(D) * 440mm(W)
Communication Mode	CAN bus

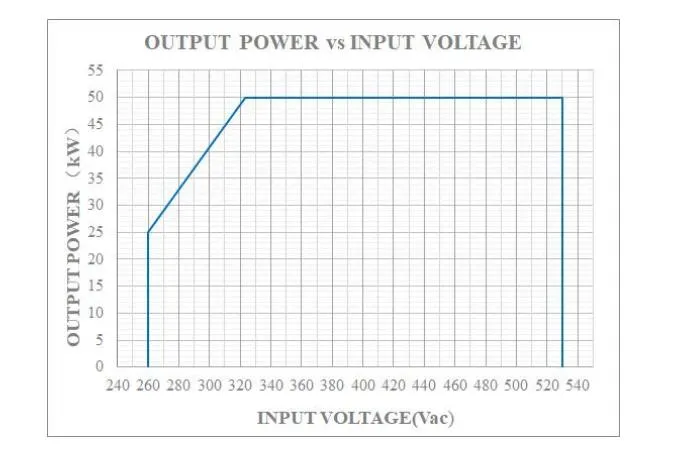

Input Voltage	260Vac-530Vac, three phase+PE
Power Factor	≥0.99
Output Power	50kW

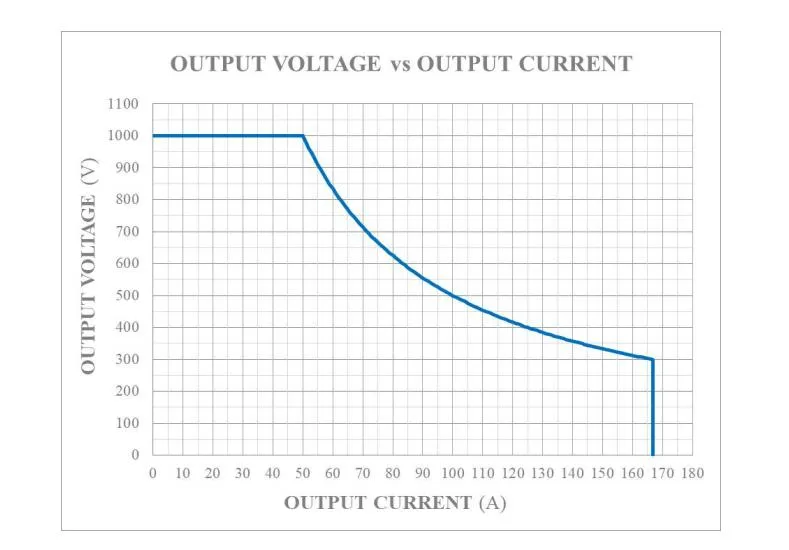

Voltage Range	200Vdc-1000Vdc (Default: 200Vdc)
Operating Temperature	-40°C to +75°C
EMC Standard	CE (EMI meet CLASS B) Reference standard IEC61851

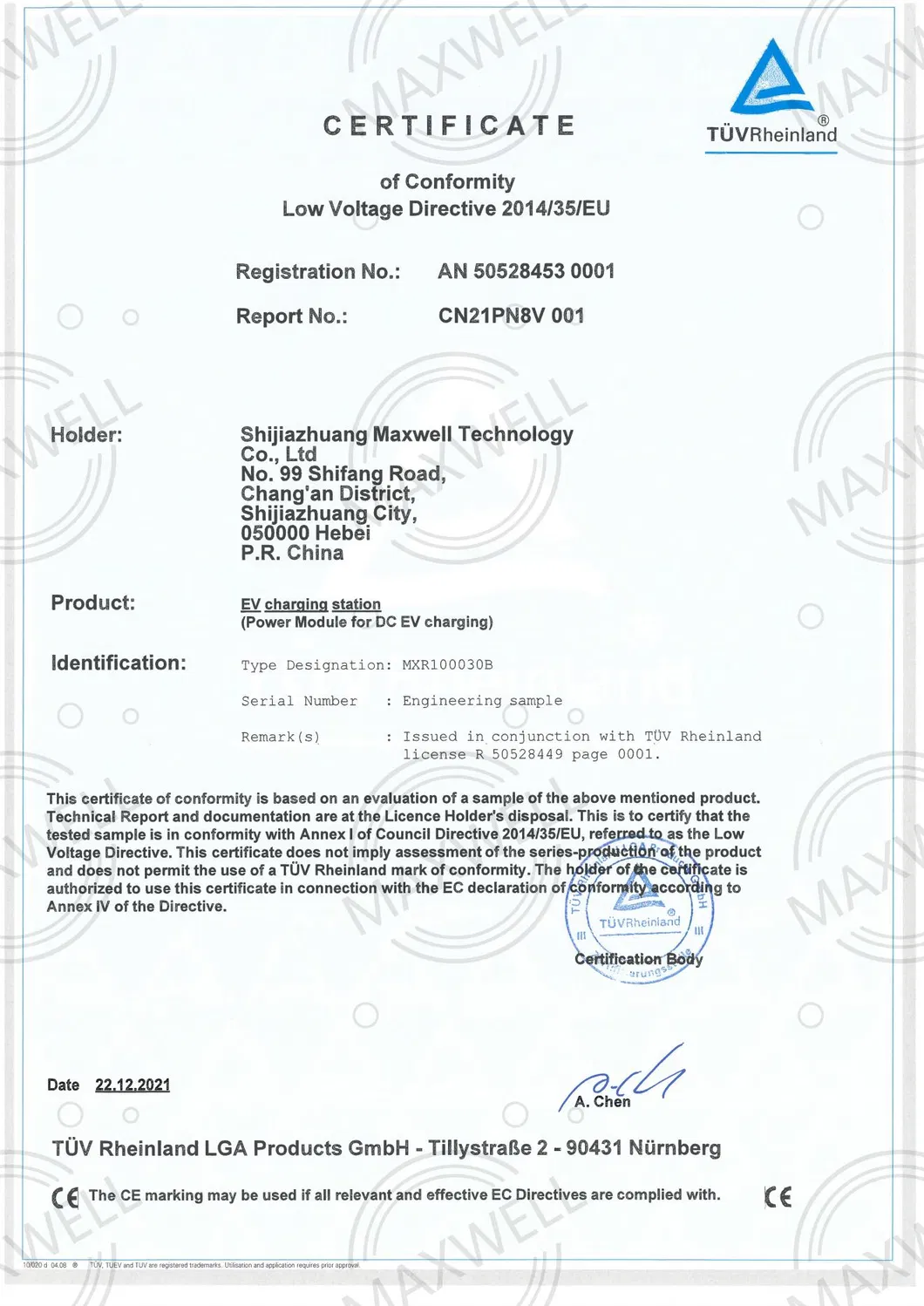

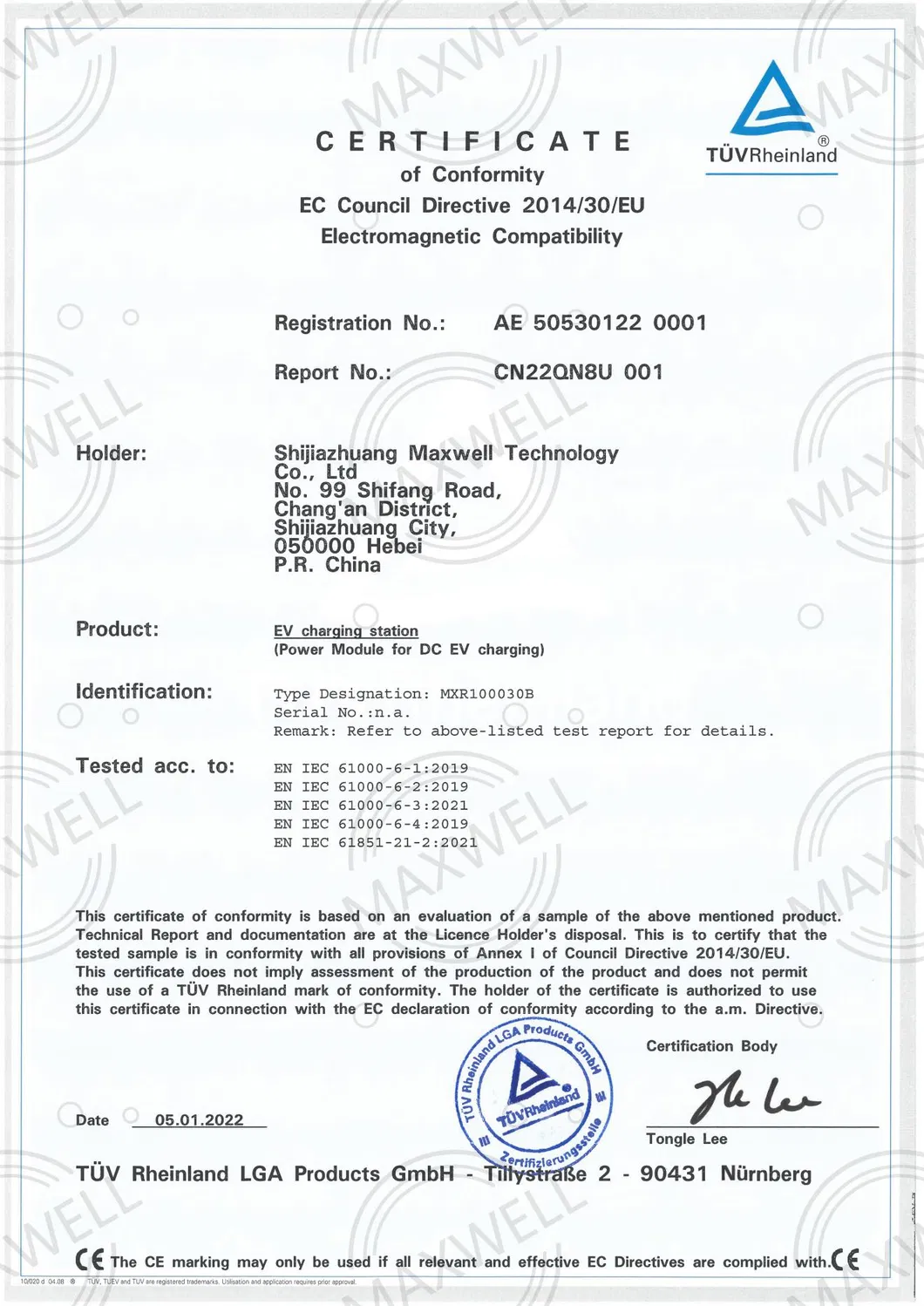

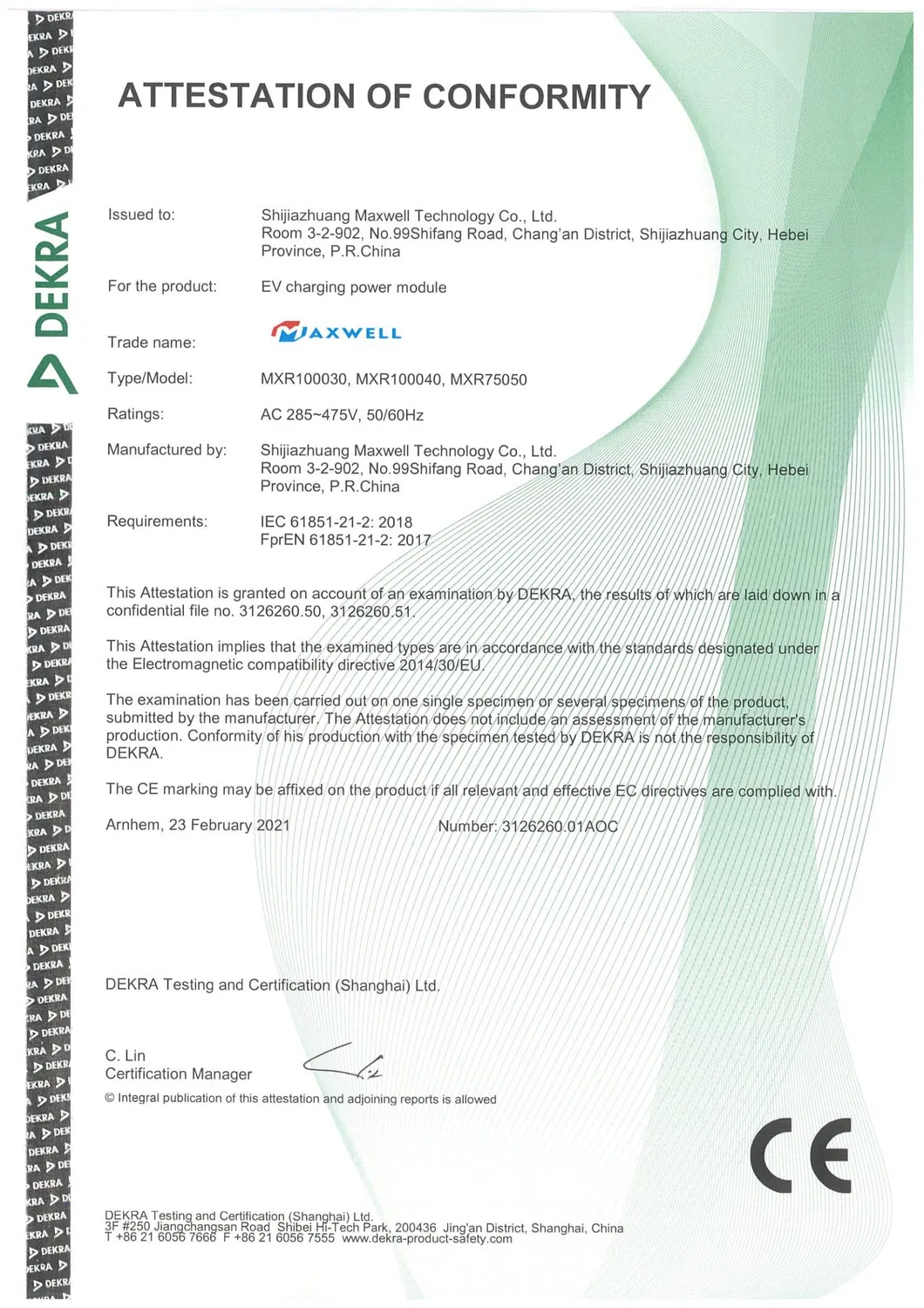

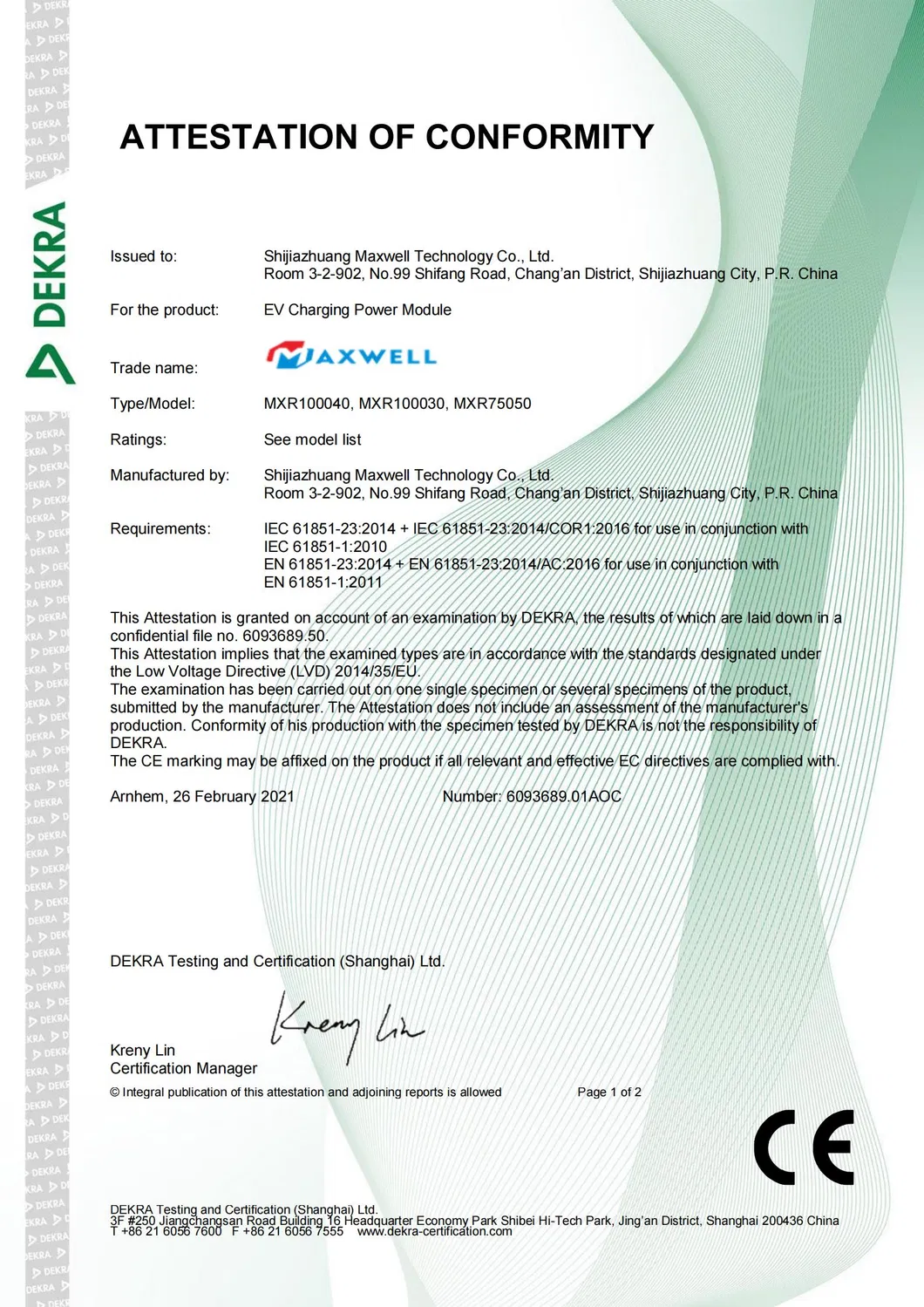

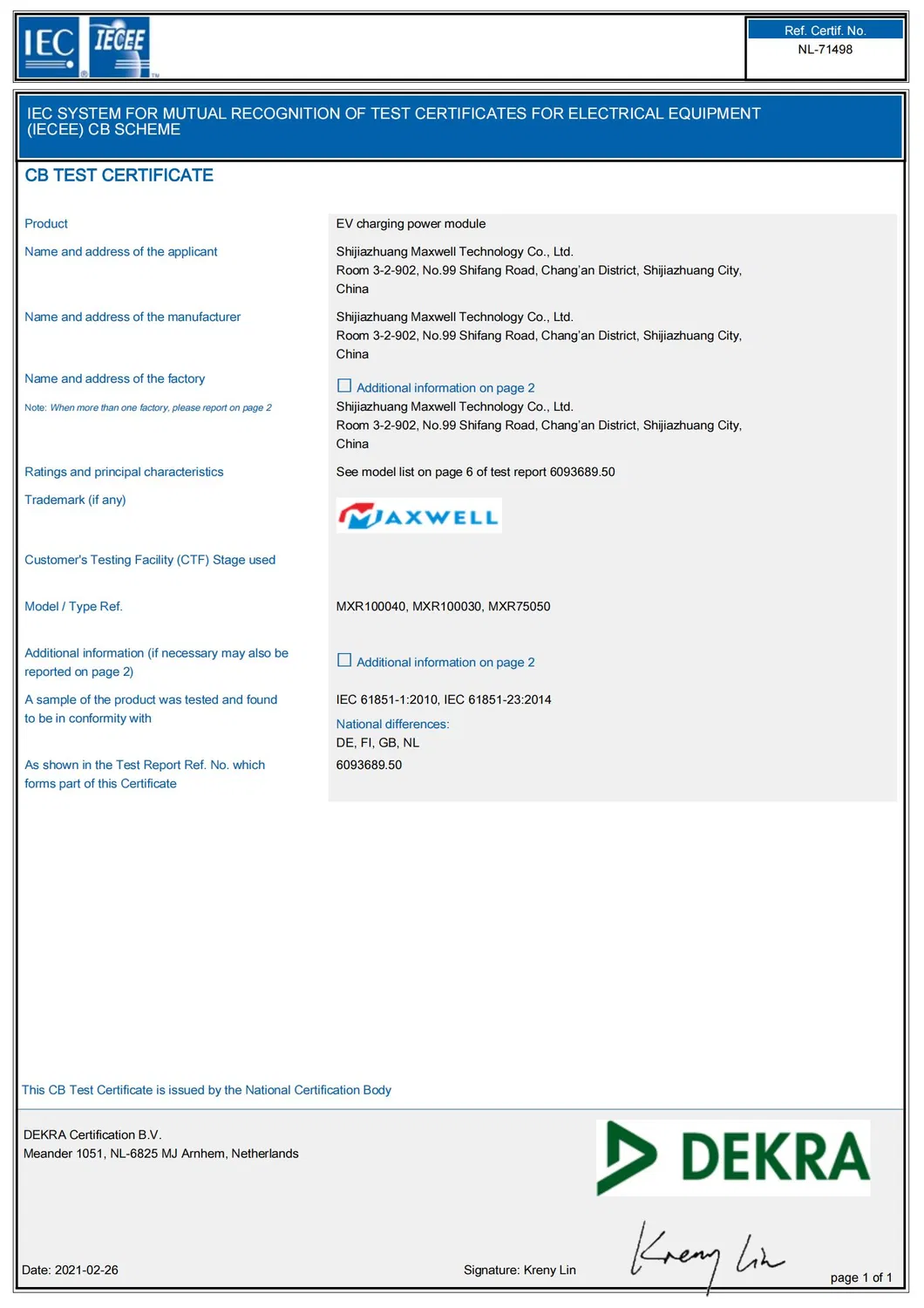

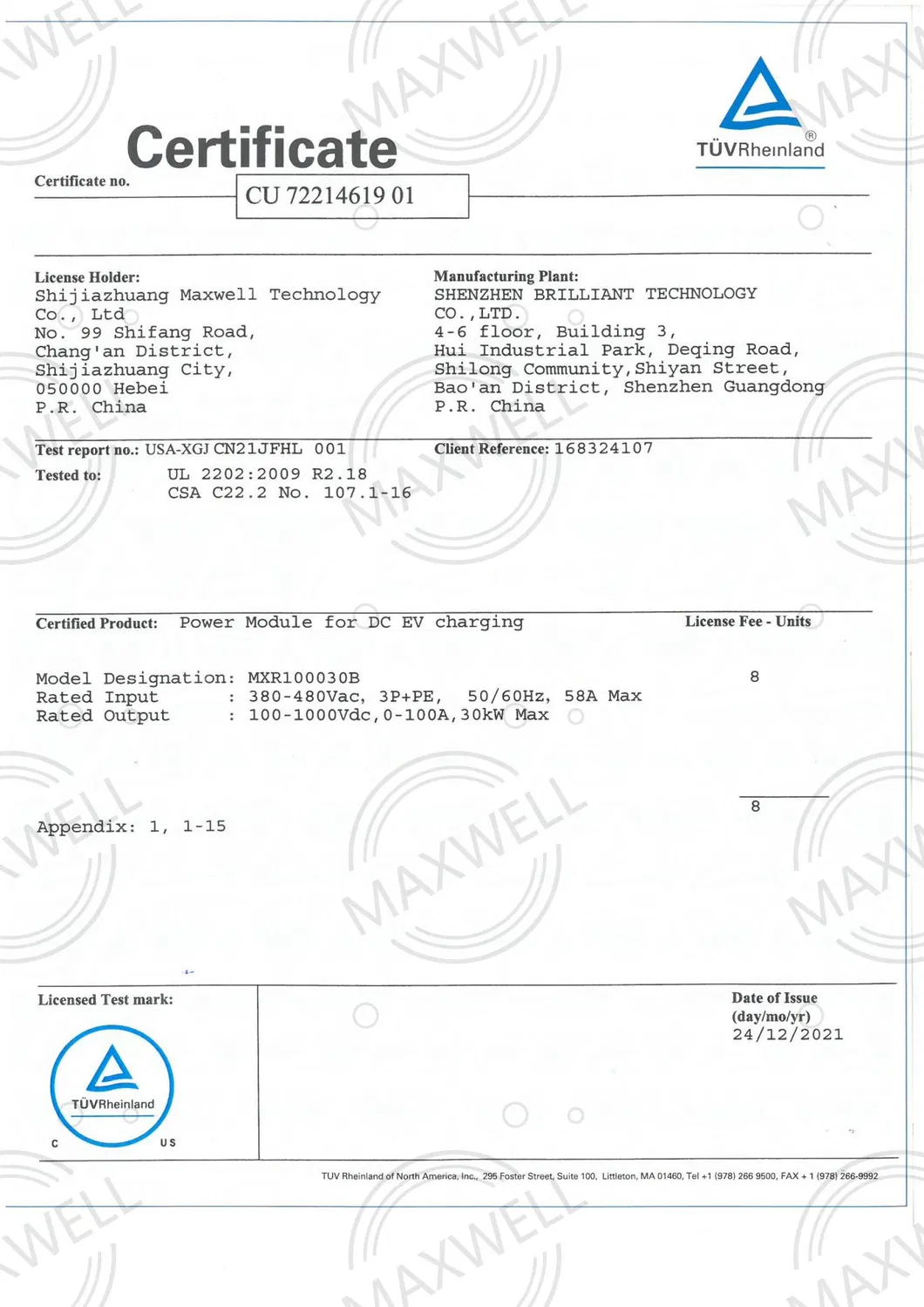

📜 Certifications

📦 Packaging & Shipping

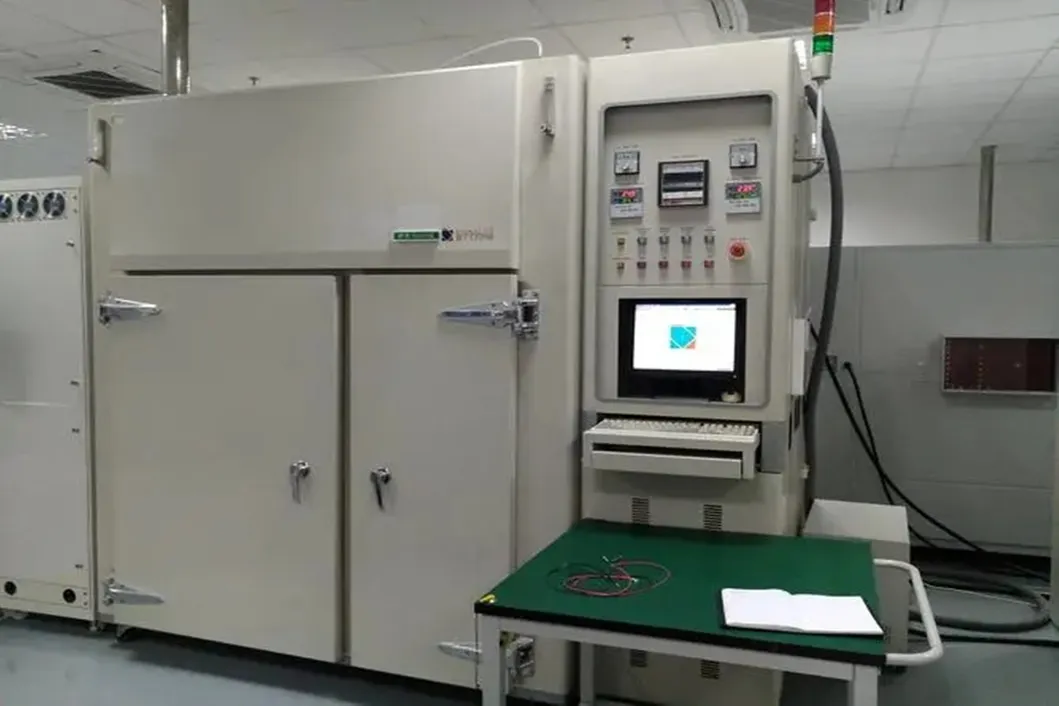

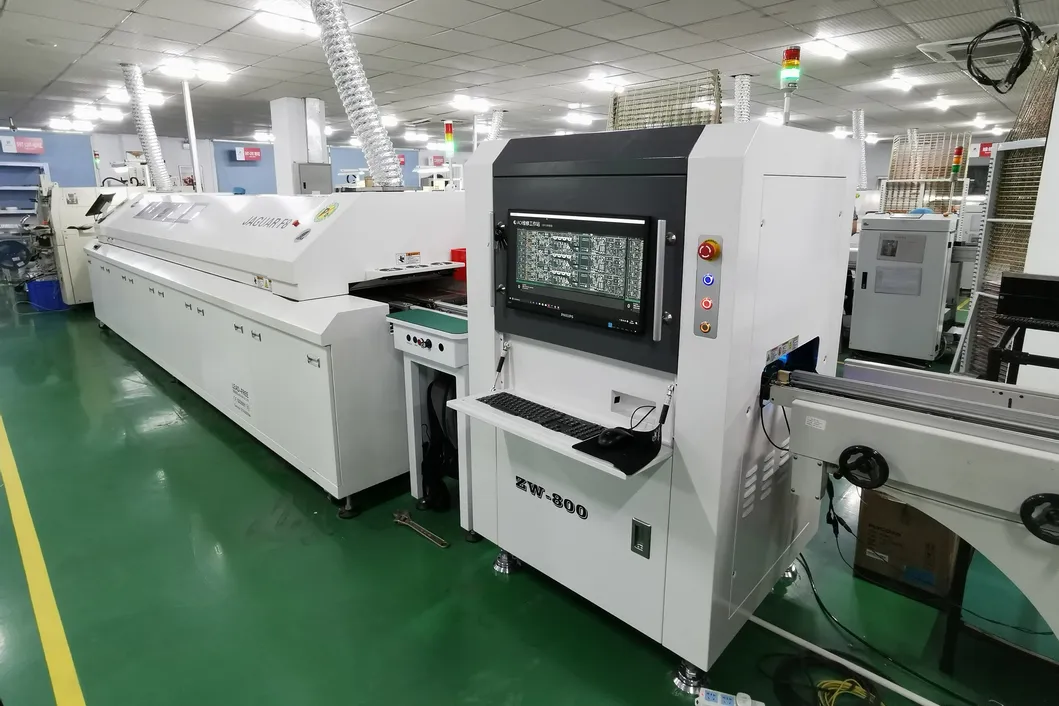

🏭 Production & Capability

Focusing on the research, development, and production of power electronic products, we provide services for mid-to-high-end DC power supply systems. With over ten years of expertise, our high-quality R&D team continues to innovate in the power supply industry.

Our products are widely used in automotive, electric power, railway, metallurgy, and communications fields. Current models include 15kW, 20kW, 30kW, 40kW, and 50kW series, serving major charging stations and international airports.

❓ Frequently Asked Questions

Are you a professional manufacturer of EV charging components?

Yes, we are a professional manufacturer and supplier of EV charger power modules and EV DC charging stations with over 12 years of industry experience.

What are the main advantages of your charger modules?

Our products feature digital power control, active PFC for 0.99 power factor, and compliance with CCS, CHAdeMO, and GB/T standards. They include full protection for over/under voltage, surge, and short circuits.

Which global DC fast charging standards do your modules support?

Our solutions comply with global standards including CCS-1 (North America), CCS-2 (Europe), CHAdeMO (Japan), and GB/T (China).

What kind of after-sales support do you provide?

We provide comprehensive technical training, including written materials and videos. Our team offers professional support to ensure customers master parts replacement and maintenance.

What is the standard delivery time for orders?

Standard delivery is typically made within 2-3 weeks after the order is confirmed, depending on the quantity and specifications.

What are your terms of payment and packing?

We generally pack goods in kraft cartons with pallets. Payment terms are T/T in advance or irrevocable L/C at sight.
