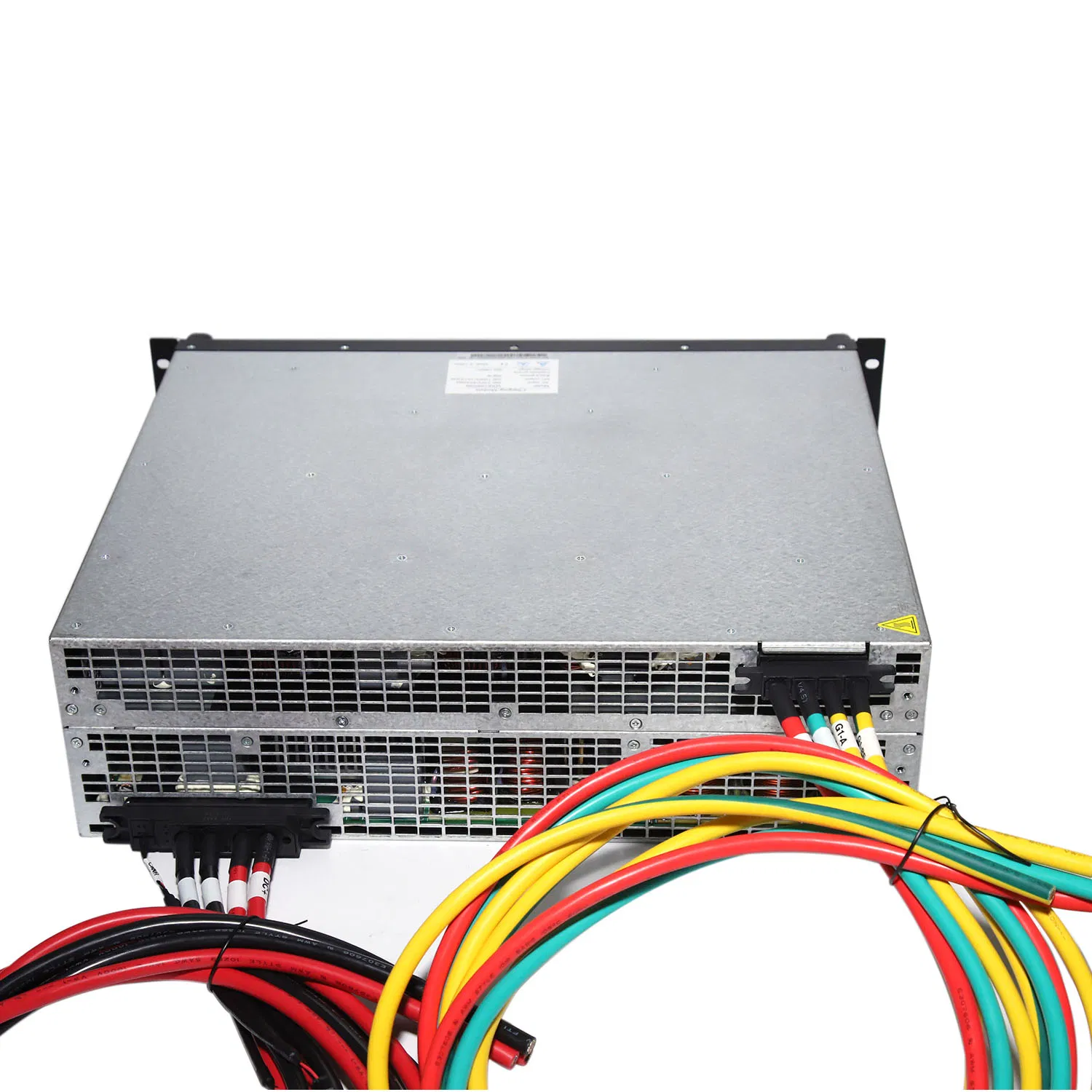

50kw@400VDC DC Charging Power Module for EV Fast Chargers and Charging Stations

1 / 5

50kw@400VDC DC Charging Power Module for EV Fast Chargers and Charging Stations

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋 Basic Information

Model NO.	MXR40050B
Input Voltage	260-650VAC
Input Current	<95A
Output Current	0-200A
Cooling Method	Forced Air Cooling
Certification	CE, ISO, TUV, RoHS
Warranty	12 Months
Communication Mode	Can Bus
Specification	125440380mm
HS Code	8504409999
Production Capacity	10000 pieces/Year

⚡ Product Description

MXR40050B is a high-power AC/DC charging module specially designed for high-end charging scenarios of electric vehicles. Rated output power is 50 kw, and supports 260VAC~650VAC three-phase four-wire system (A/B/C +PE) input, the output voltage range is 0 ~ 400VDC, the maximum output current is 200 A, supports silent mode setting, in silent mode, the noise is less than 55dB.

Dimensions	125mm(H)440mm(W)380mm(D)
Power Factor	≥0.99

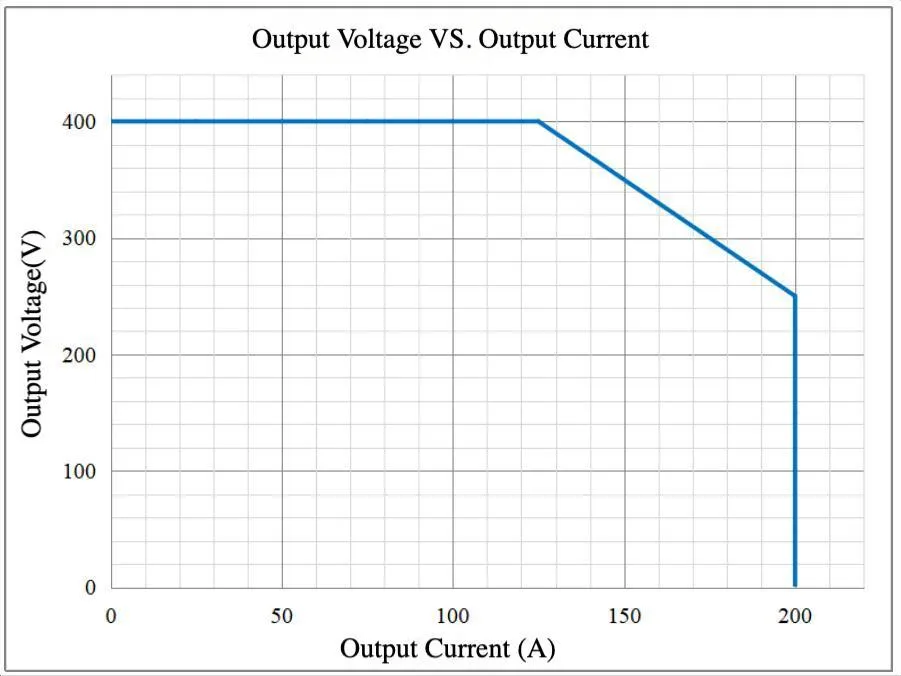

Output Power	50kw @ output voltage ≥300Vdc
Voltage Range	0Vdc-400Vdc (Default: 200Vdc)

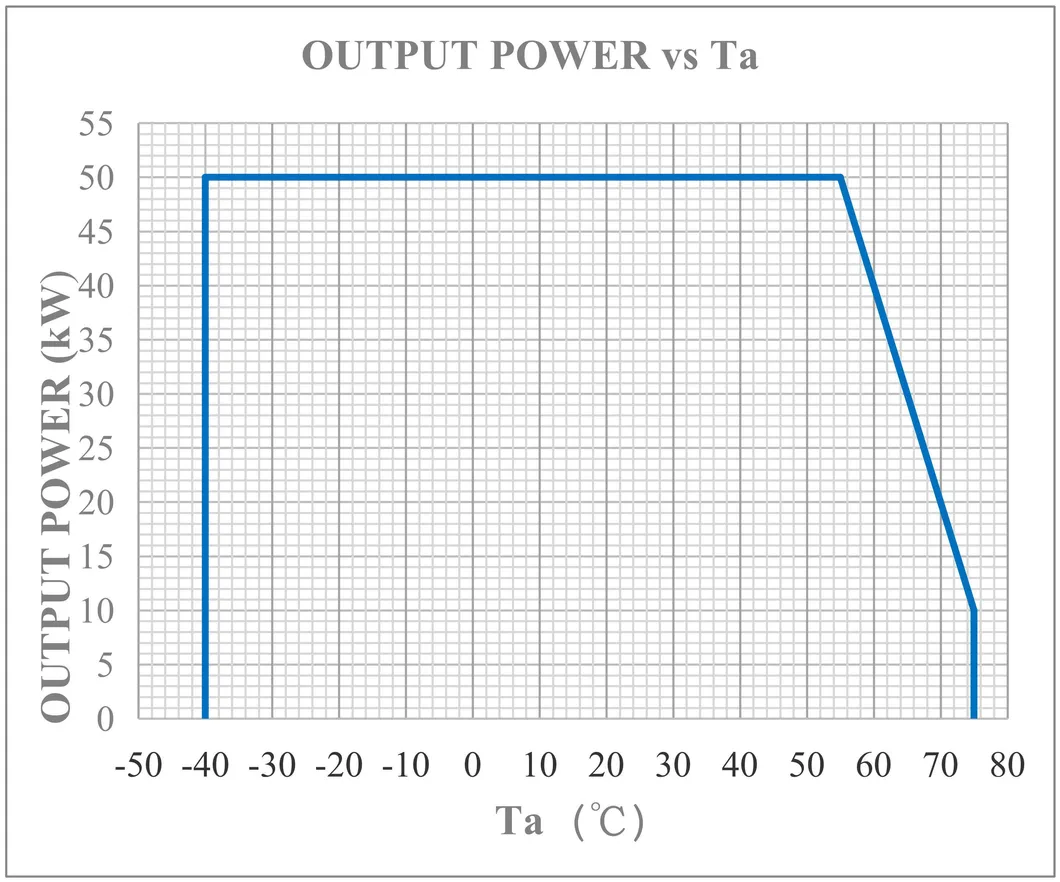

Operating Temp	-40°C to +75°C
Test Specification	IEC61851-21-2:2018; EN61851-21-2-2017

🌟 Key Features

✔ Low noise: support silent mode setting (55dB, 60dB)

✔ High protection: isolated components from air duct

✔ Ultra-high efficiency: >97%

✔ Ultra-high power density (40W/in³)

✔ Ultra-high reliability (MTBF > 1,000,000h)

✔ Compatible with AC and DC input

✔ Wide input voltage range: 260VAC~650VAC

✔ Support hot swap function

✔ Perfect intelligent protection functions

✔ Support output back-feed isolation

✔ LED digital tube display and button settings

✔ EMI meets CLASS B Limit

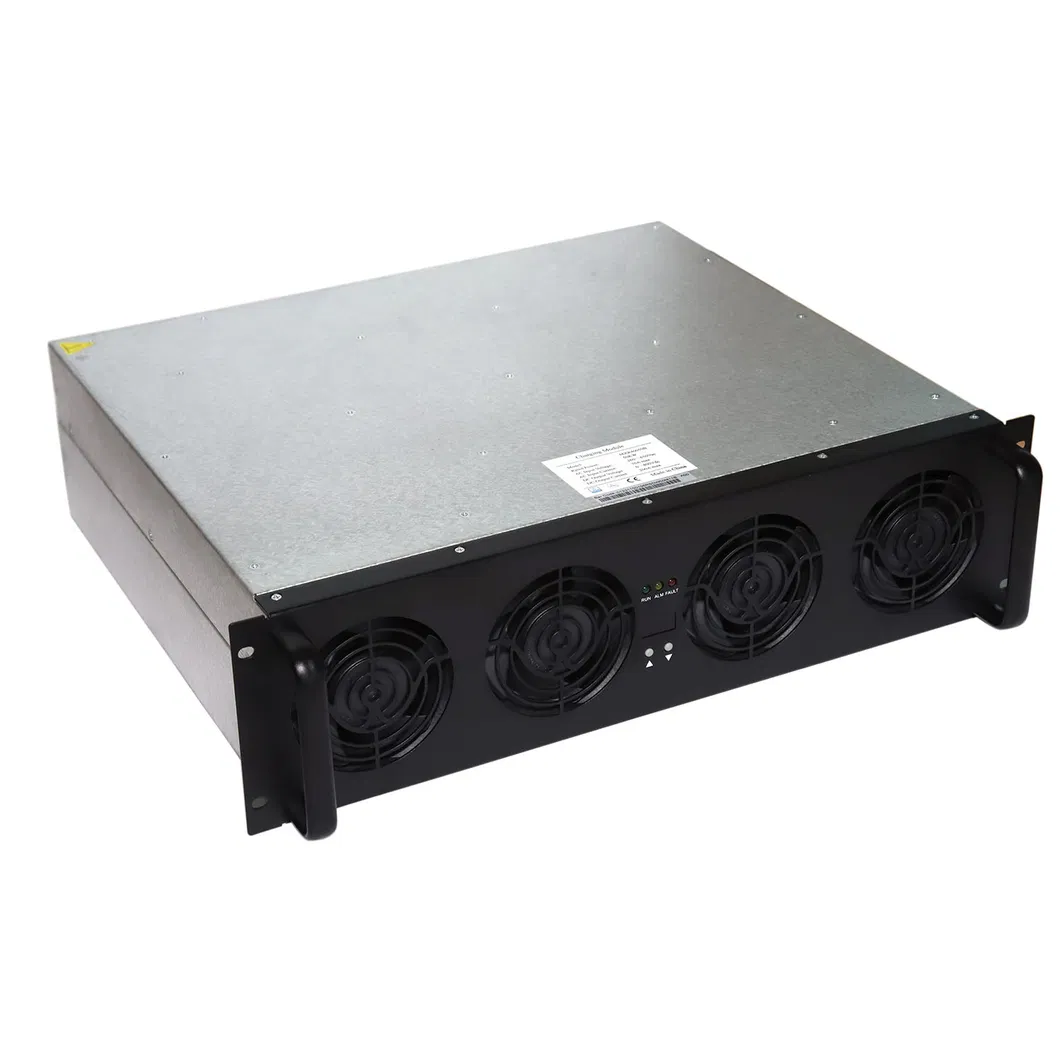

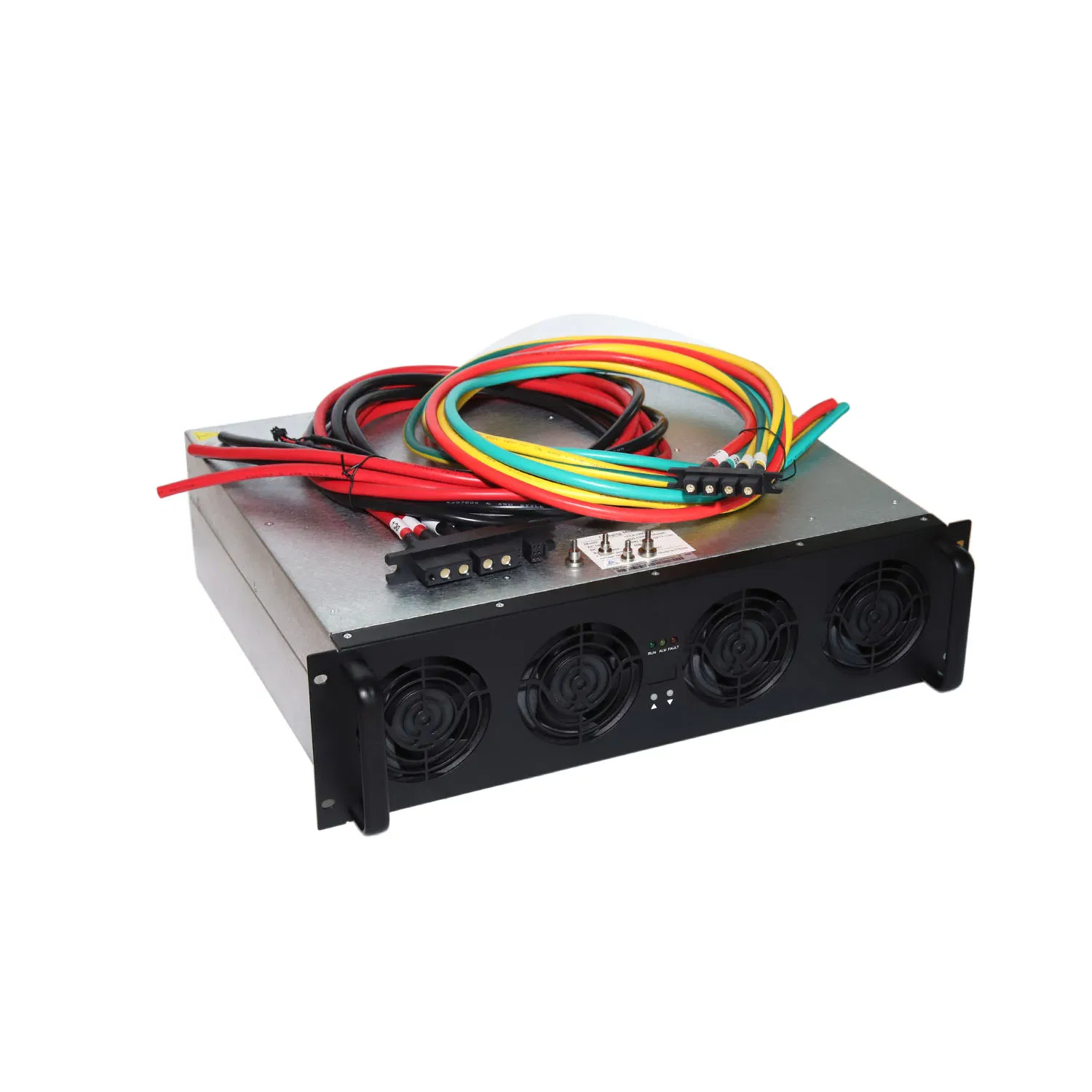

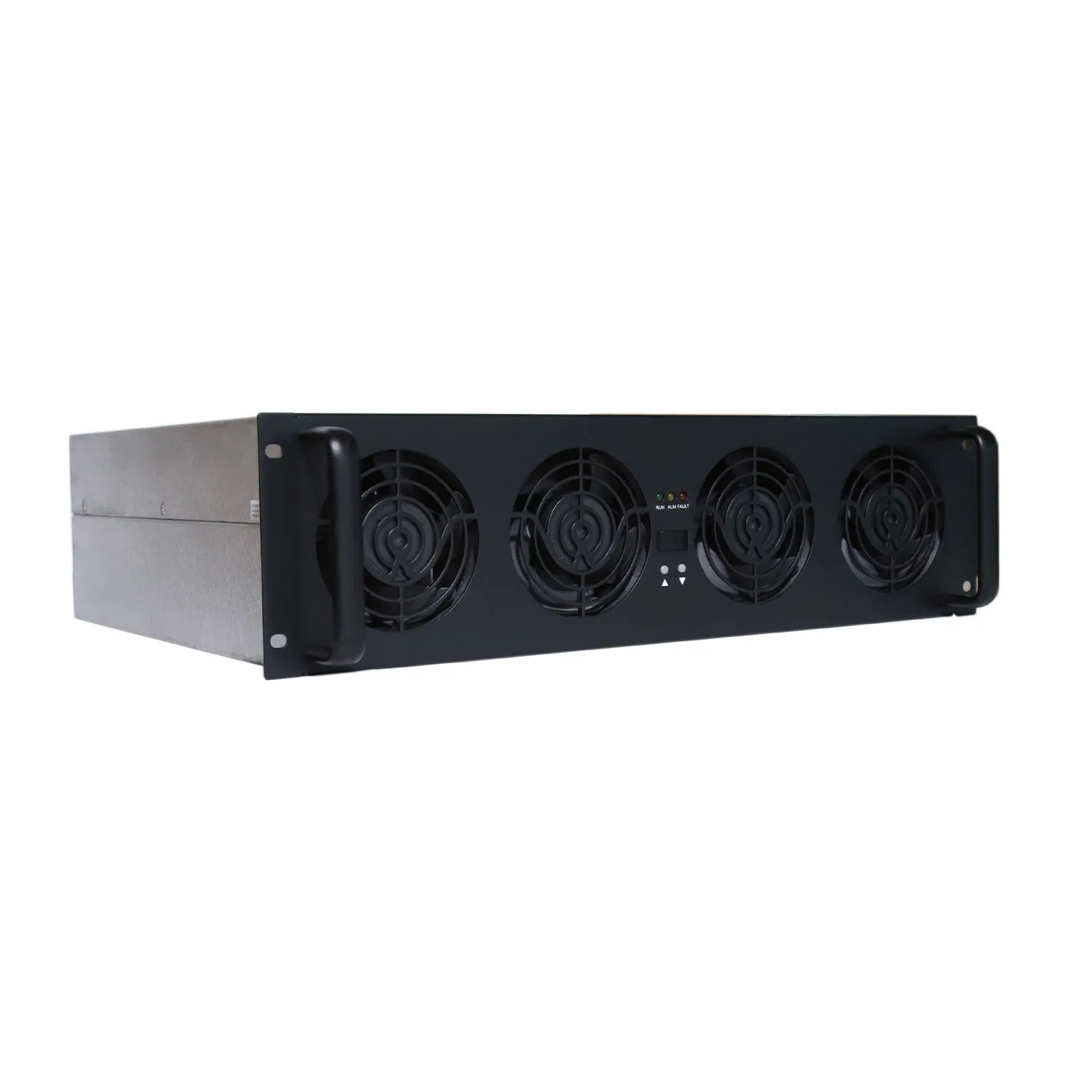

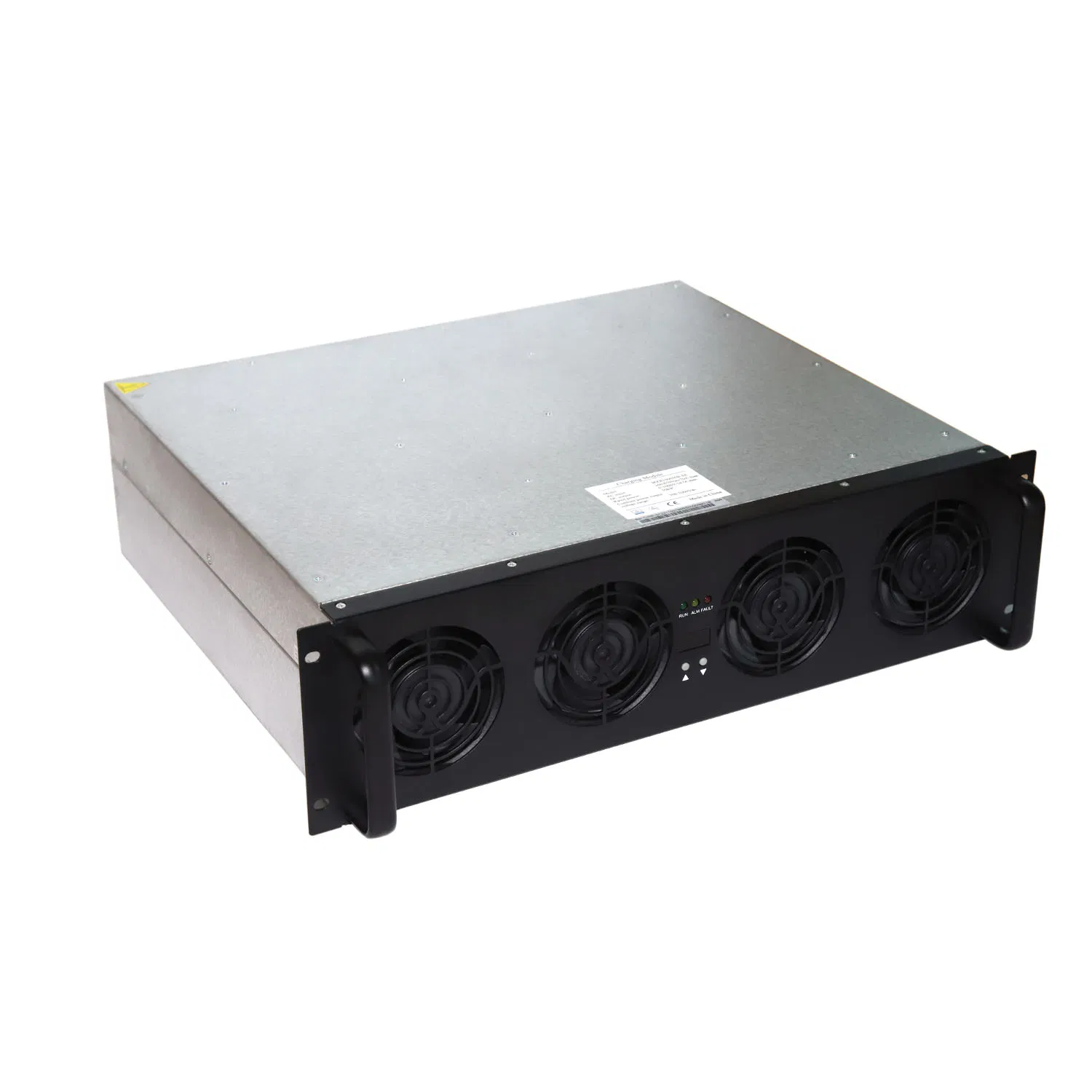

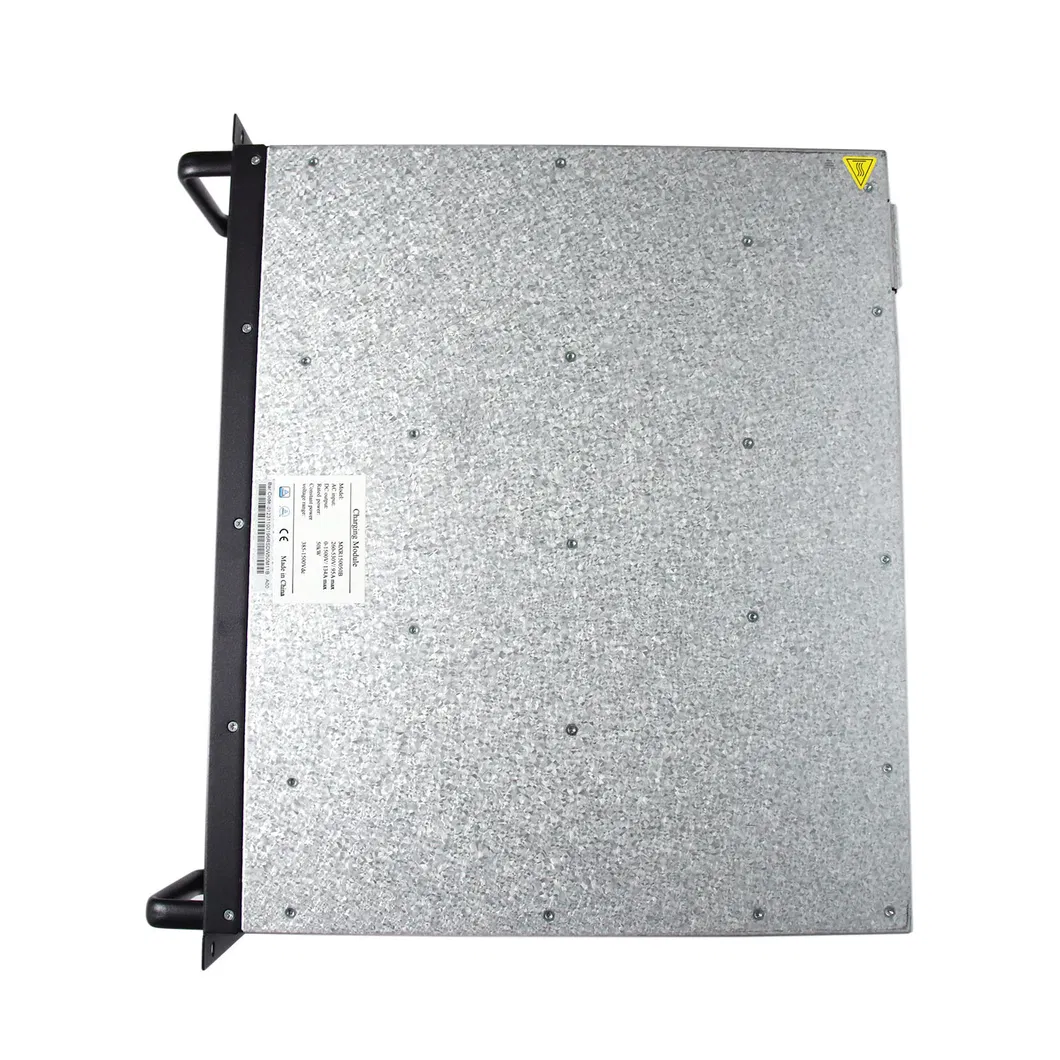

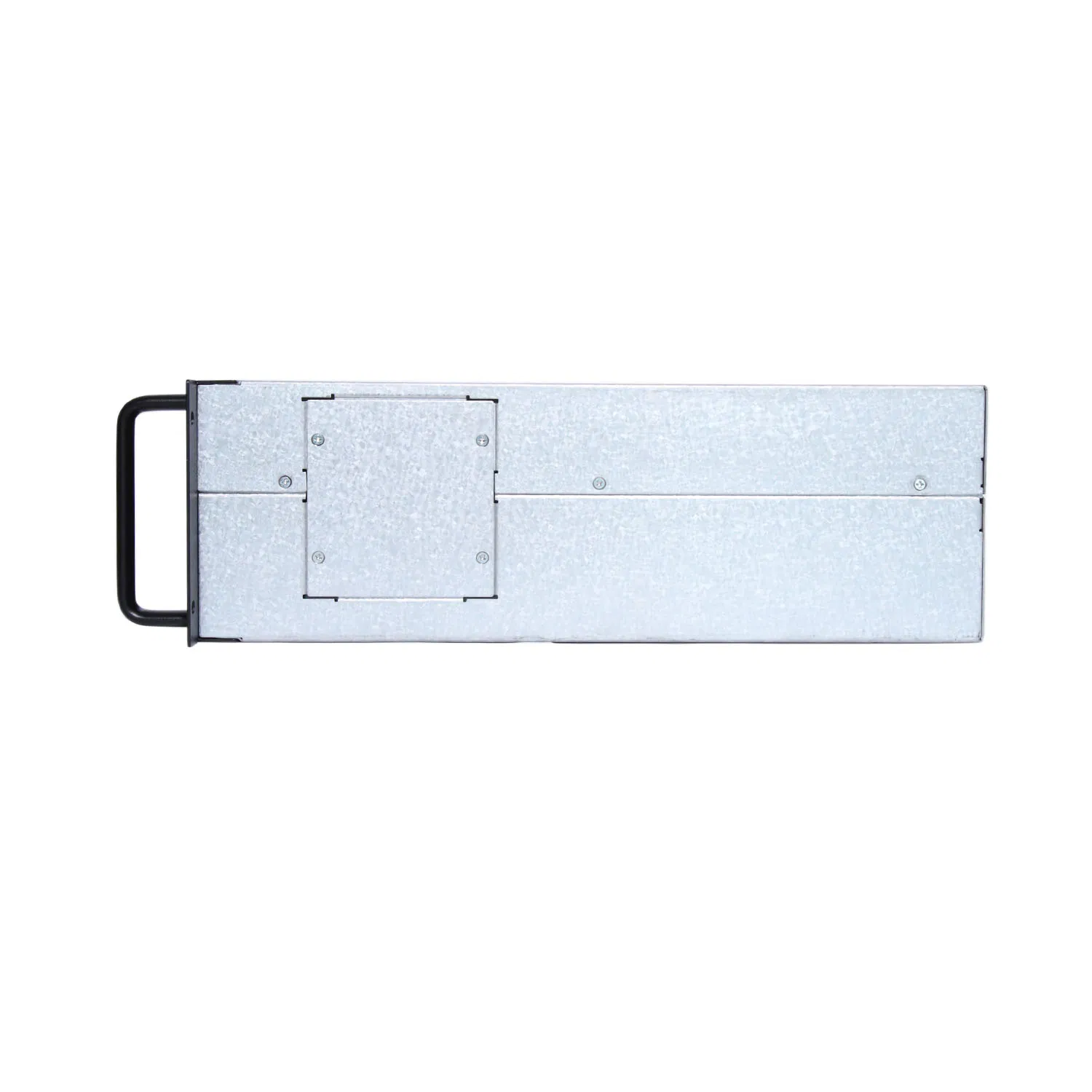

🖼️ Product Gallery

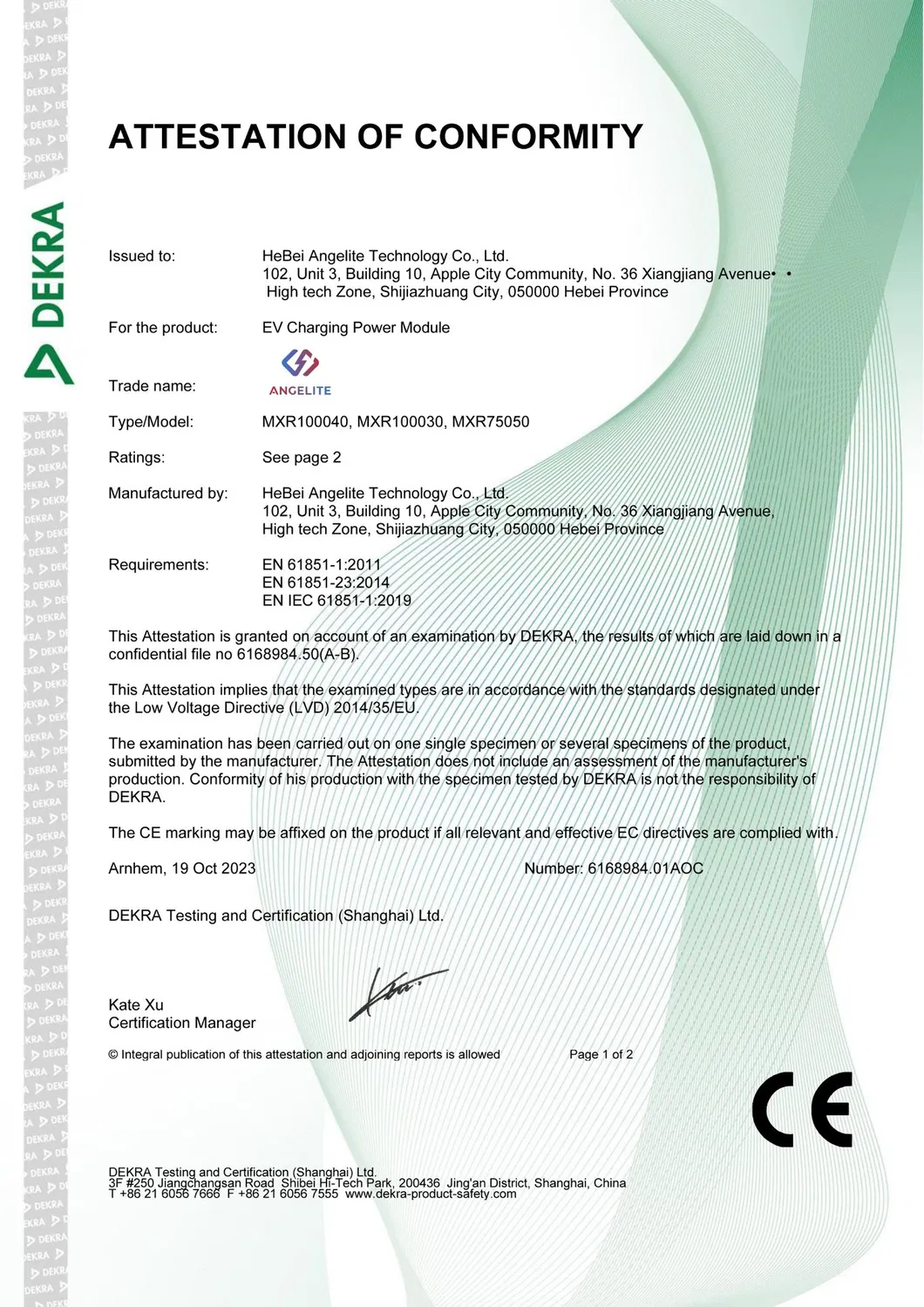

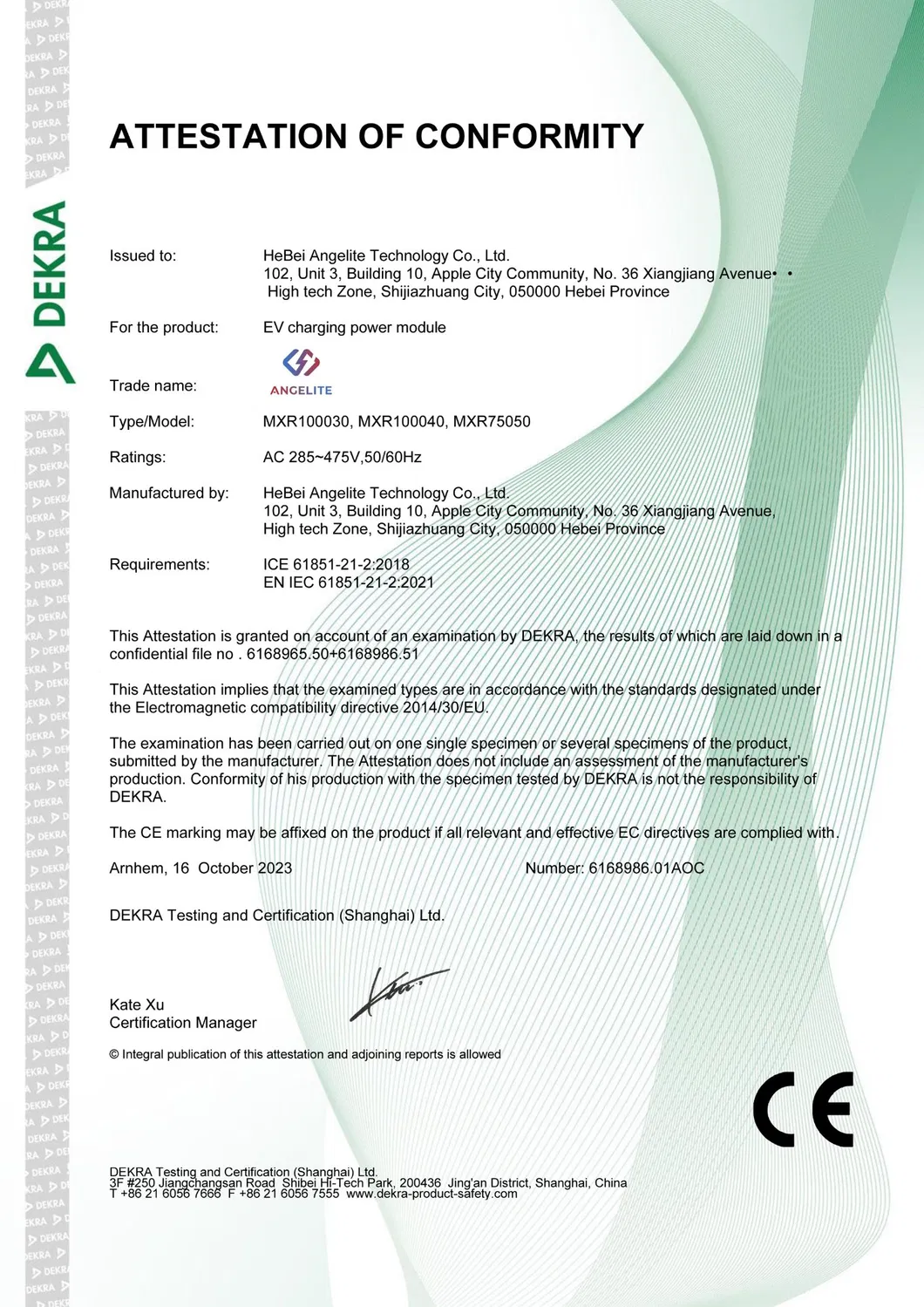

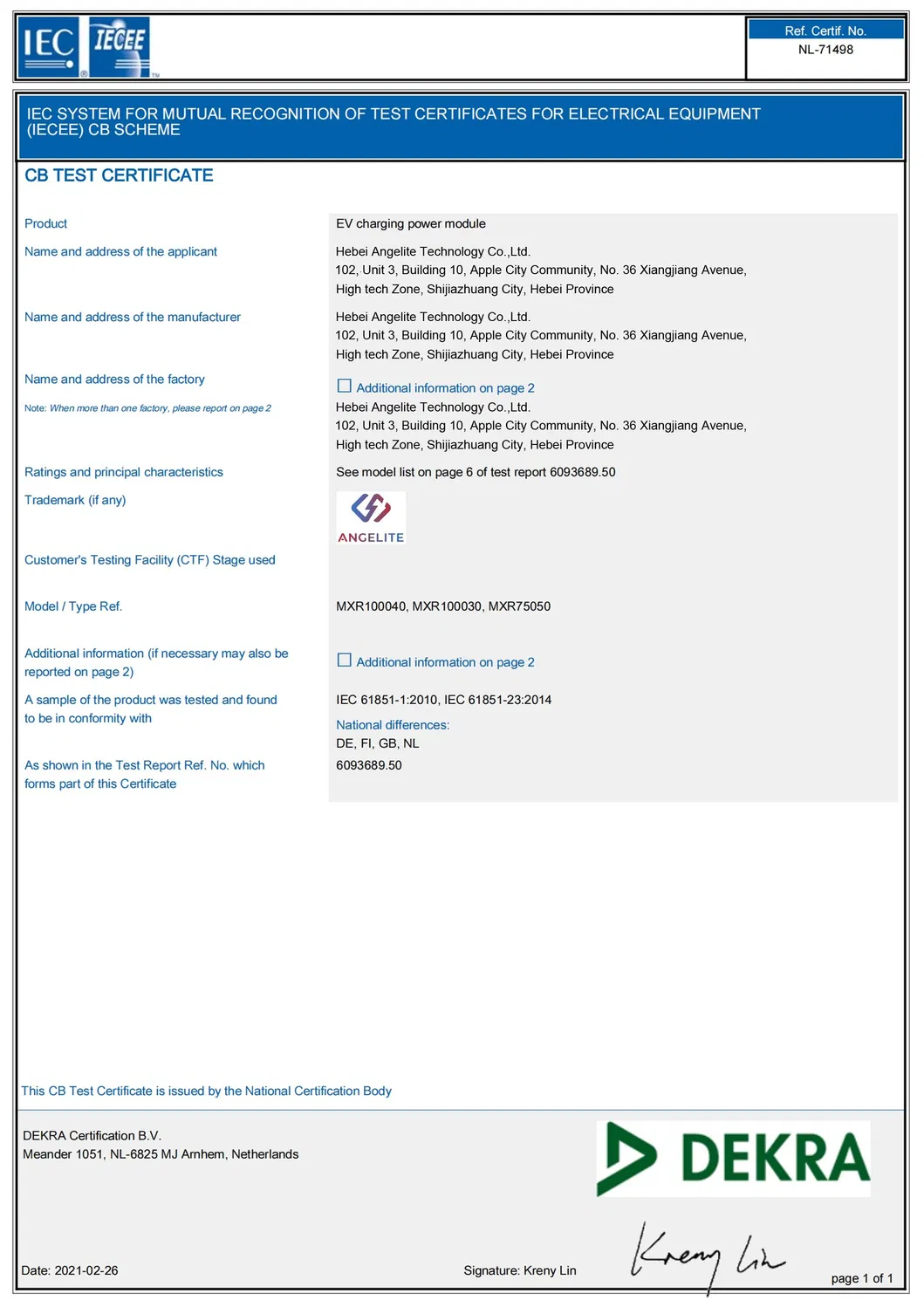

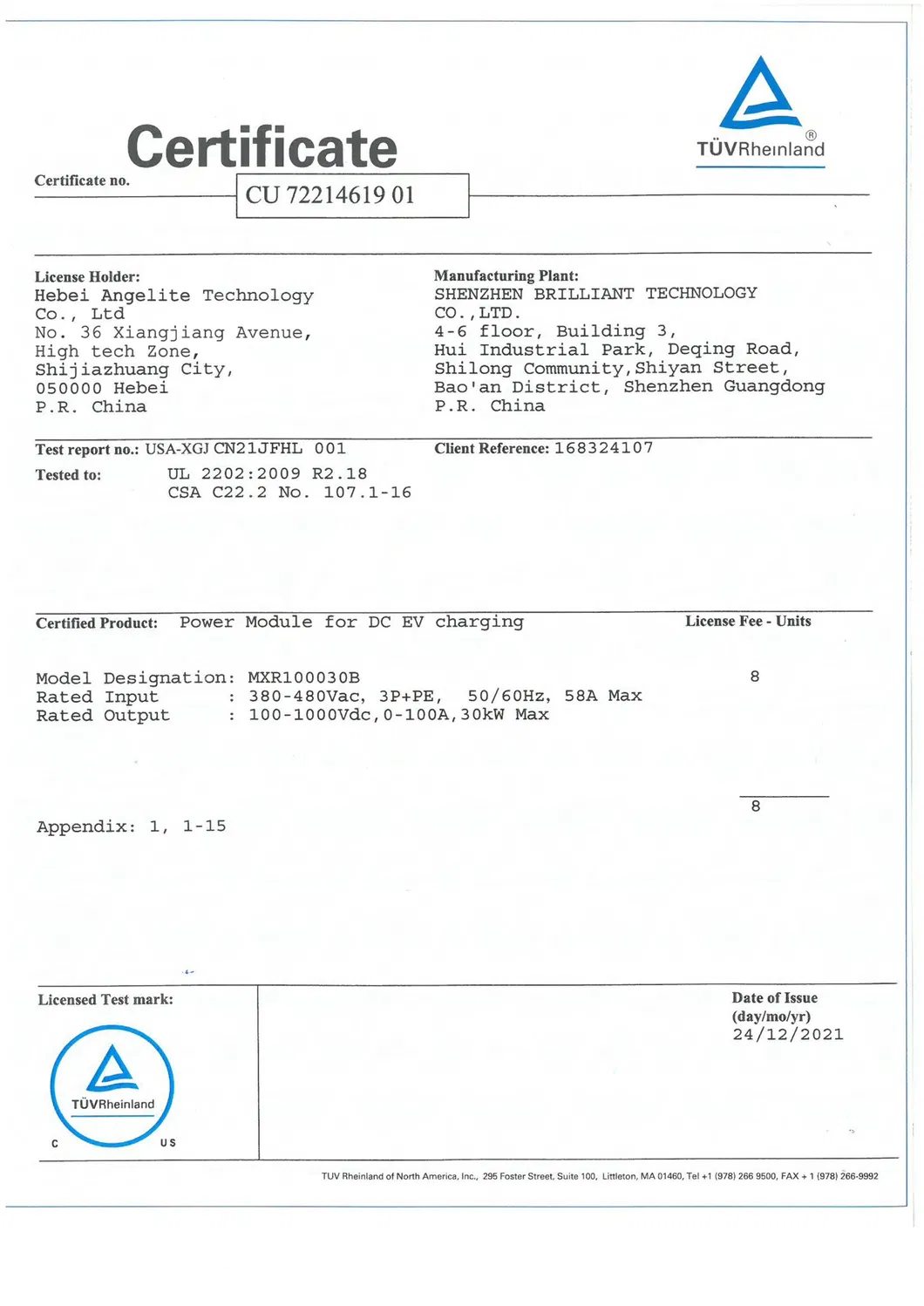

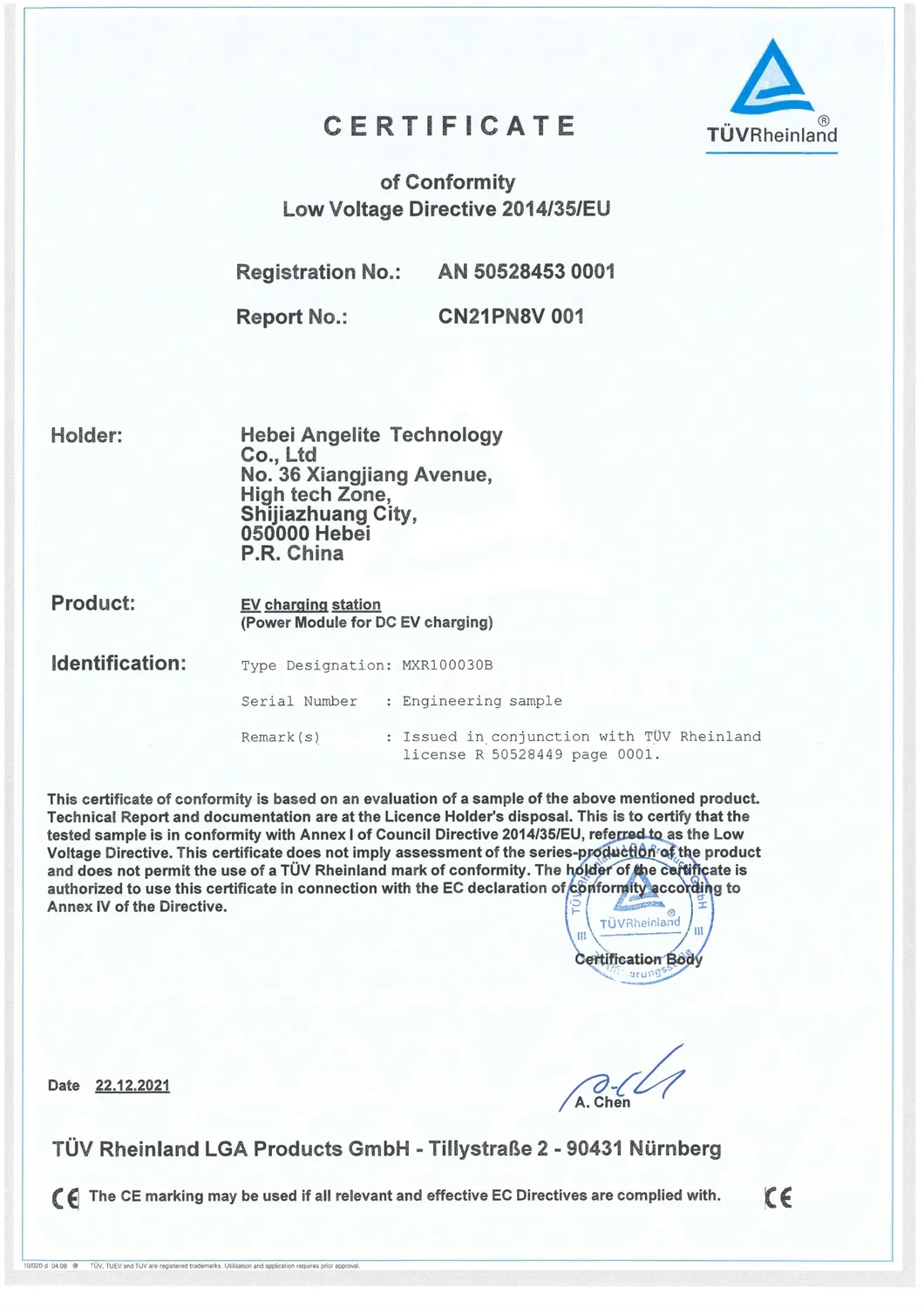

📜 Certifications

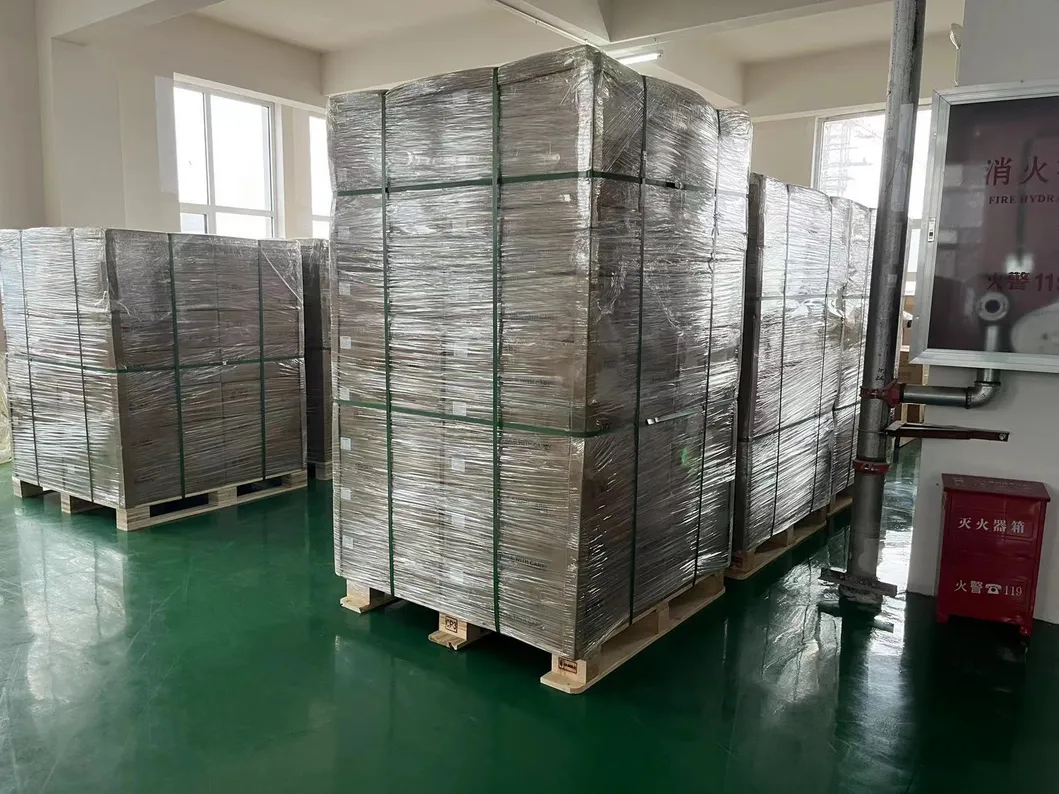

📦 Packaging & Shipping

🏭 Professional Capabilities

Specializing in the research, development, and production of power electronic products, providing high-end DC power supply systems for global infrastructure. With independent intellectual property rights and a focus on technological innovation, we provide equipment supporting services that realize significant customer value.

Our products are widely applied in automotive, electric power, railway, metallurgy, and communications fields, with a performance record spanning across various international markets.

❓ Frequently Asked Questions

Q1: What is the maximum output power of the MXR40050B module? A: The MXR40050B provides a rated output power of 50kW when the output voltage is ≥300Vdc.

Q2: How efficient is this charging module? A: The module is designed for ultra-high efficiency, reaching over 97%, which reduces energy loss and heat generation.

Q3: Does the module support silent operation for noise-sensitive areas? A: Yes, it supports a silent mode setting where the noise levels can be restricted to less than 55dB.

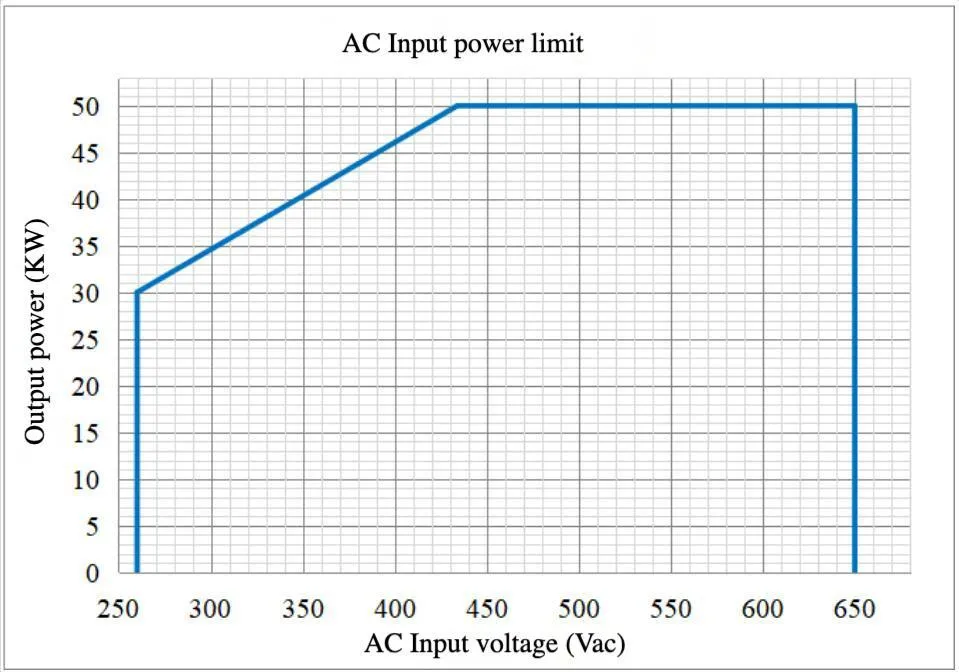

Q4: What is the input voltage range for this module? A: It supports a wide input voltage range from 260VAC to 650VAC, utilizing a three-phase four-wire system.

Q5: Can the modules be hot-swapped during maintenance? A: Yes, the MXR40050B supports hot-swap functionality, allowing for easy replacement or upgrades without shutting down the entire system.

Q6: What communication protocol does the module use for integration? A: The module uses the CAN bus communication protocol for group setting and system integration.
