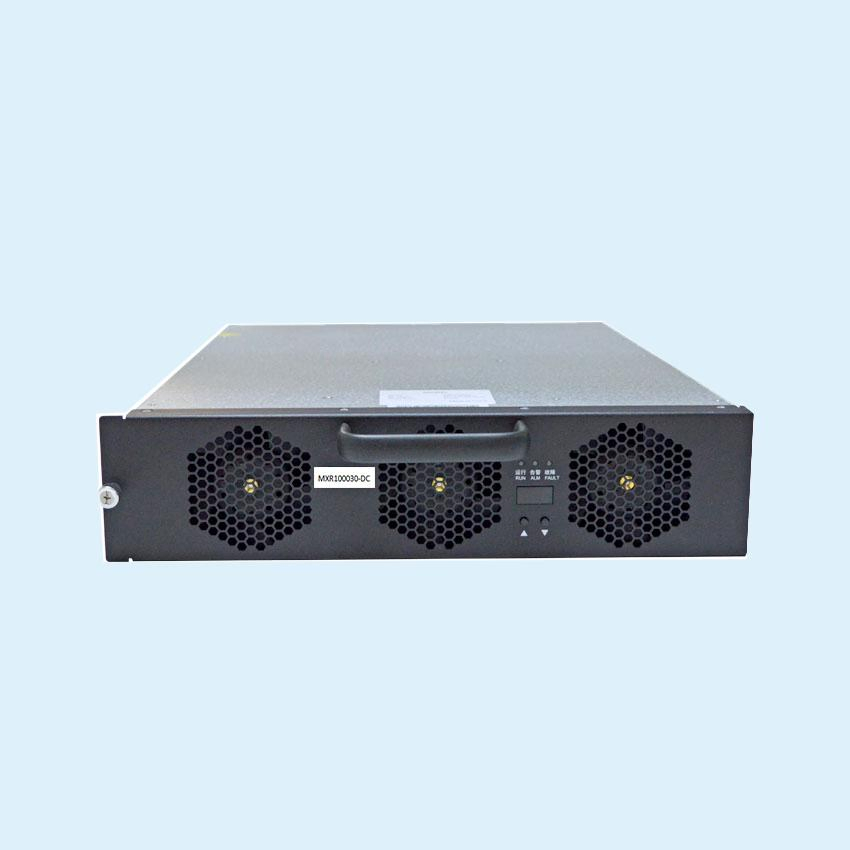

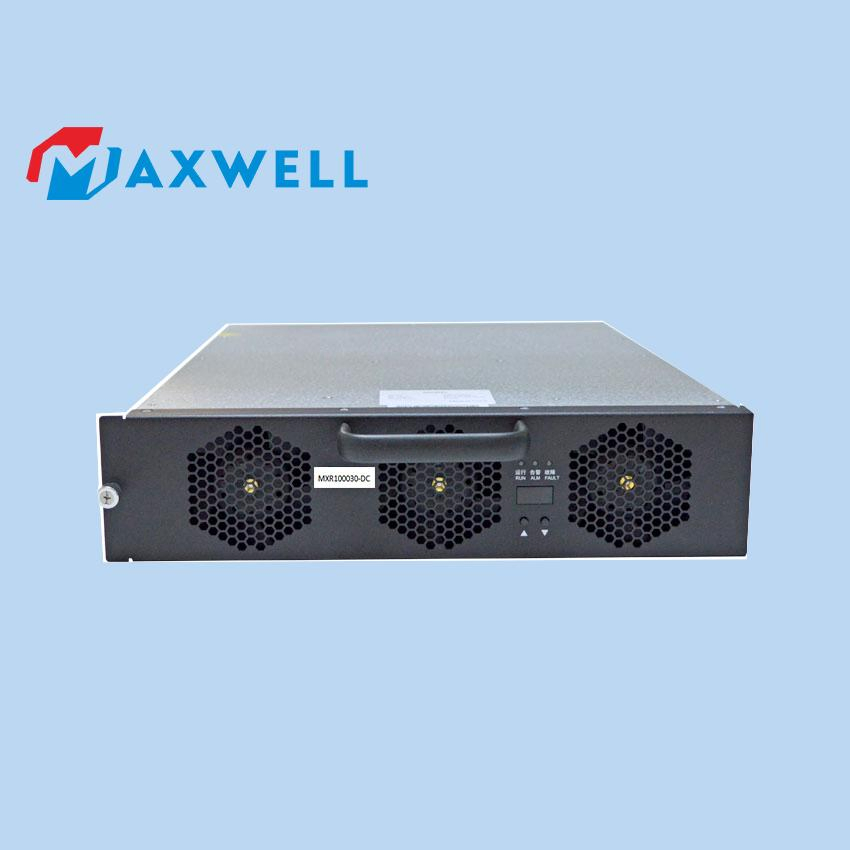

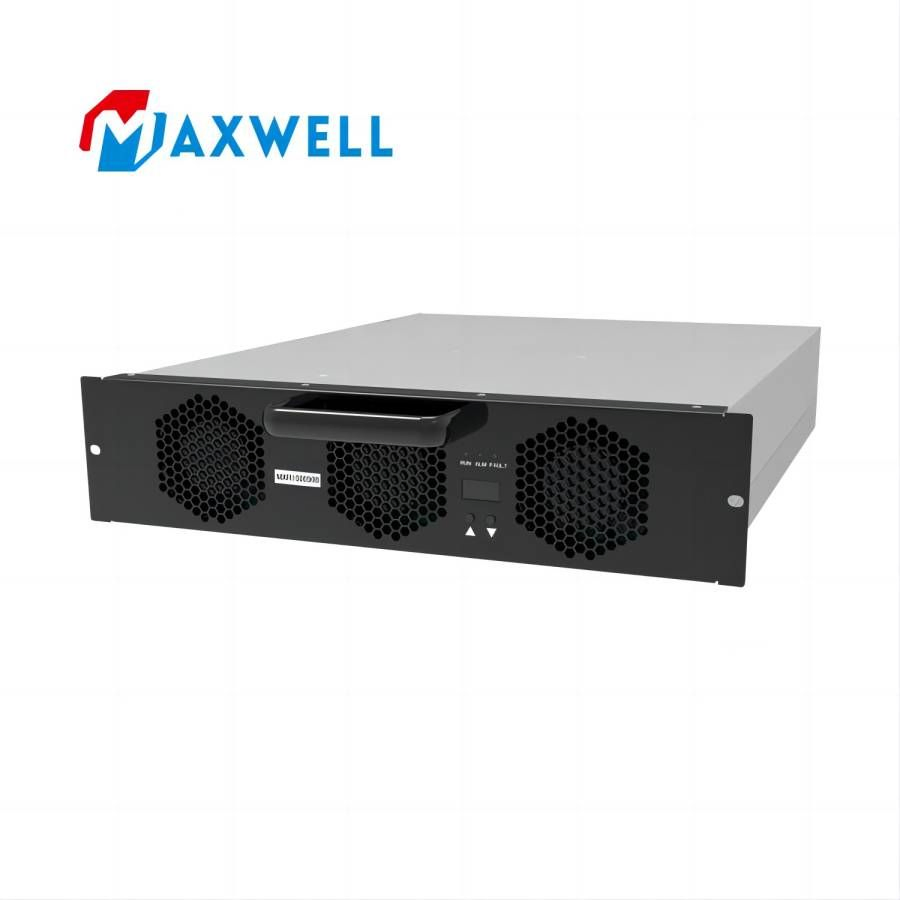

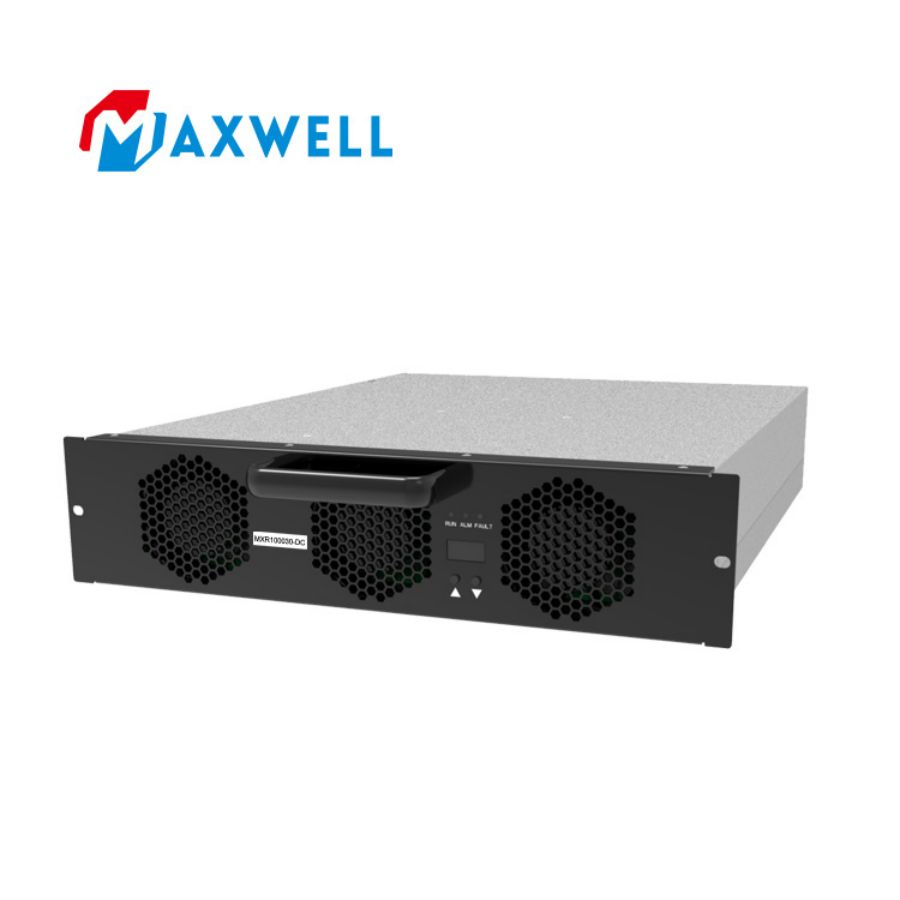

30kw DC EV Charger Module for CCS/Gbt/Chademo EV Fast Charging

Basic Information

Model NO.

MXR100030

Location

Public Use

Charging Interfaces

One Pile with Multiple Charges

Start Mode

RFID, Credit Card, Mobile App

Charge Method

Quick Charge

Product Name

EV DC Charging Module

Input Voltage

285VAC-475VAC

Output Voltage

100VDC-1000VDC

Efficiency

>95.5%

Certification

ISO, TUV, RoHS

Product Description

MXR100030 is a high-performance charging power module specifically designed for the EV charging industry. It excels in extreme conditions with ultra-high full-load operating temperatures and an ultra-wide constant power range. Key characteristics include high reliability, high power density, wide output voltage range, low noise, and minimal standby power consumption, alongside excellent EMC performance.

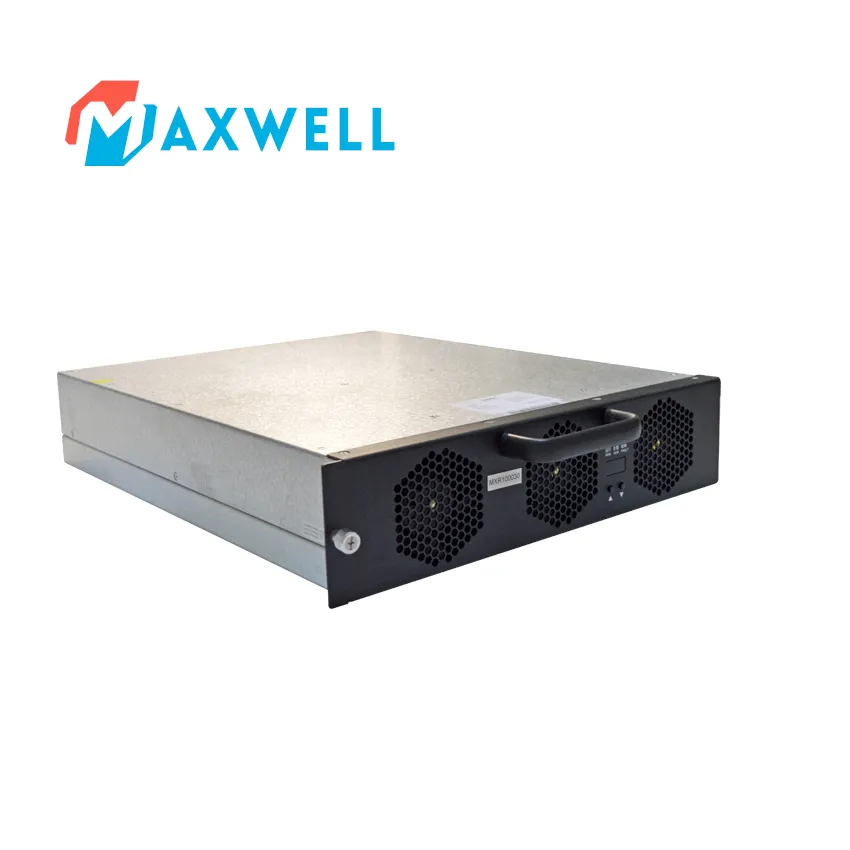

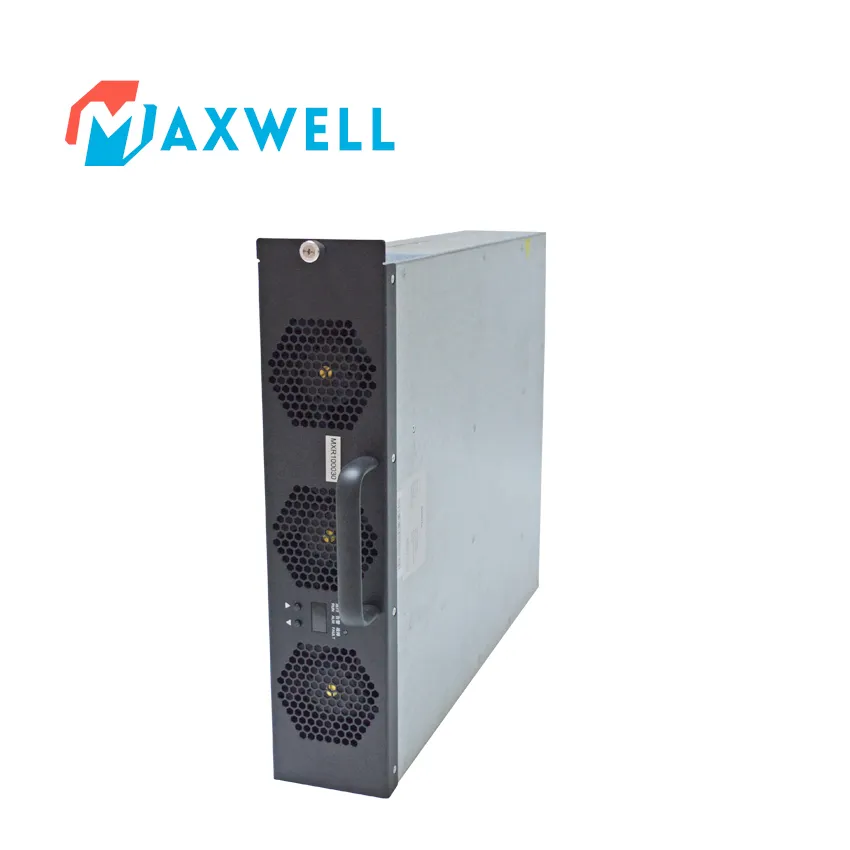

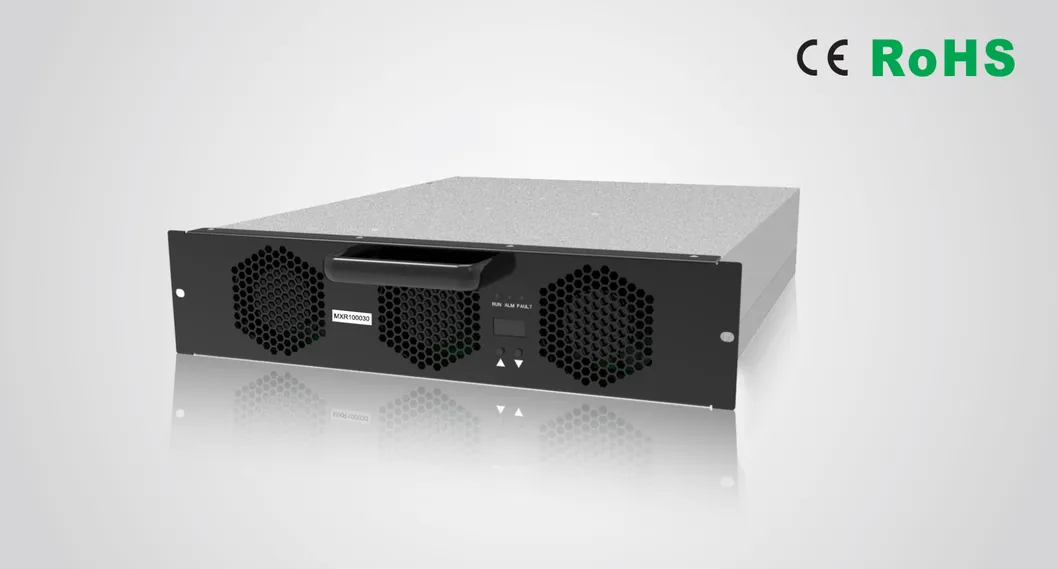

Detailed Photos

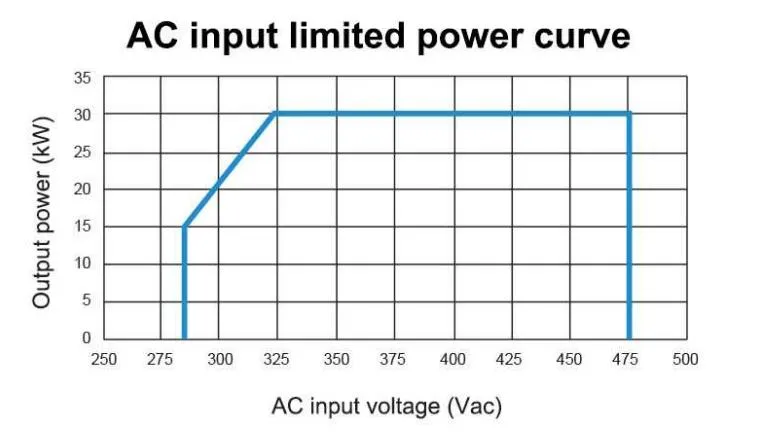

Technical Parameters

Dimension & Weight	85mm(H)360mm(W)459mm(D) \| ≤26kg
Communication Mode	CAN bus
Input Voltage	285Vac-475Vac, three phase+PE
Efficiency	>95.5%

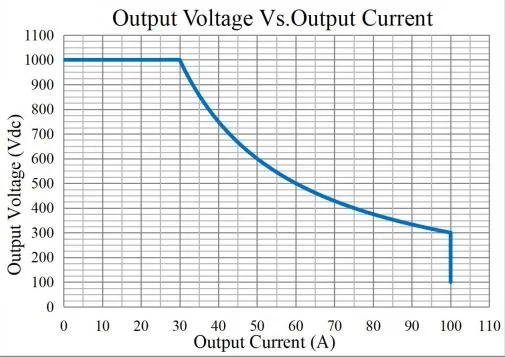

Output Power	30kW @ output voltage ≥ 300Vdc
Voltage Range	100Vdc-1000Vdc (Default: 200Vdc)
MTBF	> 500,000 hours
Standards	IEC61851-21-2:2018; EN61851-21-2-2017

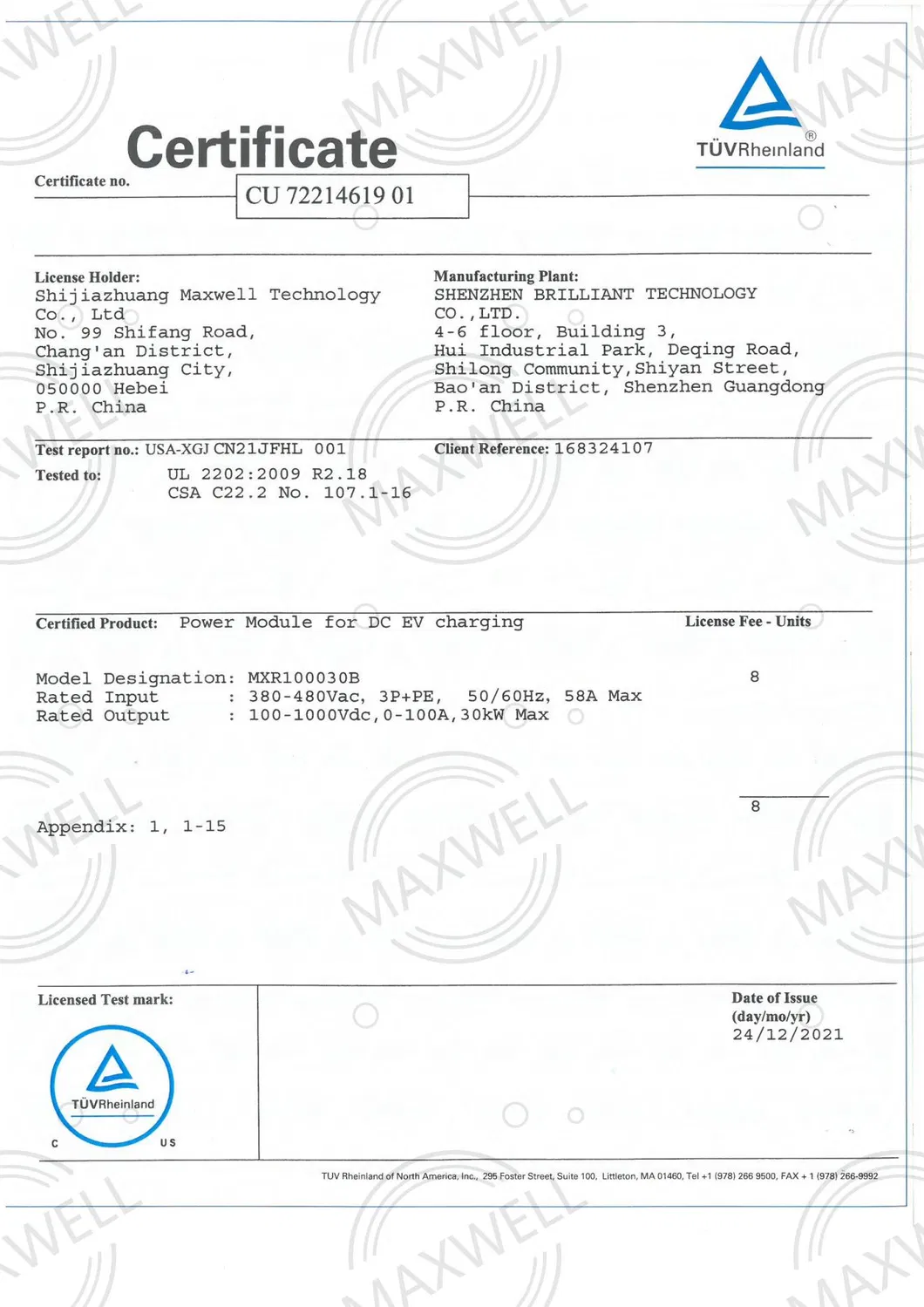

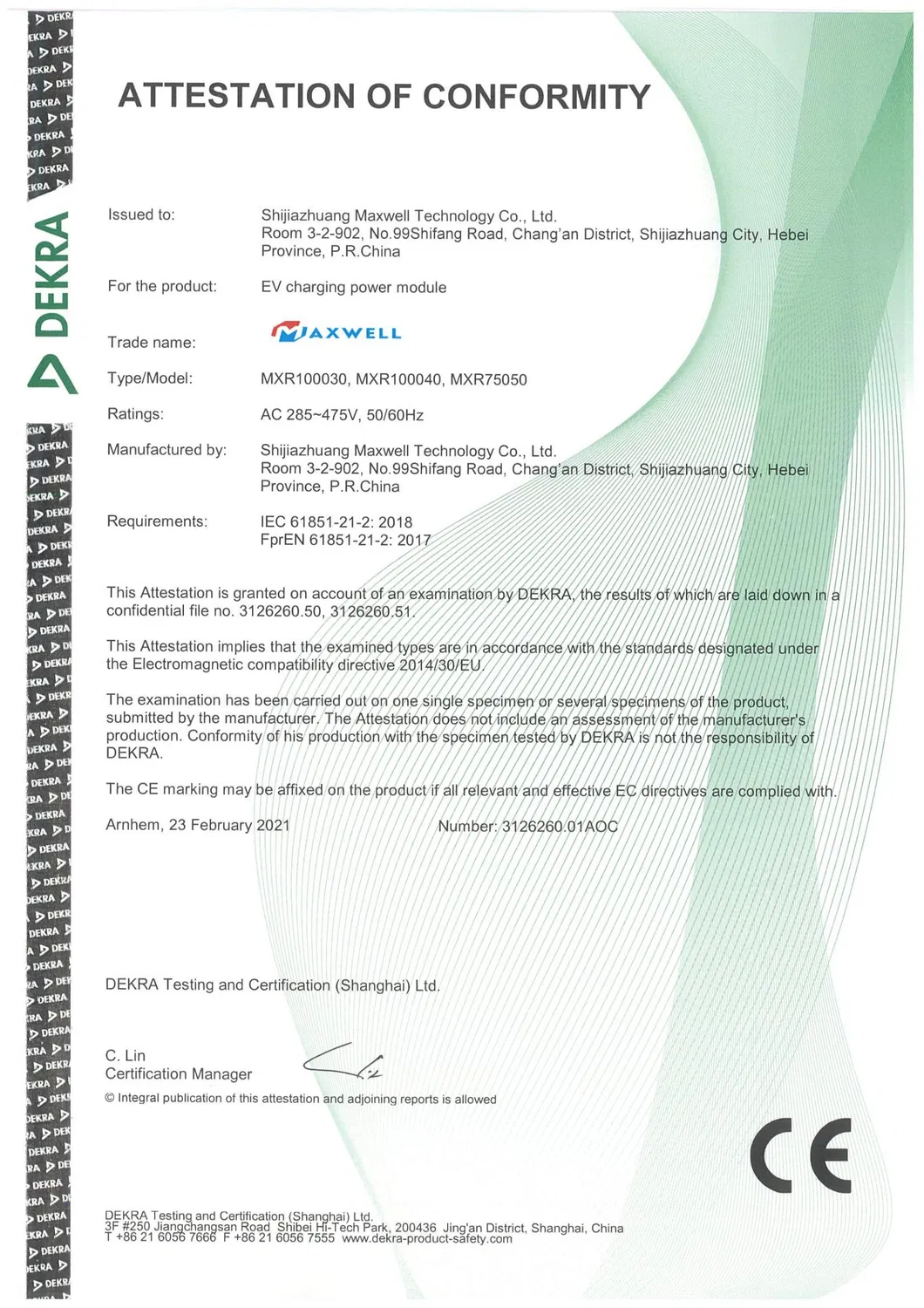

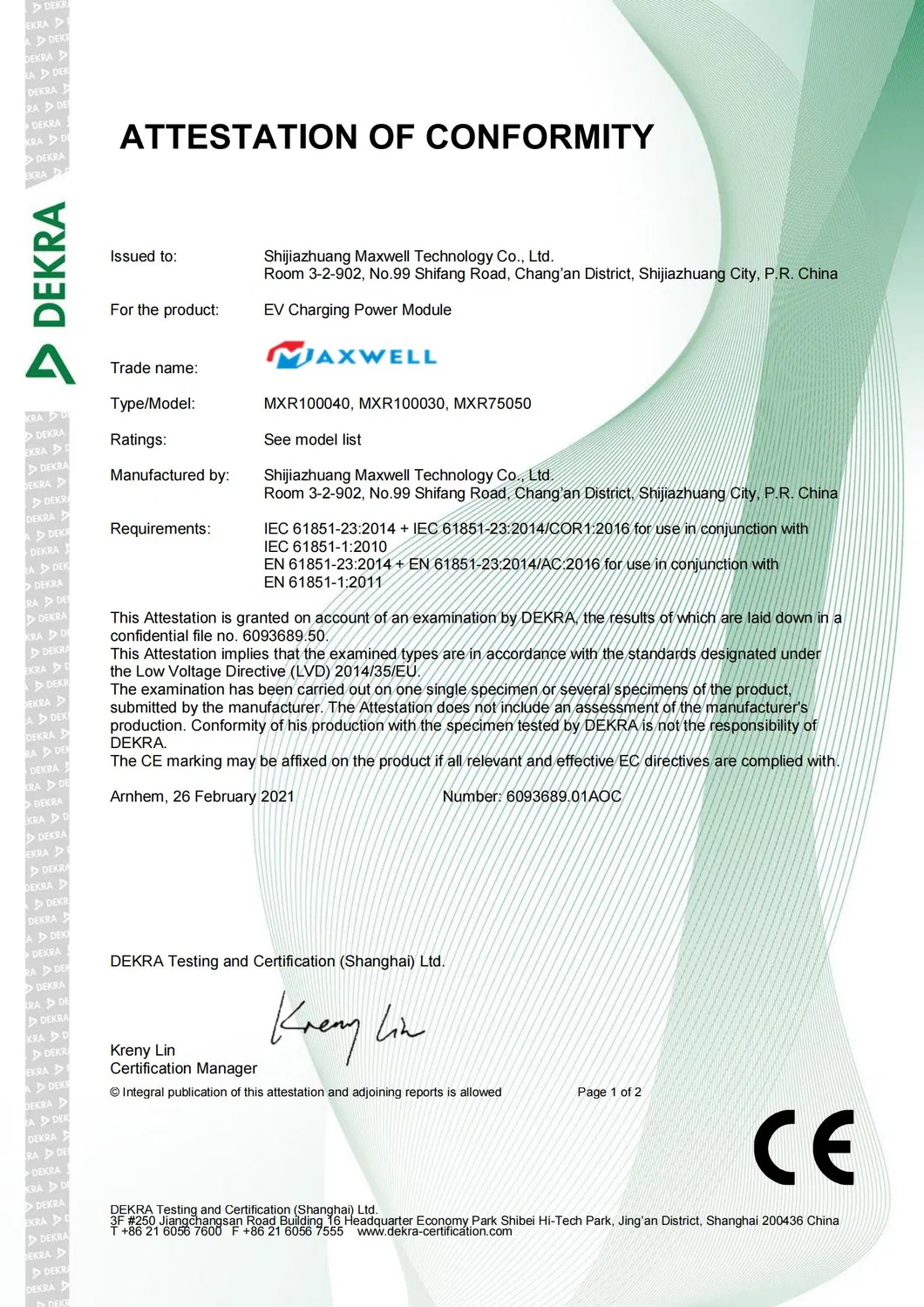

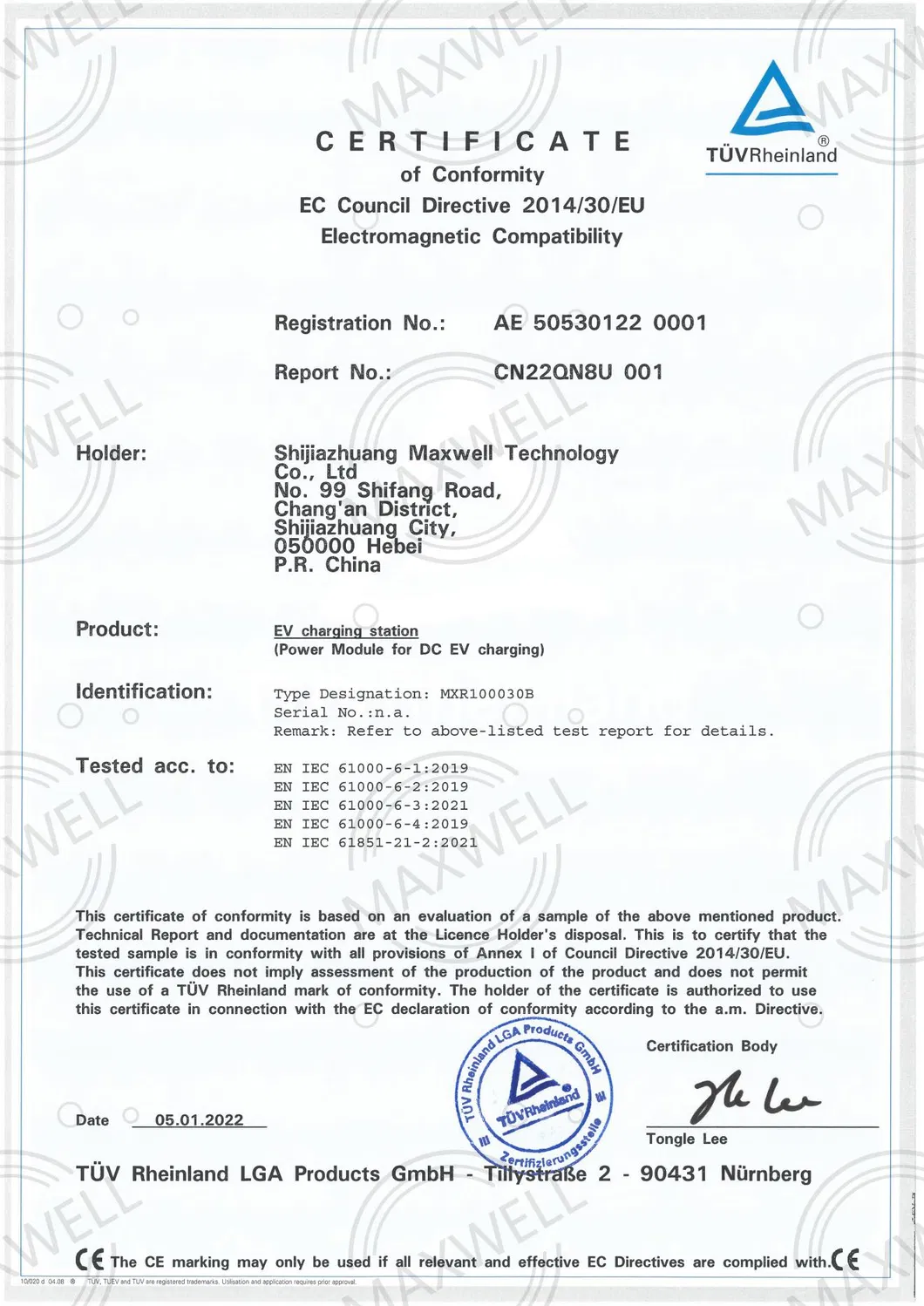

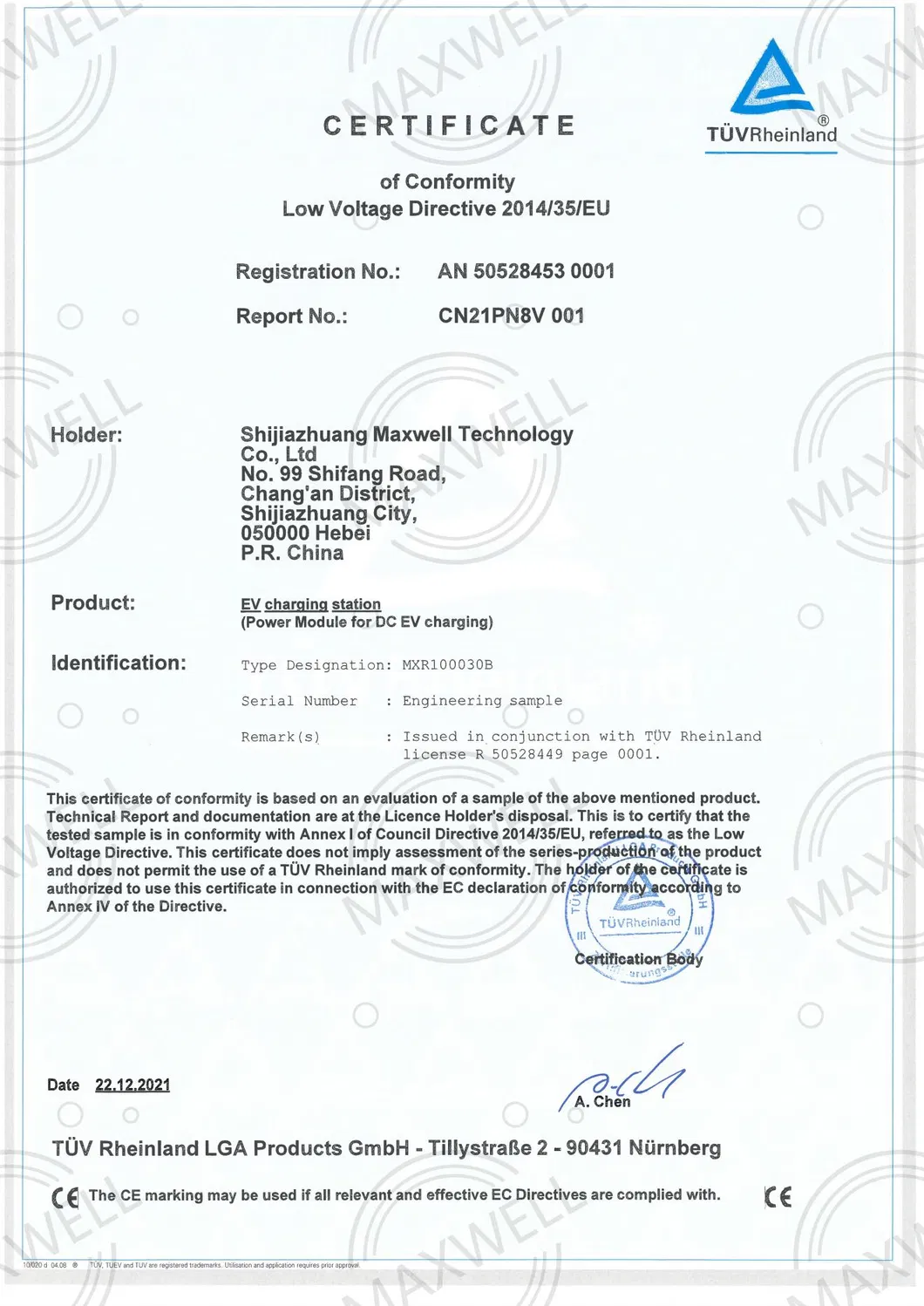

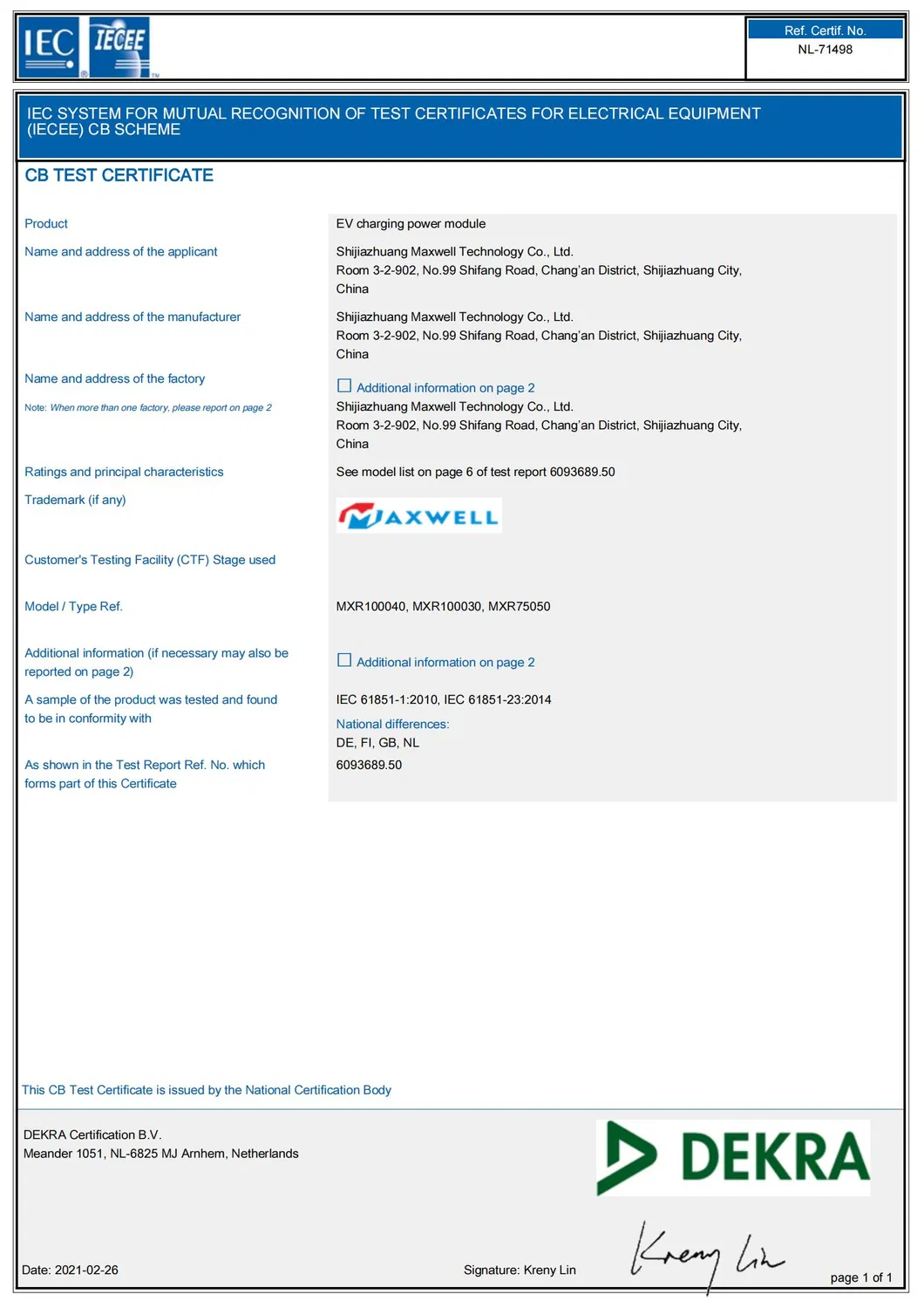

Certifications

Packaging & Shipping

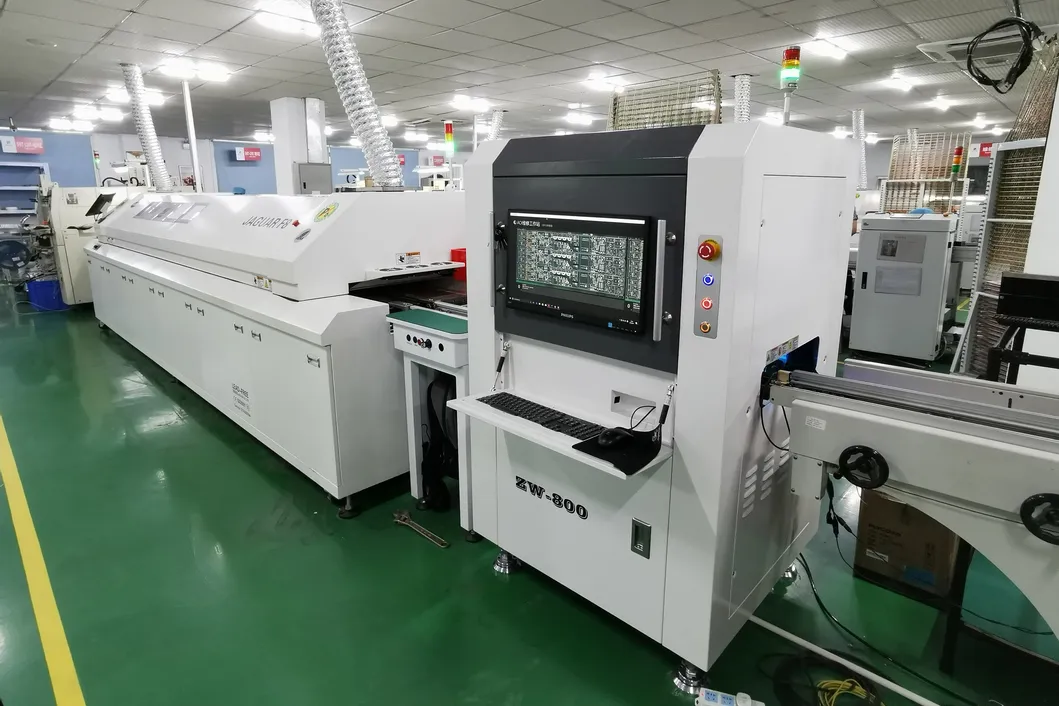

Company Profile

Our enterprise is a state-level high-tech leader in the energy internet sector. We specialize in the research, development, and production of power electronic products, serving mid-to-high-end DC power supply system manufacturers. With independent intellectual property rights and a focus on technological innovation, we provide comprehensive equipment support and services.

For over a decade, we have built a high-quality R&D team and hold multiple national invention patents. Our products meet rigorous national and international standards (European and American). Since 2011, we have focused on automotive DC charging modules, now offering over 20 models ranging from 15kW to 50kW, widely used in automotive, electric power, and metallurgy fields globally.

Frequently Asked Questions

Why choose us as your preferred EV Charger Module supplier?

We offer a professional technical team with a long-term industry vision, ensuring leading-edge products. Our modules pass extensive laboratory and real-world scenario tests, and we are among the few manufacturers with both CE and UL certifications.

What are the main advantages of your DC charging modules?

Our modules feature digital power control, active PFC for 0.99 power factor, and full compliance with CCS, CHAdeMO, and GB/T standards. They include soft-start functions and comprehensive protection for both input (over/under voltage, surge) and output (short-circuit, over-current) sides.

Can you explain the differences between global DC fast charging standards?

There are five major standards: CCS-1 (North America), CCS-2 (Europe), CHAdeMO (Japan), GB/T (China), and Tesla (Proprietary). Our modules are designed to be compatible across these various international requirements.

How do you provide after-sales technical support?

We provide comprehensive training materials, including written guides and videos. For urgent needs, we can provide face-to-face technical training or send professional technicians for on-site support to ensure maintenance and parts replacement are handled correctly.

What are your terms of delivery and payment?

Standard delivery is typically made within 2-3 weeks after order confirmation. We accept T/T in advance or Irrevocable L/C at sight.

What are your terms of packing?

Generally, we pack our goods in kraft cartons with pallets. If you have a legally registered patent, we can pack the goods in your branded boxes after receiving authorization.
