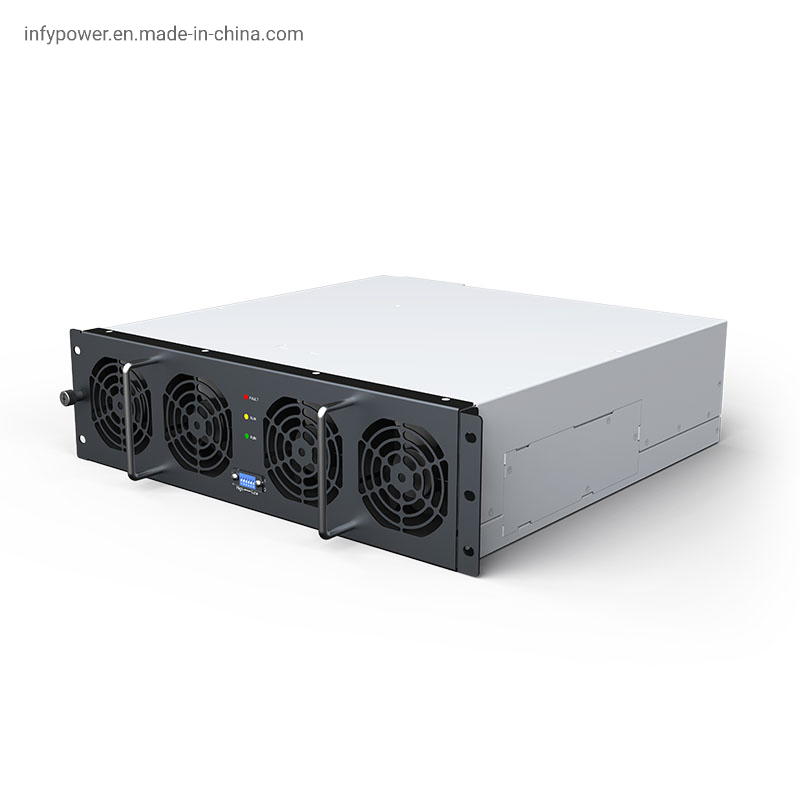

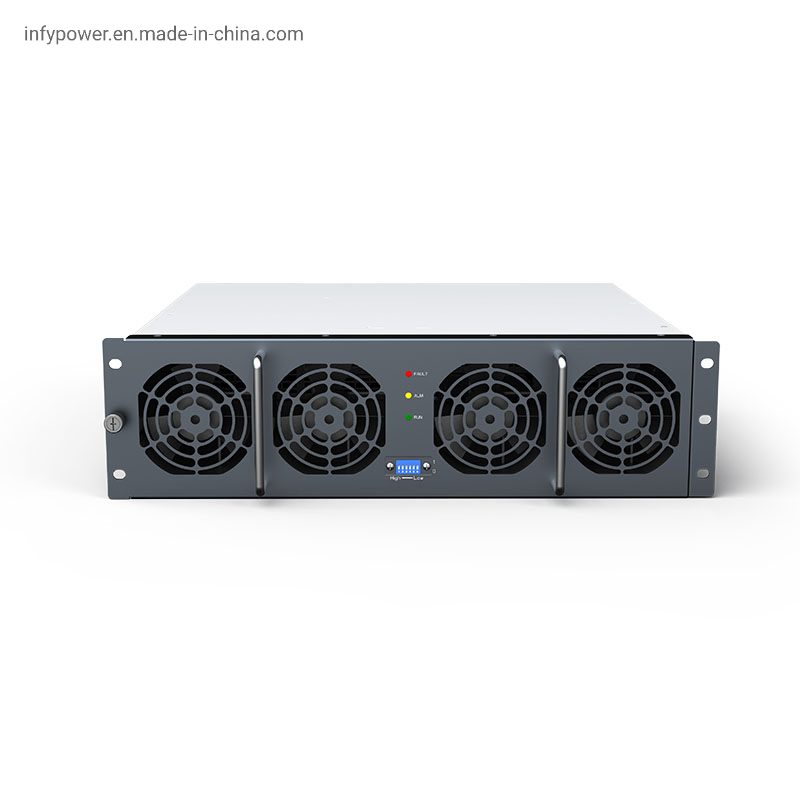

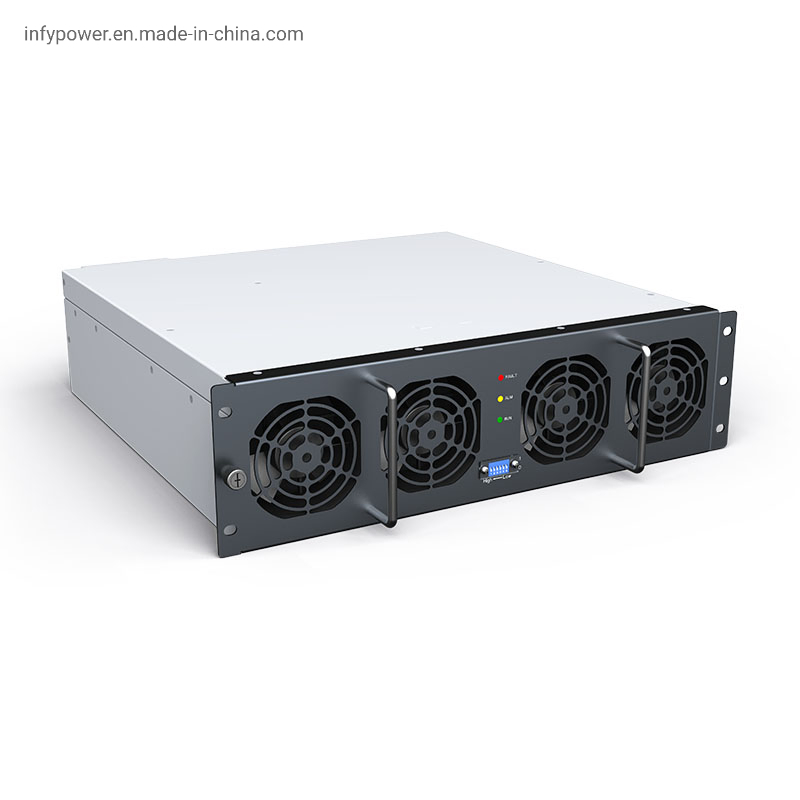

Best Selling UL Approved 30kw EV Charger Module for DC Fast Charging Station

Basic Info

Model NO.:REG1K0100U

Location:Public Use

Output Voltage:150VDC~1000VDC

Power Factor:0.99

Efficiency:Above 95%

Output Current:0~100A

Application:DC Fast Charging Station

Certification:CE, ISO, EMC Class B, RoHS

Warranty:24 Months

Specification:110mm*385mm*395mm

Product Description

The REG1K0100U is a bestselling AC2DC EV charger power module specifically designed for electric vehicle charging stations. This module enables a maximum DC output power of 30kW and output voltage from 150Vdc to 1000Vdc. It features high efficiency (≥95%) at full load, low fan noise (<55dB), high power density, and ultra-wide output voltage reliability. It carries TUV CE/UL and KC certifications as well as EMC Class B.

As the core component of EV chargers, the power module is key to the stability and reliability of the whole charging process. It satisfies the wide-voltage requirements of different battery packs, reduces potential safety hazards, and saves on lifecycle operation and maintenance costs.

Main Features:

High frequency transformer isolation
Full hot plug design
Air duct isolation for high protection and reliability in harsh environments
Ultra wide output range: 150V to 1000V
Constant current for higher output power at low output voltage
Fan audio noise less than 55dB
Intelligent automatic discharging of residual charge
Low standby power consumption (12W/2W)
Wide input voltage range: 260V to 530V
CAN bus communication, max 48 modules in parallel

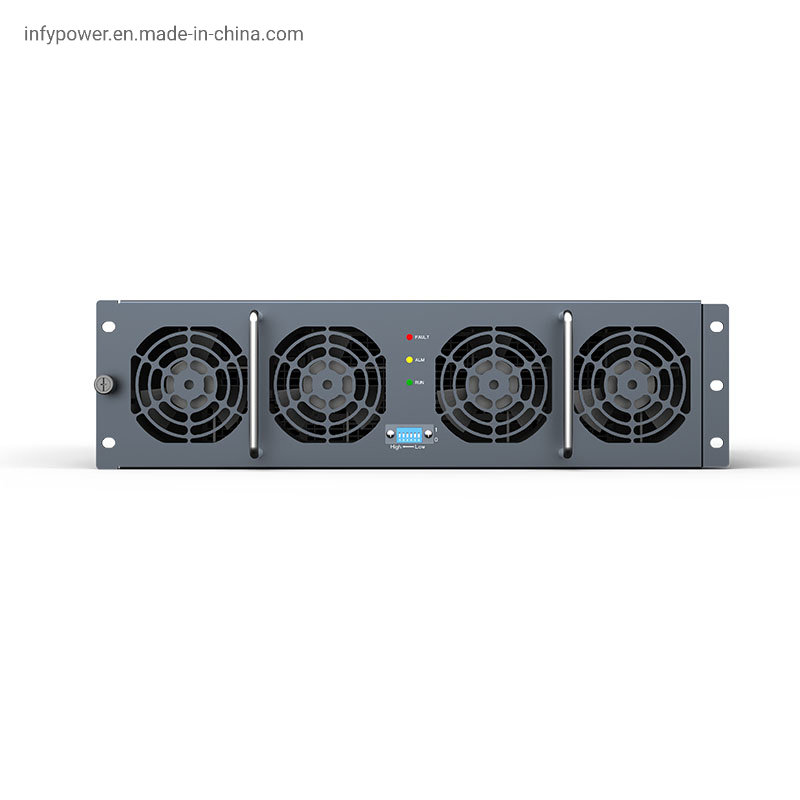

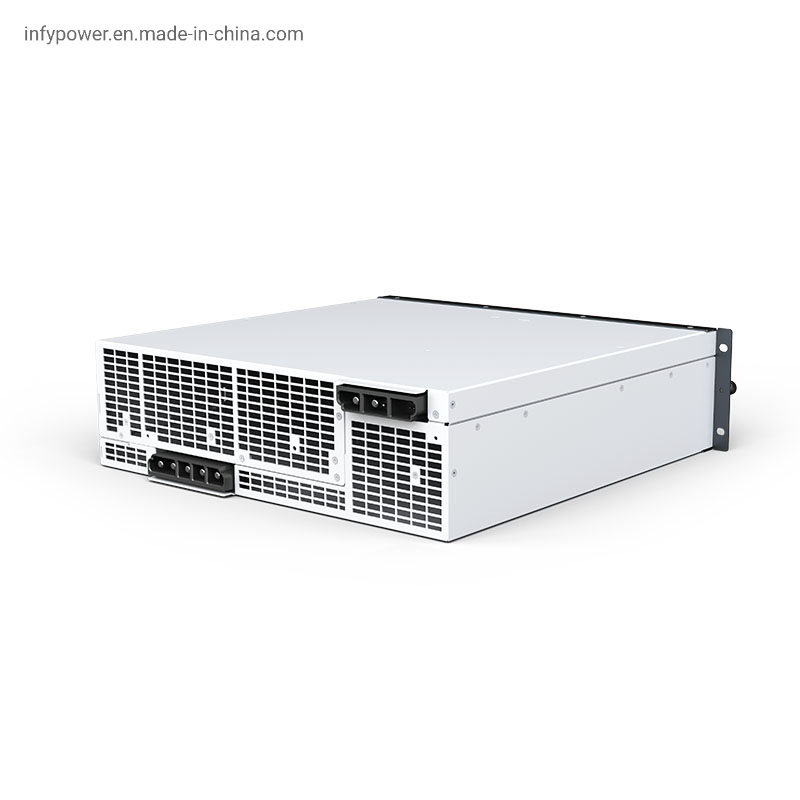

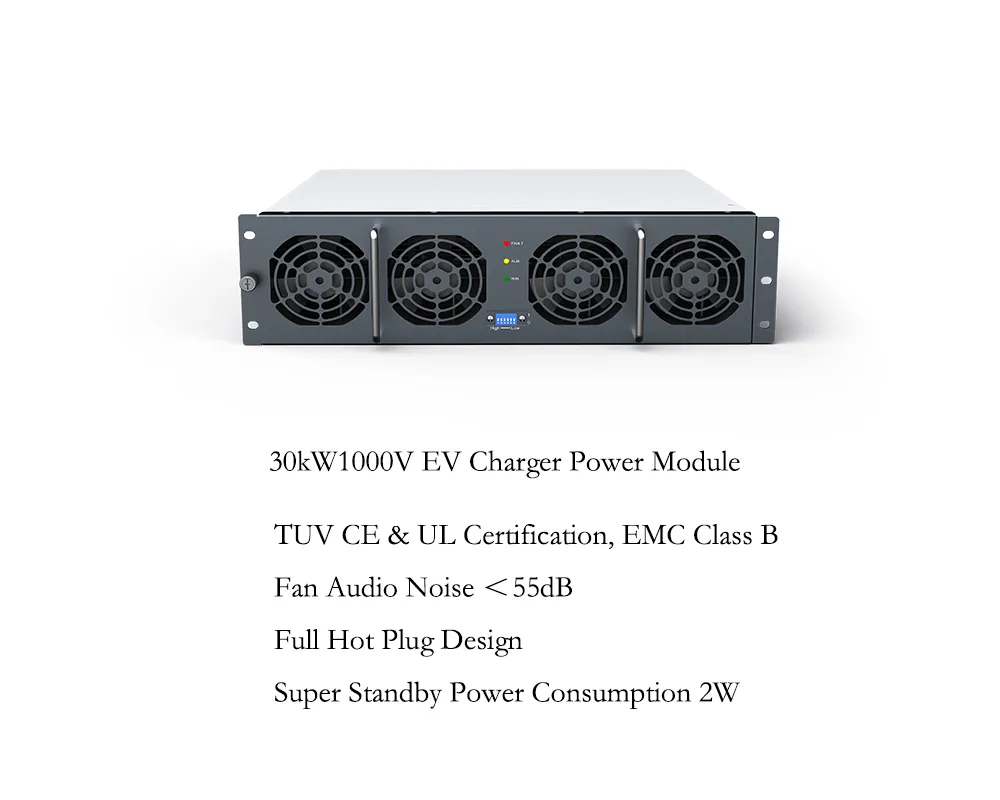

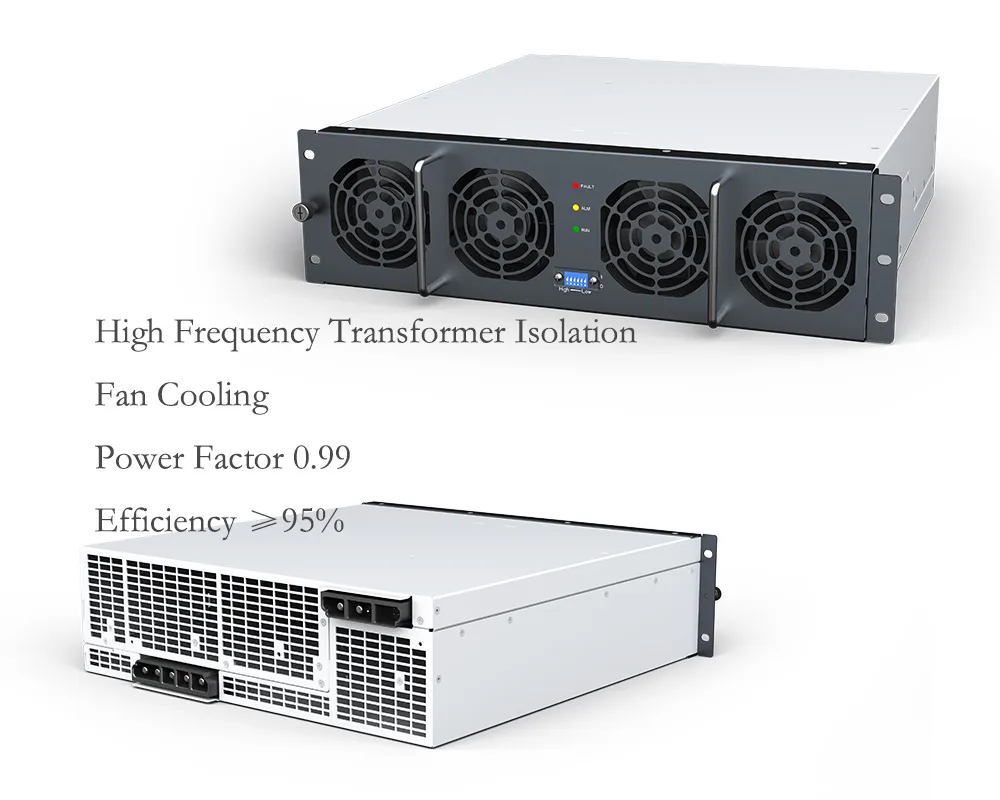

Detailed Photos

Product Parameters

AC Input	3L+PE, 260Vac~530Vac, 45~65Hz, max 58A, power factor 0.99, efficiency ≥95%
DC Output	30kW@above 300Vdc, 150Vdc~1000Vdc, 0~100A
Rated Power	30kW
Dimension & Weight	110mm385mm395mm(HWDmm) / ≤22.5kg

Packaging & Shipping

Company Profile

We are a high-tech company professionally engaged in power modules and power system solutions. We have gained abundant experience in power electronics and intelligent control technology with specialty lying in electric vehicle charging solutions and energy storage solutions. Our products cover a wide range of power modules and energy storage converters known for high reliability and efficiency. With over 70% R&D members, we prioritize steady development and hold more than 150 authorized patents.

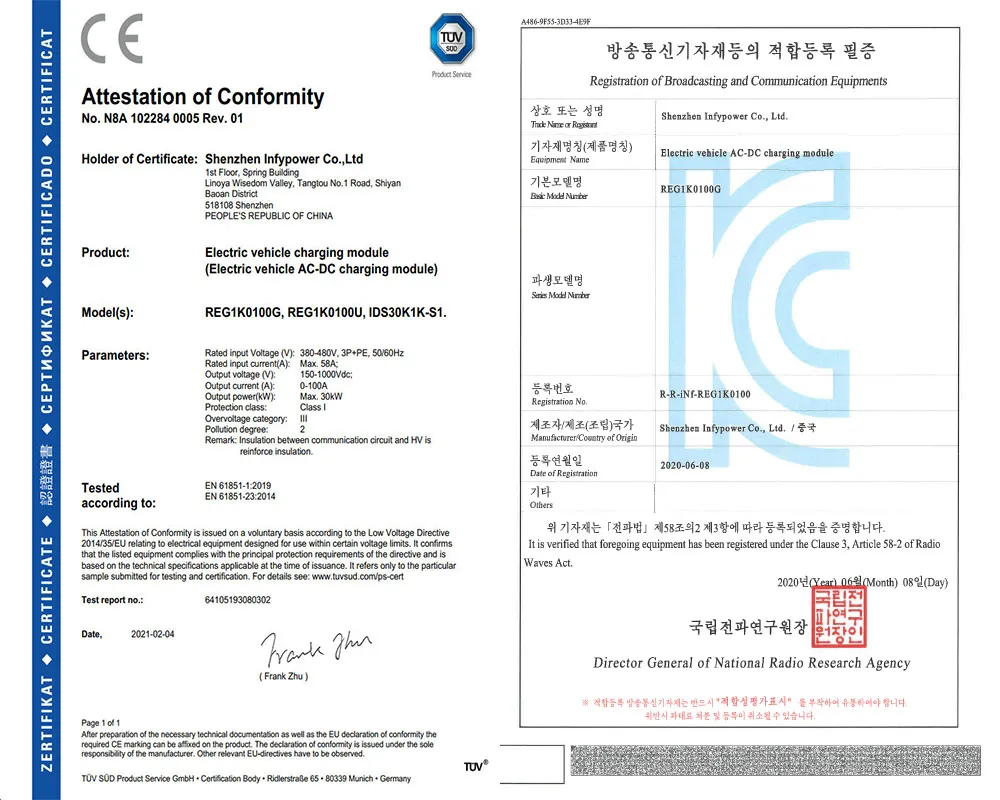

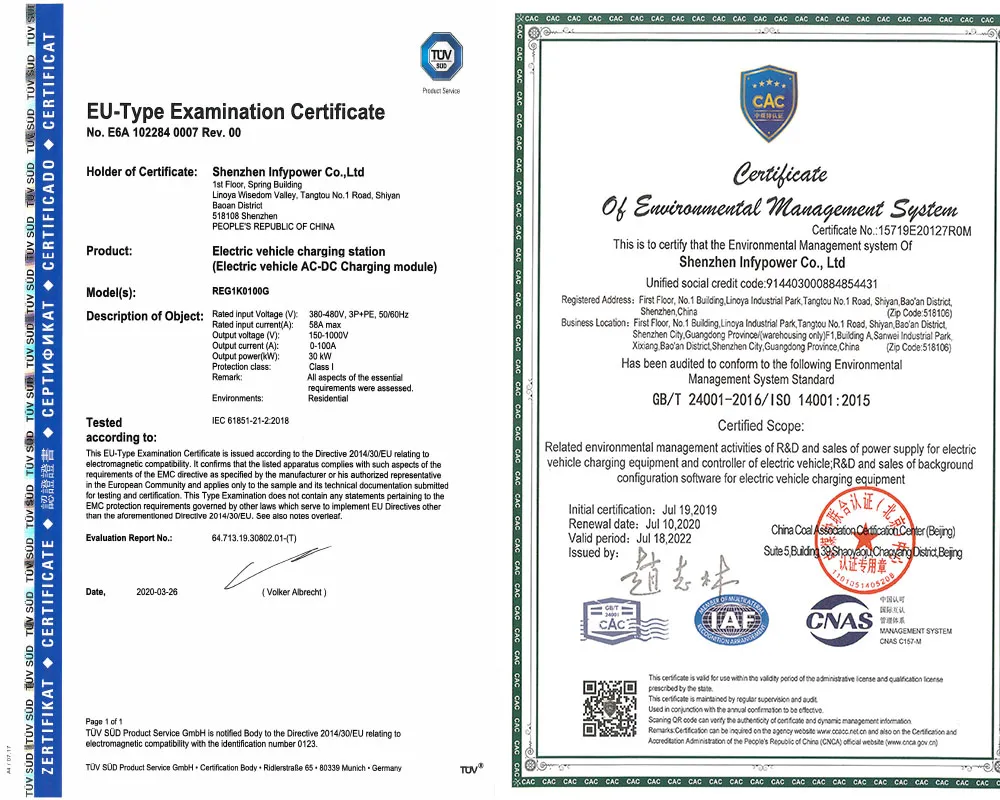

Certifications

Exhibitions

Frequently Asked Questions

Q: How do you handle shipments?

A: For small orders, we use express services like FedEx, DHL, or UPS on a door-to-door basis. For large shipments, we use sea or air containers. Delegation of your own forwarder is also supported.

Q: What is your delivery time?

A: Normally, we require about 30 days to prepare goods. Large quantities or customized orders may require slightly longer shipment times.

Q: What is your term of payment?

A: Our standard term is 100% TT advance with the order. Negotiable terms are available for long-term strategic partners.

Q: What customized services do you provide?

A: We offer flexible OEM and ODM services based on our abundant project experience. MOQs vary depending on the specific customization requirements.

Q: How long is the warranty period?

A: Our products come with a 24-month warranty upon receipt under normal operating circumstances.

Q: What certifications do your products hold?

A: Our products are qualified with international certifications such as CE for Europe, UL for the United States, and KC for South Korea.
