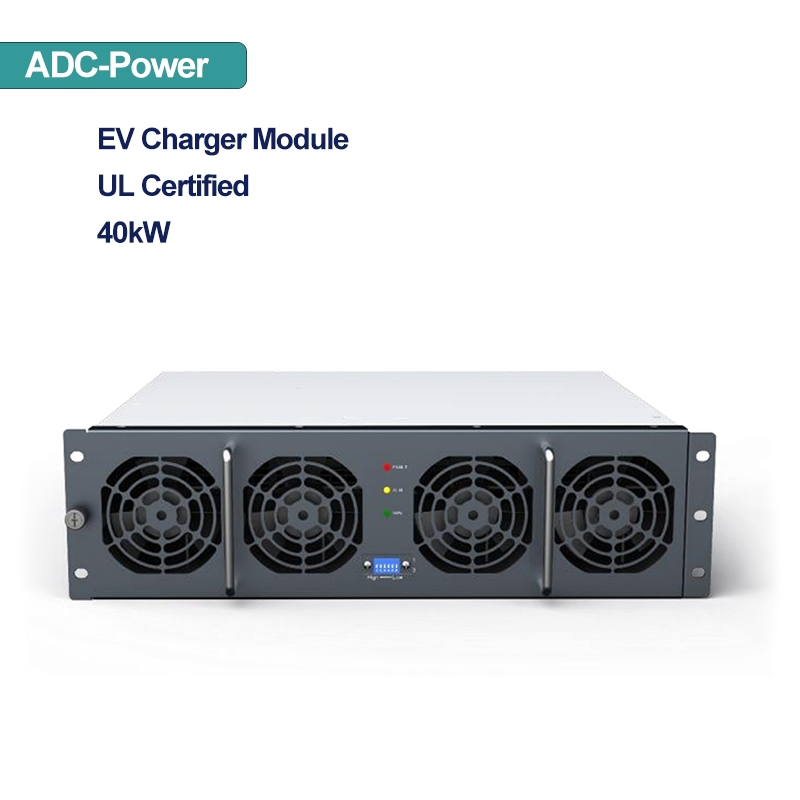

Voltura Charger
1 / 5
Features >95% efficiency for optimized energy conversion and reduced operational costs.
Built-in overtemperature and voltage stabilization protocols for maximum safety.
Supports RFID, mobile remote operation, and credit card payment systems.
| Basic Information | |
|---|---|
| Model NO. | ADC1000V40KW-MF |
| Efficiency | >95% |
| Power Factor | ≥0.99 |
| Weight | ≤15kg |
| Cooling Mode | Fan Cooling |
| Start Mode | RFID, Mobile Remote, Credit Card |
| Warranty | 12 Months |

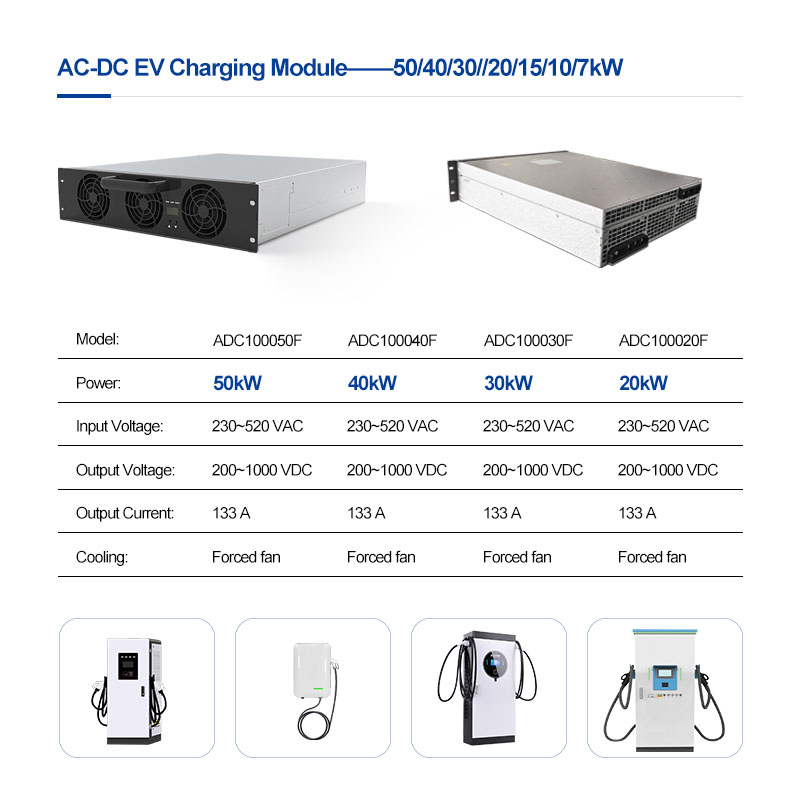

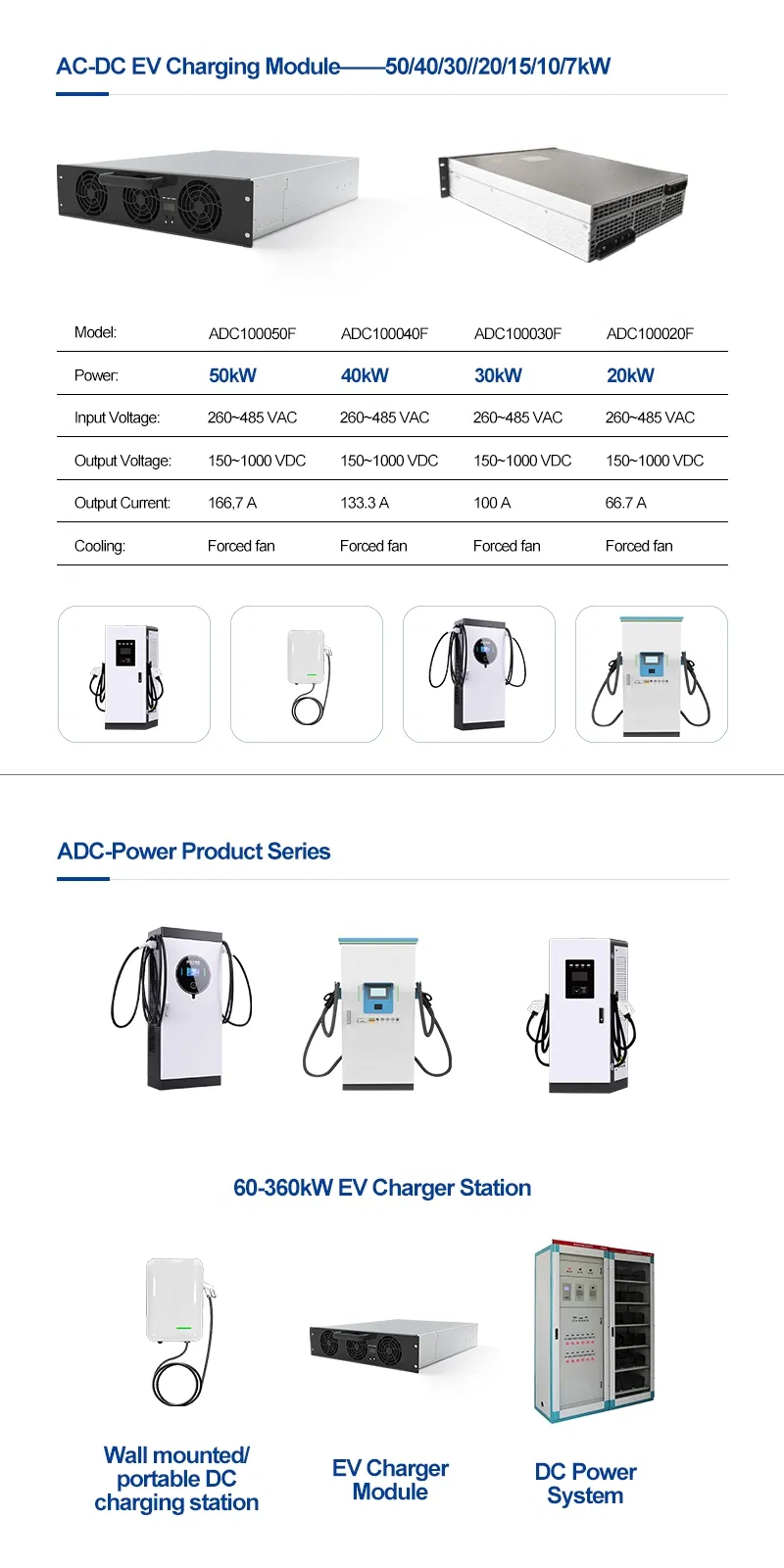

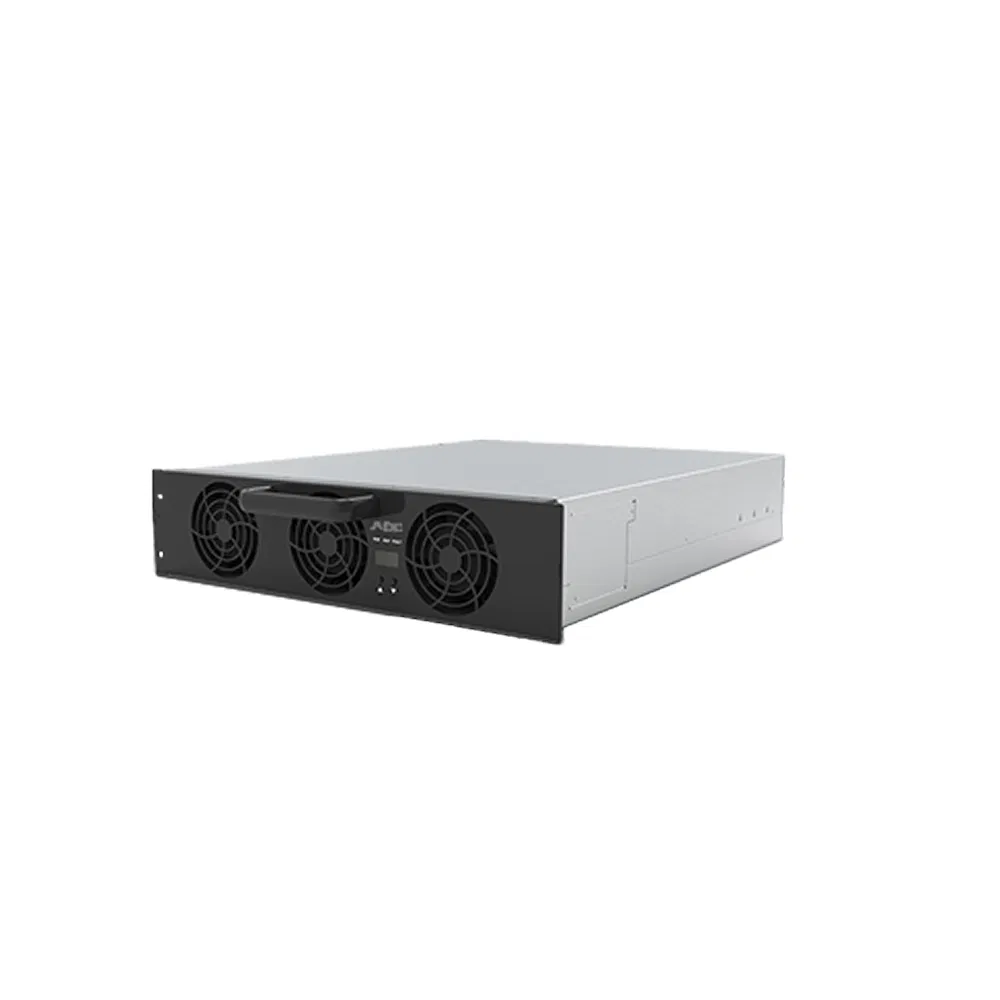

We provide efficient and durable EV charging modules with high conversion efficiency, wide voltage range, and smart protection. Perfect for DC chargers, fast-charging stations, and energy storage systems.
| Parameter | Details |
|---|---|
| AC Input | |
| Input Frequency | 50±10Hz |
| THD | ≤5% |
| Max. Input Current | <60A (40kW model) |
| DC Output | |

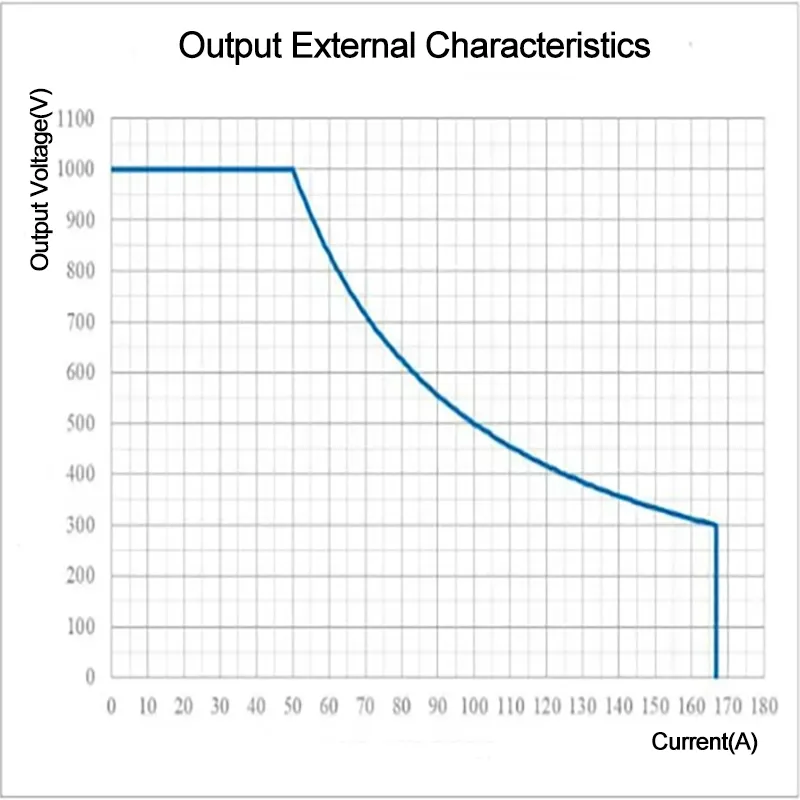

| Constant Power Range | 300~1000V (40kW) |
| Output Voltage Range | 150~1000VDC |
| Output Current Range | 0~133.3A |
| Voltage Accuracy | ≤±0.5% |
| Environment | |
| Operating Temp | -40℃~75℃ (derates from 55℃) |
| Acoustic Noise | <65dB |
| Altitude | 2000m |

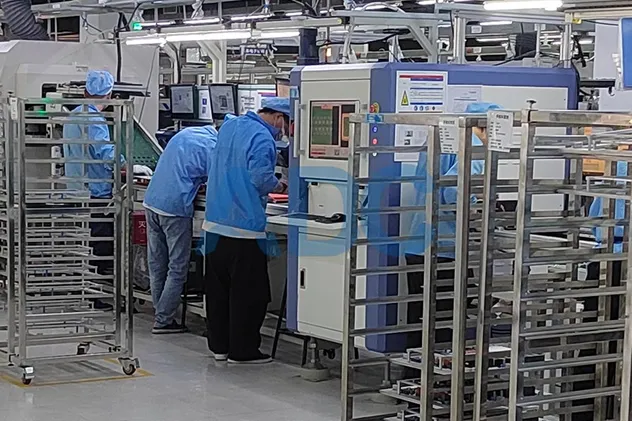

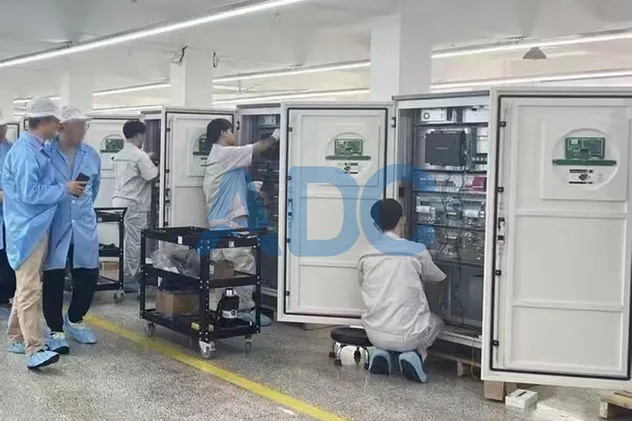

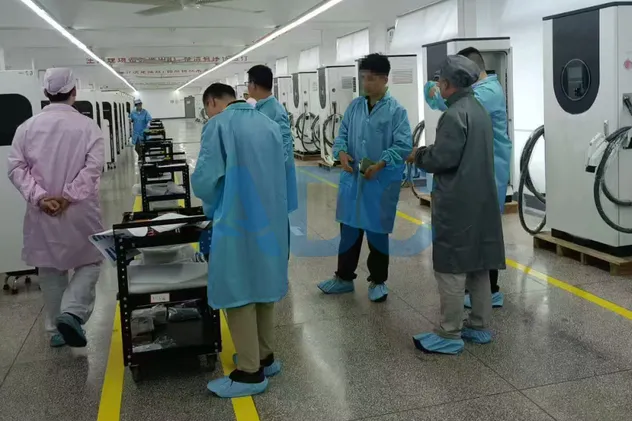

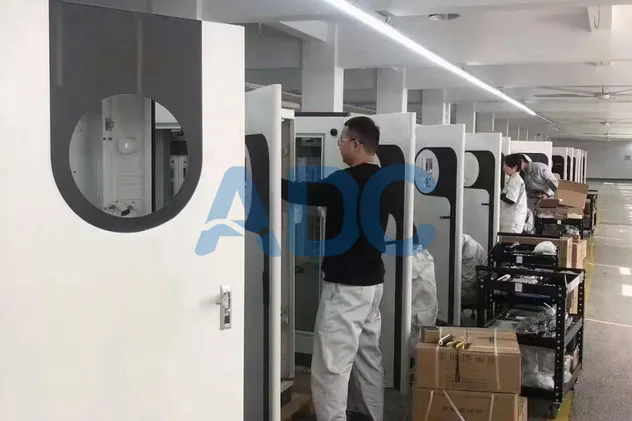

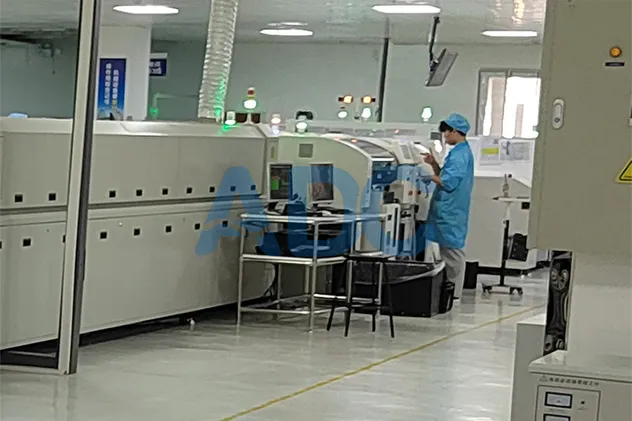

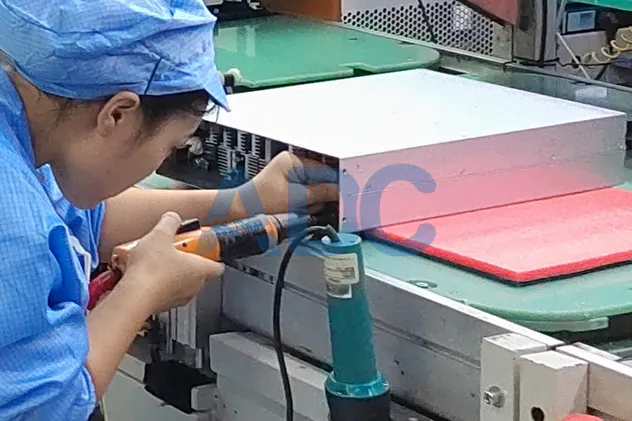

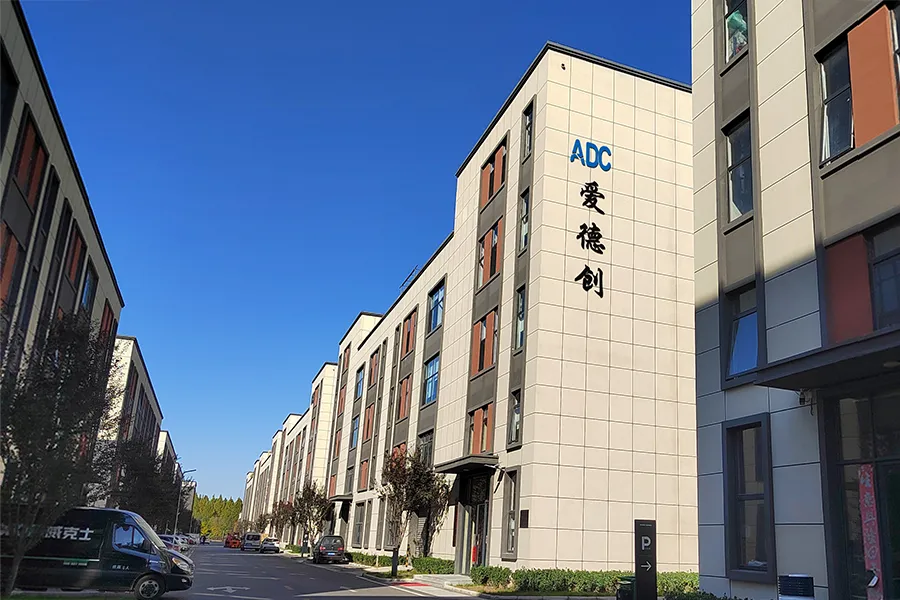

With over 15 years in power technology, we specialize in AC to DC, DC to AC, battery monitoring, solar power, and new energy system developments. Our facilities span 40,000 m² with high-level technology equipment and ISO9001/ISO14001 certification.
