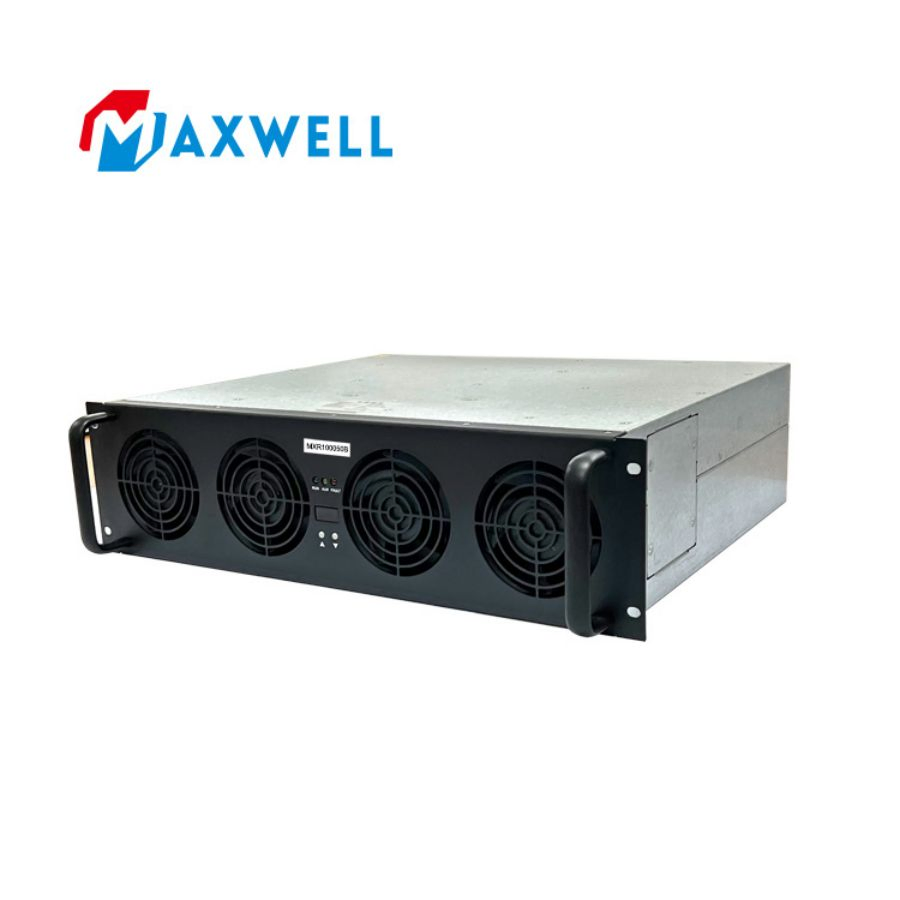

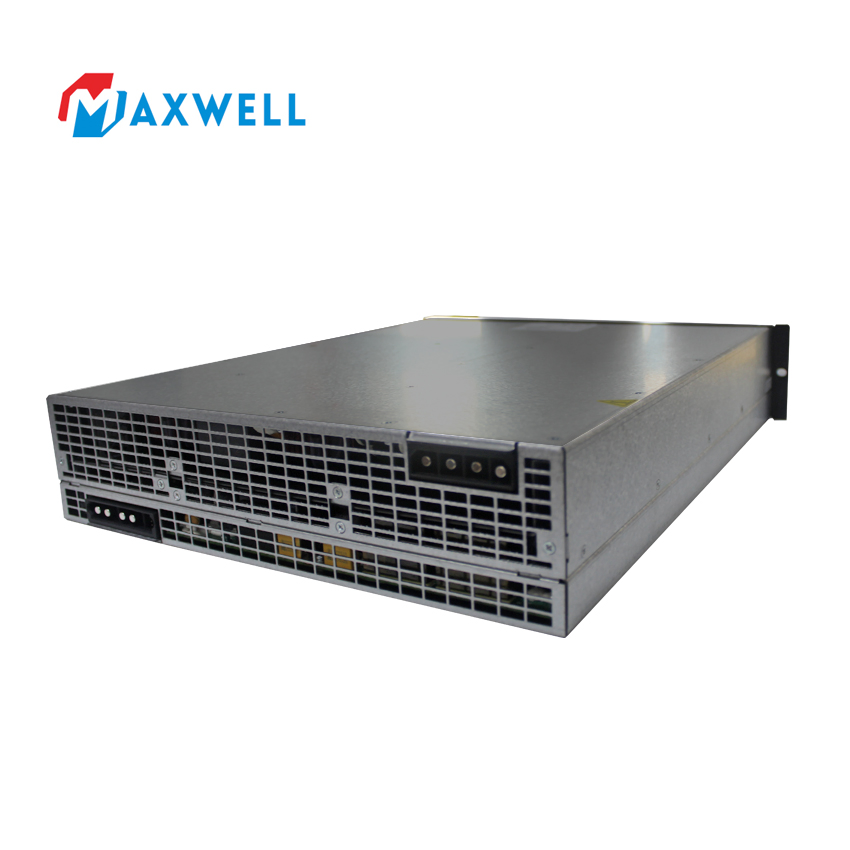

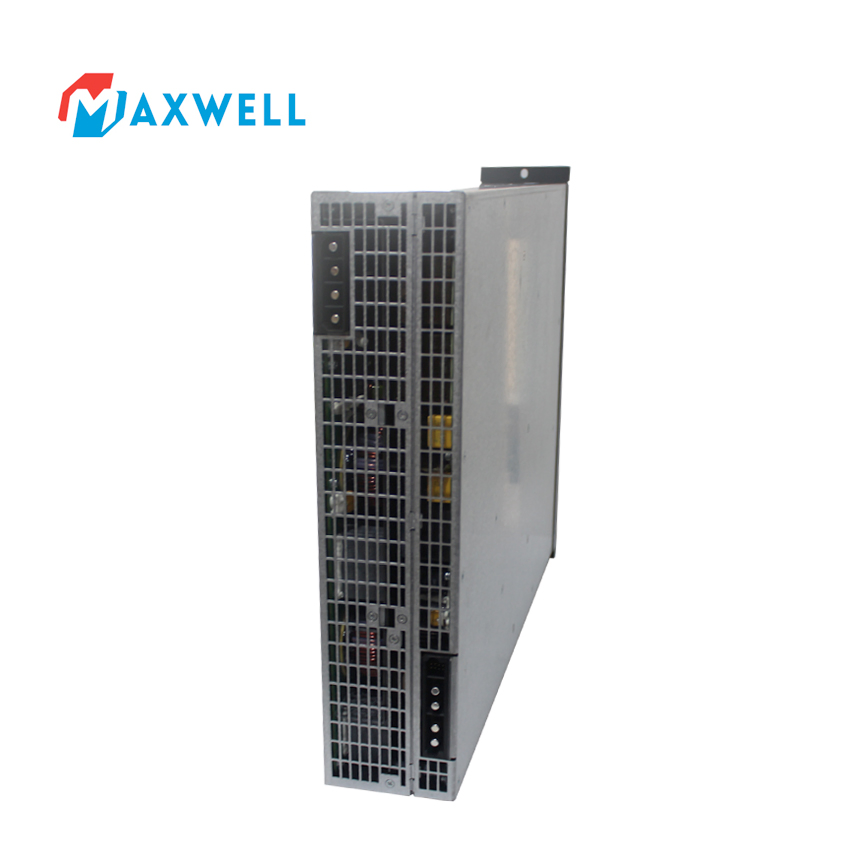

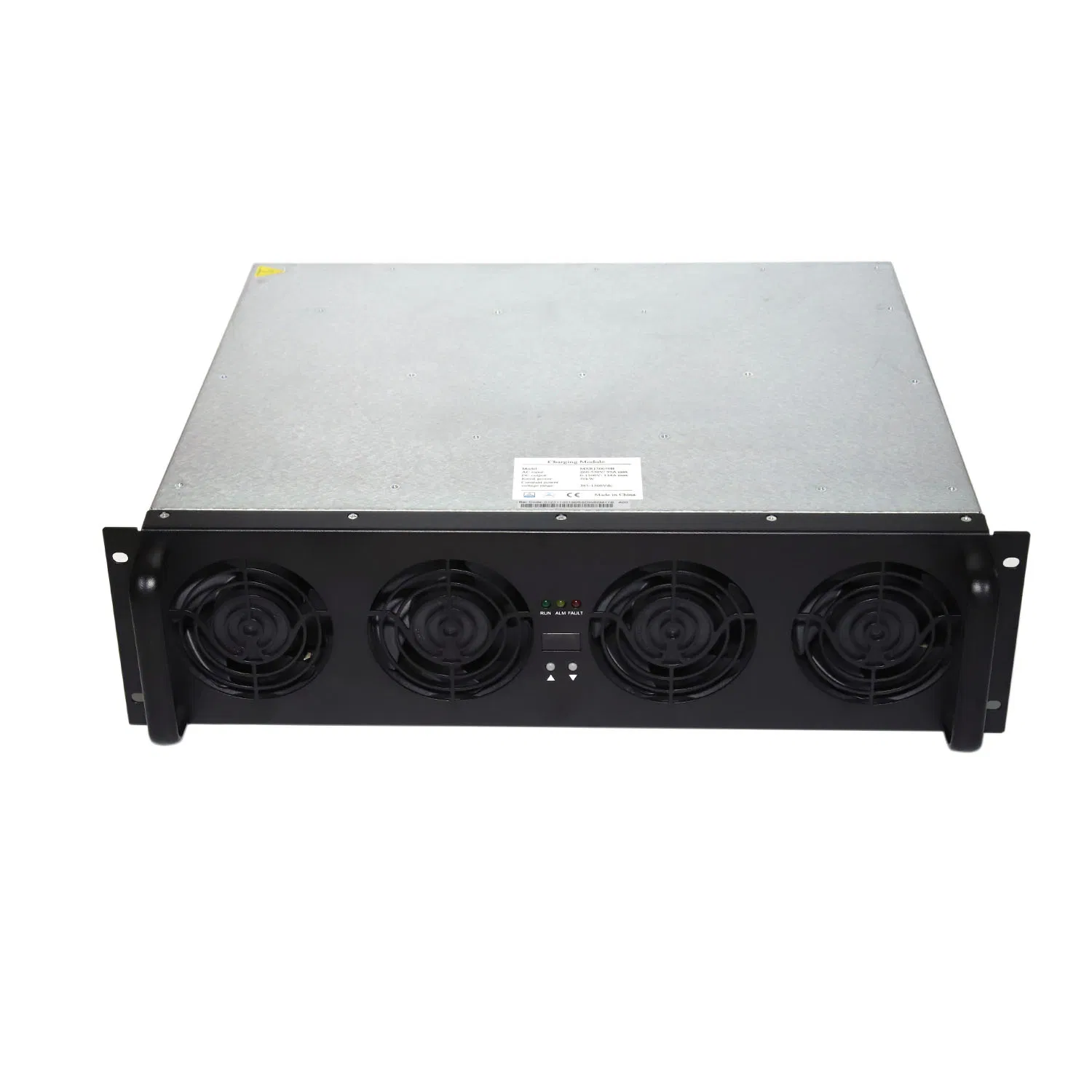

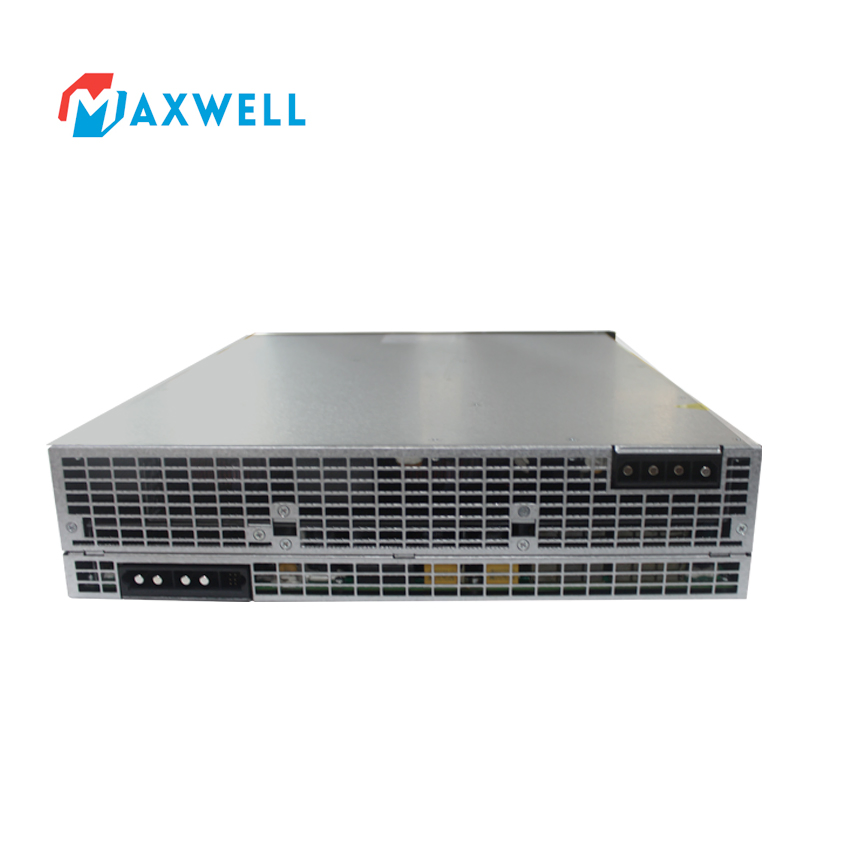

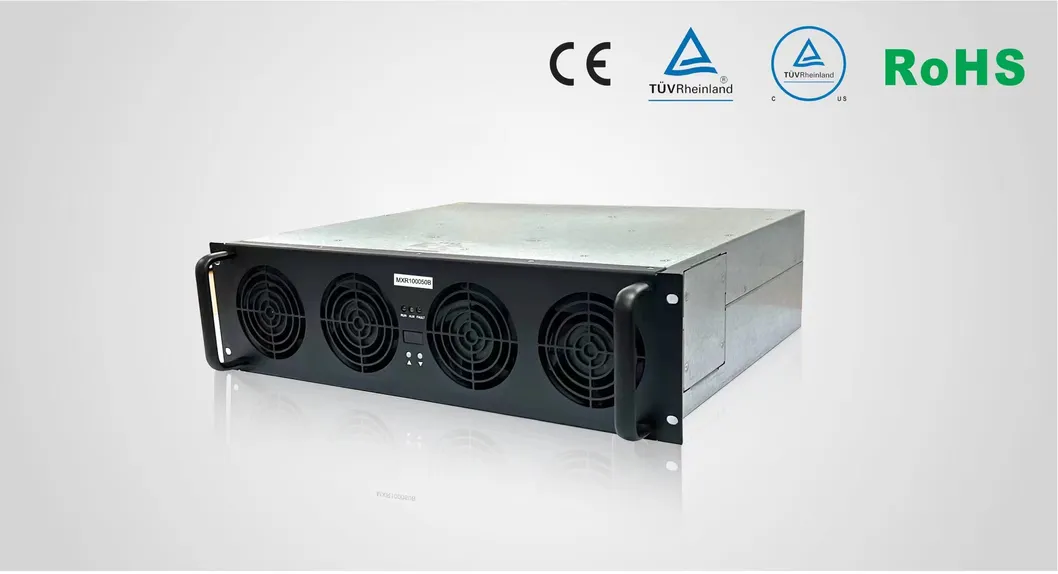

The MXR100050B is a high-power AC/DC charging module specially designed for high-end charging scenarios of electric vehicles. Rated output power is 50 kw, and supports 260VAC~530VAC three-phase four-wire system (A/B/C +PE) input.

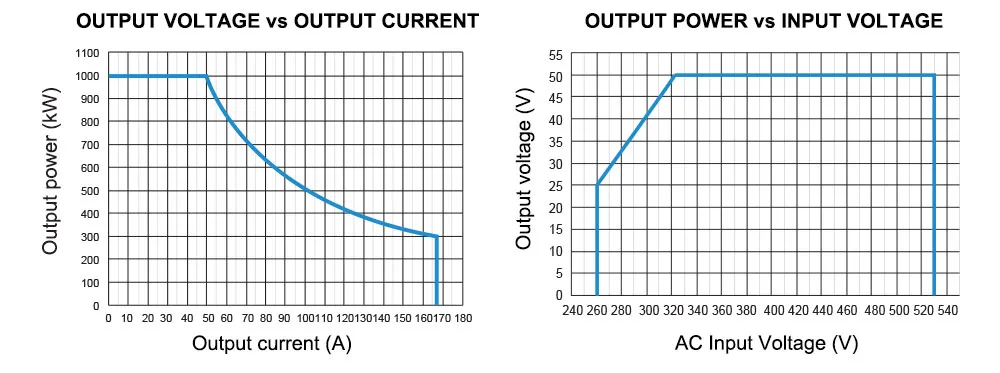

The output voltage range is 200VDC~1000VDC, with a maximum output current of 167A. It supports silent mode setting, where noise levels are maintained below 55dB.
| Item | Parameters |
|---|---|
| Input Voltage | 260Vac-530Vac, three-phase+PE |
| Input Current | <100A |
| Grid Frequency | 45Hz-65Hz |
| Power Factor | >0.99 (Load >50%) |
| ITHD | <5% (Load >50%) |
| Item | Parameters |
|---|---|
| Output Power | 50kw |
| Voltage Range | 200-1000Vdc |
| Current Range | 0-167A continuously adjustable |
| Voltage Regulation Accuracy | ≤±5% |
| Stabilized Current Accuracy | ≤±1% (Output current ≥20% Max current) |
| Ripple Peak-to-Peak | <1% |

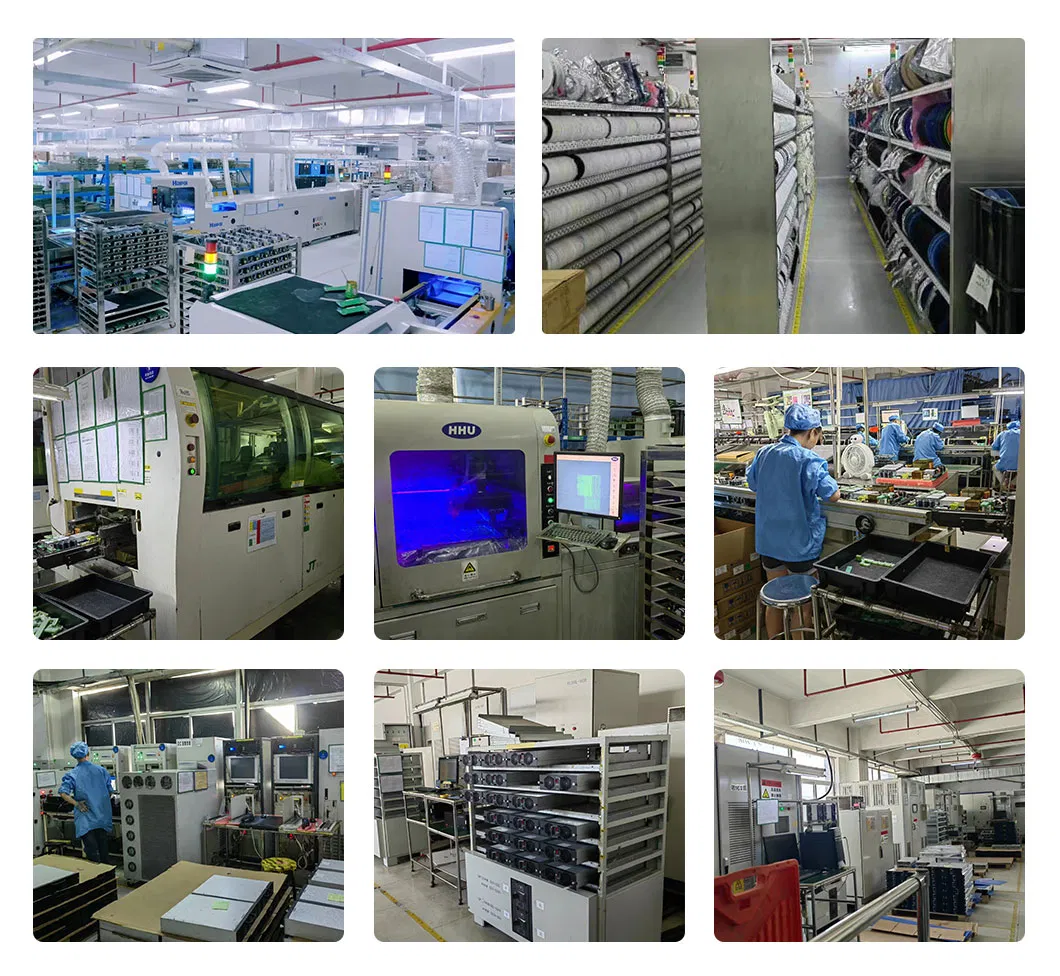

We are a state-level high-tech enterprise focusing on the research, development, production, and sales of power electronic products. We position our services for mid-to-high-end DC power supply system manufacturers, relying on independent intellectual property rights and technological innovation.
With over a decade of expertise, our R&D team serves as an explorer and practitioner in the power supply industry. Our products are widely used in automotive, electric power, railway, metallurgy, and communications fields globally.
