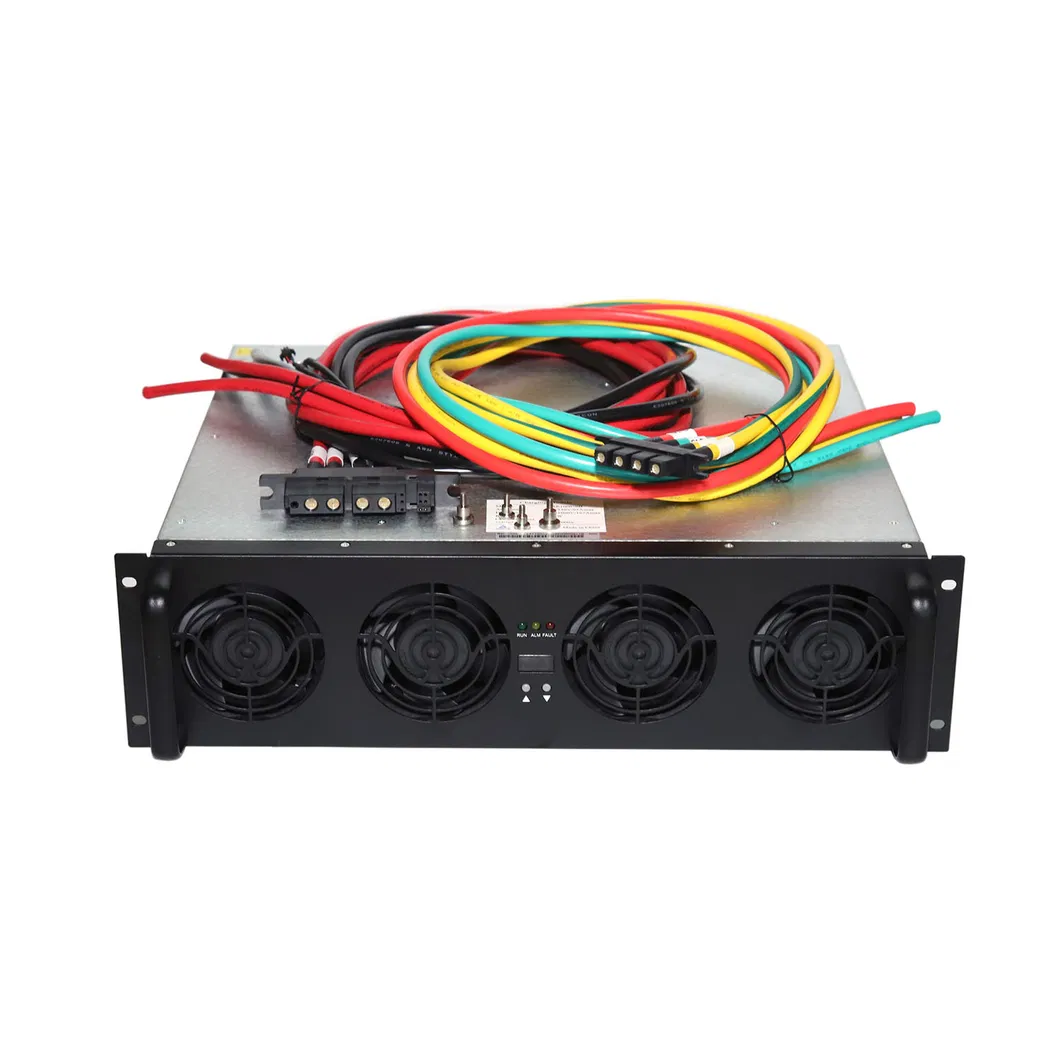

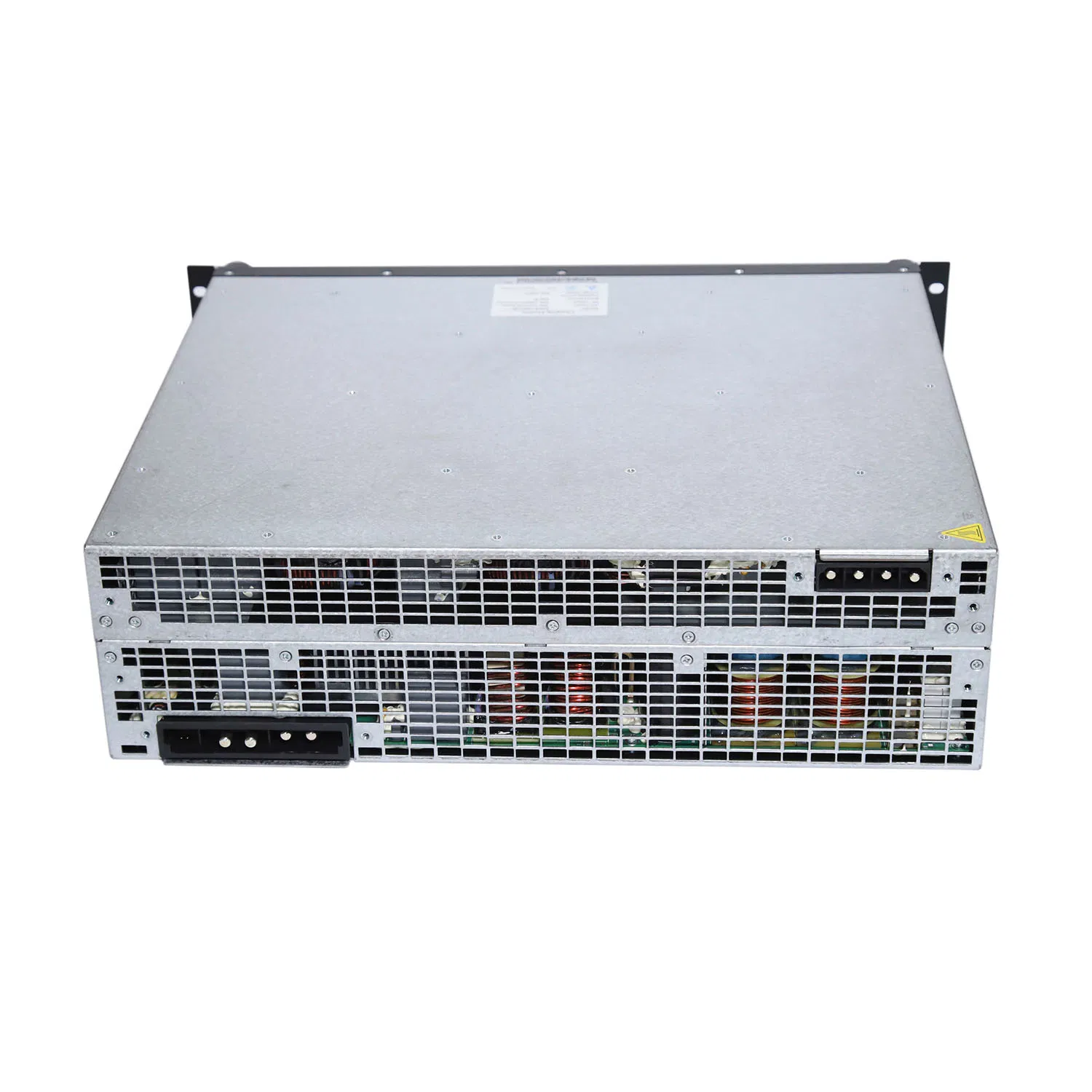

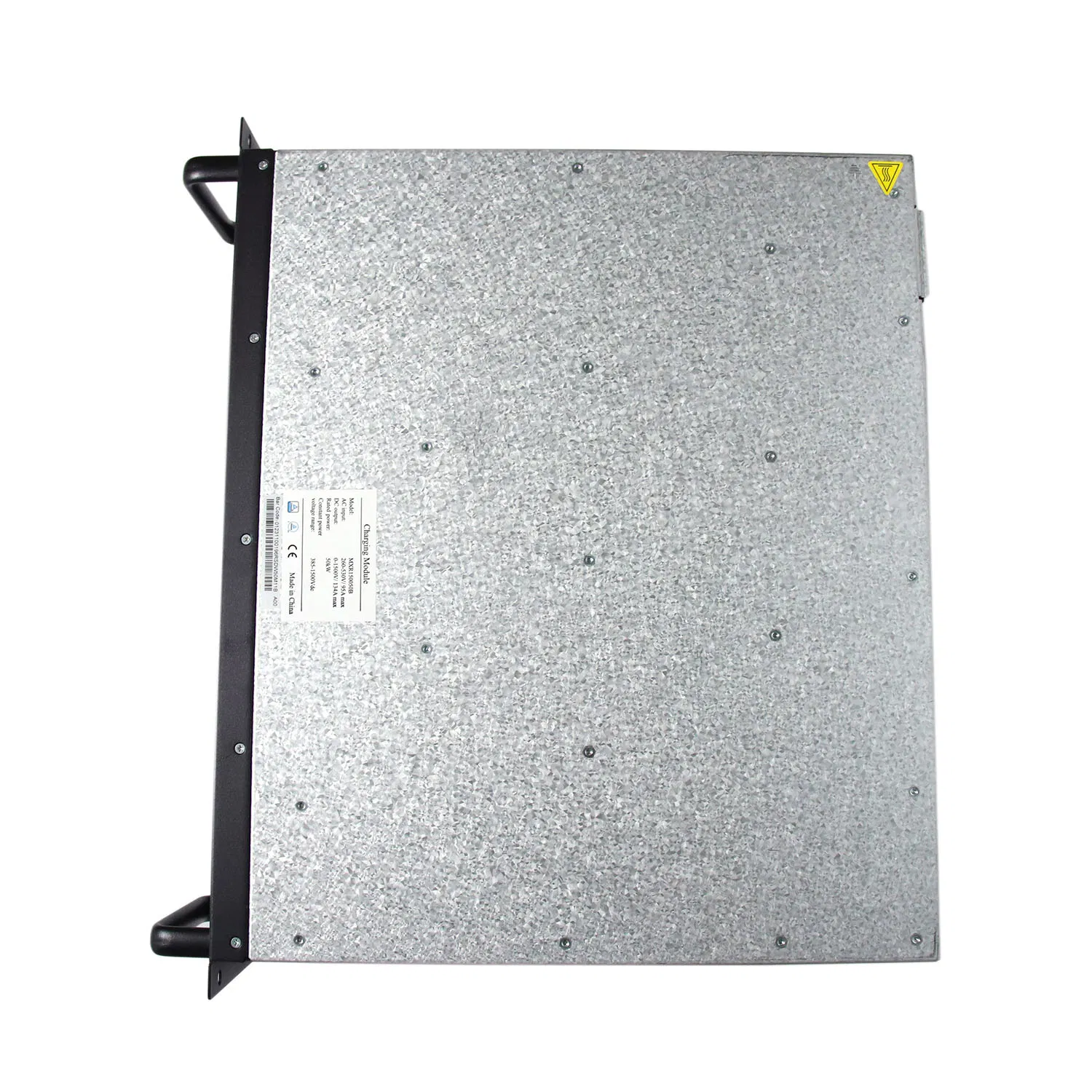

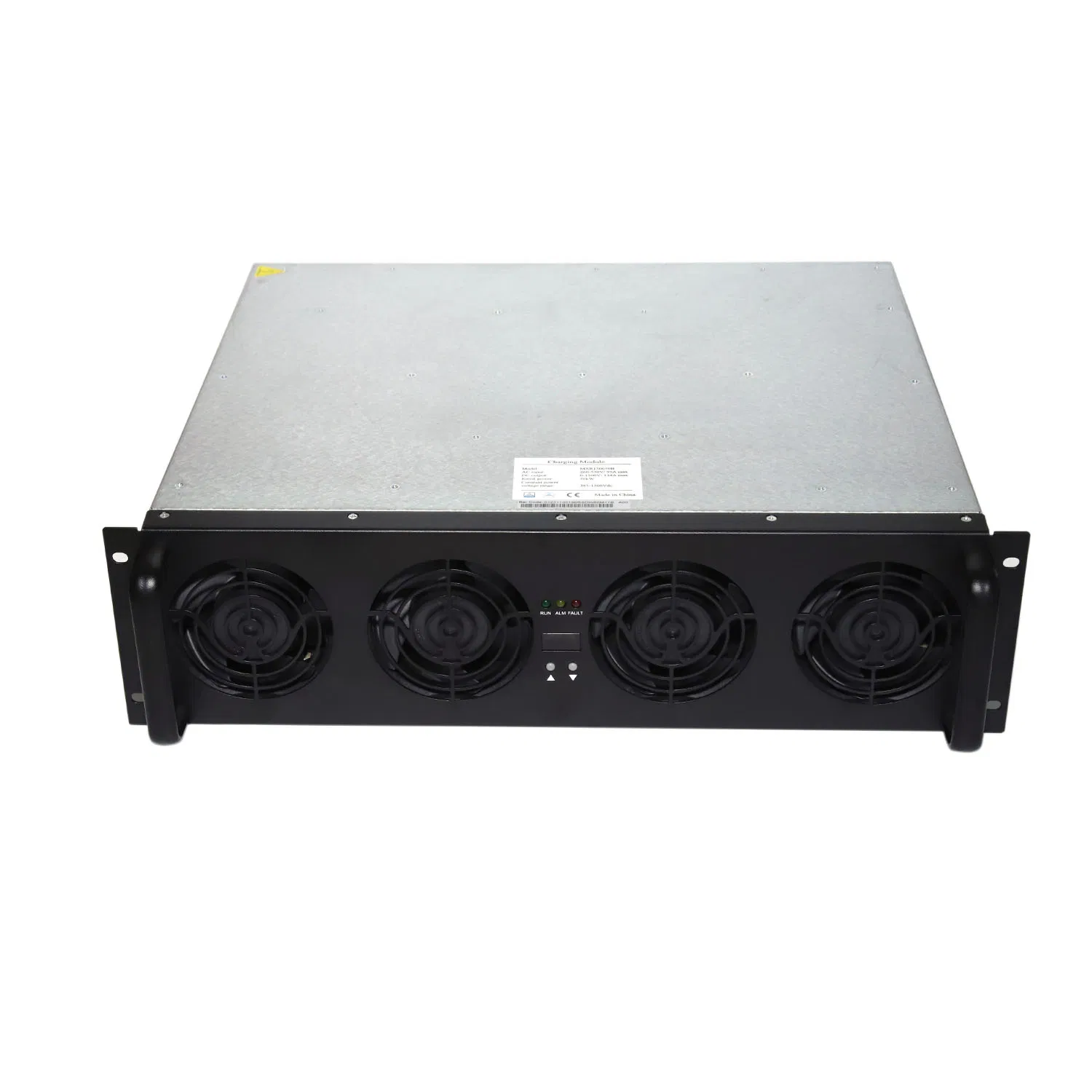

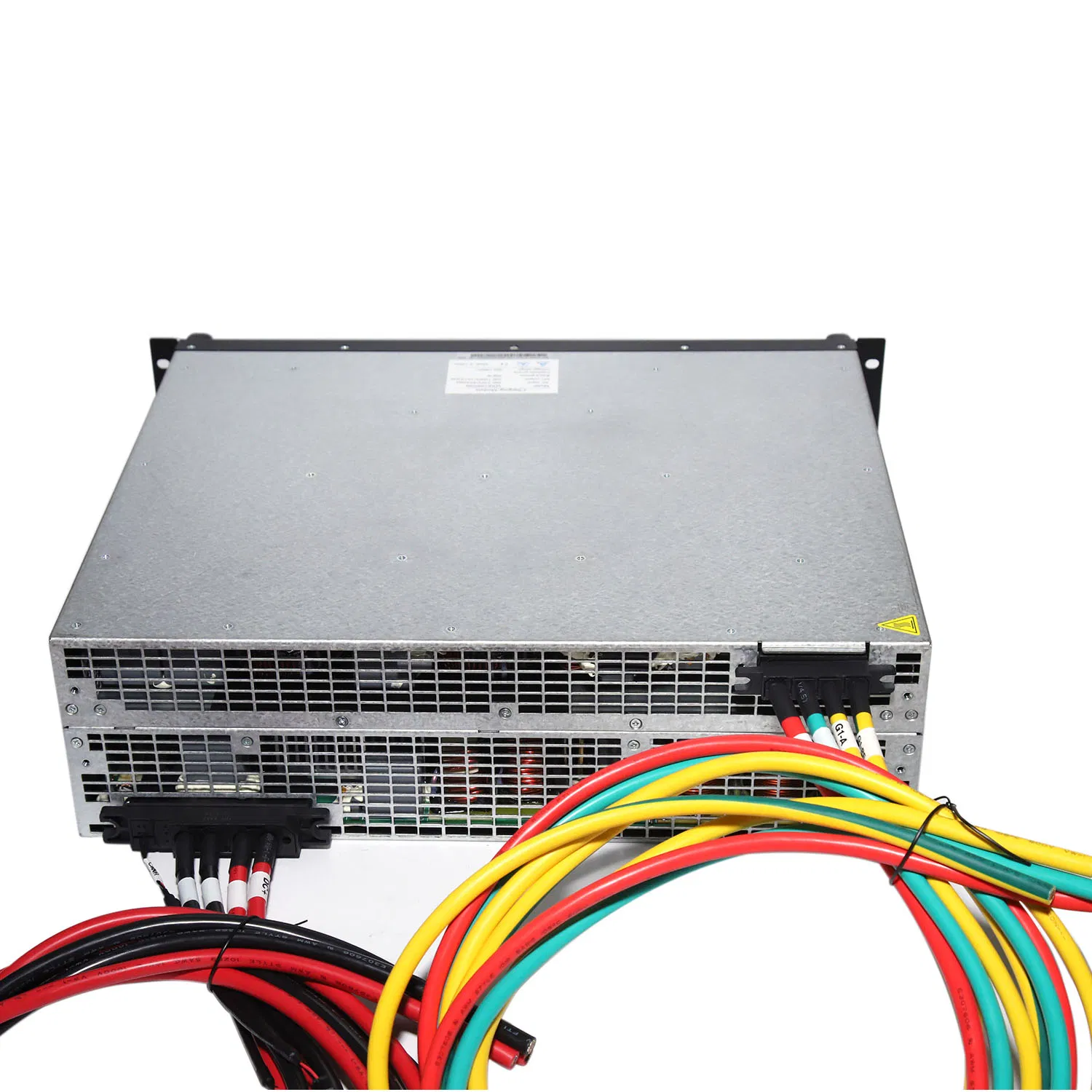

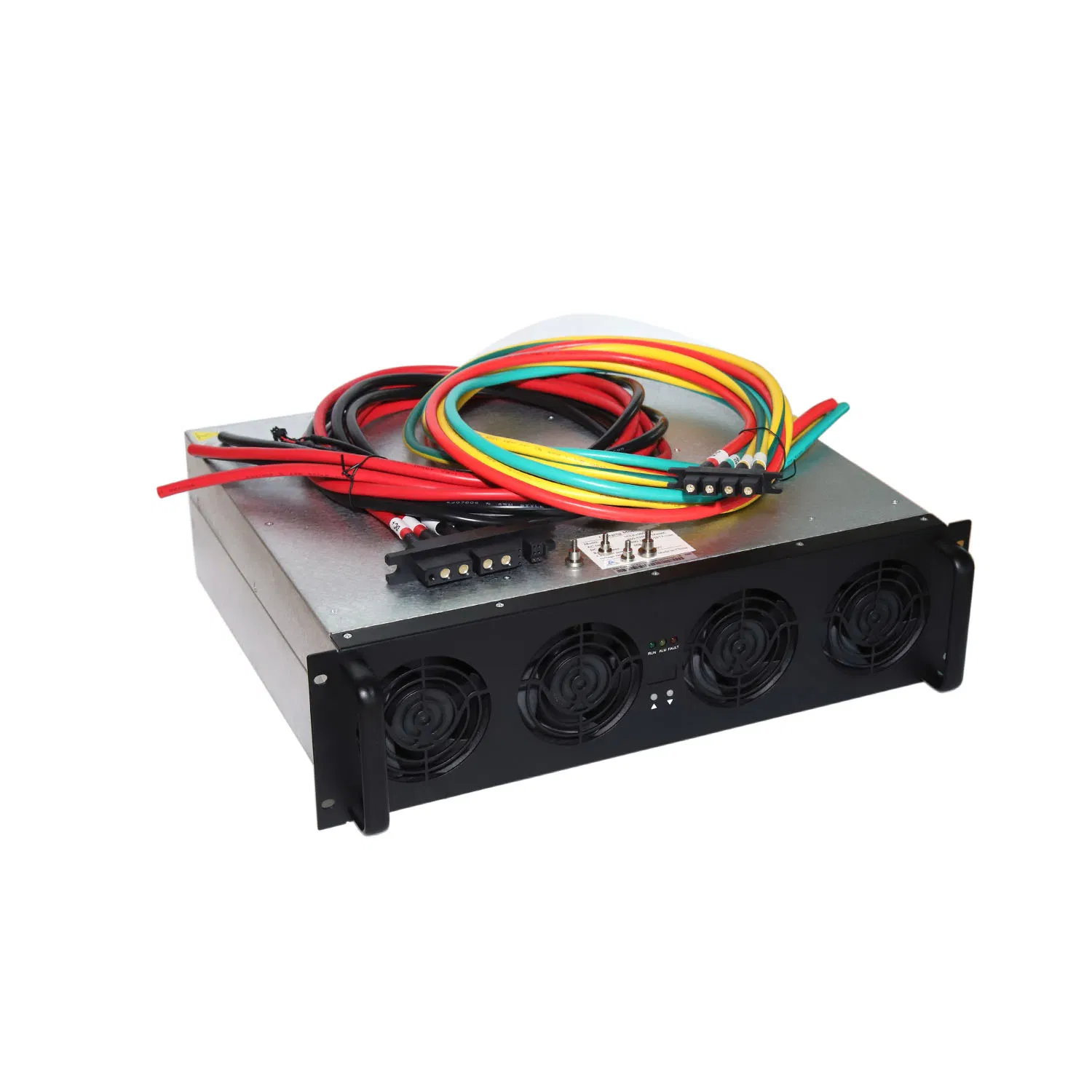

Mxr100050b 50kw@1000V Power Module for DC Fast Charger

1 / 5

Mxr100050b 50kw@1000V Power Module for DC Fast Charger

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

MXR100050b

Type

Fast EV Charging Station

Cooling Method

Forced Air Cooling

Standby Power

<10W

Parallel Quantity

<60 Pieces

Warranty

12 Months

Specification

125*440*380

HS Code

8504409999

Location

Public Use

Production Capacity

300,000 pieces/Year

Main Features

Ultra-wide output voltage range: 200~1000VDC, suitable for a wide range of EVs.
High Power Output: Provides 50kW constant power output within the 300V-1000V range.
Superior Efficiency: Full load efficiency is higher than 96%, ensuring significant power savings.
Low Noise Operation: Silent mode setting reduces noise to less than 55dB.
Wide Temperature Resilience: Operates reliably between -40°C and +80°C.
System Reliability: Built-in residual pressure relief loop to improve system safety and reduce costs.

Product Description

The MXR100050B is a high-power AC/DC charging module specially designed for high-end charging scenarios of electric vehicles. Rated output power is 50 kW and supports a 260VAC~530VAC three-phase four-wire system (A/B/C +PE) input. The output voltage range is 200VDC~1000VDC with a maximum output current of 167A.

The charging module uses an isolated controller area network (CAN) communications port to interact with the system monitoring module. Users can perform voltage regulation, current limiting, and start-stop operations through the system monitoring interface.

Input Characteristics Item	Parameters
Input Voltage	260Vac-530Vac, three-phase+PE
Input Current	<100A
Grid frequency	45Hz-65Hz
Power Factor	>0.99 (Load > 50%)
ITHD	<5% (Load > 50%)

Product Gallery

FAQ

What is the output voltage range of the MXR100050B?

The module offers an ultra-wide output voltage range from 200VDC to 1000VDC, making it compatible with a wide variety of electric vehicles.

How efficient is this charging module?

The MXR100050B features a full load efficiency higher than 96%, providing high efficiency across the entire working range for better power saving.

Does the module support silent operation?

Yes, it supports a silent mode setting. When activated, the operating noise is reduced to less than 55dB to enhance the user experience.

What communication protocol is used for system monitoring?

It utilizes an isolated Controller Area Network (CAN) communications port to communicate with the system monitoring module for voltage regulation and control.

What are the input power requirements?

It supports a 260VAC to 530VAC three-phase four-wire system (A/B/C + PE) input, with a grid frequency of 45Hz-65Hz.

Can multiple modules be used in parallel?

Yes, the system supports parallel configurations of up to 60 pieces for higher power requirements.
