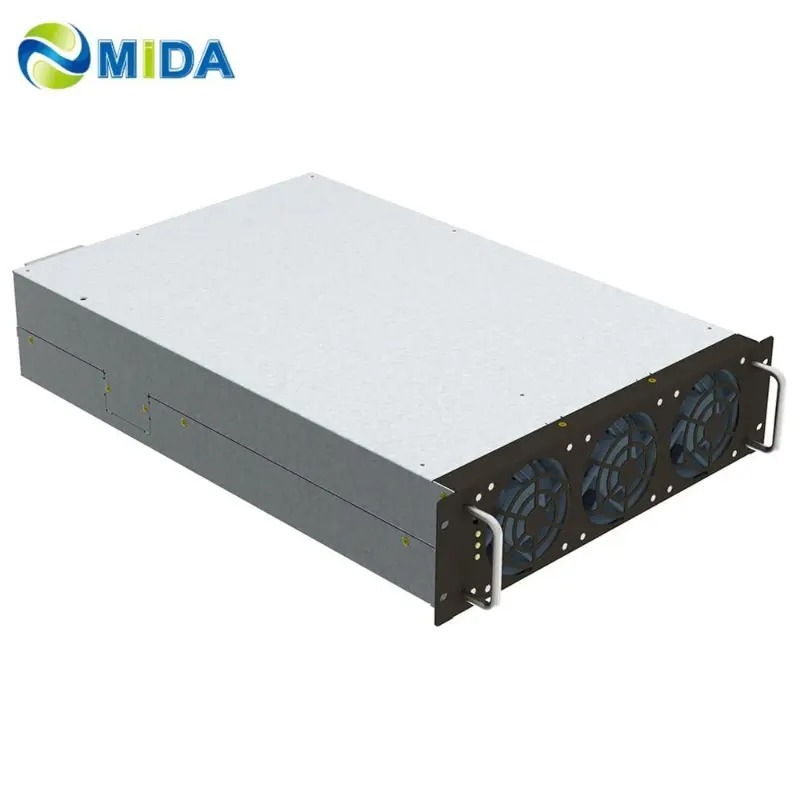

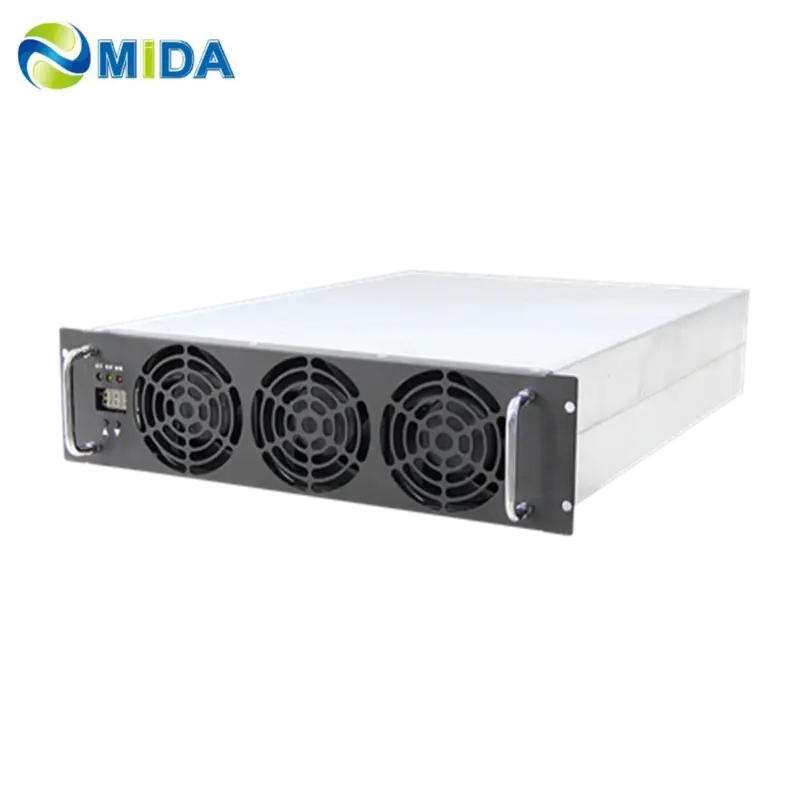

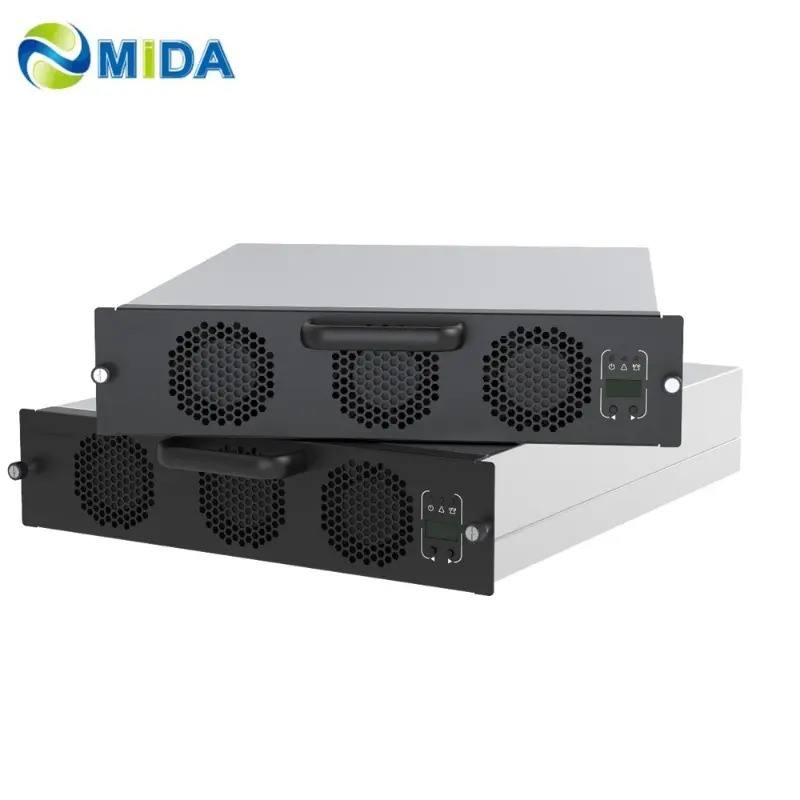

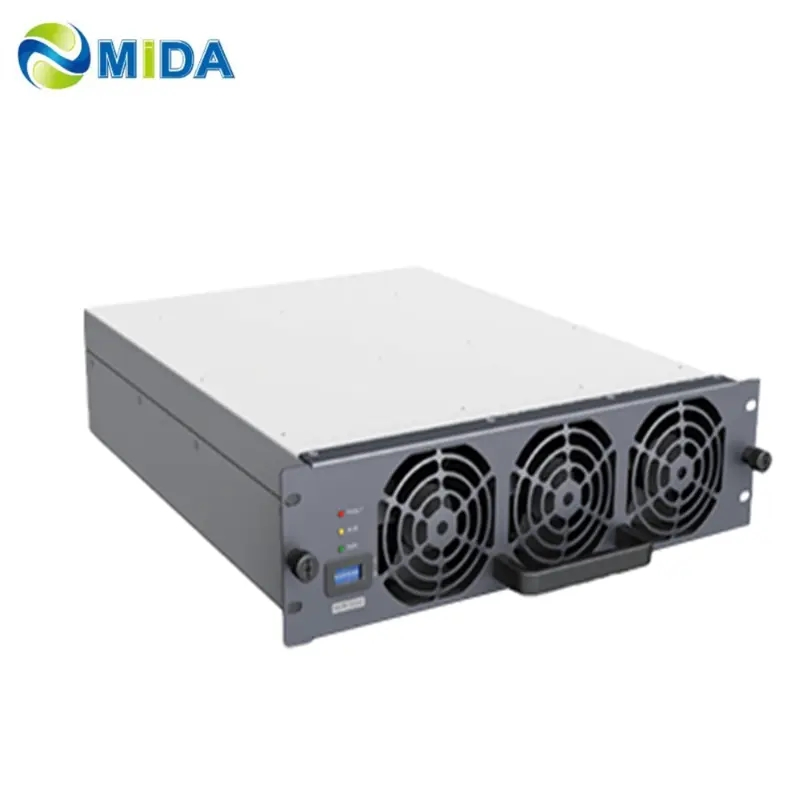

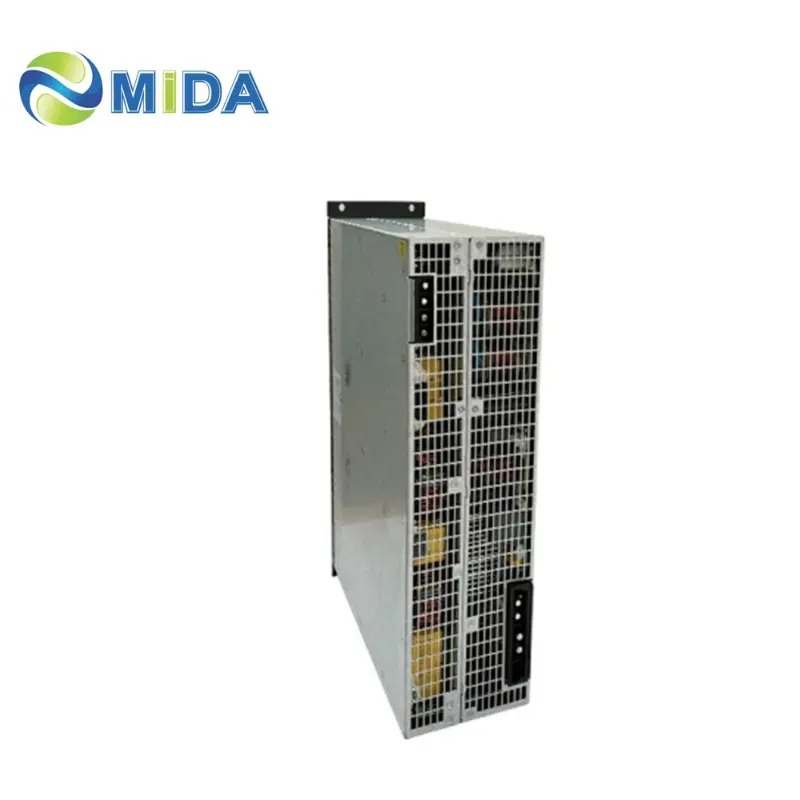

50kW EV Charger Module DC EV Power Modules For Fast EV Charging Station
The 50kW EV Charger Module is a high-efficiency AC-DC power module designed to charge electric vehicles (EVs) using DC from a 3-phase supply. Strategically sized at 50kW to suit desired charger power classes with a wide output range enables charging from 50 to 1000VDC to match any EV battery.
Basic Information
Input Rating
Rated Voltage 380VAC, Three Phase
Output Voltage Range
50-1000VDC
Operating Temperature
-40°C~+75°C
Cooling Method
Fan Cooling
Safety Certification
CE, TUV
Product Features
⚡

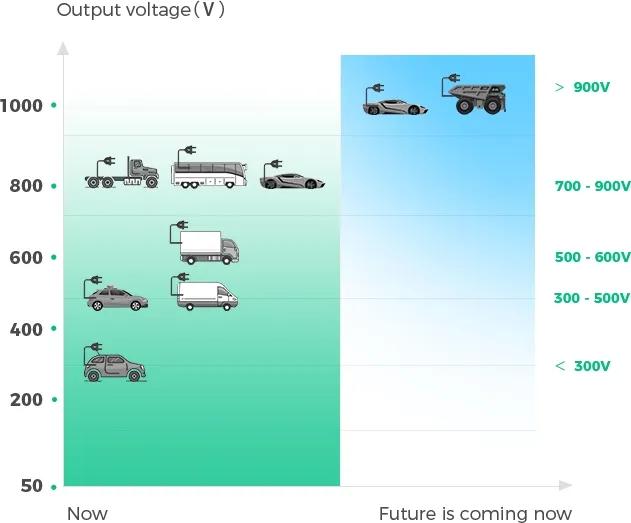

Ultra Wide Output Voltage Range: 50-1000V ultra-wide output range, meeting current market requirements and adapting to future high-voltage EVs.
🛡️
Advanced Safety Technology: Isolated design supporting hot-plug with output reverse irrigation isolation to ensure personal and system safety.
🔄
Future-Proof: Compatible with existing 200V-800V platforms and provides full power charging for future developments above 900V.
🌐
Multi-Protocol Support: Compatible with CCS1, CCS2, CHAdeMO, GB/T, and energy storage systems.
Technical Specifications
| Parameter |
Details |
| AC Input |
Input Voltage |
Rated 380Vac, 3-Phase (274-487Vac Operating) |
| Frequency |
50 ± 5Hz |
| Power Factor |
≥ 0.99 |
| DC Output |
Rated Power |
50kW |
| Voltage Range |
50-1000Vdc |
| Current Range |
0.5-67A |
| Peak Efficiency |
≥96% |
| Operation |
Temperature |
-40℃ to +75℃ (Derating from 55℃) |
| Communication |
CAN Protocol |
| Mechanical |
Dimensions |
437.5*300*84mm |
| Weight |
≤15kg |
Industry Application
Frequently Asked Questions
1. What is the output voltage range of this 50kW module?
The module offers an ultra-wide output range from 50VDC to 1000VDC, making it compatible with almost all current and future electric vehicle batteries.
2. Does the module support hot-swapping?
Yes, the module is designed with isolation and supports hot-plugging, which simplifies maintenance and ensures the safety of the fast-charging system.
3. What is the peak efficiency of this power module?
The 50kW module achieves a peak efficiency of ≥ 96%, ensuring minimal energy loss during the AC to DC conversion process.
4. Can this module be used for CCS2 and CHAdeMO chargers?
Absolutely. The power module supports multiple standards including CCS1, CCS2, CHAdeMO, and GB/T, as well as energy storage system applications.
5. What protection features are included?
The module includes comprehensive protection: Over Voltage Protection (OVP), Over Current Protection (OCP), Over Temperature Protection (OTP), Under Voltage Protection (UVP), and Short Circuit Protection (SCP).
6. How does the module handle high-temperature environments?
It operates effectively between -40°C and +75°C. Power derating starts from 55°C to maintain system stability and longevity.
