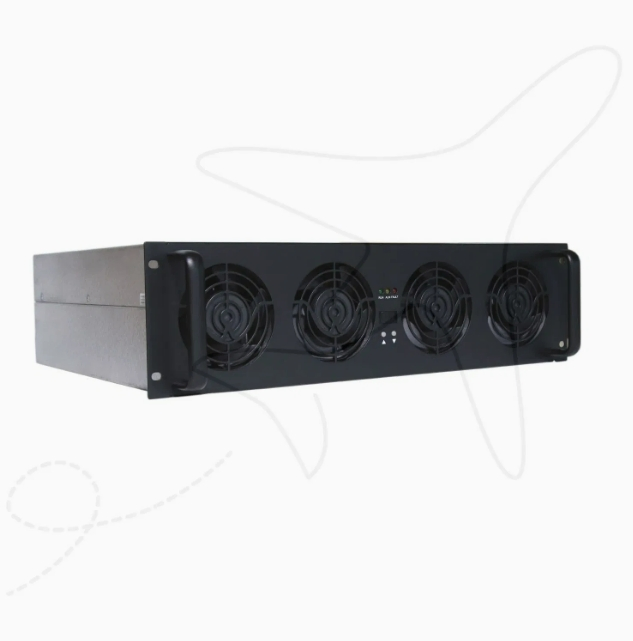

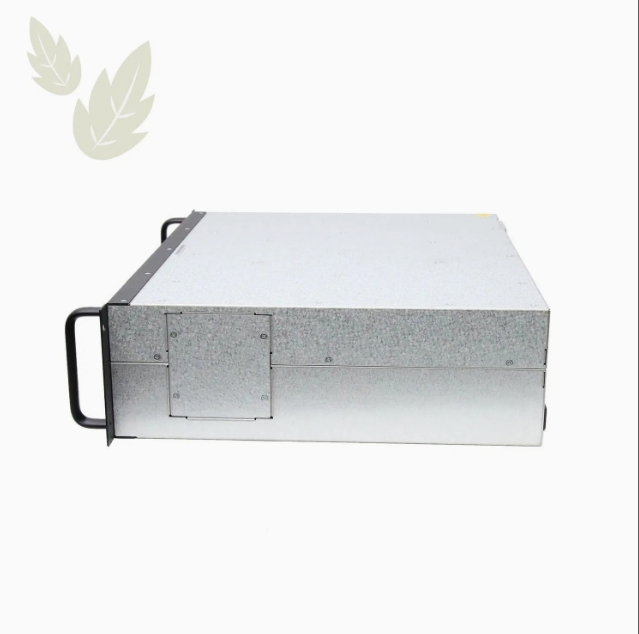

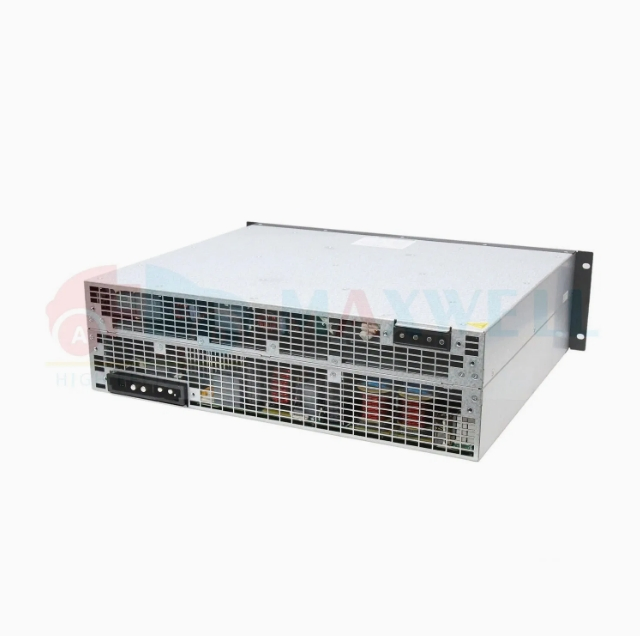

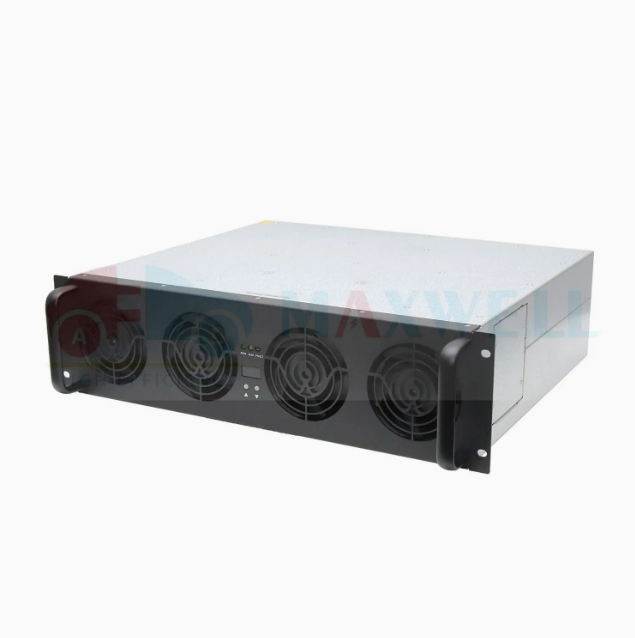

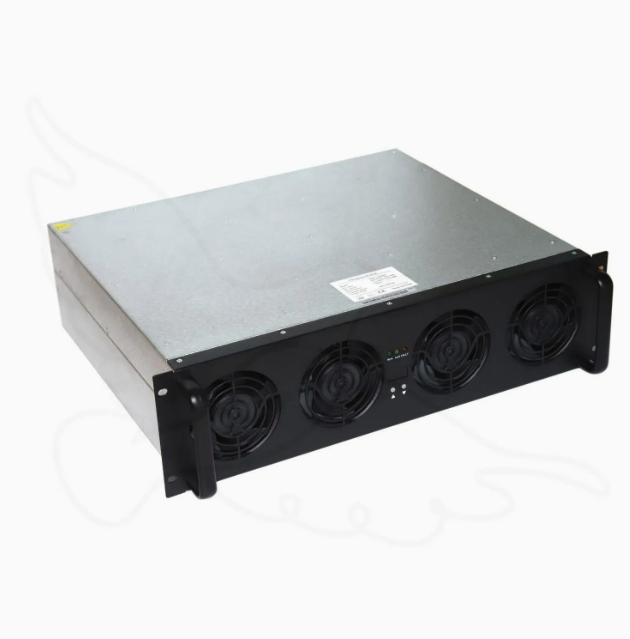

50kw 2000V EV DC Fast Charger Converter Module

Basic Specifications

Model NO.

MXR20050B

Rated Power

50kw

Output Current

0~100A

Output Voltage

0~2000Vdc

Efficiency

>97%

MTBF

1,000,000 hours

Start Mode

Credit Card Payment

Weight

24kg

Power Factor

0.99

Certification

CE, ISO, TUV, RoHS

Warranty

1 Year

Dimensions

125(H)*440(W)*430(D)mm

Product Description

MXR200050B is a premium charging power module designed for the high-demand charging pile industry. It features significant advantages in ultra-high full-load operating temperatures and an ultra-wide constant power range. This module is characterized by high reliability, efficiency, and power density, with low standby power consumption and excellent EMC performance.

Key Features:

Ultra-High Efficiency: >97%
Ultra-Wide Working Voltage (0-2000V)
Ultra-Wide Constant Power Range (500-2000V)
Ultra-High Reliability (MTBF > 1M hours)
Compatible with AC and DC Input

Communication Protocol	CAN bus
Input Voltage Range	260 Vdc ~ 530 Vdc
Output Voltage Range	0 Vdc ~ 2000 Vdc
Output Derating Temp	-40ºC ~ 75ºC

50kw 2000V EV DC Fast Charger Converter Module

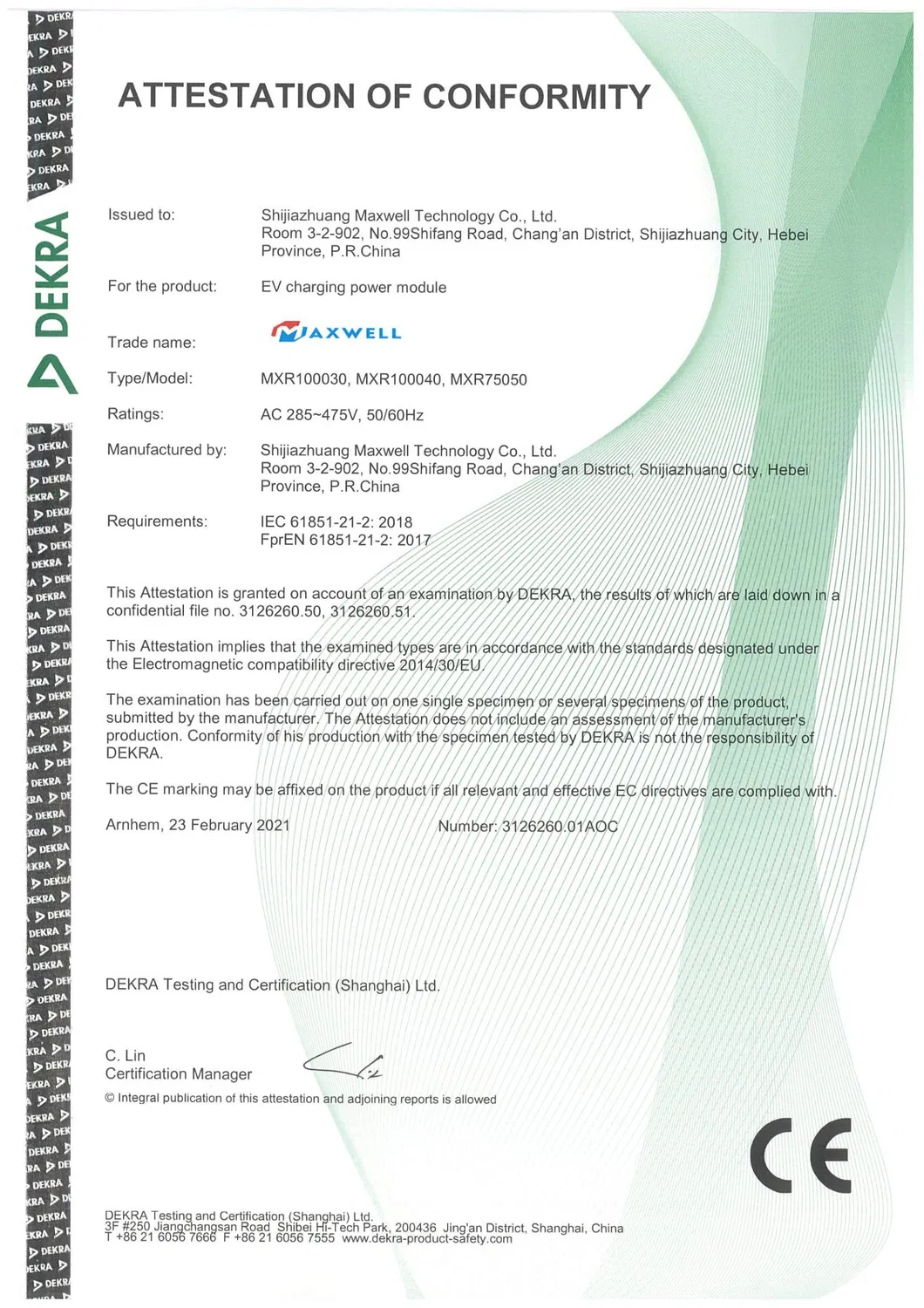

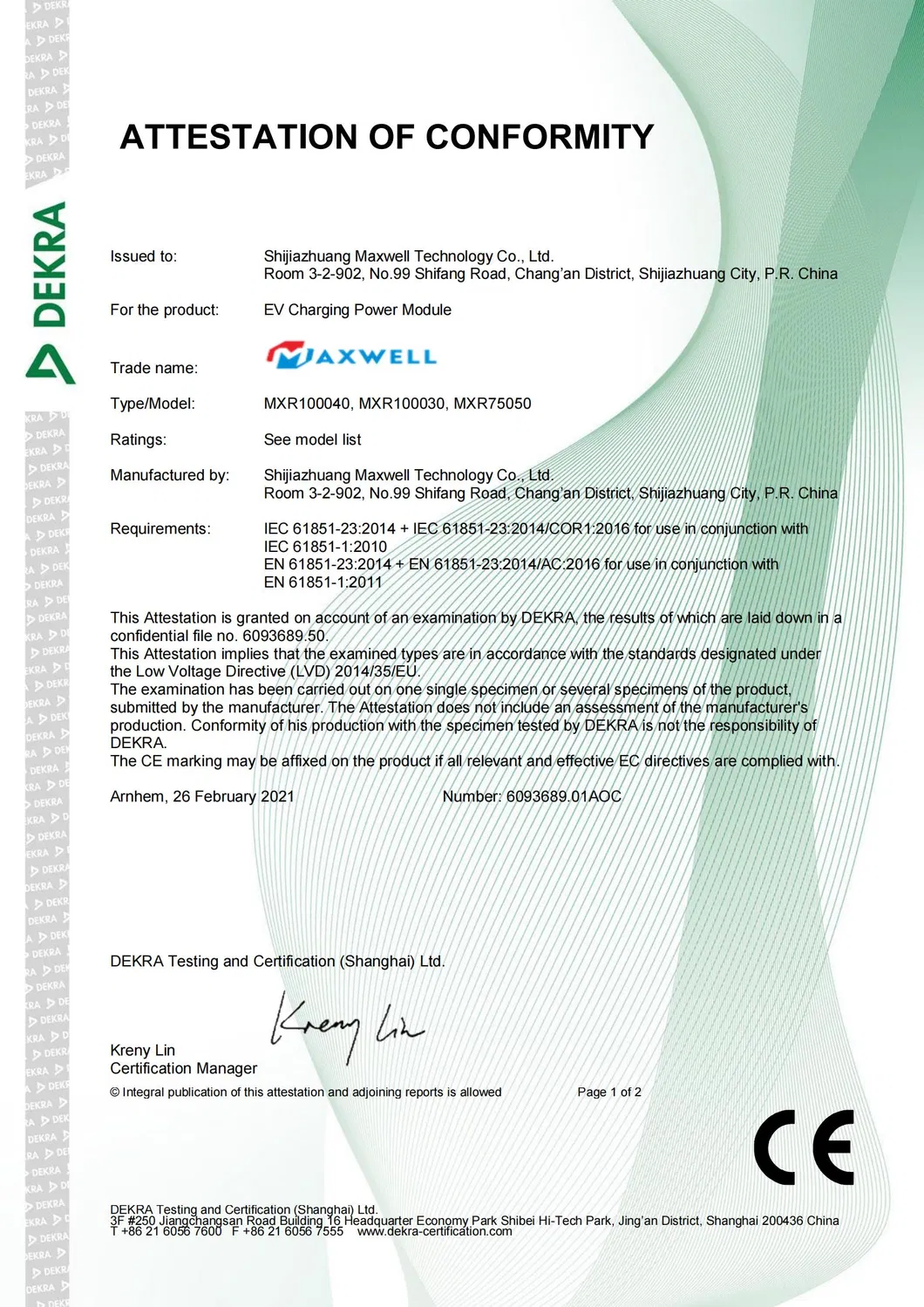

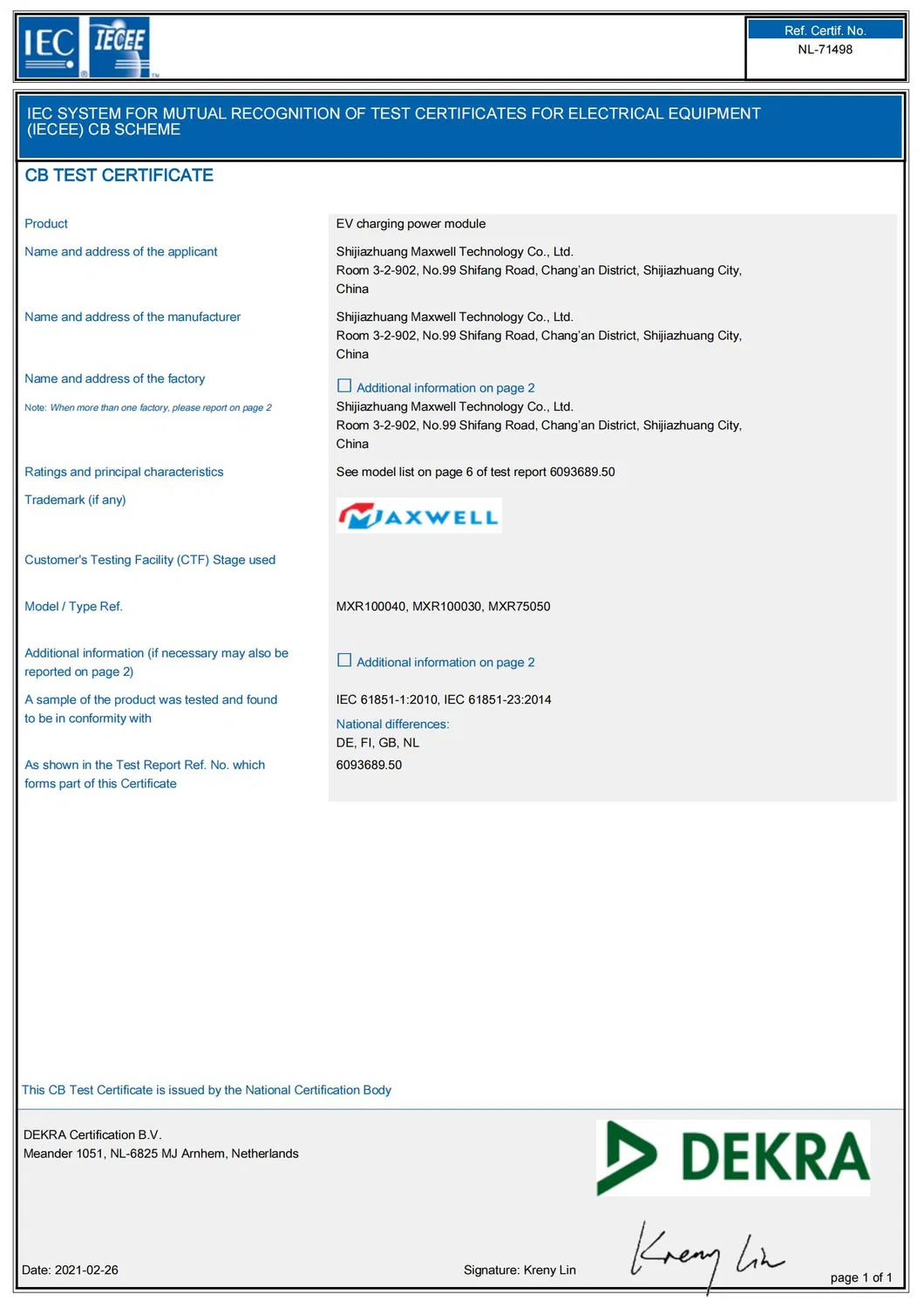

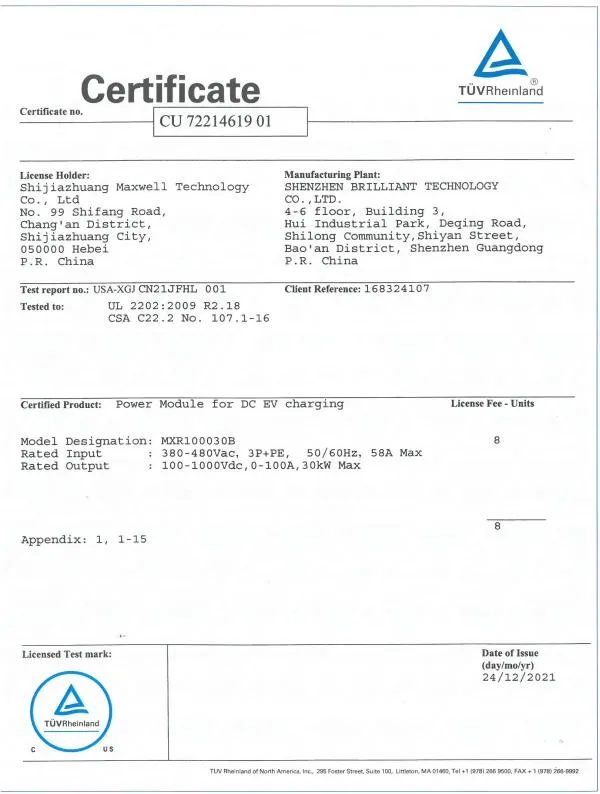

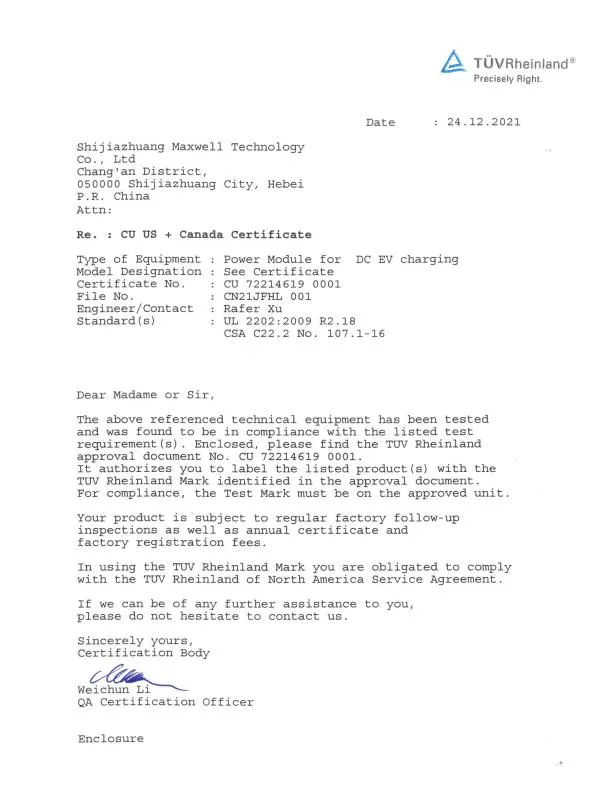

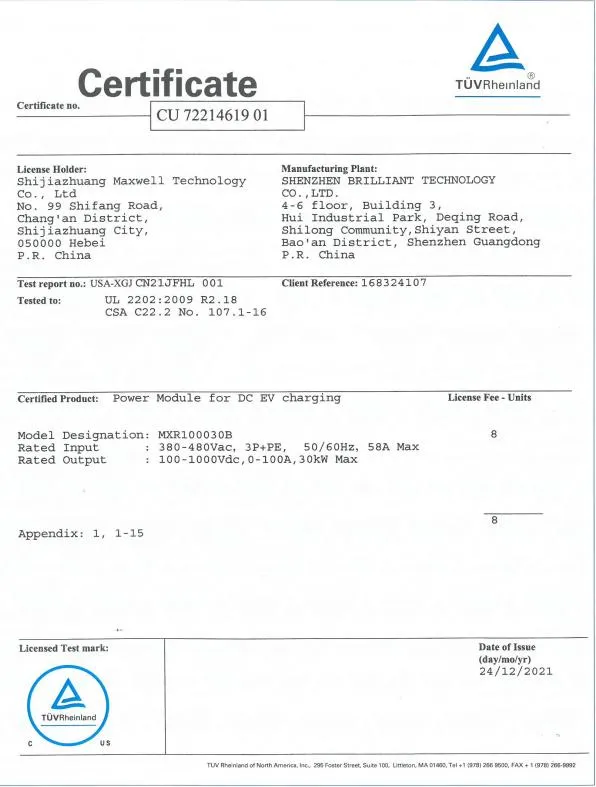

Certifications

CE / TUV / EMC Standards	EN IEC 61000-6-1:2019, EN IEC 61000-6-2:2019, EN IEC 61000-6-3:2021, EN IEC 61000-6-4:2019, EN IEC 61851-21-2:2021
cTUVus Standards	UL 2202:2009 R2.18; CSA C22.2 NO.107.1-16

Packaging & Shipping

Development Journey

Established in 2009, the initial focus was on power converters for the stable power industry. By 2014, recognizing the rise of photovoltaic energy and energy storage, a strategic shift was made toward new energy solutions. Current offerings include a range of high-voltage modules: 20KW, 30KW, 40KW, and 50KW at 1000V, as well as V2G energy storage products like MXR80025 and MXC75050B.

Future goals involve deepening expertise in the new energy sector, with charging modules as the core product, while evolving toward complete charging system solutions.

Production Process

1 Material Management: Strict procurement and regional categorization in climate-controlled warehouses with precise data tracking.

2 Manufacturing: SMT, manual plug-in, wave soldering, assembly, debugging, inspection, and rigorous Aging Toaster tests.

3 Quality Control: Comprehensive review and unified office management system tracking for every order.

4 Traceability: End-to-end documentation from raw materials to final delivery ensures 100% product traceability.

After Sales Service

Warranty Period: 1 Year

During the first six months, non-human damaged modules are replaced with a new unit for free (shared freight). In the second half of the year, we provide free repair services. Technical assistance from our engineering team is available throughout your testing process.

Frequently Asked Questions

What is the maximum output voltage of the MXR20050B?

The module supports an ultra-wide output voltage range from 0Vdc to 2000Vdc.

How efficient is this power module?

It achieves an ultra-high full-load efficiency of over 97%.

What communication protocol is supported?

The module utilizes the CAN bus communication protocol for industrial reliability.

Does the module support both AC and DC inputs?

Yes, the module is designed to be compatible with both AC and DC input sources.

What is the reliability rating of this product?

The module has an MTBF (Mean Time Between Failures) of greater than 1,000,000 hours.

What are the operating temperature limits?
