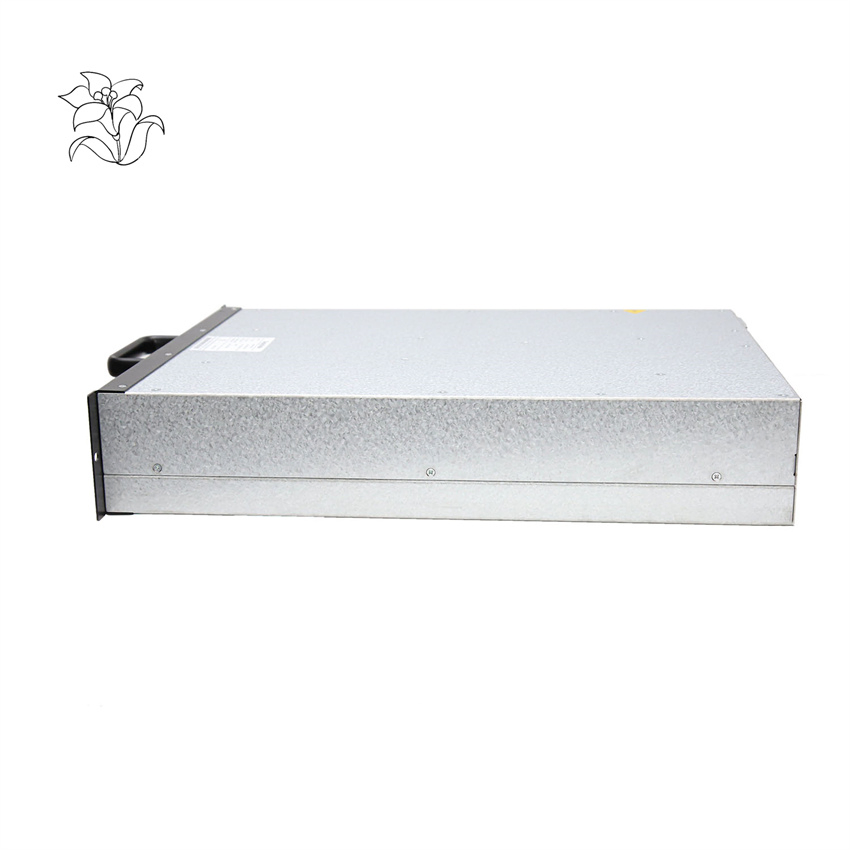

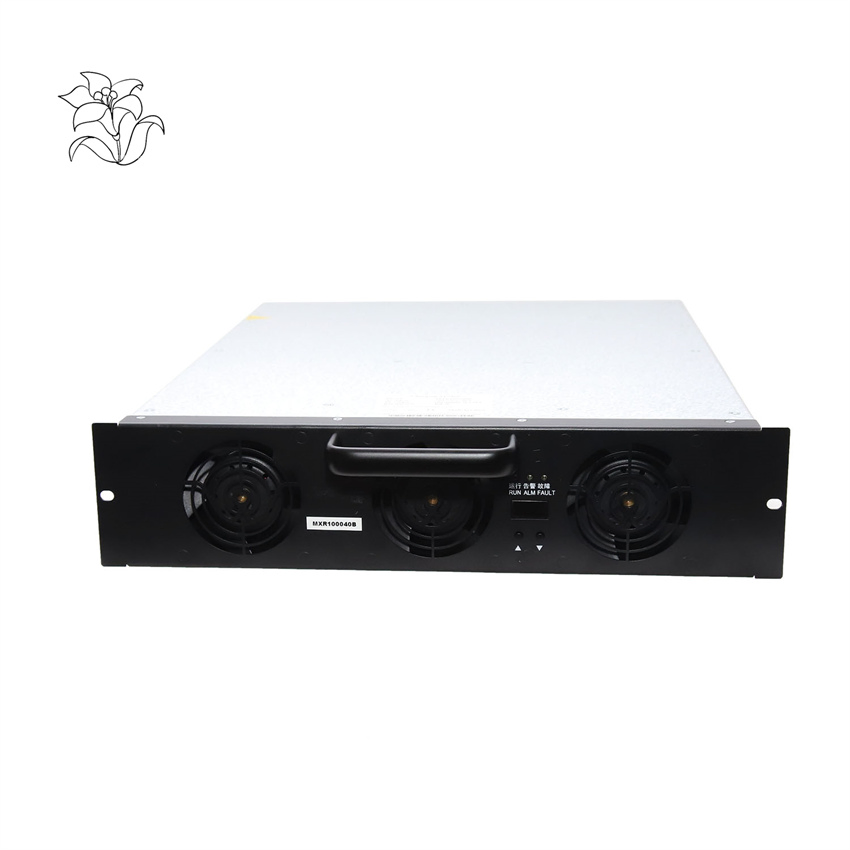

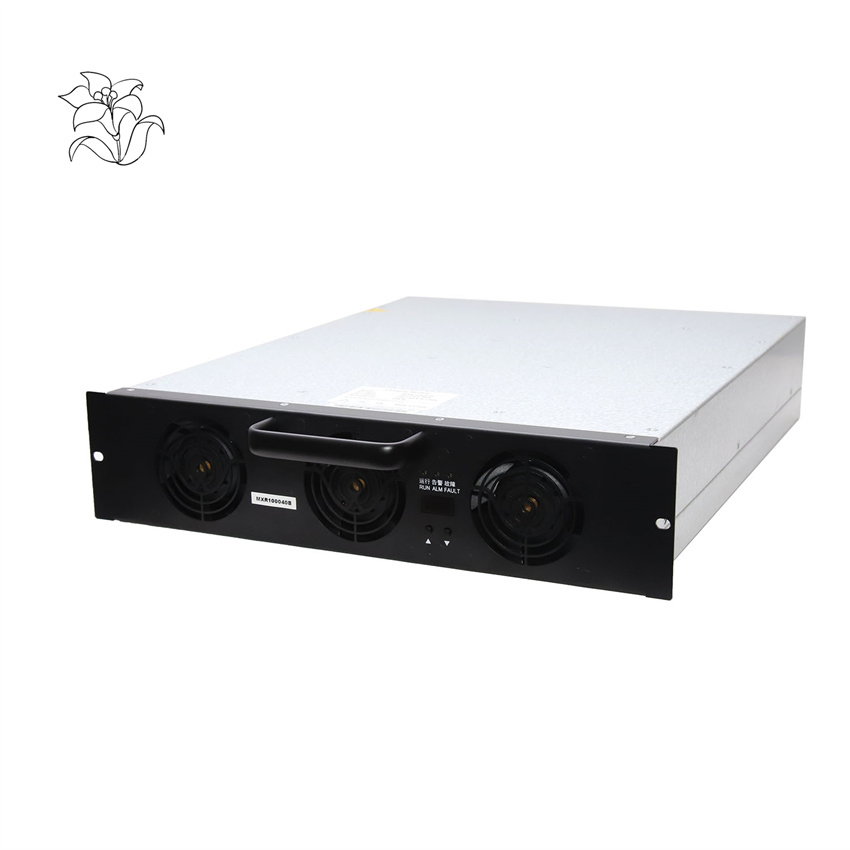

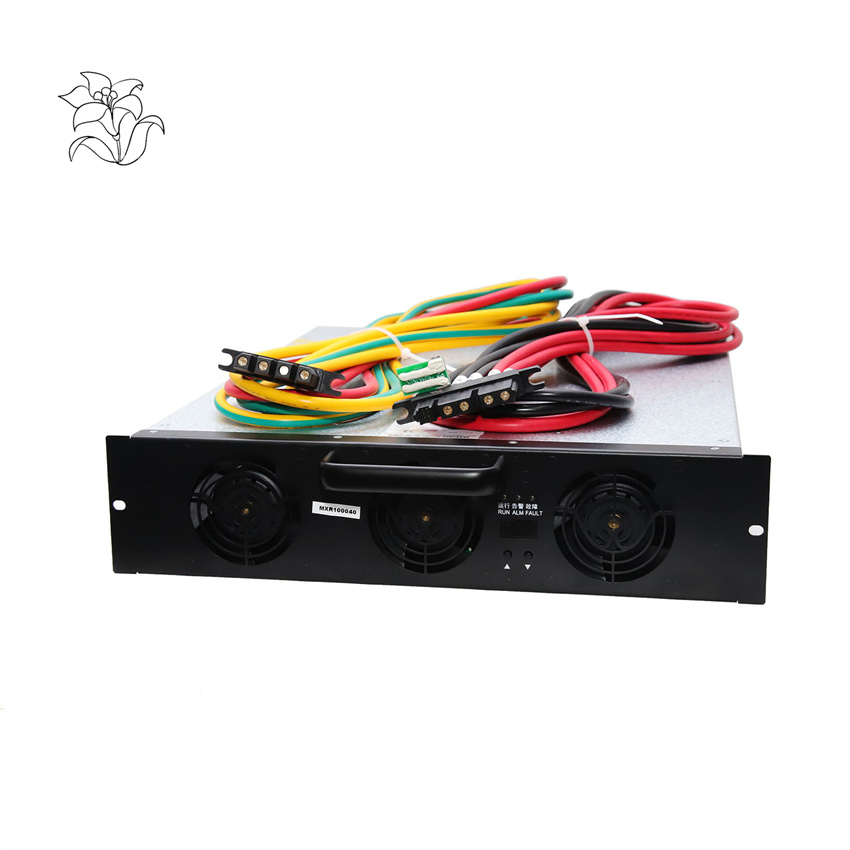

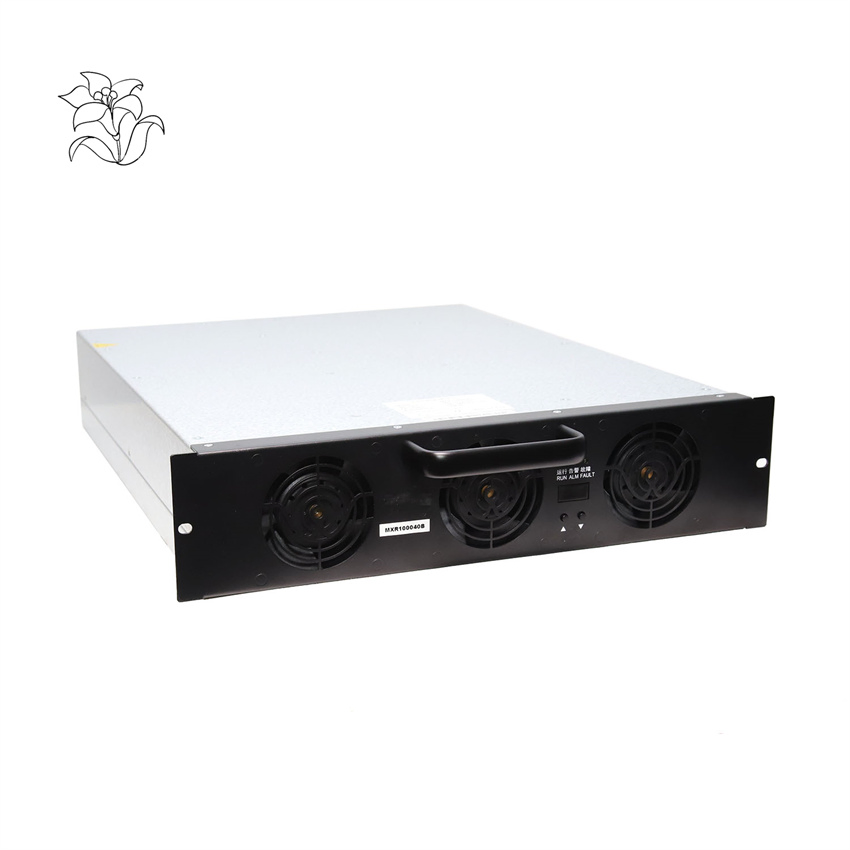

OEM DC Fast Charger 40kw EV Power Rectifier Charging Module

📊

Basic Information

Model NO.

MXR100040

Location

Public Use

Charging Interfaces

One Pile with Multiple Charges

Start Mode

Credit Card, Mobile Remote, RFID

Charge Method

Quick Charge

Input Voltage

285VAC-475VAC

Output Voltage

100VDC-1000VDC

Input Current

<80A

Output Current

0-133.3A

Efficiency

>95.5%

Product Name

EV DC Charging Module

Power Supply

3phase+PE

Communication

Can Bus

Parallel Quantity

Maximum 60

Certification

CE, ISO, TUV, RoHS

Warranty

12 Months

Cooling Mode

Fan Cooling

Weight

21kg

Stand-by Power

<13W

Specification

459*360*85mm

💡

Product Description

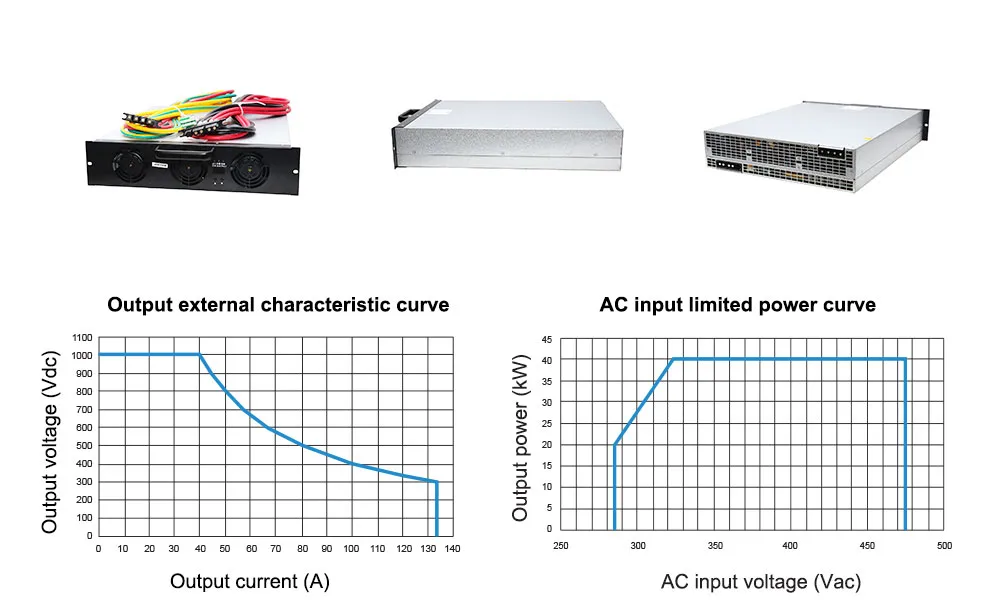

Output Power	15KW	20KW	30KW	40KW	50KW
Product Type	AC-DC, DC-DC, Bidirectional Power Module, Liquid Cooling Module

MXR100040 is a charging power module developed for the charging pile industry. It has prominent advantages in ultra-high full-load operating temperature and ultra-wide constant power range.

Main Features:

Wide Constant Power Range: 300-1000V

Ultra low standby power consumption: Less than 13W

Ultra low THD: ≤5%

Ultra wide operating temperature range: -40~60ºC

Ultra wide voltage input range: 285Vac~475Vac, three phase+PE

Ultra high conversion efficiency: Peak efficiency ≥95.5%

🚀

Product Applications

📦

Packaging & Shipping

Generally, goods are packed in kraft cartons with or without pallets. For customized needs, goods can be packed in branded boxes after receiving proper authorization.

❓

Frequently Asked Questions

What are the differences in global DC fast charging standards?

Currently, there are 5 major DC fast charging standards: CCS-1, CCS-2, CHAdeMO, GB/T, and Tesla.

How is after-sales support handled for the EV DC charger module?

We provide comprehensive technical training, including written materials, videos, and face-to-face sessions to master parts replacement and maintenance. Professional technicians are available for on-site support in urgent situations.

What customized services are available?

We provide various OEM and ODM solutions tailored to specific customer requirements and technical specifications.

What are the standard terms of payment?

Payment is typically accepted via T/T in advance or Irrevocable L/C at sight.

What is the expected delivery time?

Standard delivery is usually made within 2-3 weeks after the order has been confirmed.
