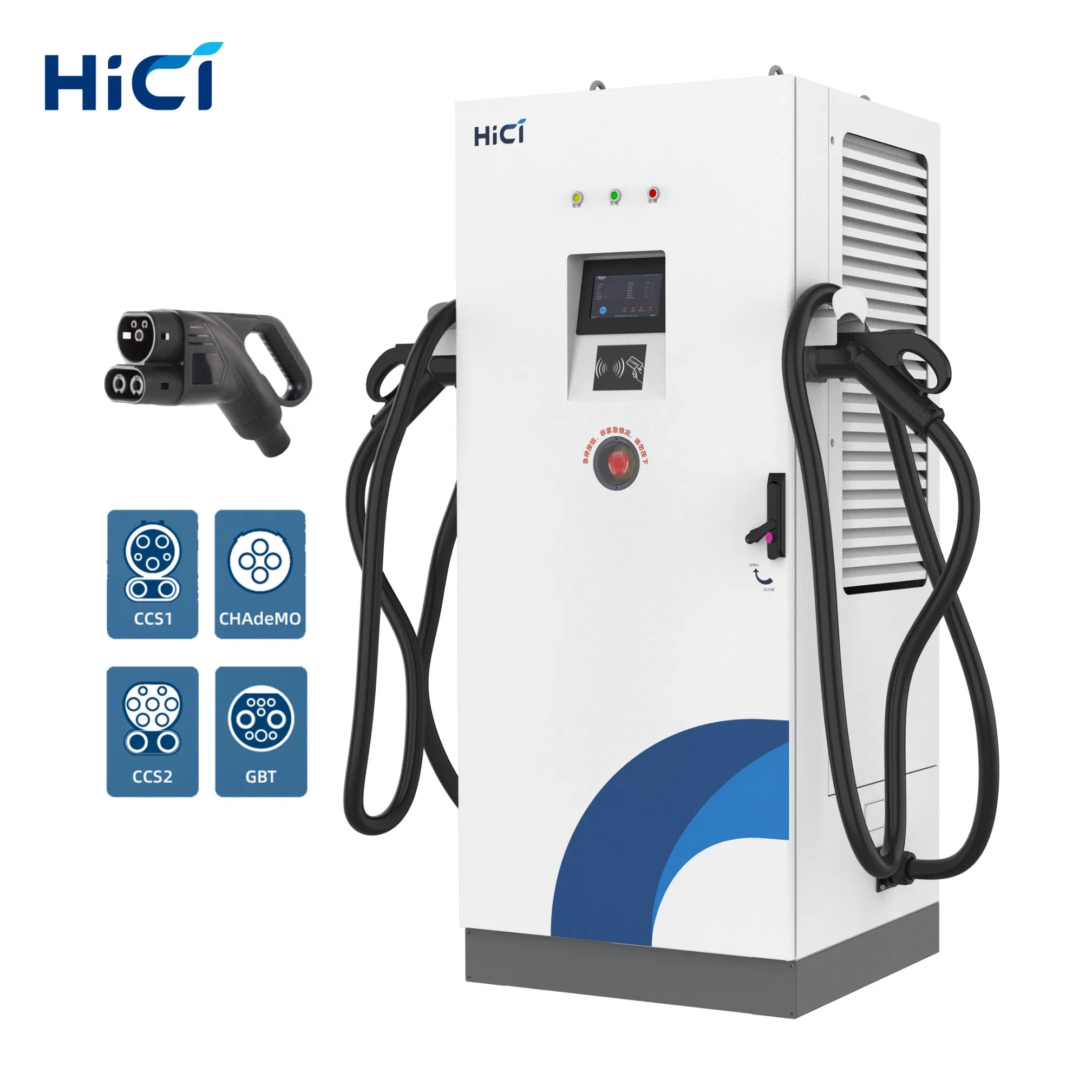

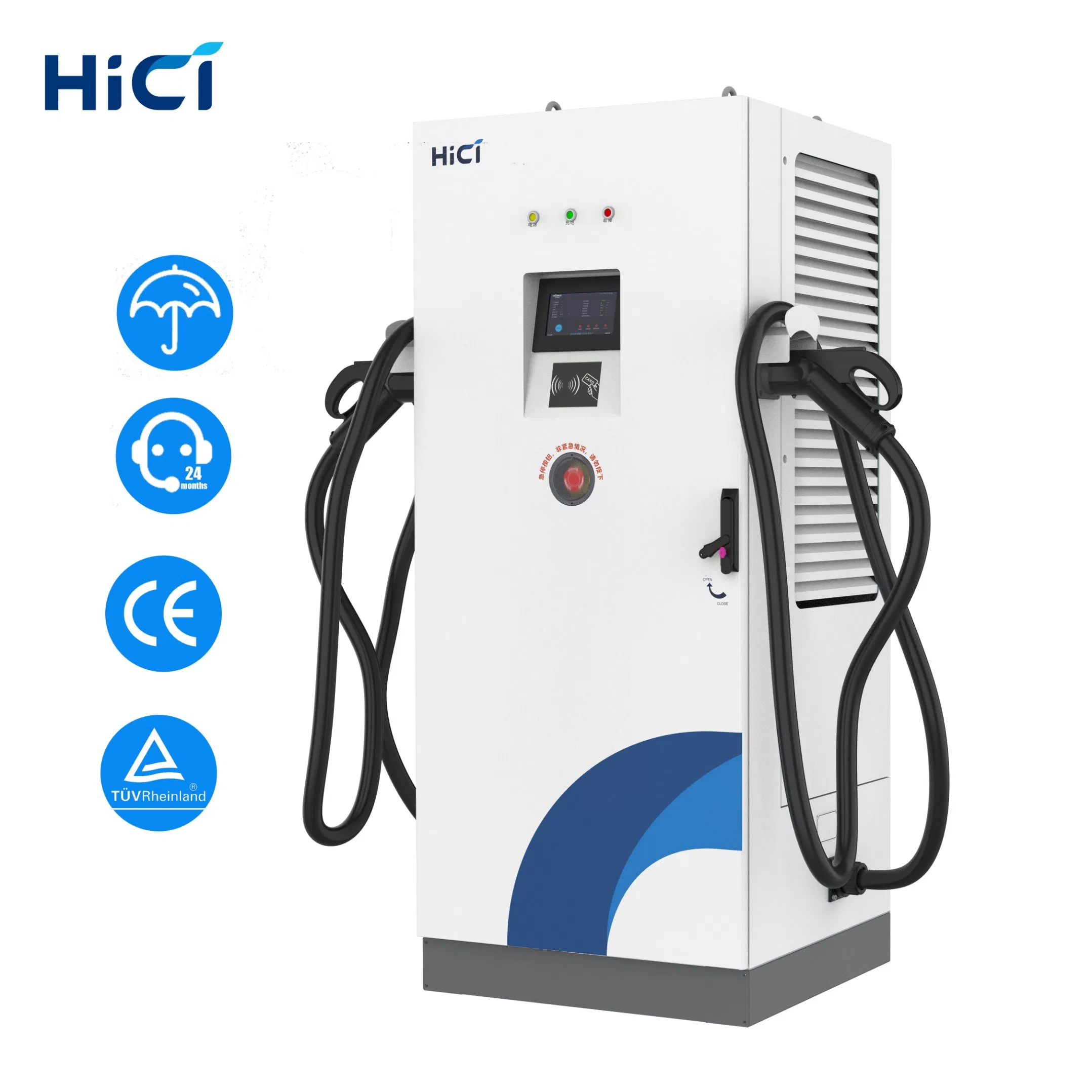

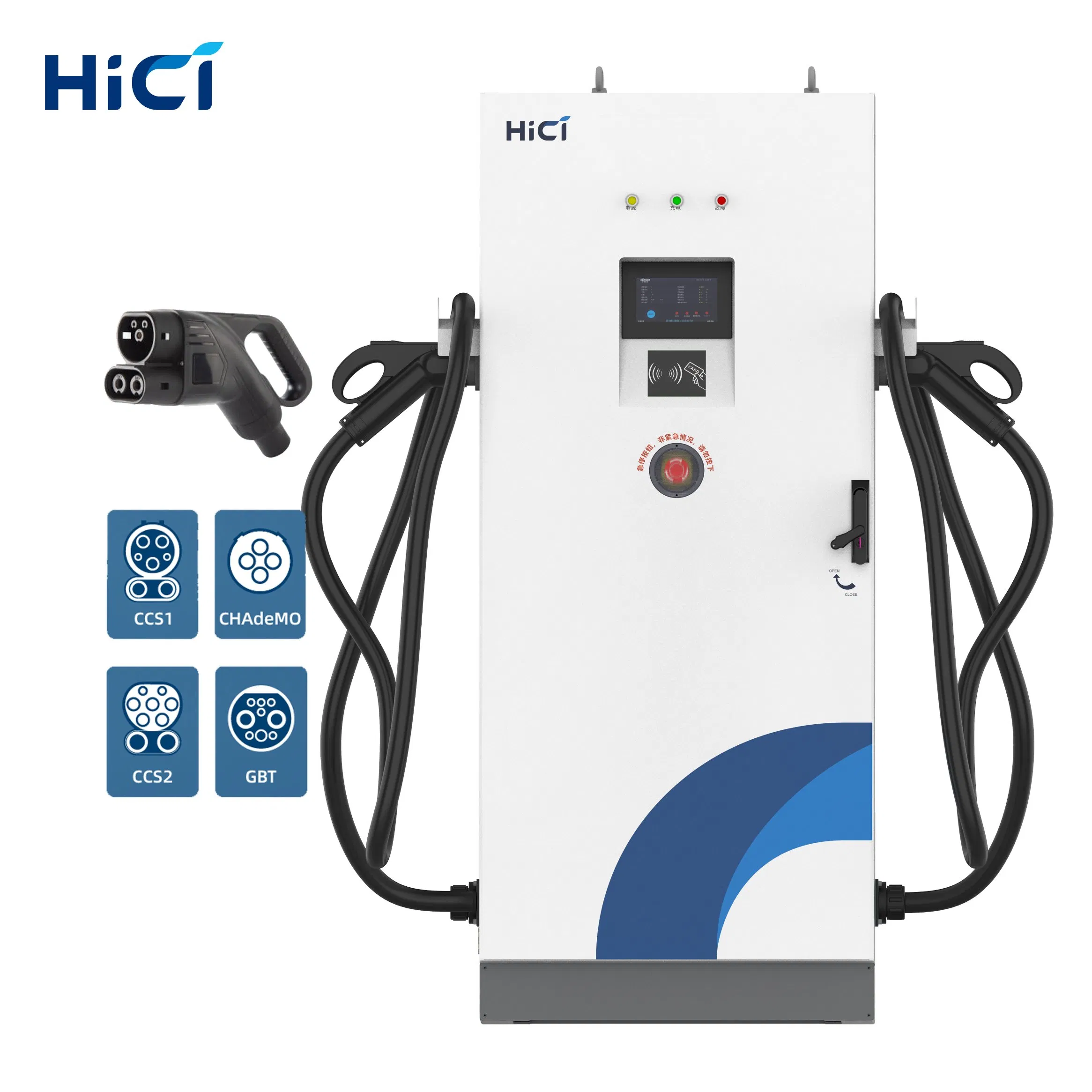

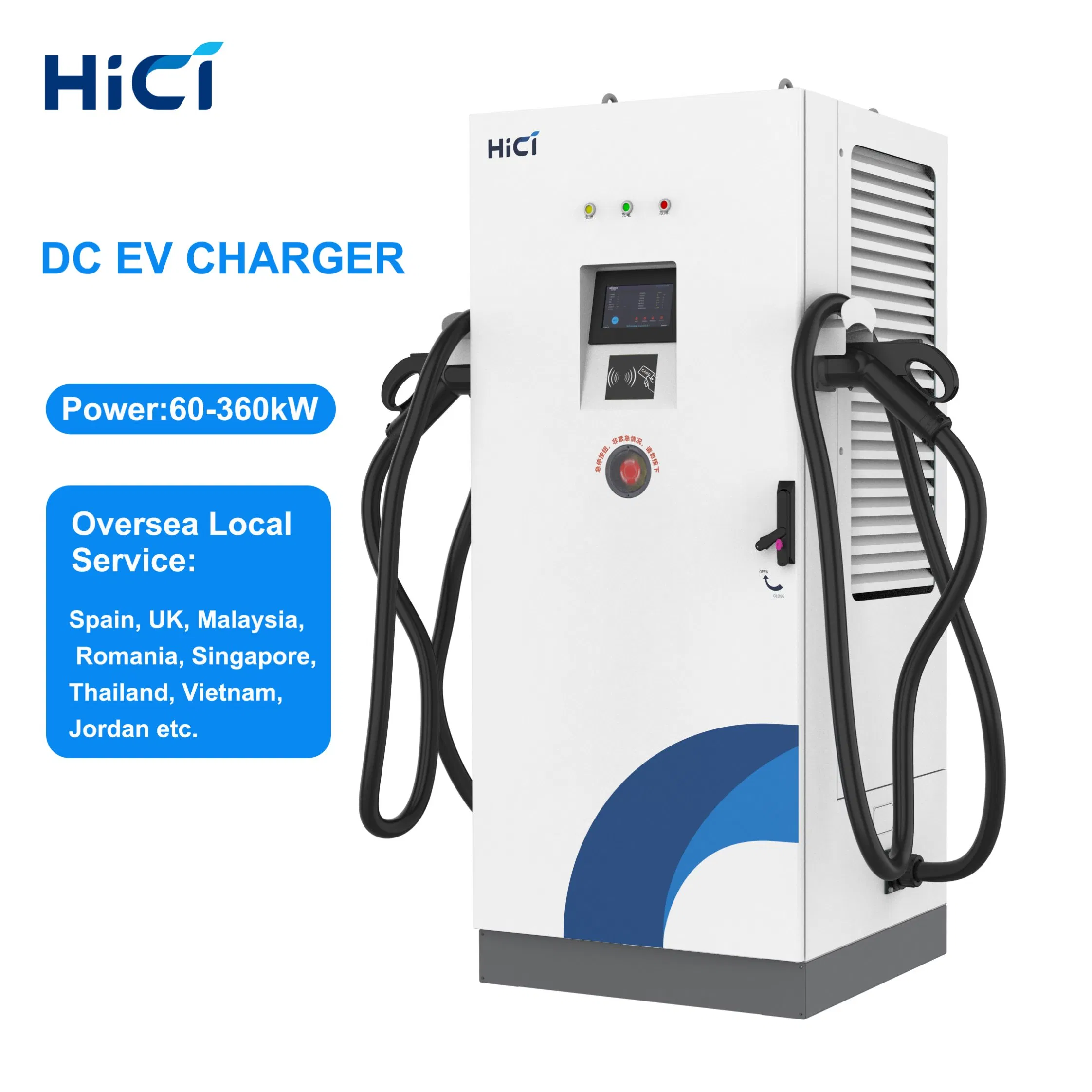

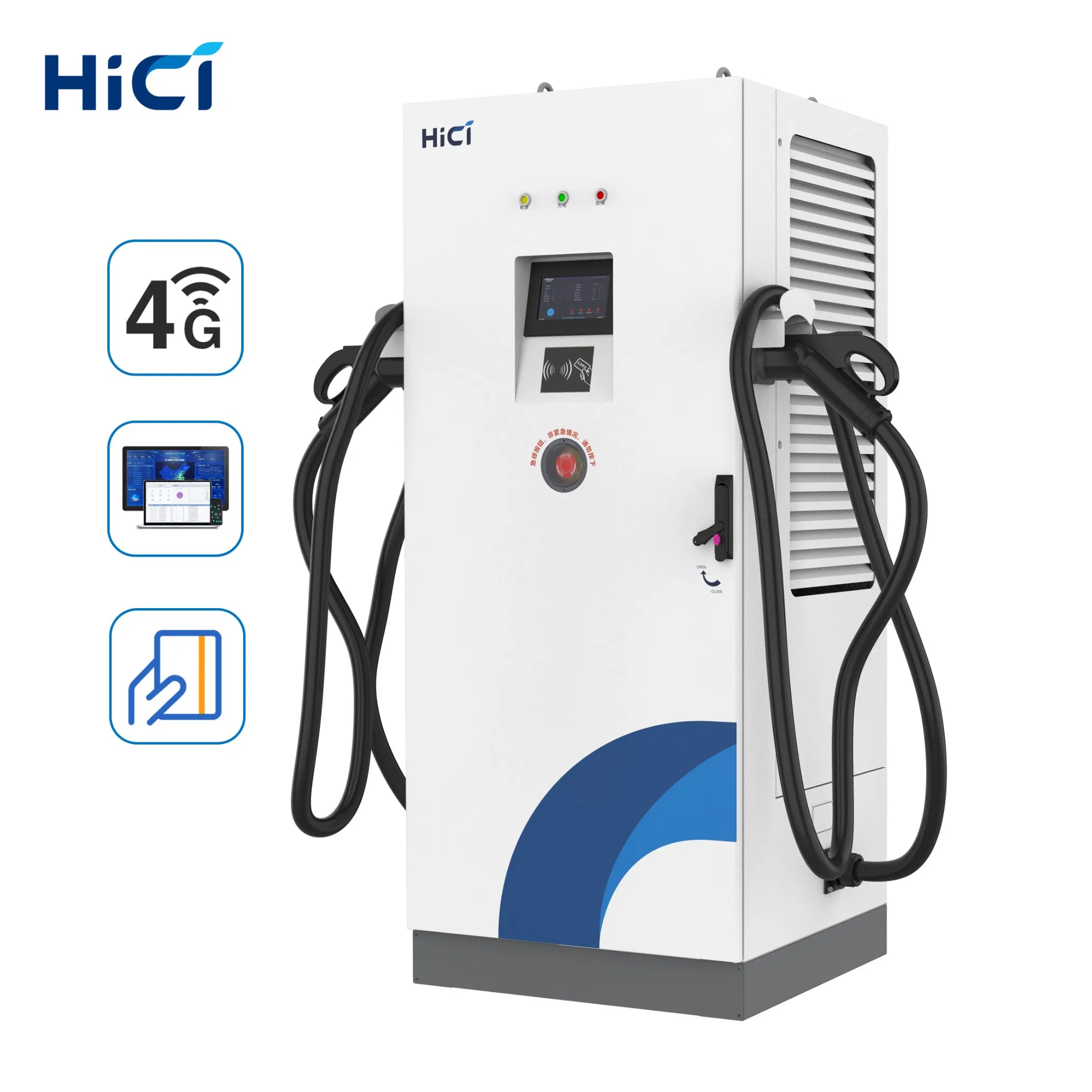

EV Charging Station 60kw/90kw/120kw 360kw CCS+Chademo+AC Type 2 EV Charger Station
EV Charging Station 60kw/90kw/120kw 360kw CCS+Chademo+AC Type 2 EV Charger Station
EV Charging Station 60kw/90kw/120kw 360kw CCS+Chademo+AC Type 2 EV Charger Station
EV Charging Station 60kw/90kw/120kw 360kw CCS+Chademo+AC Type 2 EV Charger Station
EV Charging Station 60kw/90kw/120kw 360kw CCS+Chademo+AC Type 2 EV Charger Station
1 / 5
EV Charging Station 60kw/90kw/120kw 360kw CCS+Chademo+AC Type 2 EV Charger Station
EV Charging Station 60kw/90kw/120kw 360kw CCS+Chademo+AC Type 2 EV Charger Station
EV Charging Station 60kw/90kw/120kw 360kw CCS+Chademo+AC Type 2 EV Charger Station
EV Charging Station 60kw/90kw/120kw 360kw CCS+Chademo+AC Type 2 EV Charger Station
EV Charging Station 60kw/90kw/120kw 360kw CCS+Chademo+AC Type 2 EV Charger Station

EV Charging Station 60kw/90kw/120kw 360kw CCS+Chademo+AC Type 2 EV Charger Station

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information

Location:Public Use
Interfaces:One Pile with Multiple Charges
Start Mode:Credit Card, Mobile Remote, RFID
Charge Method:Quick Charge
Output Power:60kw - 360kw
Input Voltage:380VAC
Display:7 Inch LCD Touch Screen
Communication:OCPP 1.6
IP Level:IP54 and IK10
Certification:CE, ISO, TUV, RoHS

Product Description

⚡ High Power DC EV Charging Station

The new high-power integrated EV DC charging Station is designed for high-performance efficiency, reaching a maximum of 400kW while maintaining a reasonable footprint. The maximum output current of a single gun can reach 250A, with a 7-inch touch screen for easy interaction and robust IP54 protection.

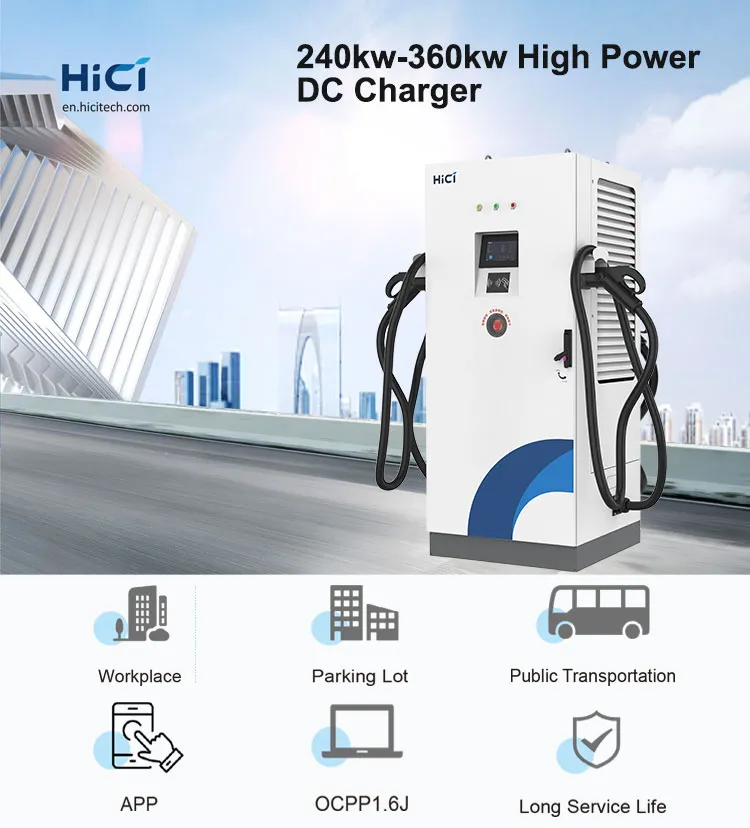

DC EV Charging Station Overview

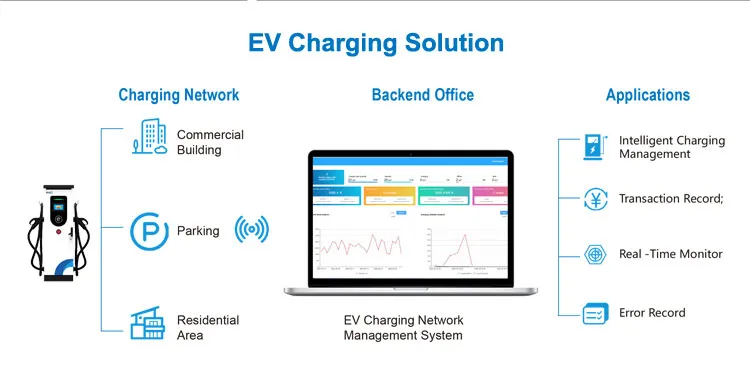

EV Charging Station Internal

Detailed Photos

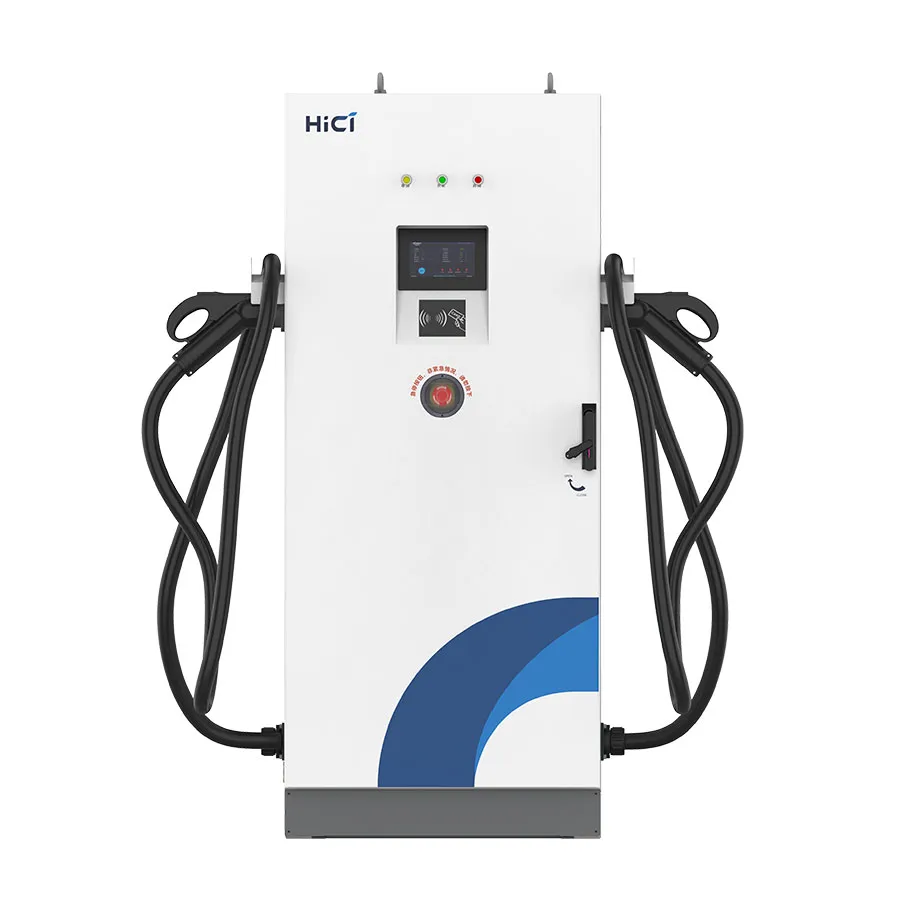

Detailed View 1

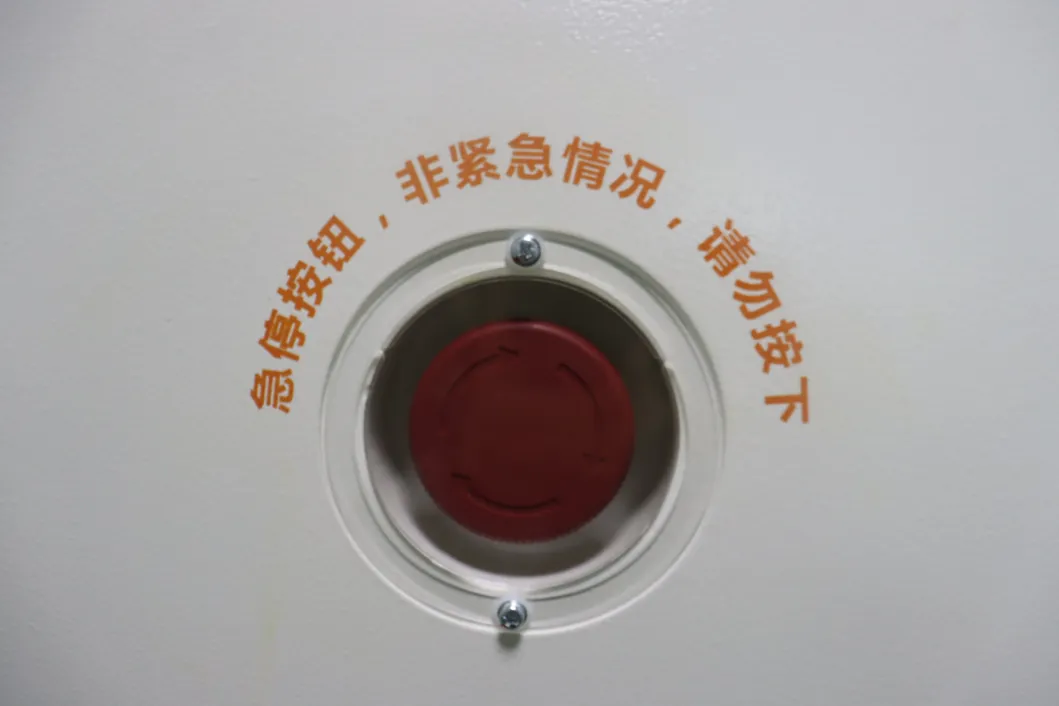

Detailed View 2

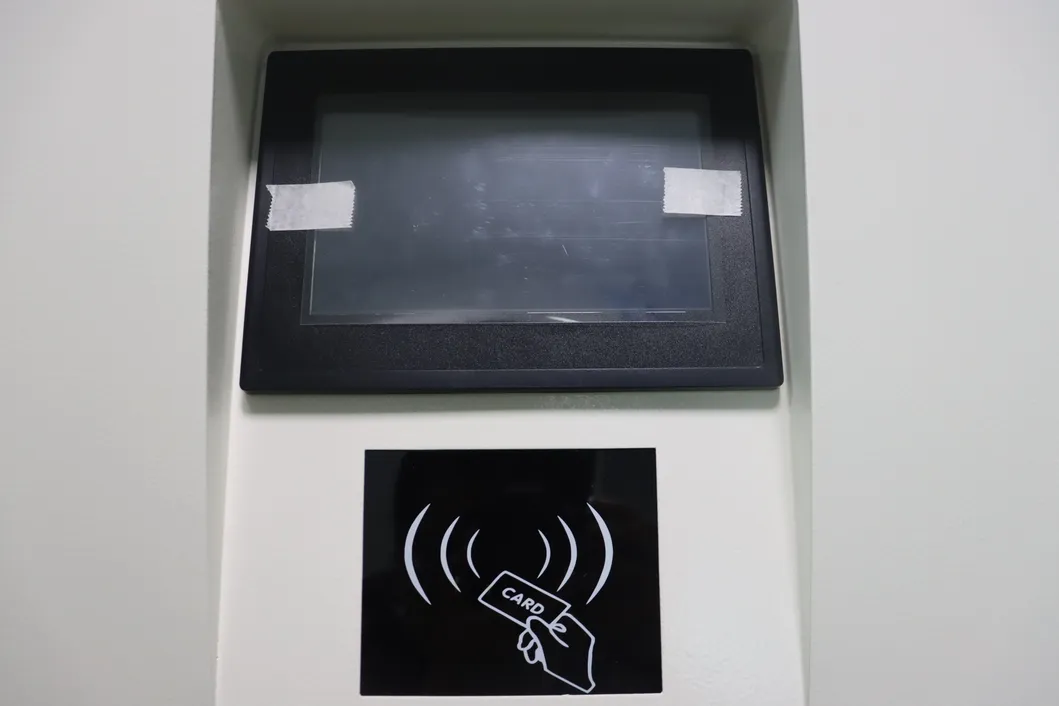

Detailed View 3

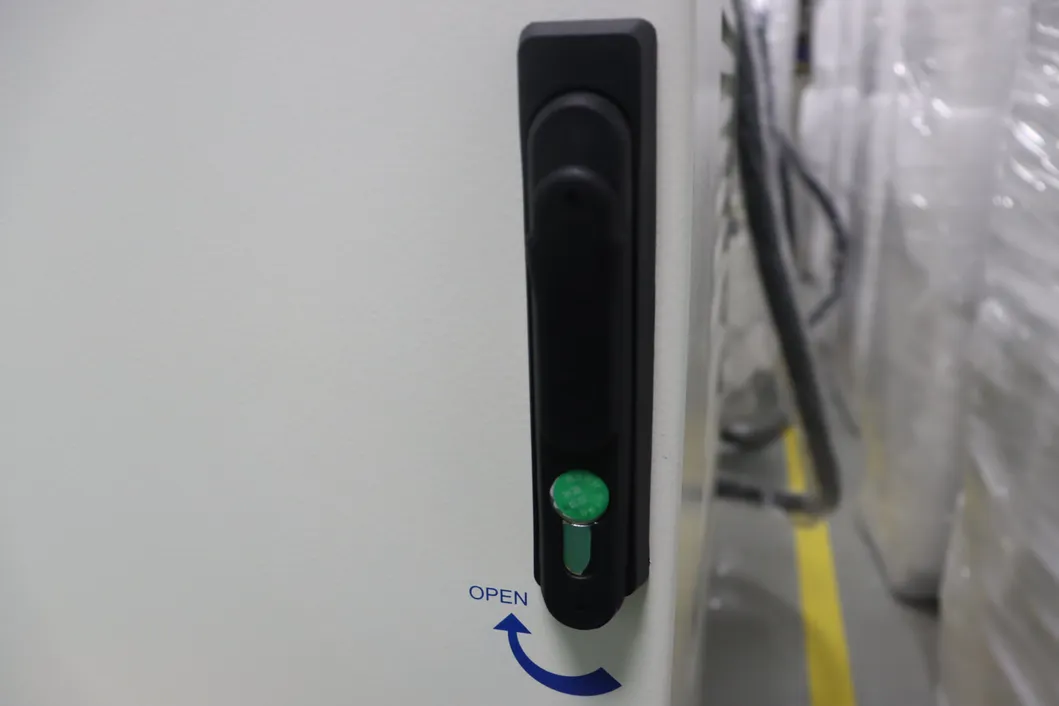

Detailed View 4

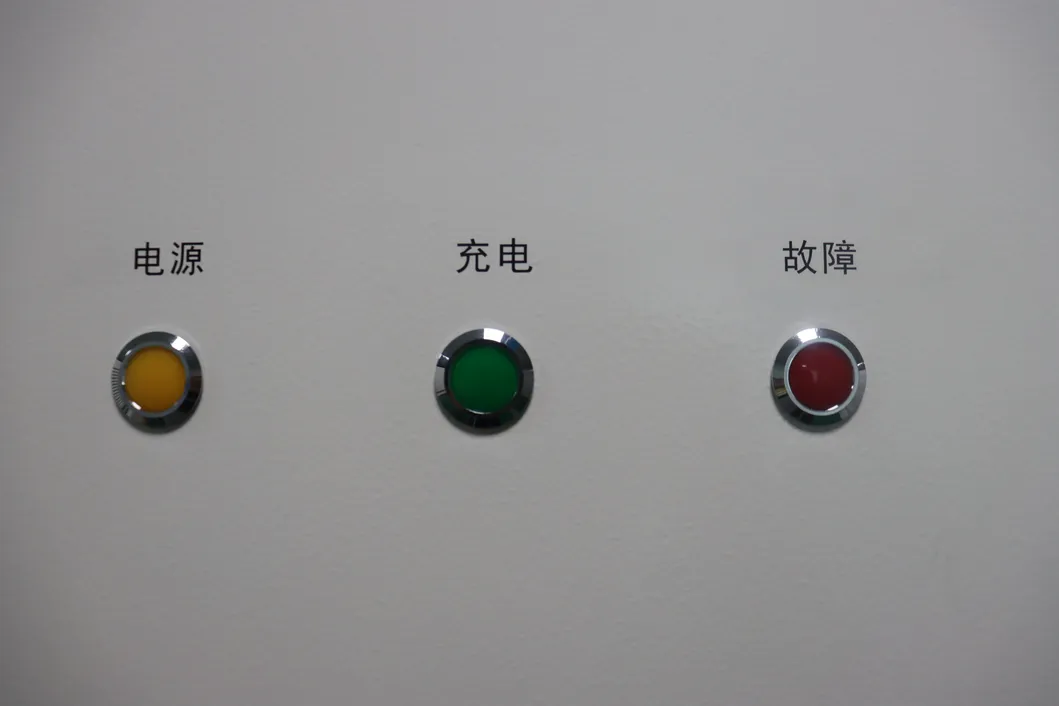

Detailed View 5

Product Parameters

Charging System Specifications
Charging TypeDC Charger
Max DC Output Power180kW, 240kW, 300kW, 360kW
Input Voltage Range400 VAC +/- 15% (50 Hz or 60 Hz)
Connector TypesCCS, GB/T, ChadeMO
DC Output Voltage200 - 1000 Vdc
Efficiency> 95% (peak)
Power Factor> 0.99
User Interface & Configuration
Network4G, Ethernet
User AuthenticationApp, RFID, MAC, Screen Button
Communication ProtocolOCPP 1.6 JSON
Operational AltitudeUp to 2500 m
Dimensions (H x W x D)1860mm * 750mm * 700mm
Operating Temperature-30°C to + 55°C

Our Advantages & Service

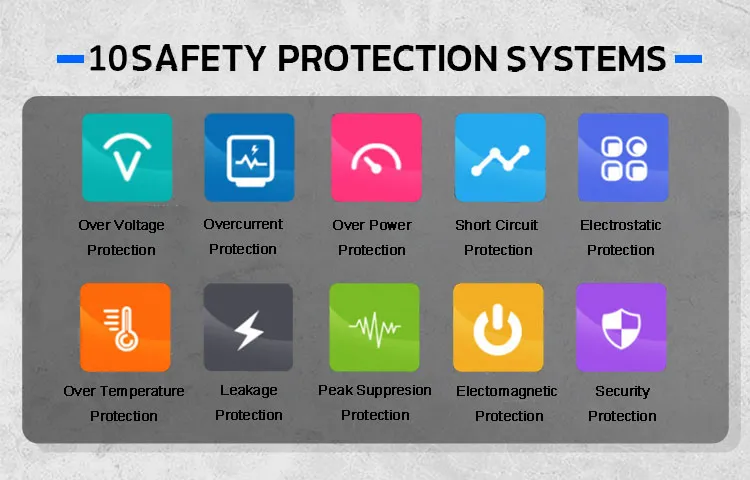

Our Advantages
Service Process
After Sales Support

Facilities & Production

Production Facility
Manufacturing Line

Frequently Asked Questions

Q1: What is the maximum output power of this charging station?
The station is highly configurable and can reach a maximum output of 360kW to 400kW, supporting high-speed charging requirements.
Q2: Which charging connector types are compatible?
It supports major global standards including CCS2, GB/T, and ChadeMO, making it suitable for a wide variety of electric vehicles.
Q3: Can it withstand harsh outdoor environments?
Yes, the station features an IP54 and IK10 protection rating, ensuring durability against dust, water, and mechanical impacts.
Q4: How do users authenticate and start charging?
Users can start charging via multiple methods: RFID cards, mobile applications, credit card payments, or remote operation through a cloud platform.
Q5: Does the charging station support remote monitoring?
Absolutely. It uses the OCPP 1.6 JSON communication protocol, allowing for seamless integration with cloud platforms for remote management and software upgrades.
Q6: What is the efficiency of the power conversion?
The station is designed for high efficiency, achieving a peak efficiency rating of over 95%.
