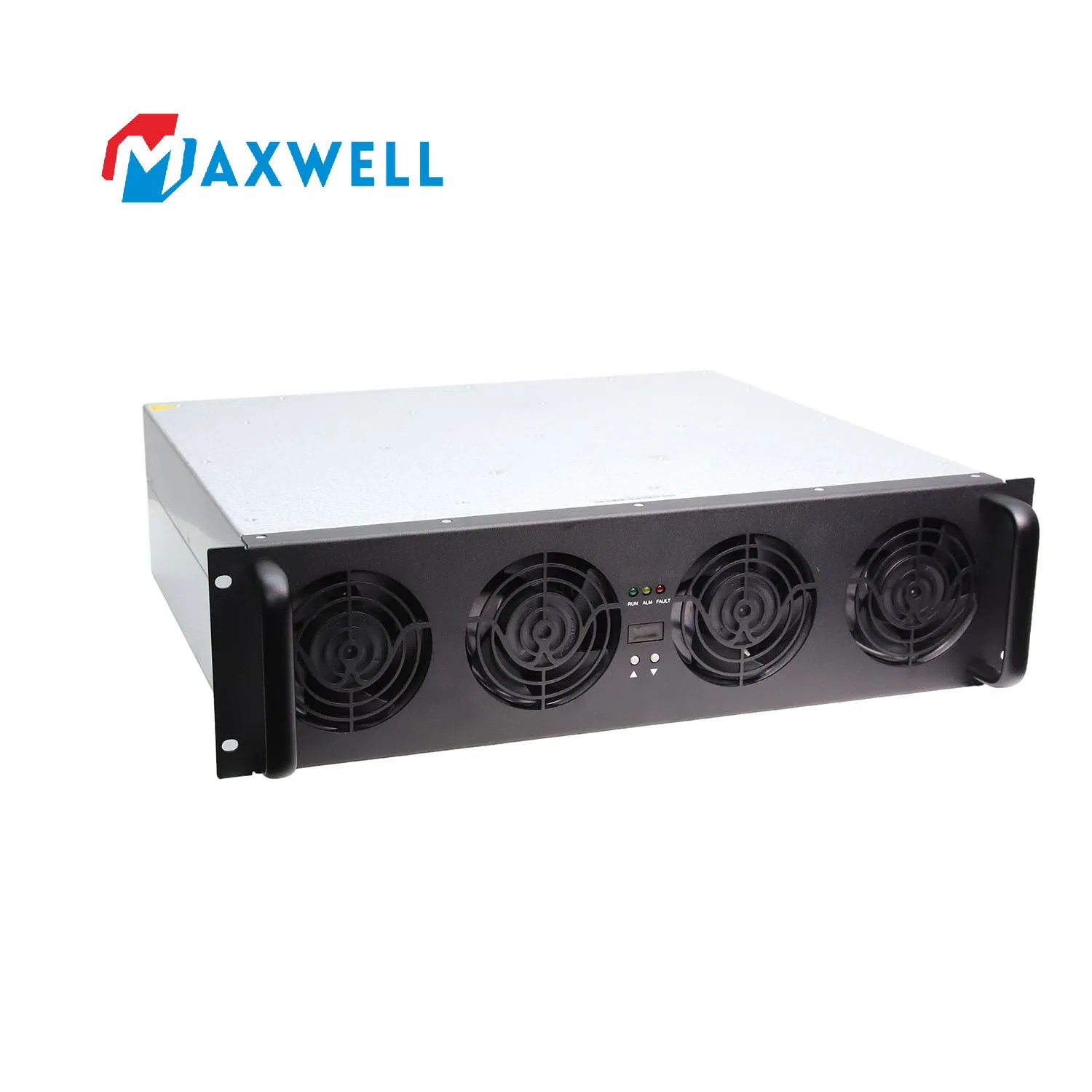

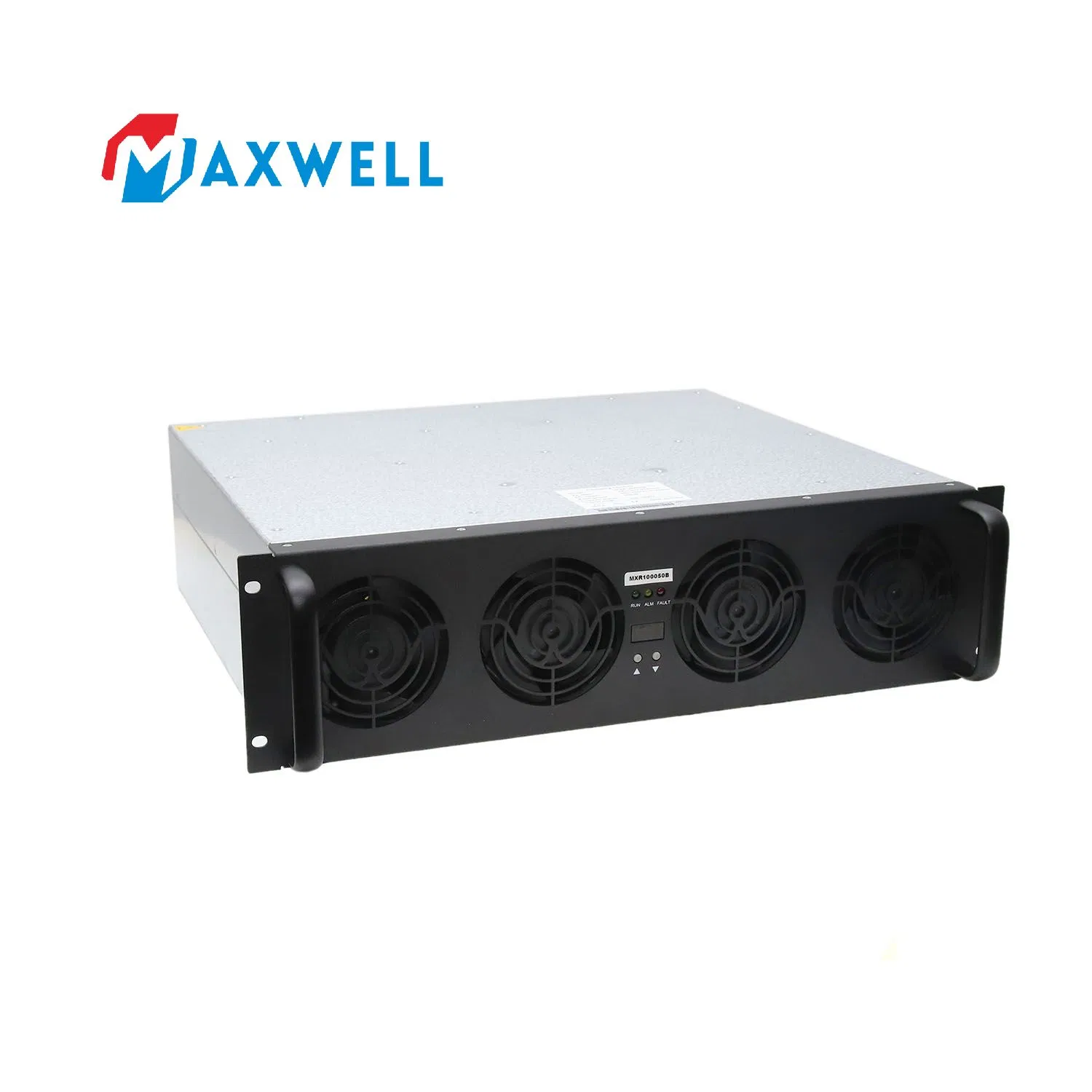

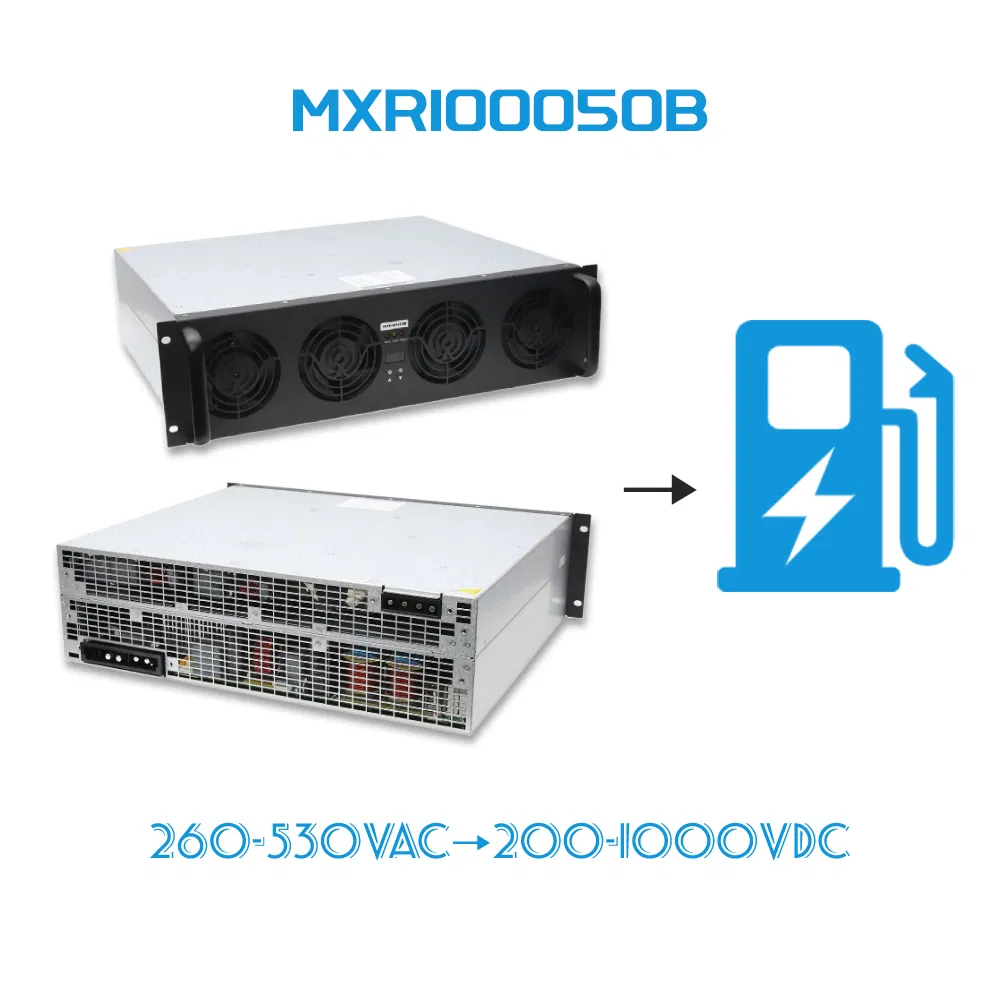

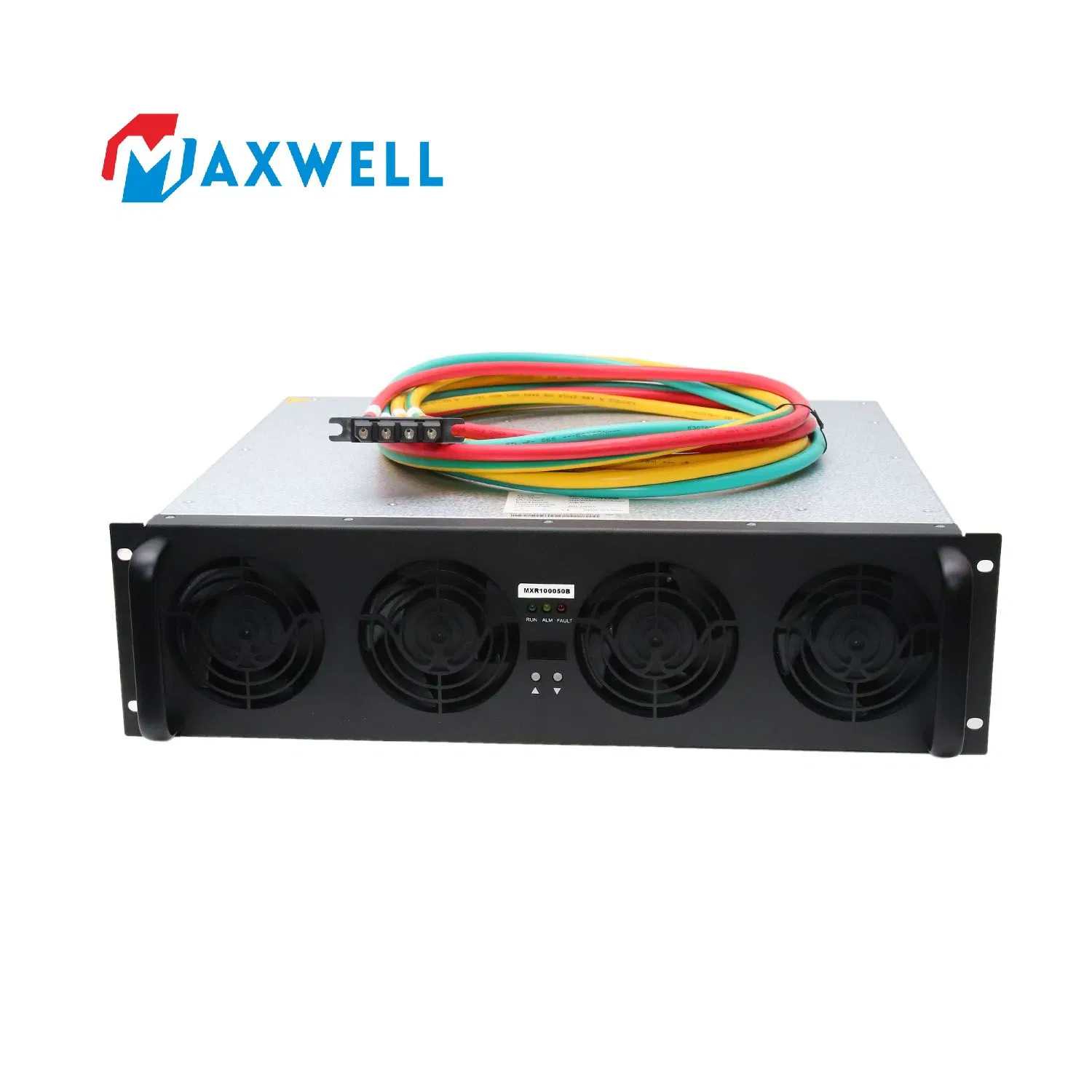

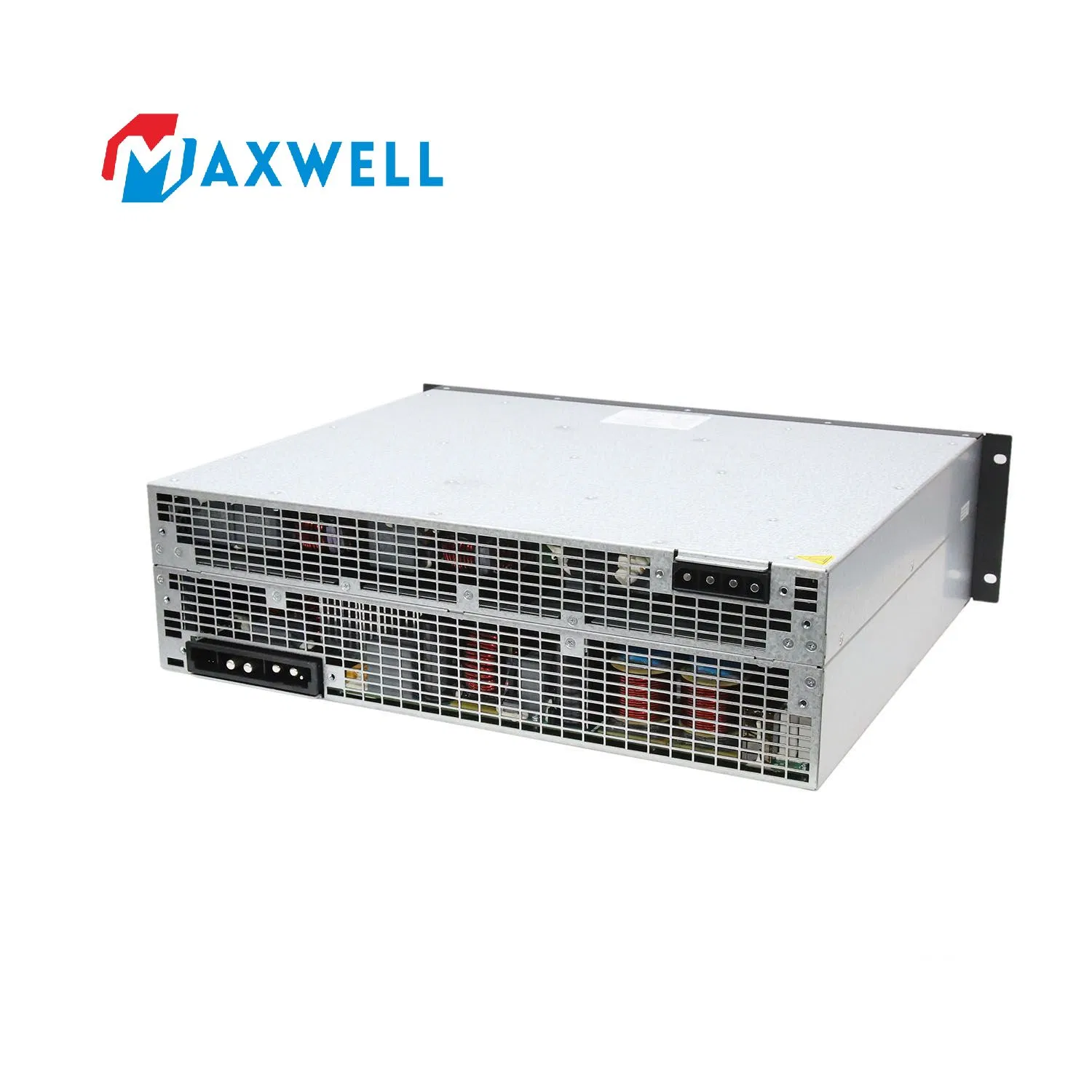

MXR100050B is a high-performance charging power module designed for the EV charging industry. It features significant advantages in ultra-high full-load operating temperature and an ultra-wide constant power range, ensuring efficiency and reliability for fast-charging infrastructure.

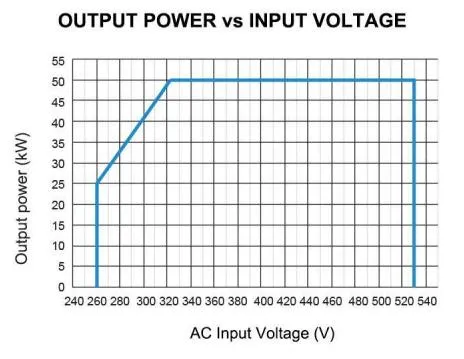

| Input Voltage | 260Vac-530Vac, three-phase+PE |
|---|---|
| Input Current | ≤100A |
| Grid Frequency | 45Hz-65Hz |
| Power Factor | ≥0.99 (Load > 50%) |
| ITHD | ≤5% (Load > 50%) |
| Output Power | 50kW |
|---|---|

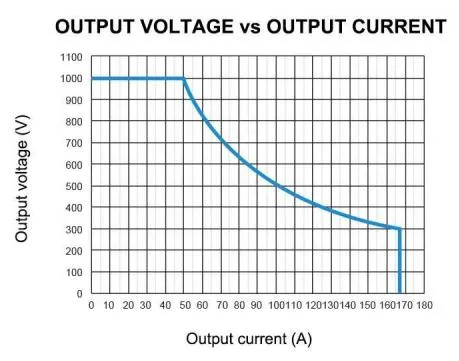

| Voltage Range | 200-1000Vdc |
| Current Range | 0-167A continuously adjustable |
| Voltage Regulation | ≤±5% |
| Stabilized Current | ≤±1% (Output ≥20% Max) |
| Ripple Peak-to-Peak | <1% |
Goods are typically packed in high-quality kraft cartons with or without pallets. For clients with registered patents, customized branded packaging solutions are available upon authorization.

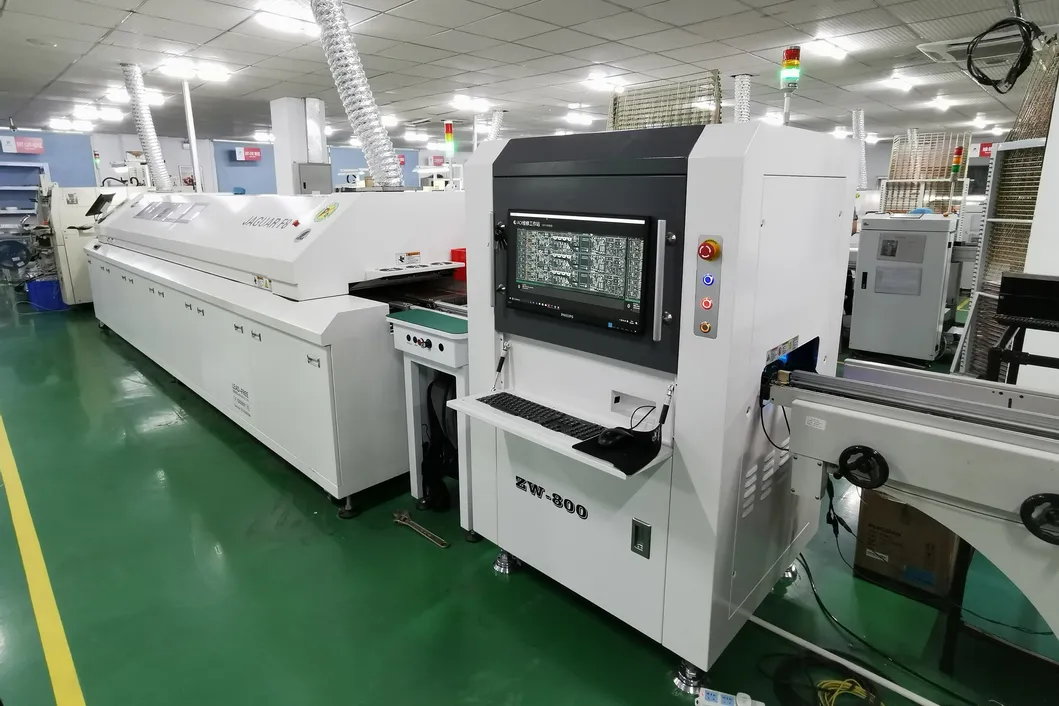

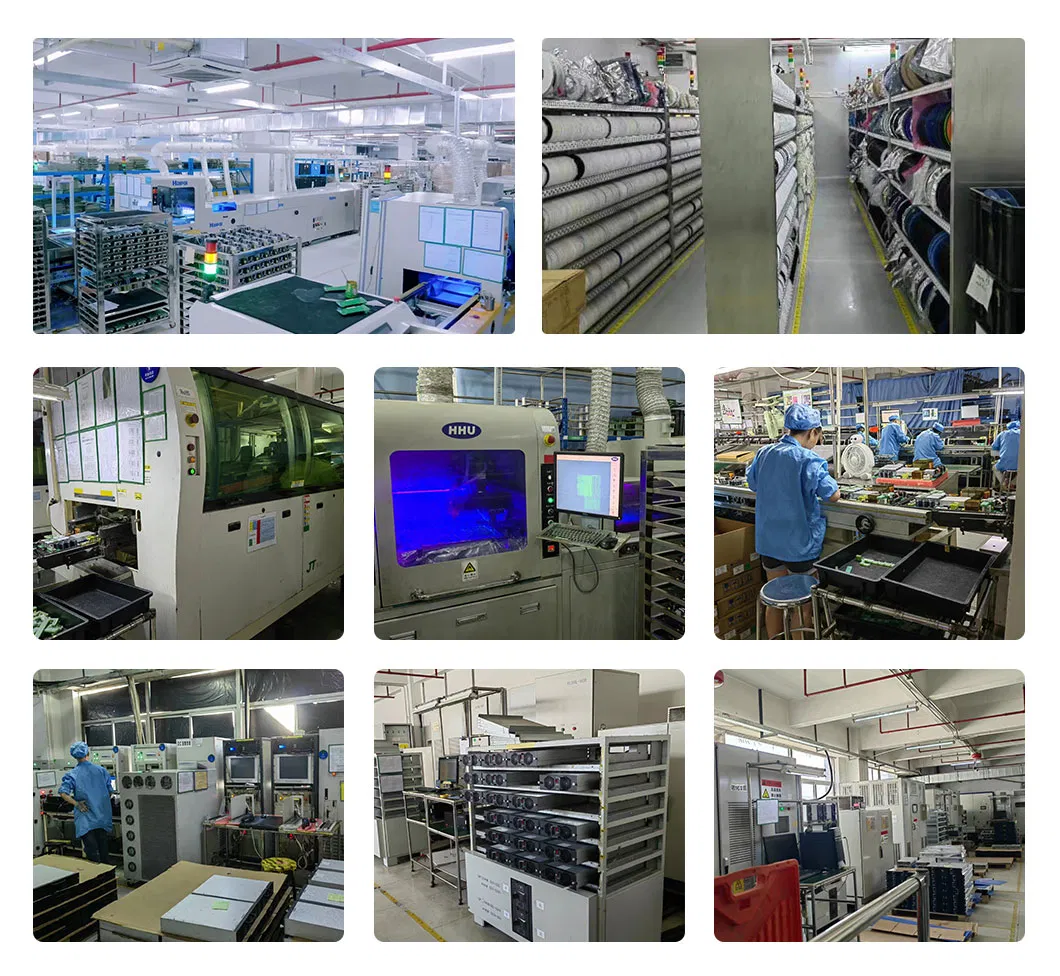

As a state-level high-tech enterprise, we focus on the R&D, production, and sales of power electronic products. We provide mid-to-high-end DC power supply systems based on independent intellectual property rights and technological innovation.
Our products are widely utilized in automotive, electric power, railway, metallurgy, and communications sectors. Since 2011, we have specialized in automotive DC charging modules, ranging from 15kW to 60kW, serving major international and domestic charging infrastructure projects.
