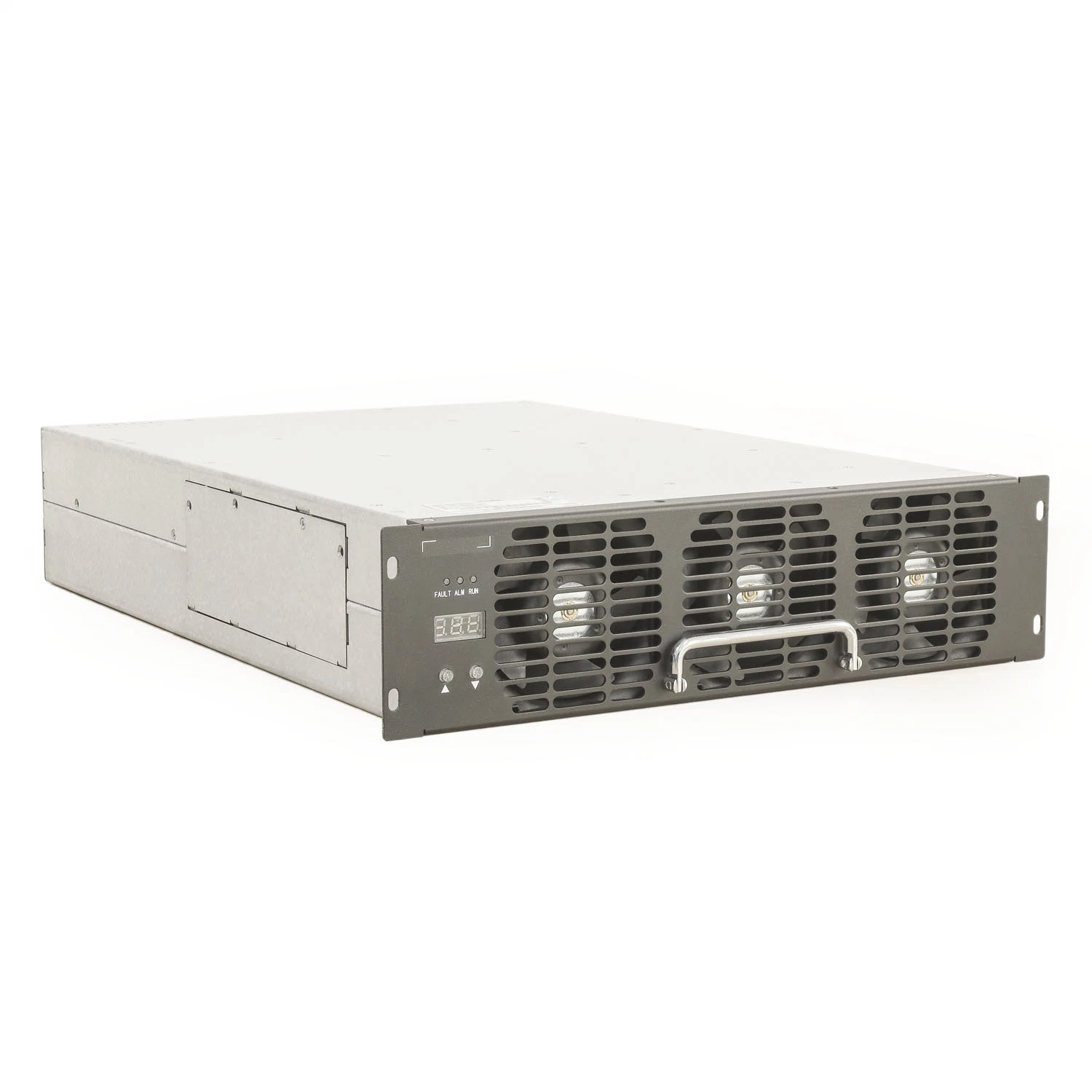

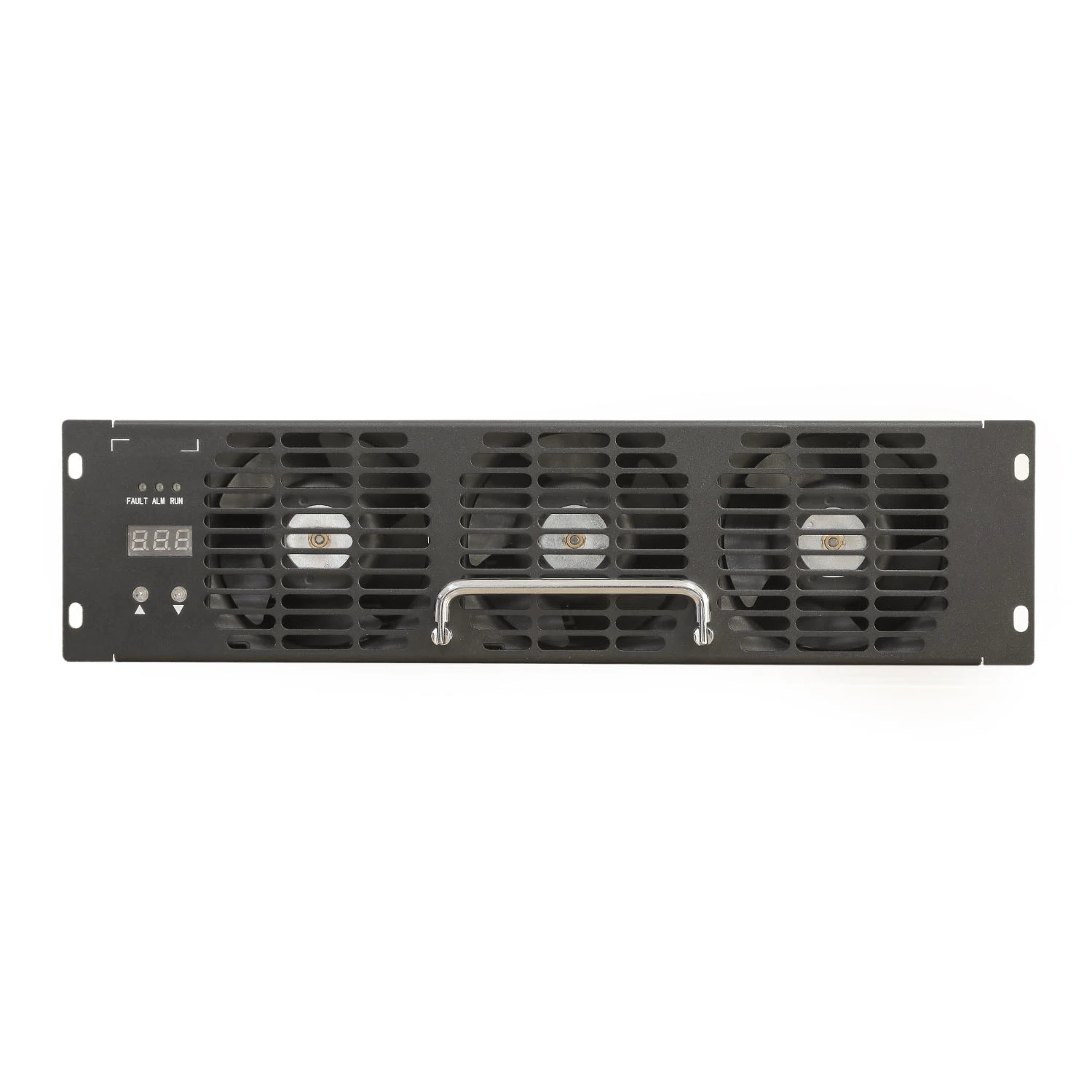

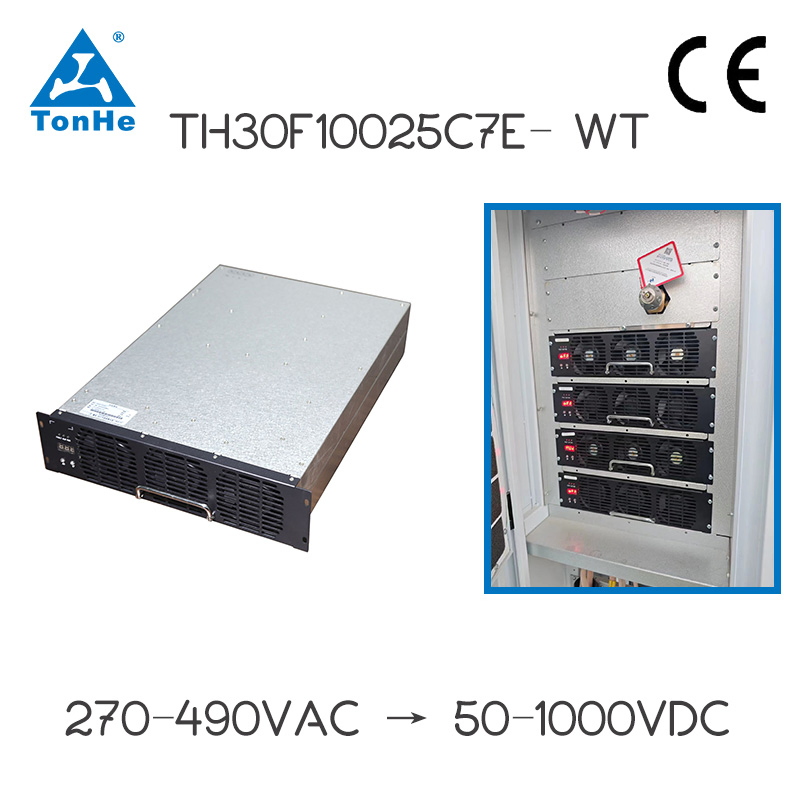

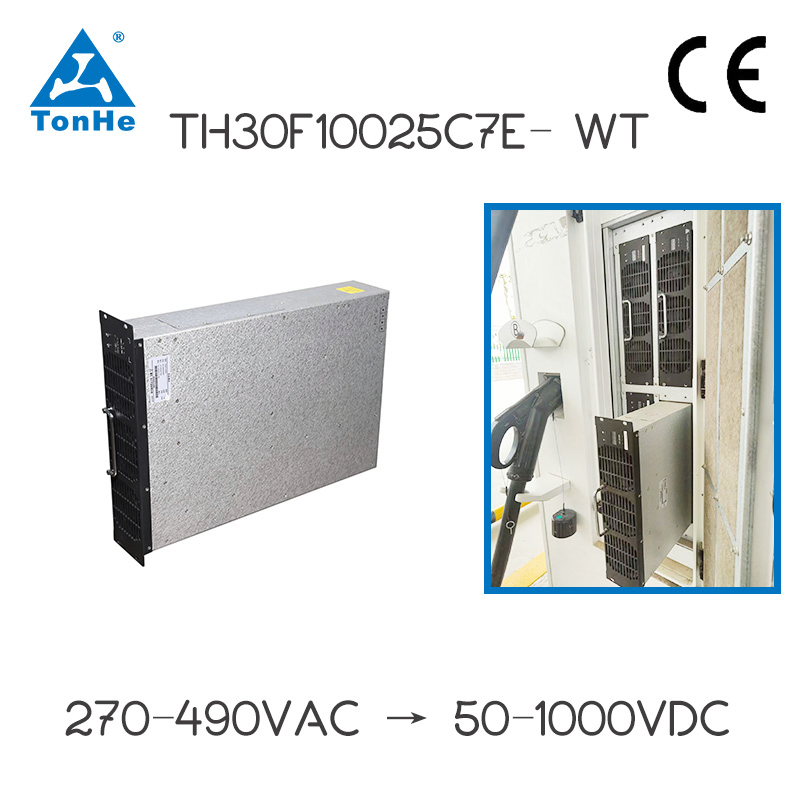

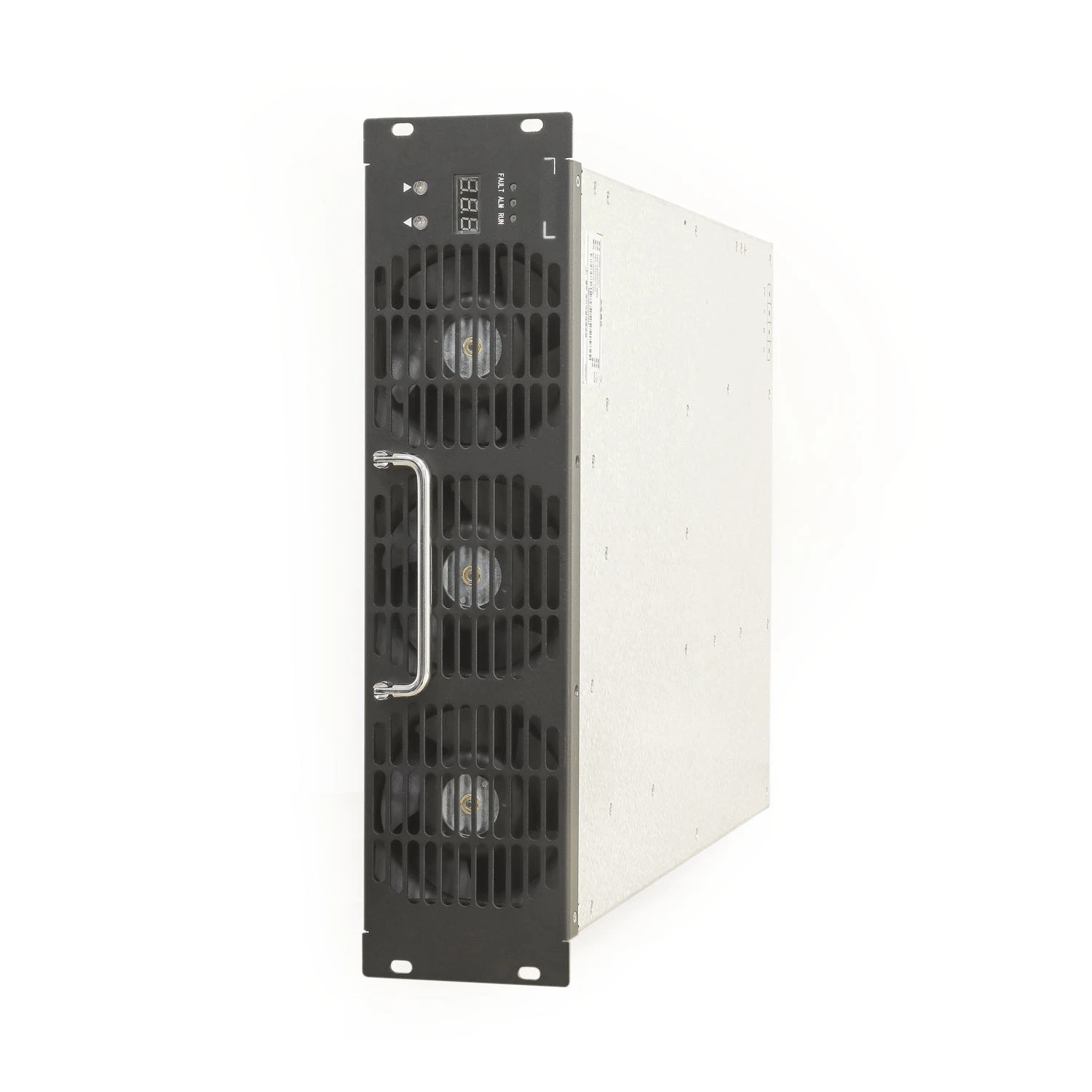

EV Charging Module DC Charger Rectifier Converter AC-DC 30kw 1000V Charging Module

1 / 5

EV Charging Module DC Charger Rectifier Converter AC-DC 30kw 1000V Charging Module

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📊

Basic Information

Model NO.

TH30F10025C7-WT

Location

Public Use

Charging Interfaces

One Pile with Multiple Charges

Start Mode

RFID Authentic

Efficiency

Larger Than 96%

Output Voltage

150-1000V

Power Factor

Larger Than 0.99

Certification

CCC, CE, ISO

Warranty

12 Months

Production Capacity

5000PCS / Month

⚡

Product Description

This product is three-phase 380VAC input, using the industry leading resonant voltage type double-loop control resonant switching power supply technology and three-phase three-level power factor correction technology. It offers significant advantages including small size, light weight, high efficiency, and high reliability.

🛠️

Technical Specifications

Feature Item		Technical Parameters (Model: TH30F10025C7)
Input Features	Input Voltage Range	285V~475V AC
	Input Frequency	50Hz±10%
	Power Factor	≥ 0.99
	THD	≤ 5%
Output Features	Output Voltage Range	150~1000V DC
	Max Output Current	80A
	Constant Power Range	1000-250VDC constant 30KW
	Efficiency	≥ 96%
	Soft Start Time	3~8 s
Environmental	Working Temp.	-30 ~ +75ºC (derating above 50ºC)
	Humidity	5%RH~95%RH (no condensation)
	Cooling	Fan Cooling
Physical	Dimension (LHW)	46021884mm
Physical	Weight	≤ 13kg

📜

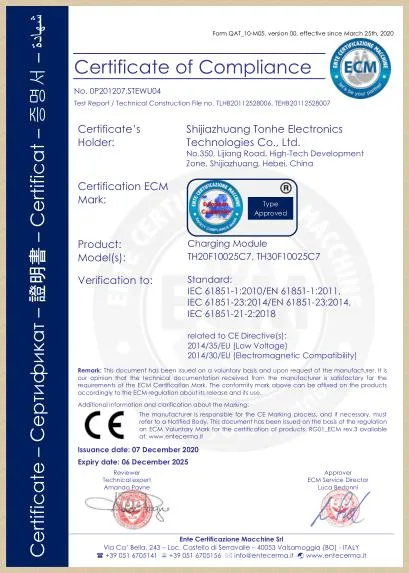

Certifications

🏭

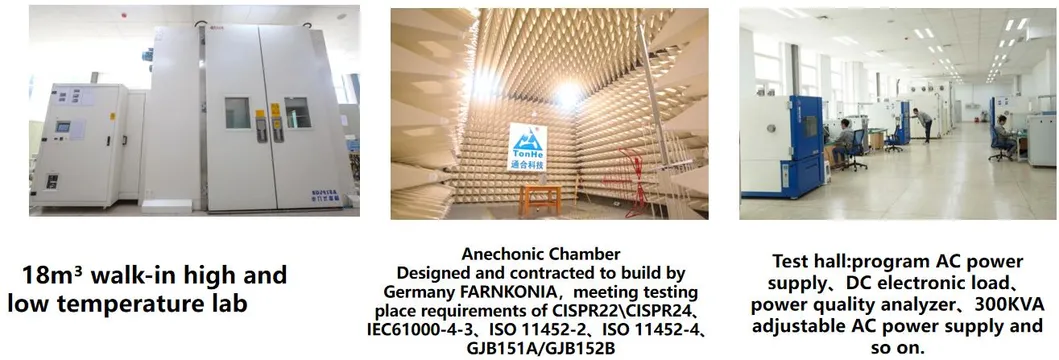

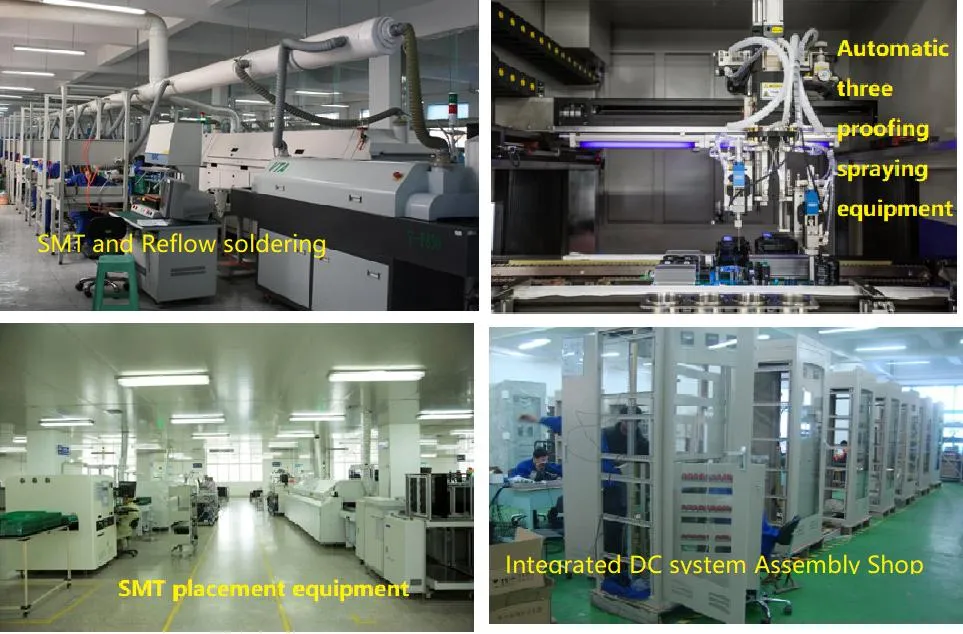

Manufacturing Workshop & Labs

✅

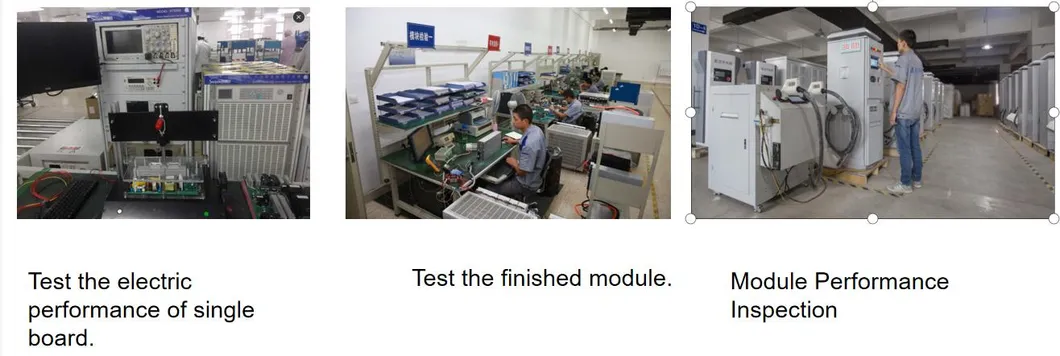

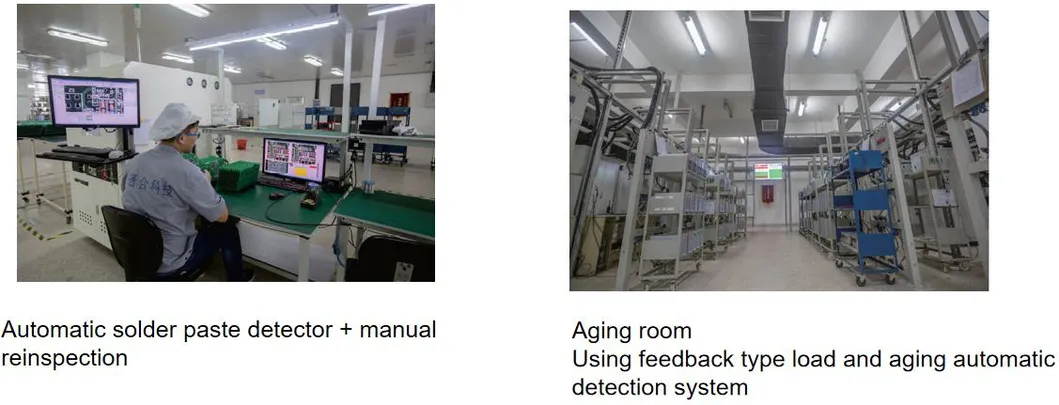

Quality Guarantee

❓

Frequently Asked Questions

What is the input voltage range for this module?

The module supports a three-phase input voltage range of 285V to 475V AC.

What is the peak efficiency of the charging module?

The module features high-efficiency performance, reaching ≥ 96%.

Can the output voltage be adjusted?

Yes, the output voltage is widely adjustable from 150V DC up to 1000V DC.

Which communication protocol is used for integration?

This module utilizes the standard CAN communication protocol for reliable system integration.

What cooling method does the module use?

It uses an internal fan cooling system to maintain optimal operating temperatures.

What are the safety certifications?

The product is certified according to CCC, CE, and ISO standards, ensuring high safety and reliability.
