| Nominal Capacity | IP65 | Cycle Life | 6000-10000 |
| Transport Package | Carton | Specification | 52*45*23cm |
| Trademark | SLENERGY | Origin | China |
| HS Code | 8504403090 | Production Capacity | 3000 Units Per Year |
| DC Side (PV Input) | |
| Maximum Recommended Module Power | 15000 Wp |
| Maximum Input Voltage | 1000 V |
| Start-up Voltage | 135 V |
| Rated Input Voltage | 600 V |
| MPPT Operating Voltage Range | 135-900 V |
| Maximum Input Current per MPPT | 16A |
| Number of MPPTs / Strings | 2 / (1/2) |
| AC Grid Side | |
| Rated Output Power | 10000 W |
| Maximum Output Apparent Power | 11000 VA |
| Rated Output Voltage | 3L/N/PE; 230/400V |
| Rated Output Current | 14.5 A |
| Battery (DC) | |
| Rated Voltage | 210 V |
| Battery Voltage Range | 135-800 V |
| Maximum Charging/Discharging Current | 25 A / 25 A |
| Communication Interface | CAN / RS485 |
| Efficiency & Protection | |
| Maximum Efficiency | 97.6% |
| MPPT Efficiency | 99.9% |
| Protection | LVRT/HVRT, Anti-Islanding, Short-Circuit, Leakage Current, PV Reverse Polarity, RSD, Arc Fault, Surge Protection (Type II) |

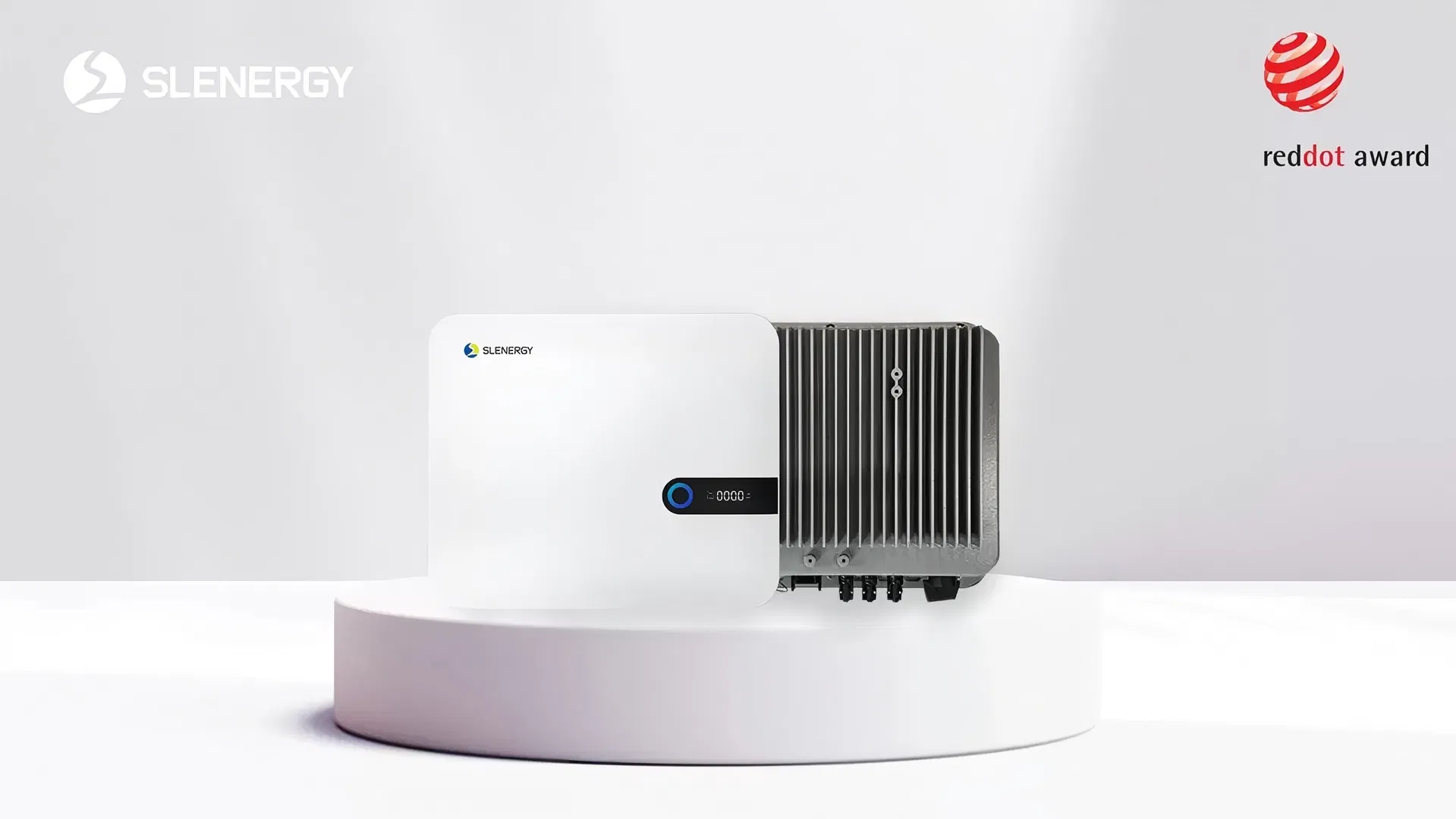

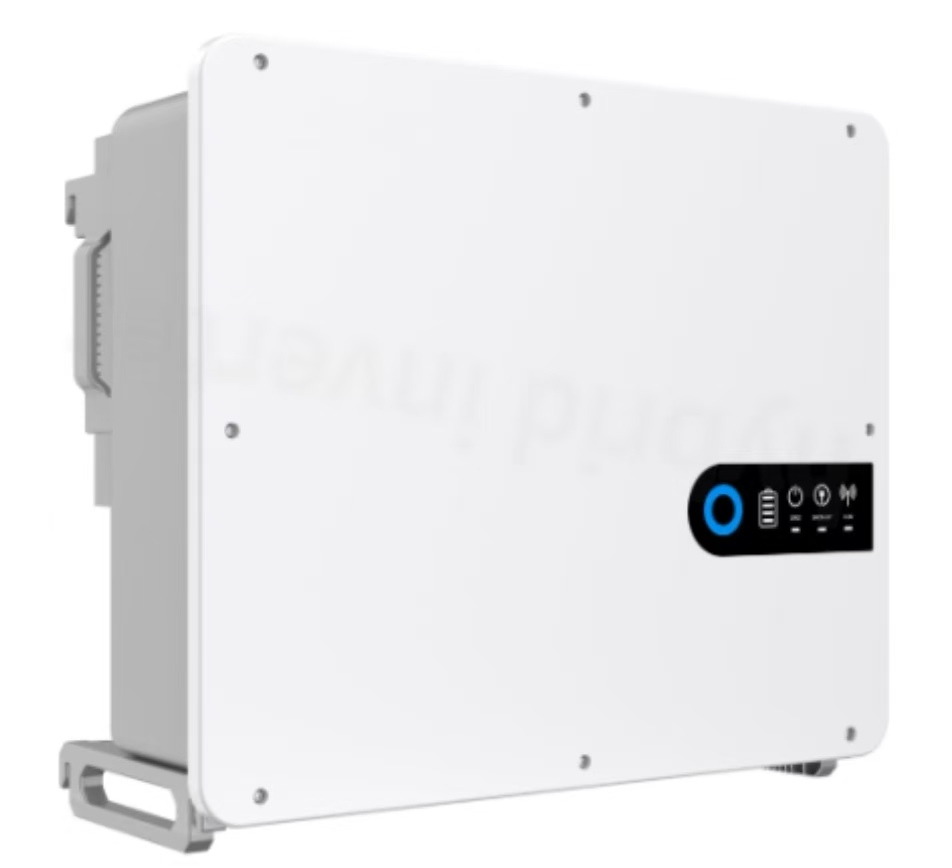

Winner of the 2024 Red Dot Design Award. This inverter features modern industrial aesthetics, blending simplicity with elegance. Based on SiC (Silicon Carbide) technology, it enhances conversion efficiency, increases power density, and significantly reduces weight and volume.
4 MPPT inputs, DC 40A current input, compatible with high-power PV modules. Supports unbalanced loads (130% power) in both standby and grid modes.
Unique push-in connectors save time. Compact size and elegant appearance with touch-free troubleshooting via smartphone.
3 battery inputs for fast charging/discharging. 110% continuous output overload and 130% maximum AC output overload.

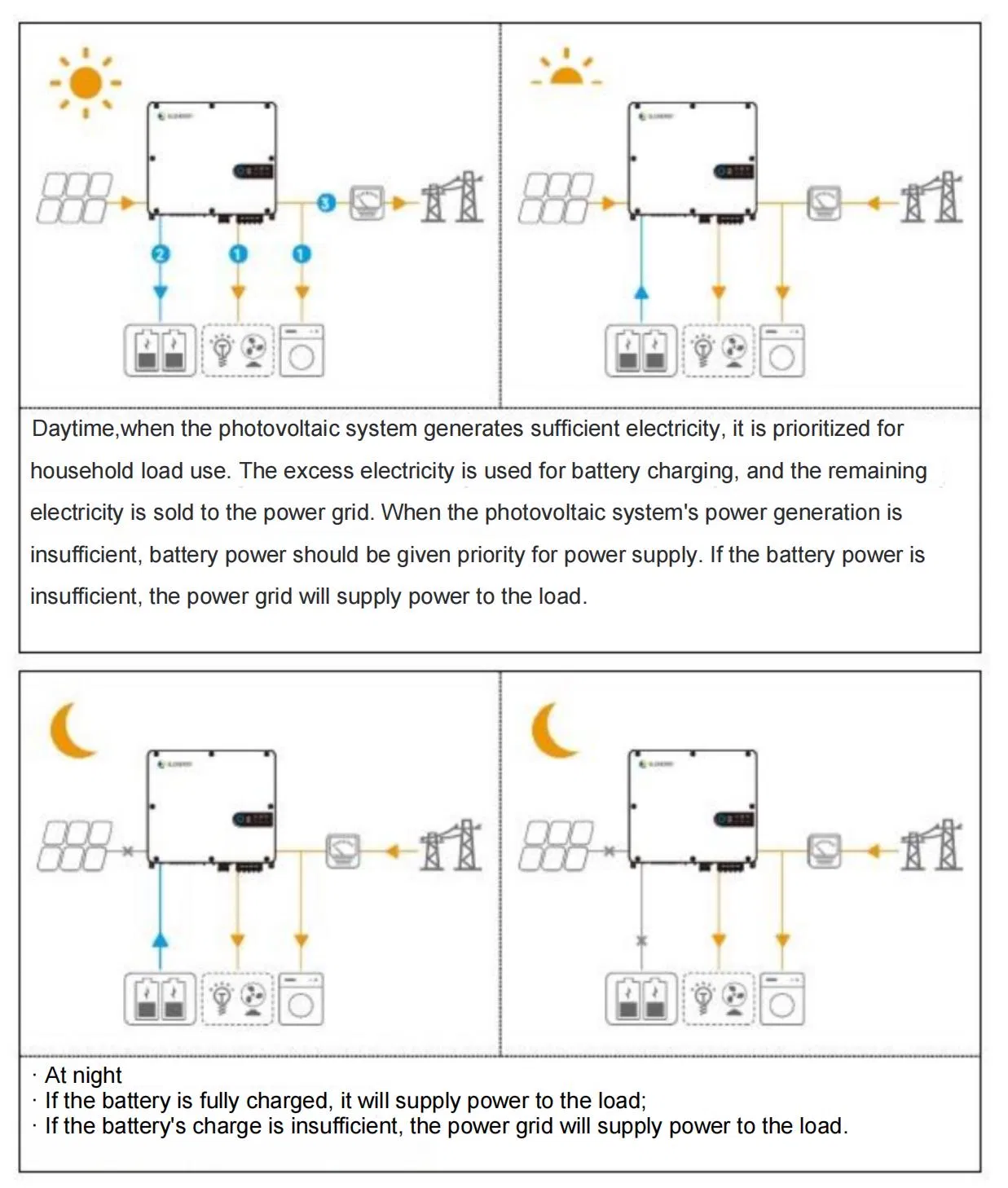

Remote firmware updates, programmable priority for PV, battery or grid, and free online monitoring for end users.
Smart V-curve scanning identifies potential issues within strings, providing precise guidance for maintenance. Built-in real-time detection eliminates overvoltage and fire hazards, while the dedicated APP ensures remote smart monitoring.
| Package Size | 55.00cm * 46.00cm * 25.00cm |
| Package Gross Weight | 26.000kg |
