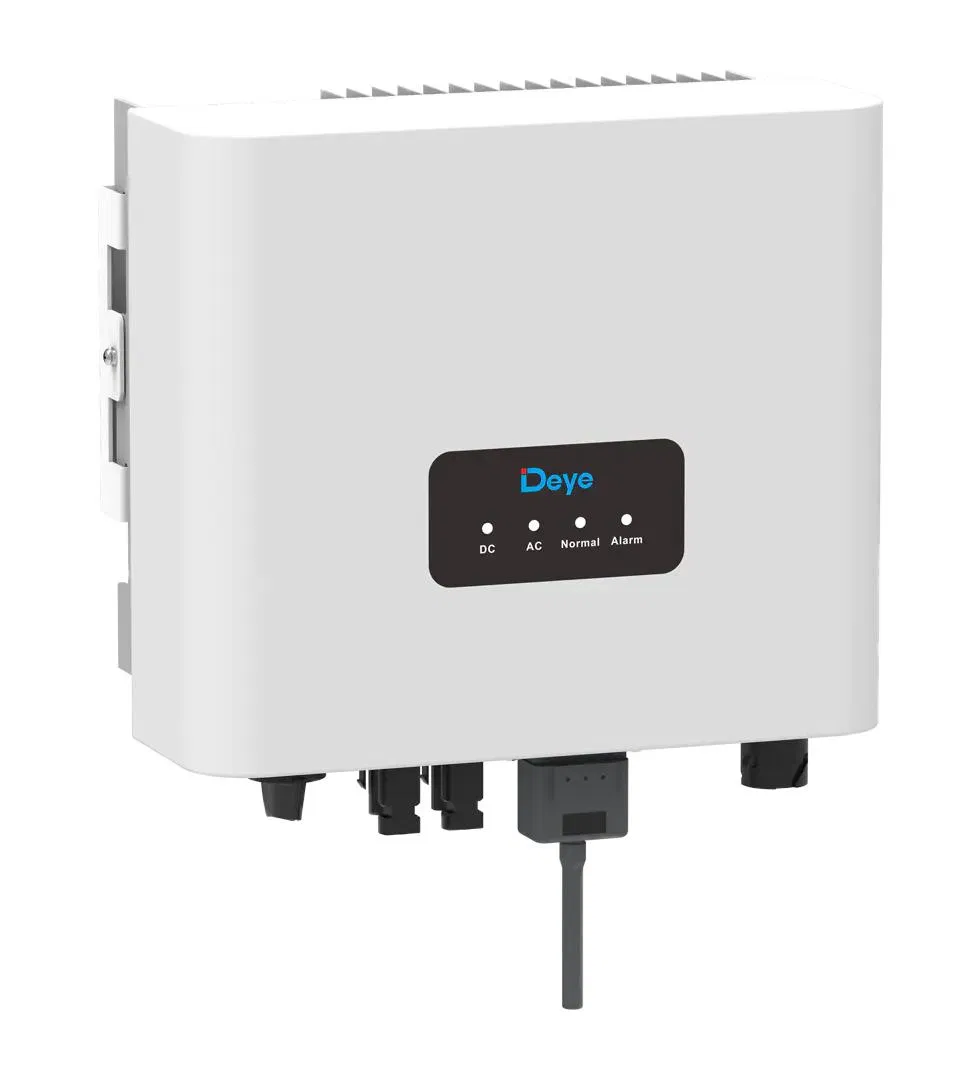

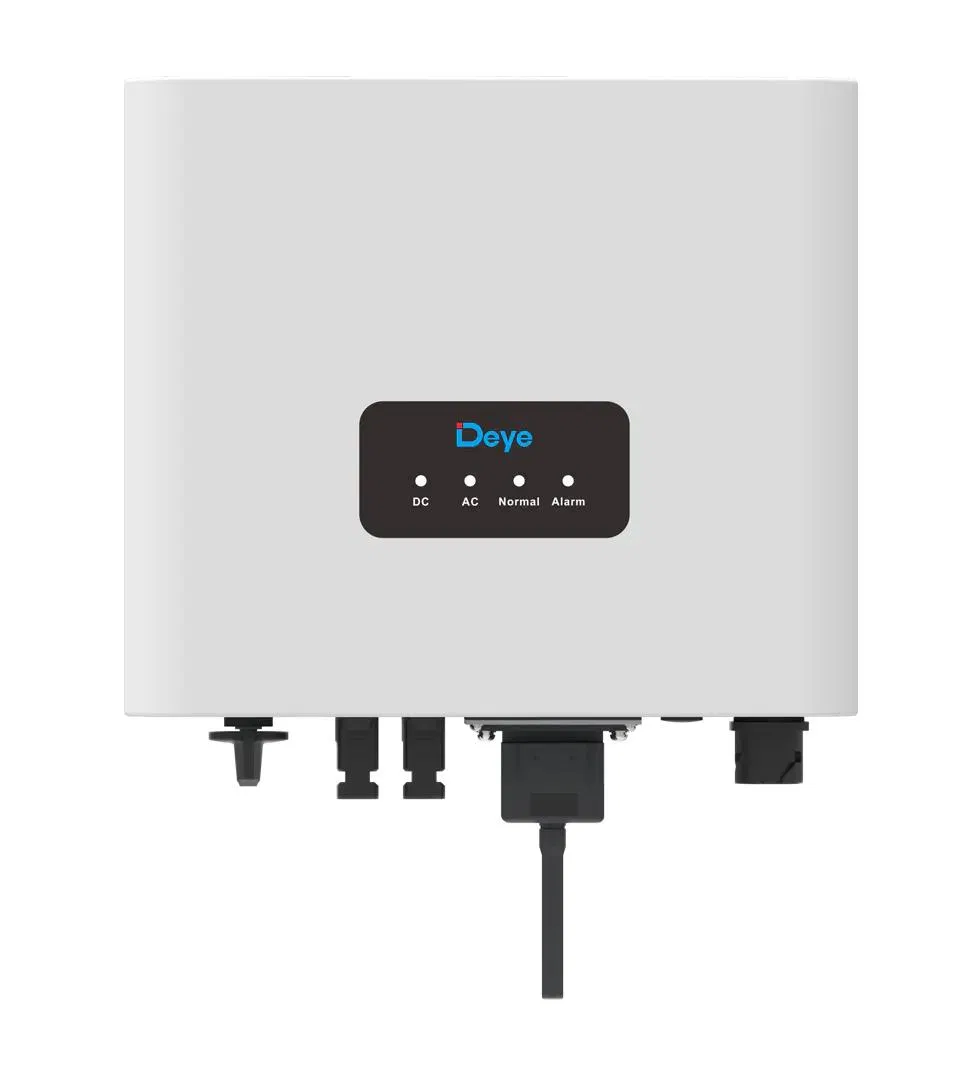

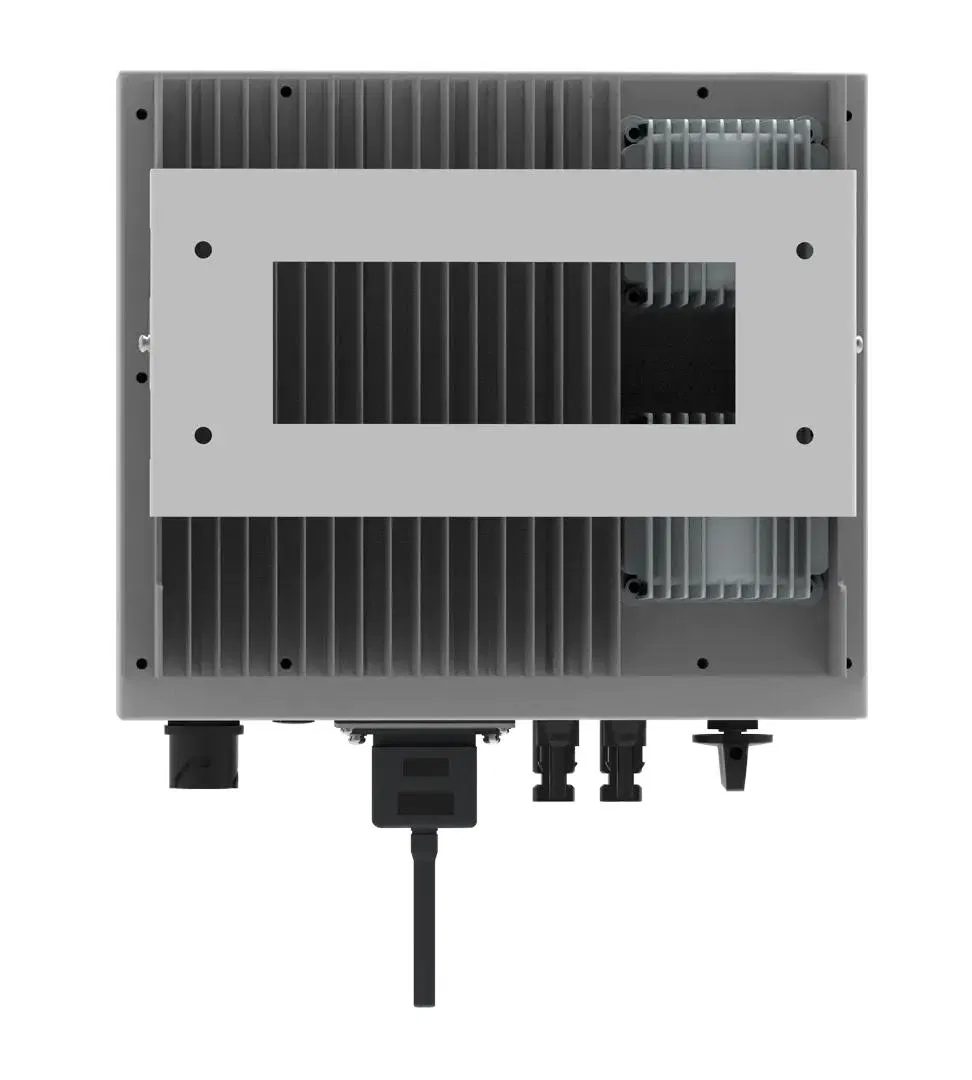

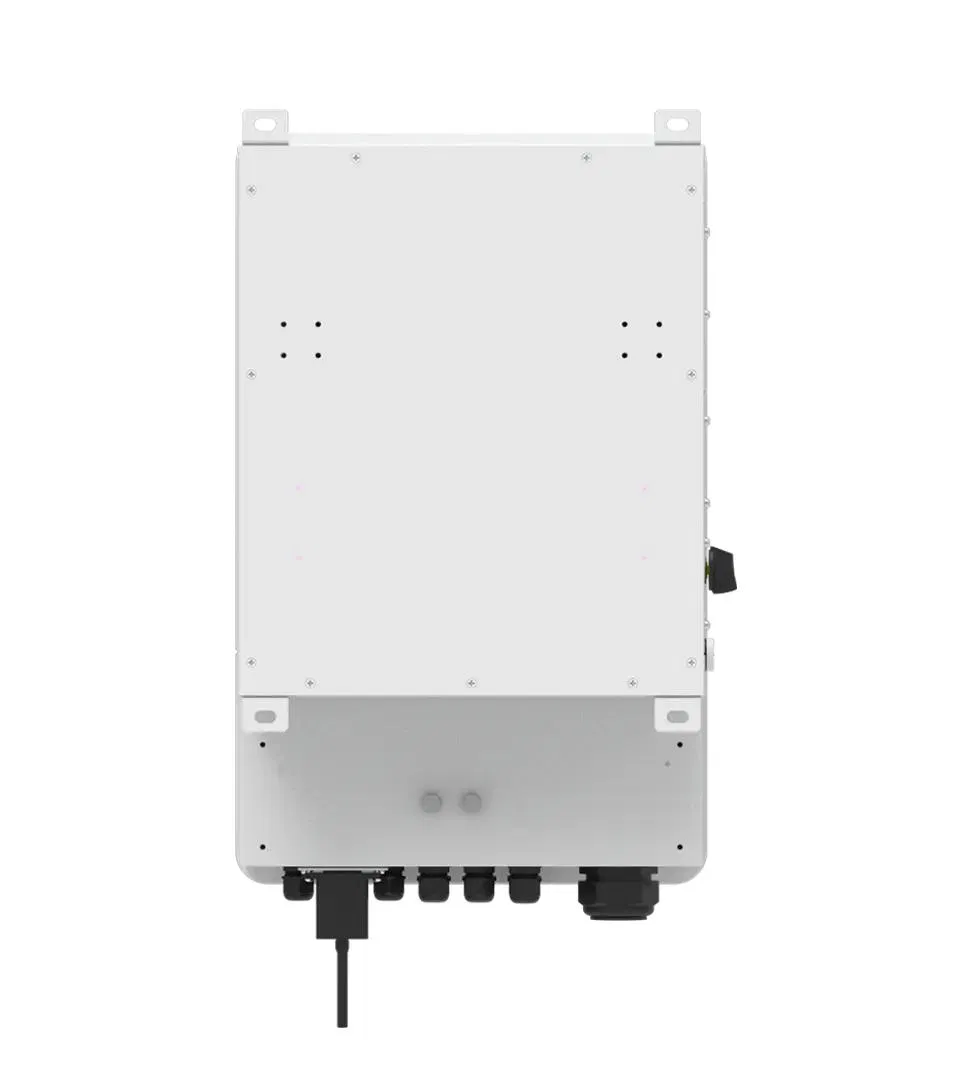

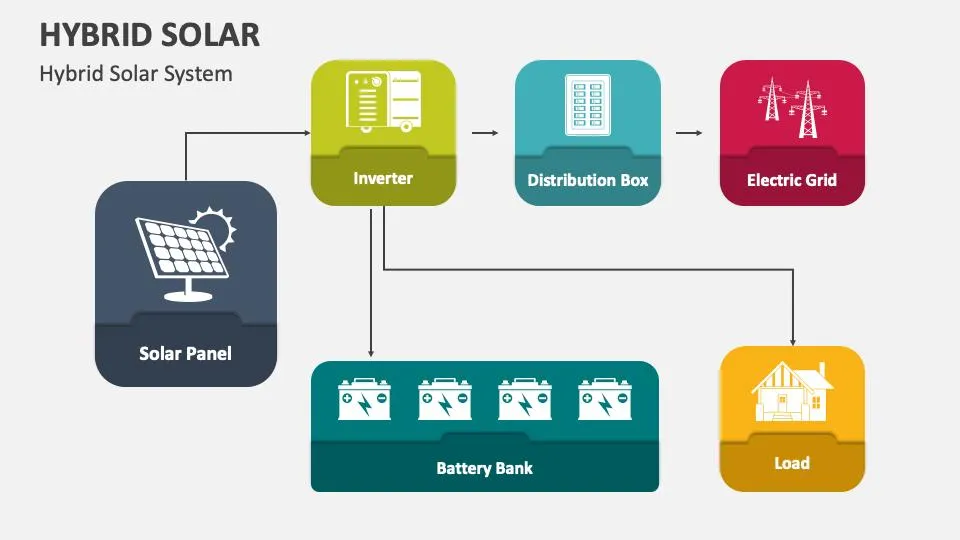

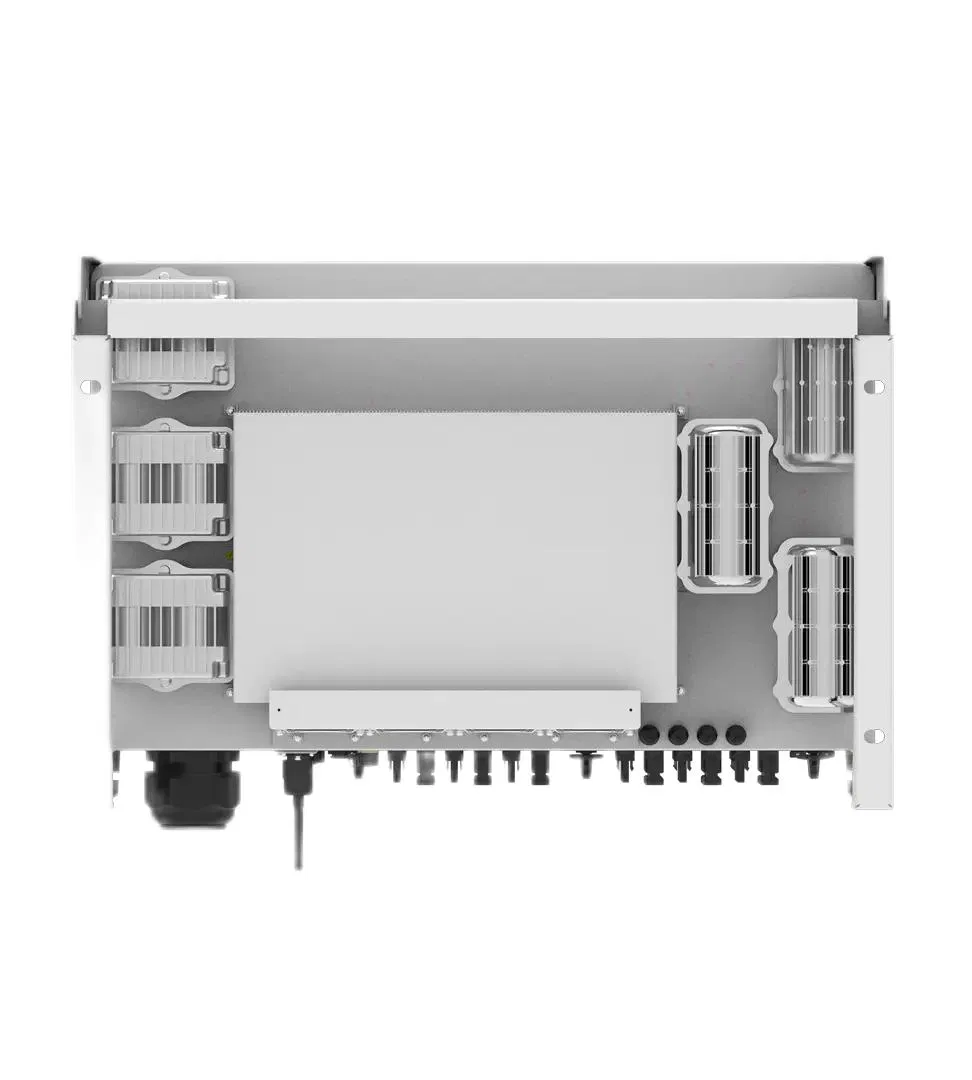

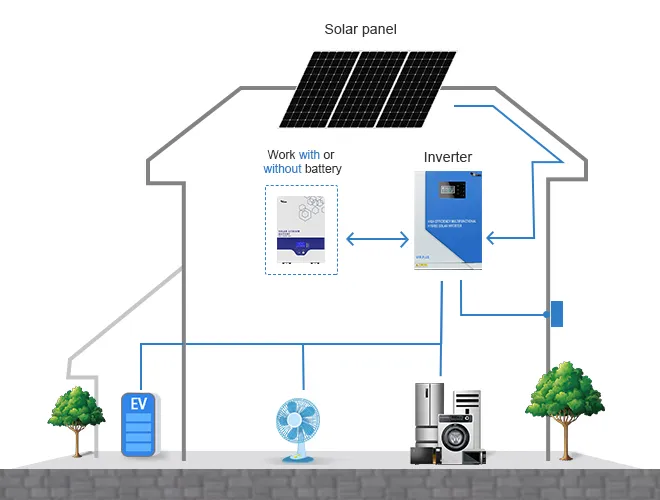

Hybrid Inverter: A new generation of photovoltaic energy storage products based on the idea of intelligent and maintenance-free operation. It integrates multiple functions such as charging, energy storage, photovoltaic, and BMS battery management system. It automatically identifies off-grid/grid connection modes to achieve peak load and valley demand management.
Technical Parameters
Specification
8kw-RH3
10kw-RH3
12kw-RH3
Max. PV Input Power
10.4kw
13kw
15.6kw
Max. PV Input Voltage
1000V
MPPT Voltage Range
125V-850V
Max. Output Power (AC)
8.8KVA
11KVA
13.2KVA
Rated Voltage
400V
Frequency
50Hz / 60Hz
Automatic Switch Time
<20ms
Battery Voltage Range
125V-600V
Max. Efficiency
97.90%
98.20%
98.20%
Protection Degree
IP65
Core Advantages
1. Advanced
Intelligent energy management for home
Power dispatching & demand response
Distributed virtual power station management
2. Flexible
Wide input voltage range
Compatible with Lead-acid or Lithium-ion
Versatile battery support
3. Reliable
Integrated anti-counter flow function
Battery reverse connect protection
Stable performance in various grids
4. Elegant Design
Fashion appearance, light weight
Natural cooling, low noise <35dB
Wall-mounted, space-saving IP65

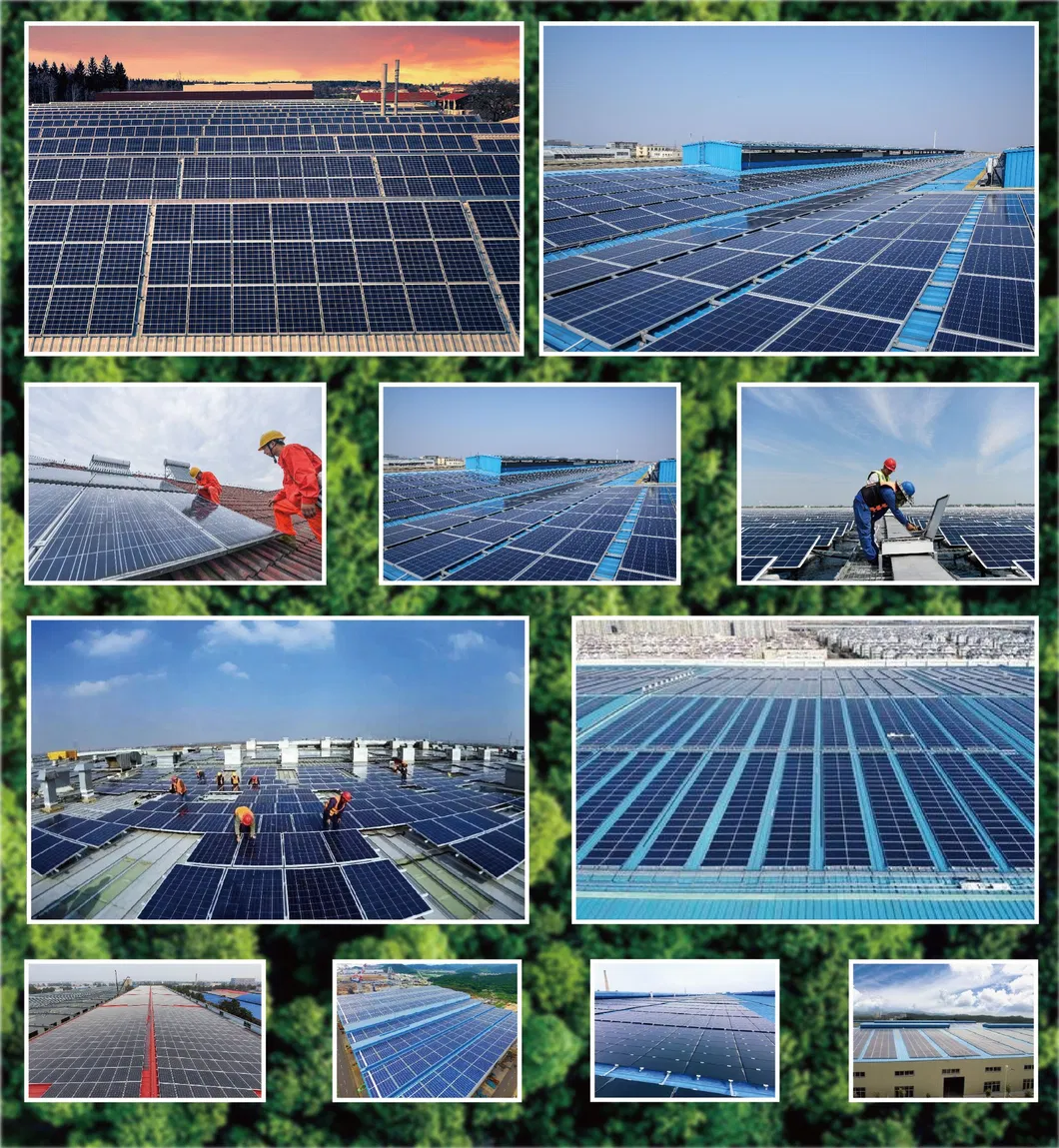

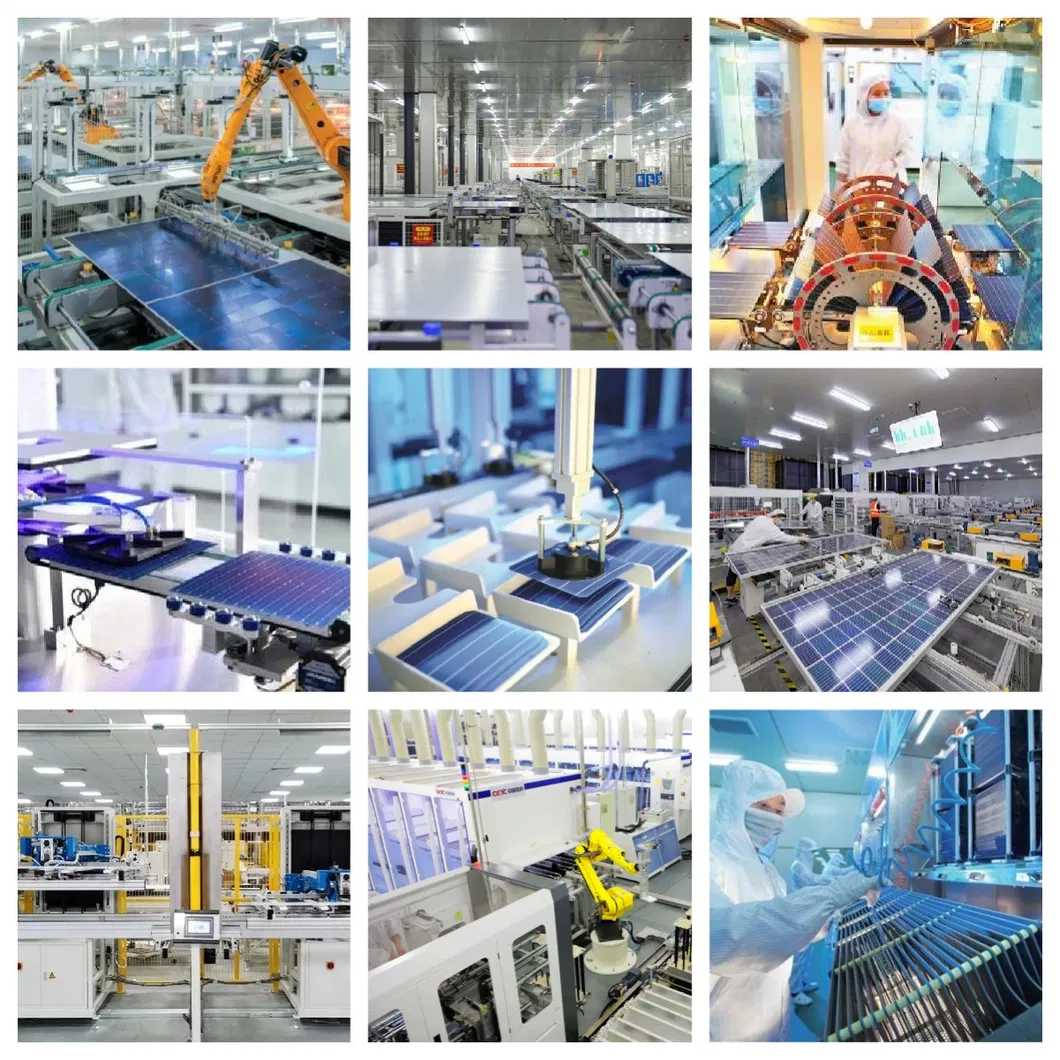

Production Line & Projects
We are an industry-leading solar energy company with a current high-efficiency module production capacity of 10GW. We provide outstanding photovoltaic products, system solutions, and related services to customers worldwide, contributing to global carbon peaking goals.
Certifications & Our Team
Packaging & Shipping
Frequently Asked Questions
Q1: What is the lead time for orders?
A1: 10 days for requirements under 200kW. For orders ≥200kW, the timeline will be negotiated based on production schedule.
Q2: What payment methods do you accept?
A2: We accept 100% TT, or 30% TT in advance with the remaining 70% TT paid when goods are ready before shipment.
Q3: How are the products transported?
A3: International shipping is generally handled via sea transport. Upon entry to the destination country, we utilize multimodal transport including rail and barge.
Q4: What are the warranty terms?
A4: We offer a 10-year enhanced product warranty on materials and workmanship, and a 25-year linear power output warranty.
Q5: Is this inverter compatible with different battery types?
A5: Yes, our hybrid inverters are highly flexible and compatible with Lead-acid, Lithium-ion, and other modern energy storage battery systems.
Q6: What is the protection rating for outdoor installation?
A6: The inverter is rated IP65, making it fully protected against dust and low-pressure water jets, suitable for outdoor wall-mounted installation.
