Product Description

📱

ST-H102 UHF Portable Bluetooth Reader

High-performance contactless communication with Type-C and Bluetooth BLE 4.2 support.

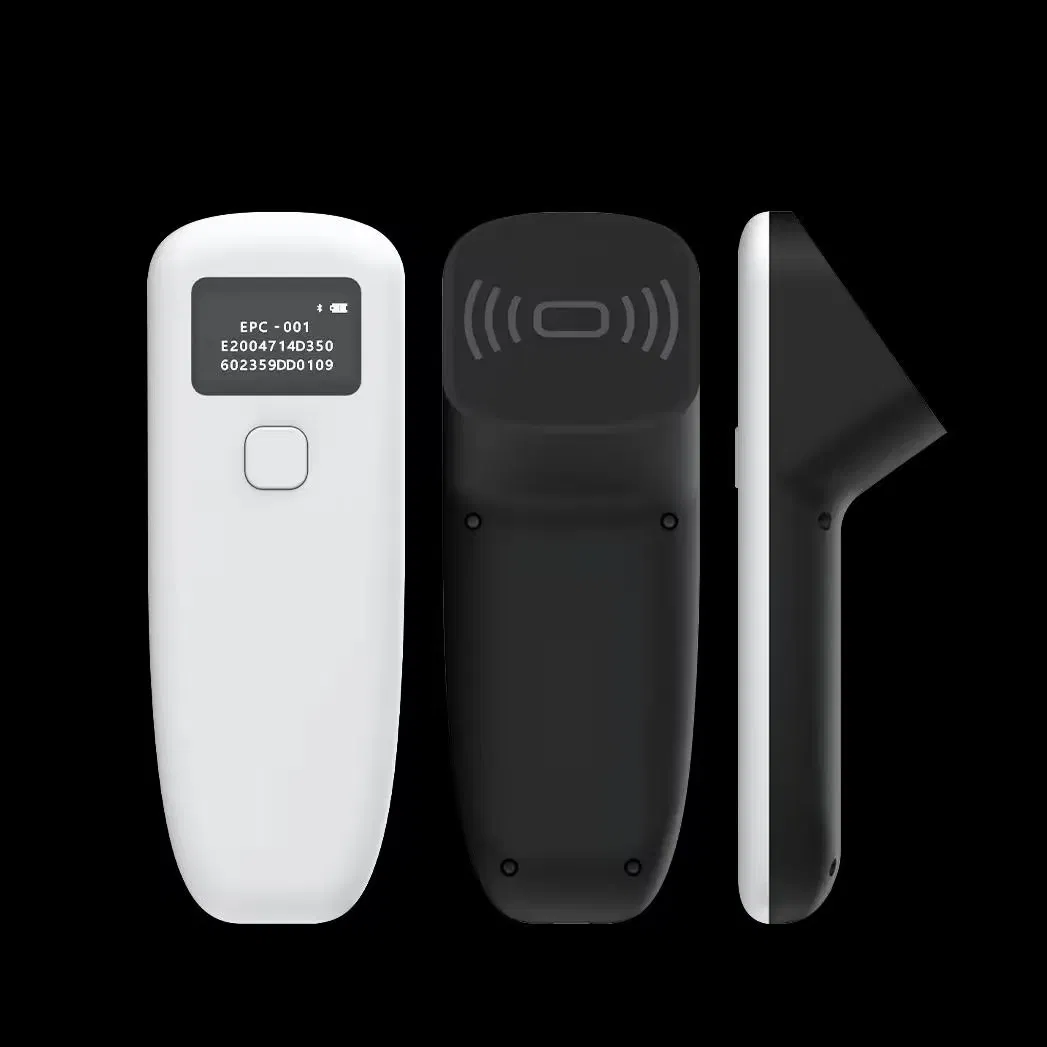

ST-H102 UHF Reader Front View

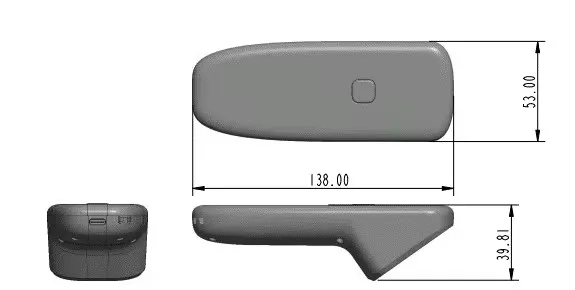

ST-H102 Dimensions
📋 Basic Information
Model
ST-H102
Port Type
USB / Type-C
Frequency
865-869MHz, 902-928MHz
Reading Distance
Max 150cm
Reading Speed
>30 PCS/S
Material
ABS + Silica
Battery
3.7V-2000mAh Lithium
Dimensions
53 * 138 * 40mm
⚙️ Technical Specifications
Parameter Specification Details
ProtocolISO-18000-6C
RF Power0-26dbm adjustable
Bluetooth ProtocolBLE 4.2, HID
Wired CommunicationType-C for charging and serial port upgrade
Reading AlertScreen display + Buzzer
Working Temperature-10ºC to 50ºC
Working Humidity5% to 95% RH
Operating Current<= 400mA
Stand-by TimeOver 1 year
Charge Time1.5 hours
📦 Packaging & Logistics
Package Size
20.00cm * 19.00cm * 11.00cm
Gross Weight
1.500kg
HS Code
8471504090
Capacity
1,000,000 units per year
❓ Frequently Asked Questions
What is the maximum reading distance for the ST-H102?
The device can read UHF tags at a maximum distance of approximately 150cm, depending on the environment and tag type.
How does the device connect to other equipment?
It supports dual connectivity: wireless via Bluetooth BLE 4.2 (HID supported) and wired via a Type-C port for both data transfer and charging.
How long can the battery last on a single charge?
The built-in 2000mAh battery provides over 4 hours of continuous active work and can remain in standby for over a year. It only takes 1.5 hours to fully charge.
What frequencies does this reader support?
It is designed for global compatibility, supporting both 865-869MHz and 902-928MHz frequency ranges.
Is the reading speed efficient for bulk management?
Yes, it features a high-speed reading capability of over 30 pieces per second, making it ideal for clothing management and production line inventory.
What feedback does the device provide during operation?
The reader provides real-time feedback through an integrated screen display and an audible buzzer alert for successful scans.
