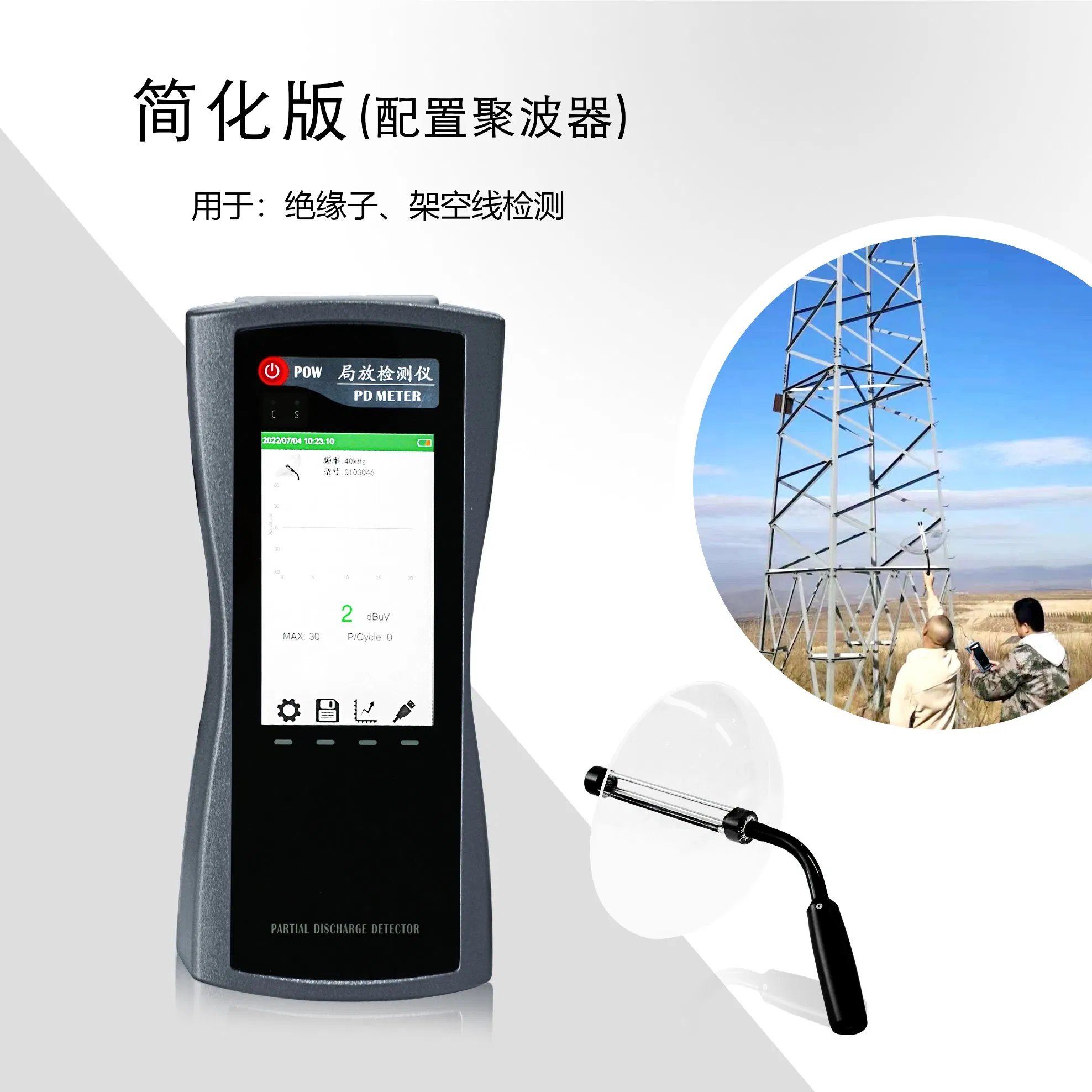

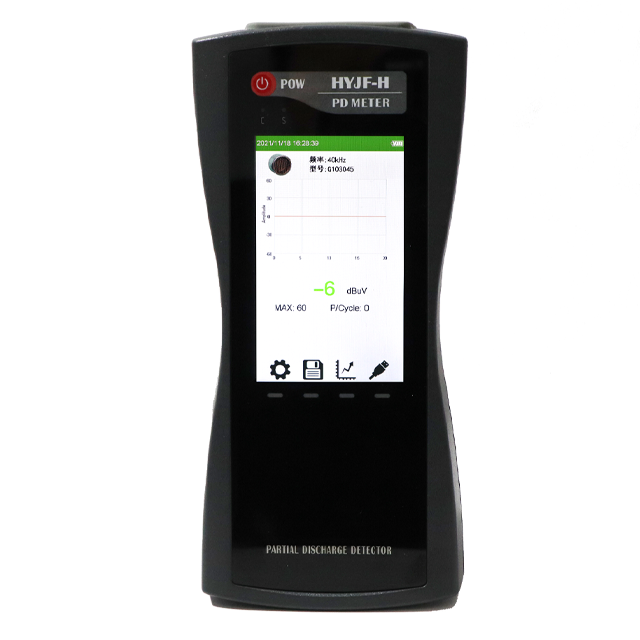

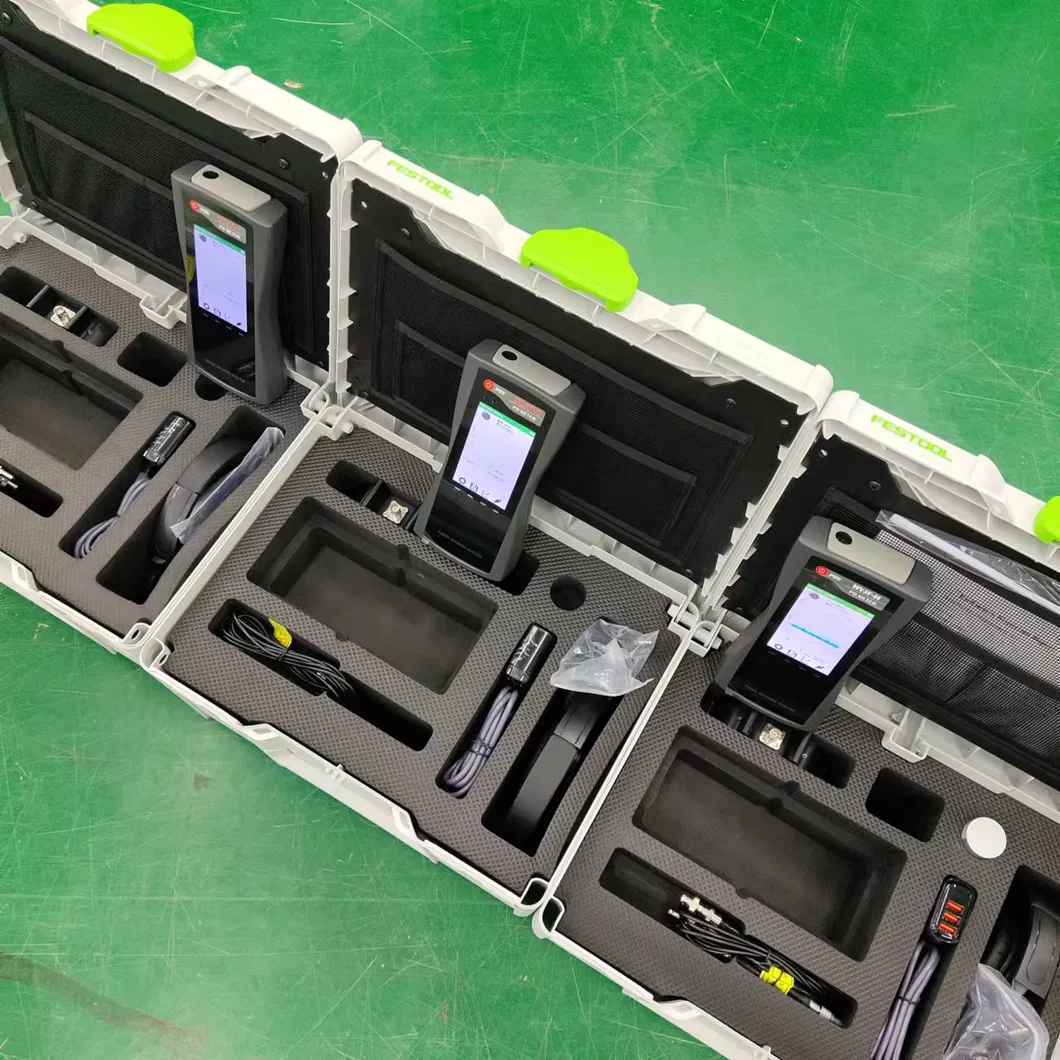

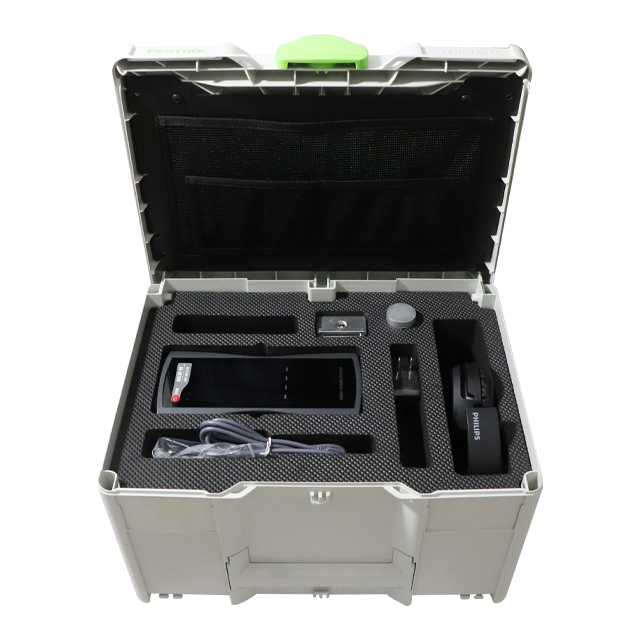

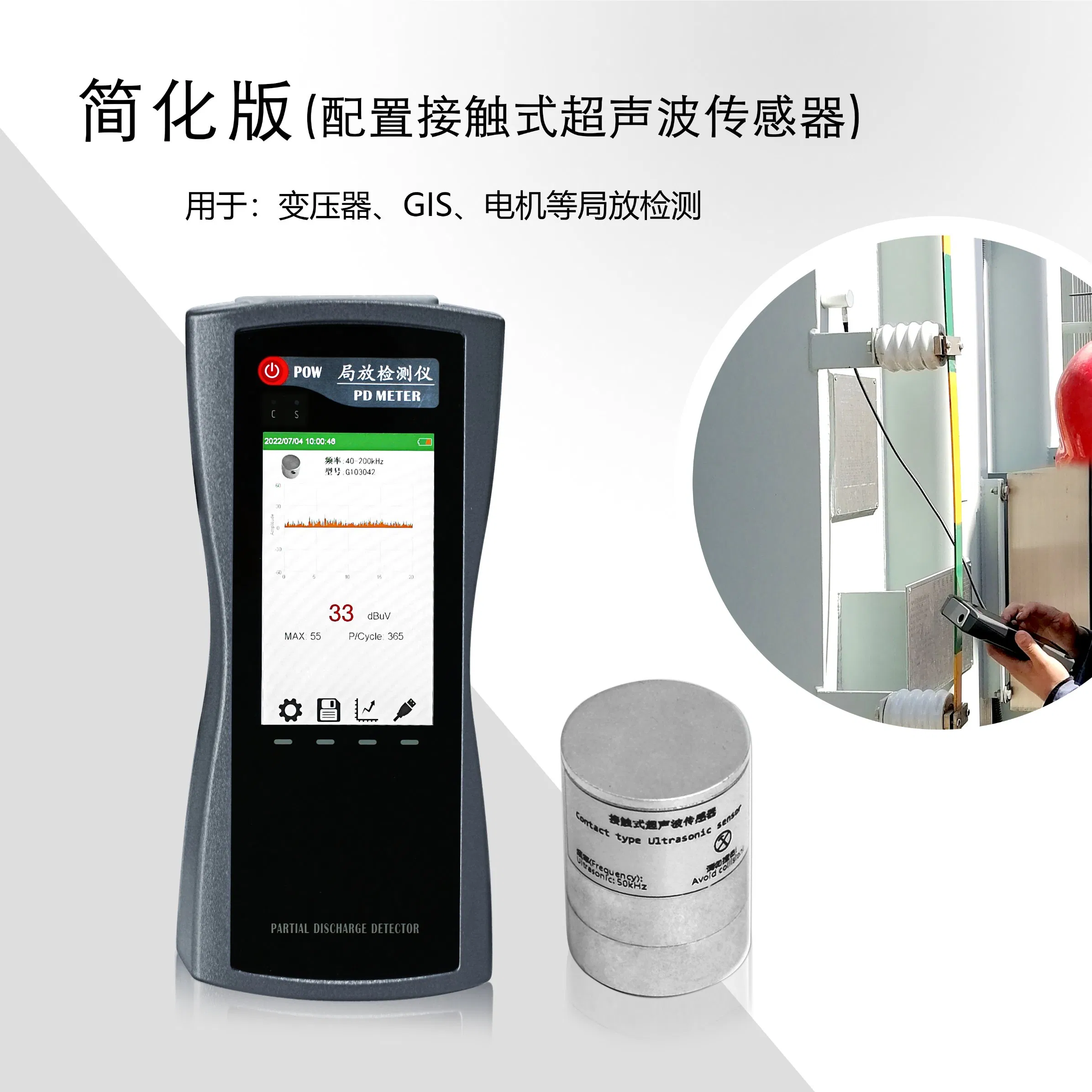

Partial discharge usually has a very small amplitude value, but it will cause the continuous deterioration of the insulation layer and finally cause electric equipment fault. Non-intrusive partial discharge detection is used for identifying potential insulation faults that may cause power cutoff or personal injury. The product is an instrument developed for detecting the activities of electromagnetic waves and ultrasonic waves.

1. Scope: Non-intrusive detection for high-voltage electric equipment.

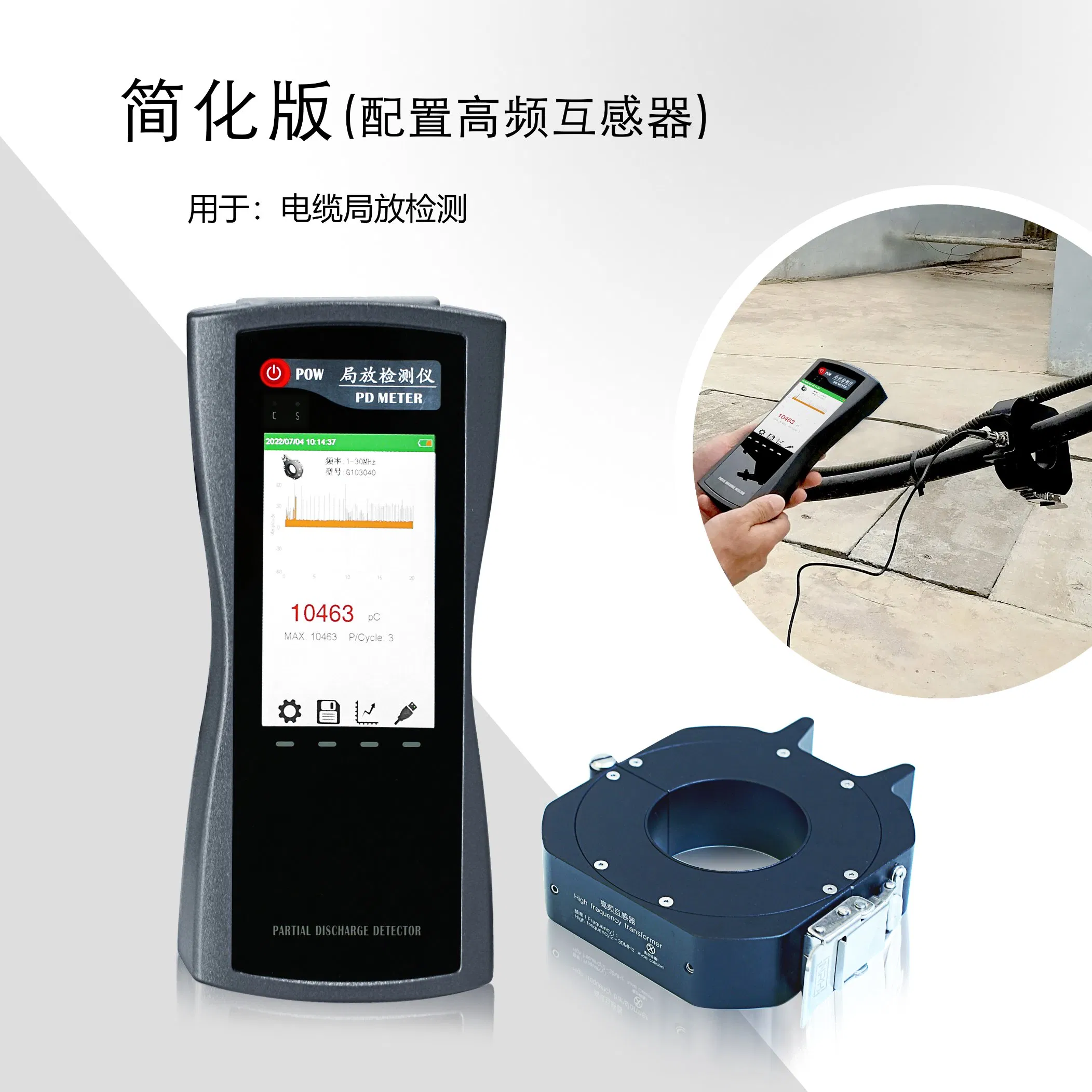

2. Sensor Configuration: Standard: UA, TEV; Optional: UHF, HFCT, and customized sensors.
3. Detection Principle: UHF (Ultra High Frequency), UA (Ultrasonic Analysis), and TEV (Transient Earth Voltage).
4. Frequency Band: UA: 40-200KHz; TEV: 3-100MHz; UHF: 300-2000MHz.
5. Measurement Range: UA: -90~80dB; TEV: -80~10dBm; UHF: -80~10dBm.
6. Sensitivity: Minimum 10pC (dependent on distance).
7. Display: 3.5" TFT color screen.
8. Storage: 1000 groups of test data.
9. Power: 8.4V lithium battery (8h continuous operation), Charging time 3-4h.
10. Weight: 1.5kg.
