Voltura Charger
1 / 5

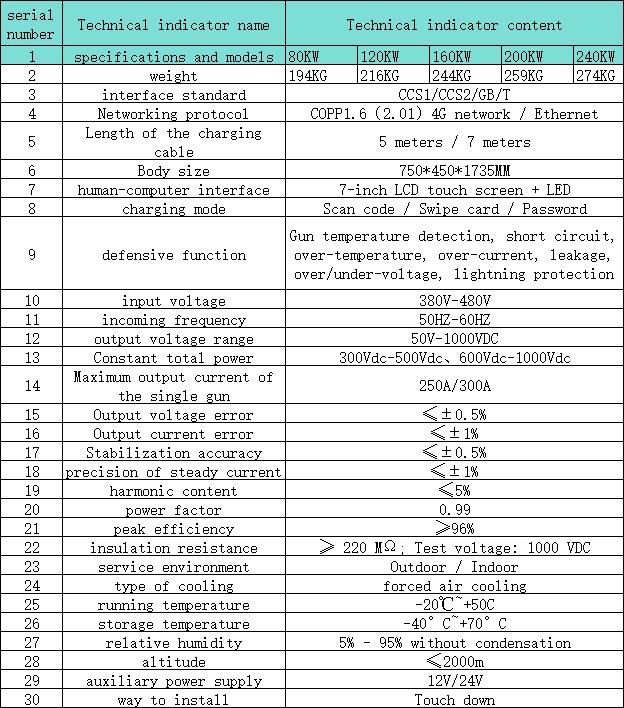

| Model NO. | 80KW-600KW | Installation | Floor Type |
| Charge Method | Quick Charge | Rated Power | 40kw To 600kw |
| Weight | 194kg-274kg | Gun Barrel Length | 5 Meters |
| Number of Guns | 2 Individual | Body Size | 750X410X1700(mm) |
| User Interface | 7-Inch LCD Touch Screen + LED | Connection | 4G All-Network / Ethernet |
| Protection | IP54 / Lightning Protection | HS Code | 85044099 |

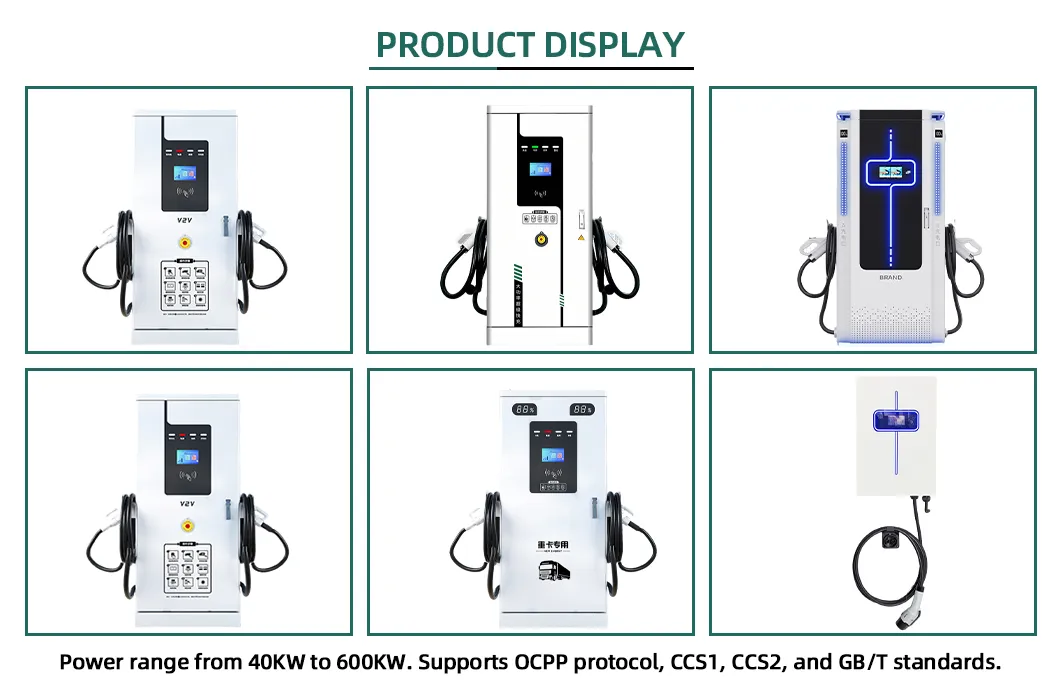

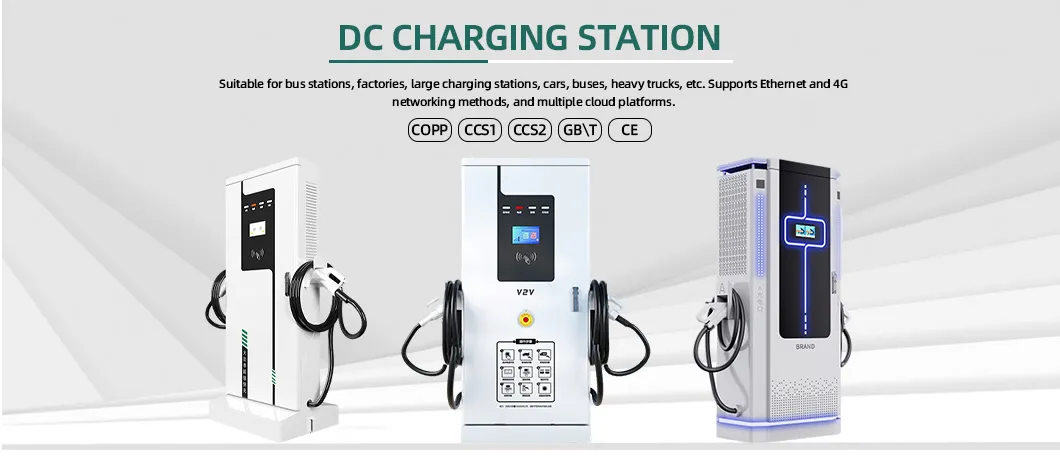

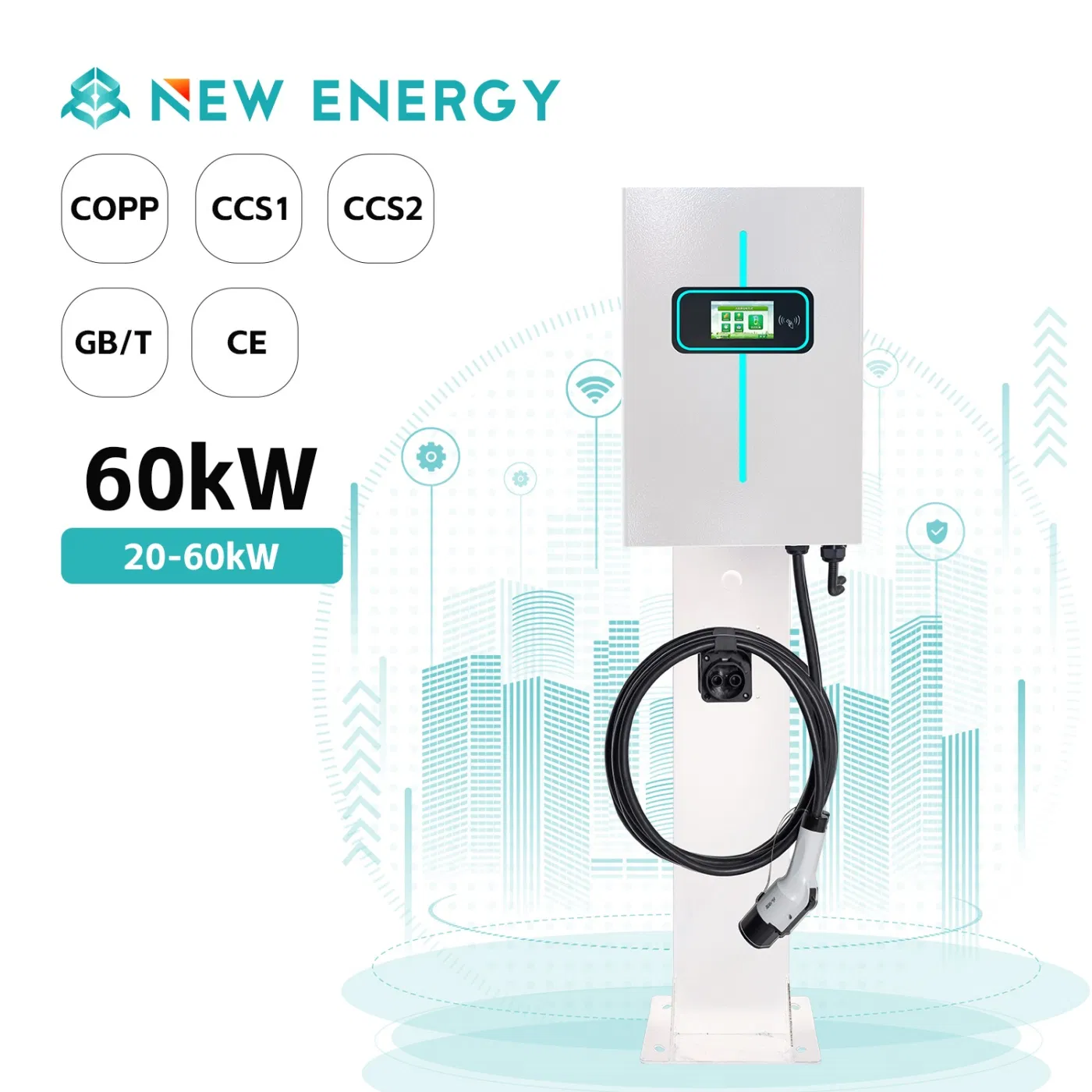

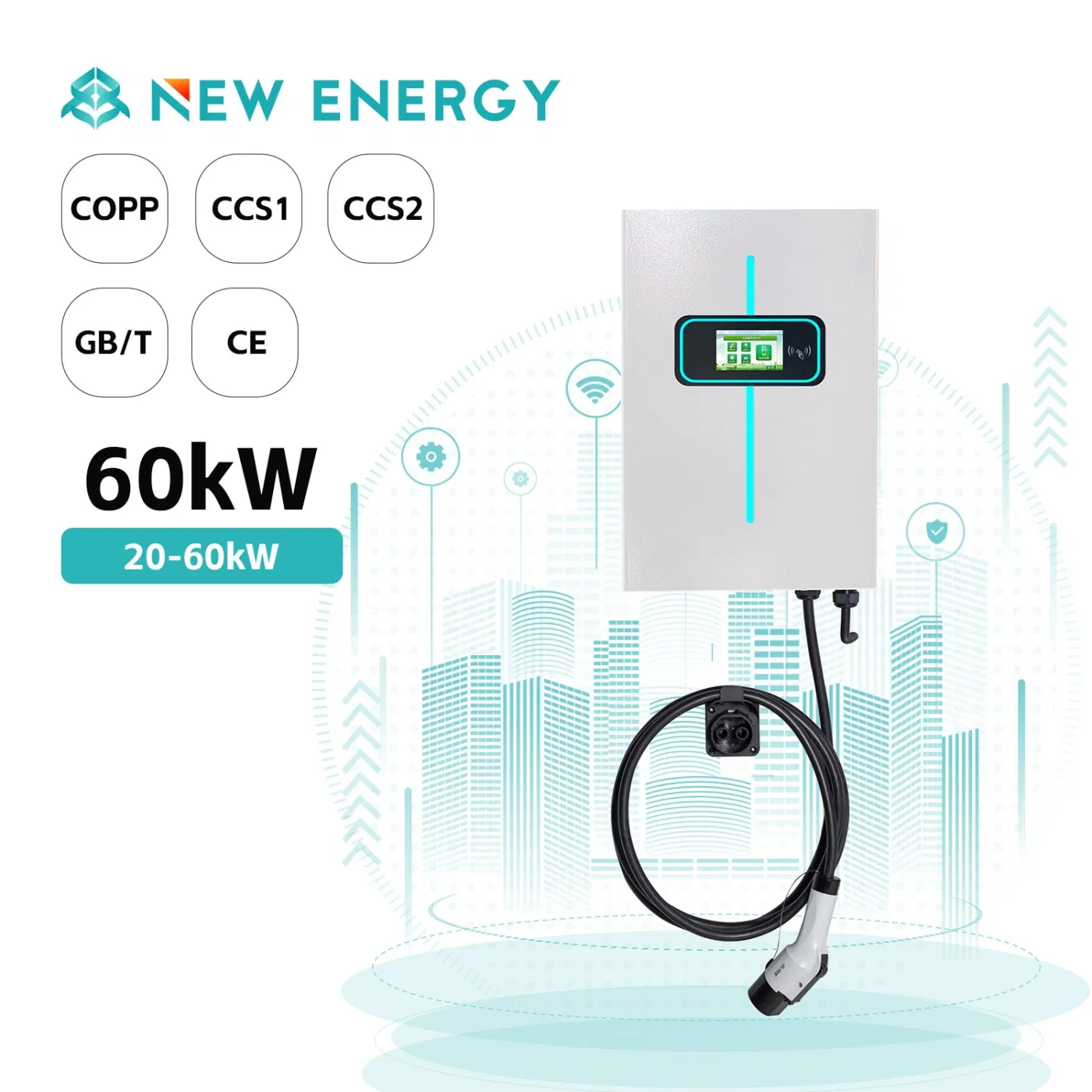

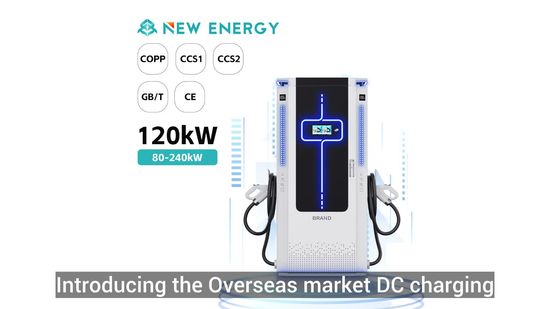

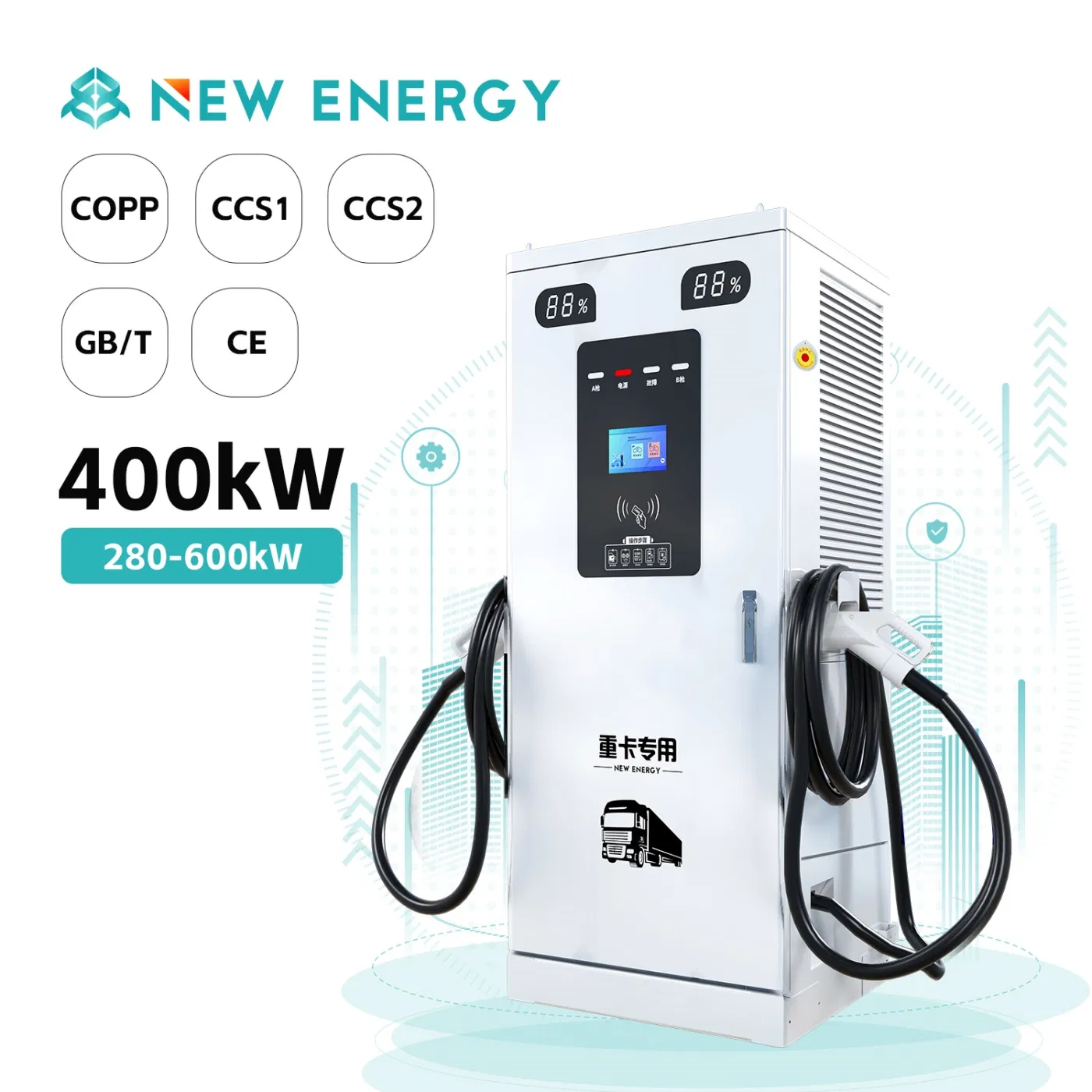

Power range from 40KW to 600KW. Supports OCPP protocol, CCS1, CCS2, and GB/T standards. Features IP54 waterproof rating, with a continuous adjustable voltage range of 50-1000V. Constant power voltage range is 200-1000V. Supports simultaneous charging with two guns. Suitable for bus stations, factories, large charging stations, cars, buses, heavy trucks, etc.
It adopts advanced DC fast charging technology, providing rapid energy replenishment, shortening charging time, and improving charging efficiency. The charging station has been debugged before leaving the factory. Users can directly power on and use it without any secondary debugging. Includes gun temperature monitoring, short circuit, over-temperature, over-current, leakage, over/under-voltage protection.

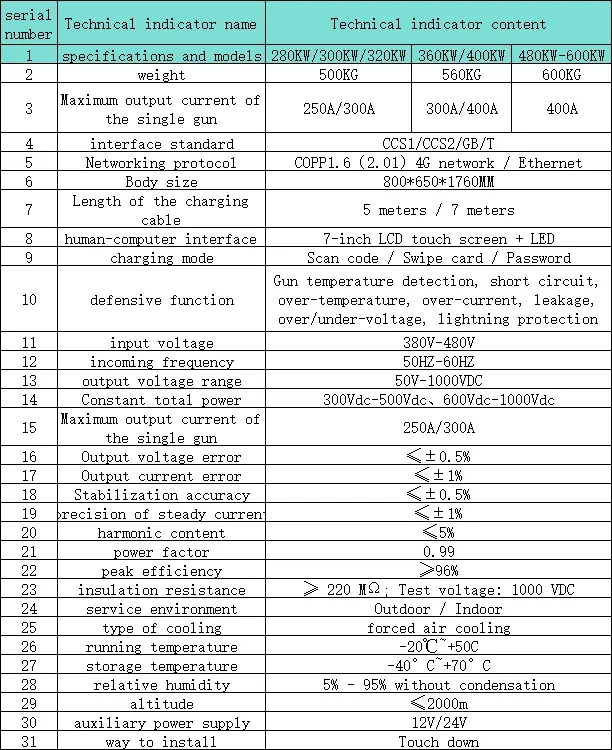

| Design Criterion | CCS1, CCS2, GB/T | Charging Mode | Scan code, Swipe card, VIN, Password |
| Defensive Function | Short circuit, Over-temp, Over-current, Leakage, Over/under-voltage | Cloud Platform | OCPP 1.6 (2.0.1) |
We are an AAA-rated credit enterprise, holding ISO400, ISO900, ISO1400, ISO500, and ISO certifications. We also possess numerous software copyrights and various third-party inspection reports for our equipment. We actively participate in large-scale domestic and international exhibitions.
We adopt packaging methods that are sufficient to protect the equipment, supporting sea transportation, air transportation, and land transportation.
