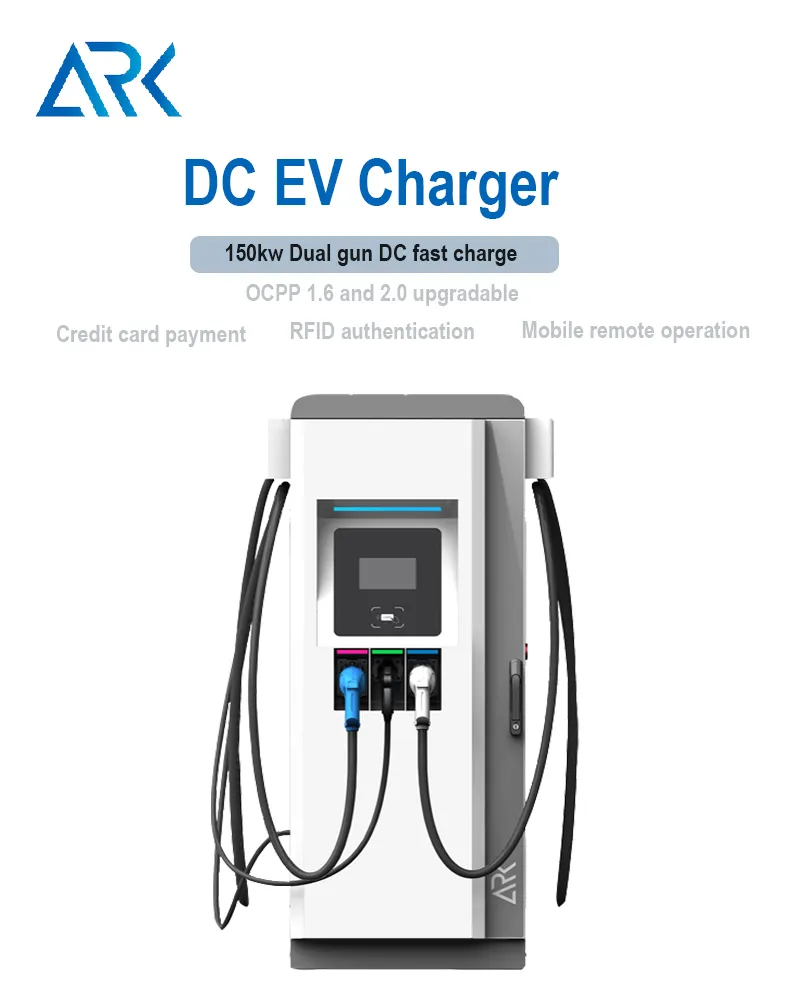

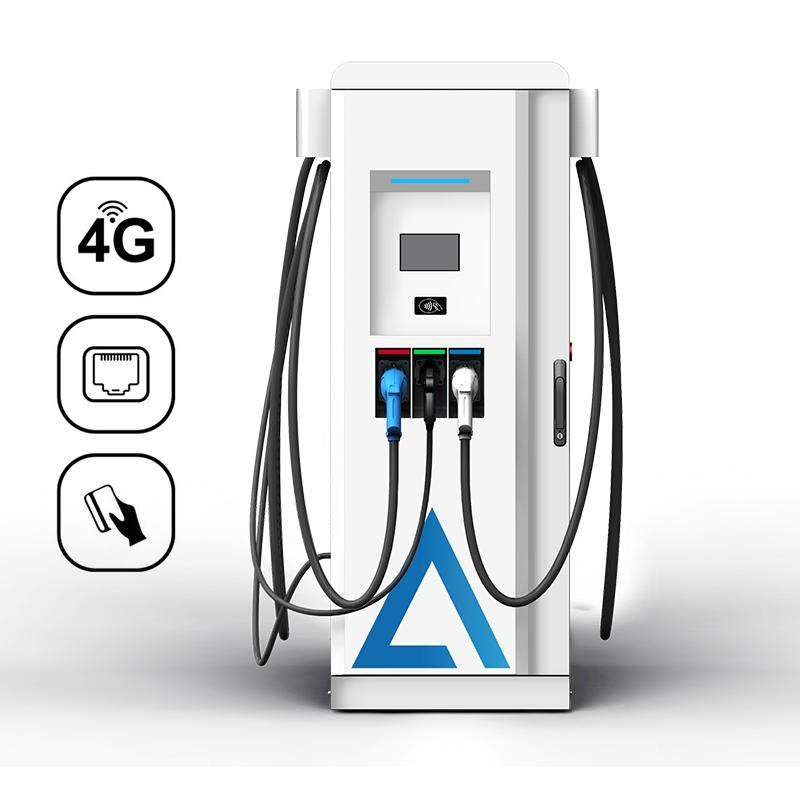

OEM Level3 Ocpp1.6 DC Fast Charger EV Charging Station

Customization:	Available
Installation:	Floor Type
Location:	Public Use

📊

Basic Info & Specifications

Model NO.

EF160

Interfaces

One Pile with Multiple Charges

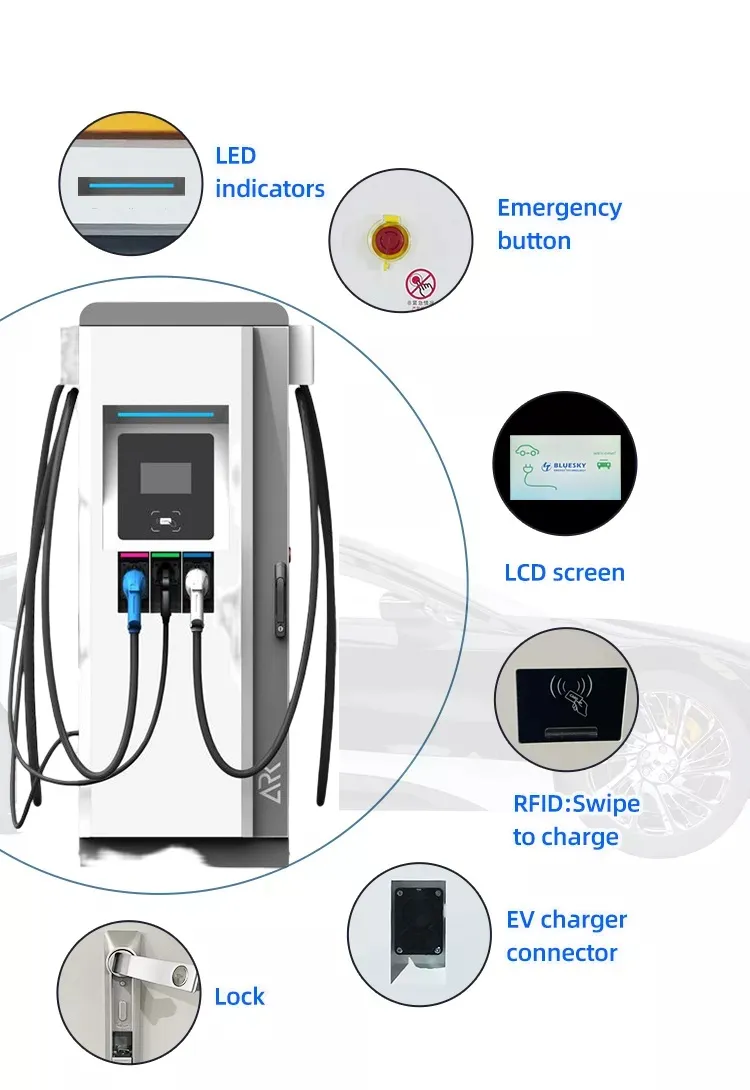

Function

RFID Supported

Protocol

Ocpp1.6j Supported

Screen

7 Inch Touch Screen

Protection Grade

IP54, IK10

Charging Type

Mode 4

Standard

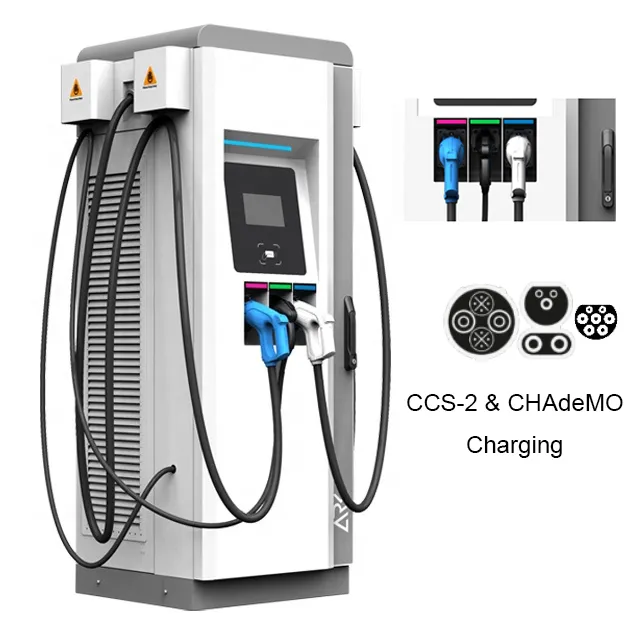

IEC 61851-1, IEC 61851-23, CHAdeMO

Certification

CE, TUV

Package Size

200.00cm * 83.00cm * 80.00cm

🔍

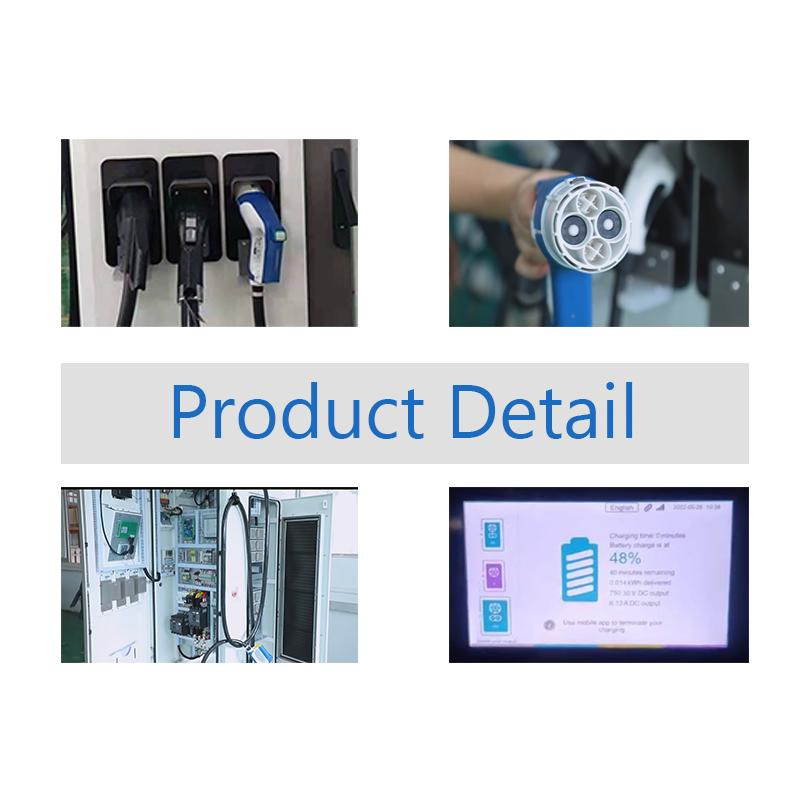

Product Description

📋

Product Parameters

Category	Parameters	Specification
Electrical Specifications	Input voltage	400Vac 3-phase
	Input frequency	50Hz/60Hz
	Rated power	60kW or 120KW DC
	Output voltage	CCS: 200-1000VDC, CHAdeMO: 200-500VDC
	Output current	CCS: 200A, CHAdeMO: 125A
	Efficiency	≥ 94%
	Power factor	≥ 0.99
Structure	Housing material	Metal case

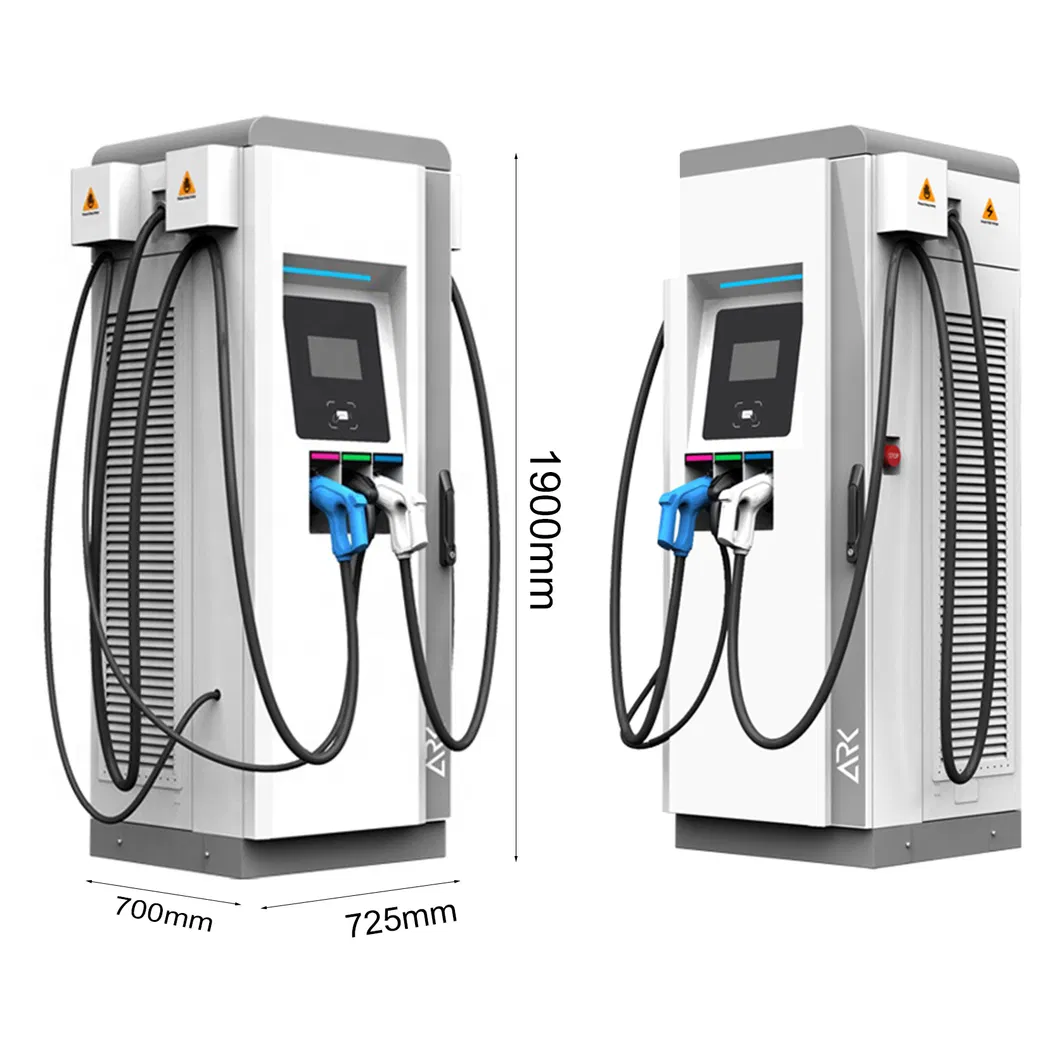

	Dimension	1900 x 725 x 700mm
	Installation	Floor-stand type
	Weight	380kgs
Environment	Working temp	-30°C to +55°C
	Protection	IP54
	Security	Over/under voltage, Overload, Leakage, Grounding, Over temp, Surge protection

🏢

Manufacturing Excellence

📦

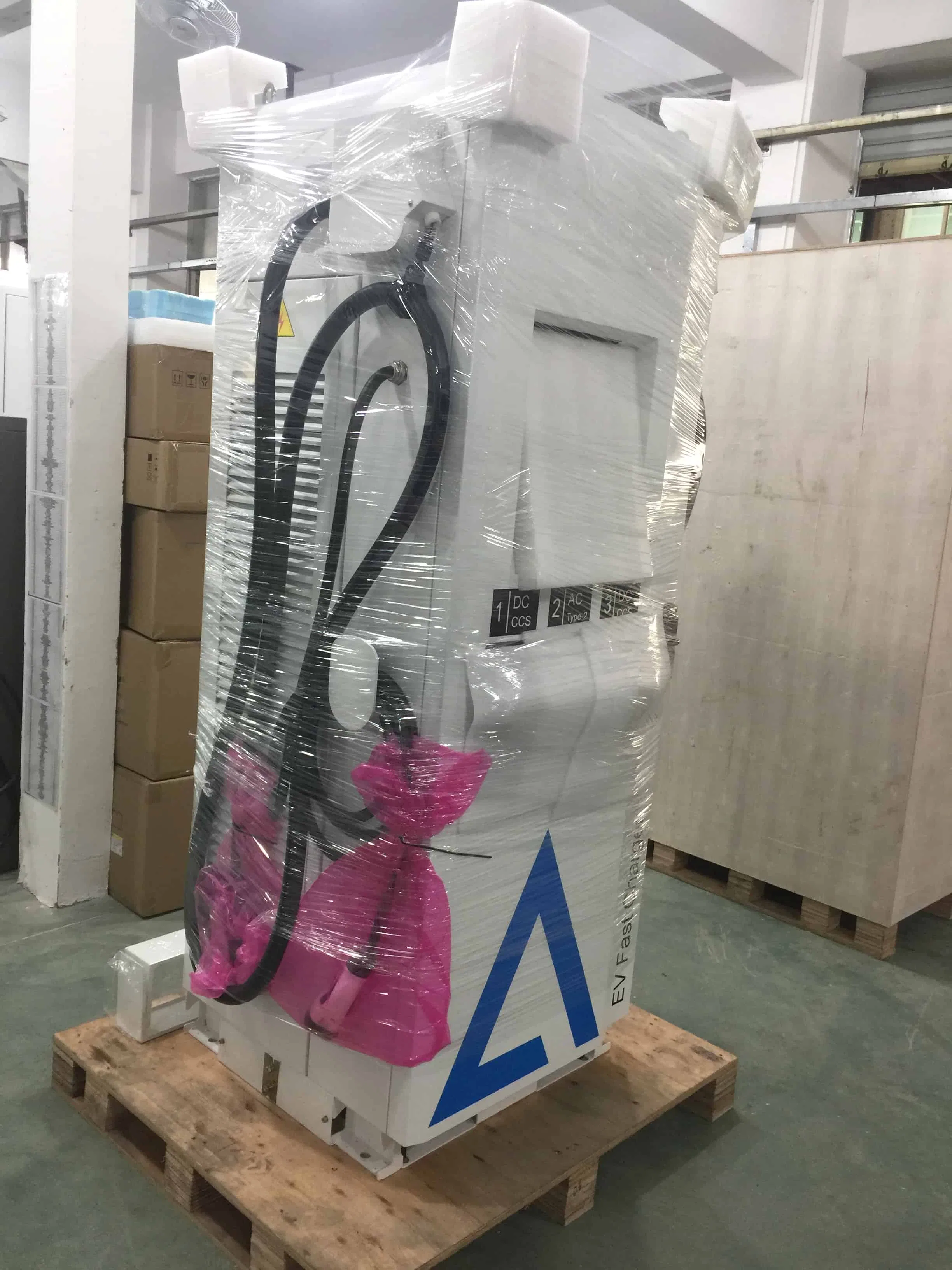

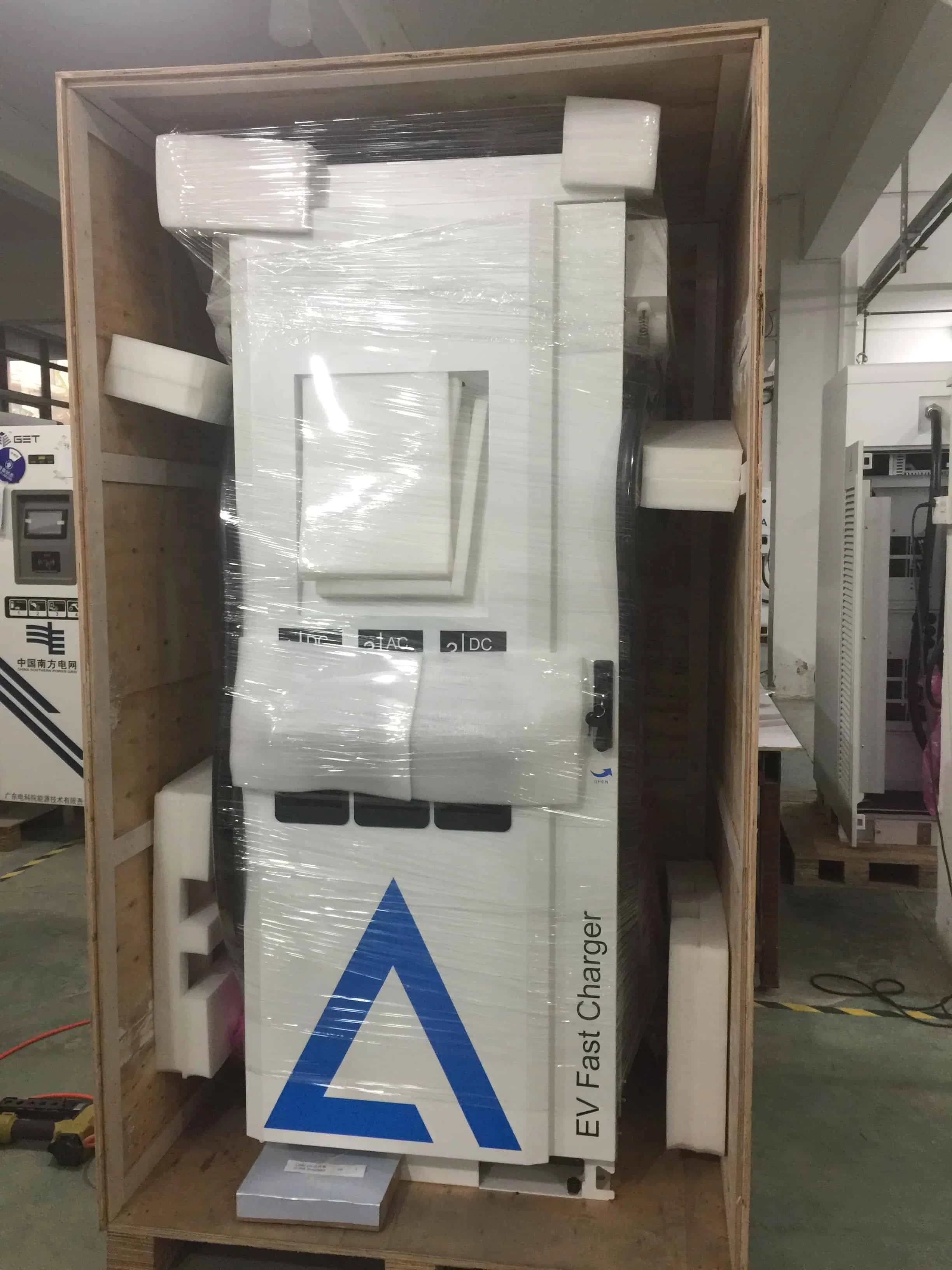

Packaging & Shipping

❓

Frequently Asked Questions

Why choose this EV Charger solution?

We offer a professional technical team with a long-term vision in the EV industry. Our products pass rigorous laboratory tests and application scenarios. We provide a wide range of options including various international charging standards, smart back-end services, and professional technical support.

Are there successful overseas project implementations?

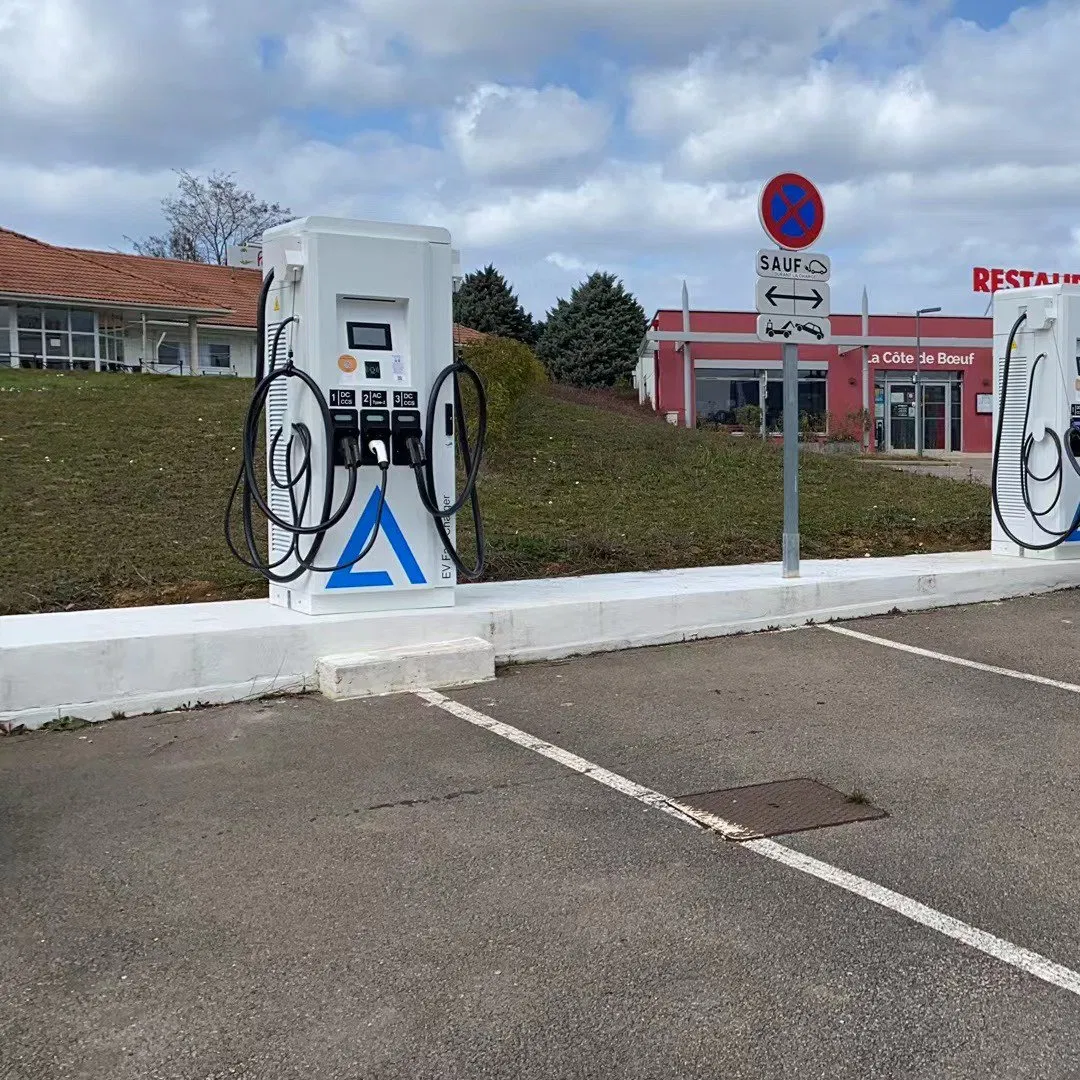

Yes, our solutions have been implemented globally. Notable projects include integrating EV chargers with PV systems in the UK, installing fast chargers along major US freeways, and providing DC fast charging services for automaker fleets.

What are the technical advantages of these chargers?

Our chargers feature telecom-level product design, support for multiple standards (CCS-1/2, CHAdeMO, GB/T), wider input/output voltage ranges, advanced modular design, and superior temperature adaptation with a high protection grade.

What are the differences between global DC fast charging standards?

There are five main standards: CCS-1 (North America), CCS-2 (Europe), CHAdeMO (Japan), GB/T (China), and Tesla. Our hardware is designed to support these various requirements to ensure global compatibility.

Does higher output power always mean faster charging?

Not necessarily. Charging speed is often limited by the vehicle's battery capacity. However, high-power chargers are significant because they can support dual connectors simultaneously and are future-proof for next-generation batteries that support higher power intake.

How is after-sales technical support handled?

We provide comprehensive technical training, including written materials and videos. In urgent situations, professional technicians are available to provide support to ensure minimal downtime and master part replacement or maintenance.
