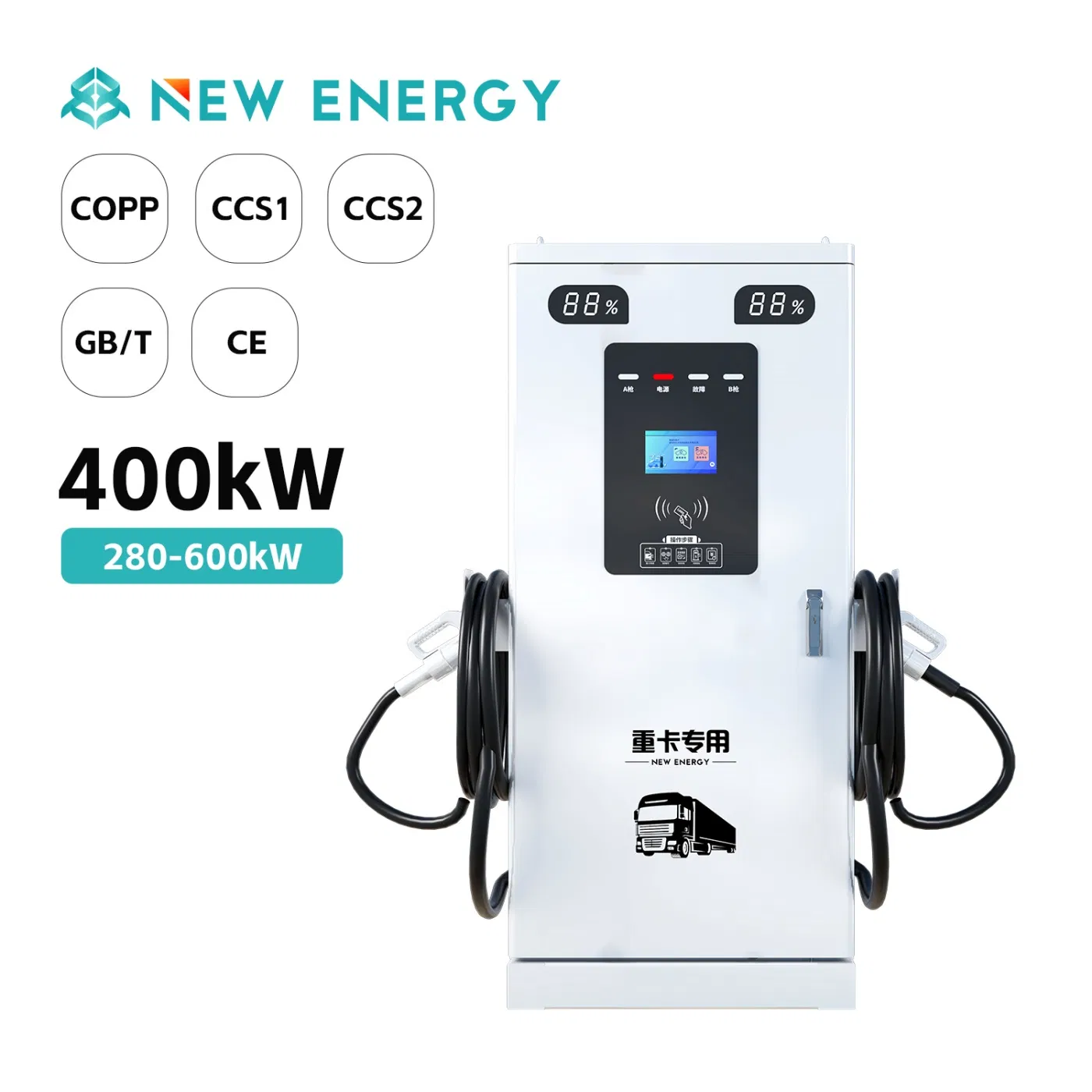

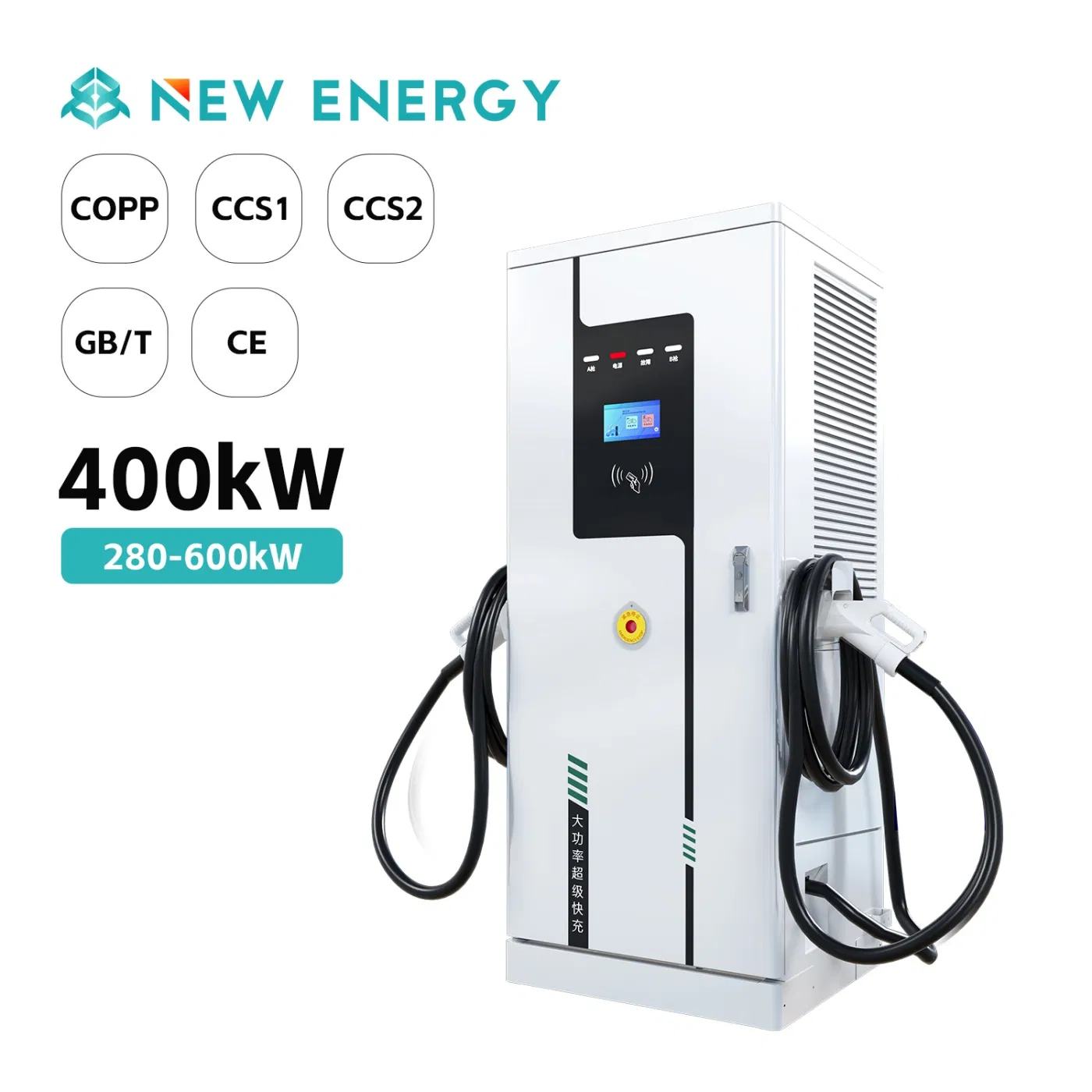

Voltura Charger
1 / 5
40KW to 600KW range for rapid energy replenishment.
Waterproof and robust protection for public use.
7-Inch LCD touch screen with multi-start methods.
Supports OCPP, CCS1, CCS2, and GB/T standards.

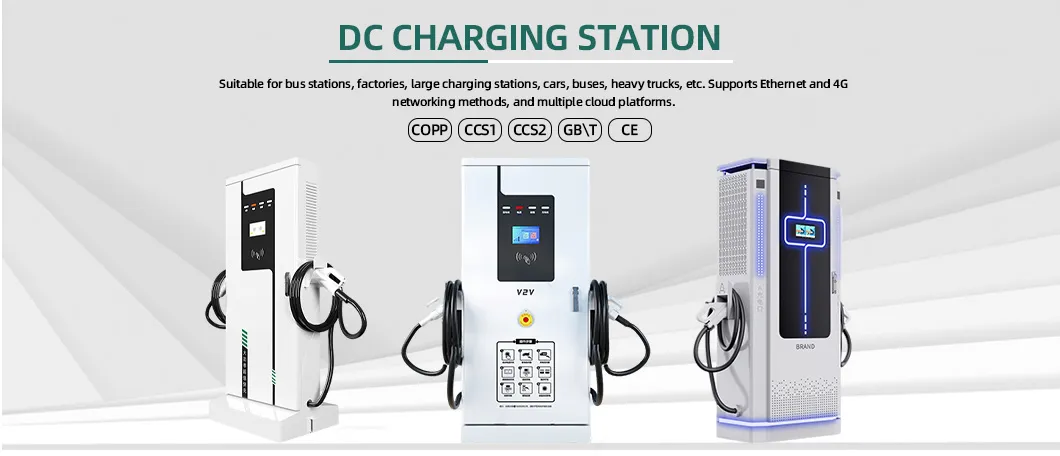

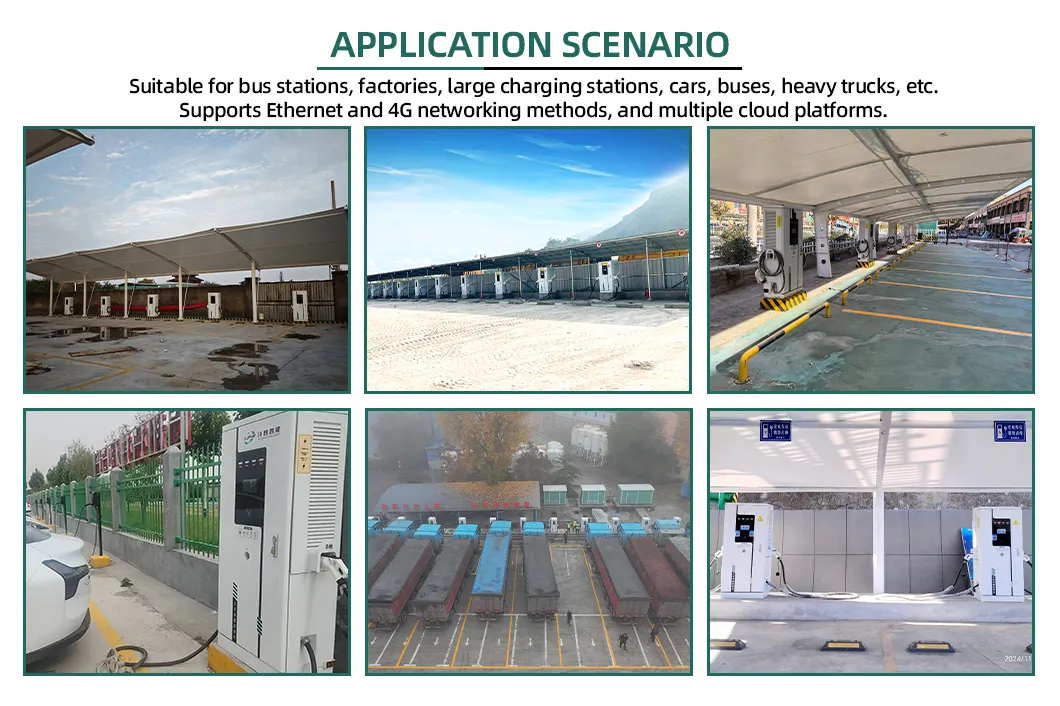

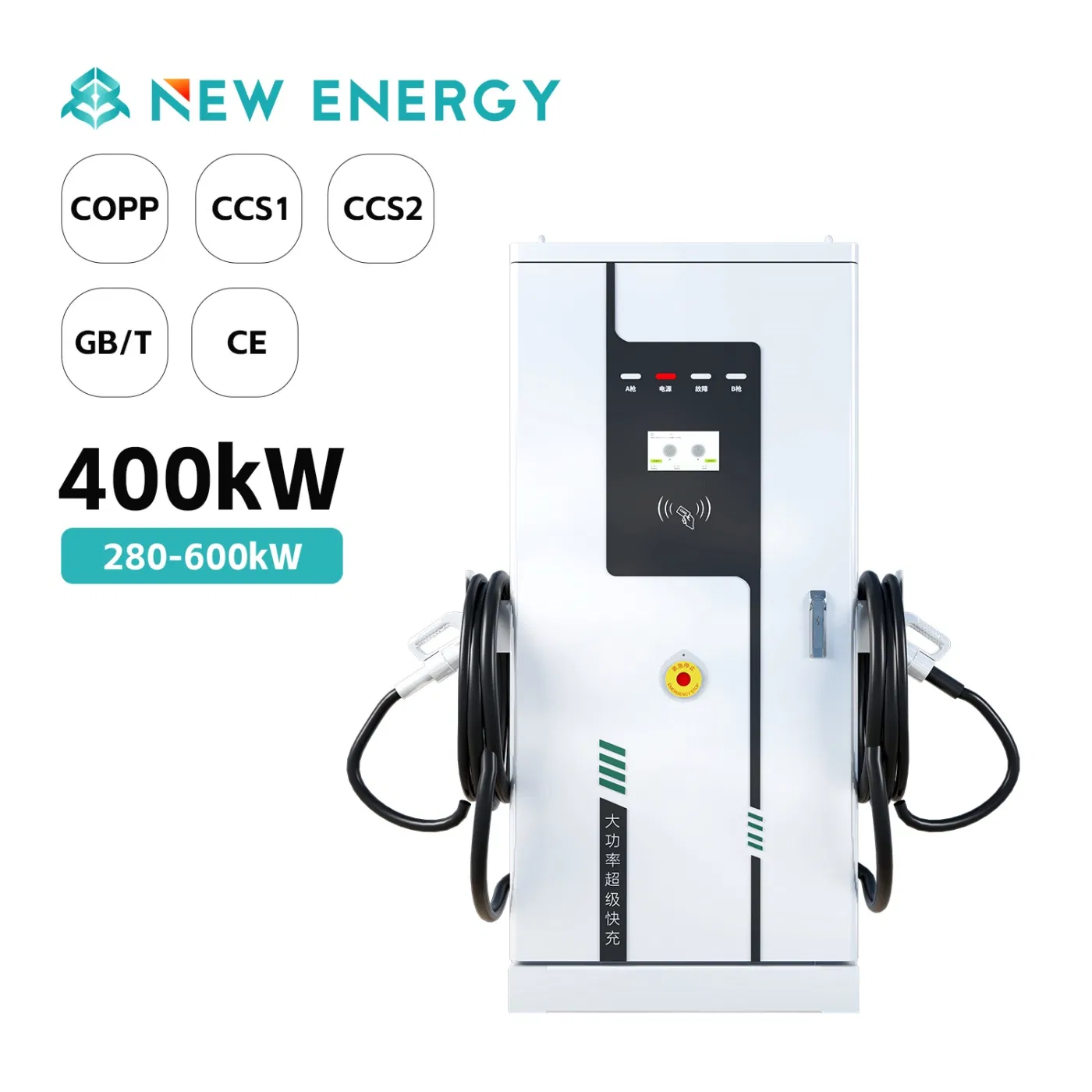

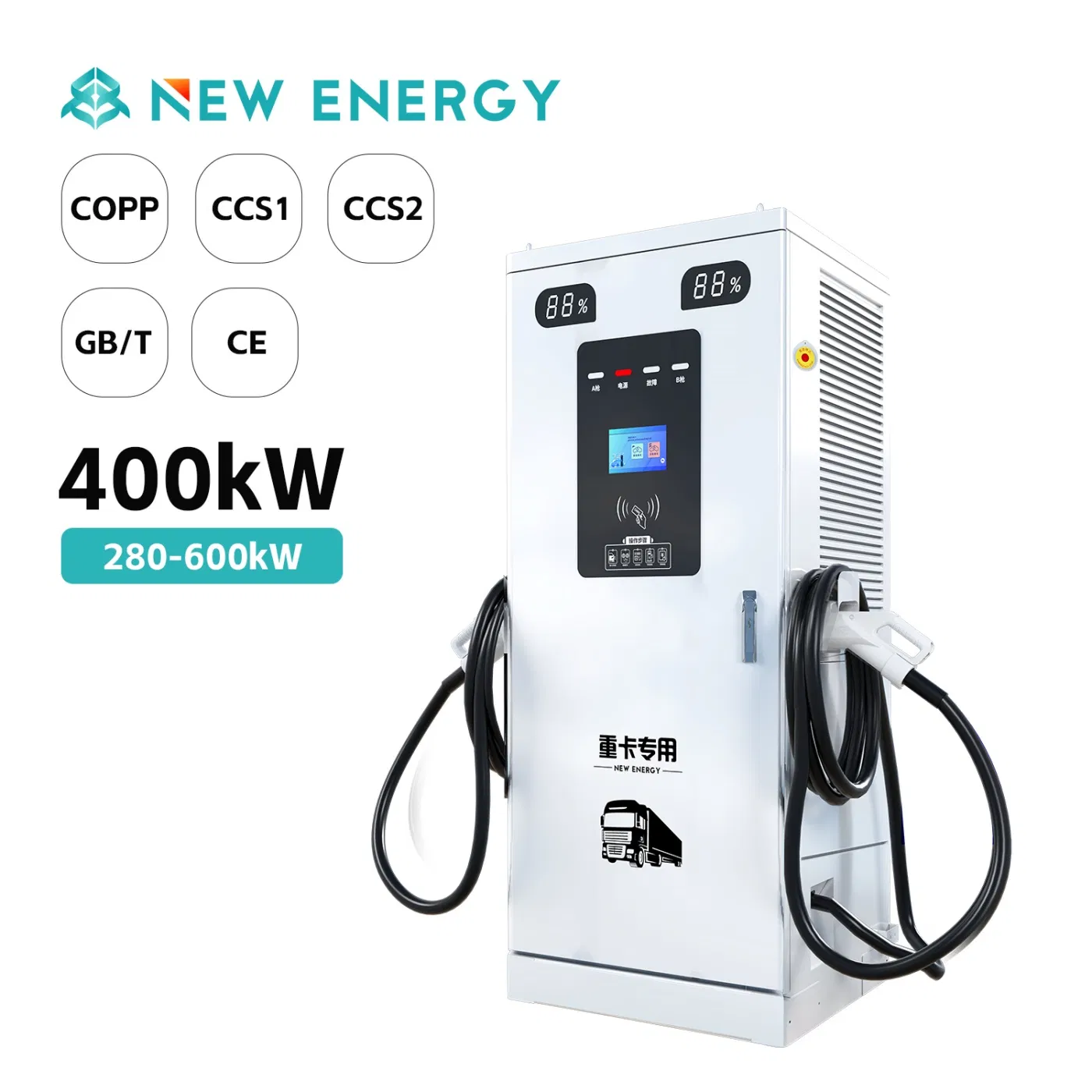

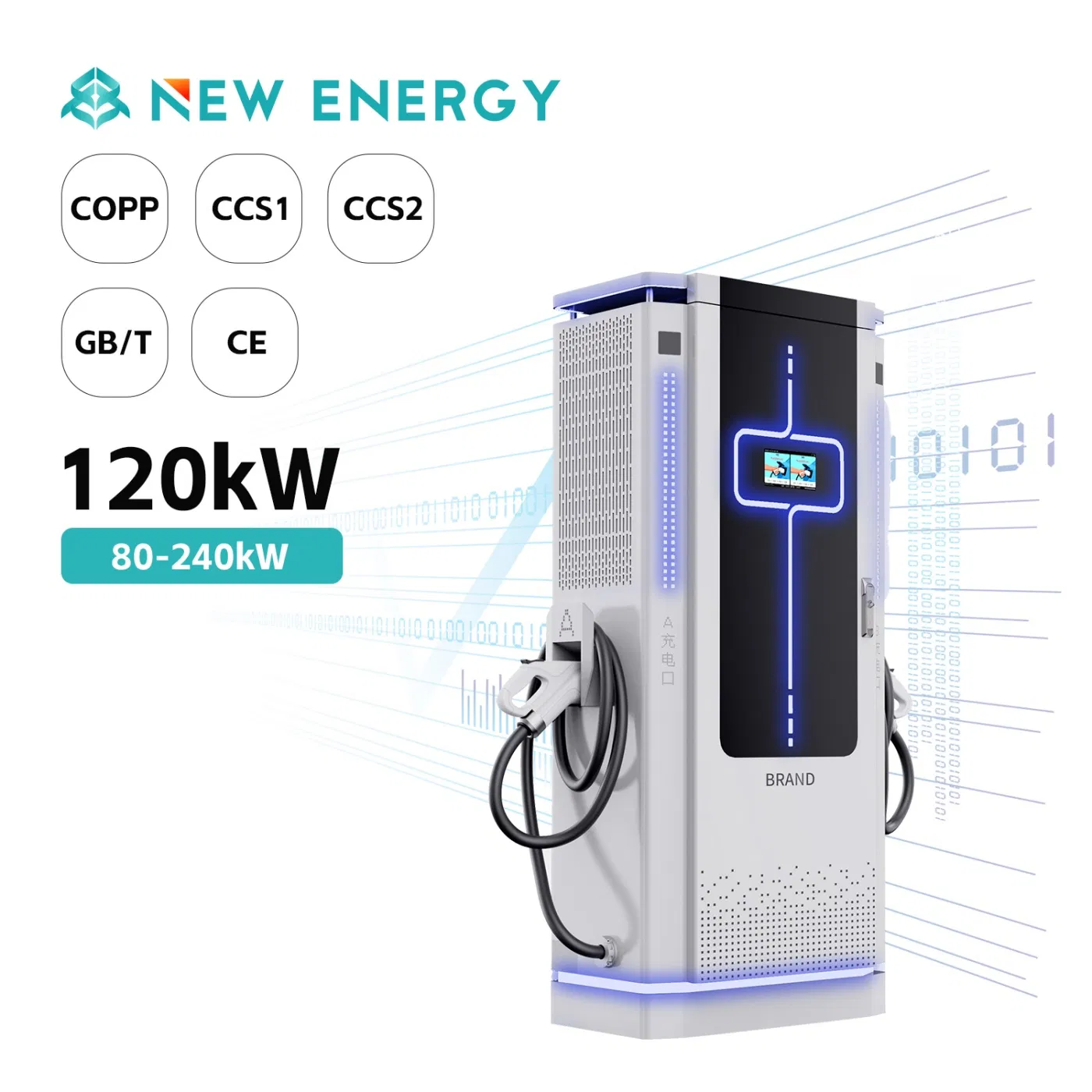

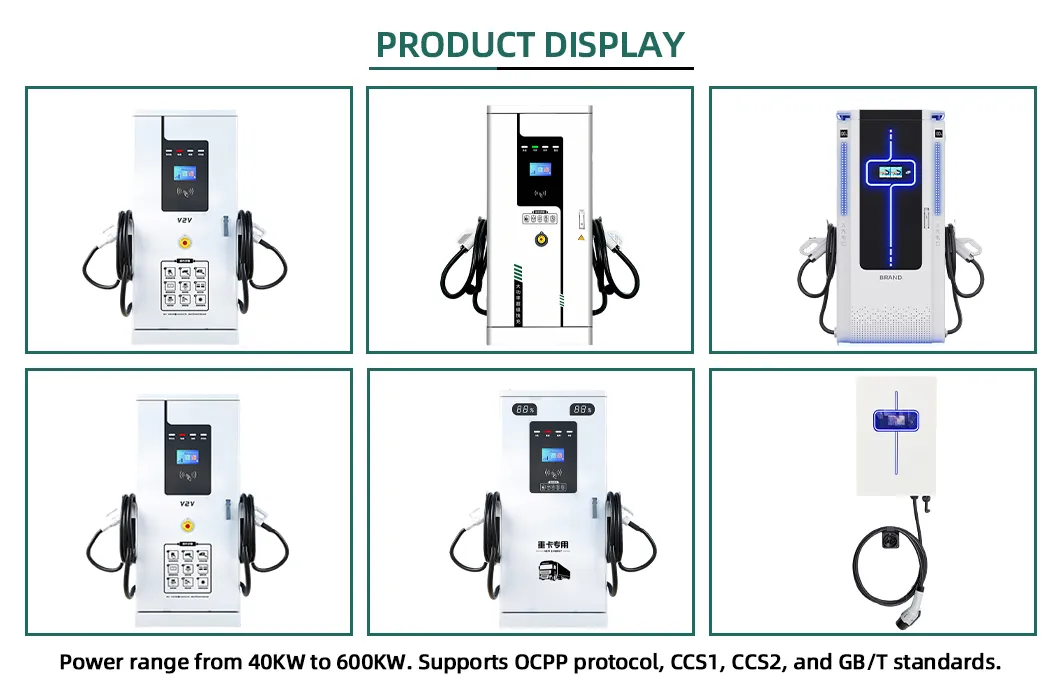

Our DC charging stations offer a power range from 40KW to 600KW, supporting OCPP protocol, CCS1, CCS2, and GB/T standards. Designed with an IP54 waterproof rating, they feature a continuous adjustable voltage range of 50-1000V. These stations support simultaneous charging with two guns, making them suitable for bus stations, factories, large charging stations, heavy trucks, and more.
Connectivity is seamless via Ethernet and 4G networking. Safety is prioritized with gun temperature monitoring, short circuit, over-temperature, over-current, leakage, and lightning protection. Each unit is debugged before leaving the factory, allowing users to power on and use it immediately without secondary adjustments.

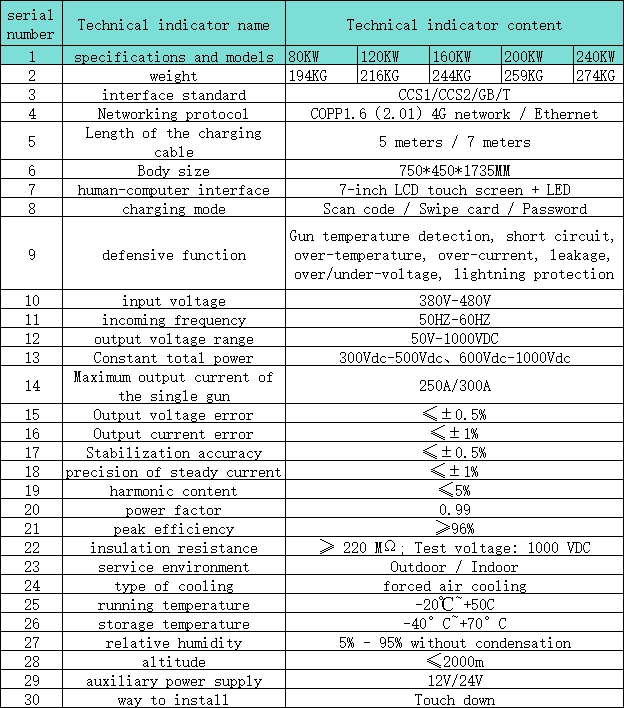

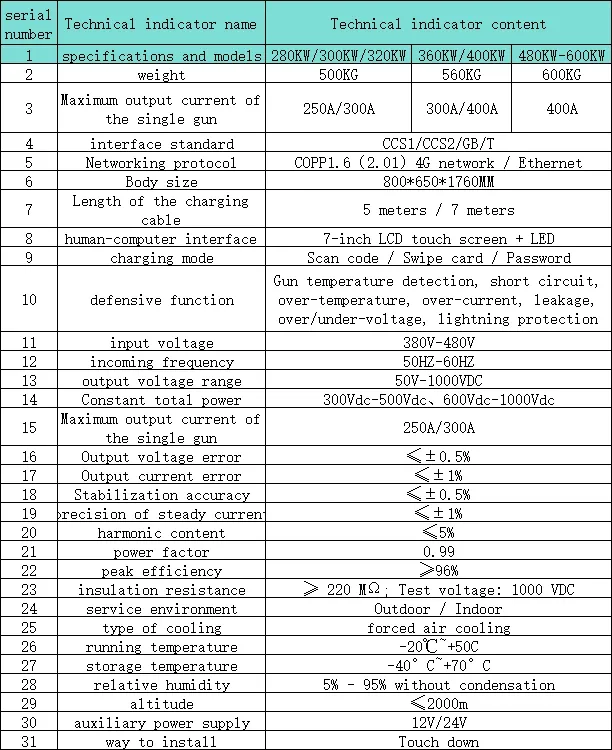

| Product Model | 40KW-600KW | External Dimension | 750x410x1700 (mm) |
| Rated Power | 40KW-600KW | Weight | 194KG-274KG |
| Design Criterion | CCS1, CCS2, GB/T | Gun Barrel Length | 5 Meters |
| Charging Guns | 2 Individual | User Interface | 7-inch LCD Touch Screen + LED |
| Protection Level | IP54 | Connection | 4G All-network / Ethernet |
| Charging Mode | Scan code, Swipe card, VIN, Password | Cloud Platform | OCPP 1.6 / 2.0.1 |
We are an AAA-rated credit enterprise, holding ISO400, ISO900, ISO1400, ISO500, and ISO certifications. Our equipment is backed by numerous software copyrights and third-party inspection reports. We actively engage in international exhibitions and maintain partnerships with renowned enterprises globally.
We adopt packaging methods that are sufficient to protect the equipment, supporting sea, air, and land transportation.
