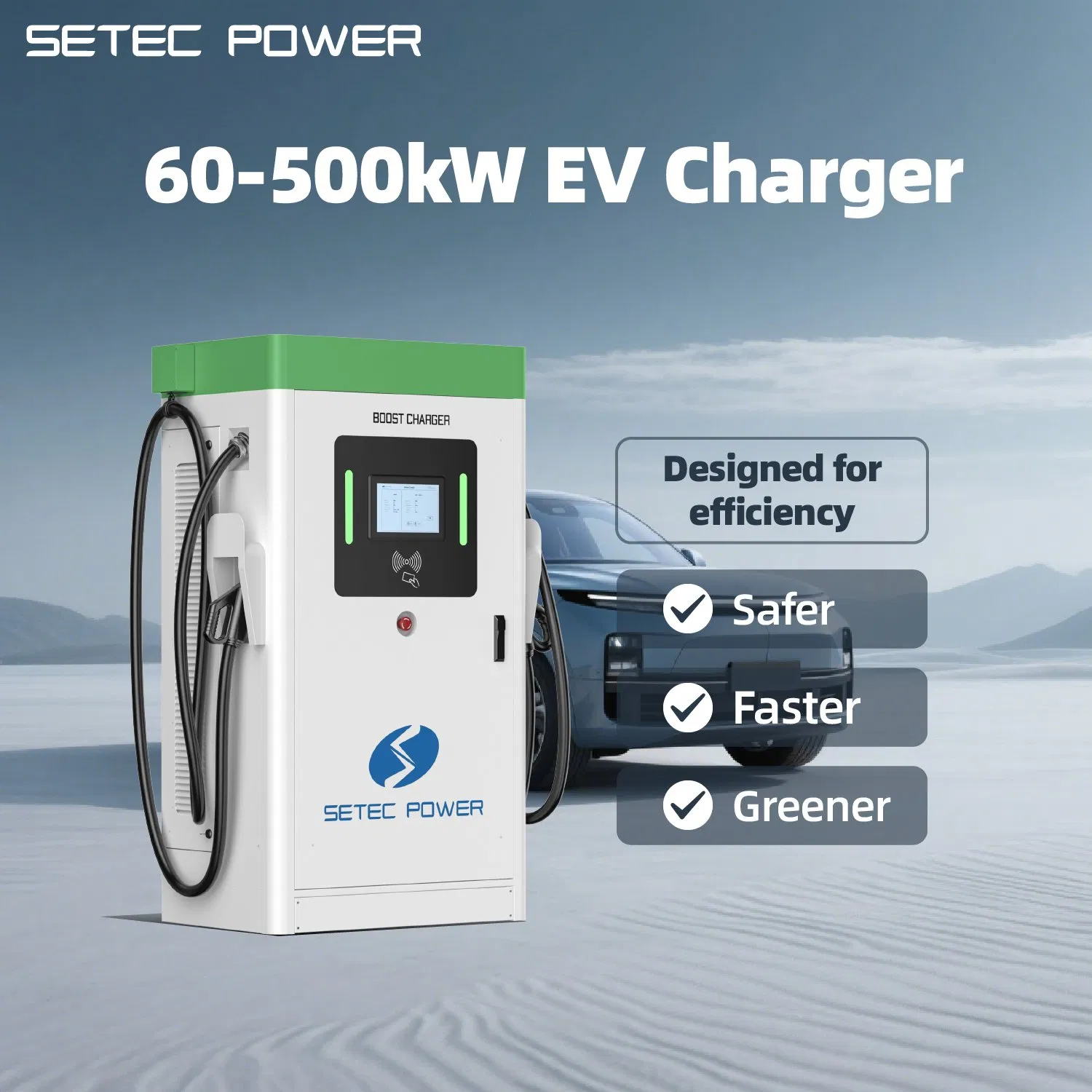

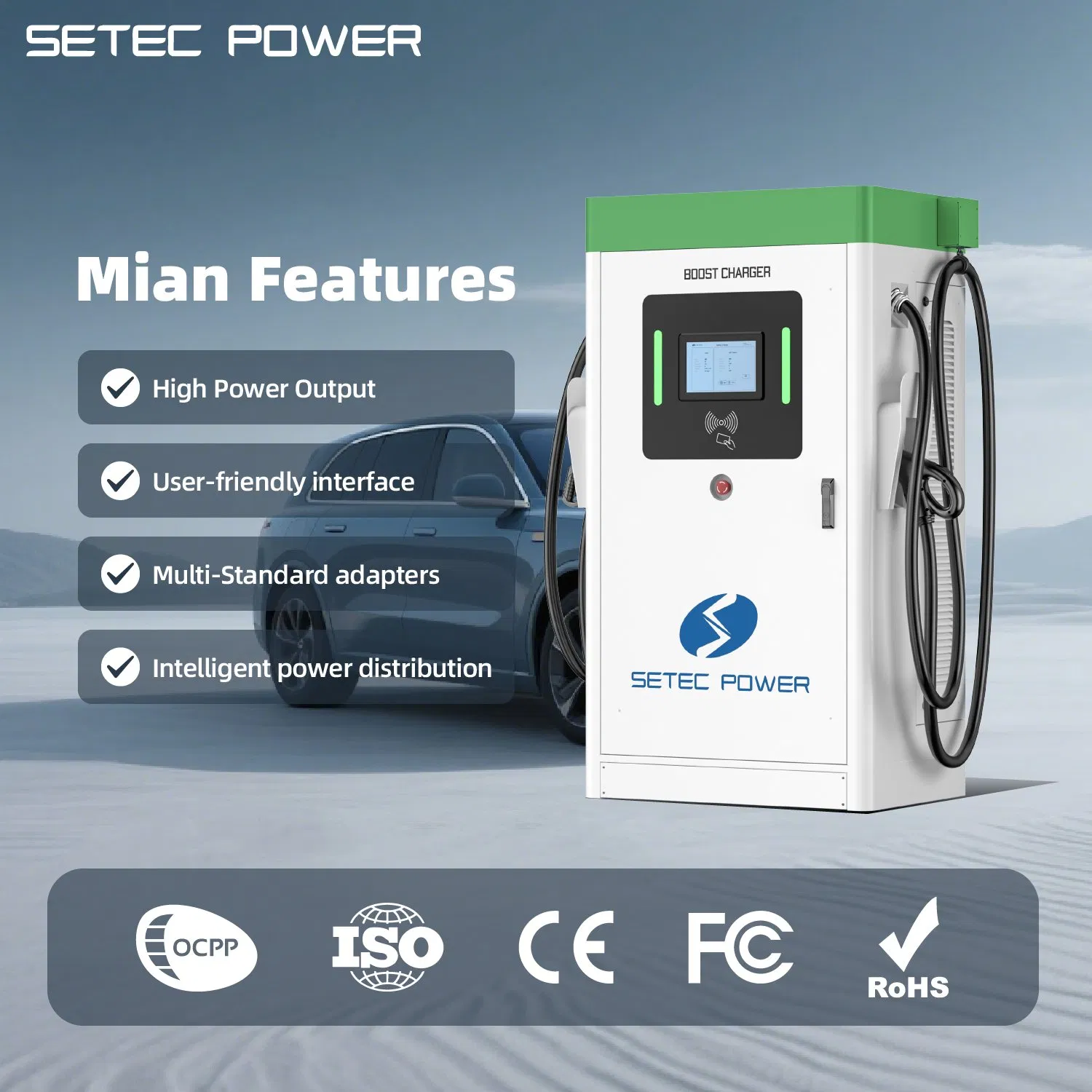

Level 3 Fast DC EV Charger 60kW-500kW Best Commercial Ev Charging Stations

Customization: Available
Connector Type: CCS1, CCS2, CHAdeMO, GB/T, NACS
Installation: Floor Type

Product Description

i

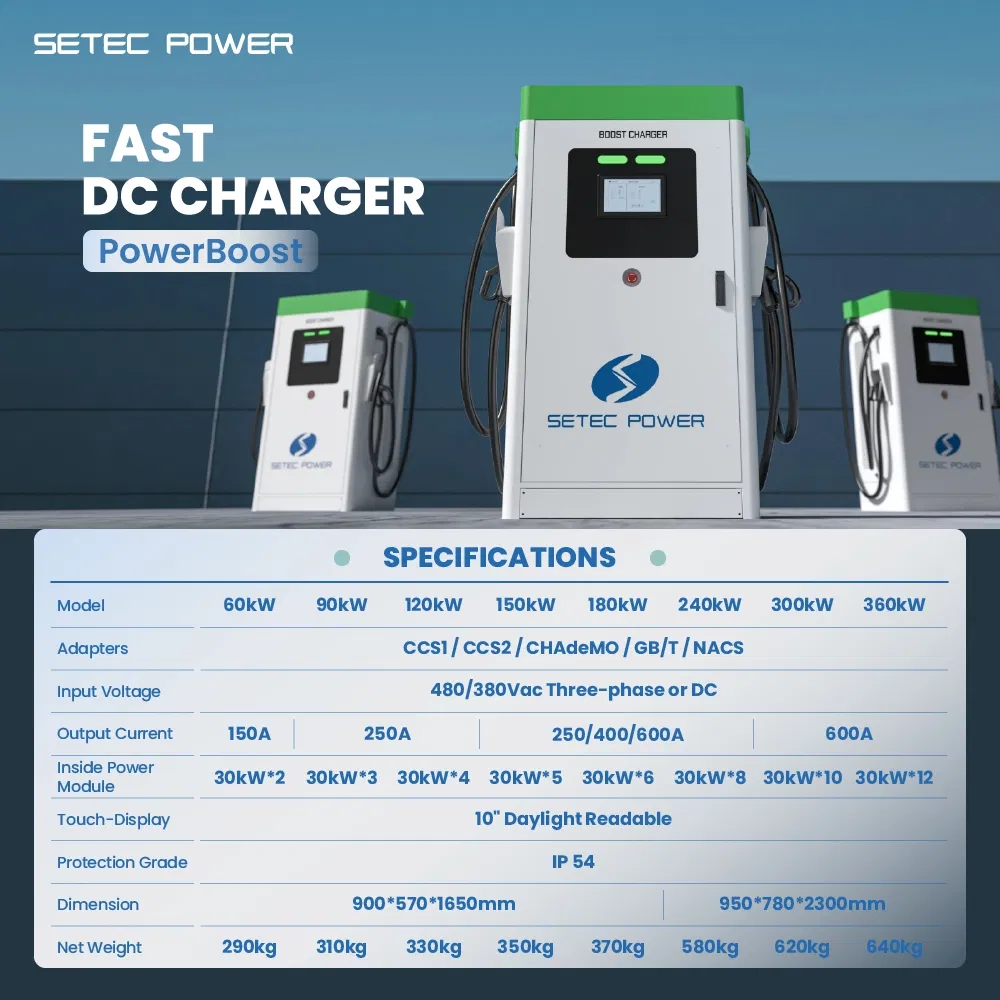

Basic Specifications

Location
Public Use
Output Power
60/120/180/240/300/360/500kW
Input Voltage
480/380Vac Three-phase or DC
Output Voltage
150-1000Vdc
Output Current
100/150/250/400/600A
Efficiency
≥95% (50%-100% load)
Network
Ethernet / WIFI / 4G
Communication
OCPP 1.6 / OCPP 2.0 / TCP
Protection Grade
IP 54
Warranty
24 Months
Dimensions
950*780*2300mm
Origin
China

Product Description

Fast DC Charger Station

This Fast DC Charger Scalable Modular Power features a flexible output range from 60kW to 360kW (customizable to 500kW). The modular design with 30kW internal units allows for easy power expansion and simplified maintenance.

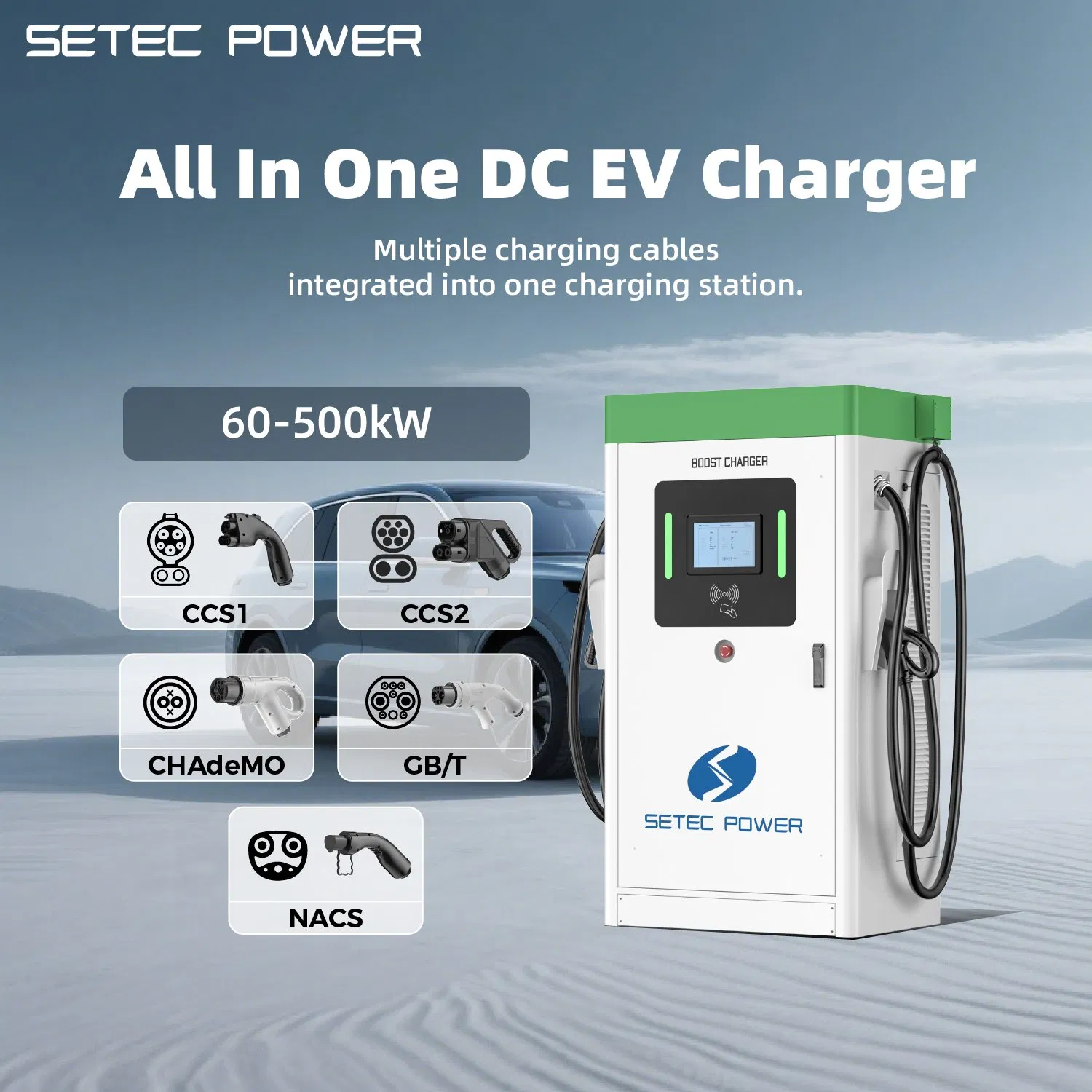

Multi-Standard Compatibility: Compatible with CCS1, CCS2, CHAdeMO, GB/T and NACS, ensuring seamless charging for global EV models and commercial fleets.

Smart Power Allocation: Intelligent power distribution dynamically adjusts output based on vehicle demand, maximizing station utilization with ≥95% efficiency.

OCPP Ready: Supports OCPP 1.6 / OCPP 2.0.1 (TCP/IP) for backend integration, with RFID, POS and QR code payment options.

Industrial-Grade Safety: IP54 enclosure, operating temperature from -30°C to +65°C, and 100,000 hours MTBF for stable long-term operation.

Fast DC EV Charger
Commercial EV Charging Station
DC Charging Solution
Modular EV Power
High Power EV Charging

Profile

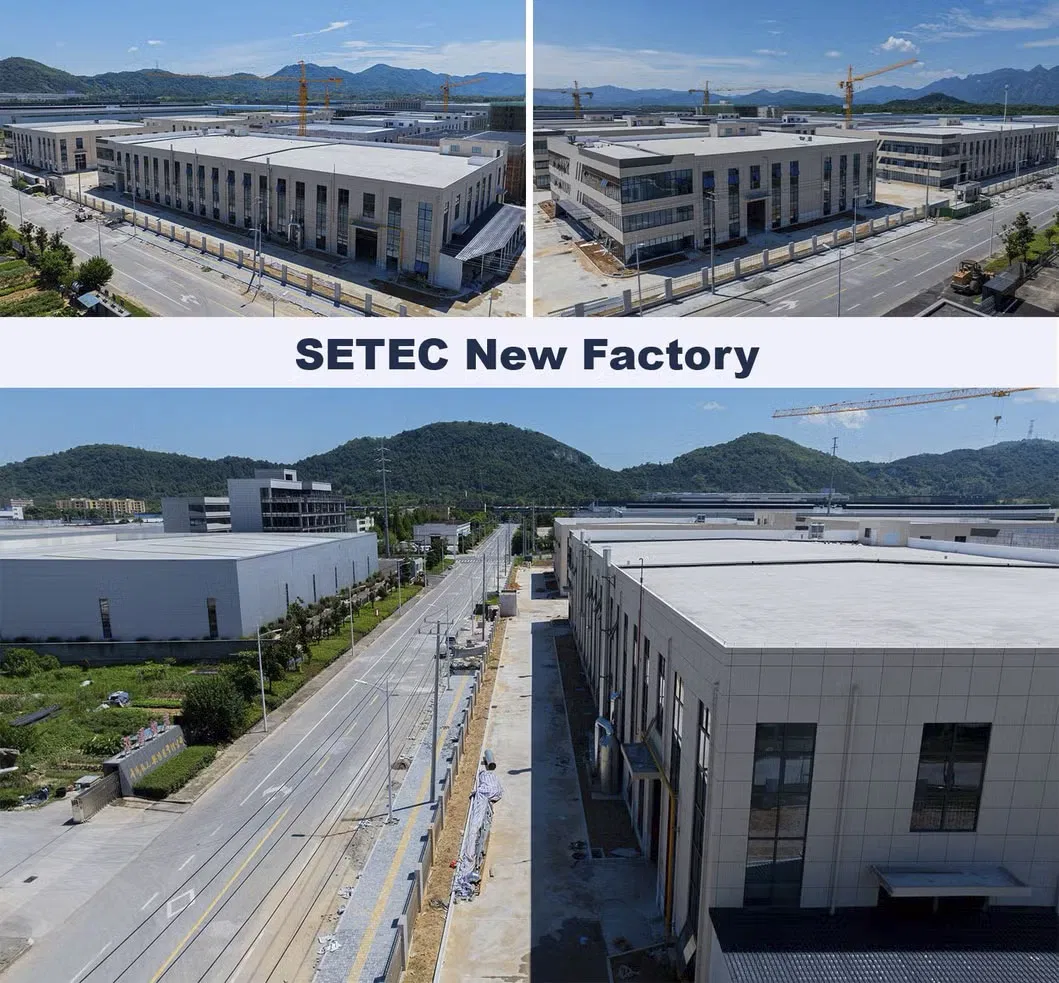

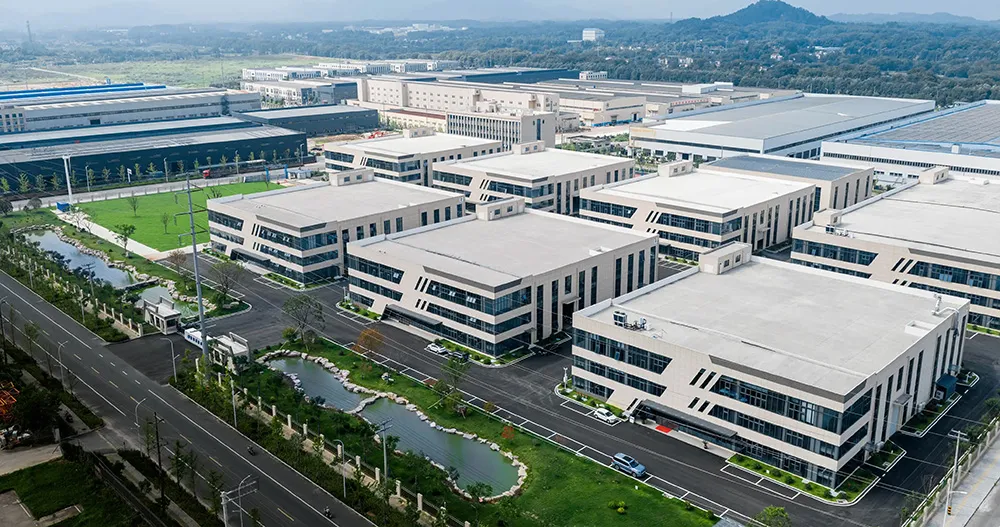

Founded in 2004, we are a global leader in the design and manufacturing of high-performance electric vehicle (EV) charging solutions. With over 21 years of experience in power electronics, we are dedicated to delivering safe, intelligent, and sustainable charging infrastructure for commercial, industrial, and residential applications worldwide. In 2025, we expanded manufacturing capabilities with a new 80,000 m² modern production and testing center, equipped with advanced facilities and strict quality control systems.

Driven by continuous innovation and a strong focus on safety, we are one of the early manufacturers certified for OCPP 2.0.1 Core. Our products support all major charging standards, including CCS1, CCS2, CHAdeMO, and GB/T, and utilize advanced liquid-cooling technology for high-power, stable operation. We serve customers in 126 countries, maintaining certifications to ISO 9001 and ISO 14001, with products complying with UL, CE, FCC, RoHS, and CHAdeMO standards.

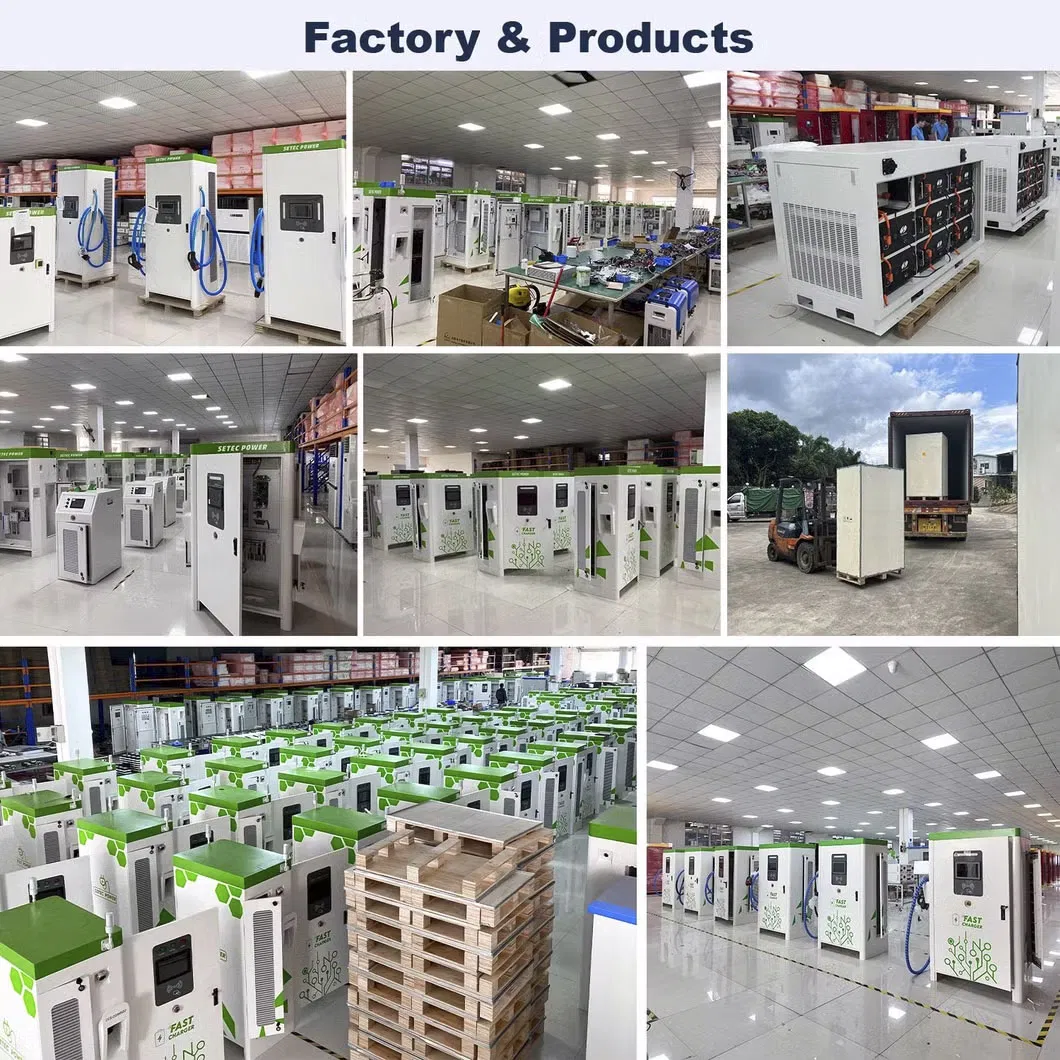

Manufacturing Facility
Production Center
Testing Lab
Quality Control
Global Delivery
?

Frequently Asked Questions

Which connector types does this Fast DC Charger Station support?
The station offers exceptional compatibility with options for CCS1, CCS2, CHAdeMO, GBT, and NACS connectors. We provide dual-gun or multi-gun configurations tailored to regional market requirements.
What are the benefits of the modular power design?
The modular design allows for scalable power output. You can start with a 120kW unit and upgrade to 180kW or higher by adding 30kW internal modules, reducing initial investment risk and avoiding full unit replacement.
Does this station support back-end management and billing?
Yes. It natively supports OCPP 1.6J and OCPP 2.0.1 protocols. This allows connection to any third-party cloud platform for remote monitoring, user management, and billing.
Is the device stable in extreme weather conditions?
Absolutely. It features an IP54 protection rating and operates reliably in temperatures ranging from -30°C to +65°C, designed specifically for industrial outdoor environments.
What is the typical lead time for this product?
Standard configurations typically ship within 3-5 weeks. Customizations such as specific cable lengths or custom branding may affect the timeline.
Is the charger compatible with solar or energy storage systems?
Yes, our charging systems are designed with flexibility in mind and can be integrated with external energy management systems for solar and battery storage synergy.
