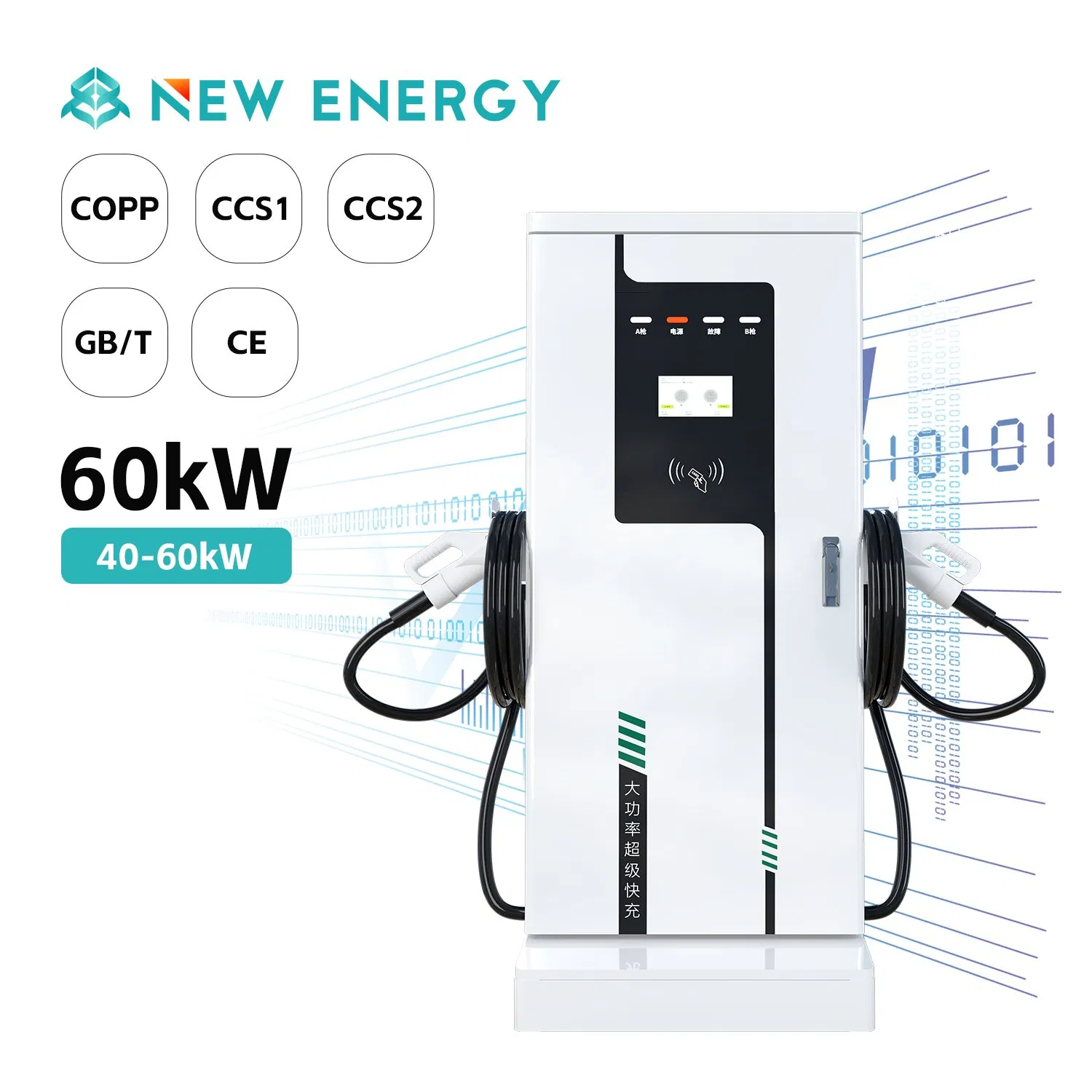

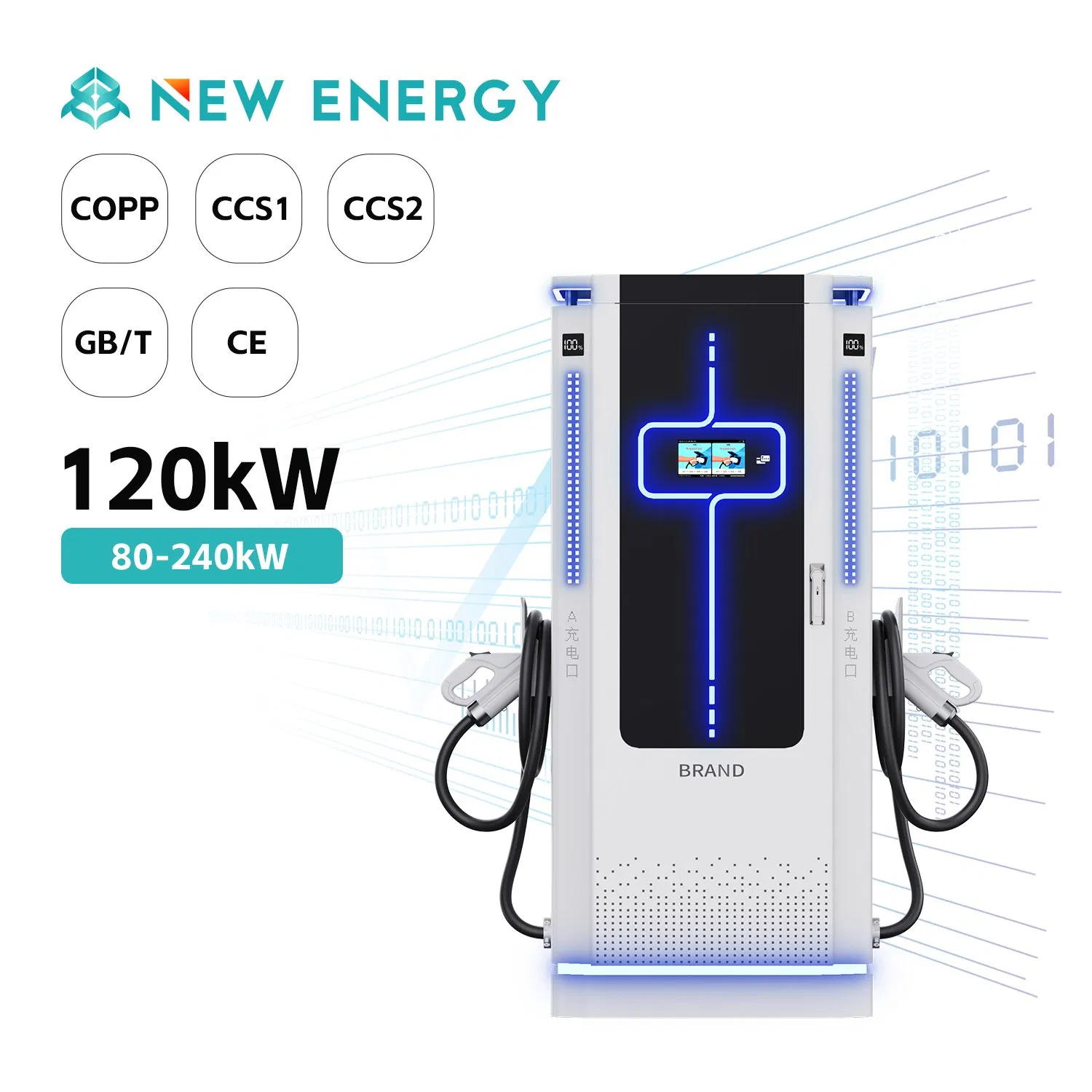

Large-Scale EV Charging Station with Chargers of 60kw 80kw 120kw 160kw 180kw 200kw 240kw and, CCS2-Electric Vehicle Charging Station Ocpp Protocol,

Still deciding? Get samples of $ !
Request Sample

Product Description

i

Basic Information

Model NO.40KW-600KW
LocationPublic Use
Charging InterfacesOne Pile with Multiple Charges
Start ModeCredit Card, Mobile Remote, RFID
Rated Power40kw To 600kw
Weight194kg-274kg
Body Size750X410X1700(mm)
ProtectionIP54

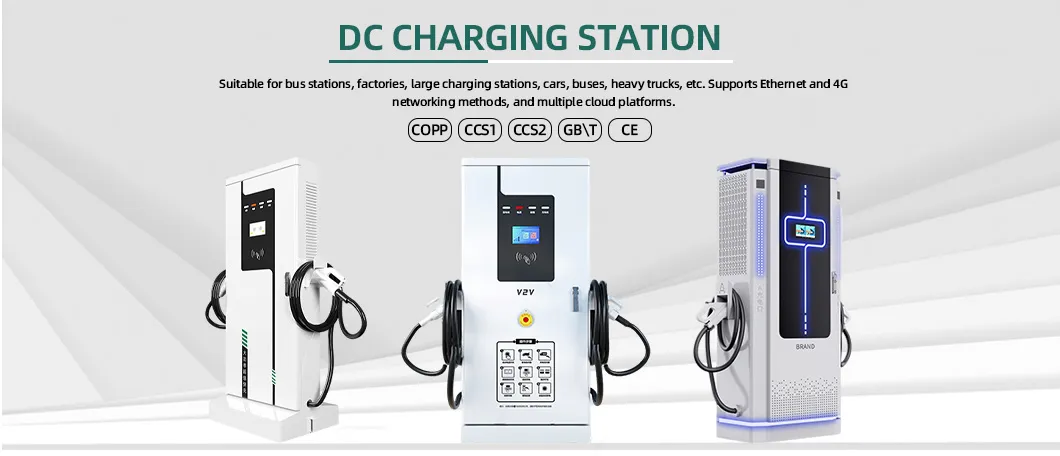

EV Charging Station Overview
Charging Infrastructure

Product Introduction

Power range from 40KW to 600KW. Supports OCPP protocol, CCS1, CCS2, and GB/T standards. Features IP54 waterproof rating, with a continuous adjustable voltage range of 50-1000V. Constant power voltage range is 200-1000V. Supports simultaneous charging with two guns. Suitable for bus stations, factories, large charging stations, cars, buses, heavy trucks, etc. Supports Ethernet and 4G networking methods, and multiple cloud platforms. Includes gun temperature monitoring, short circuit, over-temperature, over-current, leakage, over/under-voltage protection, and lightning protection. The charging station has been debugged before leaving the factory. Users can directly power on and use it without any secondary debugging. It adopts advanced DC fast charging technology, providing rapid energy replenishment, shortening charging time, and improving charging efficiency.

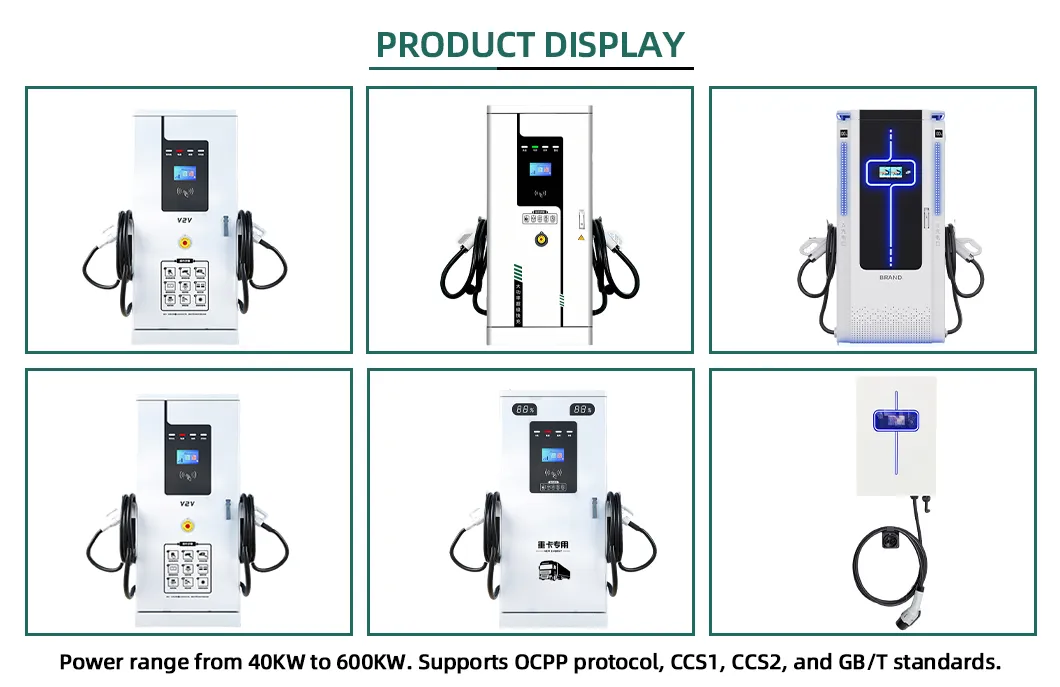

Product Detail
Charging Unit Left

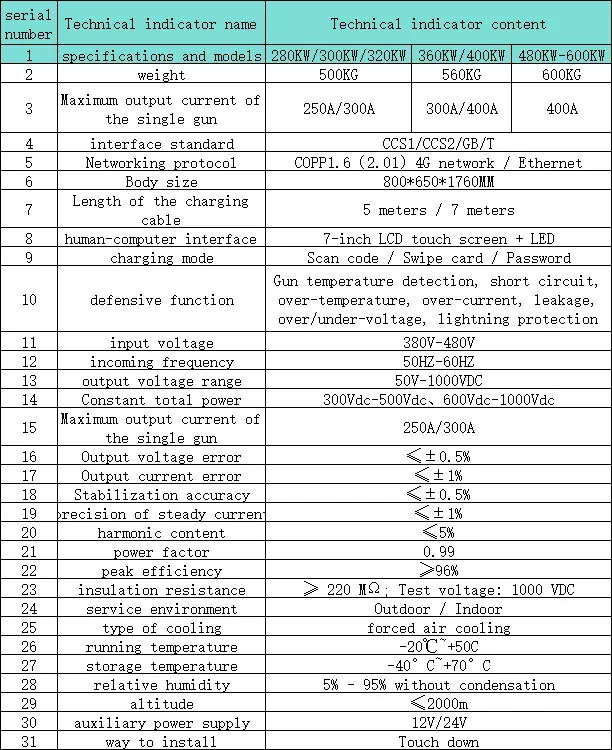

Charging Unit Right
📋

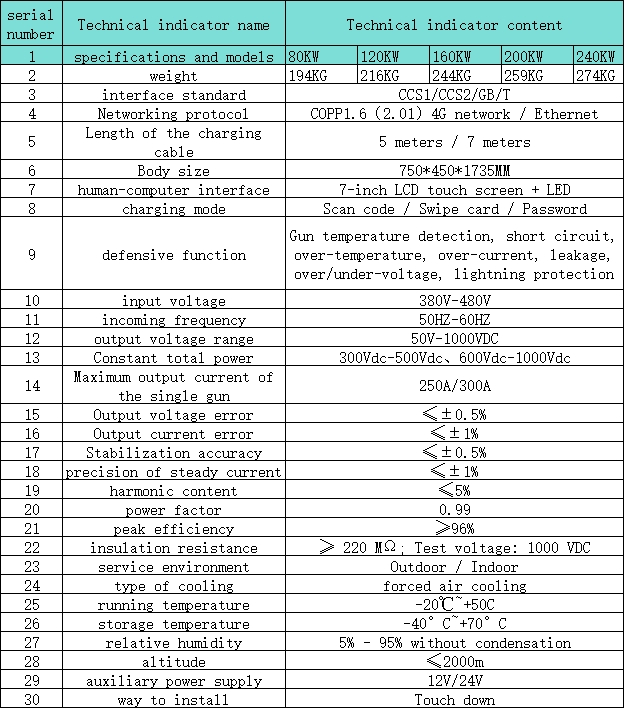

Technical Specifications

Product Model40KW-600KW External Dimension750x410x1700(mm)
Rated Power40KW-600KW Weight194KG-274KG
Design CriterionCCS1, CCS2, GB/T Gun Barrel Length5 Meters
Charging ModeScan code, Swipe card, VIN code, Password Human-computer Interface7-inch LCD Touch Screen + LED
Level of ProtectionIP54 Connection Method4G / Ethernet
Defensive FunctionShort circuit, Over-temp, Leakage, Lightning protection Cloud PlatformOCPP 1.6 (2.0.1)

Operation Video

Quality Assurance

We are an AAA-rated credit enterprise, holding ISO400, ISO900, ISO1400, ISO500, and ISO certifications. We also possess numerous software copyrights and various third-party inspection reports for our equipment. We actively participate in large-scale domestic and international exhibitions and have established partnerships with numerous renowned enterprises both at home and abroad.
Certification Showcase
Exhibition Presence
📦

Packaging & Shipping

We adopt packaging methods that are sufficient to protect the equipment, and they support sea transportation, air transportation and land transportation.
Packaging Detail
?

Frequently Asked Questions

Are you a factory or a trading company?
We are a manufacturer, welcome to visit our factory at any time!
What can you buy from us?
We mainly offer wallbox/Portable AC EV chargers (3.5kw-44kw), integrated floor-mounted fast DC Charging stations (30kw-480kw), and mobile chargers with energy storage.
Can you make our design and put our logo on the products?
Yes, we can customize the design and apply your logo to the products.
What are your payment terms?
T/T 30% as deposit, 70% paid off before delivery. We will show you photos of products and packages before the balance payment.
How about your delivery time?
Generally, it will take 7 to 35 days after receiving your advance payment, depending on the item and quantity.
Do you test all your goods before delivery?
Yes, we perform a final inspection and testing of all goods before delivery to ensure quality.
