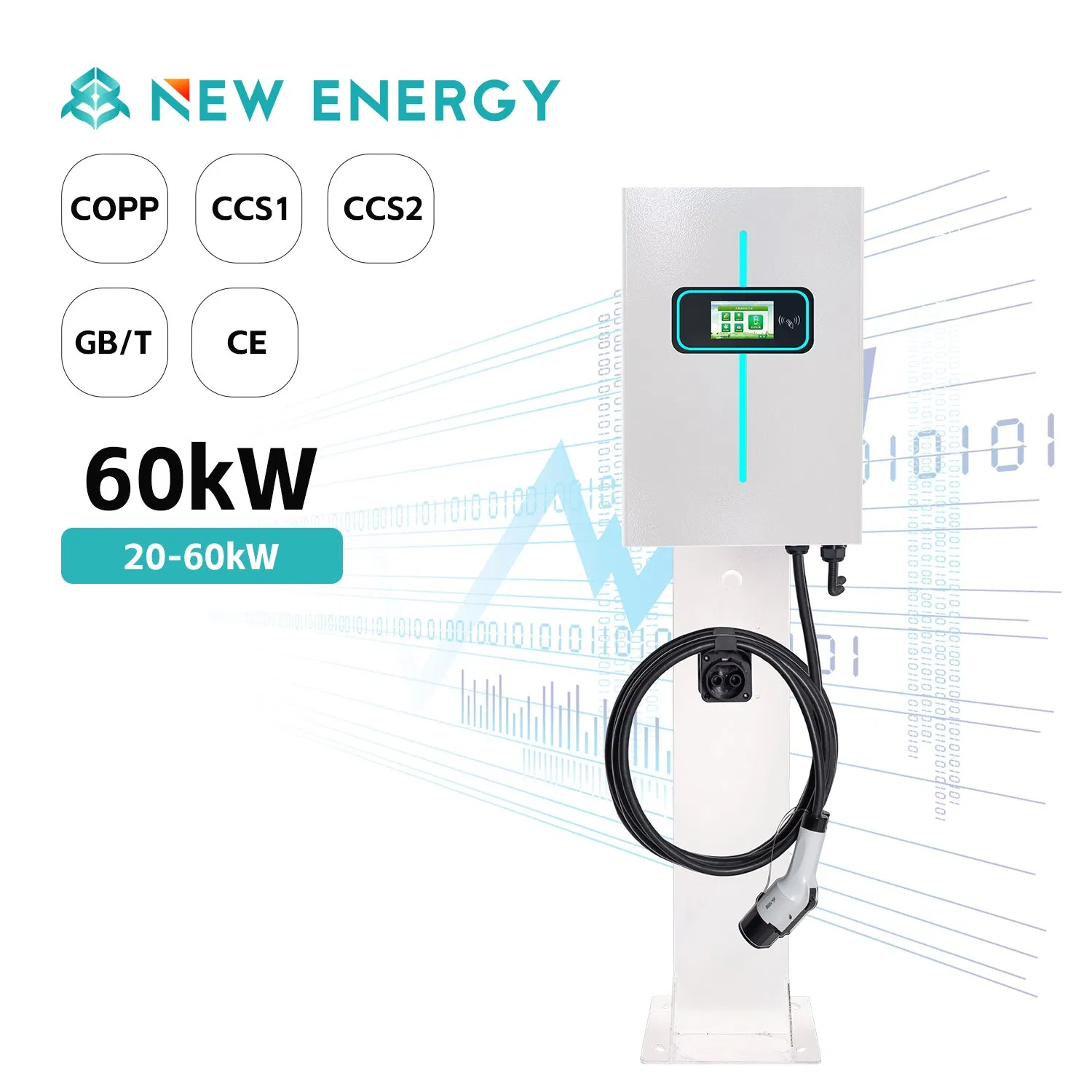

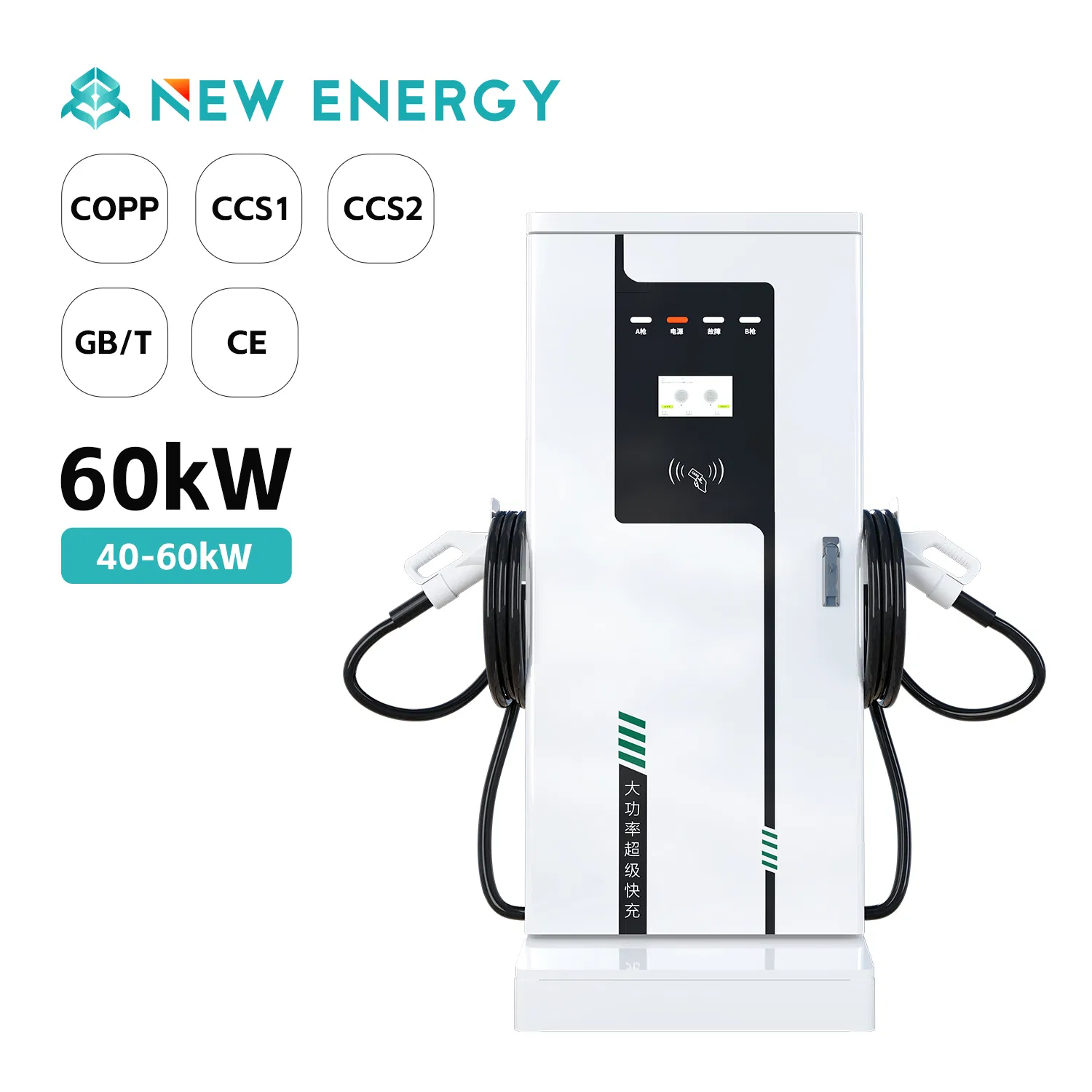

Electric Vehicle Charging Station of 60kw, 80kw, 120kw, 160kw, and 240kw, That Support The Ocpp Protocol and Have EV Charging Station

Still deciding? Get samples of $ !
Order Sample

Product Description

⚡ Basic Information
Model NO.
40KW-600KW
Location
Public Use
Charging Interfaces
Multiple Charges
Start Mode
RFID, Credit Card, Mobile App
Rated Power
40kw To 600kw
Gun Barrel Length
5 Meters / 7 Meters
Body Size
750X410X1700(mm)
Connection
4G / Ethernet
📦 Product Introduction

Power range from 40KW to 600KW. Supports OCPP protocol, CCS1, CCS2, and GB/T standards. Features IP54 waterproof rating, with a continuous adjustable voltage range of 50-1000V. Constant power voltage range is 200-1000V. Supports simultaneous charging with two guns. Suitable for bus stations, factories, large charging stations, cars, buses, heavy trucks, etc.

EV Charger Detail 1
EV Charger Detail 2

Supports Ethernet and 4G networking methods, and multiple cloud platforms. Includes gun temperature monitoring, short circuit, over-temperature, over-current, leakage, over/under-voltage protection, and lightning protection. The charging station has been debugged before leaving the factory. Users can directly power on and use it without any secondary debugging. It adopts advanced DC fast charging technology, providing rapid energy replenishment, shortening charging time, and improving charging efficiency.

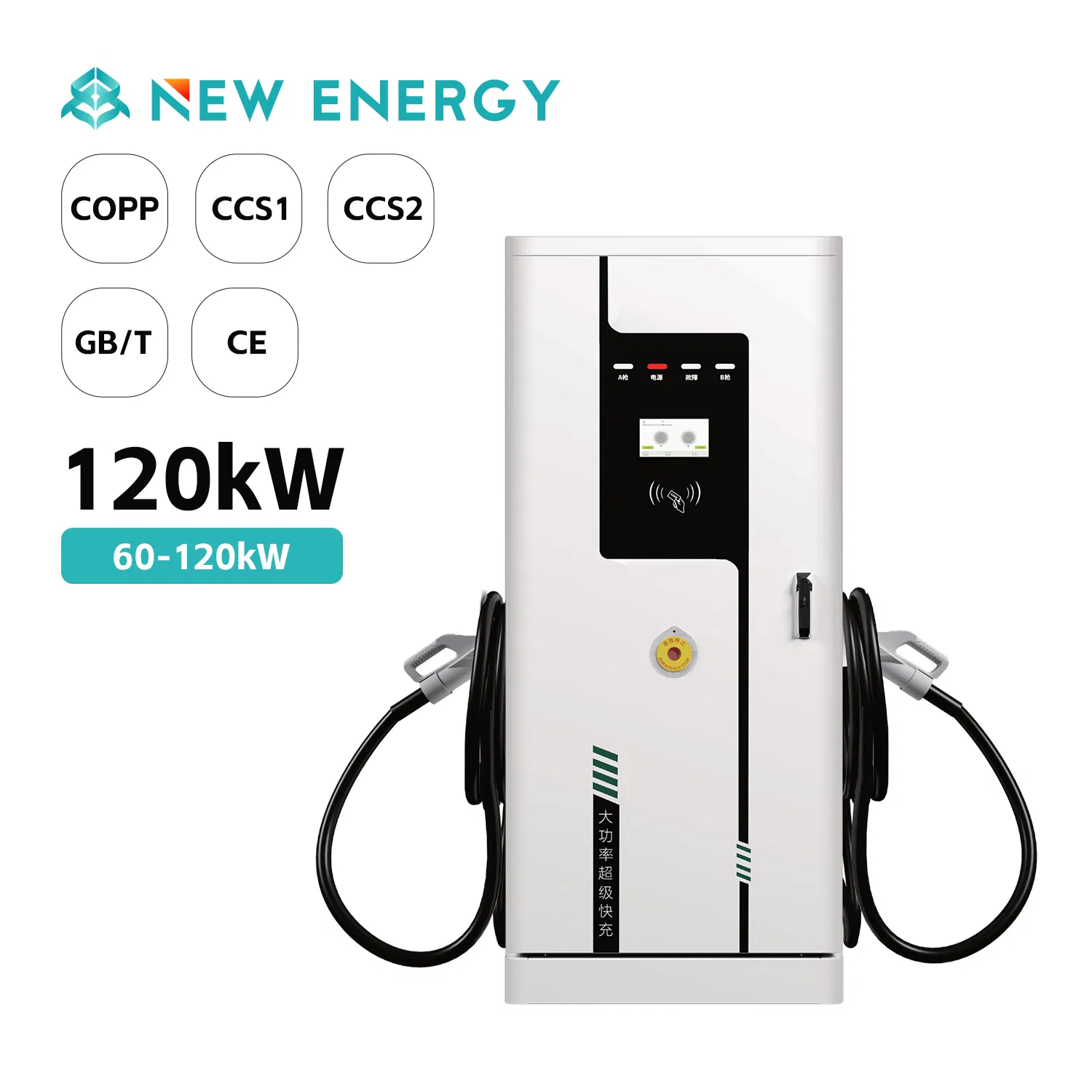

DC Charging Station
Fast Charging Interface

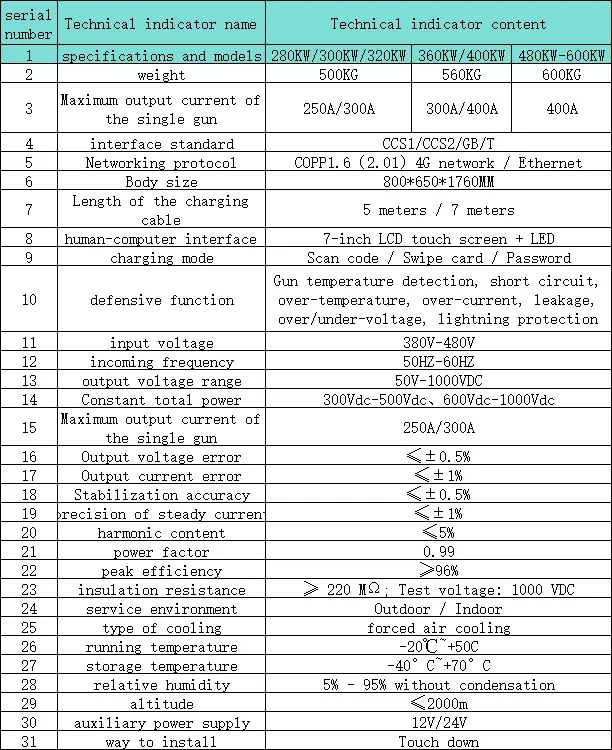

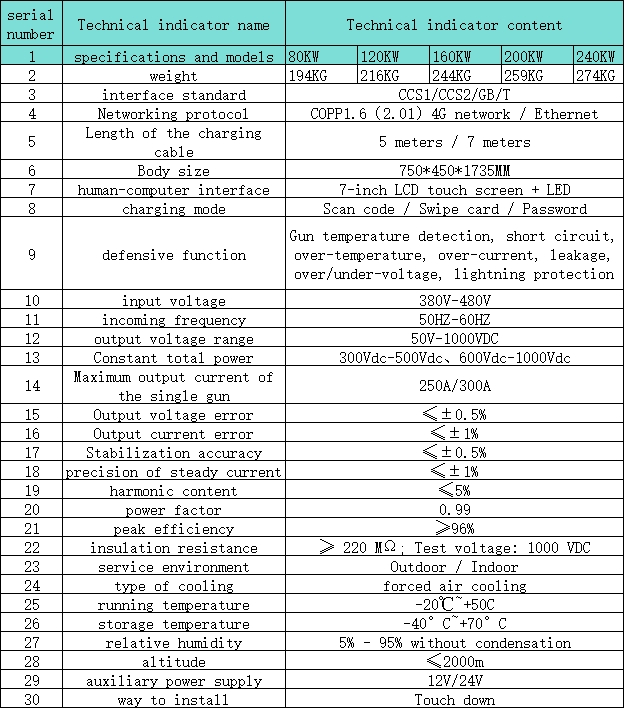

📋 Technical Specifications
Product model 40KW-600KW External dimension 750x410x1700(mm)
Rated power 40KW-600KW Weight 194KG-274KG
Design criterion CCS1, CCS2, GB/T Gun barrel length 5 meters
Charging guns 2 individual HMI 7-inch LCD touch screen + LED
Protection Level IP54 Start method Swipe card, Scan code
Cloud platform OCPP 1.6 (2.0.1)
🎥 Product Video
🏢 Enterprise Profile

We are an AAA-rated credit enterprise, holding ISO400, ISO900, ISO1400, ISO500, and ISO certifications. We also possess numerous software copyrights and various third-party inspection reports for our equipment. We actively participate in large-scale domestic and international exhibitions and have established partnerships with numerous renowned enterprises.

Certificates and Honor
🚢 Packaging & Shipping

We adopt packaging methods that are sufficient to protect the equipment, supporting sea, air, and land transportation.

Packaging Detail
Shipping Logistics
❓ FAQ
Q1: Are you a factory or a trading company?
A: We are a manufacturer, welcome to visit our factory at any time!
Q2: What can you buy from us?
A: We mainly offer wallbox/Portable AC EV chargers (3.5kw-44kw) and integrated floor-mounted fast DC Charging stations (30kw-480kw).
Q3: Can you make our design and put our logo on the products?
A: Yes, we can make your design and put your logo on the products based on your requirements.
Q4: What are your payment terms?
A: T/T 30% as deposit, 70% paid off before delivery. We will show you photos of the products and packages before final payment.
Q5: How about your delivery time?
A: Generally, it will take 7 to 35 days after receiving your advance payment, depending on the item and quantity.
Q6: Do you test all your goods before delivery?
A: Yes, we perform a 100% final inspection of all goods before they leave our facility.
