| Model NO. | SGIC60K |
| Type | Fast EV Charging Station |
| Charging Interfaces | One Pile with Multiple Charges |
| Start Mode | RFID, Mobile Remote, Credit Card |
| Certification | CE, ISO, RoHS, TUV |
| Protection Level | IP55 / IK10 |
| Specification | 880*780*1800mm |

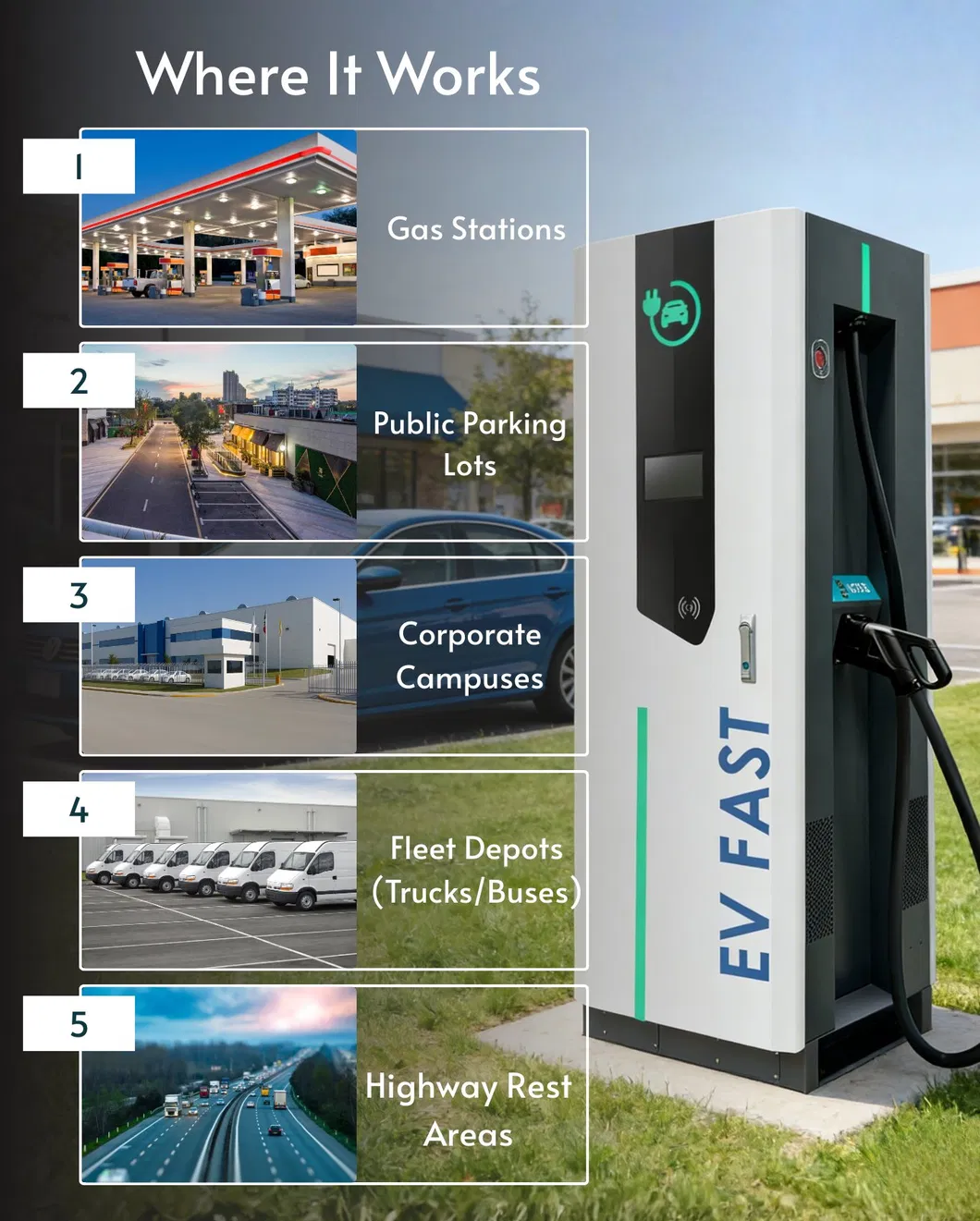

The 60-480kW all-in-one DC fast charging station is a scalable solution designed for commercial and public EV charging networks, including fleet operations and highway rest stops.
Key functionalities include Plug & Charge (ISO 15118), OCPP 1.6J/2.0 compliance for network integration, and compatibility with energy management systems. The design utilizes components from established suppliers and can be managed via a cloud-based platform for remote monitoring and control.
| Product Information | |
| Product Name | Integrated DC Fast Charger |
| Output Power | 60KW to 480KW (Scalable) |
| Interface | 7~10" LCD Touch Screen |
| Connectivity | 4G / Ethernet / WiFi |
| Electrical Parameters | |
| Input Voltage | AC380V±15% (3P+N+PE) |
| Output Voltage | 50~1000VDC |
| Operating Efficiency | ≥94% |
| Environmental Parameters | |
| Operating Temperature | -20°C to +55°C (Up to 65°C derated) |
| Operating Altitude | <2000m |
| Cooling Method | Forced Air Cooling |
