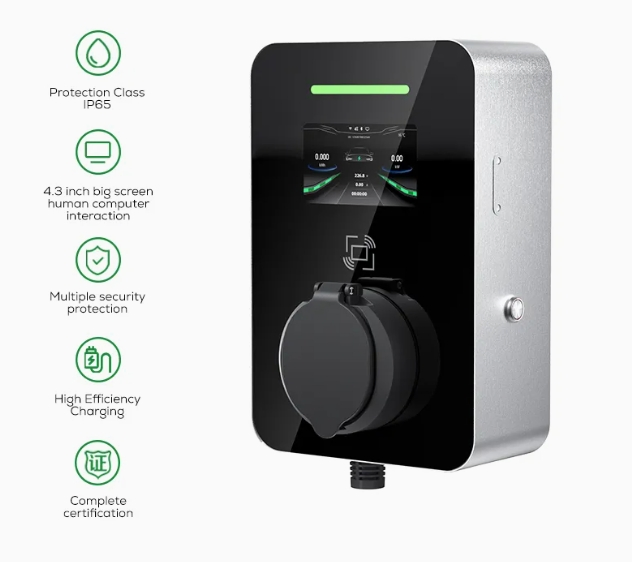

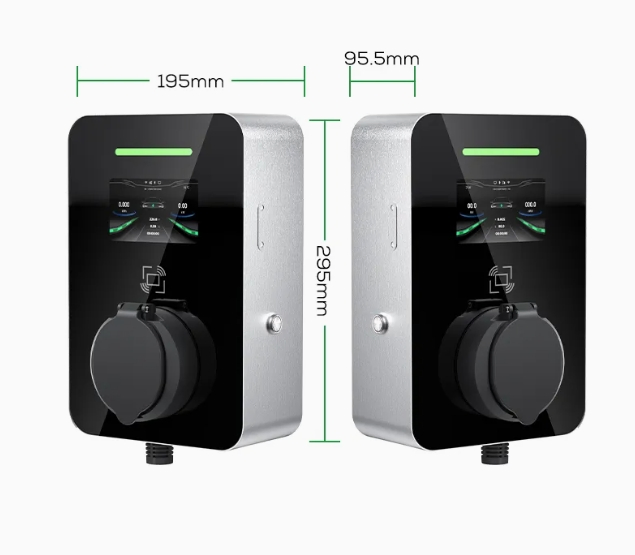

Commercial Version 3 Phase Type 2 IP 66 Wall-Mounted 22kw Fast Charging Station
Commercial Version 3 Phase Type 2 IP 66 Wall-Mounted 22kw Fast Charging Station
Commercial Version 3 Phase Type 2 IP 66 Wall-Mounted 22kw Fast Charging Station
Commercial Version 3 Phase Type 2 IP 66 Wall-Mounted 22kw Fast Charging Station
Commercial Version 3 Phase Type 2 IP 66 Wall-Mounted 22kw Fast Charging Station
1 / 5
Commercial Version 3 Phase Type 2 IP 66 Wall-Mounted 22kw Fast Charging Station
Commercial Version 3 Phase Type 2 IP 66 Wall-Mounted 22kw Fast Charging Station
Commercial Version 3 Phase Type 2 IP 66 Wall-Mounted 22kw Fast Charging Station
Commercial Version 3 Phase Type 2 IP 66 Wall-Mounted 22kw Fast Charging Station
Commercial Version 3 Phase Type 2 IP 66 Wall-Mounted 22kw Fast Charging Station

Commercial Version 3 Phase Type 2 IP 66 Wall-Mounted 22kw Fast Charging Station

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
DY
Location
Private Use
Charging Interface
One Pile with One Charge
Start Mode
APP, RFID, Remote, Plug & Charge
Warranty
Two Years
Certification
CE, RoHS, FCC, ISO
Rated Current
20A 7kw
IP Rating
IP66
Flame Grade
UL94V-0
Protocol
Ocpp1.6j (Supports Upgrade)
Technical Parameters
Parameter Specification (3-Phase) Specification (1-Phase)
Working Voltage 400Vac ± 15% 240V ± 15%
Max. Output Power 22KW 11KW 7KW
Max. Output Current 32A 16A 32A
Protection Rating Plug IP54 | Control Box IP66
LCD Display 4.3 inch high-definition screen
RCD Protection Type B (DC 6mA)

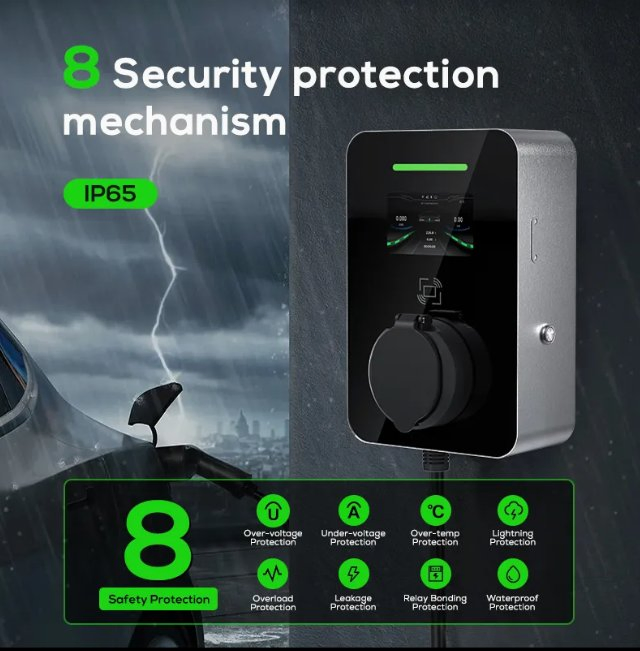

Protection Mechanism
Input Test Low voltage, Over voltage, Lightning protection, Ground fault
Output Test Overcurrent, Signal fault detection, Leakage protection
Internal Test Over temperature, Relay contact fault protection
Detailed Product Photos

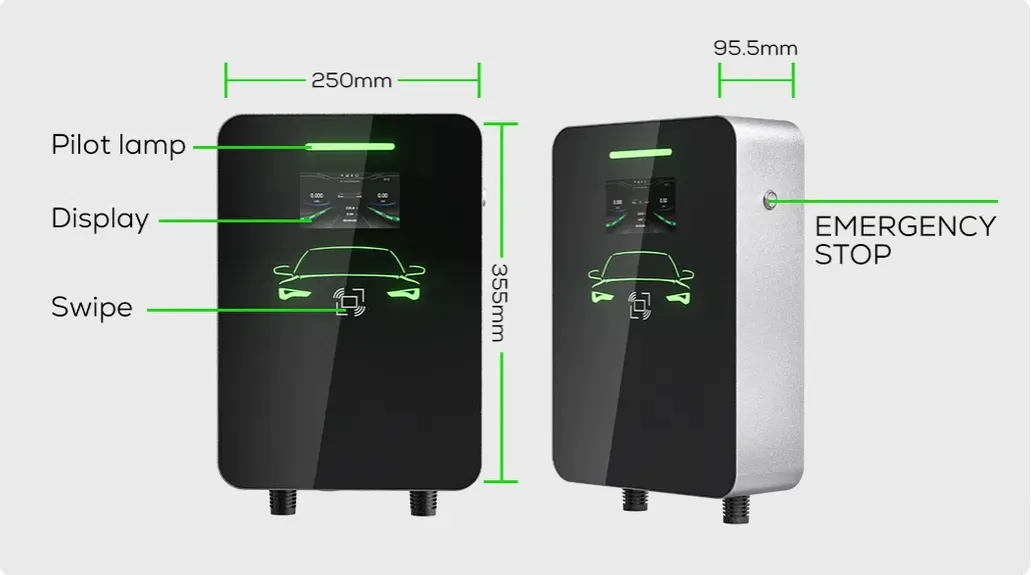

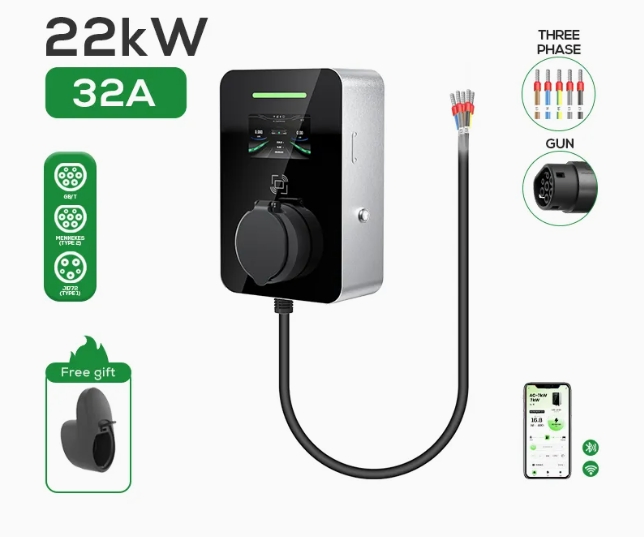

Commercial Version Fast Charging Station Overview

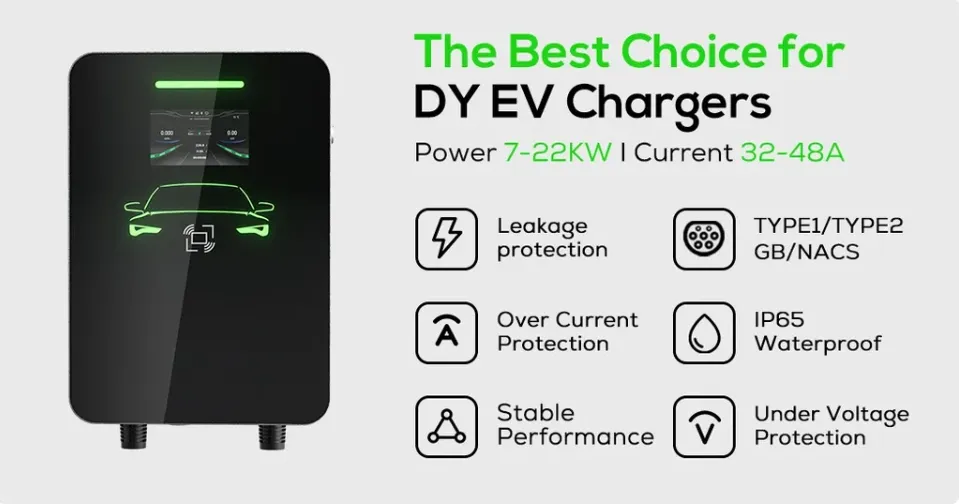

EV Charger Detail 1
EV Charger Detail 2

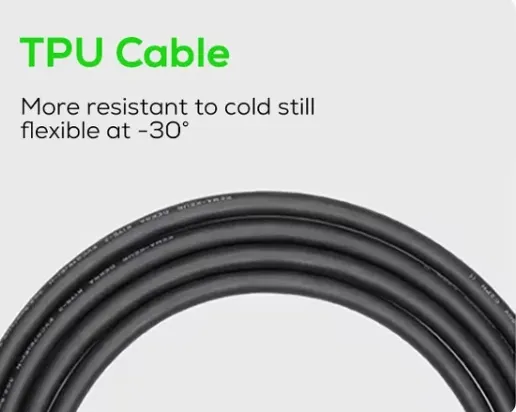

EV Charger Detail 3
Wall-mounted Installation
Control Interface
Professional Certifications
Certifications Display
Frequently Asked Questions
How can I place my order?
Placing your order is a breeze! You can either make your selection online or reach out directly to our dedicated sales team. They are eager to provide you with a comprehensive quotation tailored to your unique requirements.
How much do you charge for shipping?
Shipping costs are calculated with transparency. Each product is meticulously weighed, and charges are based on the carrier's rates, ensuring you pay only the true cost of delivery.
What is your sample policy?
We are pleased to offer samples when we have stock available. Simply note that the cost of the sample and delivery will be covered by the customer.
What payment methods do you accept?
We gladly accept a variety of payment methods to suit your convenience, including PayPal, T/T, Credit Card, Western Union, and bank transfers.
What if my item arrives damaged or incorrect?
In the unfortunate event that your item arrives damaged or incorrect, please contact us immediately upon receipt with your order number and a description of the issue for a swift resolution.

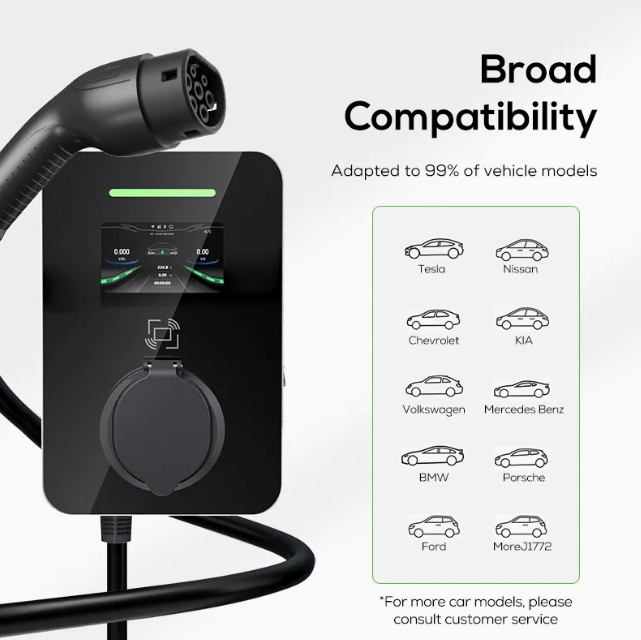

Is the charging station compatible with all EVs?
The station follows the standard Type 2 protocol, making it compatible with the majority of modern electric vehicles that support AC charging.
