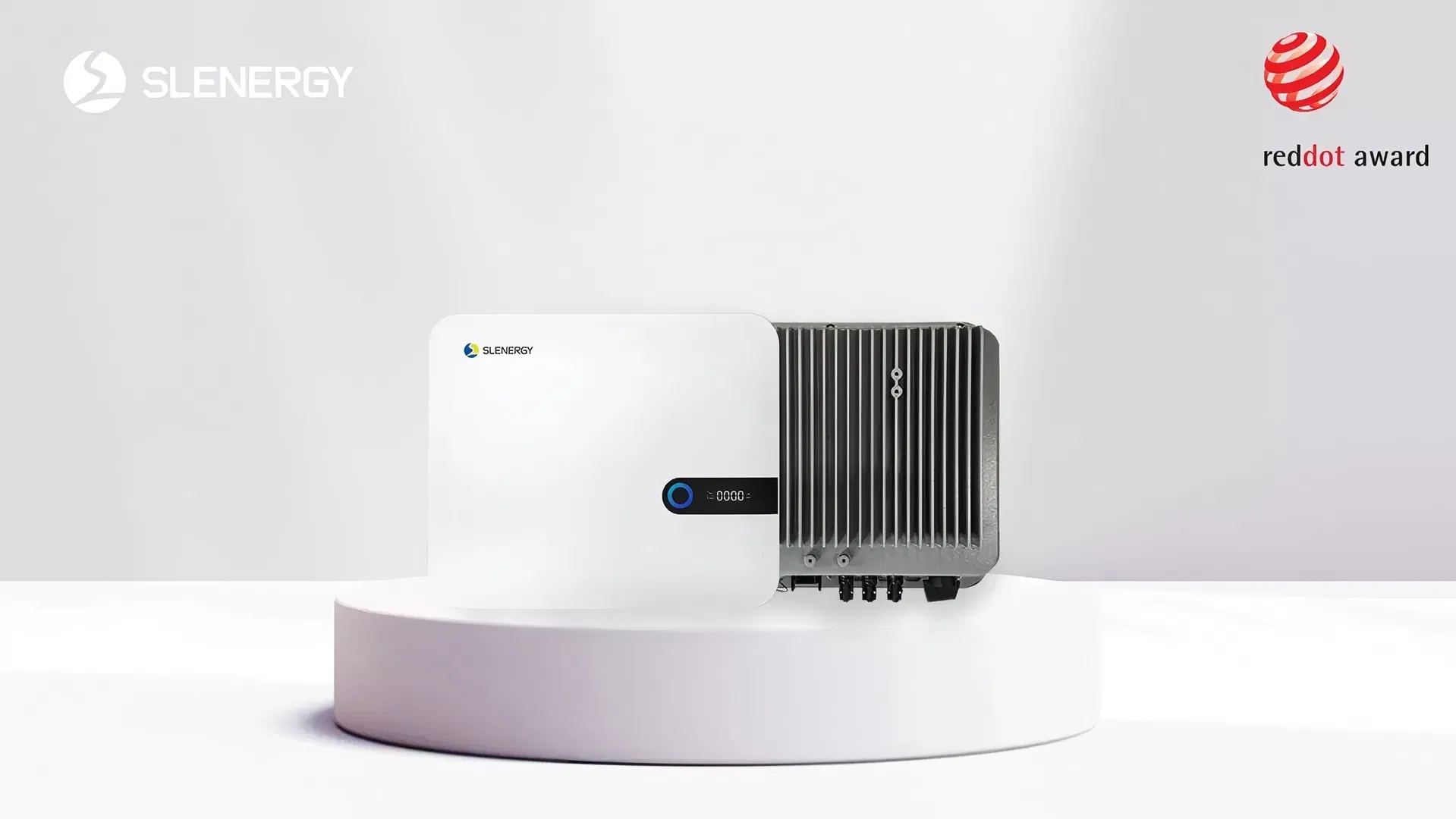

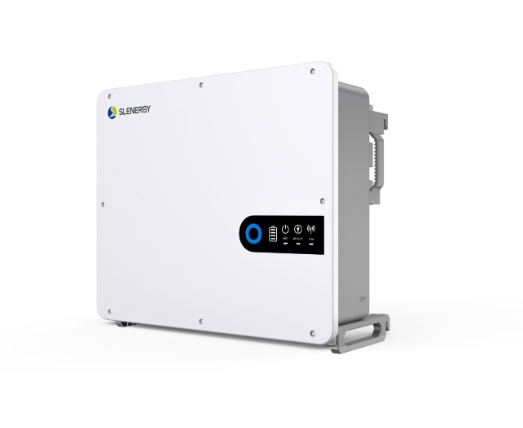

This hybrid inverter is a masterpiece created by the engineering team through unremitting efforts. After competing with many products from around the world, it eventually won the 2024 Red Dot Design Award in Germany.
The inverter adopts a fashionable and simple design, featuring modern industrial aesthetics, simplicity and elegance. In addition, inverters based on SiC (silicon carbide) enhance conversion efficiency, increase power density, and reduce weight and volume.
| DC Side (Input) | |
| Maximum Recommended Module Power | 15000 Wp |
| Maximum Input Voltage | 1000 V |
| Start-up Voltage | 135 V |
| MPPT Operating Voltage Range | 135-900 V |
| Number of MPPTs | 2 |
| AC Grid Side (Output) | |
| Rated Output Power | 10000 W |
| Maximum Output Apparent Power | 11000 VA |
| Rated Output Voltage | 3L/N/PE; 230/400V |
| Rated Output Current | 14.5 A |
| Battery (DC) | |
| Rated Voltage | 210 V |
| Battery Voltage Range | 135-800 V |
| Communication Interface | CAN / RS485 |
| Efficiency & Protection | |
| Maximum Efficiency | 97.6% |
| Protection Rating | IP66 |
| Surge Protection | DC Type II, AC Type II |
4 MPPT inputs, DC 40A current input, compatible with high-power PV modules. Switching time < 10 ms. 135 to 800 volts wide battery voltage range.

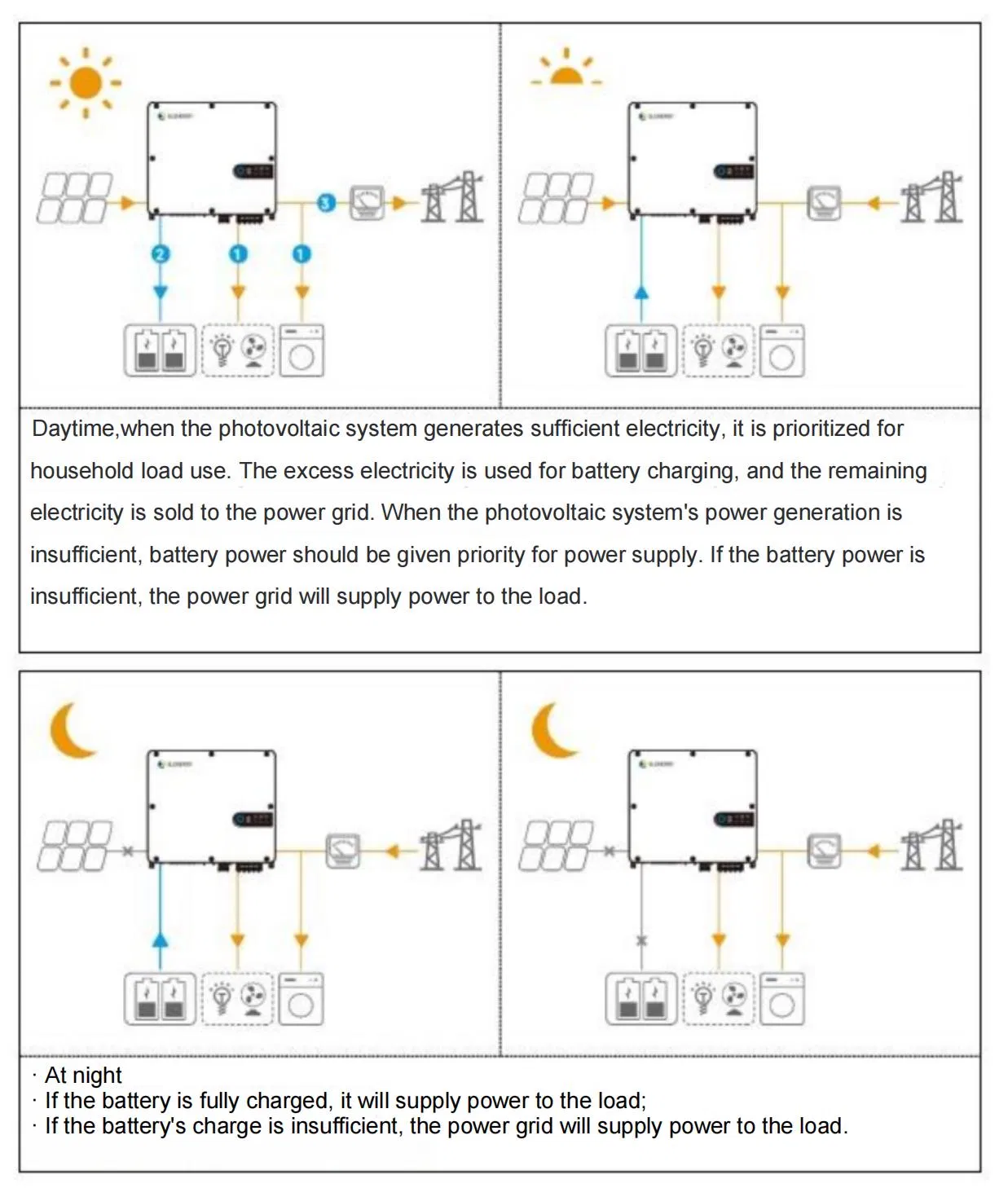

Remote firmware update and customizable settings. Free online monitoring for end users and installers. Programmable priority for PV, battery, or grid.
3 battery inputs, fast charging/discharging. 110% continuous communication output overload and 130% Maximum AC output overload.
Smart V-curve scanning promptly identifies potential issues within strings, providing precise guidance for maintenance work: built-in real-time detection eliminates overvoltage and fire hazards; the APP enables remote smart monitoring, clearly displaying the inverter's operating status.
