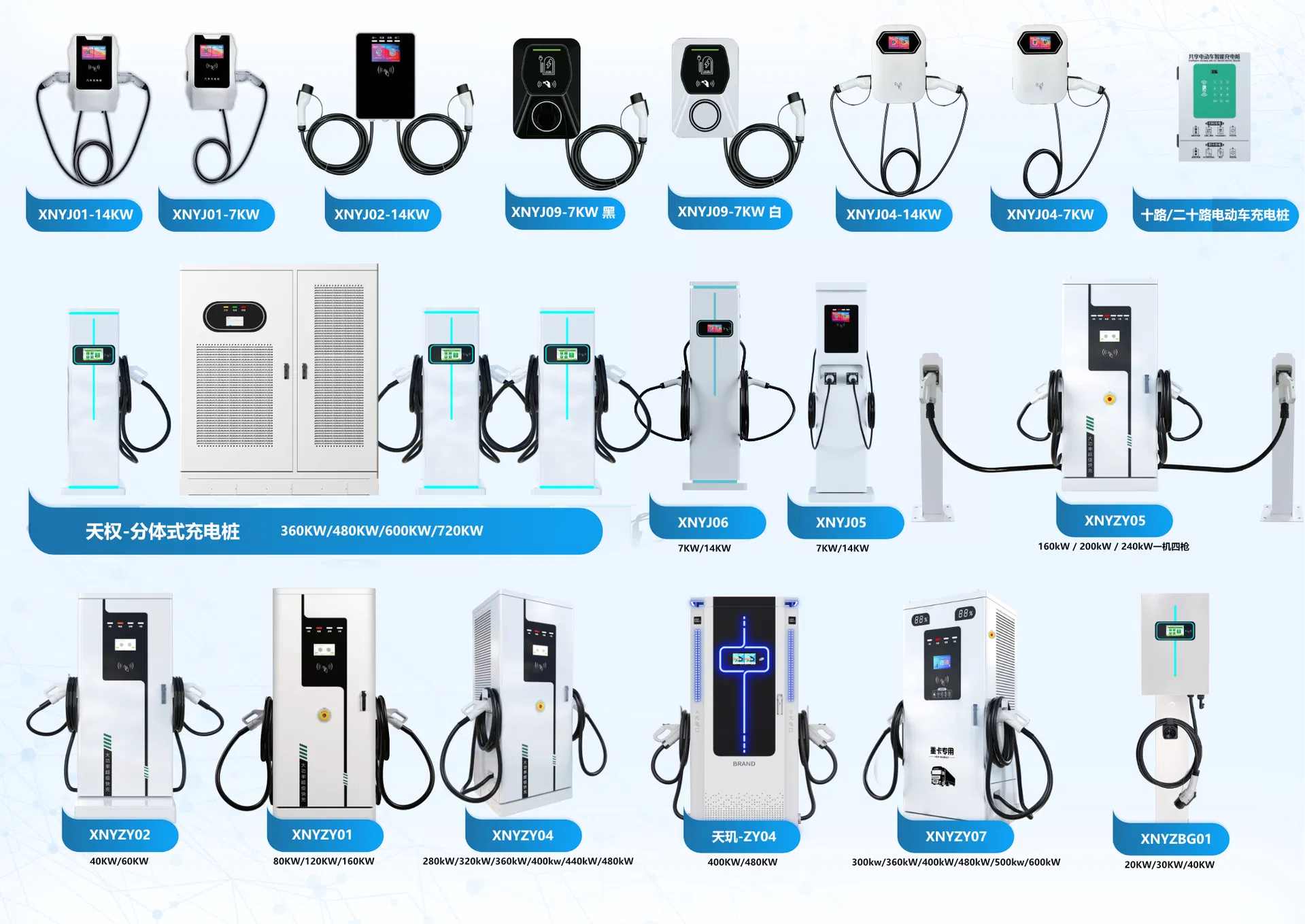

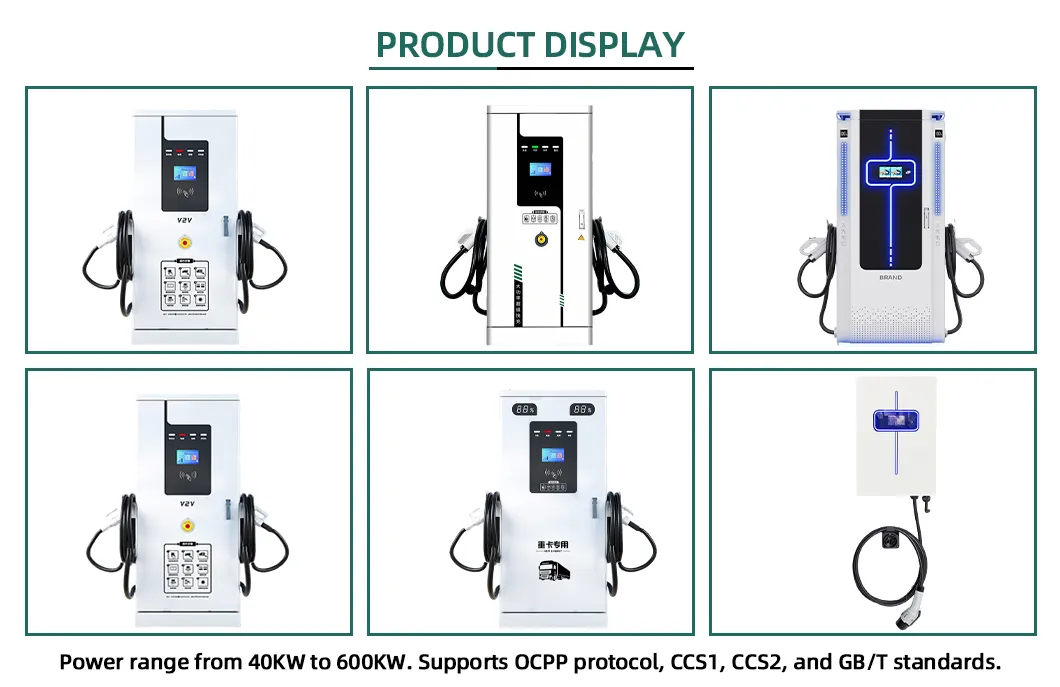

Our power range spans from 40KW to 600KW, supporting OCPP protocol, CCS1, CCS2, and GB/T standards. These units feature an IP54 waterproof rating with a continuous adjustable voltage range of 50-1000V. The constant power voltage range is 200-1000V.
Supports simultaneous charging with two guns for maximum efficiency.
Includes over-temperature, leakage, and lightning protection.
Supports Ethernet and 4G for multiple cloud platforms.

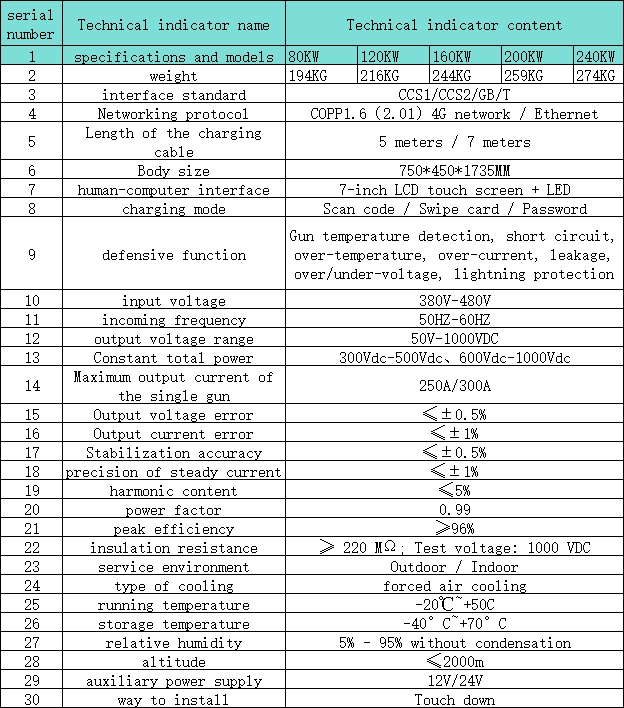

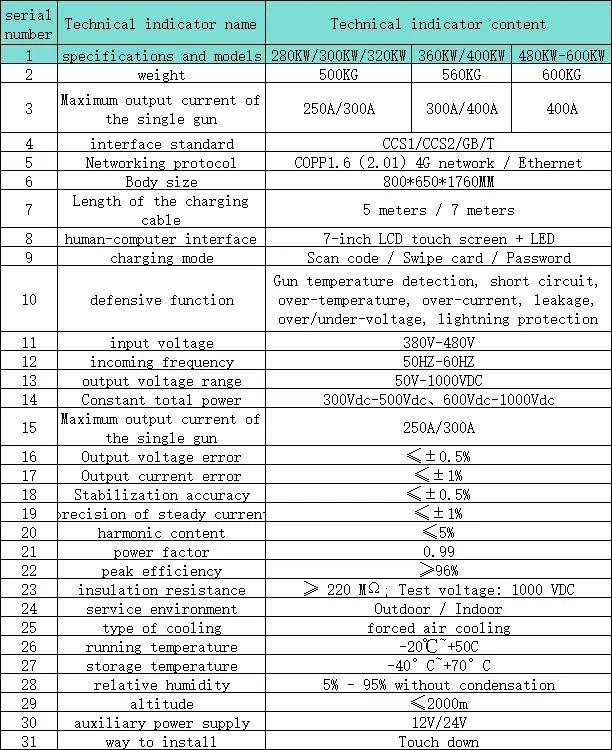

| Product Model | 40KW-600KW | External Dimension | 750x410x1700(mm) |
| Rated Power | 40KW-600KW | Weight | 194KG-274KG |
| Design Criterion | CCS1, CCS2, GB/T | Gun Barrel Length | 5 Meters / 7 Meters |
| Charging Mode | Scan code, Swipe card, VIN, Password | Level of Protection | IP54 |
| Cloud Platform | OCPP 1.6 (2.0.1) | Interface | 7-inch LCD Touch Screen + LED |

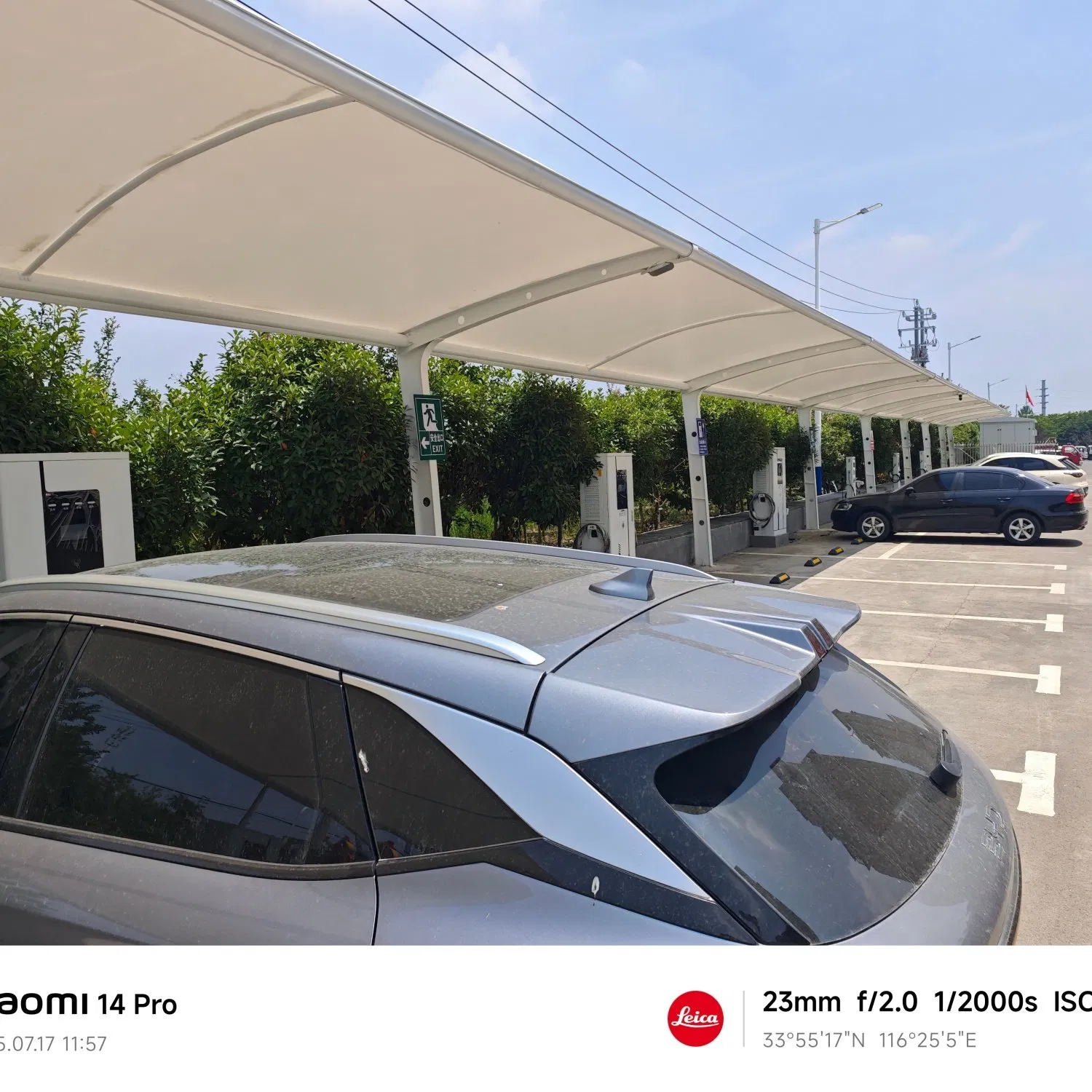

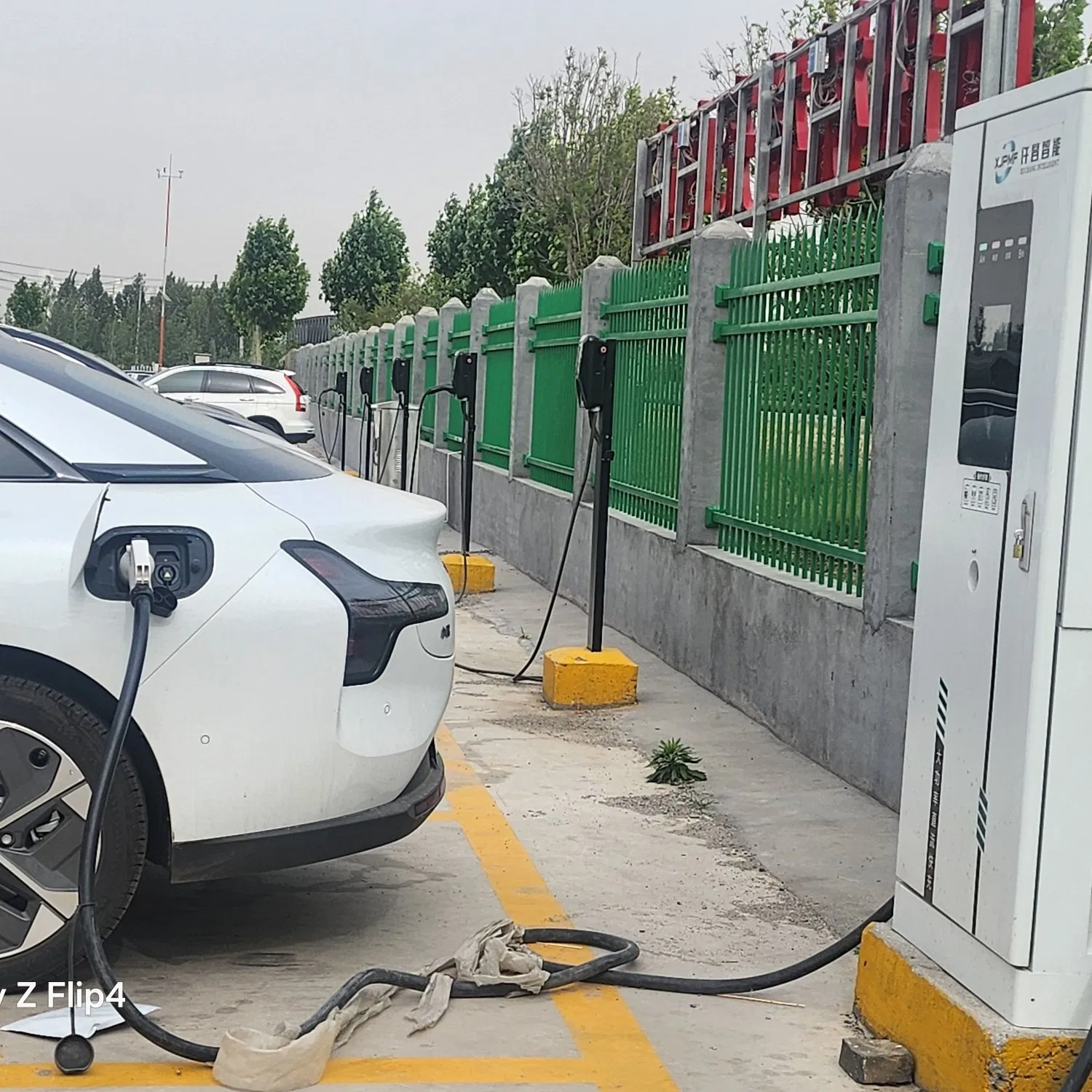

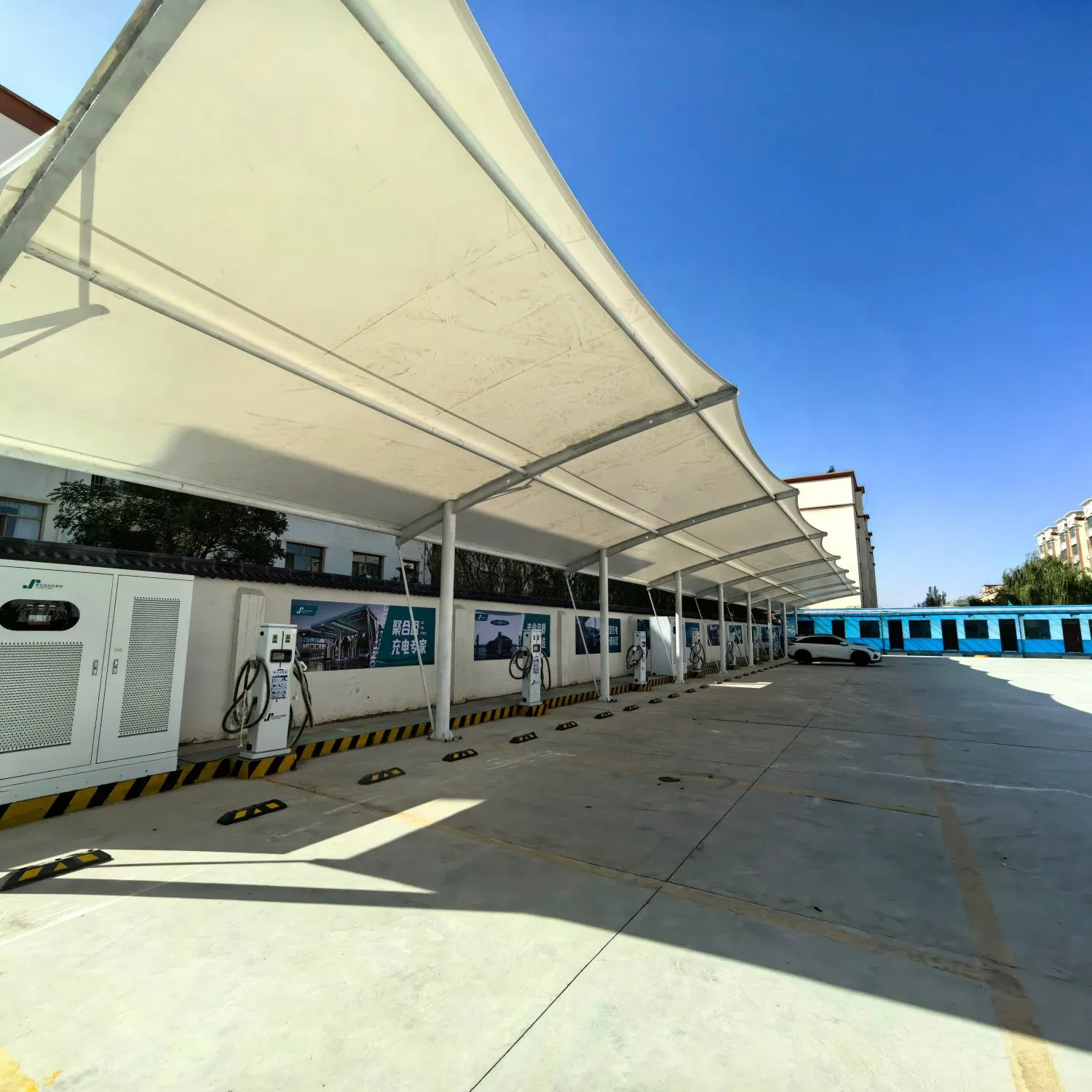

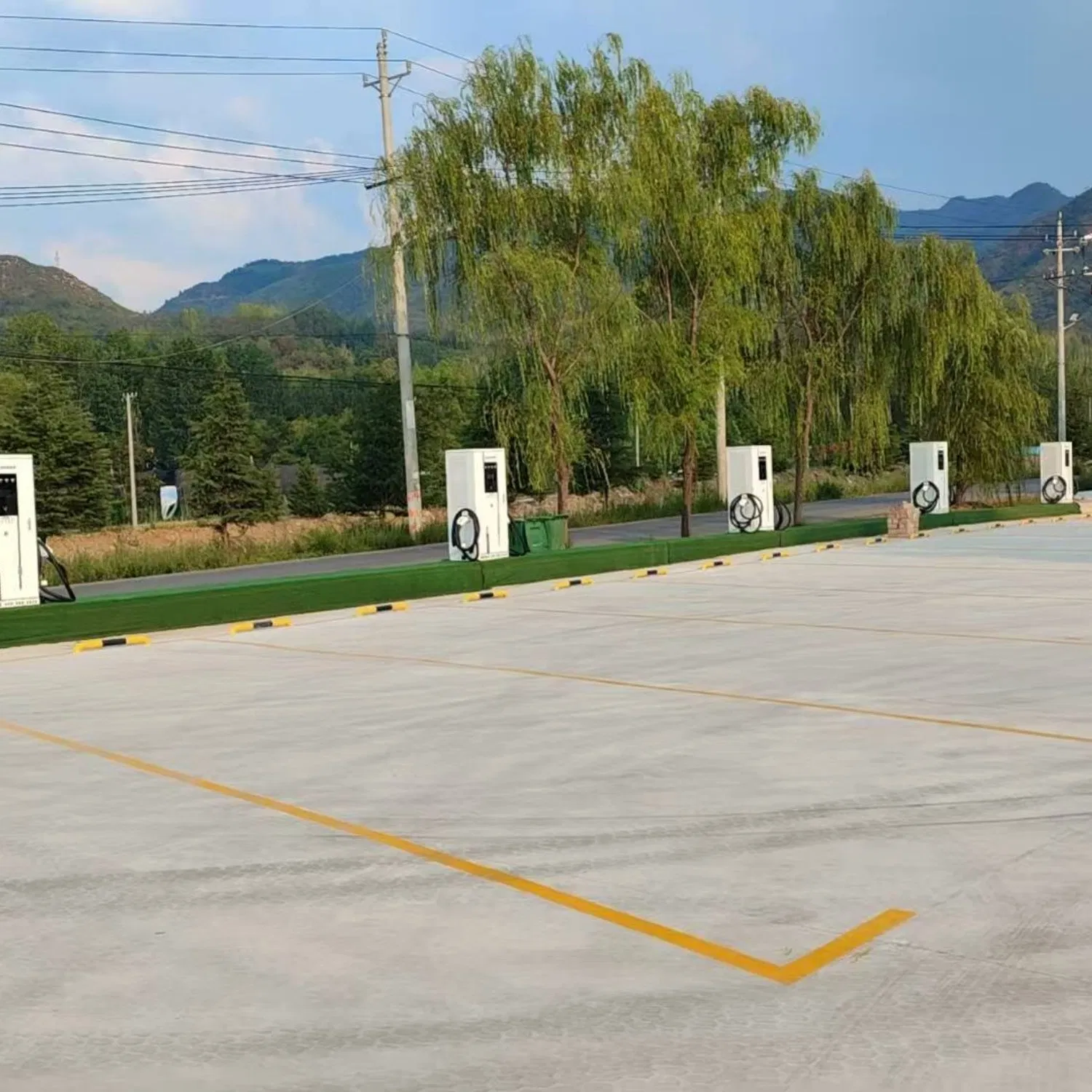

Suitable for bus stations, factories, large charging stations, heavy trucks, and public parking lots. Our stations are debugged before leaving the factory—users can power on and use them directly without secondary debugging.
We are an AAA-rated credit enterprise, holding ISO400, ISO900, ISO1400, ISO500, and ISO certifications. We possess numerous software copyrights and third-party inspection reports for all our high-power equipment.
We adopt robust packaging methods to protect the equipment for sea, air, and land transportation.
