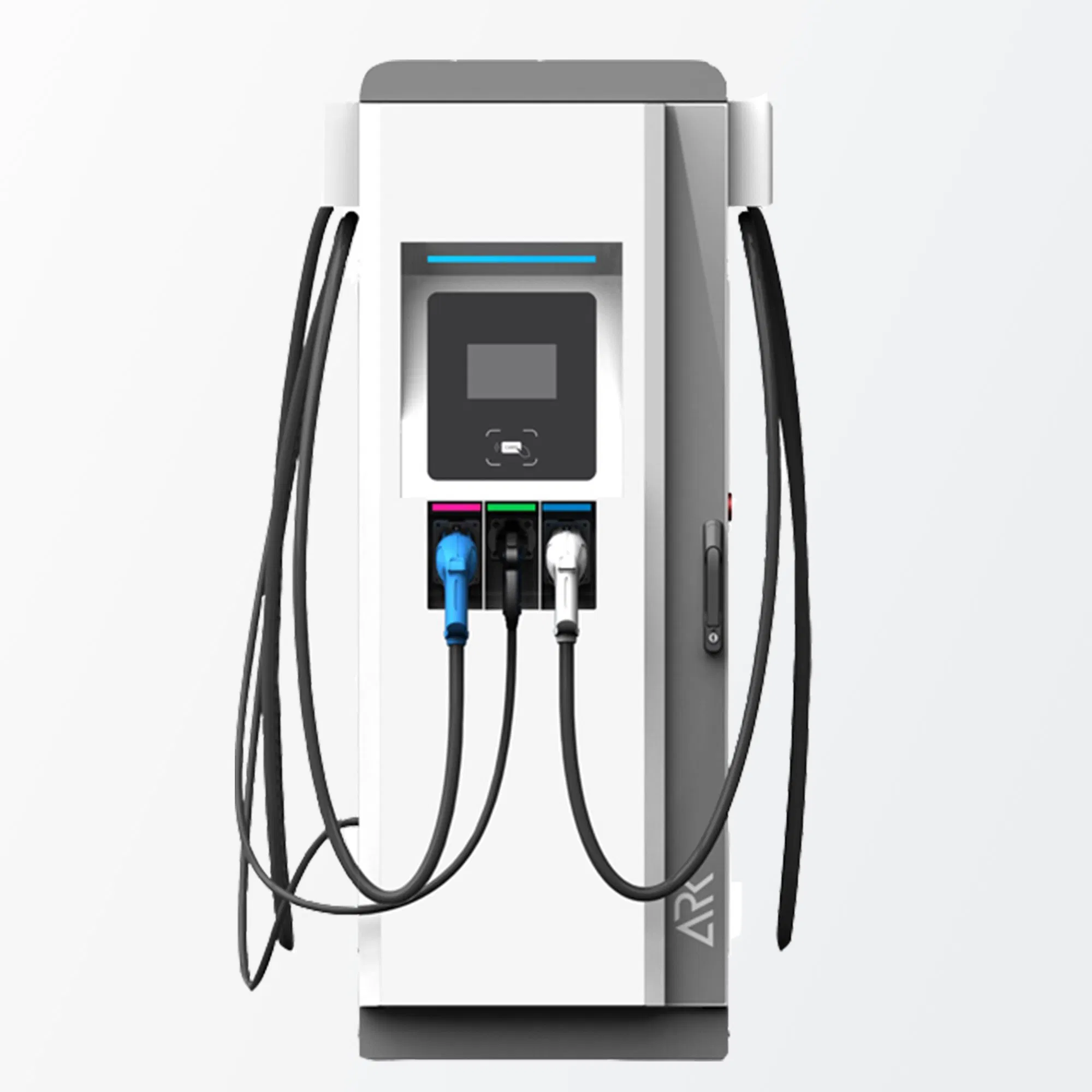

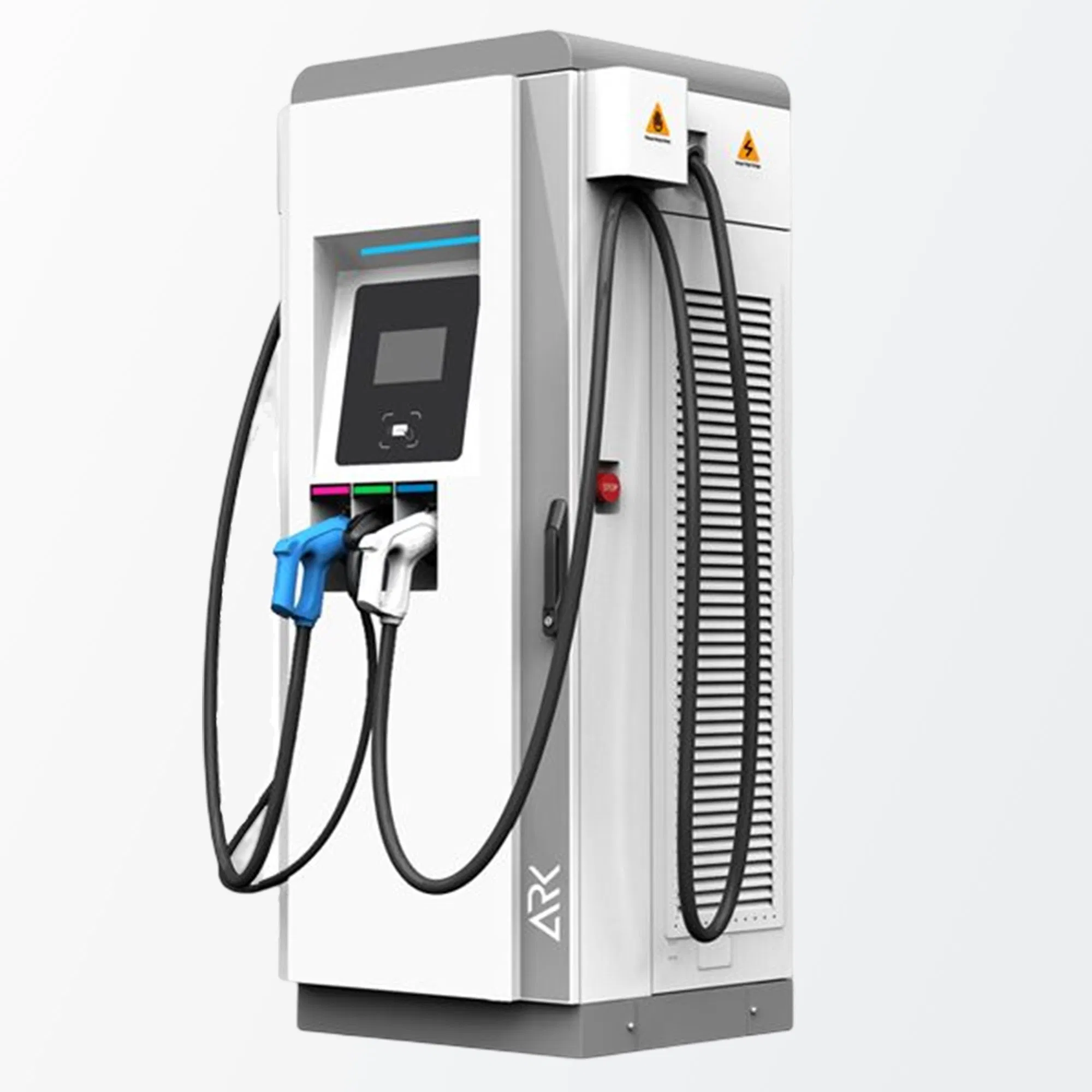

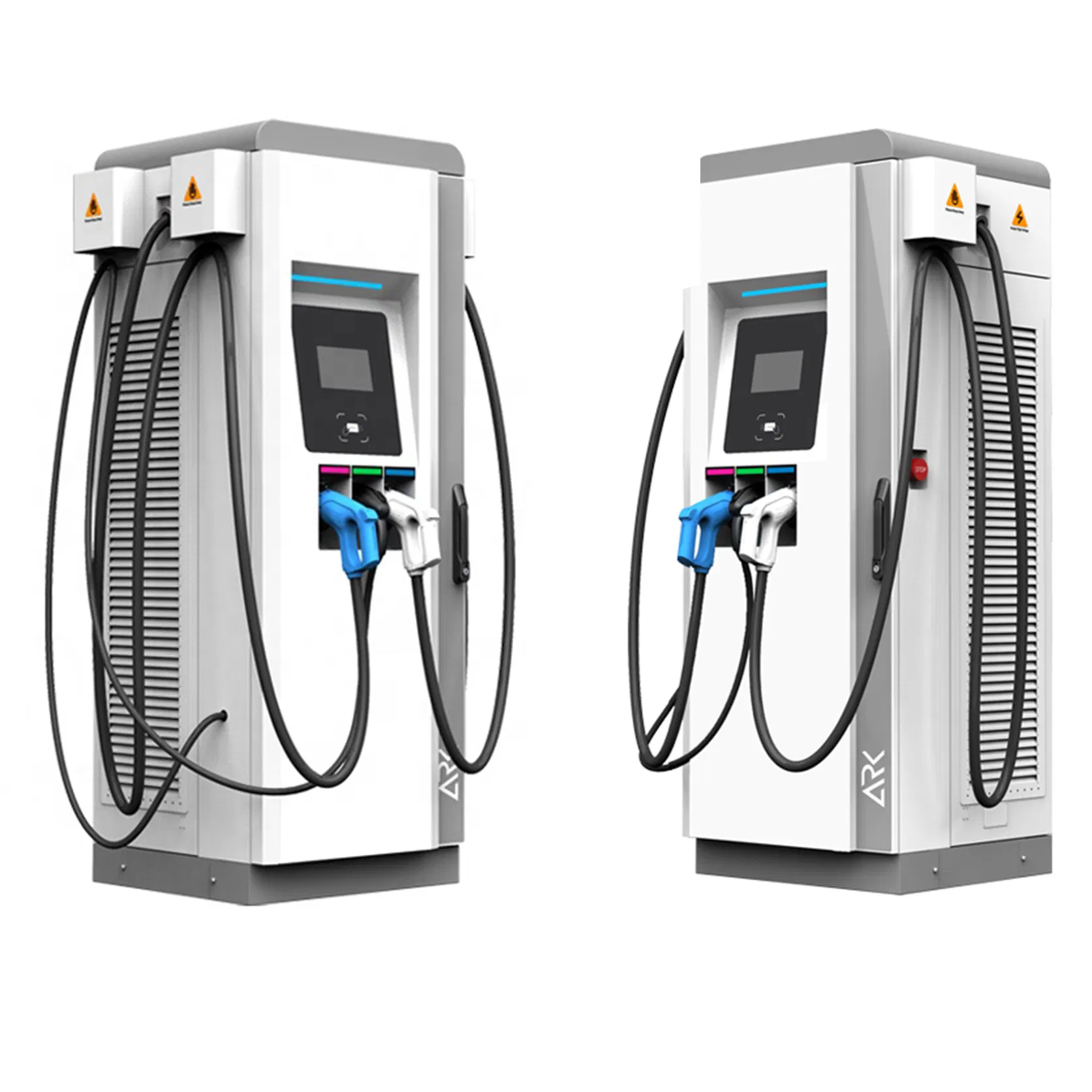

Electric Wireless DC Vehicle Car EV Charger Charging Stations 150kw

Still deciding? Get samples of $ !
Request Sample

Product Description

📊

Basic Info & Overview

Model NO. EF160
Screen 7 Inch Touch Screen
Protection Grade IP54, IK10
Charging Type Mode 4 (Fast Charging)
Charging Standard IEC 61851-1, IEC 61851-23, CHAdeMO
Installation Wall Mounted and Floor Mounted
Production Capacity 1000 Units Per Month
Dimensions 1900 x 725 x 700mm
🔌

Product Description

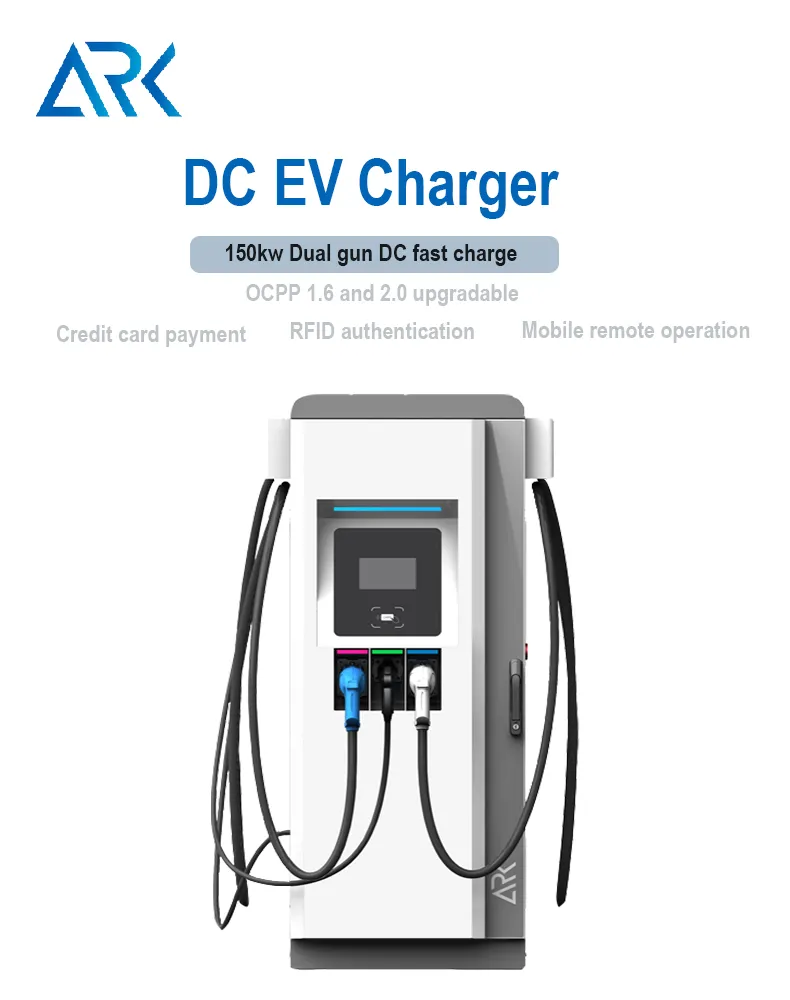

DC EV Charger Unit
EV Charging Station Interface

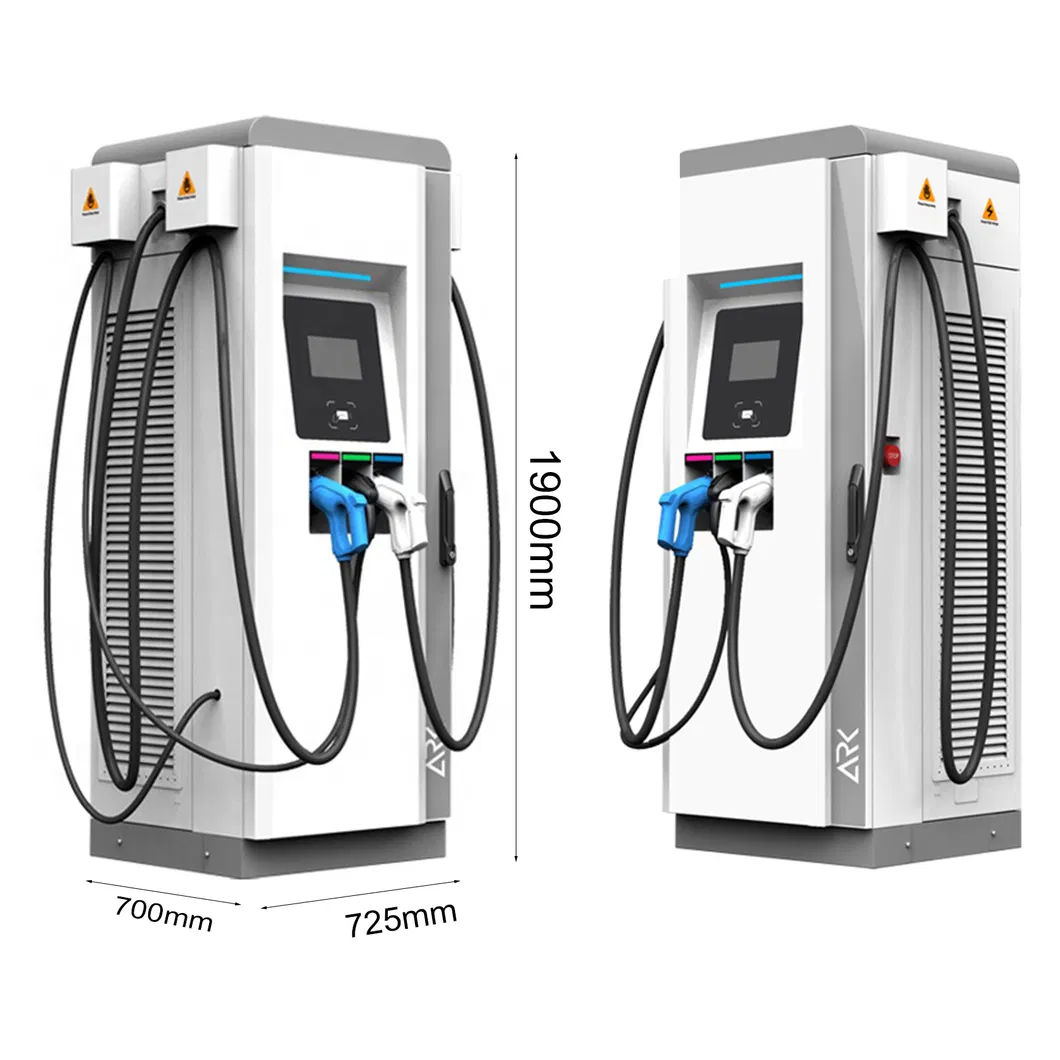

EV Charger Dimensions

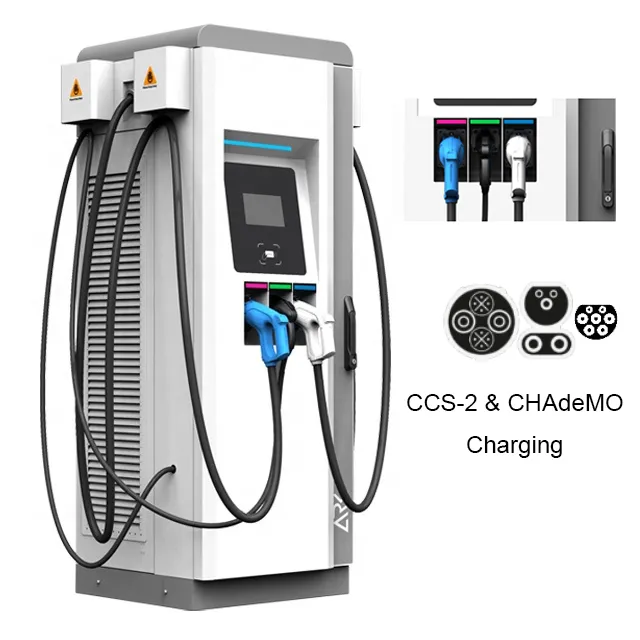

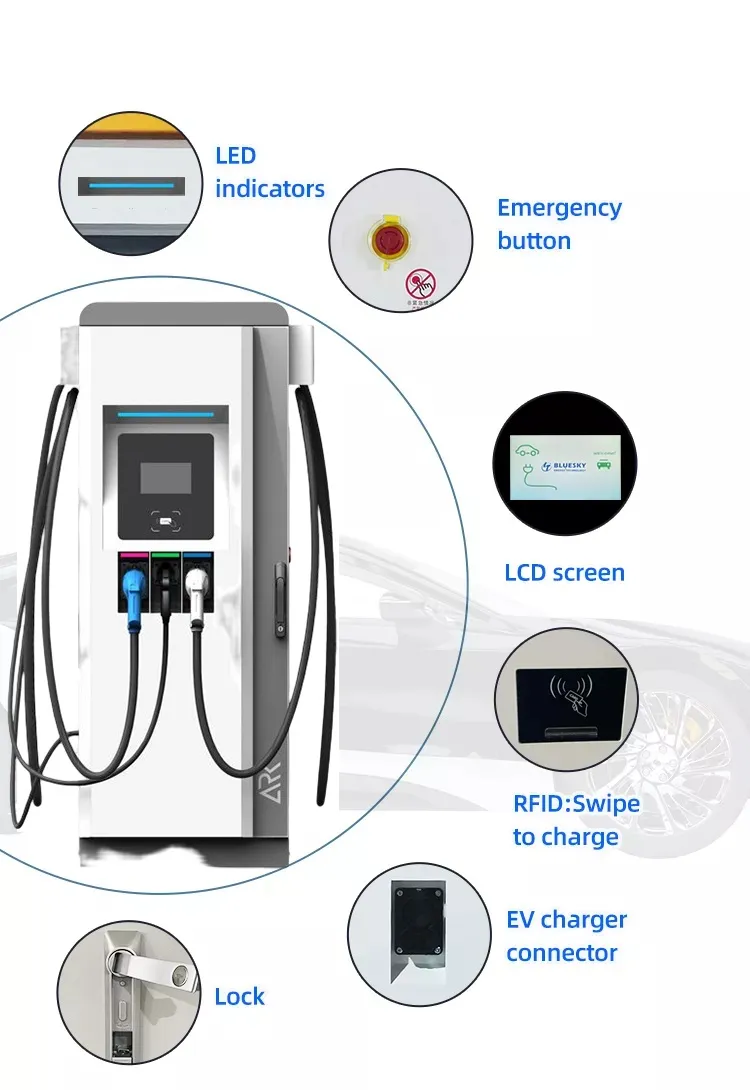

EV Charger Connector Details

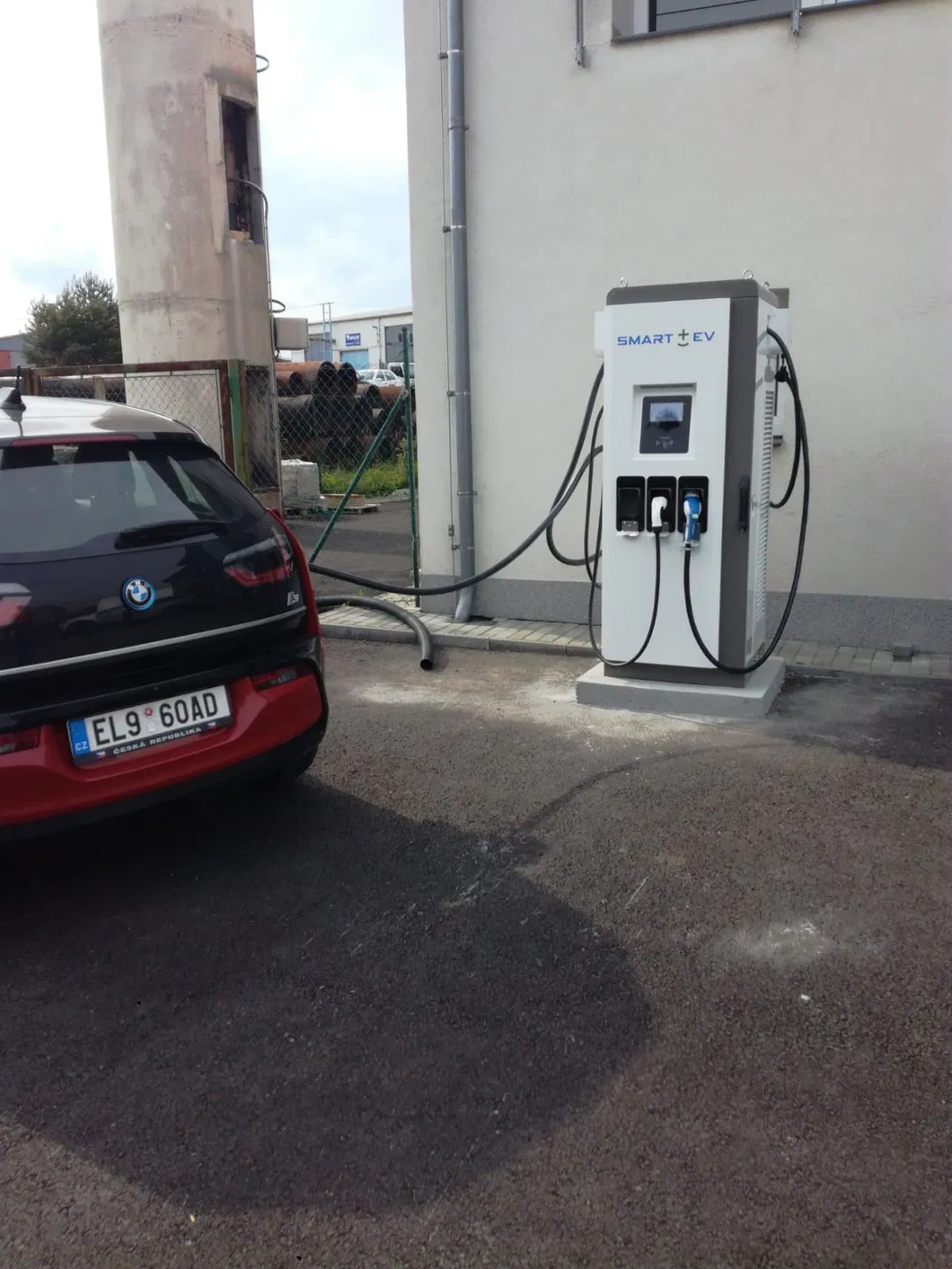

EV Charging Environment
EV Charger Internal Structure
⚙️

Technical Parameters

⚡ Electrical Specifications

Input Voltage400Vac 3-phase
Frequency50Hz/60Hz
Rated Power60kW or 120kW DC
Output VoltageCCS: 200 - 1000VDC, CHAdeMO: 200 - 500VDC
Efficiency≥ 94%
Power Factor≥ 0.99

🏗️ Structure & Function

Housing MaterialMetal Case
User InterfaceEmergency button, LED indicator, RFID, 7" Touch screen
CommunicationPLC, CAN, Wifi, 3G/4G, OCPP 1.6
Cable Length5 Meters
Safety DesignOver/under voltage, overload, leakage, grounding, over temp, surge protection
📦

Packaging & Shipping

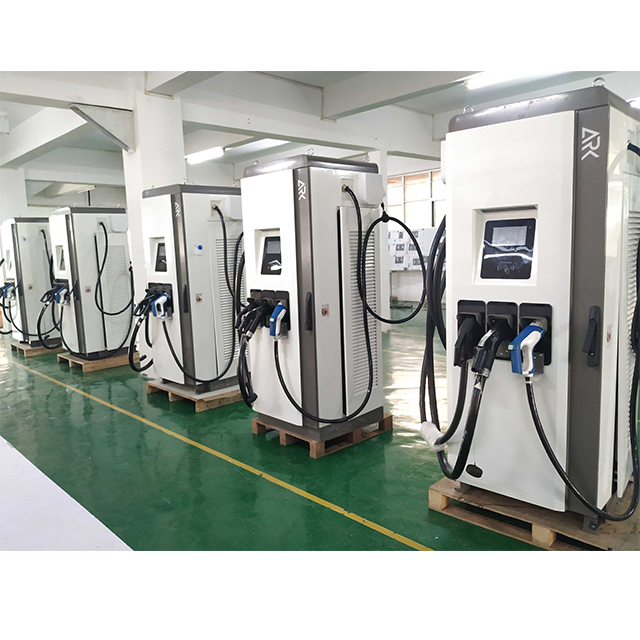

Process and Manufacturing
Packaging Box
Loading Process

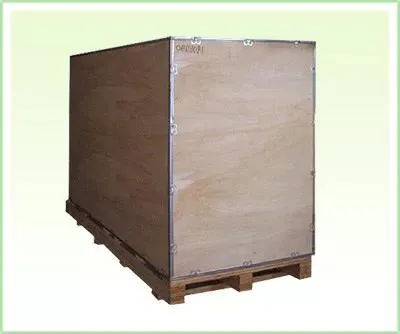

Logistics

Frequently Asked Questions

1. Why choose us as your preferred EV Charger supplier?
We feature a professional technical team and a long-term industry vision, ensuring a leading position. We offer diverse product options including various charging standards, international designs, and smart back-end services. Our products pass rigorous laboratory tests, and we are capable of providing CE and UL certified solutions.
2. Do you have experience in implementing overseas charging station projects?
Yes, we are pioneers in overseas projects. We have collaborated with power companies in the UK, charging operators in the US (from LA to San Francisco), and major automakers like GM to provide DC fast charging services.
3. What are the advantages of your EV charging products?
Our products feature telecom-level design, support for multiple standards (CCS-1/2, CHAdeMO, GB/T), wider voltage ranges, high protection grades, and an advanced modular design for better reliability and temperature adaptation.
4. What are the differences between global DC fast charging standards?
There are five main standards: CCS-1 (North America), CCS-2 (Europe), CHAdeMO (Japan), GB/T (China), and Tesla (Proprietary). Our chargers are designed to accommodate these global requirements to support a wide range of electric vehicles.
5. Does higher output power always mean faster charging?
Not necessarily. Charging speed is limited by the vehicle's battery capacity. However, high-power chargers are significant because they can support dual connectors to charge two vehicles simultaneously and provide future-proofing as battery technology improves.
6. How is after-sales support handled?
We provide comprehensive technical training, including written materials and videos. In urgent situations, professional technicians are available to provide support and master parts replacement or maintenance work.
