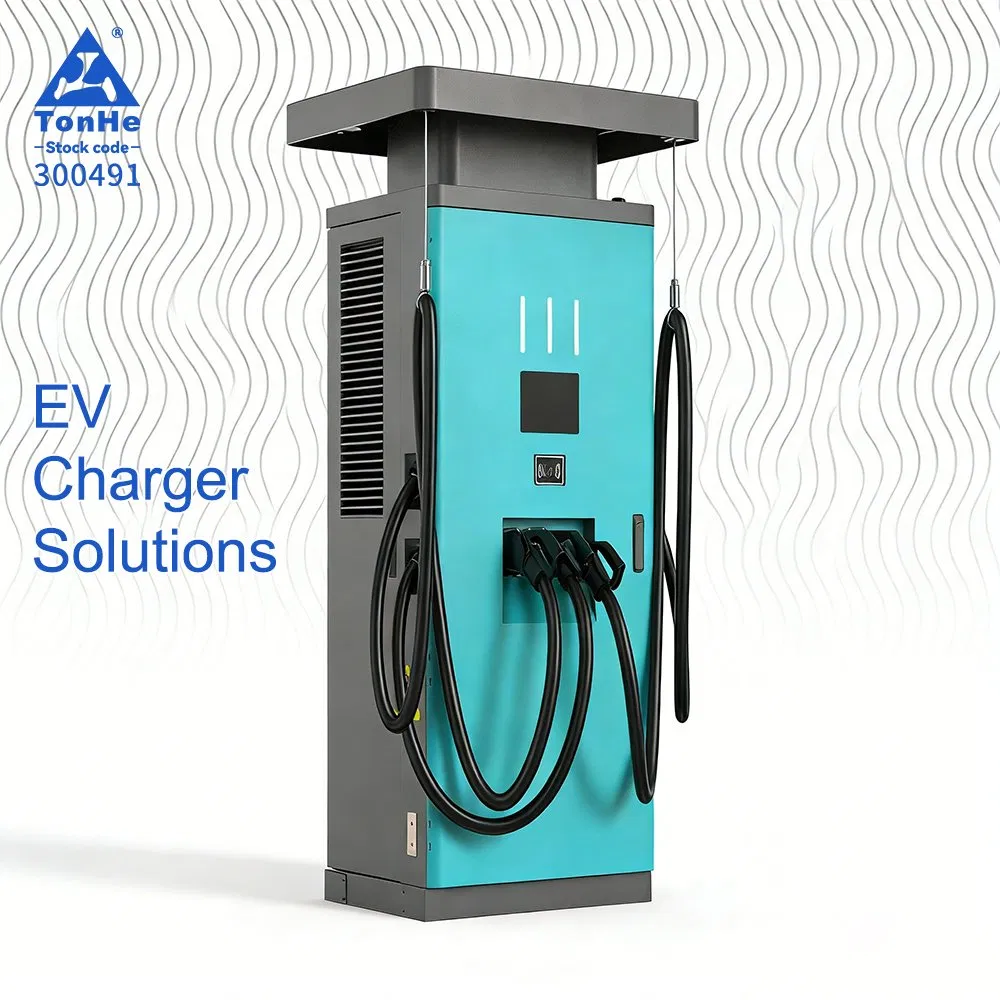

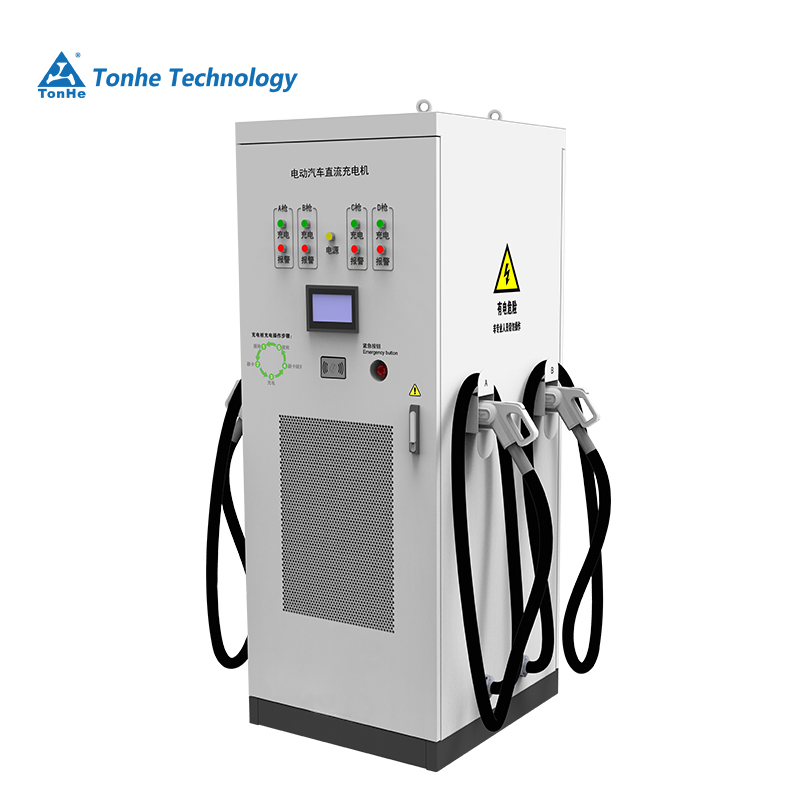

Tonhe Electric Wireless DC AC Vehicle Car EV Charger Charging Stations
Tonhe Electric Wireless DC AC Vehicle Car EV Charger Charging Stations
Tonhe Electric Wireless DC AC Vehicle Car EV Charger Charging Stations
Tonhe Electric Wireless DC AC Vehicle Car EV Charger Charging Stations
Tonhe Electric Wireless DC AC Vehicle Car EV Charger Charging Stations
1 / 5
Tonhe Electric Wireless DC AC Vehicle Car EV Charger Charging Stations
Tonhe Electric Wireless DC AC Vehicle Car EV Charger Charging Stations
Tonhe Electric Wireless DC AC Vehicle Car EV Charger Charging Stations
Tonhe Electric Wireless DC AC Vehicle Car EV Charger Charging Stations
Tonhe Electric Wireless DC AC Vehicle Car EV Charger Charging Stations

Tonhe Electric Wireless DC AC Vehicle Car EV Charger Charging Stations

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋

Basic Specifications

Model NO.
EV Charger
Location
Public Use
Charging Interfaces
Multiple Charges
Start Mode
RFID Authentic
Efficiency
Mini 95%
IP Class
IP54
Output Power
160kw
Input Voltage
380V
Type
Fast EV Charging Station
Certification
CE, ISO
Warranty
12 Months
Origin
China
⚡

Product Description

Technical Parameter Details
Specification Model TH-AHTH-DC120-CC002
AC Input Phases/Lines 3 phase + neutral + PE
Voltage/Freq 400VAC±10% / 50Hz±10%
Connector CCS
Output Power 120KW
Voltage CCS: 200-750VDC
Cable 5m Liquid cooled cable
Electrical Efficiency ≥95% at nominal output power
Structure Material Galvanized steel
Display 10 inch TFT LCD Touch screen
Emergency Mushroom headed stop button
Communication Protocol OCPP 1.6 (Ethernet, Wi-Fi, 4G)
Environment Temperature -20ºC to +65ºC
Protection Security Over/Under Current, Surge, Short Circuit, Earth Fault, Over Temp
🏭

Manufacturing Excellence

The manufacturer is a high technology enterprise specialized in innovation of technology, product and management in the power electronics industry. We focus on R & D, manufacturing, sales, operation and service of EV charger modules and rapid charger points, providing comprehensive system solutions for the energy sector.

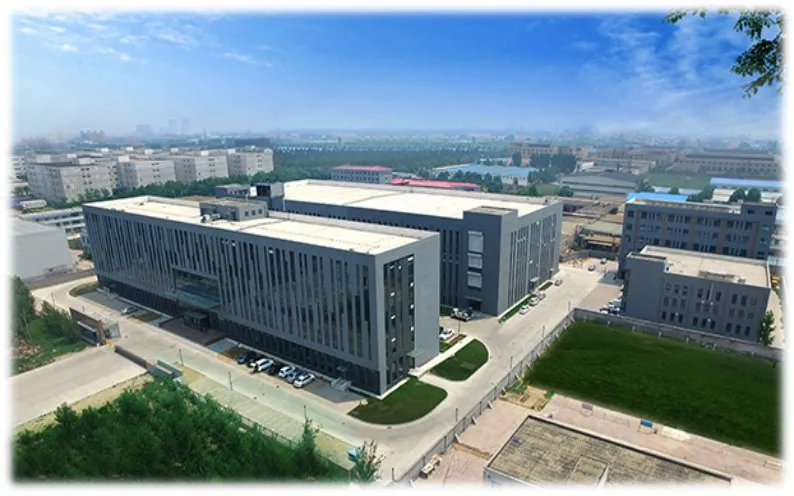

EV Charger Technology

Equipped with automatic production lines, the facility ensures full automation in early production steps and semi-automation in assembly and testing. Technological designs and work fixtures are developed by the process technology department to guarantee superior product quality.

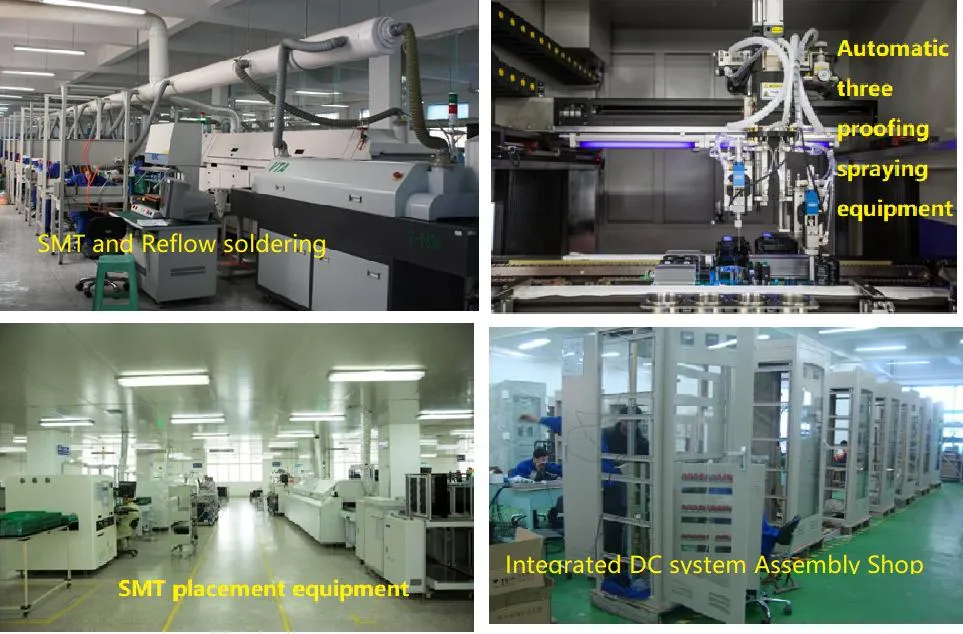

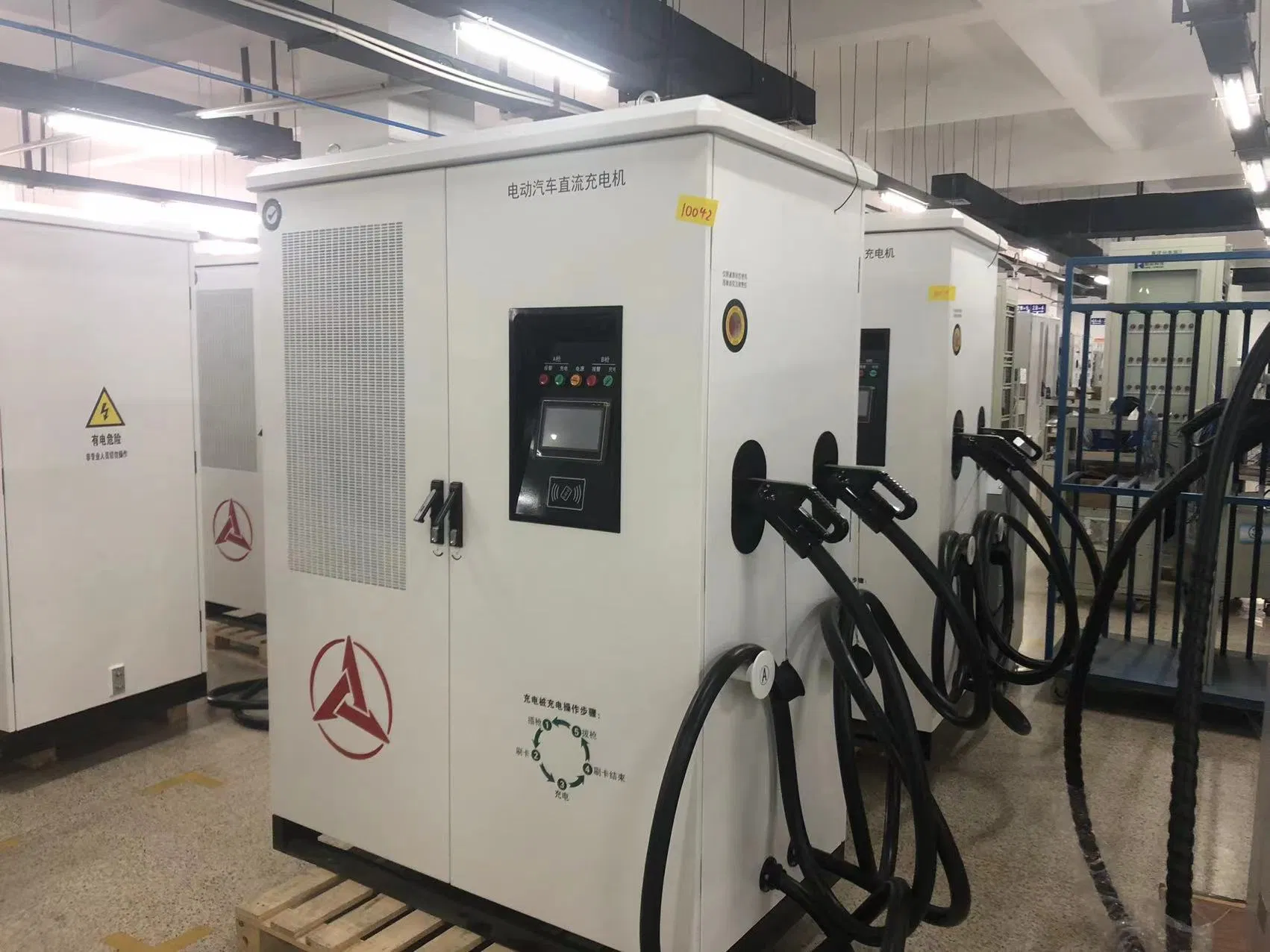

Production Line
📜

Quality Certification

Certification Docs
🌍

Global Charging Projects

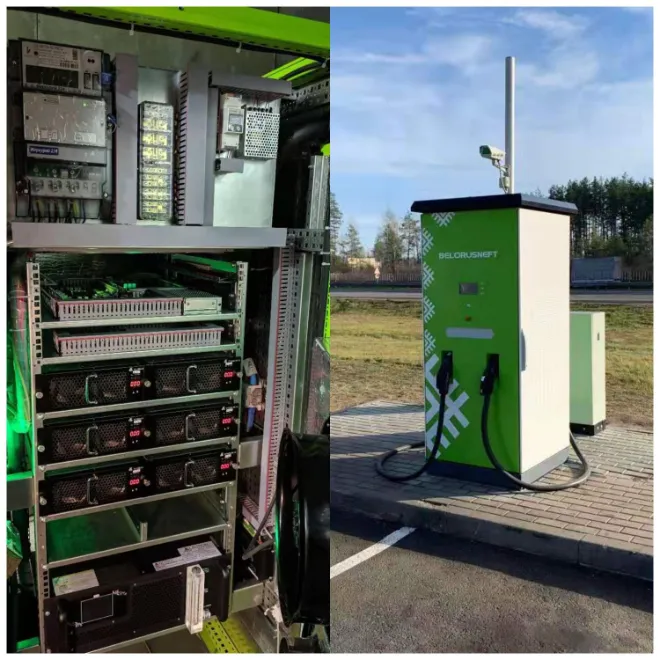

St. Petersburg Charging Station

Project 1

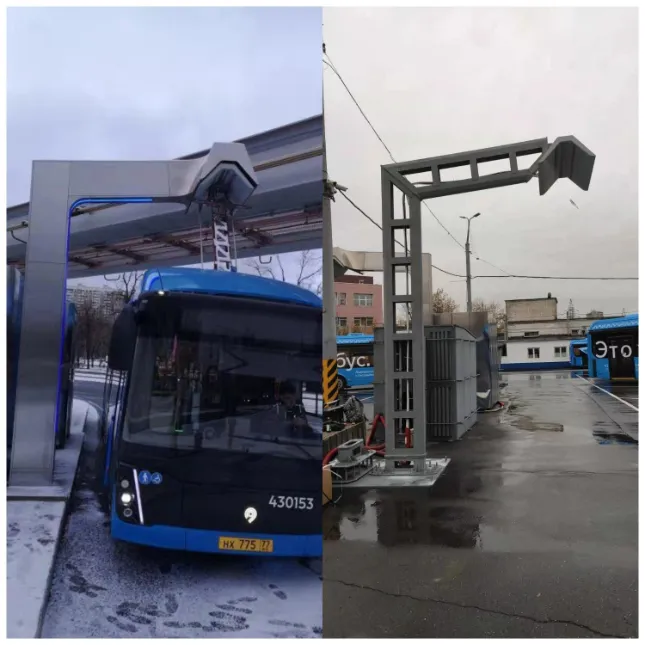

Moscow Bus Station

Project 2

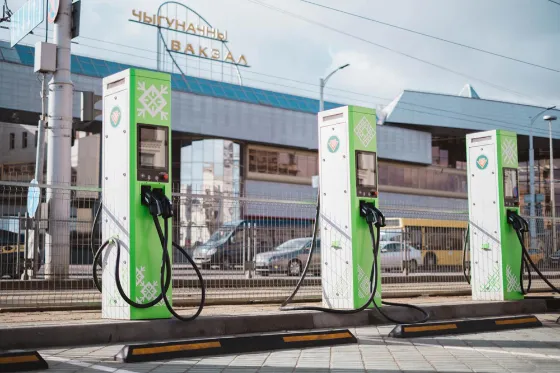

Minsk Railway Station

Project 3

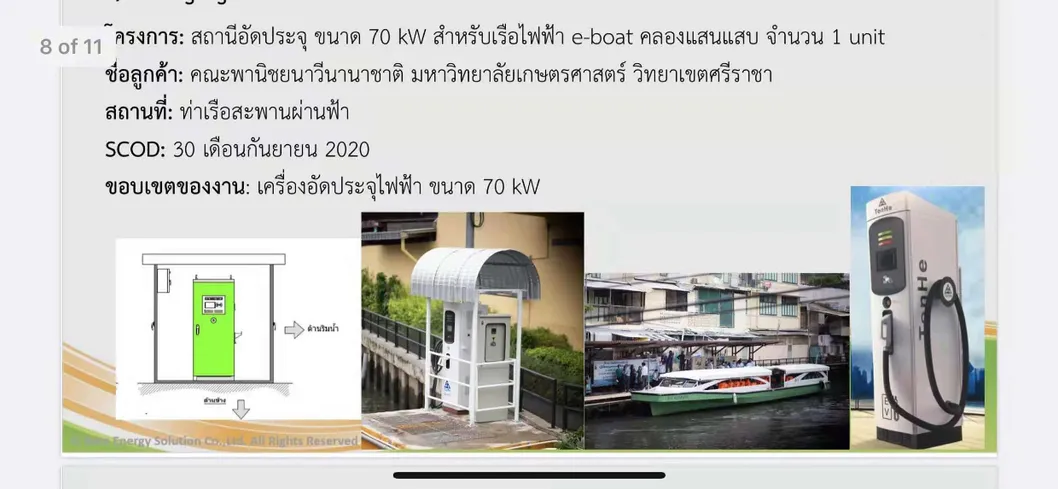

Maritime Application Environment

Project 4
📸

Product Gallery

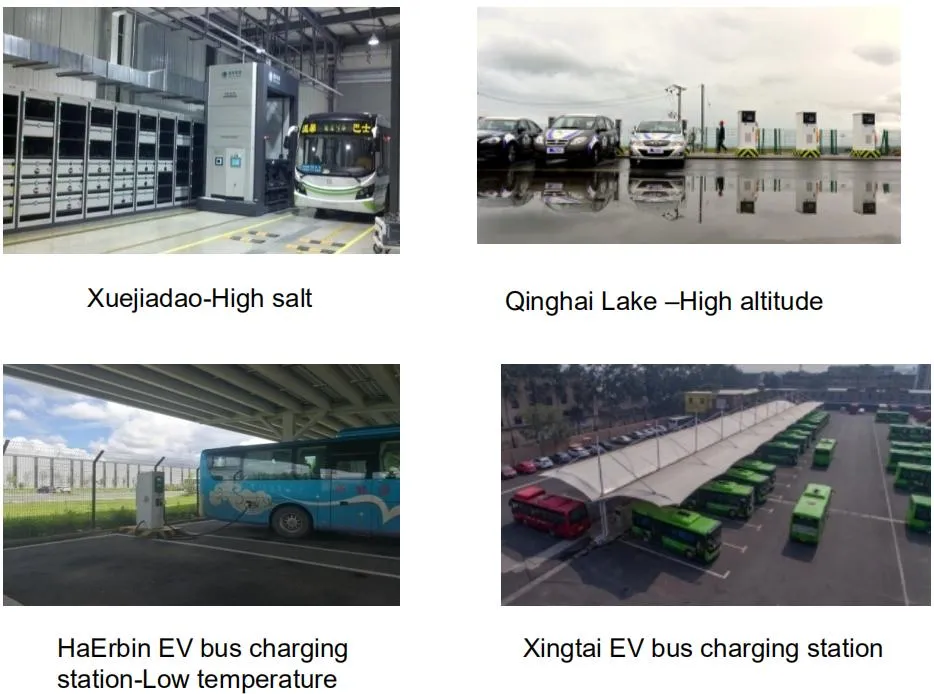

EV Detail 1

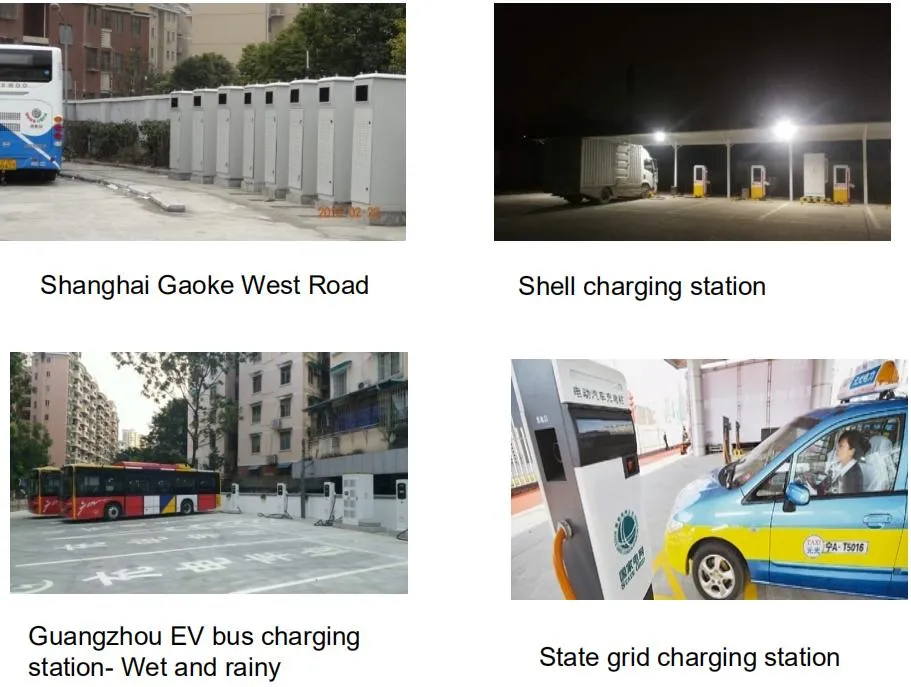

EV Detail 2

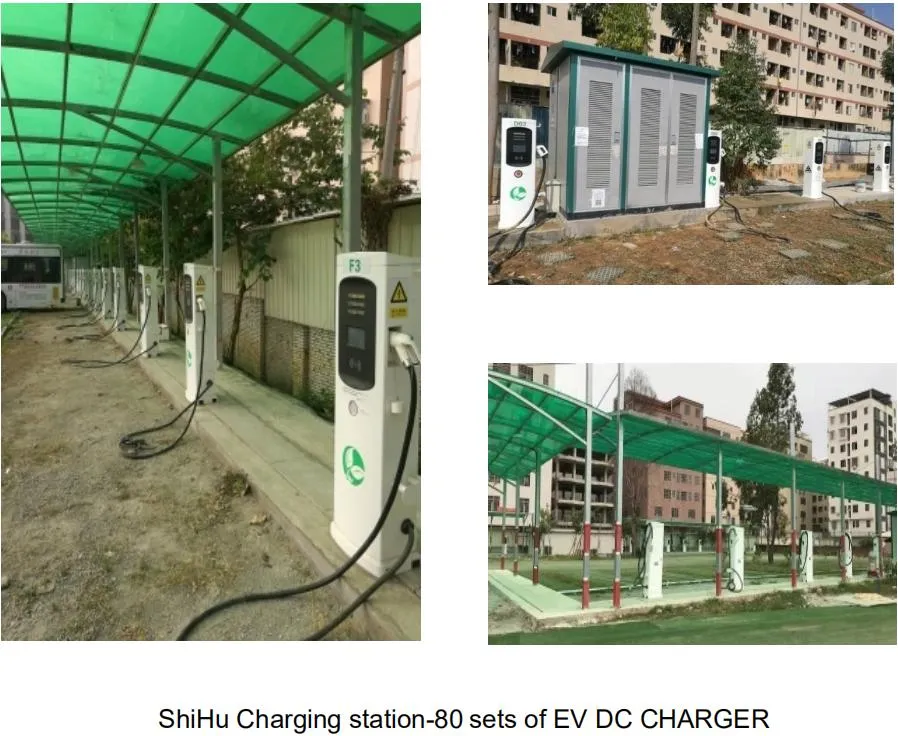

EV Detail 3

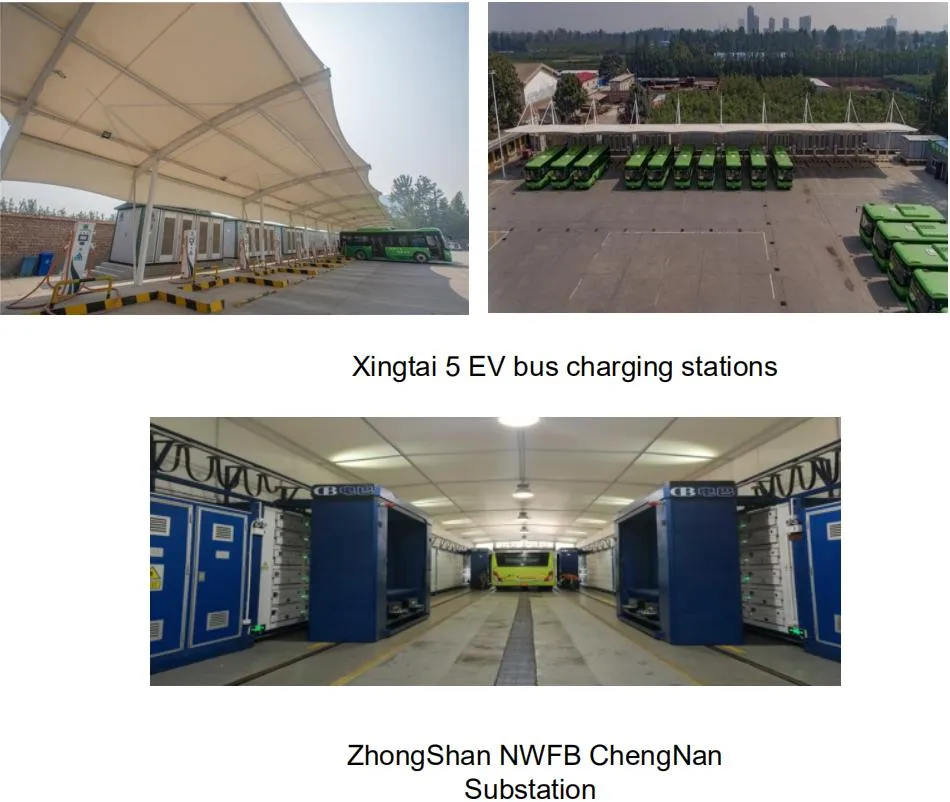

EV Detail 4
❓

Frequently Asked Questions

What is the maximum output power of this charging station?
The station provides a high-capacity output of up to 160kW (standard configurations at 120kW), designed for rapid DC charging.
What charging standards and protocols are supported?
It supports the CCS (Combined Charging System) standard and uses OCPP 1.6 protocol for seamless backend communication via Ethernet, Wi-Fi, or 4G.
Is this unit suitable for outdoor public use?
Yes, with an IP54 protection rating and a working temperature range of -20ºC to +65ºC, it is built for both indoor and outdoor environments.
What safety protections are integrated into the system?
The charger includes multiple protections: Over/Under Current, Surge Protection, Short Circuit, Earth Fault, Phase Reversal, and Emergency Shut-down with alarms.
What are the user interface and payment options?
It features a 10-inch TFT LCD touch screen and supports RFID card authentication or smartphone app-based payments.
How is the product shipped and what is the lead time?
The units are securely packed in wooden cases. Production capacity is approximately 100 sets per month to ensure timely delivery.
