Voltura Charger
1 / 5
| Model NO. | AMP07-C |
| Charging Interfaces | One Pile with One Charge |
| Location | Home & Company |

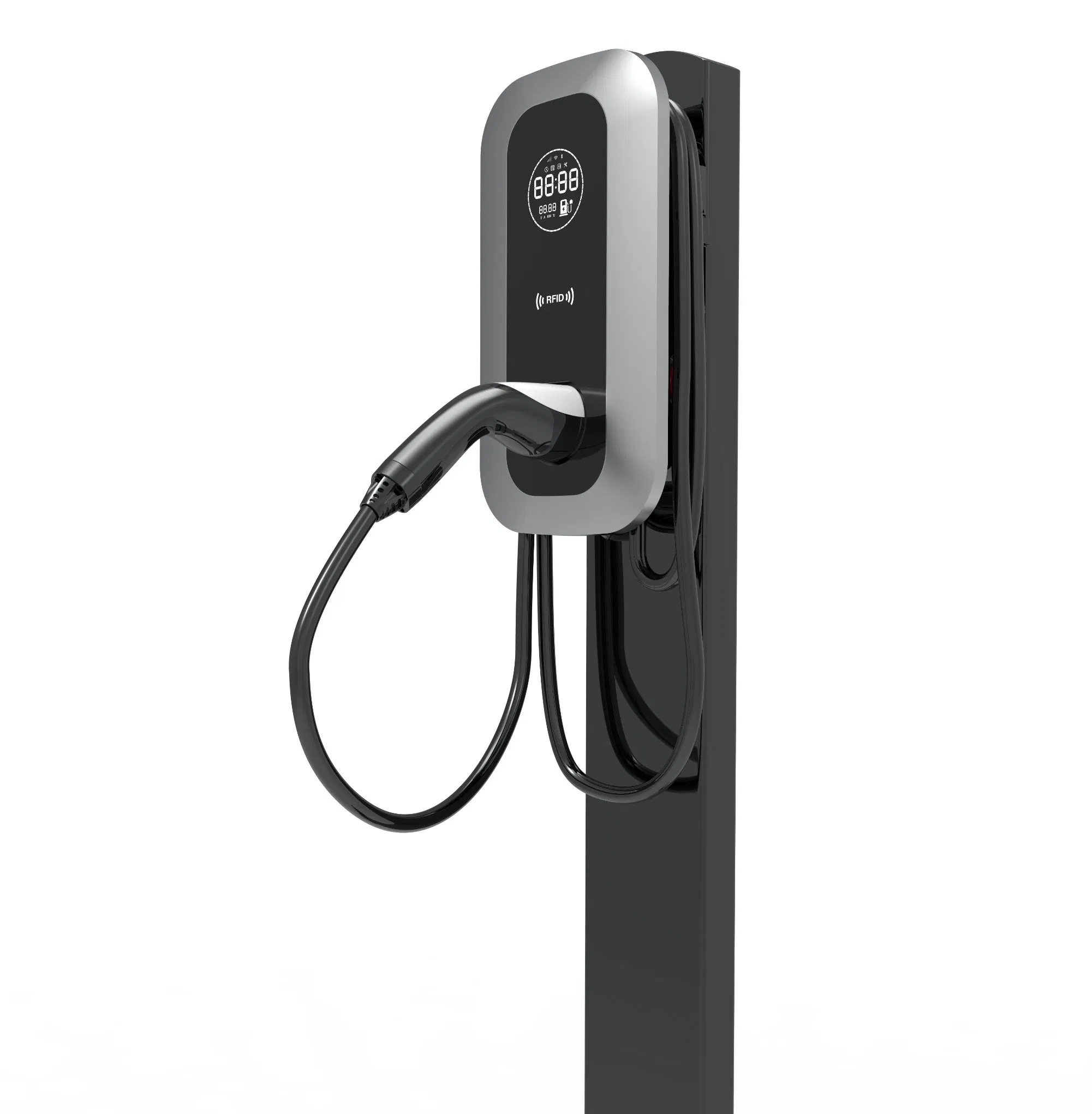

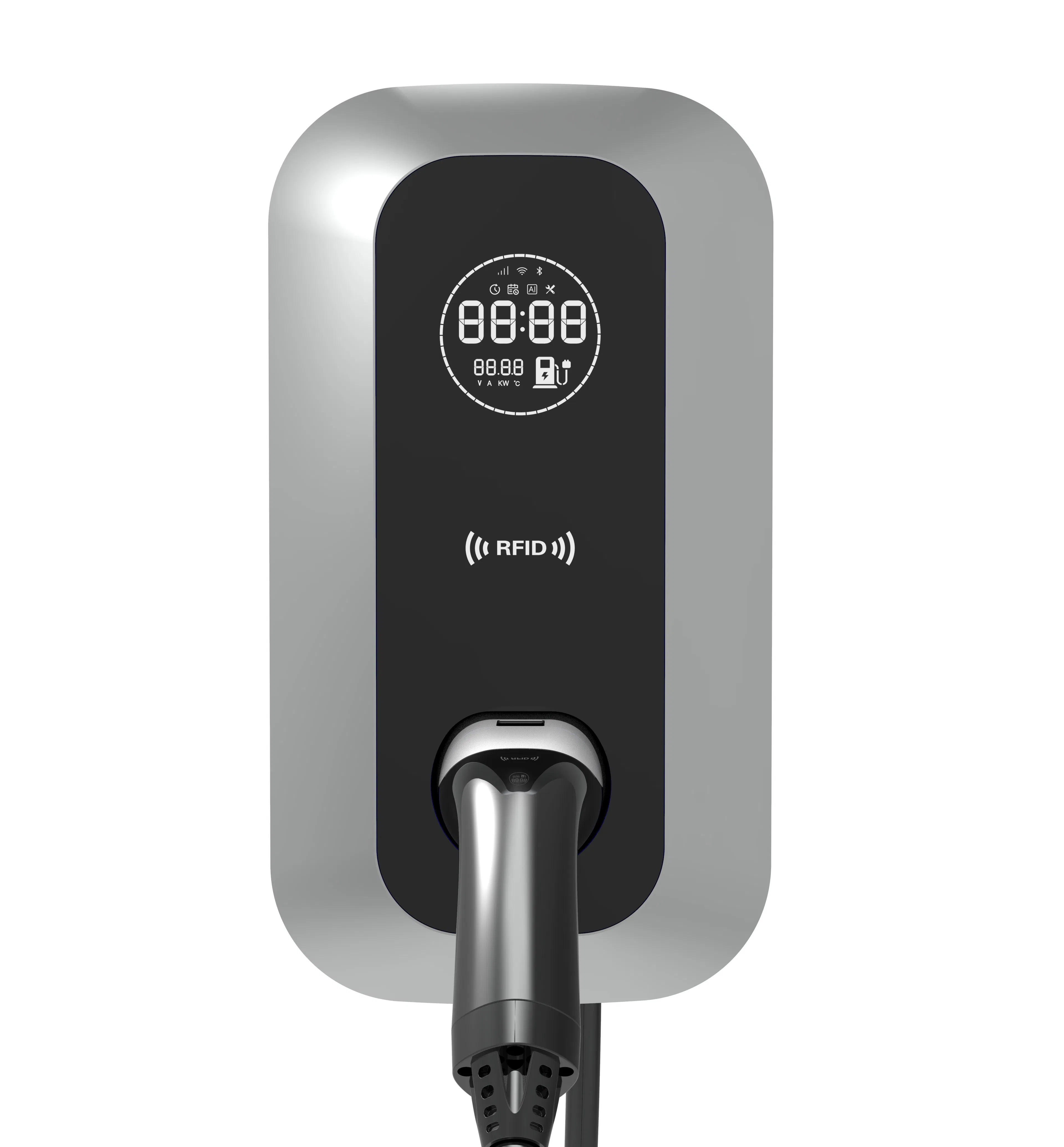

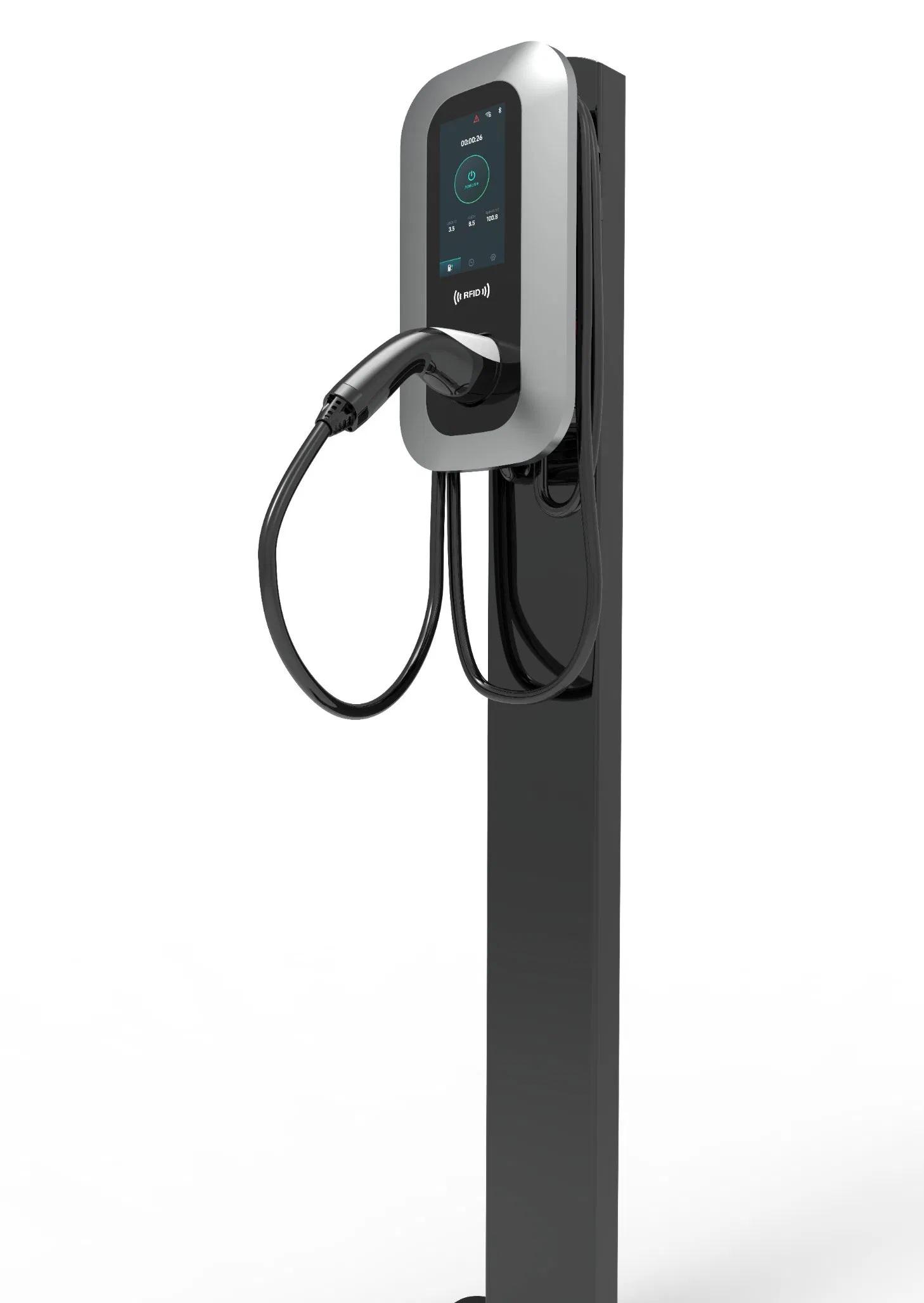

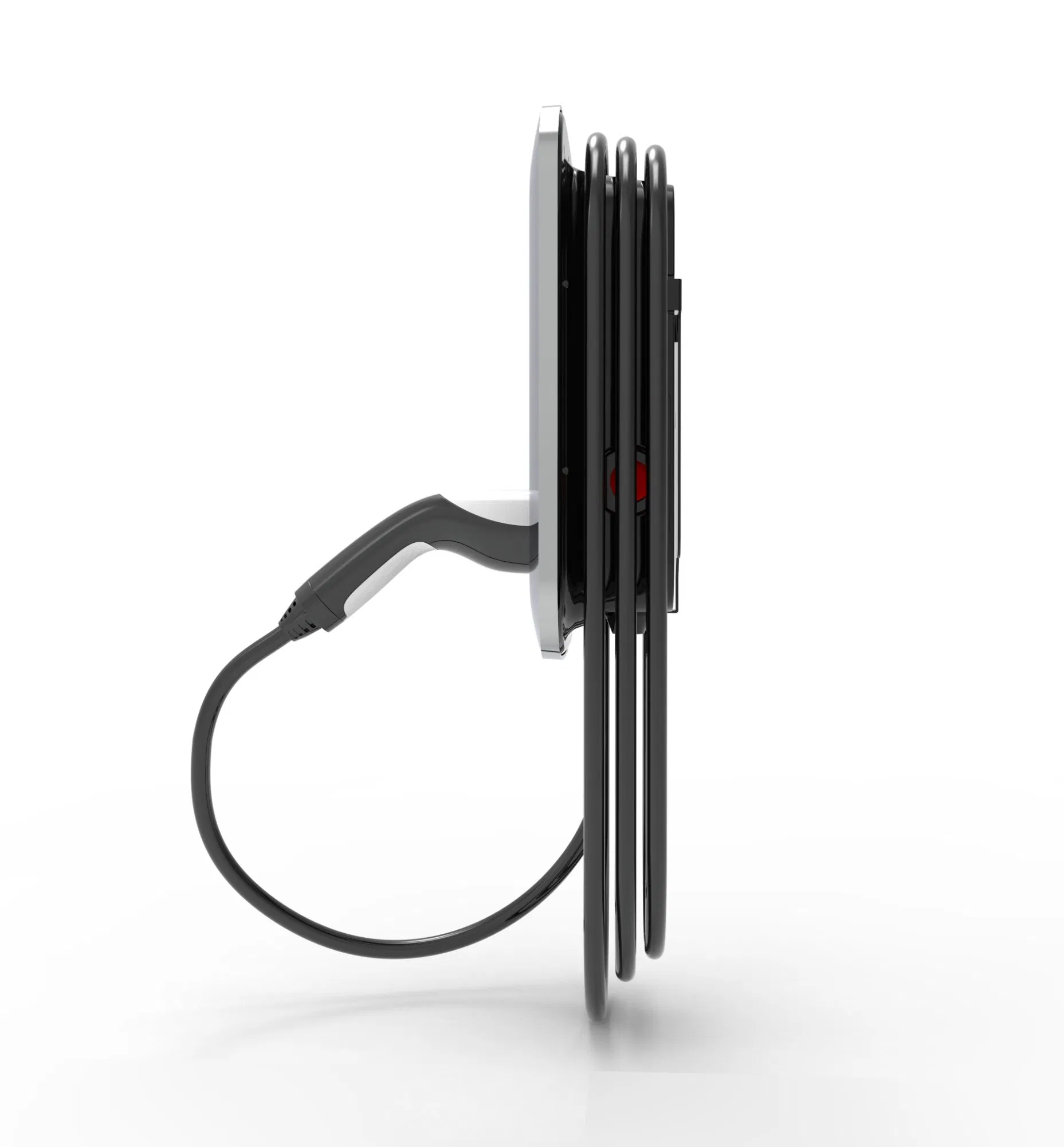

| Installation | Wall or Floor Mounted |
| Charge Method | Quick Charge (Mode 3) |
| Protection Grade | IP54 / IP65 |
| Certification | CE, TUV, DEKRA |
| Network Interface | Wi-Fi, Bluetooth |
| Warranty | 12 Months |
| Specification | 244 x 164 x 126.5mm |
| Specification | Detail |
|---|---|
| Input Voltage | 200Vac - 240Vac, 50/60Hz, L1+N + PE |
| Output Power | 7kW max |
| Output Current | 32A max |

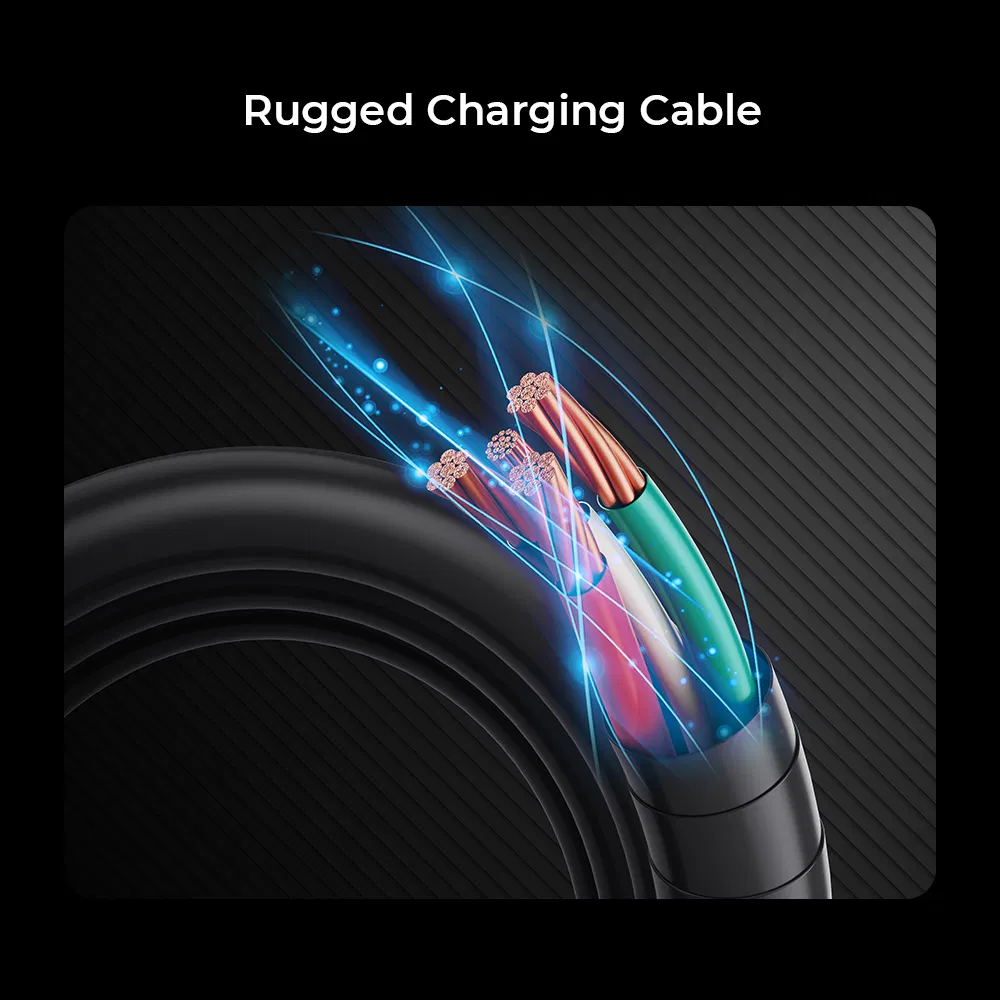

| Cable Length | 5m rugged PVC and copper cable |
| Operating Temp | -25°C to +50°C |
| Cooling | Natural Cooling |
| Protection | Over/under voltage, overload, leakage, grounding, surge |
Our products feature telecom-level design, multiple standard supports (CCS-1/2, CHAdeMO, GB/T), wider voltage ranges, and advanced modular design for better temperature adaptation and protection.

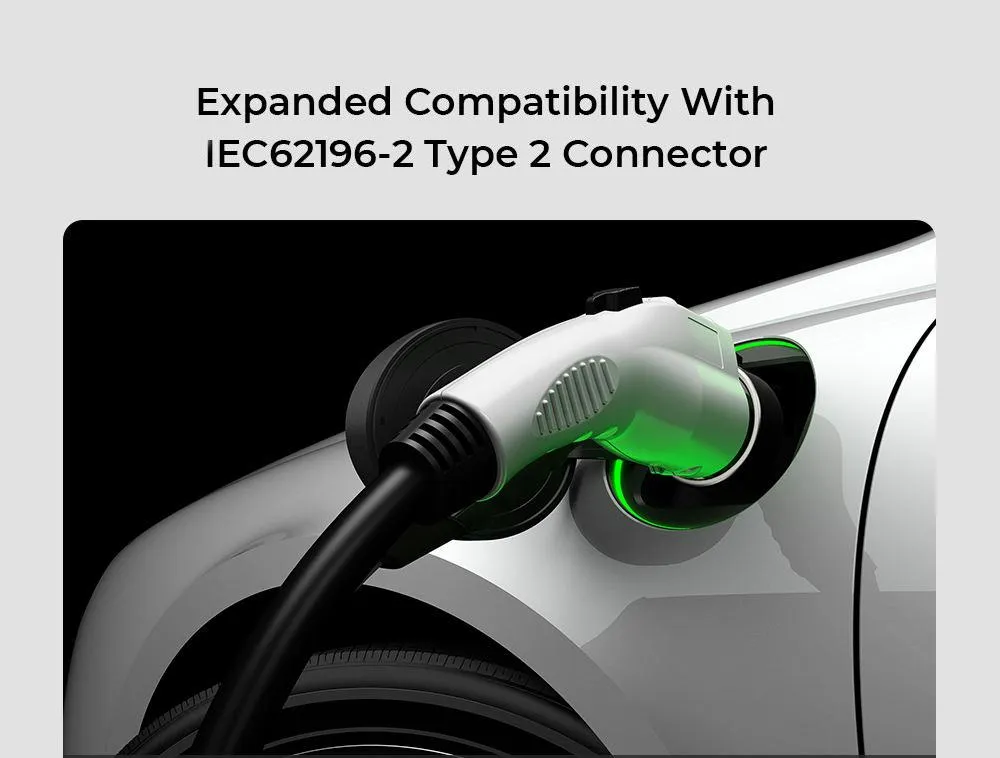

Yes, the EU version utilizes IEC62196-2 Type 2 connectors, which are compatible with most European AC electric vehicles, eliminating brand barriers for owners.
Absolutely. With the App Control mode, you can set charging times, adjust the current, and track your car's charging status directly from your smartphone via Wi-Fi or Bluetooth.
The device is equipped with over/under voltage protection, overload protection, current leakage protection, grounding protection, and lightning surge protection, along with a mechanical emergency stop switch.
Not necessarily. Charging speed is often limited by the vehicle's battery management system. However, high-power chargers support future battery improvements and can often charge multiple vehicles simultaneously.
Our EV charging stations are fully certified with CE (by DEKRA), TUV, and UL standards, ensuring they meet the highest global safety and quality requirements.
