One-Stop Solar Power Bank with Lithium Battery Energy Storage System EV Charging Station Integrated Outdoor IP54
One-Stop Solar Power Bank with Lithium Battery Energy Storage System EV Charging Station Integrated Outdoor IP54
One-Stop Solar Power Bank with Lithium Battery Energy Storage System EV Charging Station Integrated Outdoor IP54
One-Stop Solar Power Bank with Lithium Battery Energy Storage System EV Charging Station Integrated Outdoor IP54
One-Stop Solar Power Bank with Lithium Battery Energy Storage System EV Charging Station Integrated Outdoor IP54
1 / 5
One-Stop Solar Power Bank with Lithium Battery Energy Storage System EV Charging Station Integrated Outdoor IP54
One-Stop Solar Power Bank with Lithium Battery Energy Storage System EV Charging Station Integrated Outdoor IP54
One-Stop Solar Power Bank with Lithium Battery Energy Storage System EV Charging Station Integrated Outdoor IP54
One-Stop Solar Power Bank with Lithium Battery Energy Storage System EV Charging Station Integrated Outdoor IP54
One-Stop Solar Power Bank with Lithium Battery Energy Storage System EV Charging Station Integrated Outdoor IP54

One-Stop Solar Power Bank with Lithium Battery Energy Storage System EV Charging Station Integrated Outdoor IP54

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
LDS003
Solar Panels System
Ground Mount Solar System off Grid Home
Technical Support
Professional Guidance
Delivery Time
7 Days
Efficiency
99.8%
Rated Capacity
314ah
Human-Computer Interaction
Internet of Things + APP
Communication Interface
Can/RS485
Protection Level
IP55
Corrosion Resistance
C4 (C5 Optional)
Fire Protection Rating
Aerosol
Number of Cycles
> 6000 Times
Working Temp
25ºC ± 5ºC
Origin
China
HS Code
8501722000
Packaging & Delivery
Package Size
154.50cm * 204.50cm * 143.50cm
Package Gross Weight
2350.000kg
Transport Package
Wooden Box
Product Description
Product NameSolar-storage integrated machine
Cell typeLFP (LiFePO4)
Rated Capacity314Ah
Rated Energy128kWh
Rated Voltage409.6VDC
Max Charging Voltage467.2VDC
Discharge Cut-off Voltage339.2VDC
CommunicationCAN/RS485
Operating Temp (Charge)0ºC - 55ºC
Operating Temp (Discharge)-20ºC - 60ºC
Overall Dimensions1035*2045*1386mm
Weight1736kg
Detailed Photos

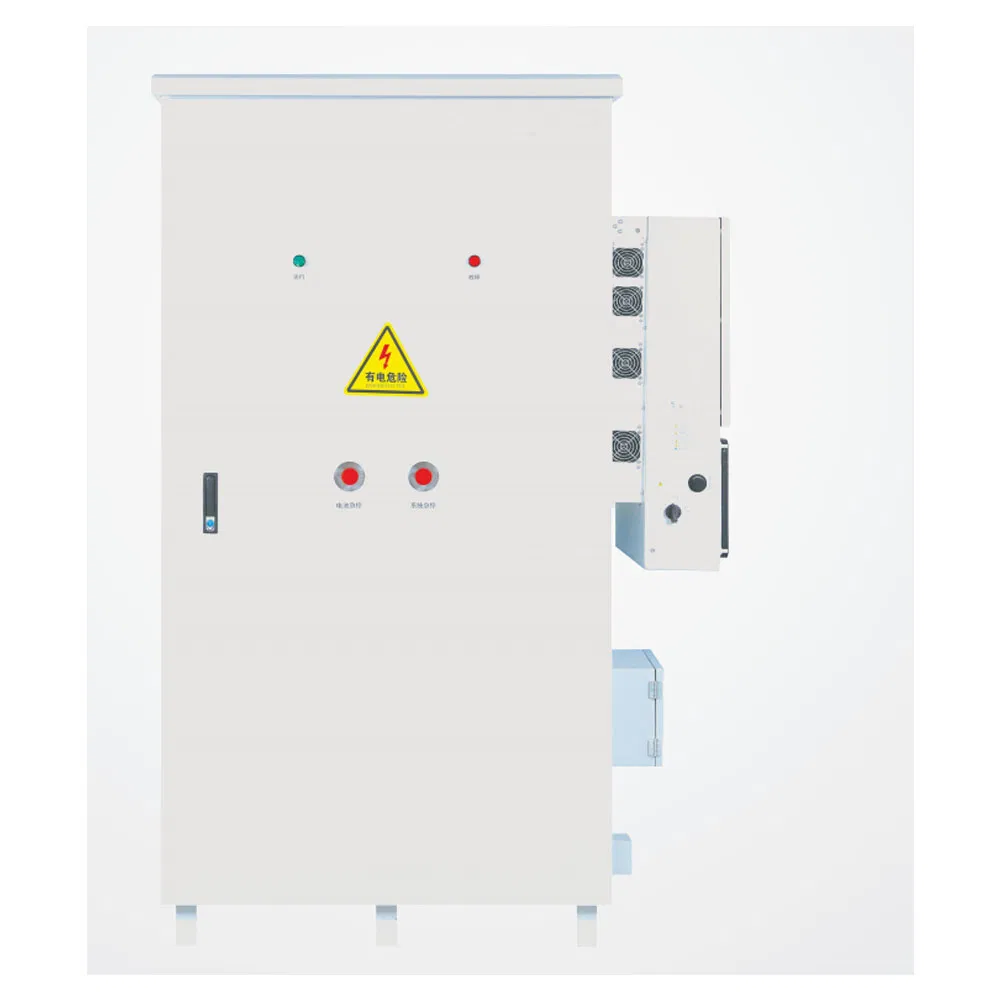

Product View 1

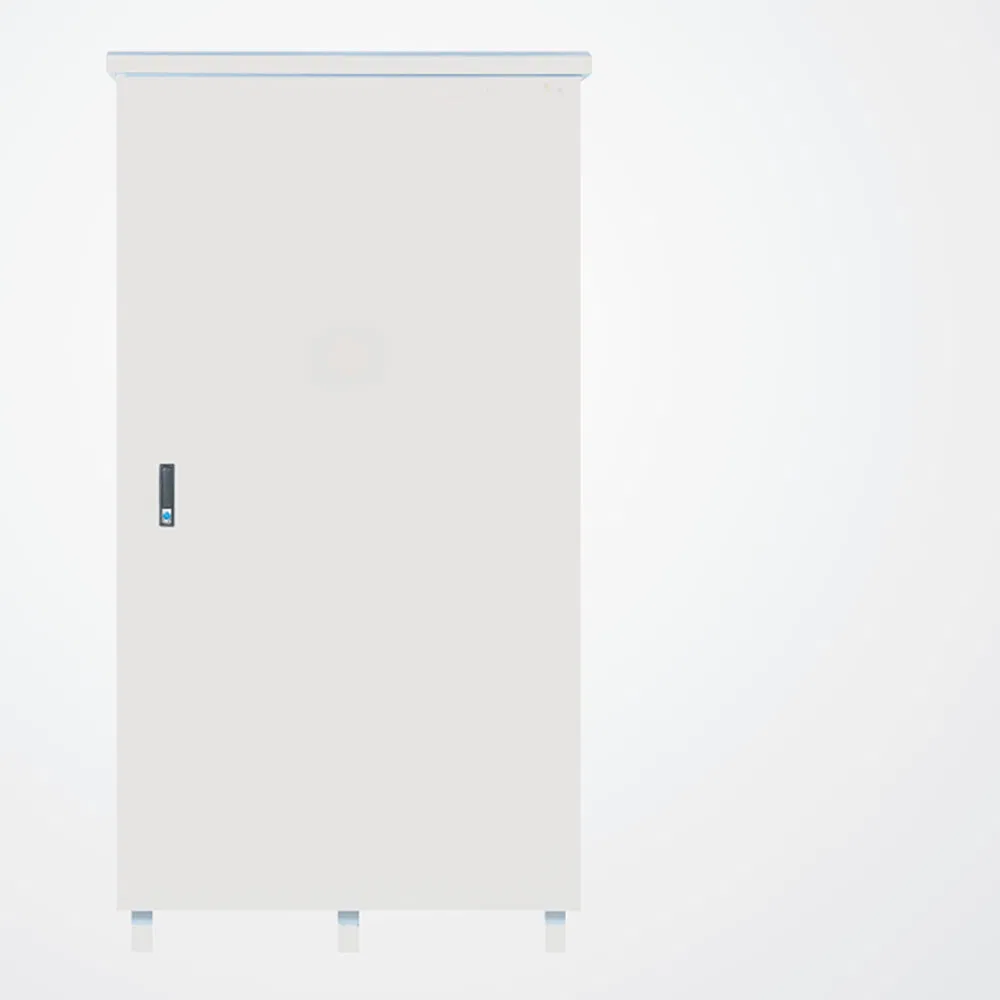

Product View 2

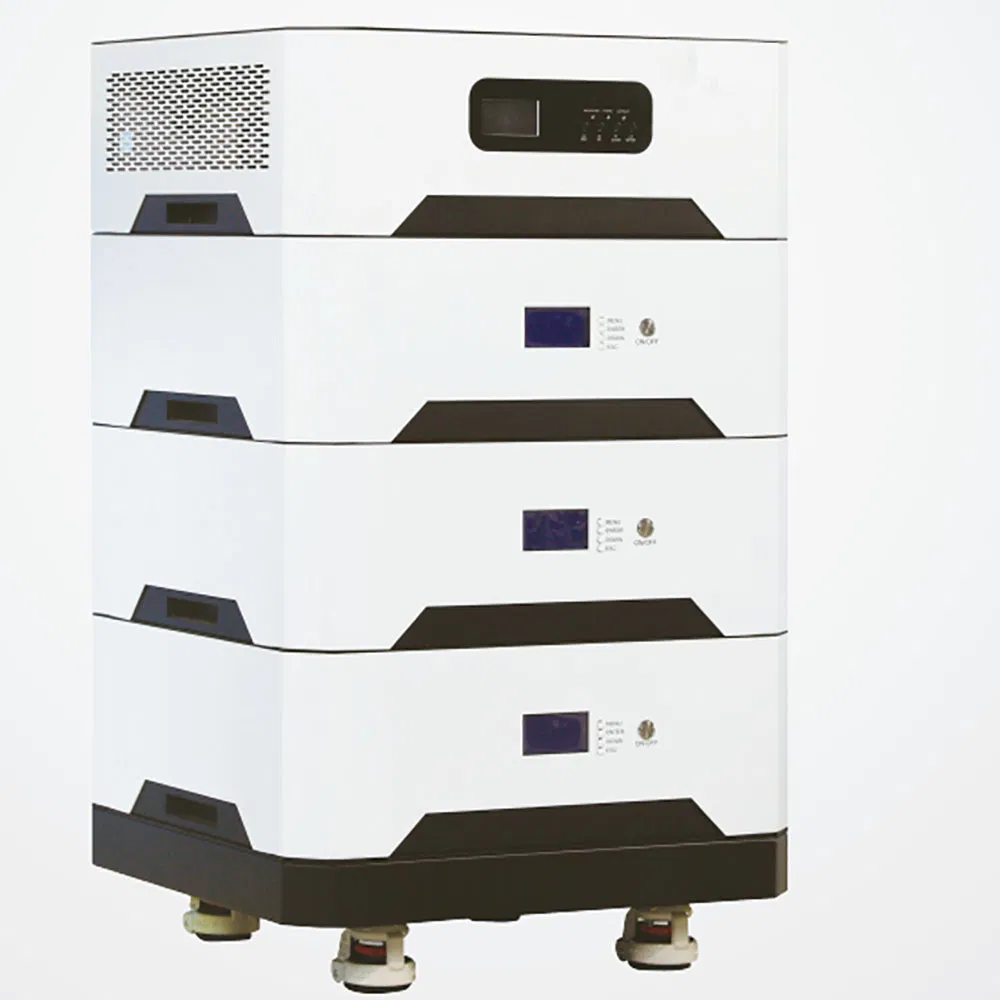

Product View 3

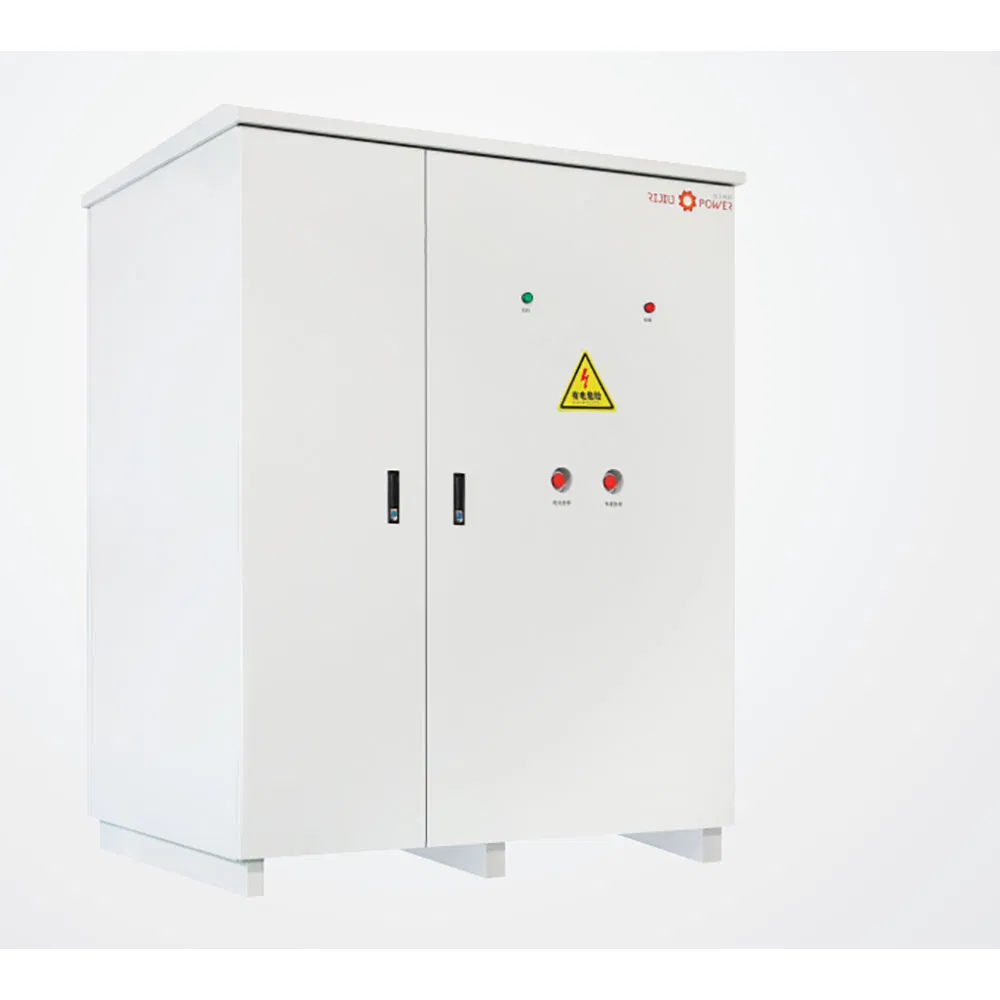

Product View 4
Installation Instructions

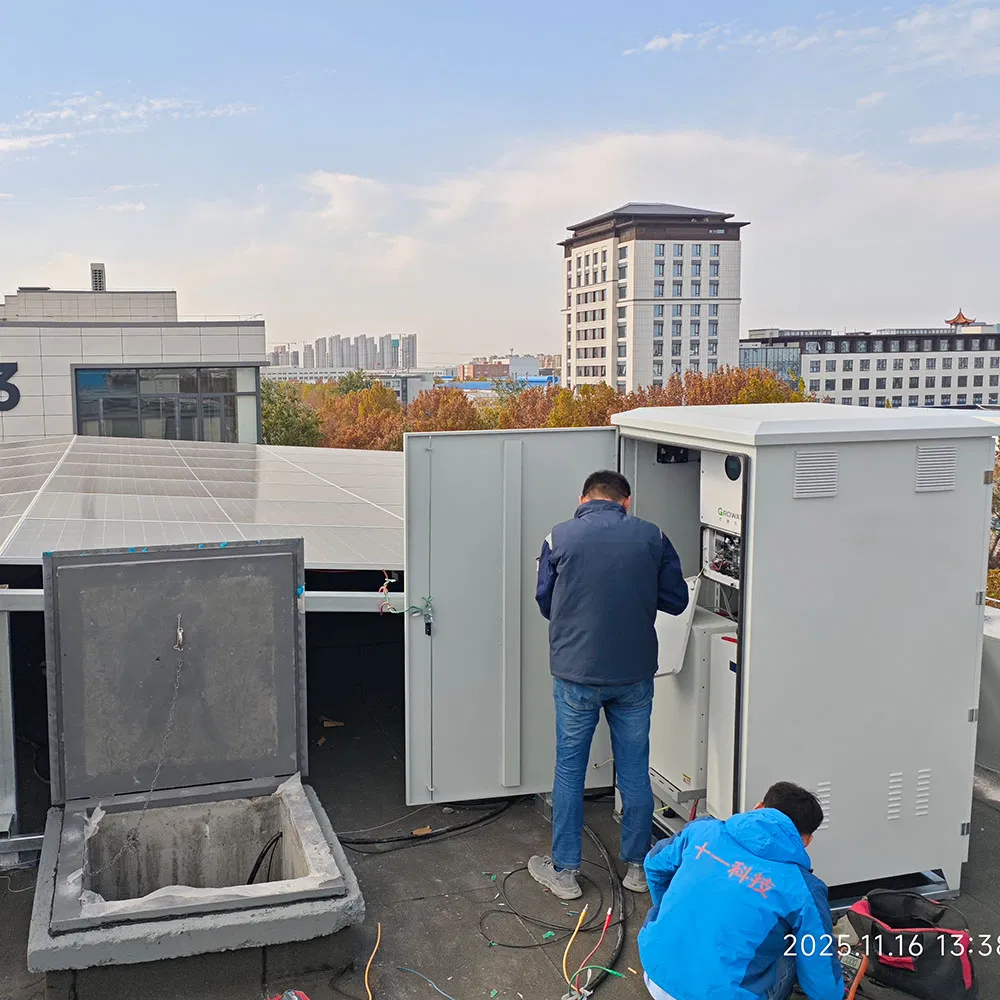

Installation 1

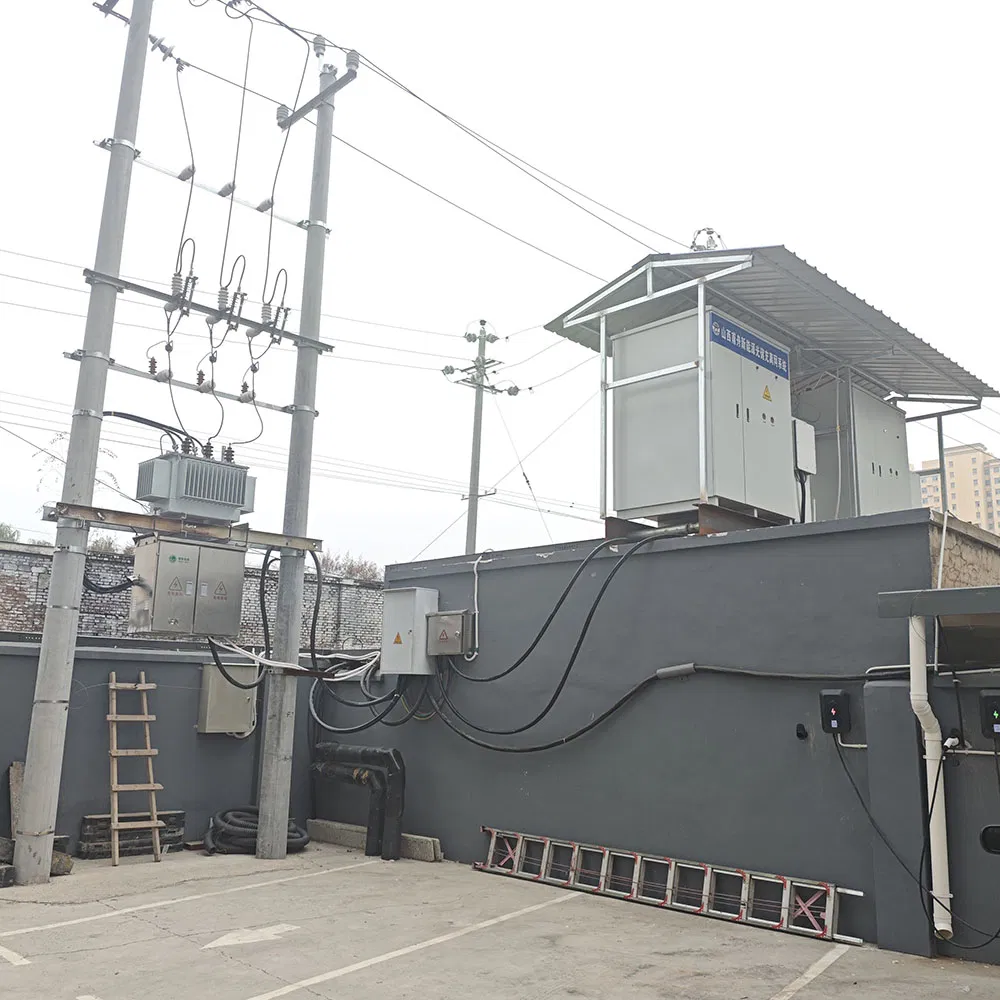

Installation 2

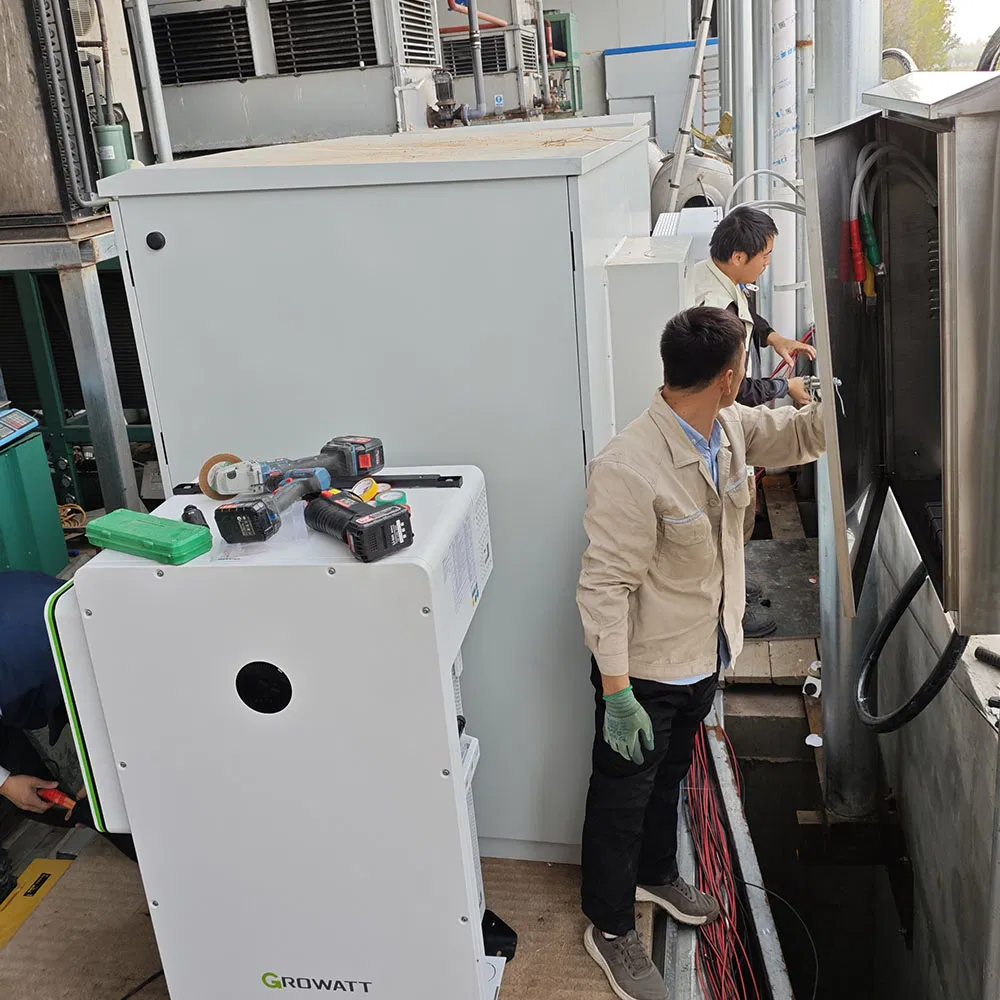

Installation 3

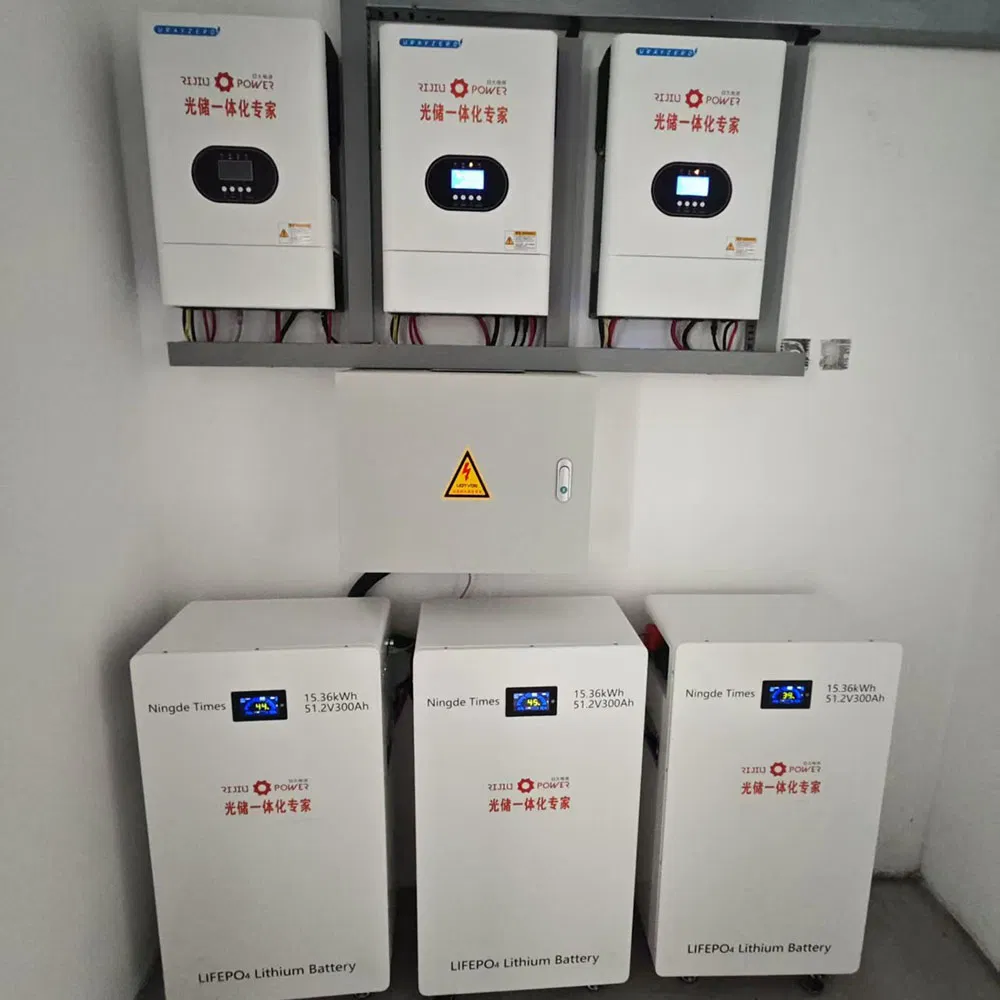

Installation 4

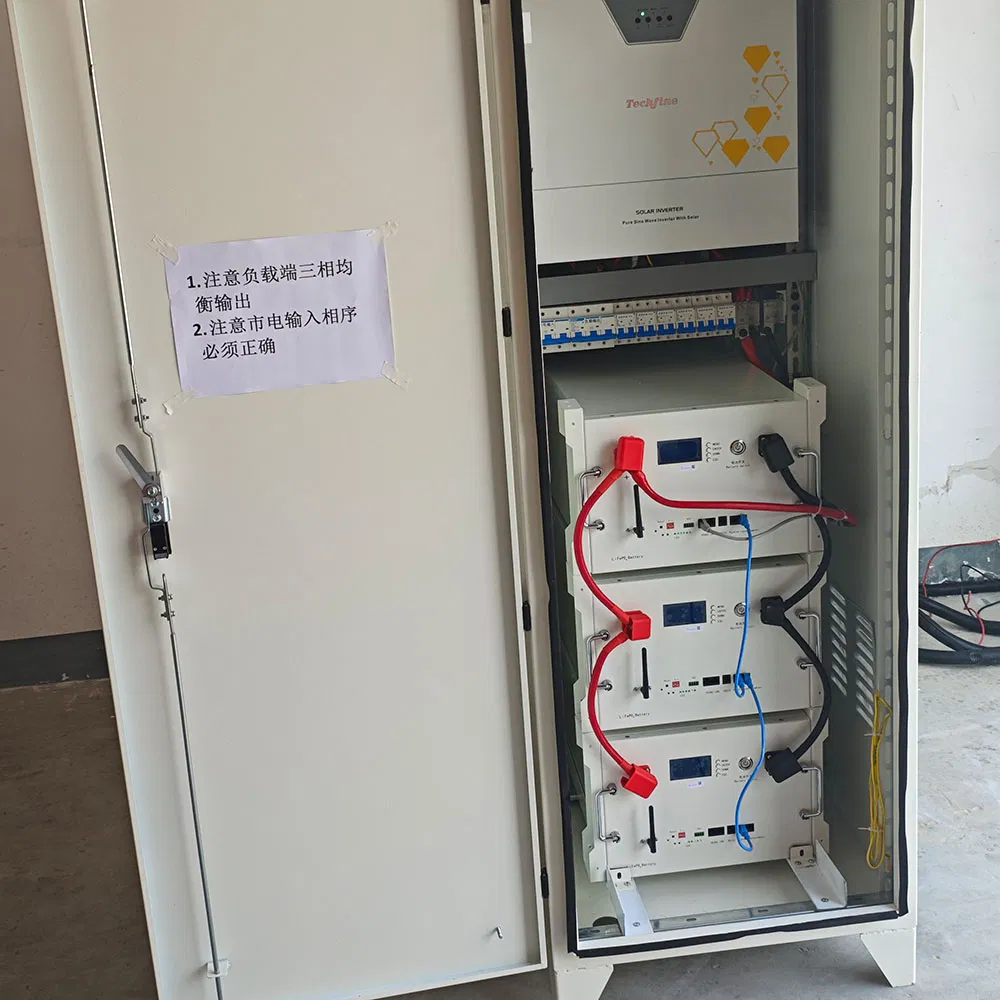

Installation 5

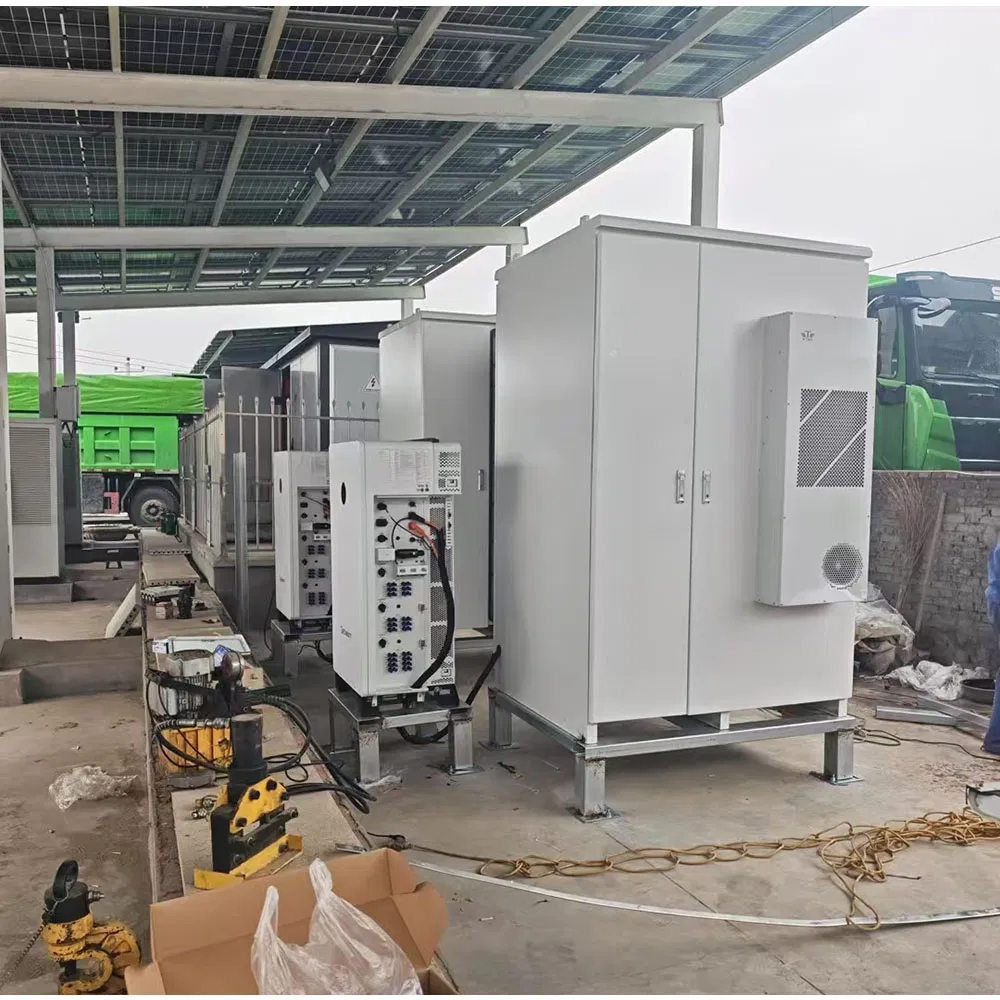

Installation 6

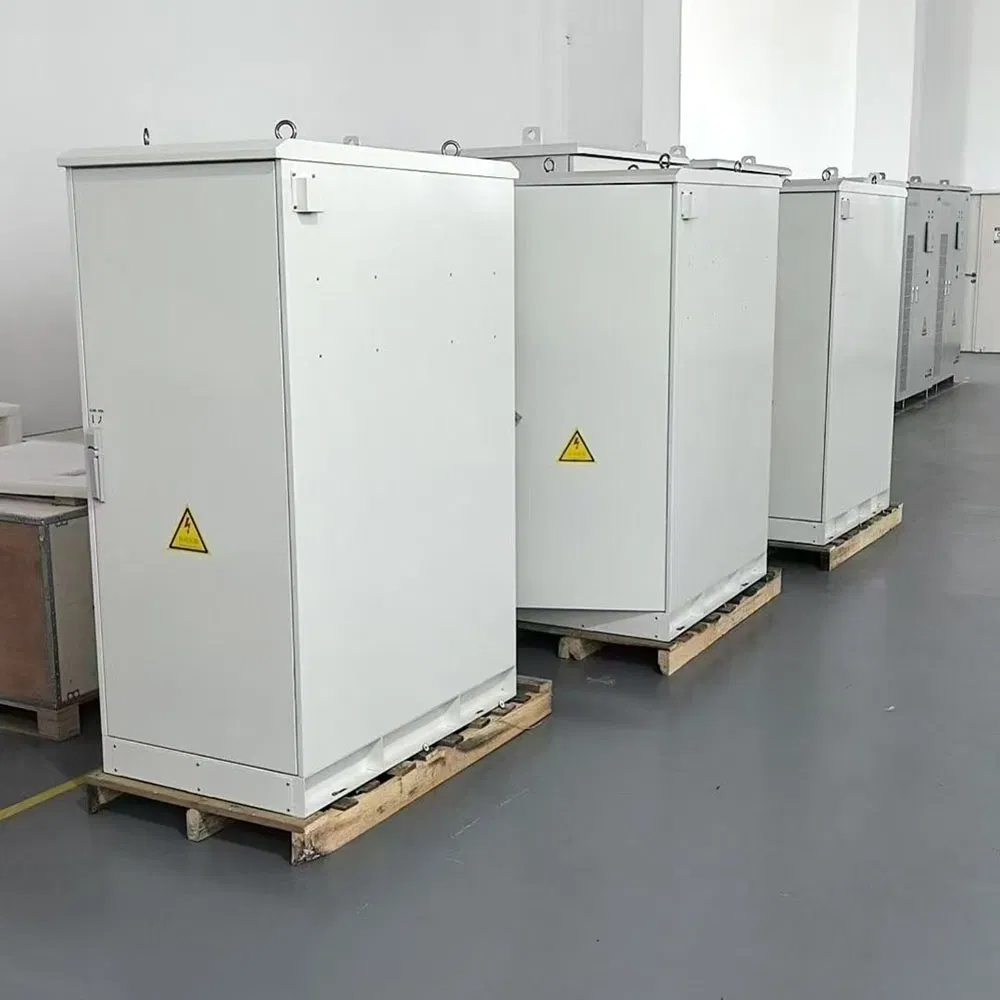

Installation 7

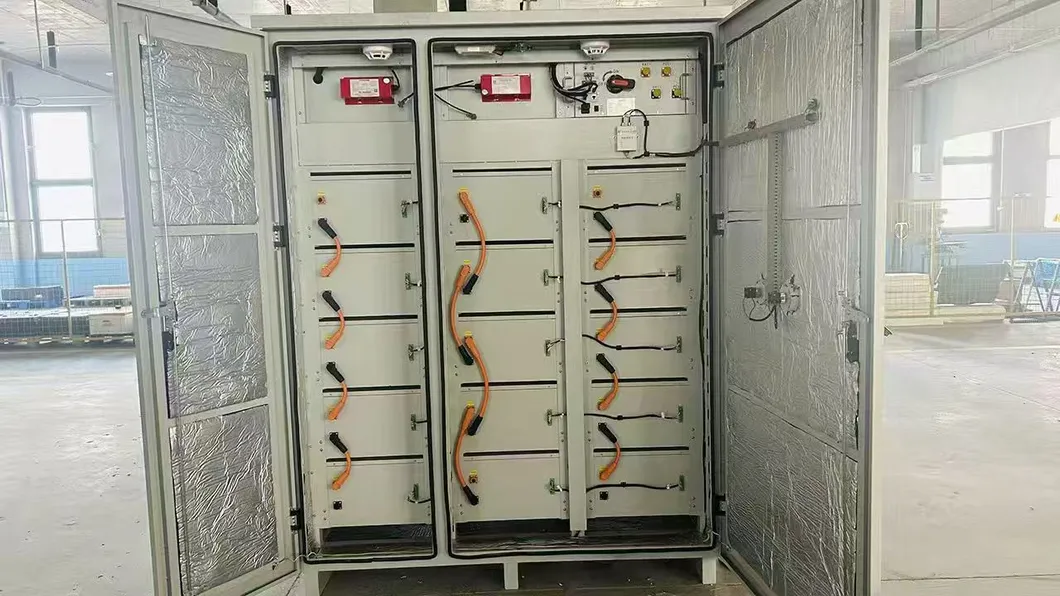

Installation Diagram
Frequently Asked Questions
How does DC coupling optimize the use of renewable energy in a large-scale system?
It allows for more captured solar energy to be stored directly, with minimal losses. This optimization ensures that a greater portion of the generated solar power is used either on-site or dispatched to the grid, enhancing project sustainability.
What role does the Power Conversion System (PCS) play?
The PCS is the core component. It functions as a high-power, bidirectional inverter that converts DC from the solar and batteries to AC for use, streamlining the infrastructure.
What are the primary advantages of a DC-coupled system?
Key advantages include higher overall system efficiency, a simplified layout with fewer components, reduced balance of system (BOS) costs, and seamless on/off-grid integration.
Why is DC coupling considered more efficient for solar battery storage?
It avoids multiple DC-AC-DC conversion steps. Solar energy can directly charge the batteries in DC form, reducing energy losses and maximizing ROI.
What is the expected lifespan and cycle count of the battery cells?
The system utilizes high-quality LFP cells rated for over 6,000 cycles, ensuring long-term reliability and performance for energy storage applications.
What communication interfaces are supported for monitoring?
The system supports CAN and RS485 communication interfaces, integrating with the Internet of Things (IoT) and dedicated APP for real-time human-computer interaction.
