| Basic Specifications | System Features | ||
|---|---|---|---|
| Model NO. | HT-500/2000-EC | Nominal Voltage | 380/400/415/480V 3 Phase |
| Warranty | 5 Years | Nominal Capacity | 250kwh, 500kwh, 1mwh, 2mwh |
| Cycle Life | 6000+ Cycles | Battery Type | LiFePO4/Lithium/Gel |
| Installation | 20FT Container, IP54 | Efficiency (DoD) | 0.5/1c @ 80% |
| Output Frequency | 50/60Hz | Support | Pre-Sales & Technical Support |
| Item | Description | Qty | Remarks |
|---|---|---|---|
| PV Solar Panel | HT560M-72H | 960 | Total 537.6KW capacity |

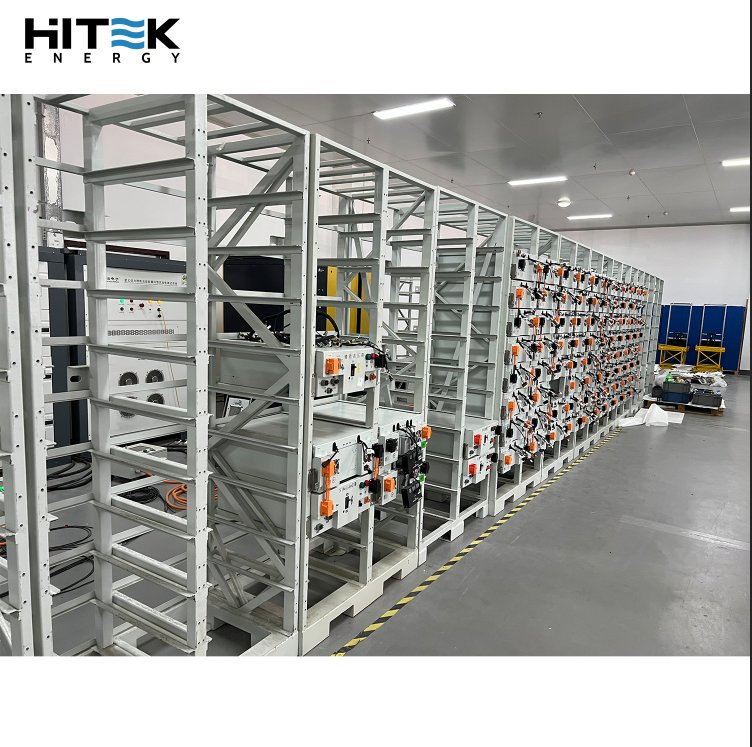

| Battery Backup | 2150.4KWH | 150 Modules | 1720.32KWH @ 80% DOD |

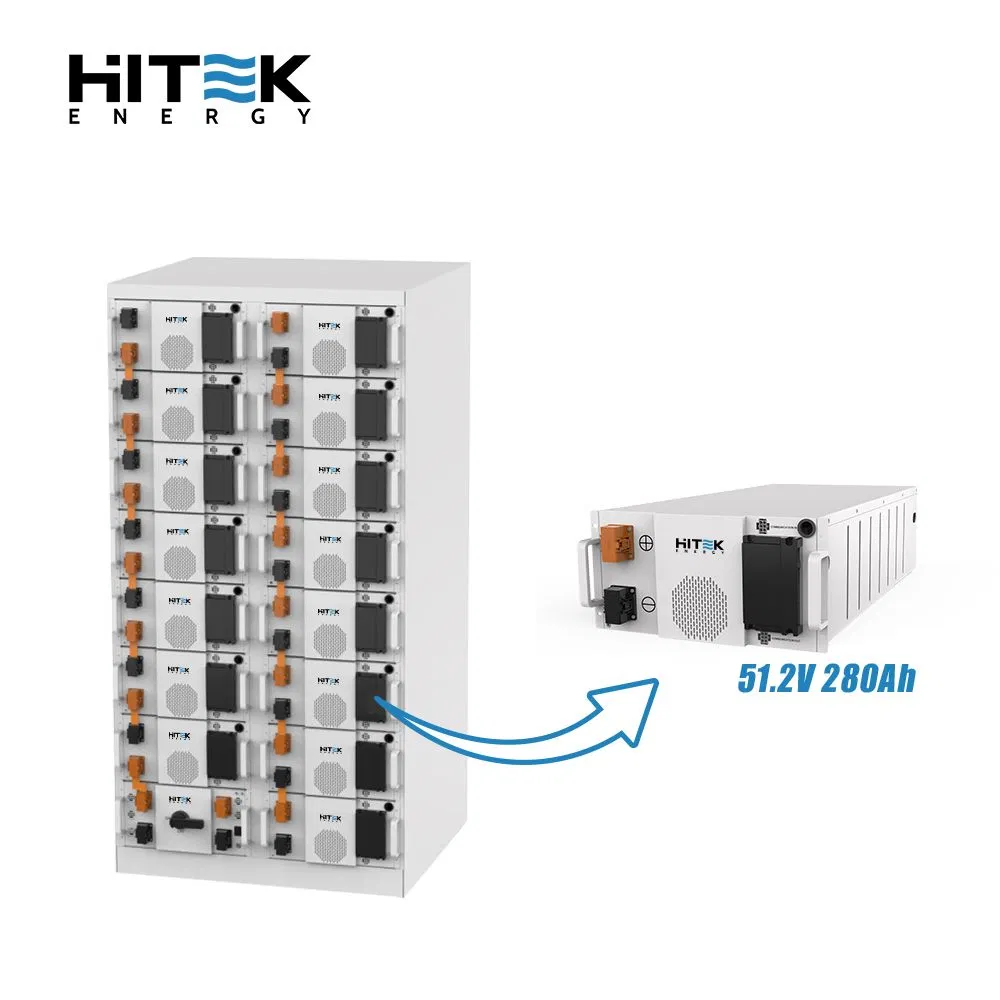

| Lithium Module | 280Ah LiFePO4 | 150 | 51.2V 280AH / 14.3kWh each |
| PCS500 Inverter | 500KW Bi-directional | 1 | Integrated battery inverter |

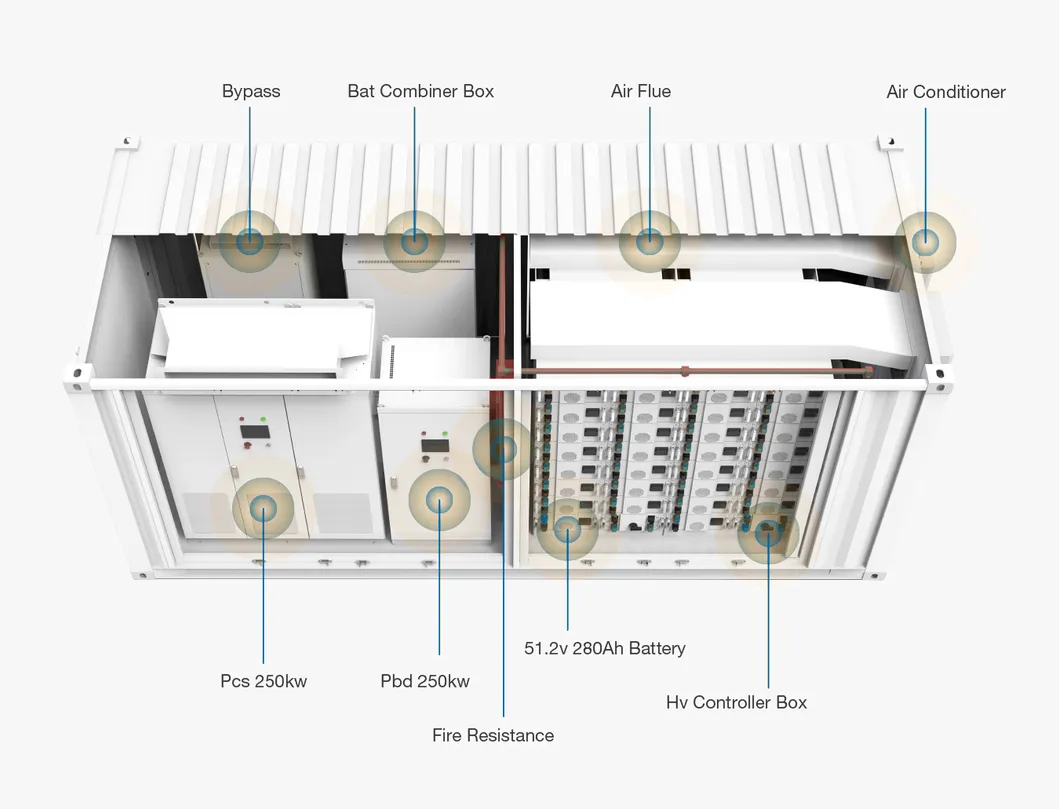

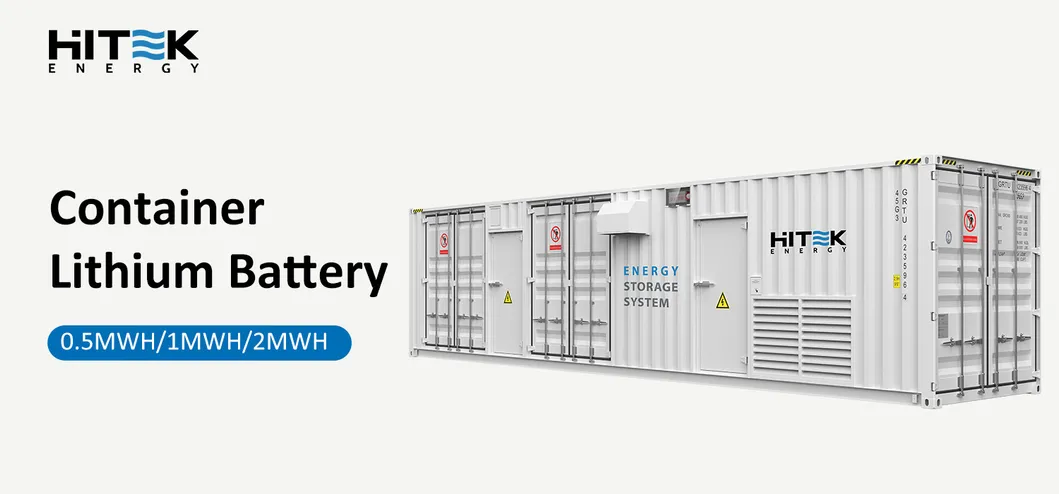

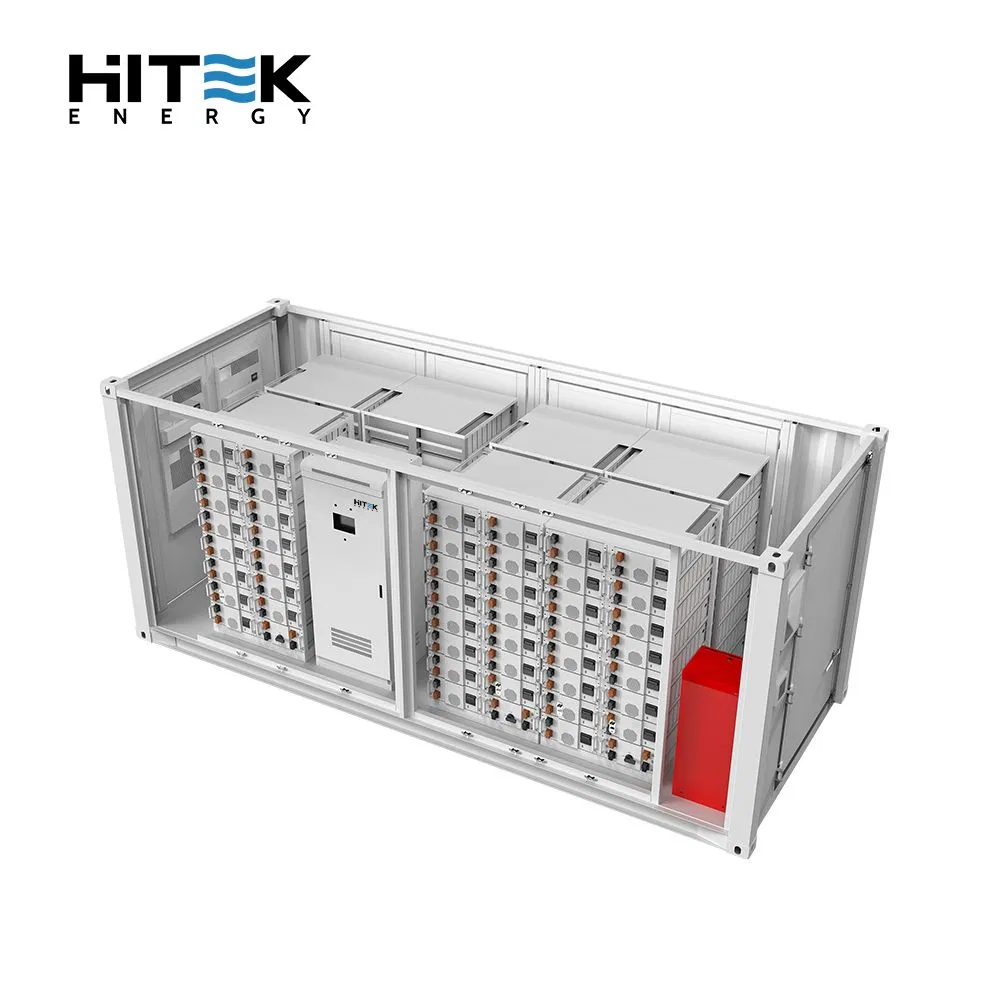

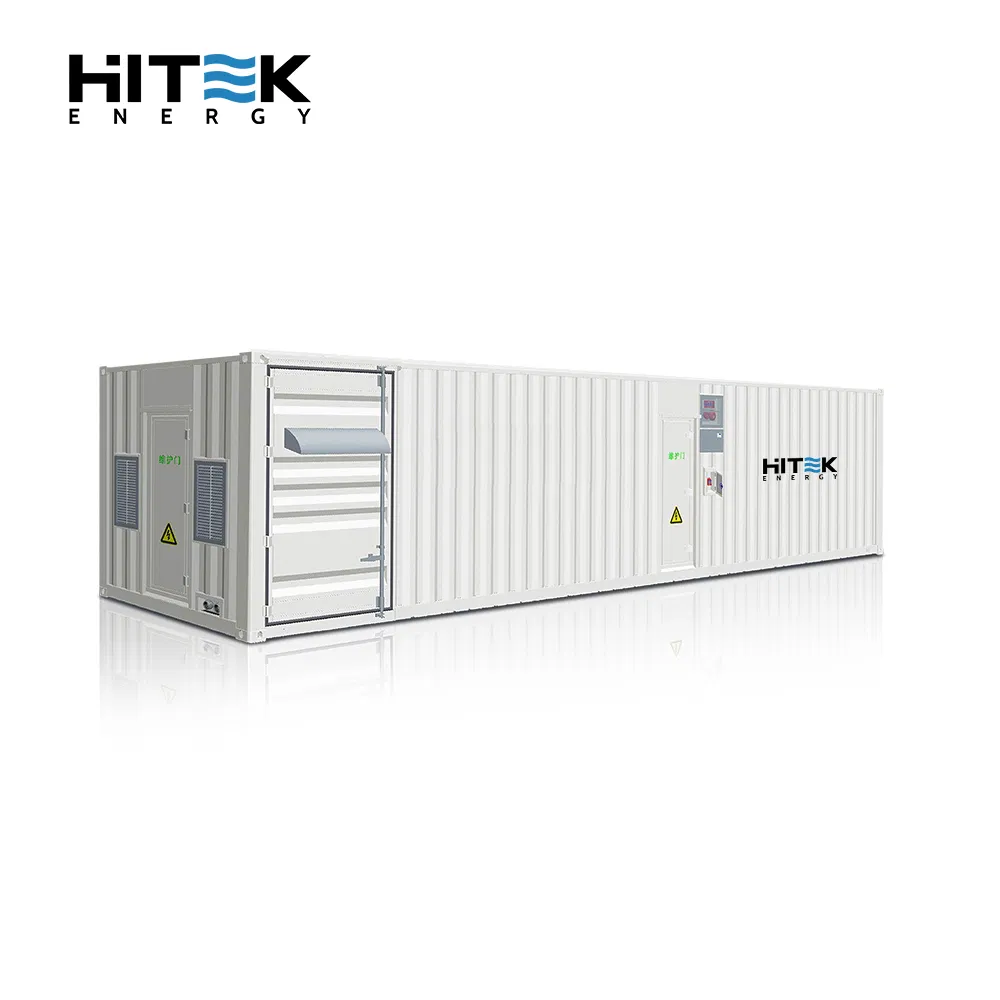

| Container | 20FT Industrial | 1 | IP54 Outdoor, including Fire/Air-con |
*This system can be customized according to specific energy needs and application scenarios.

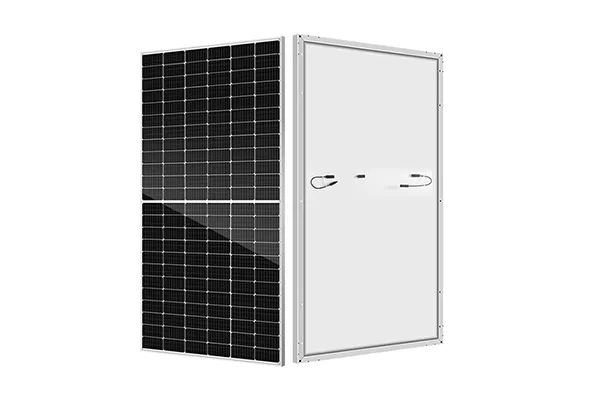

Model: HT560M-72 | Power: 560Wp
Voc: 49.84v | Isc: 14.14A
Vmp: 41.08v | Imp: 13.64A

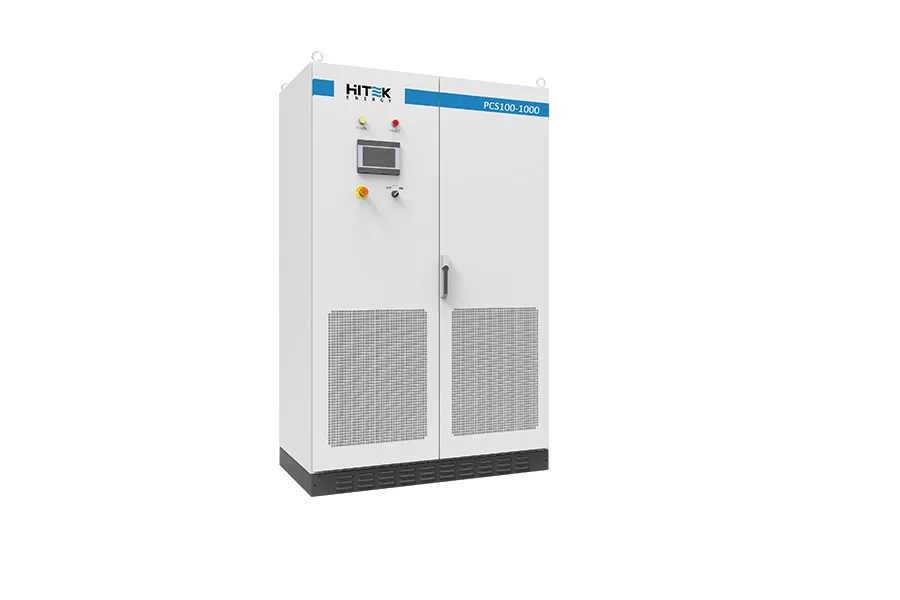

Bidirectional battery inverter. Programmable working modes, flexible configuration, and touchscreen interface.

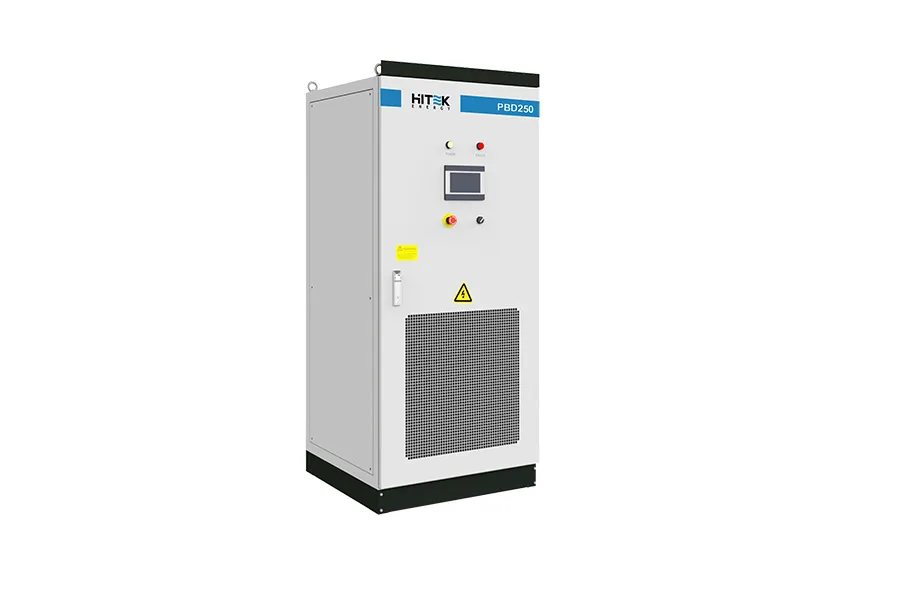

1000V DC-DC controller. Modular design with up to 5 MPPTs for large-scale solar projects.

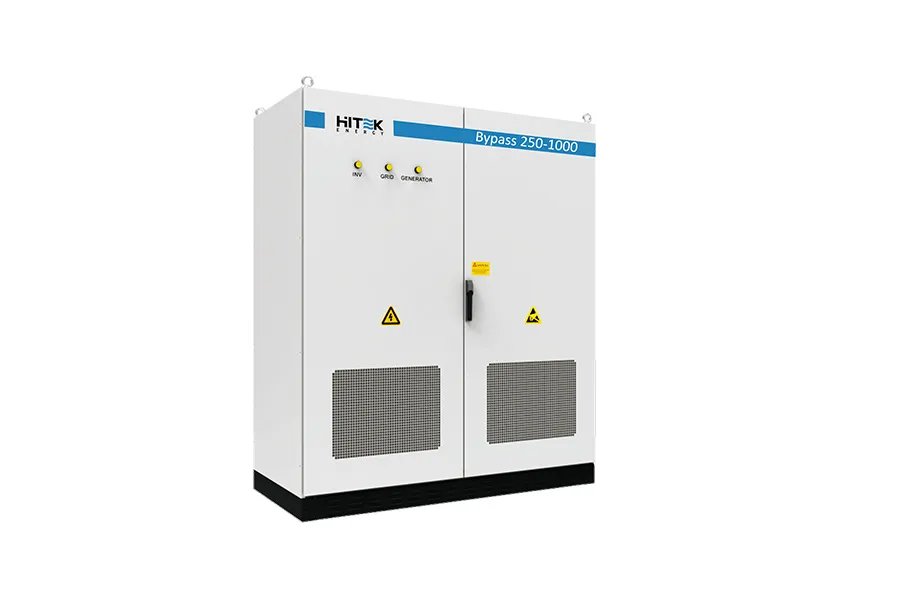

Ensures seamless transfer between on-grid and off-grid modes automatically.

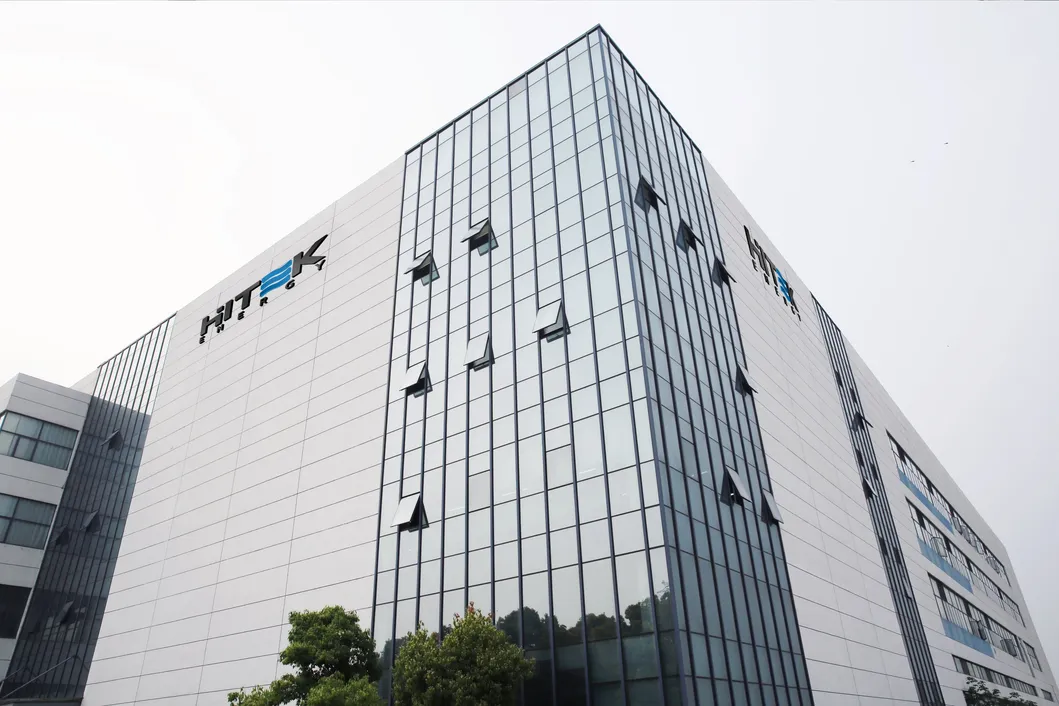

Founded in 2018, we are a superior photovoltaic manufacturer dedicated to providing sustainable and renewable energy solutions for homes, businesses, and factories.
