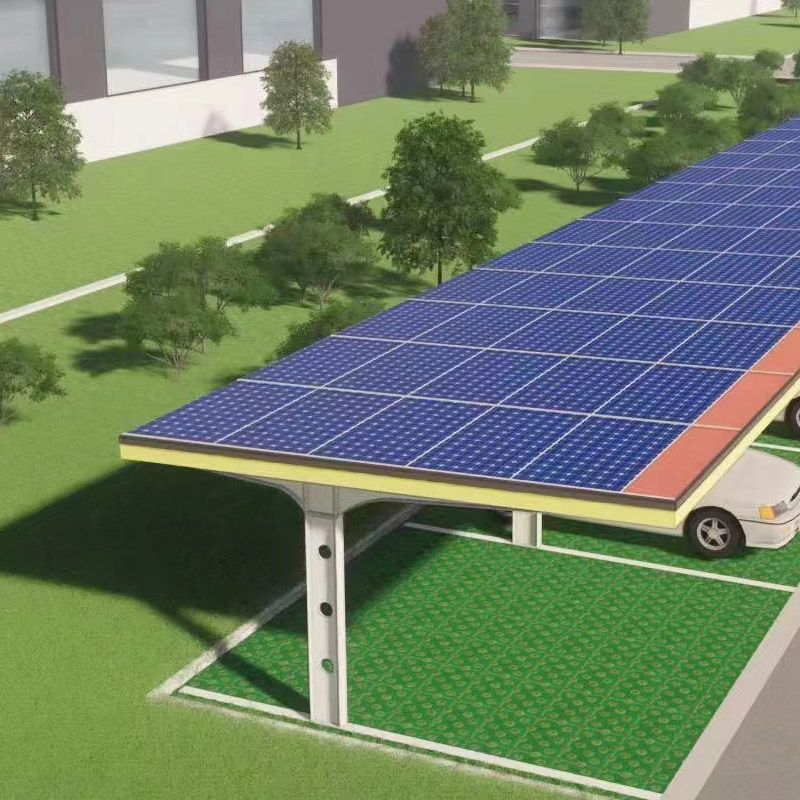

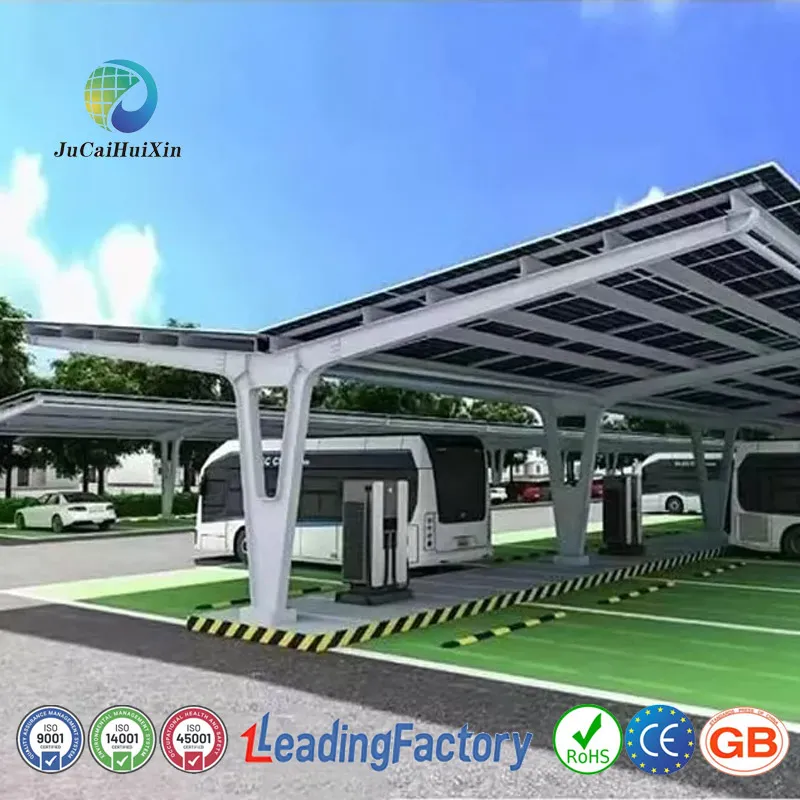

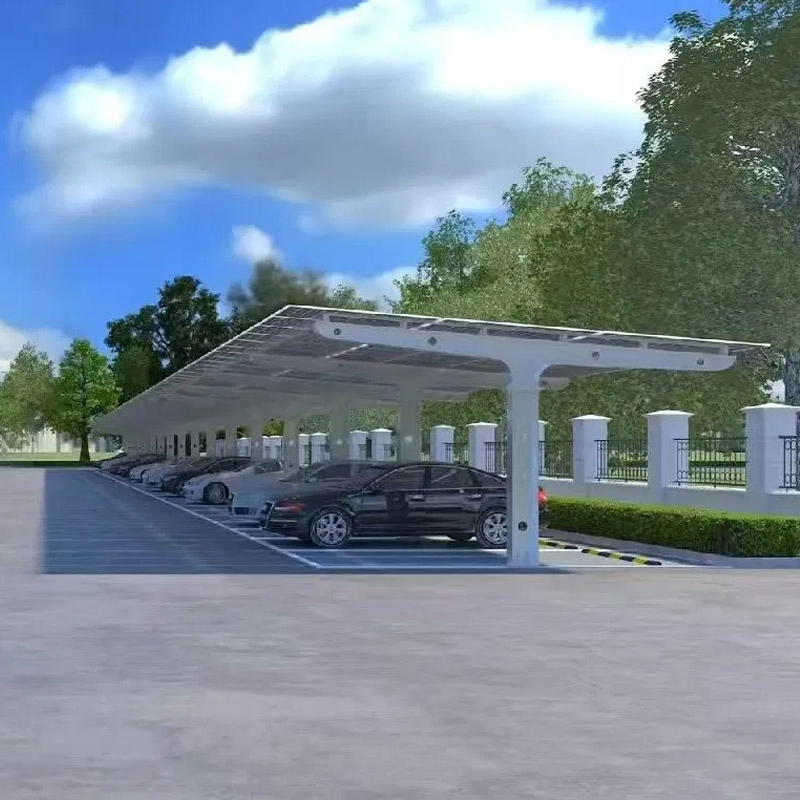

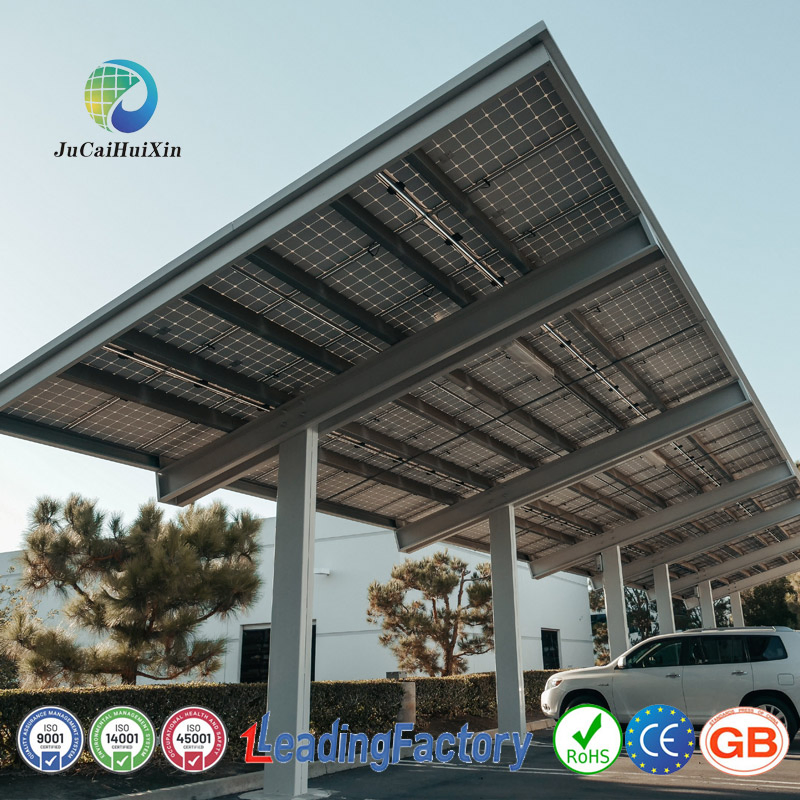

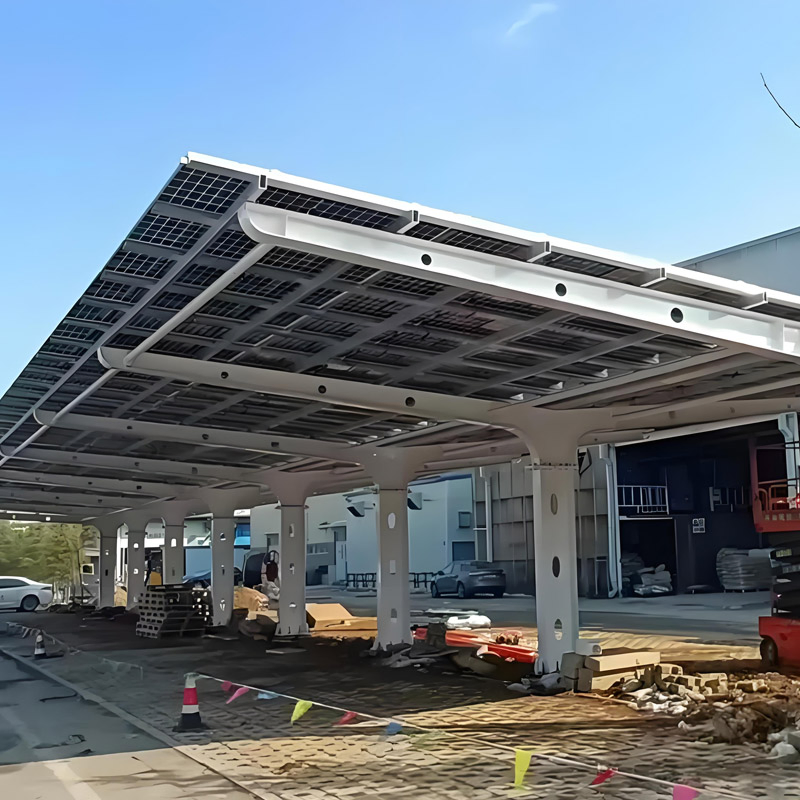

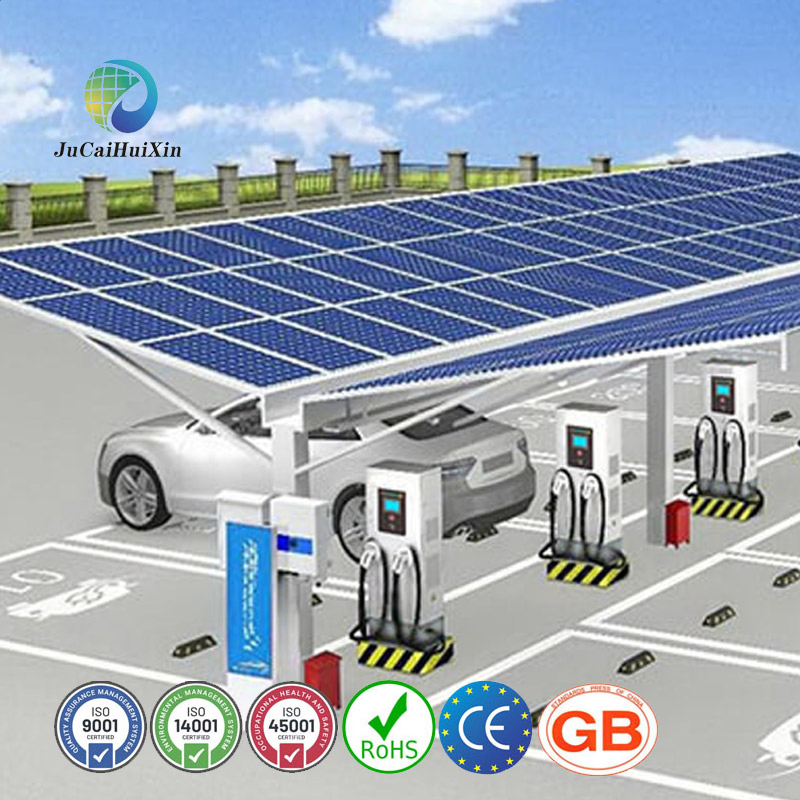

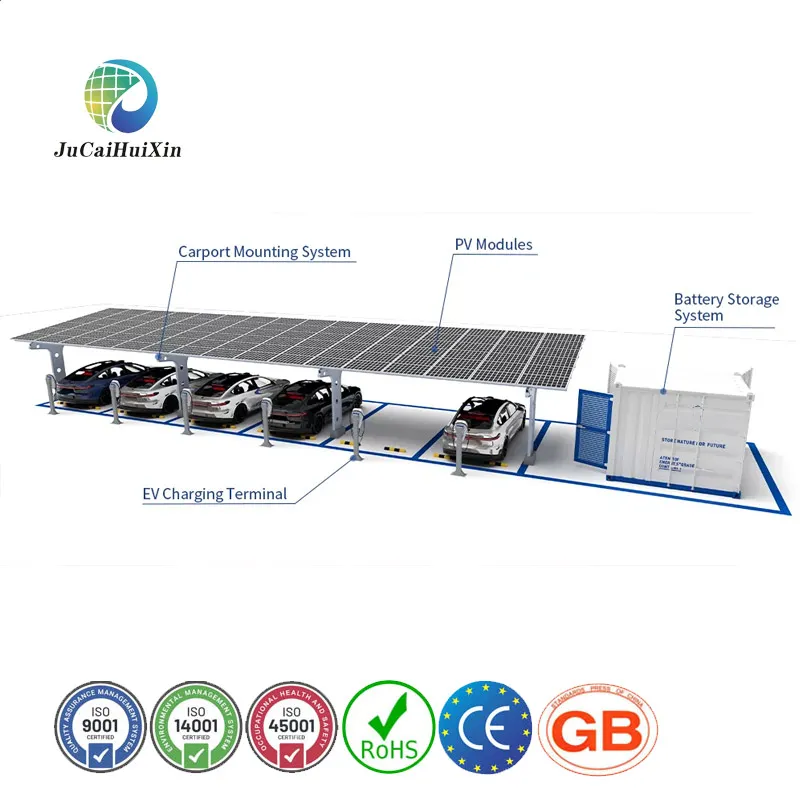

Designed for electric vehicle charging scenarios, this high-performance solar carport system combines photovoltaic power generation, vehicle shading and energy management to create a green and efficient parking solution. Adopting high-efficiency monocrystalline silicon solar panels and modular aluminum and steel structure, the average daily power generation can cover the charging demand of 1-3 electric vehicles. It supports grid-connected or off-grid operation and is suitable for commercial, residential and public parking lots.
| Categories | Parameter details |
| Photovoltaic module | Solar carport for parking lot, combining aesthetics and functionality. |

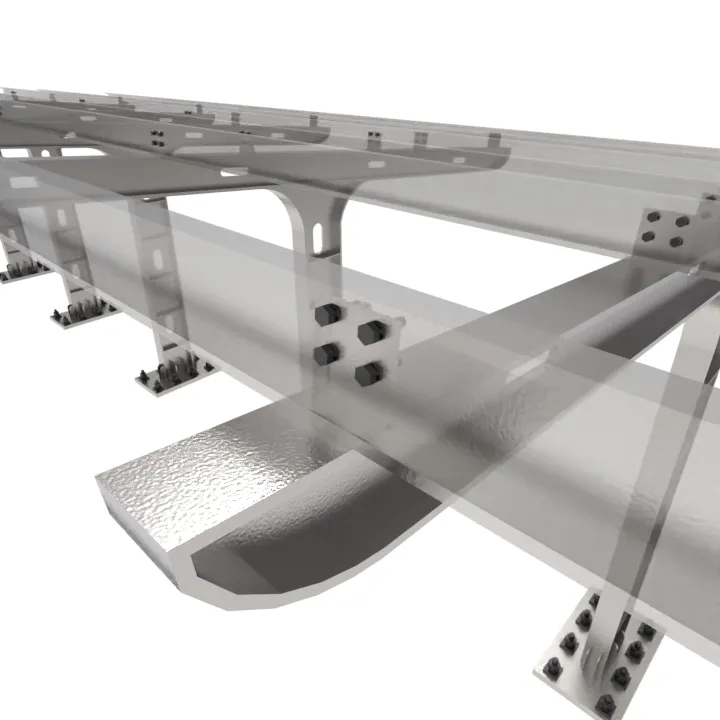

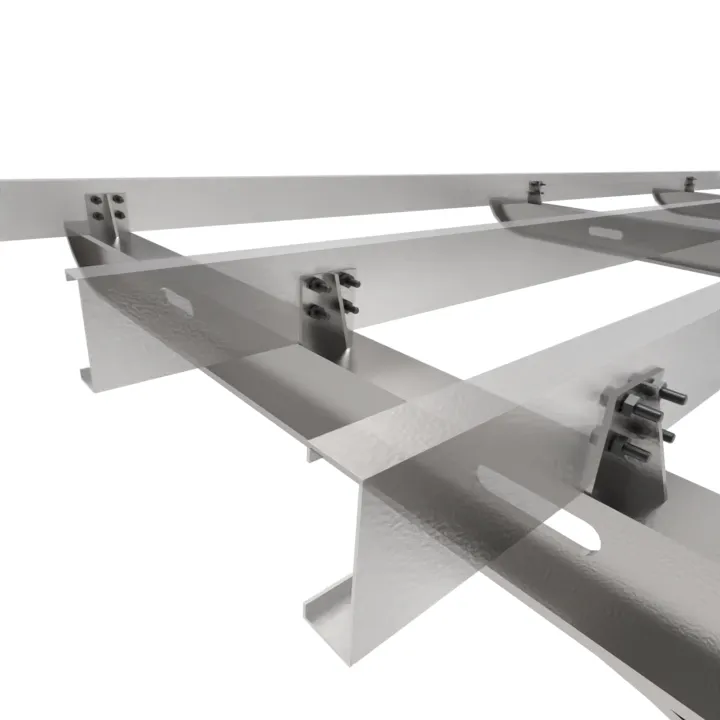

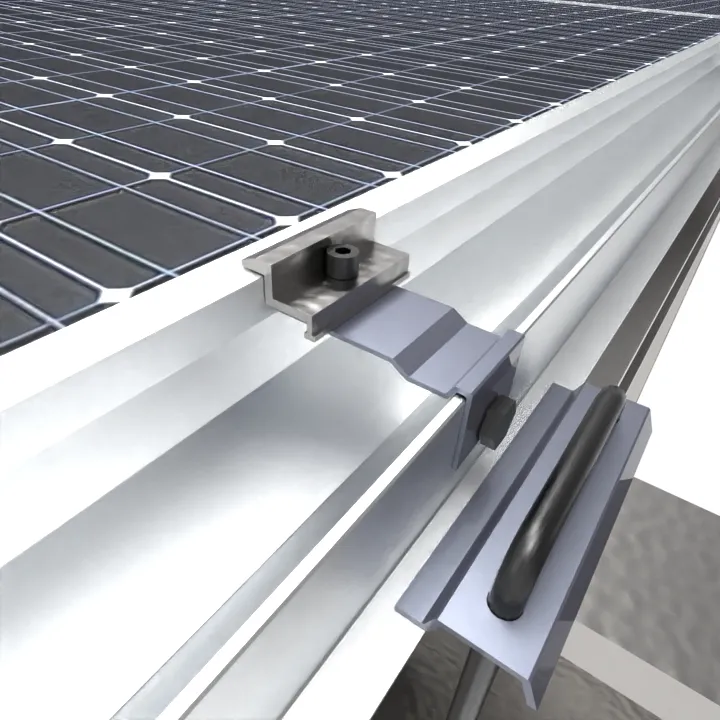

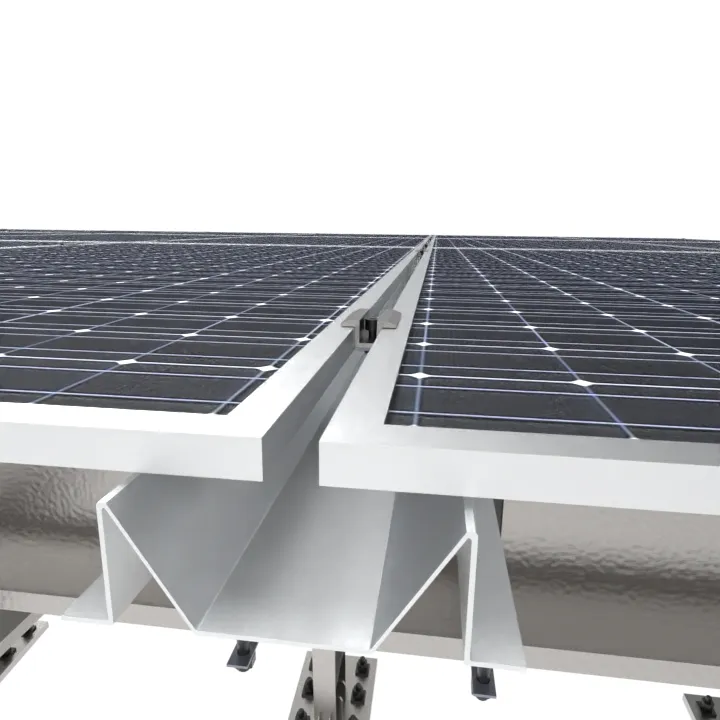

| Structural design | 6063-T6 aluminum alloy frame, wind resistance class 12 (60m/s), snow load 1.5 kN/m² |
| Charging compatibility | Support AC/DC charging pile, output voltage 220V-480V, suitable for mainstream electric vehicle brands |
| Customization Options | Size (single span 3-12 m), color scheme (12 RAL standard colors), roof inclination (10°-30°) |
| System life | 25-year performance warranty, annual attenuation rate ≤ 0.5% |
Average daily power generation is 1.5-2.8 kWh/m², which can be used to supply power to the charging pile directly or stored in the battery system. Double-glass anti-glare panel reduces light pollution, light transmission rate ≤5%.

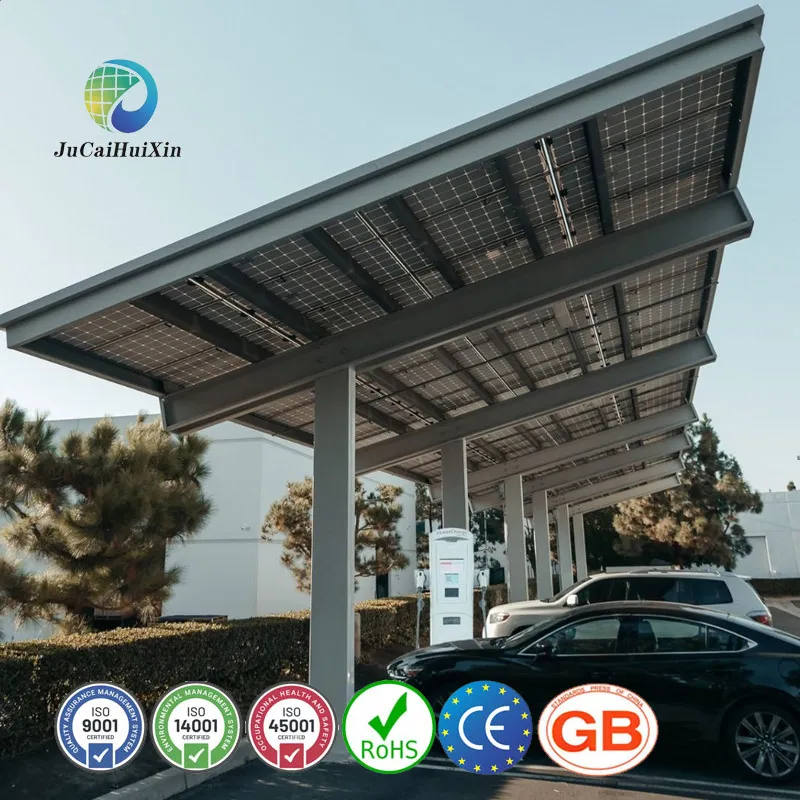

The roof structure shields the vehicle from ultraviolet rays, hail, rain and snow, reducing paint aging. The pre-buried design of columns ensures the ground is level.
Through power generation and government subsidies, the payback period is about 5-7 years. Helps enterprises achieve ESG goals by reducing carbon emissions by 80-120 tons/100 square meters.
