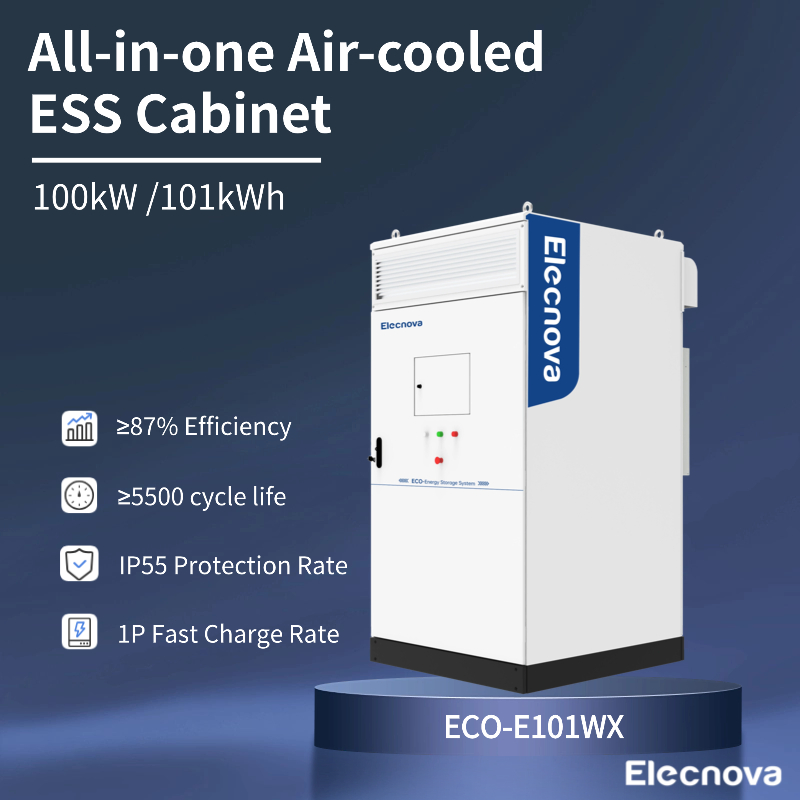

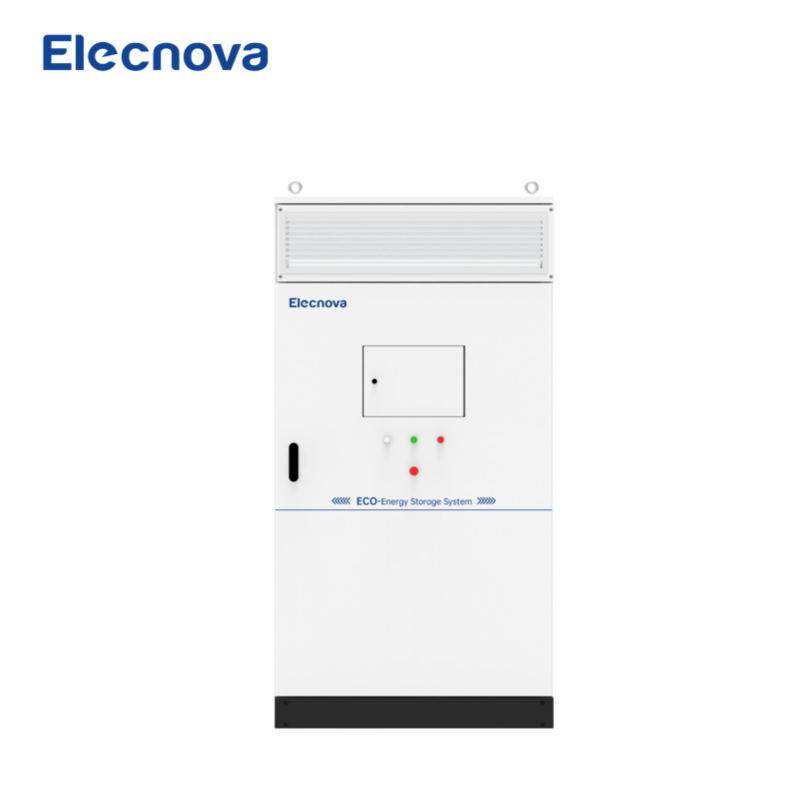

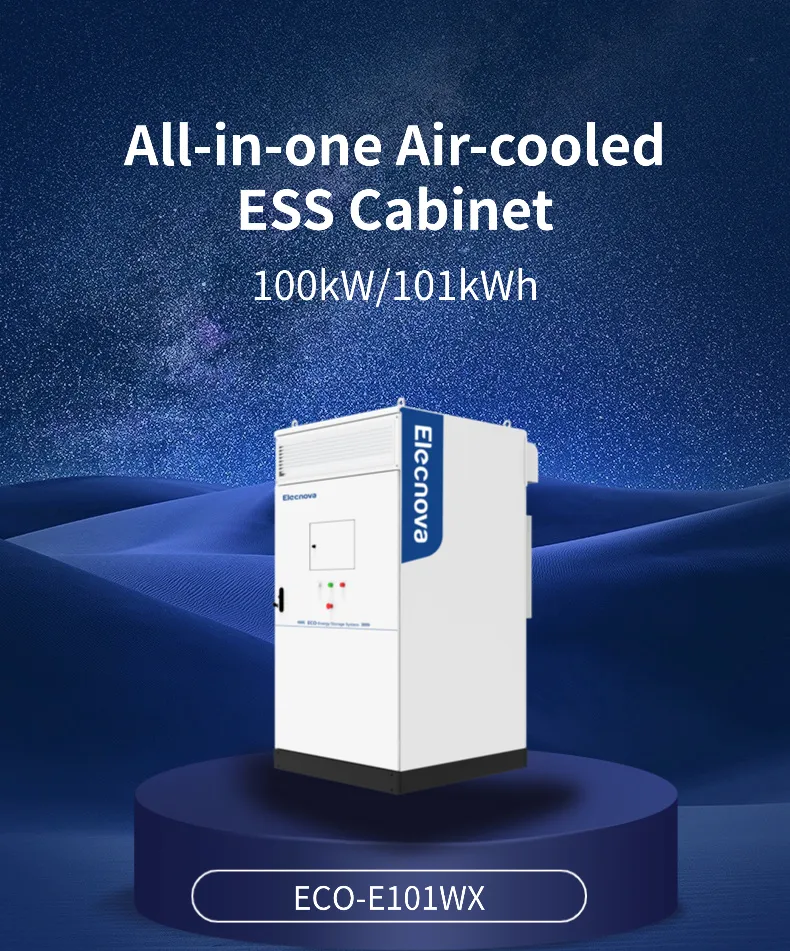

The all-in-one air-cooled ESS cabinet integrates long-life battery, efficient balancing BMS, high-performance PCS, active safety system, smart distribution and HVAC into one cabinet, enabling long-term operation with safety, stability and reliability. Through AC side parallel connection, it achieves agile deployment of ESS power station with flexible capacity expansion.

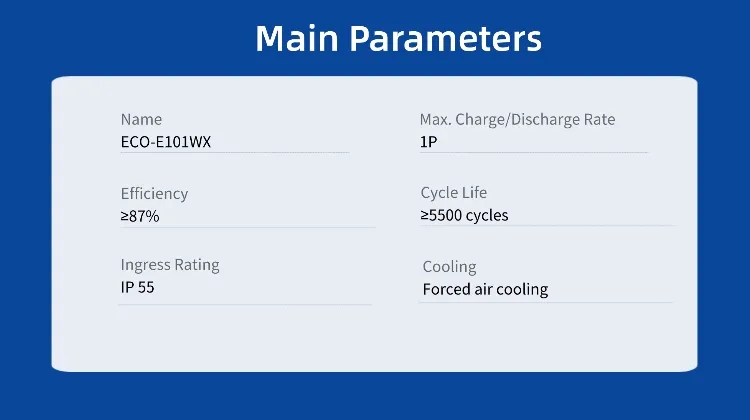

| DC Side Specifications | |
|---|---|
| Cell Type | LFP / 120 Ah |
| System Configuration | 101 kWh / 1P264S |
| Rated DC Voltage | 844.8 V |
| Max. Charge/Discharge Rate | 1 P |
| AC Side Specifications | |
| Rated Output Power | 100kW |
| Rated AC Voltage | 230 / 400 V |
| Grid Type | 3W+PE / 3W+N+PE |
| Power Factor | 0.99/ -1 ~ +1 |
| General Data | |
| Round Trip Efficiency | ≥ 87% |
| Cycle Life | ≥ 5,500 cycles |
| Fire Suppression | Aerosol |
| Operating Temperature | -25ºC~55ºC |
| Dimensions (W*D*H) | 1,250*1,200*2,150 mm |

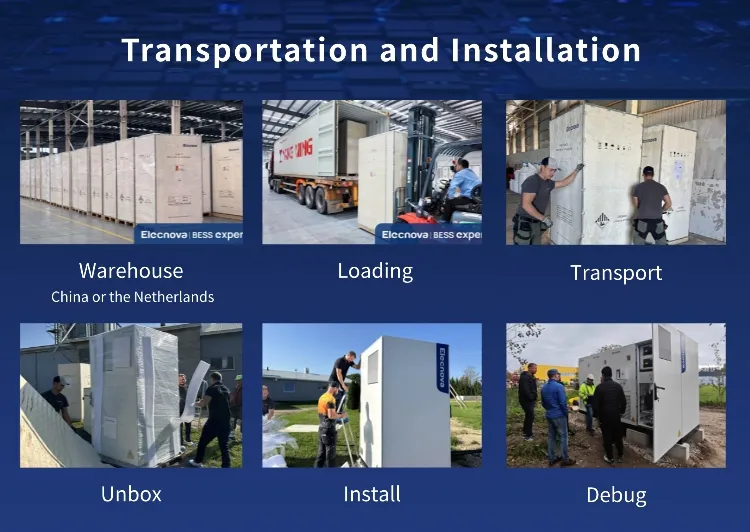

We provide a systematic and professional transportation & installation process to ensure your BESS operates reliably from day one:

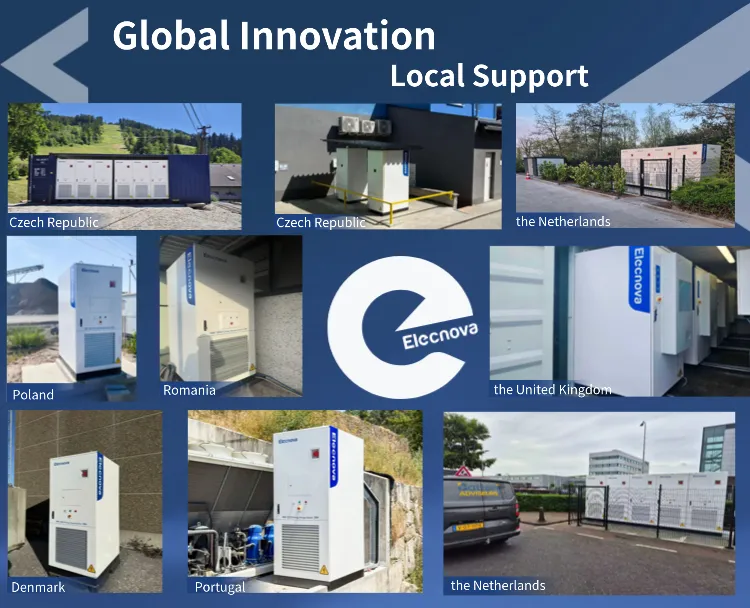

Our energy storage solutions are transforming energy landscapes worldwide, from Europe to Southeast Asia and the Middle East. We offer an industry-leading warranty, coupled with a cells performance warranty of up to 8000 cycles at 75% SOH.

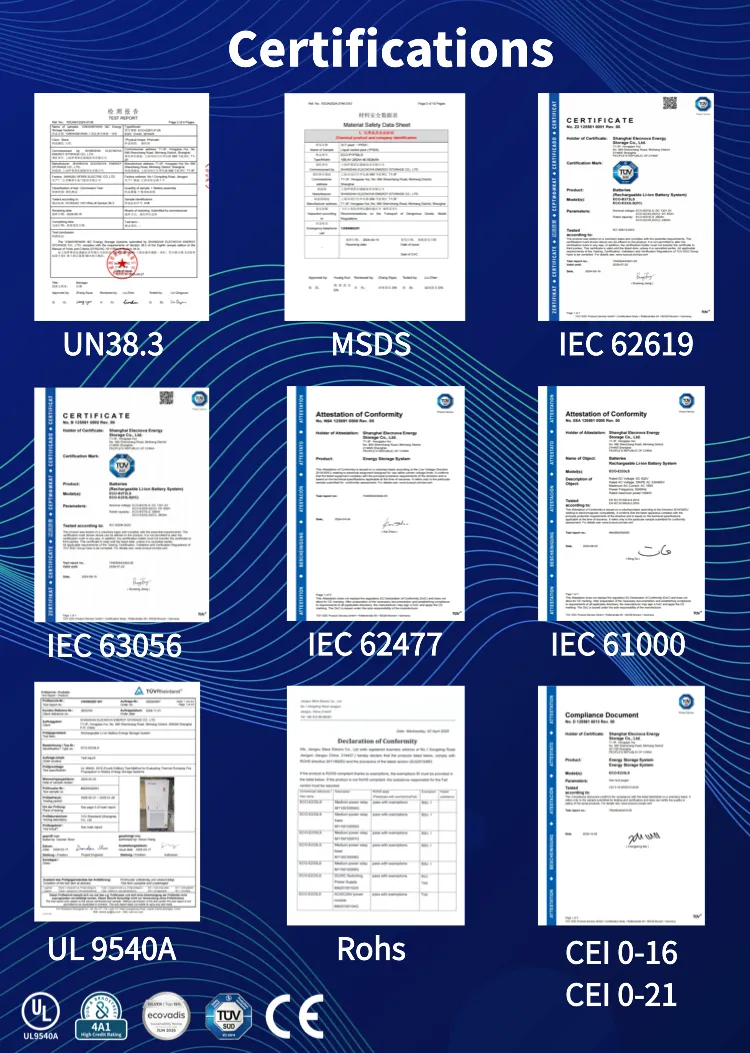

Backed by a comprehensive suite of international certifications: UN38.3, MSDS, IEC 62619, IEC 63056, IEC 62477, IEC 61000, CEI 0-16, and UL 9540A.

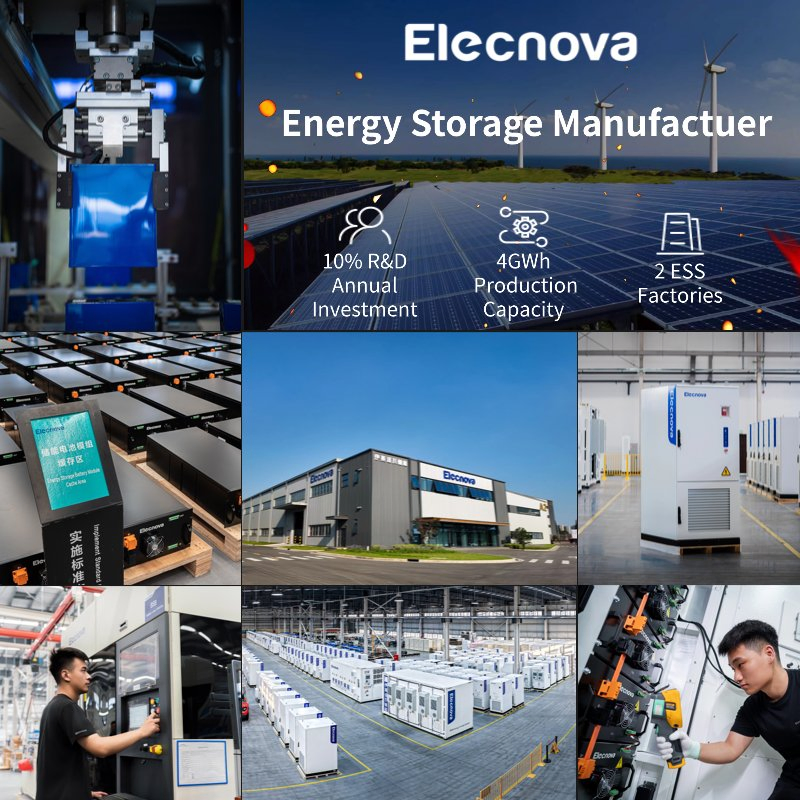

With 28 years of industry experience, we dedicate 10% of revenue to R&D. Our facilities feature a production capacity of 2GWh with automated Module and PACK production lines, holding CNAS laboratory certification for rigorous quality control.
