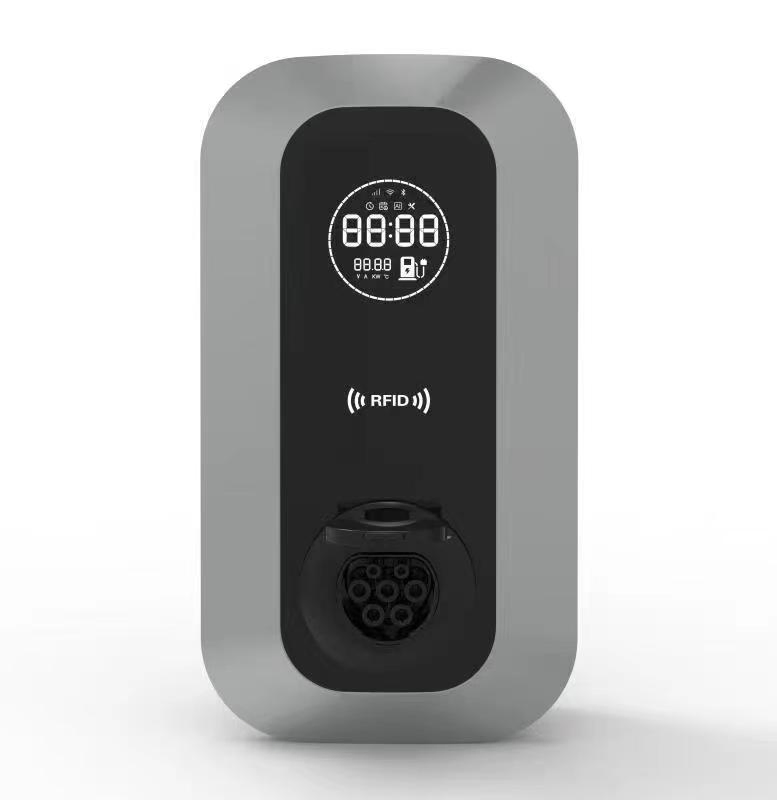

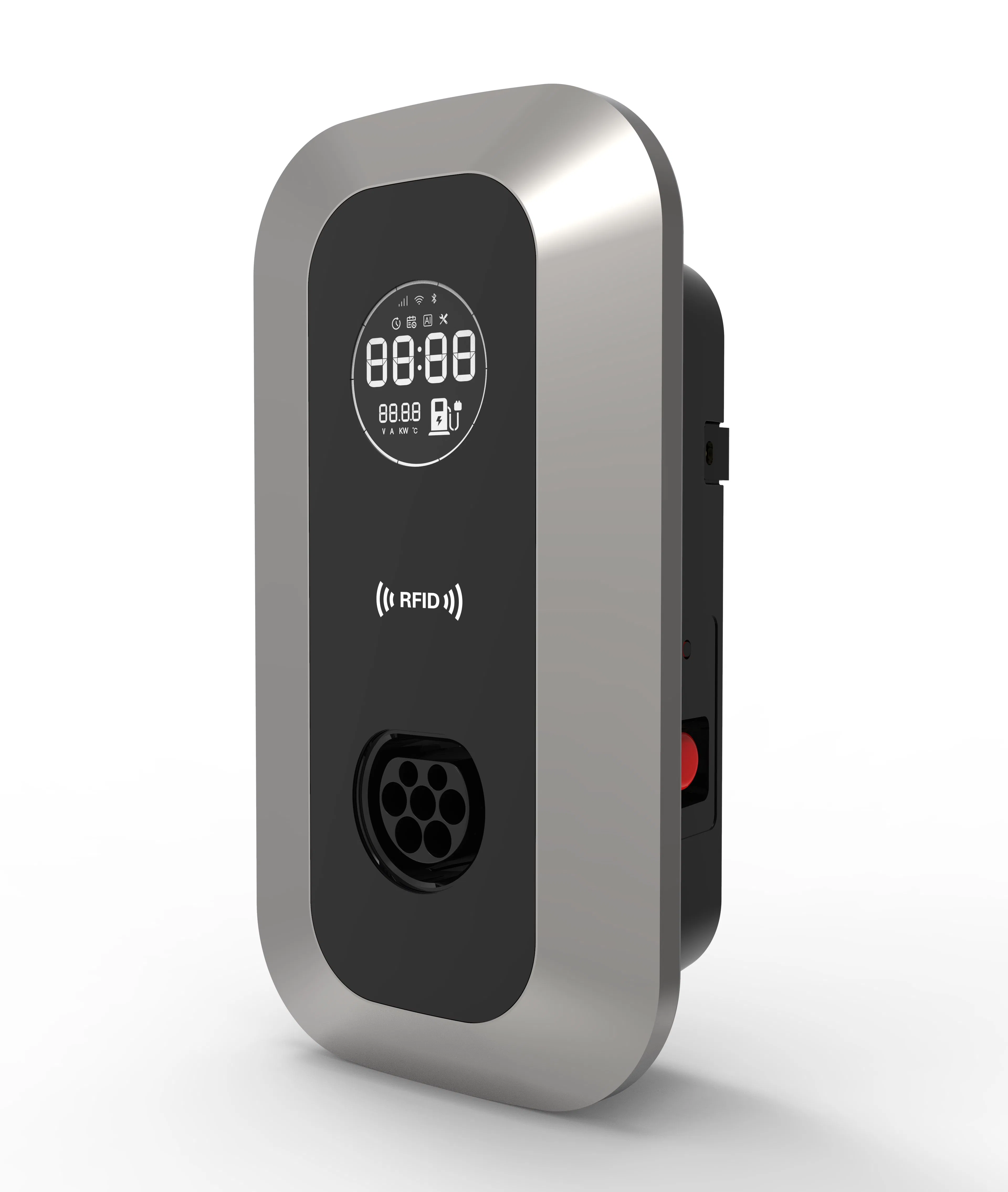

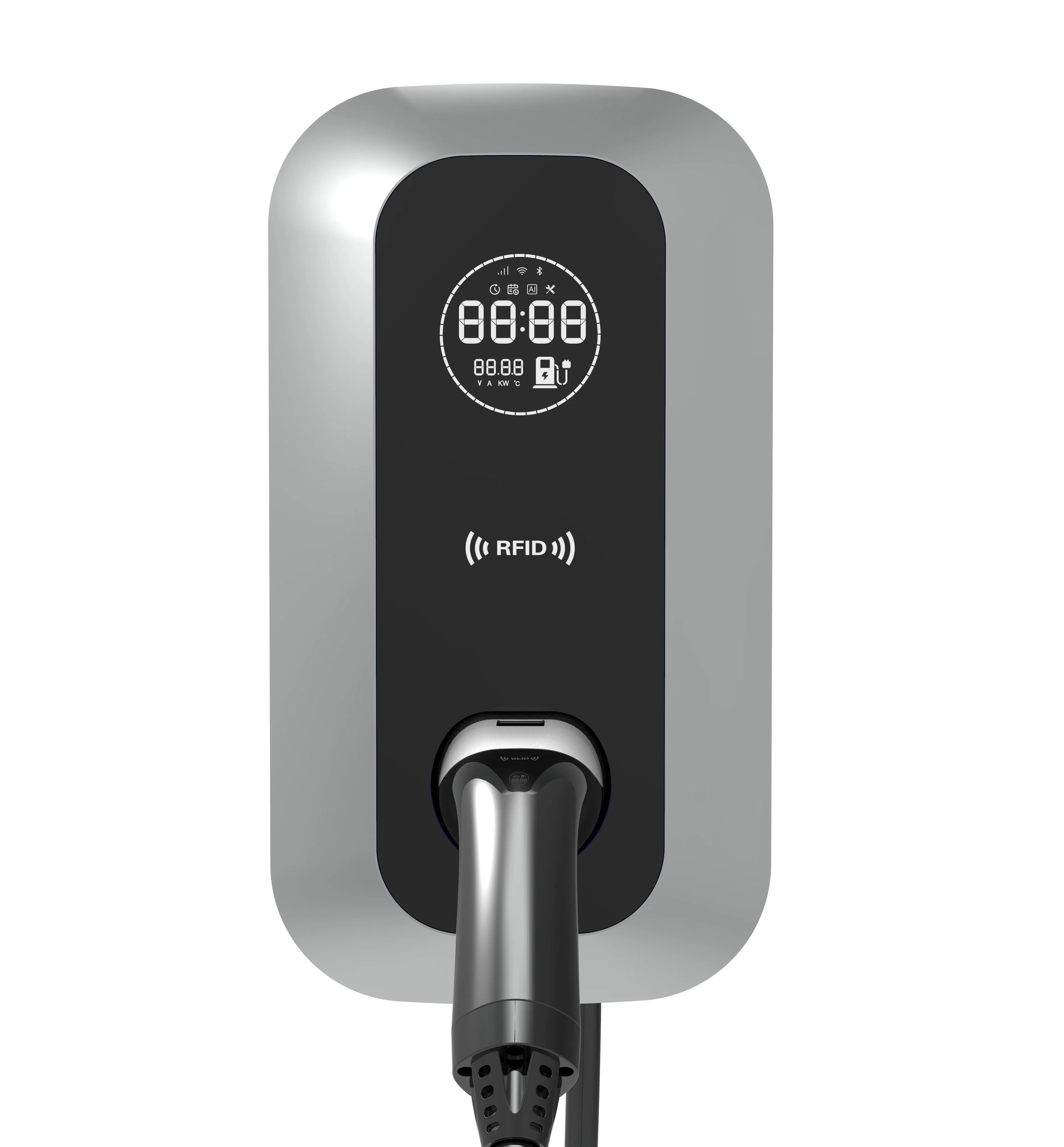

Voltura Charger
1 / 5
| Model NO. | AMP07-C | Location | Home & Company |
|---|---|---|---|
| Installation | Wall or Floor Mounted | Charge Method | Quick Charge |
| Charging Type | Mode 3 | Protection Grade | IP54 |
| Certificate | CE, TUV | RCCB | Type-a + 6mA DC |
| Network | Wi-Fi, Bluetooth | Warranty | 12 Months |
| HS Code | 8504409999 | Capacity | 1000 Units Per Month |

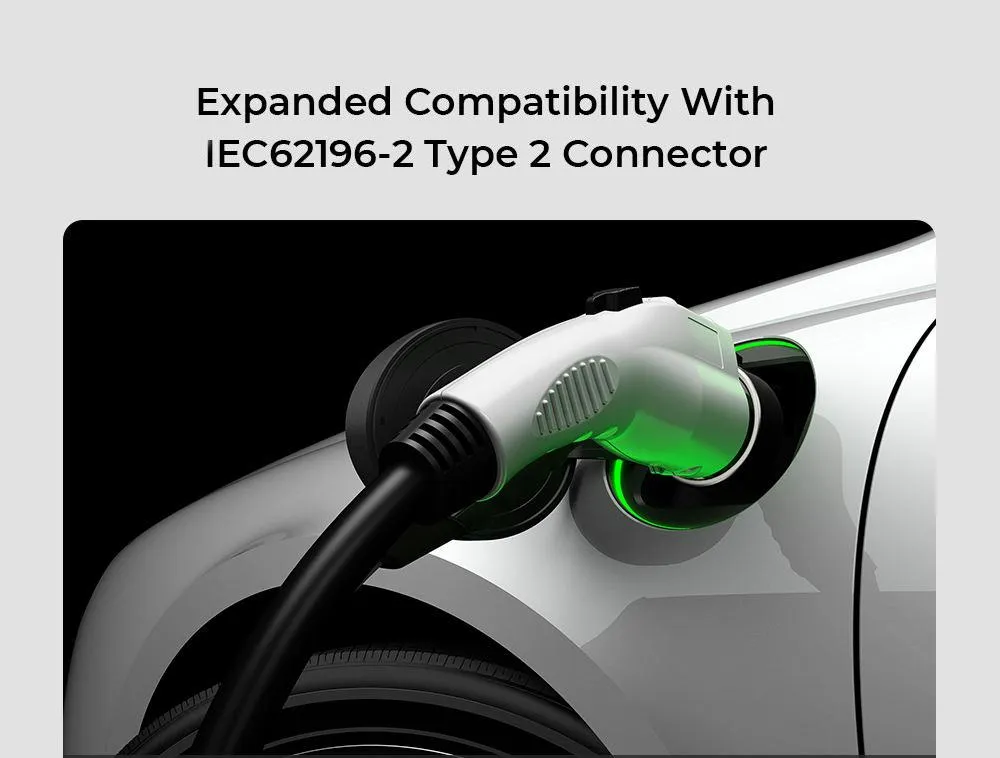

The EU version of the AMP07 is compatible with most European AC electric vehicles due to the IEC62196-2 Type 2 standard, eliminating brand barriers for electric vehicle owners.

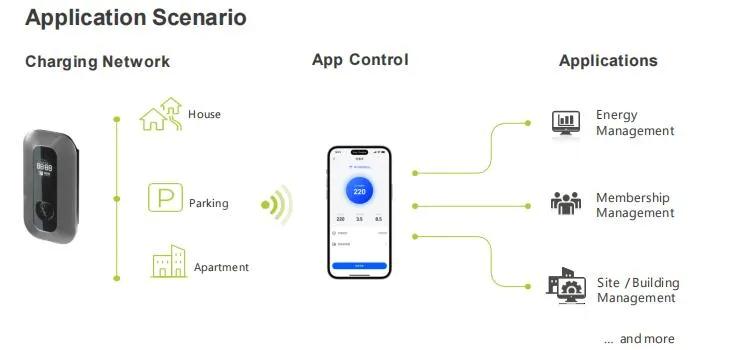

AMP07 allows vehicles to be charged during off-peak periods via scheduled charging times, saving on electricity bills. Real-time charging status monitoring and appointment settings are available through mobile connectivity.

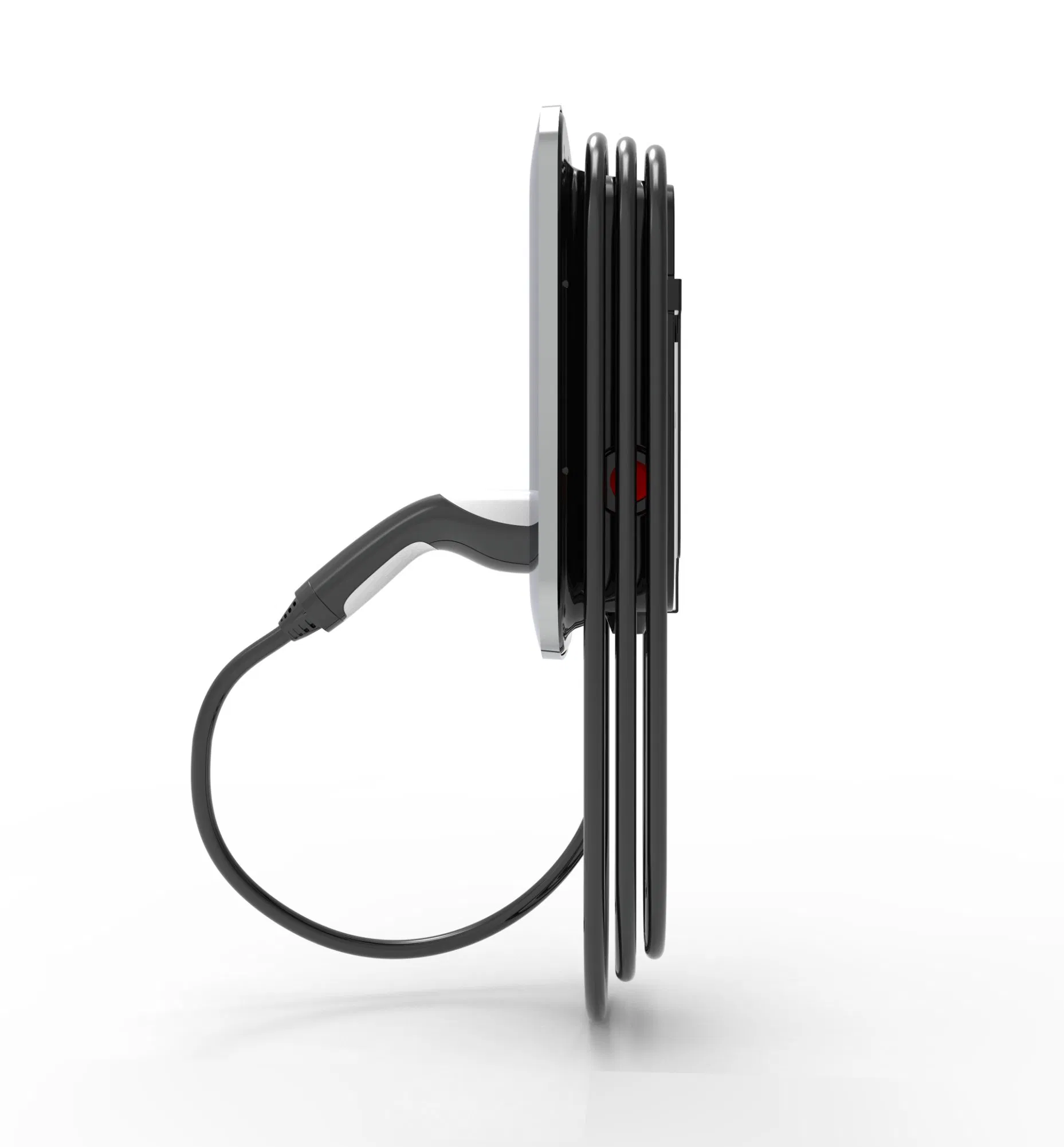

The charger features a rugged 5m PVC and copper charging cable supporting up to 40A. It offers both App Control mode and Plug-and-Play mode for maximum user flexibility.
| Category | Feature | Specification |
|---|---|---|
| System | Dimensions | 222 x 104 x 405mm |
| Protection Grade | IP65 / IK10 | |
| Weight | 3.62kg | |
| Input | Voltage | 200Vac - 240Vac, 50/60Hz |
| Power Factor | 0.99 at nominal output | |
| Output | Max Power | 7kW |
| Max Current | 32A | |
| Outlet Type | IEC 62196 Type-2 (5m Cable) | |
| Environment | Working Temp | -25°C to +50°C |
| Cooling | Natural Cooling |
