⚡ Overview & Basic Info
| Model NO. |
MC601KHE |
| Location |
Private Use |
| Charging Interfaces |
One Pile with One Charge |
| Input Voltage |
380VAC |
| Output Voltage |
200-750VDC |
| Output Power |
20kw |
| Output Current |
60A |
| Standard |
GB, En 61851; En61000; Jevs; UL2202, 2231 |
| Usage |
Charge EV |
| Packing |
Carton Box or Wooden Box |
📋 Product Description
This high-tech company focuses on the R&D for core parts such as on/off board chargers & DCDC for new energy vehicles (EV, PHEV, etc.). The core team members have rich working experience and overseas education. The products developed (OFBC, OBC & DCDC) have excellent performance and a dominant position in the market.

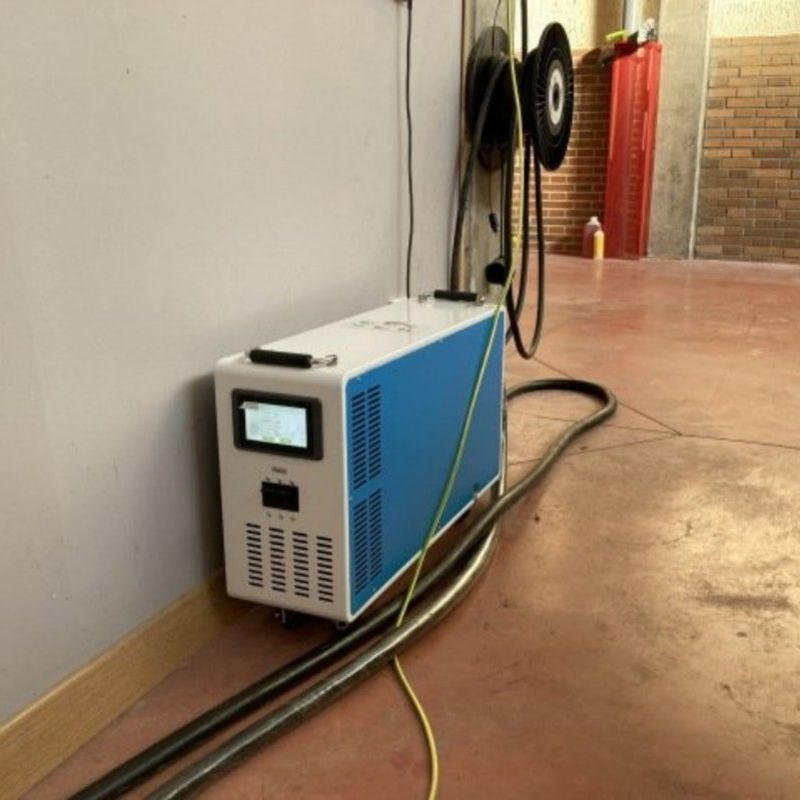

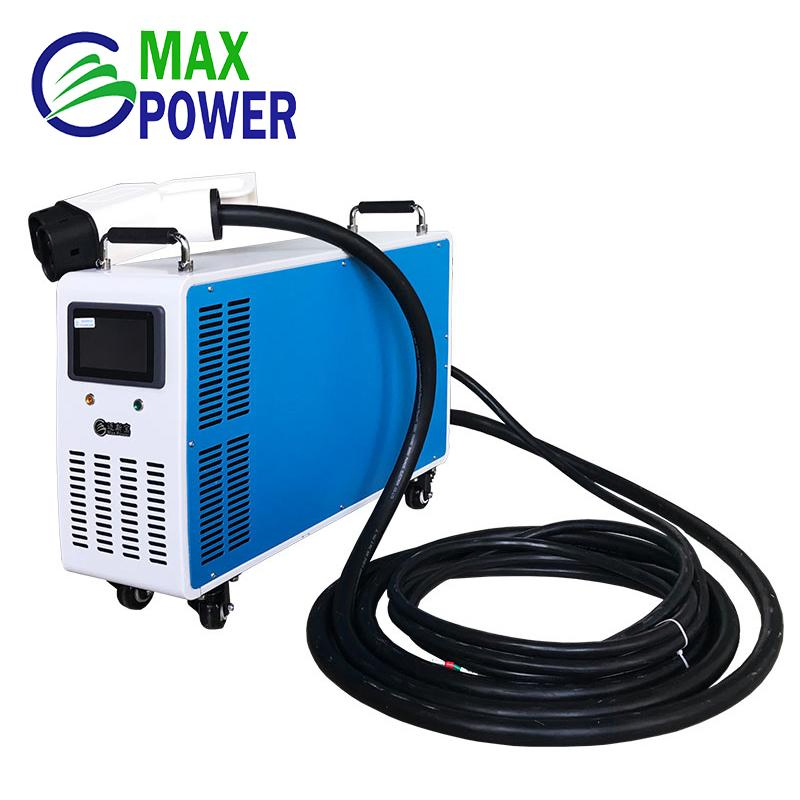

20kw Portable Charger Features:
• Easy to carry with 380V input from home plug grid.
• Charge the EV at any time and anywhere freely.
• Integrated center control module, power module, and lightning protection unit.
• Wide voltage output range from 200-750Vdc.
• Intelligent touch screen interface with multiple design styles.
• High efficiency: ≥95%.
⚙️ Product Parameters
| Specification |
20KW Model |
| AC Input |
Input Rating |
380Vac±10% |
| AC Input Connection |
3P + N + PE, Wye connection |
| Max. Input Current |
40A |
| Frequency / Efficiency |
50/60 Hz | 95% |
| DC Output |
Output Voltage Range |
200-750Vdc |
| Max. Output Power |
20KW |
| Max. Output Current |
60A |
| Physical |

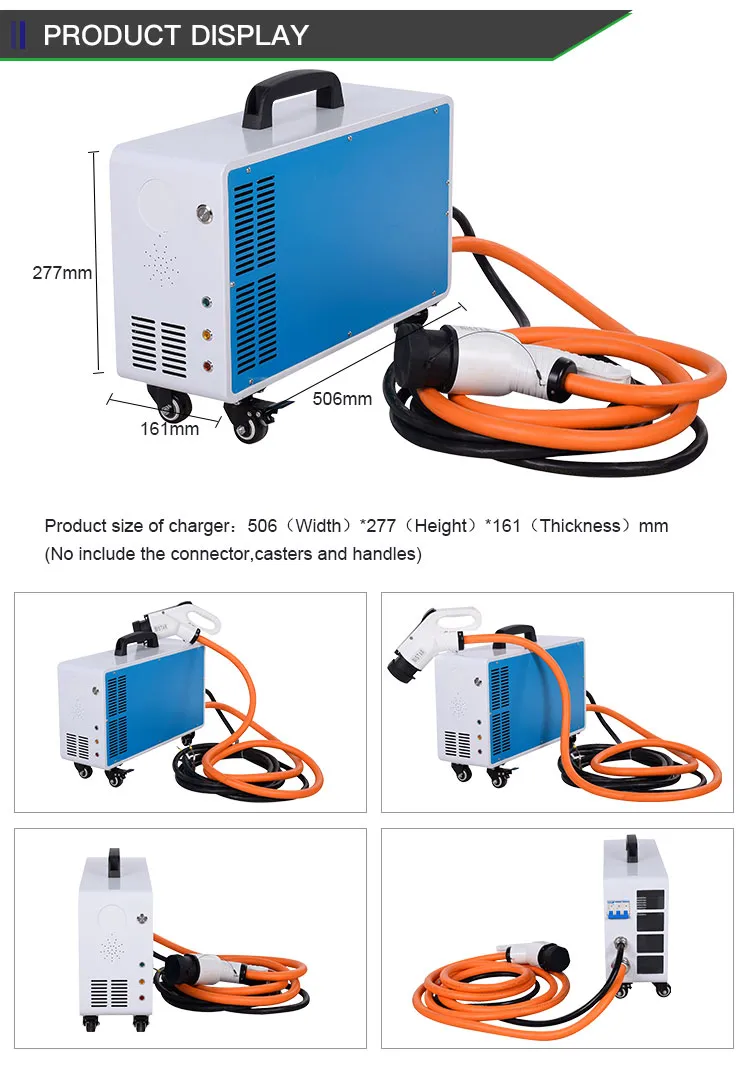

Dimension |
506×161×277mm |
| Weight |
40KG |
| Environmental |
Operating Temp |
-40~85ºC |
| IP Level |
IP43 |

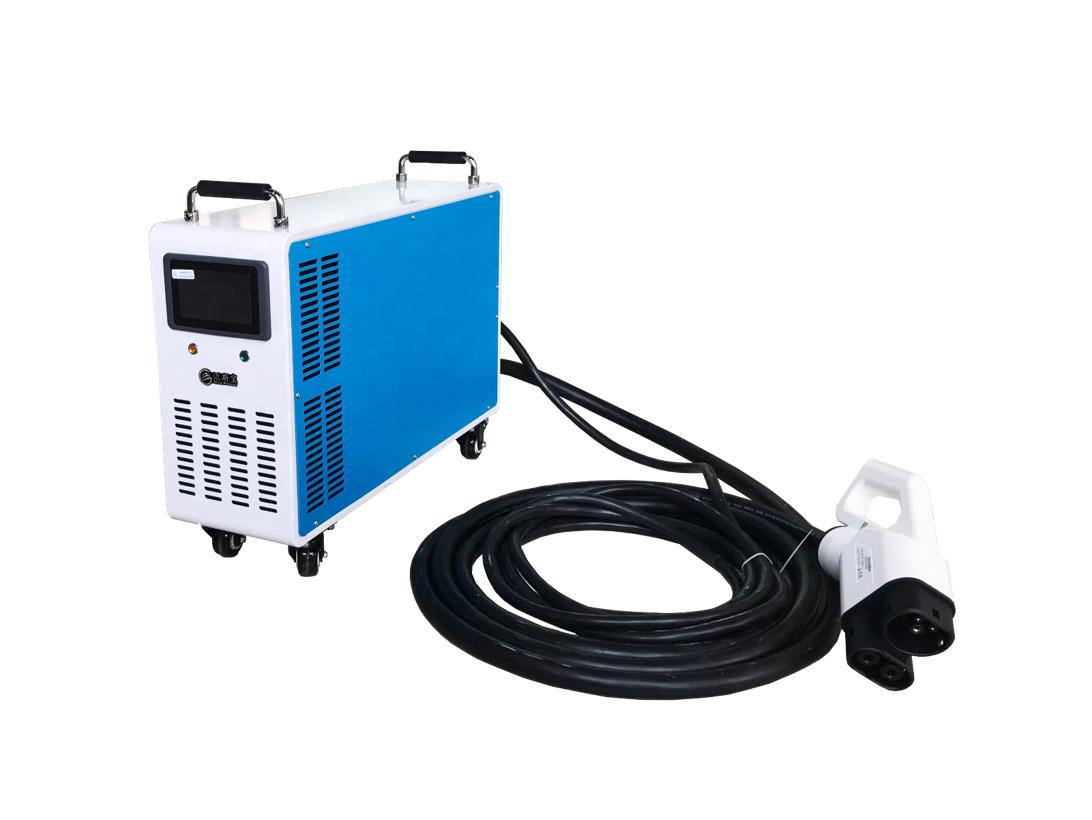

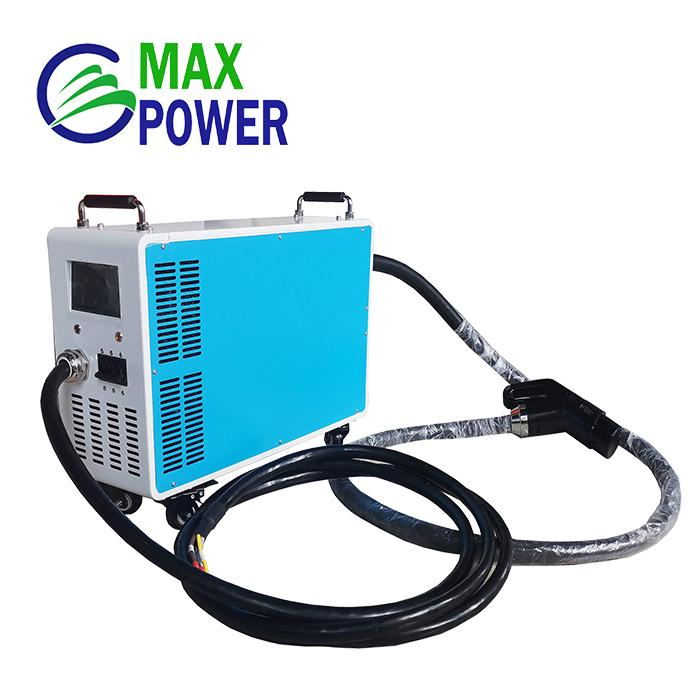

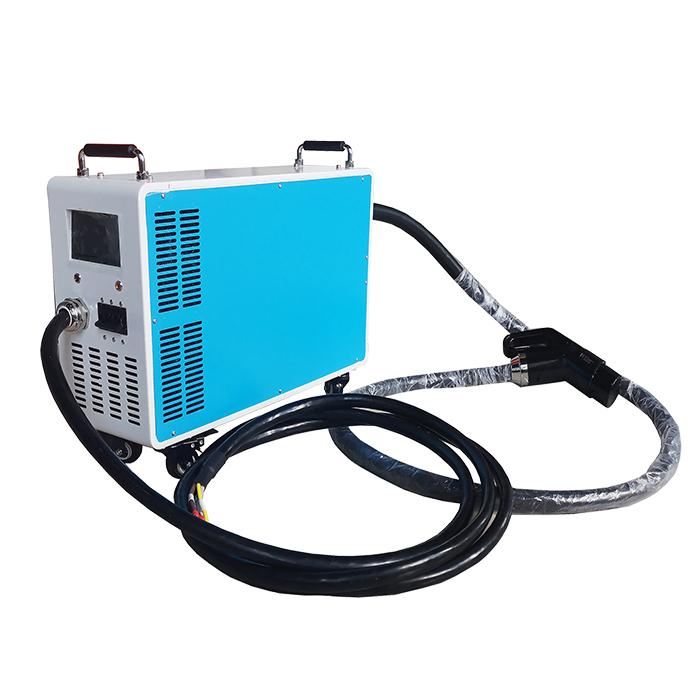

🖼️ Product Gallery
❓ Frequently Asked Questions
Are you a factory or trading company?
We are a professional manufacturer of new and sustainable energy applications with over 18 years of experience.
What is the warranty period for the chargers?
The warranty is 12 months. During this period, we provide technical support and replace parts for free, with customers handling delivery costs.
What are your terms of payment?
T/T 50% as a deposit, and 50% before delivery. We provide photos of the products and packages before final payment.
How long is the typical delivery time?
Generally, it takes 3 to 7 working days after receiving advance payment, depending on the items and order quantity.
Do you test all goods before delivery?
Yes, we perform 100% testing on all products before they are dispatched.
What's the difference between a Movable Charger and a Wallbox?
Aside from appearance, the protection levels differ: Wallbox chargers are typically IP54 (outdoor use), while Movable Chargers are IP43, meaning they should not be used outdoors during rainy weather.
