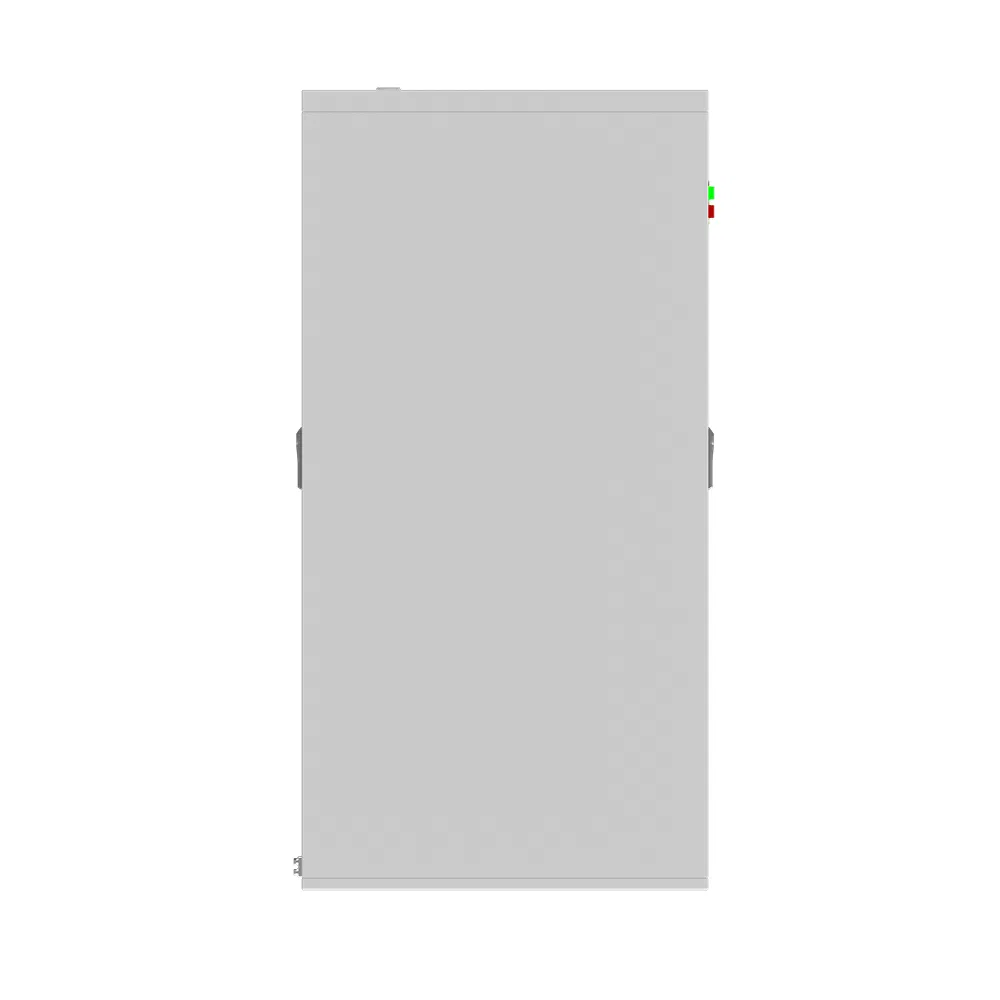

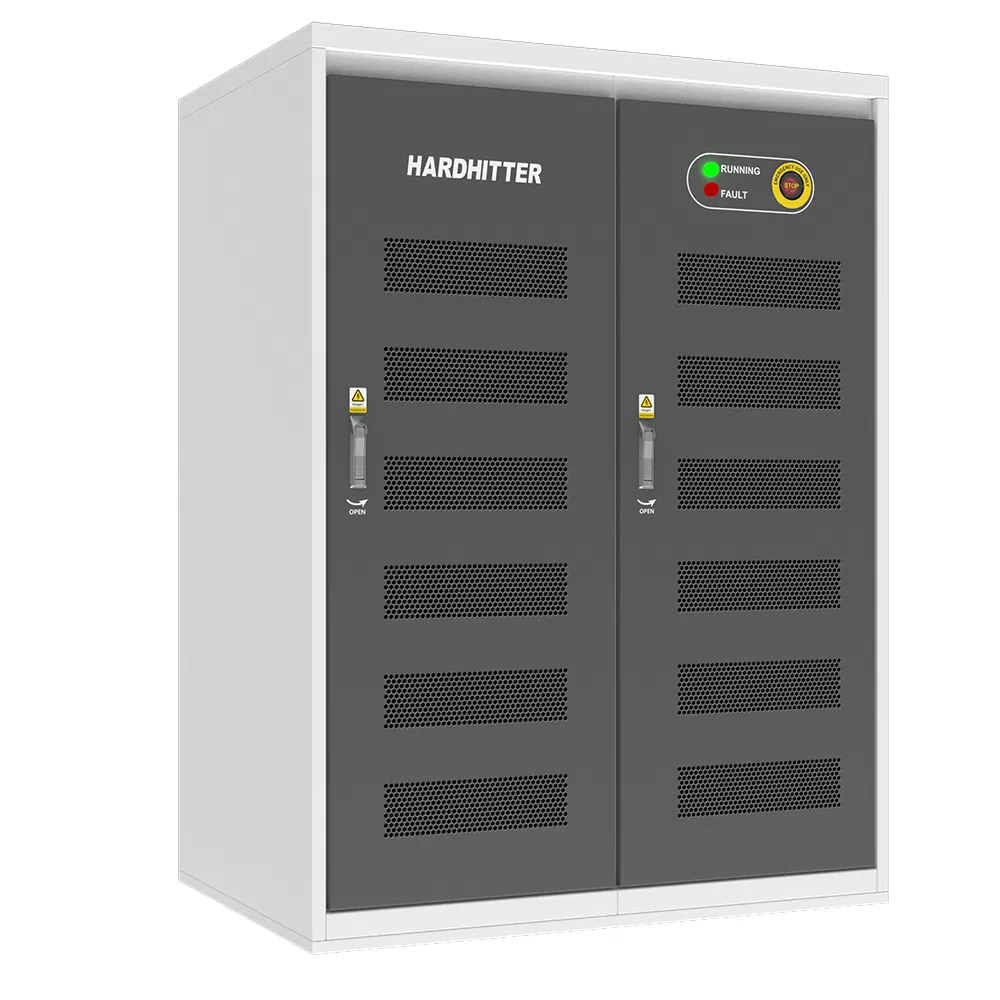

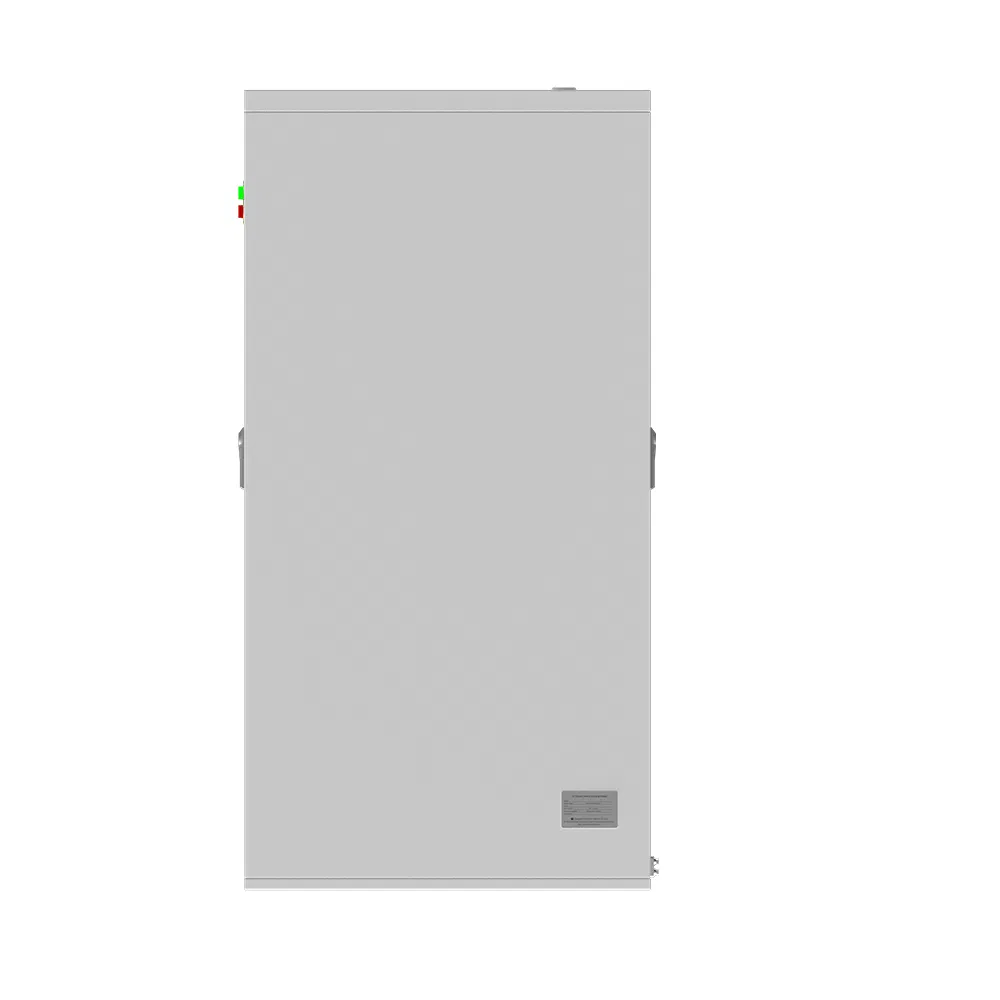

240kw Floor Mounted DC EV Charger Station Commercial Electric Vehicle Charging Stations Split DC Charging Systems
240kw Floor Mounted DC EV Charger Station Commercial Electric Vehicle Charging Stations Split DC Charging Systems
240kw Floor Mounted DC EV Charger Station Commercial Electric Vehicle Charging Stations Split DC Charging Systems
240kw Floor Mounted DC EV Charger Station Commercial Electric Vehicle Charging Stations Split DC Charging Systems
240kw Floor Mounted DC EV Charger Station Commercial Electric Vehicle Charging Stations Split DC Charging Systems
1 / 5
240kw Floor Mounted DC EV Charger Station Commercial Electric Vehicle Charging Stations Split DC Charging Systems
240kw Floor Mounted DC EV Charger Station Commercial Electric Vehicle Charging Stations Split DC Charging Systems
240kw Floor Mounted DC EV Charger Station Commercial Electric Vehicle Charging Stations Split DC Charging Systems
240kw Floor Mounted DC EV Charger Station Commercial Electric Vehicle Charging Stations Split DC Charging Systems
240kw Floor Mounted DC EV Charger Station Commercial Electric Vehicle Charging Stations Split DC Charging Systems

240kw Floor Mounted DC EV Charger Station Commercial Electric Vehicle Charging Stations Split DC Charging Systems

Customization: Available
Number of Charging Interfaces: One Pile with Multiple Charges
Location: Public Use
Send Inquiry

Product Description

Basic Specifications
Model NO.
HQC22-240/1000/800-F06
Installation
Floor Type
Charge Method
Quick Charge
Output Voltage
200~1000V
Output Current
250A(GB/T), 250A(CCS2), 125A(Chademo)
Charging Interface
GB/T, CCS2, Chademo
Operation Temp.
-40°c~+60°c
Cable Length
Car:4.5m / Bus:6m
Protection Level
IP55
Weight
≈130kg
Dimensions
600mm*1495mm*290mm
HS Code
8504409999
Product Overview
DC EV Charger Station

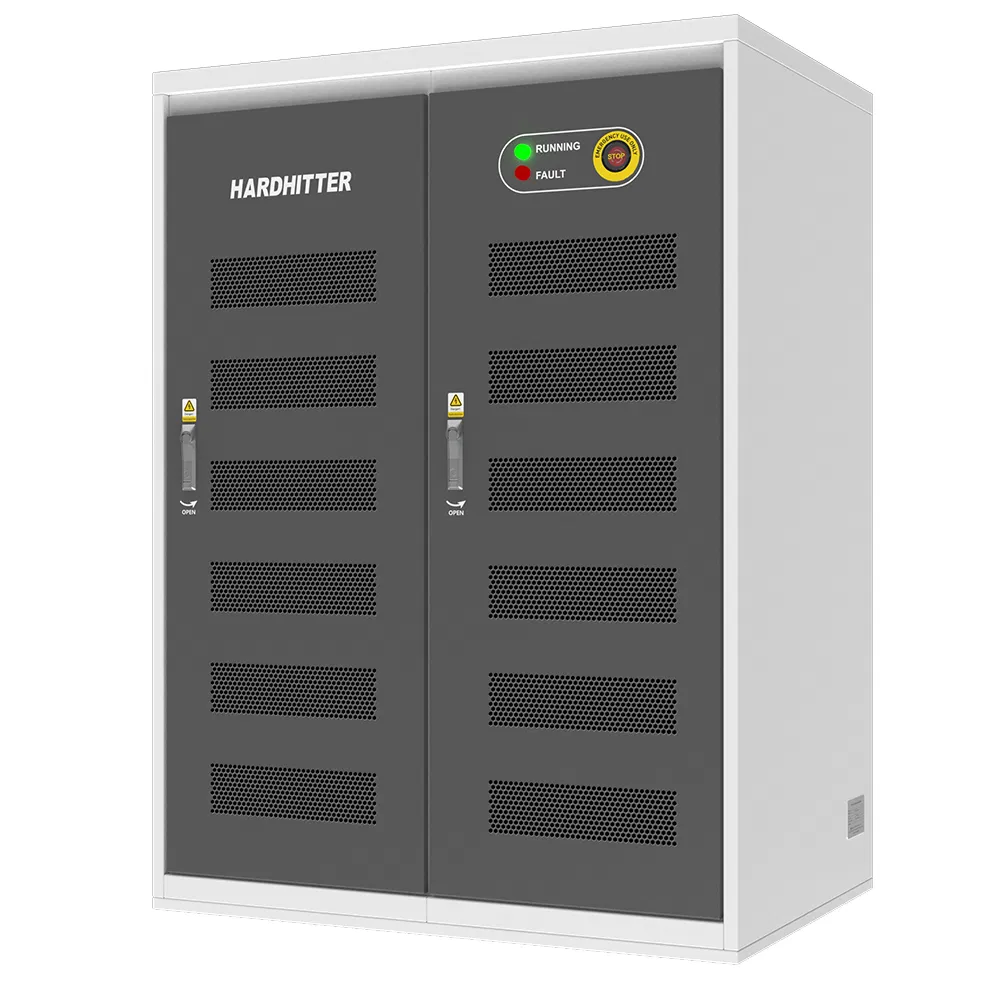

Commercial EV Charging

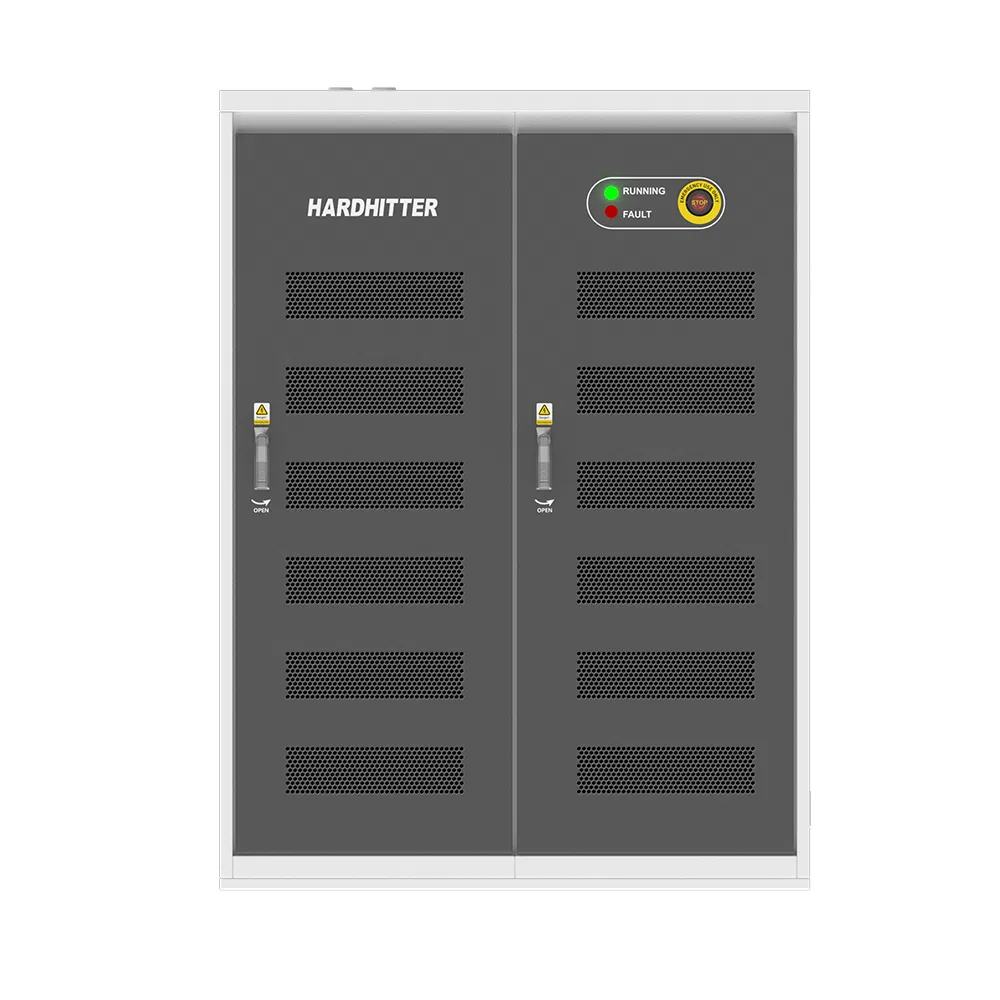

Split DC Charging System
Product Parameters
Output Voltage200~1000V
Output Current250A(GB/T), 250A(CCS2), 125A(CHAdeMO)
Charging InterfaceGB/T, CCS1, CCS2, CHAdeMO
User Interface4.3 Inch Touch Screen, LED
Start ModeSwipe Card, Scan Code, Plug and Charge, Platform remote start, Button Start
Protection LevelIP55
Operation Temperature-40°C~+60°C
Max Altitude≤2000m
Dimensions (W*D*H)600*290*1495mm
Cable LengthCar: 4.5m / Bus: 6m
CommunicationCAN
Wiring MethodBottom Incoming
Product Features
✔ Supports GB/T, CCS2, and CHAdeMO charging interfaces with free combination options.
✔ Equipped with a 4.3-inch true color touch screen, card reader, and POS support.
✔ Multiple start methods: QR code, RFID card, Plug & Play, Timed, and Remote start.
✔ Dual gun simultaneous charging for heavy-duty vehicles like buses and trucks.
✔ Front-door maintenance design allows for space-saving against-the-wall installation.
✔ Optional 32-inch advertising screen and speakers for local or remote media playback.
Production Facility
Production Line
Quality Control
Testing Area
Inventory
Frequently Asked Questions
What is the standard lead time for orders?
Generally, it takes 15 to 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Do your products hold quality certifications?
Yes, we maintain a strict quality control system. Our EV charging products are certified with CE and TUV standards to ensure safety and reliability.
How long is the warranty period?
The warranty for our products is 12 months upon the receipt of your shipment under normal operating circumstances.
Can you provide customized (OEM/ODM) services?
Yes, we have been involved in OEM and ODM projects since 2012, providing professional customized services tailored to specific client needs.
Can the EV charger charge all electric vehicles on the road?
Yes, our EV chargers are compatible with all electric vehicle models. Tesla vehicles require a standard J1772 to Tesla adapter to work with our systems.
Does the EV Charger require an app or internet connection?
We offer both standalone models (using RFID cards or Plug & Play) and smart models that are Wi-Fi connected, compatible with Apps and OCPP 1.6j protocols.
