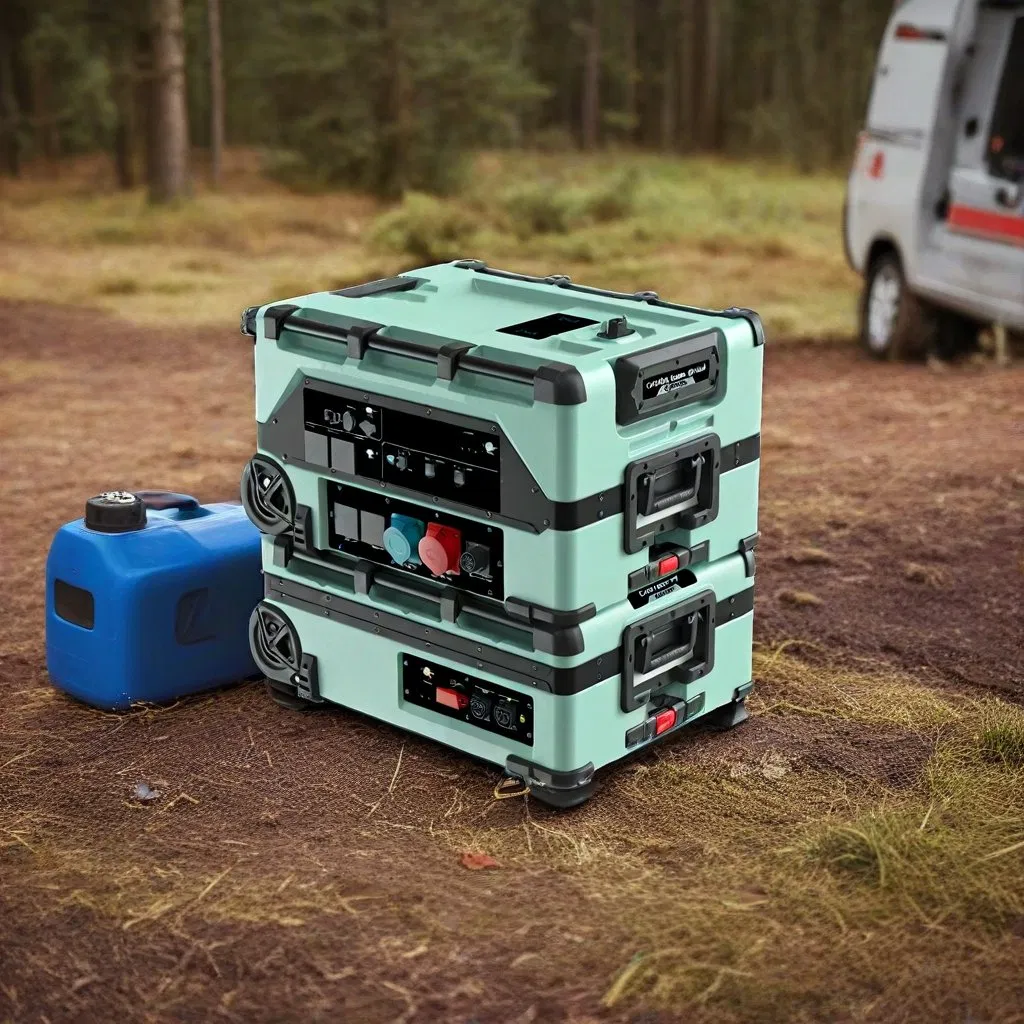

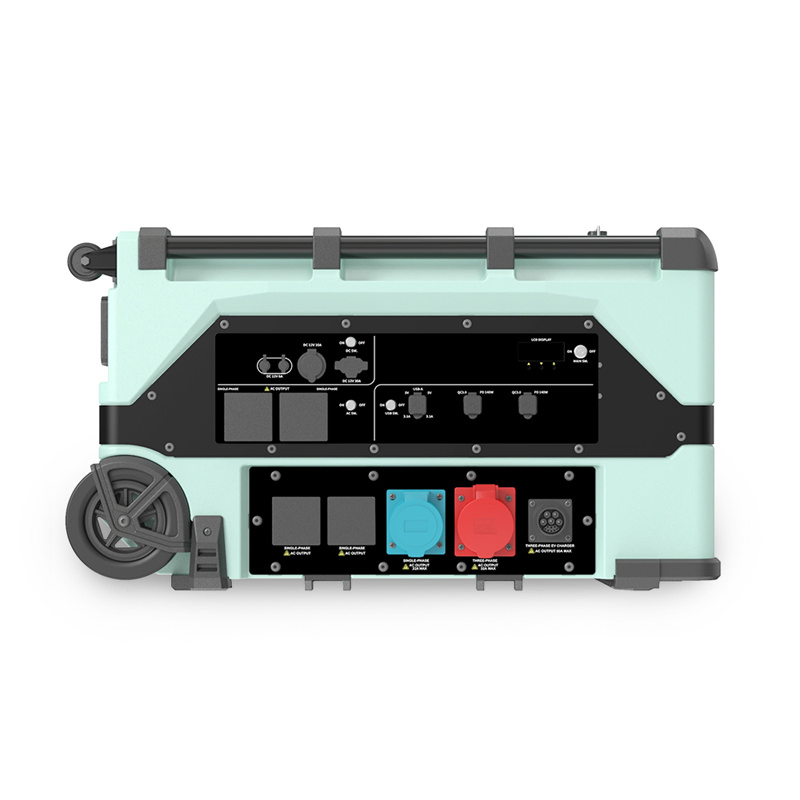

High Voltage Battery Pack Commercial Home 12kw Energy Storage System

Customization: Available
Weight: 100kg
Warranty: 5 Years

Product Description

Basic Information
Model NO. EP12000iL Cycle Life 3000
Nominal Capacity 7680wh Multiple Charging AC, Solar, EV Charger, Driving Charging, DC, Wind
Battery Expansion Yes, Max 245kwh Super Fast Charging 70mins Fully Charged
Certificates CE RoHS IEC62619 Un38.8 MSDS Inverter Type Bi-Directional Inverter
Three-Phase Output Yes APP Function Yes
Portability Drawbar & Wheels Origin China
Product Advantages

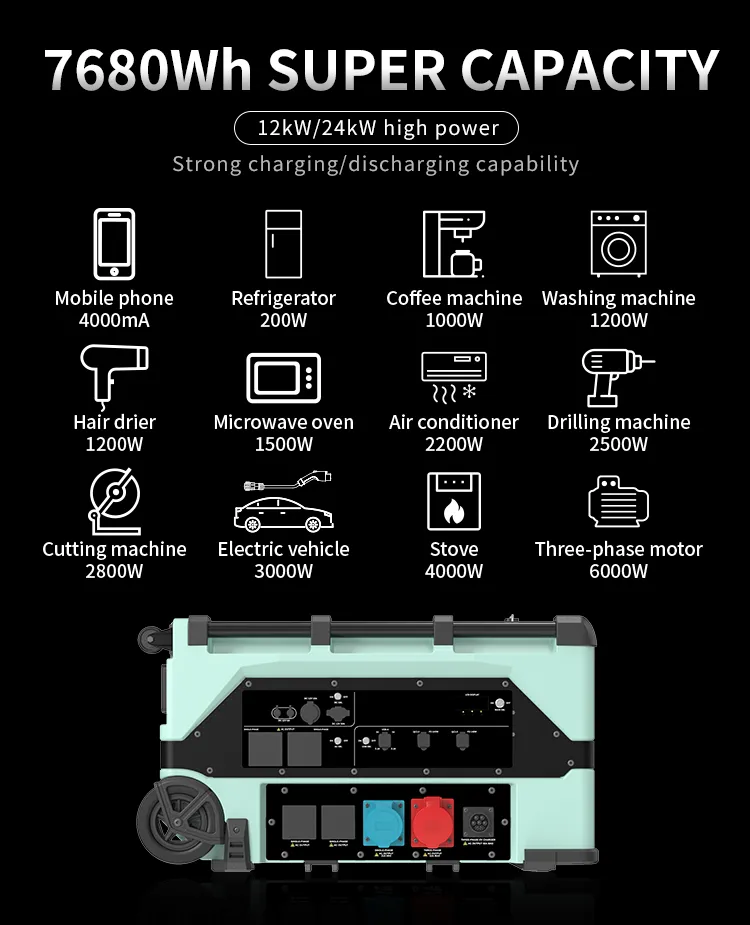

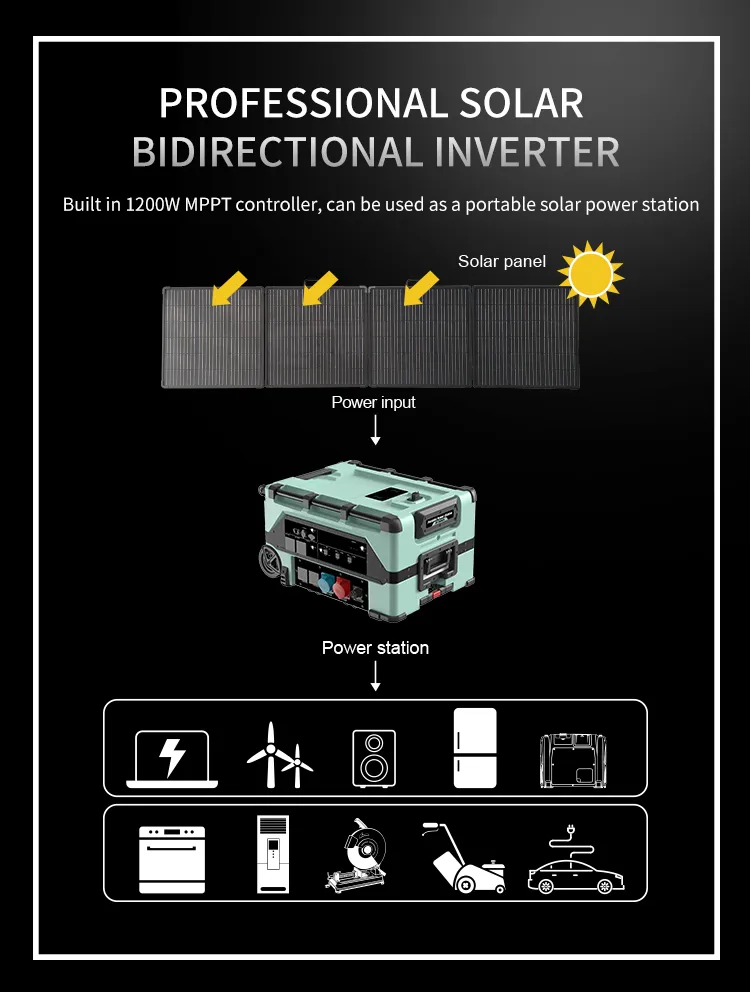

  • Built in 7680Wh high-power LiFePO4 battery with professional solar bidirectional inverter, support for 12kW output and 8.5kW charging.
  • Support continuous output of 12kW AC three-phase, 11kW AC single-phase, and 10kW AC split phase.

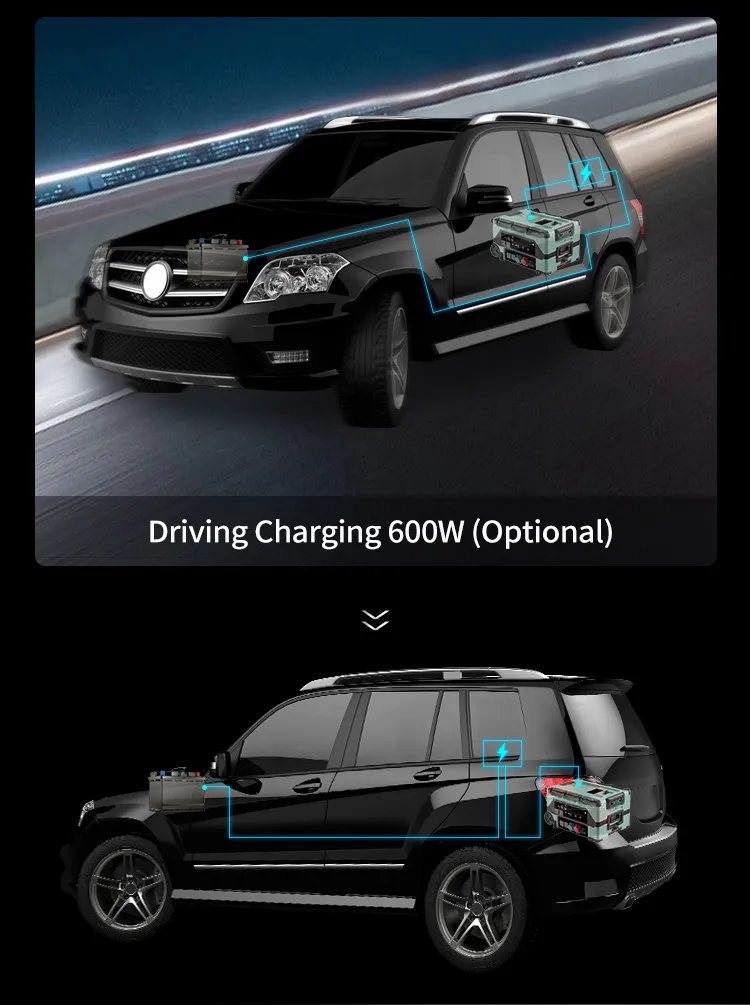

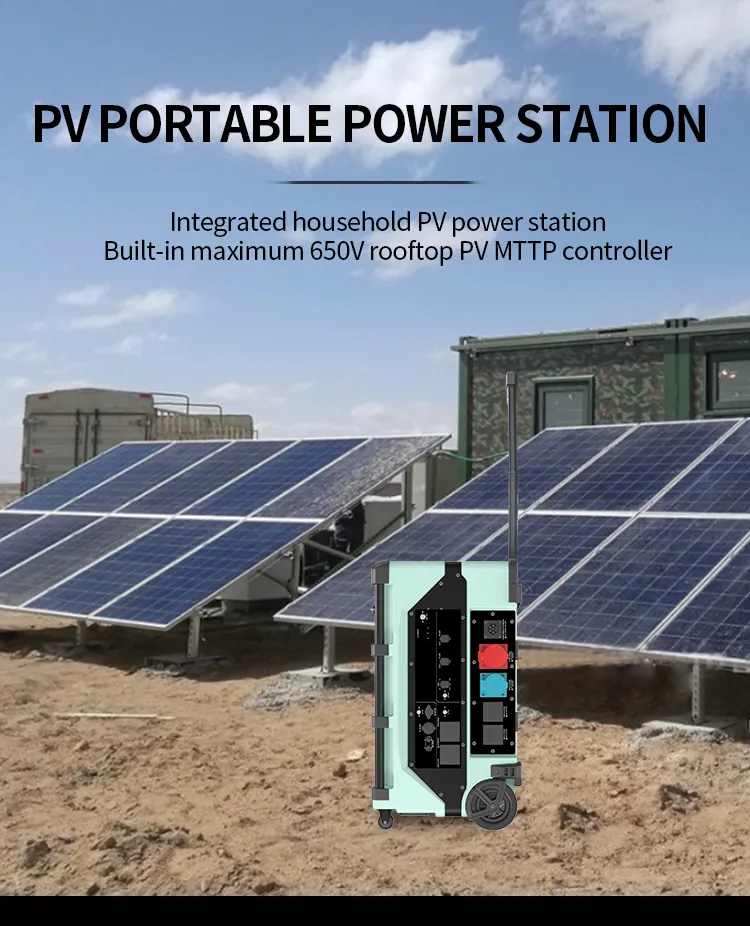

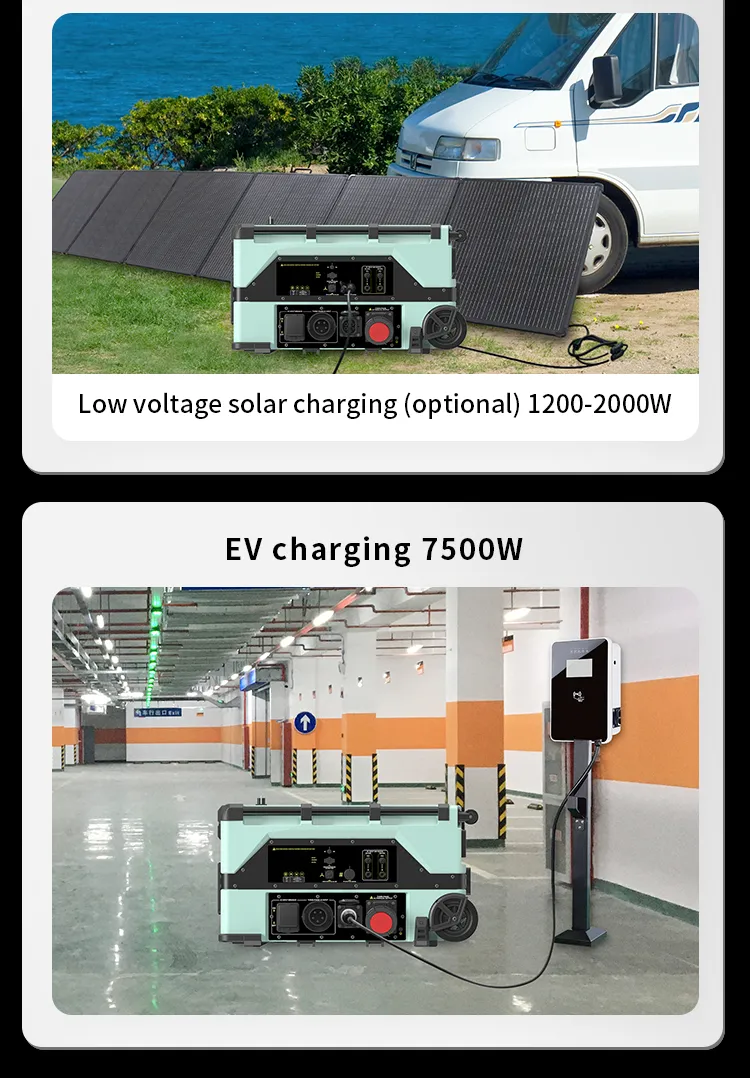

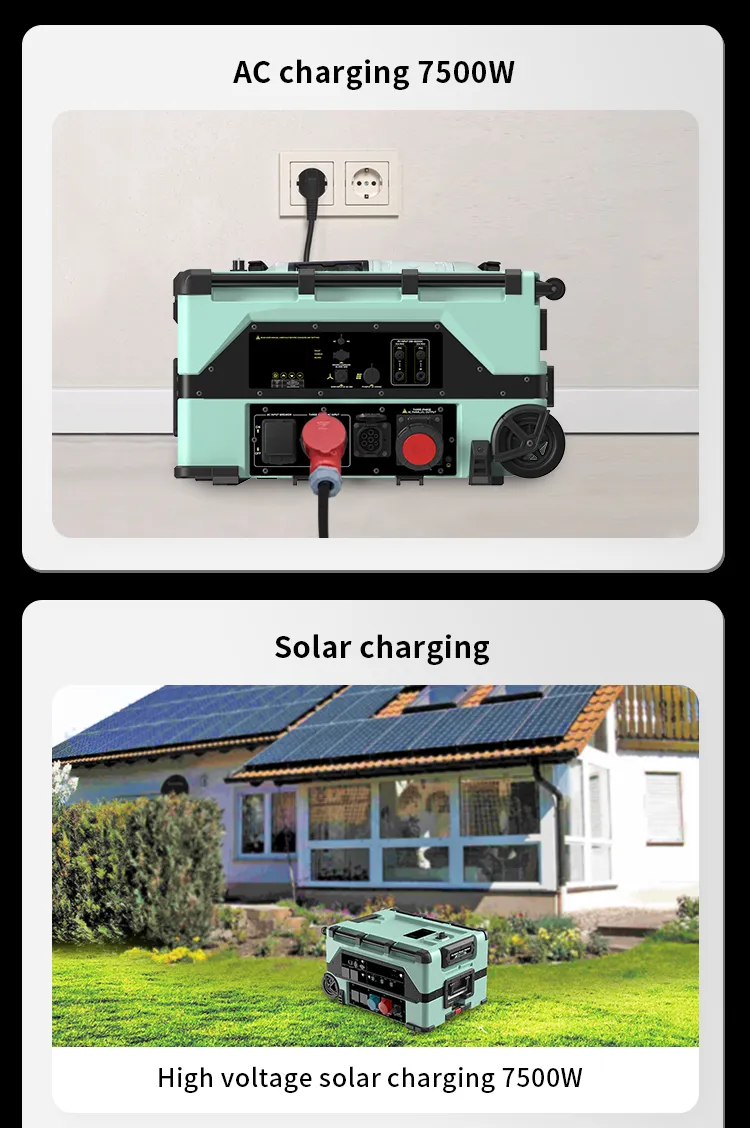

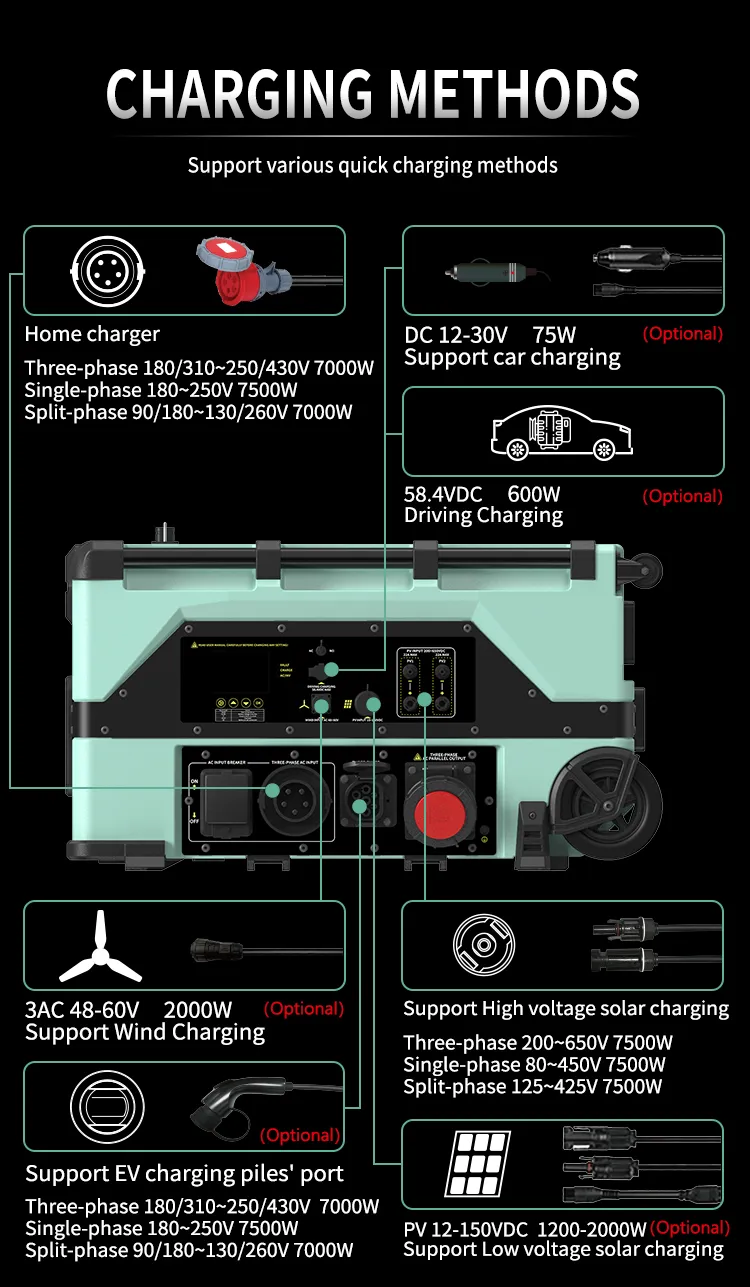

  • Support various fast charging methods such as utility, high-voltage solar, low-voltage solar, EV charger, driving car, AC generator and wind turbine.

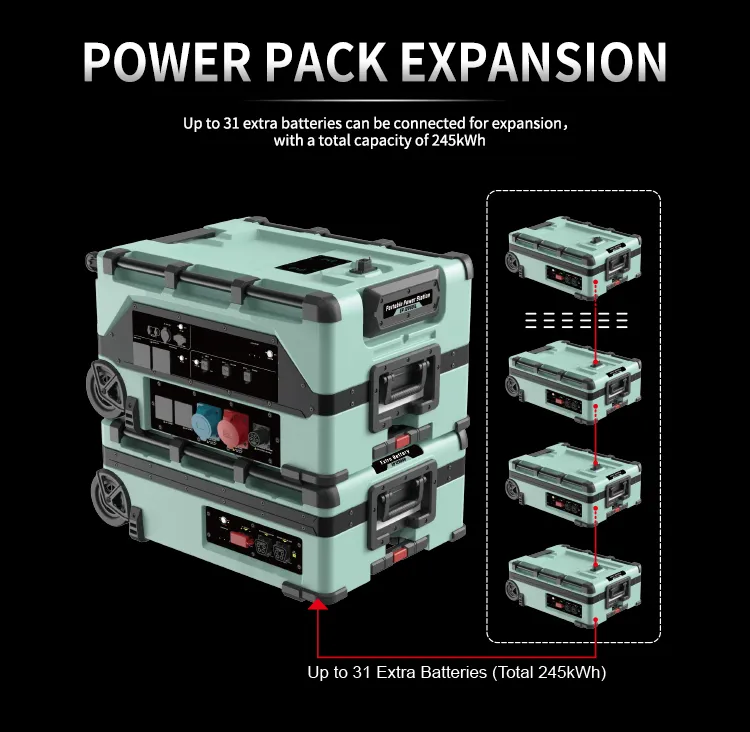

  • Up to 31 extra batteries can be stacked and connected for expansion, with a total capacity of 245kWh.

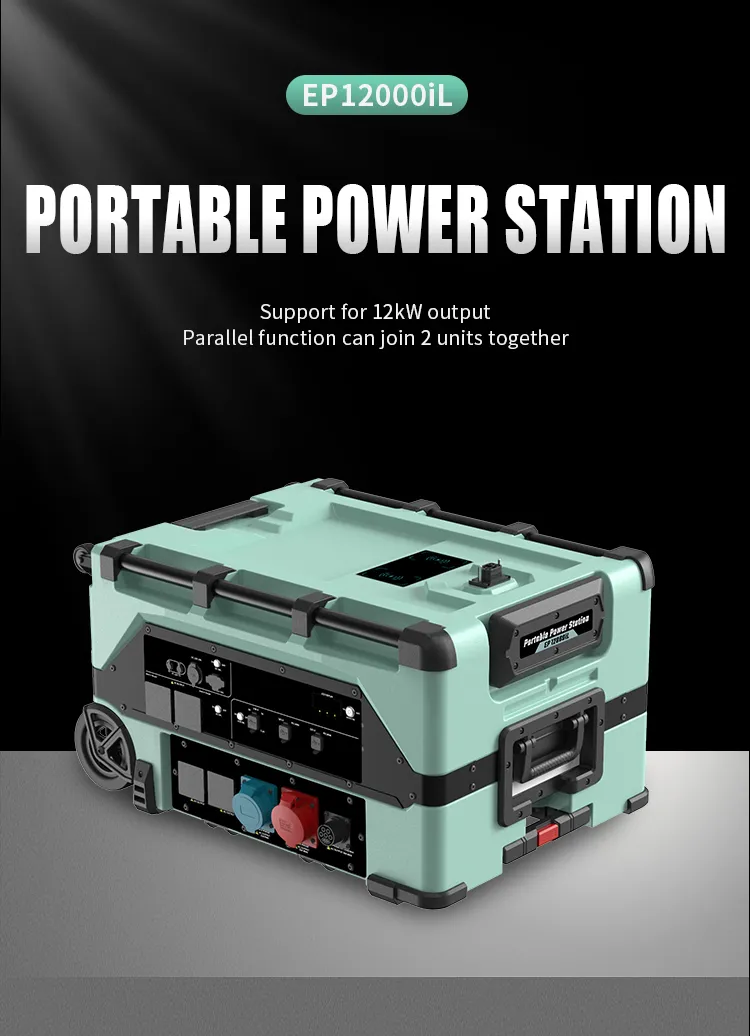

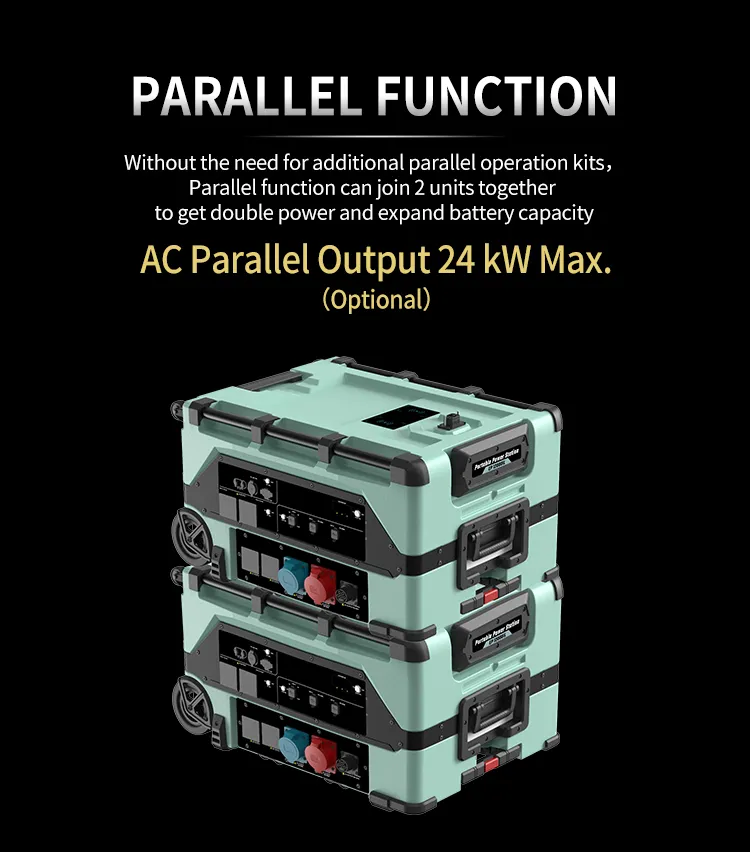

  • Stacked parallel patented technology, can join 2 units together to get a continuous output of 24kW.
  • Built-in the electric vehicle charger, can charge cars up to 22kW.

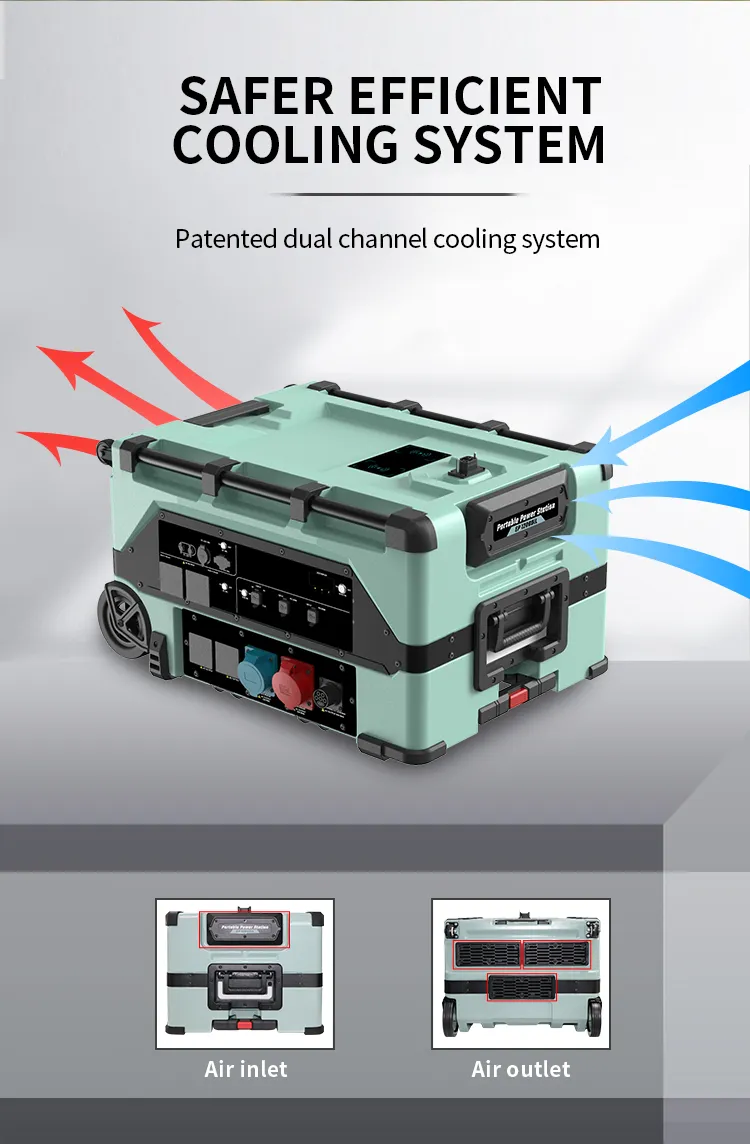

  • Unit IP53 and Battery Pack IP66 protection grade with patented dual channel cooling system.

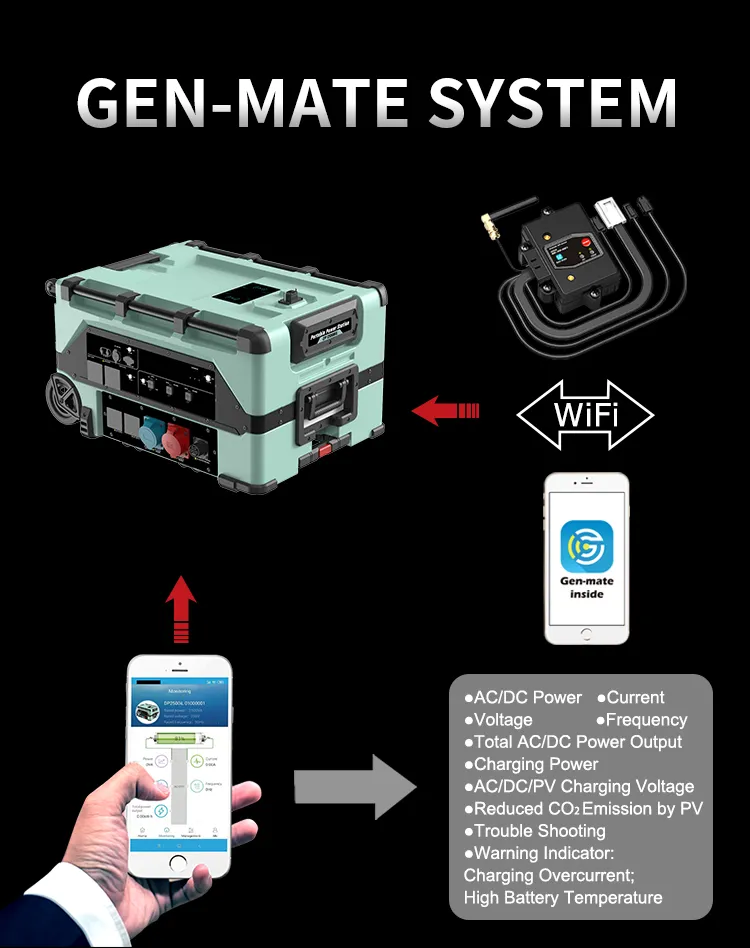

  • Intelligent control and monitor by smartphone APP; V-0 level flame-retardant casing.

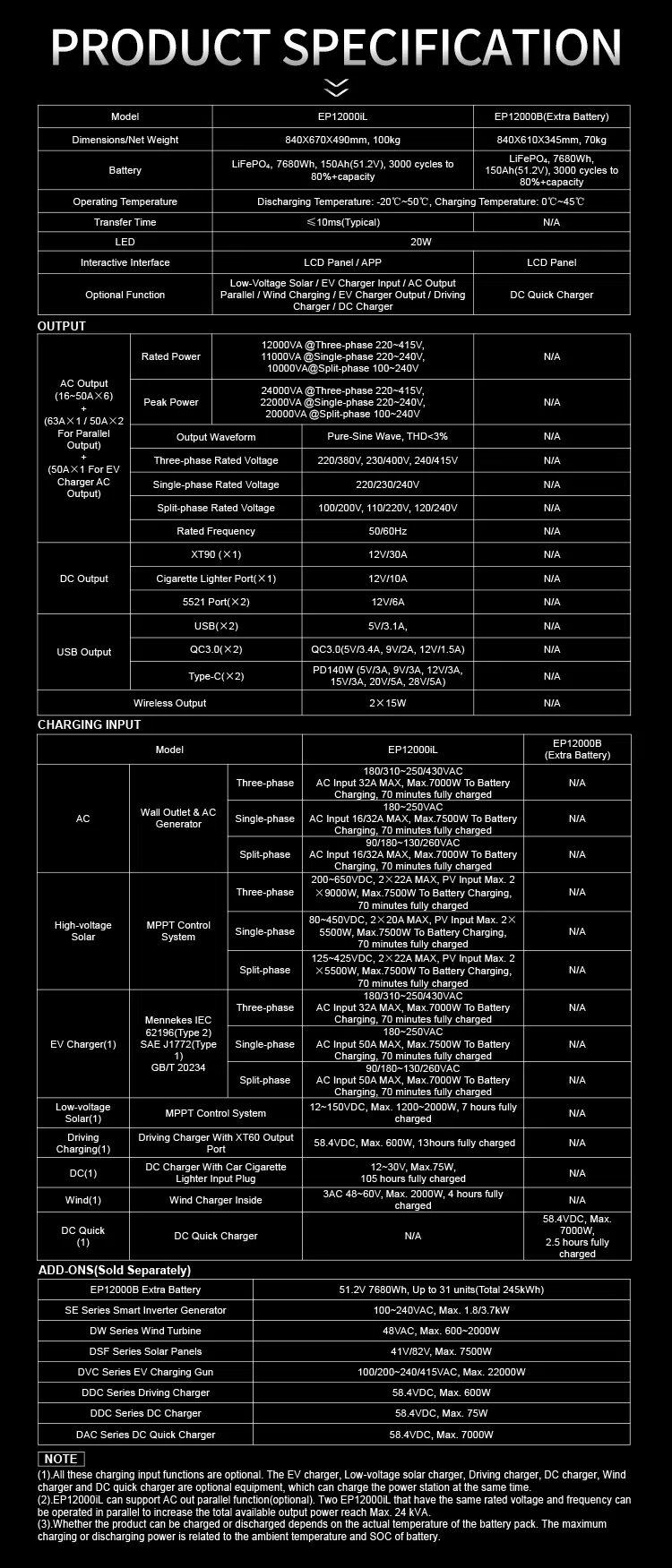

Technical Parameters
AC Output Parameters
Rated Power 12000VA (Three-phase), 11000VA (Single-phase), 10000VA (Split-phase)
Peak Power 24000VA (Three-phase), 22000VA (Single-phase), 20000VA (Split-phase)
Output Waveform Pure-Sine Wave, THD<3% Frequency 50/60Hz

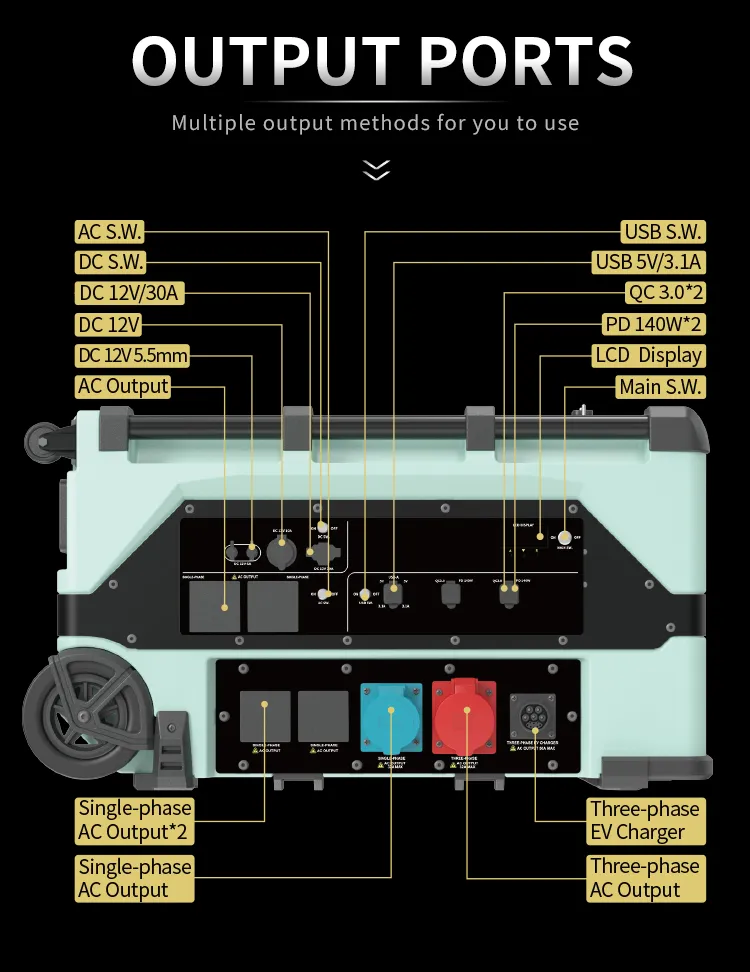

DC & USB Output
XT90 Output 12V/30A Cigarette Lighter 12V/10A
USB Ports 5V/3.1A & QC3.0 (18W) Type-C (PD 140W) Up to 28V/5A

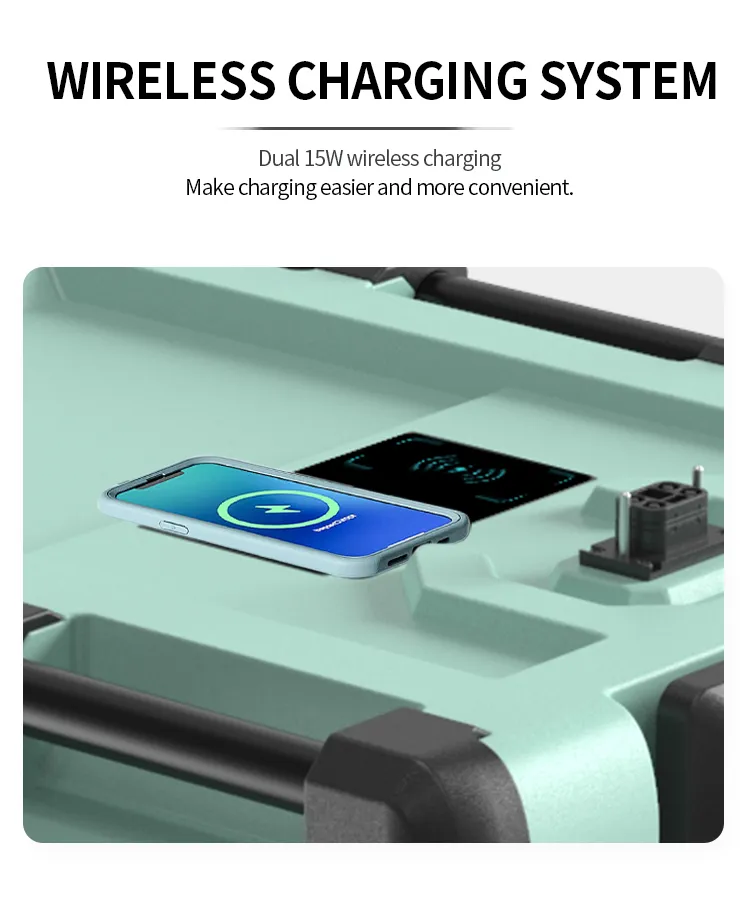

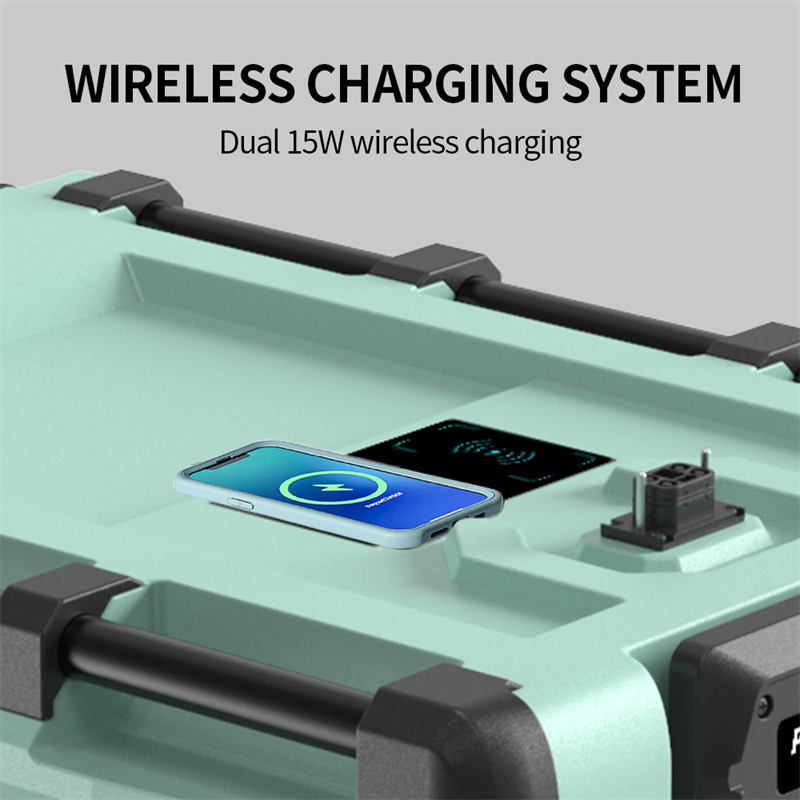

Wireless Output 2 × 15W

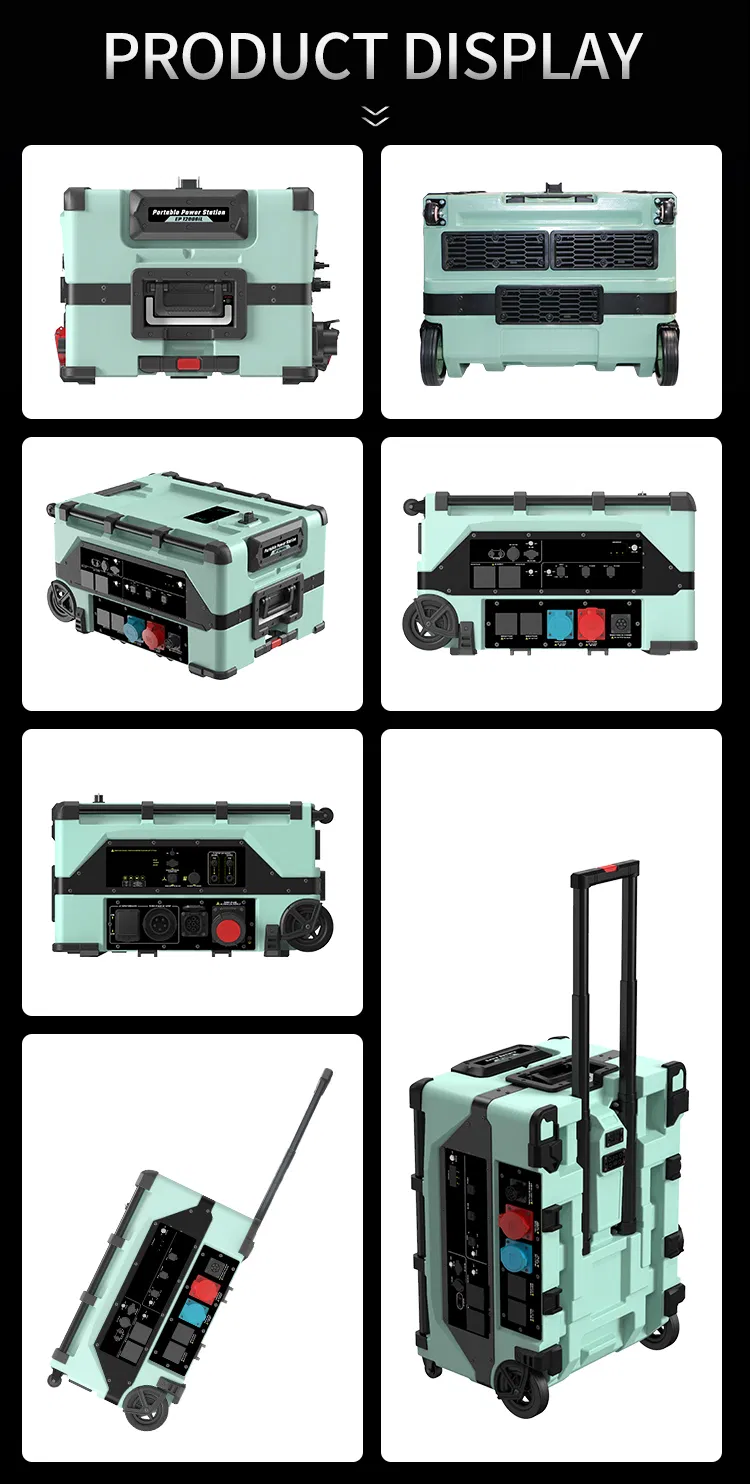

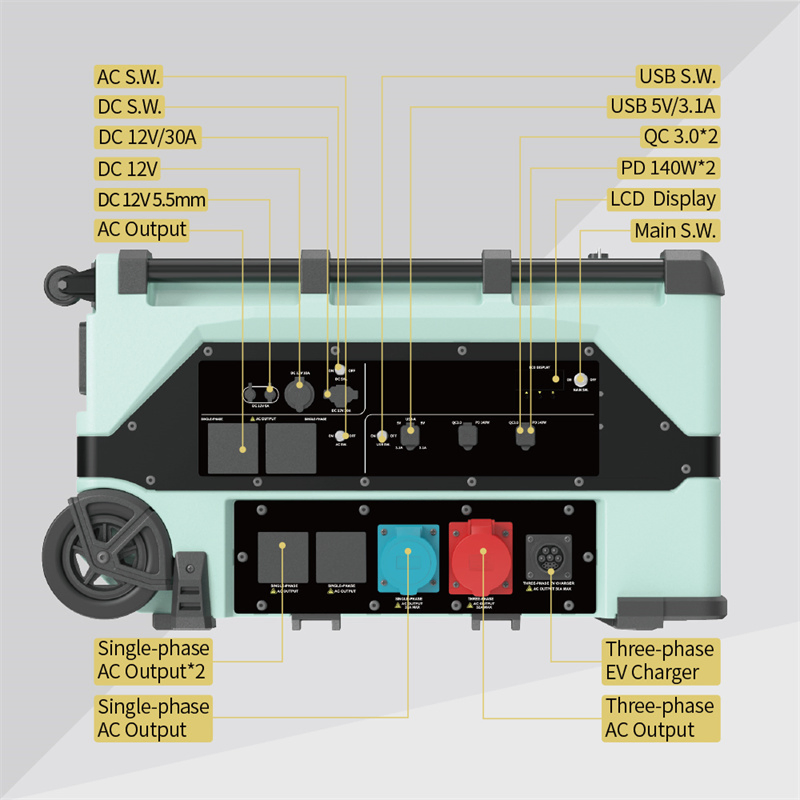

Detailed Photos
Company Overview

Founded in March 2015, we are a high-tech company integrated with research, manufacture, and sales. We provide products and services on inverter generators, Internet of things, power equipment, automation equipment, and electrical products. We are devoted to the research and development of intelligent electromechanical products and insist on independent innovation. Currently, we possess more than 70 critical patents which enable us to maintain a leading position in the industry. Our products enjoy a high reputation in Europe and North America markets for their superior quality and competitive performance.

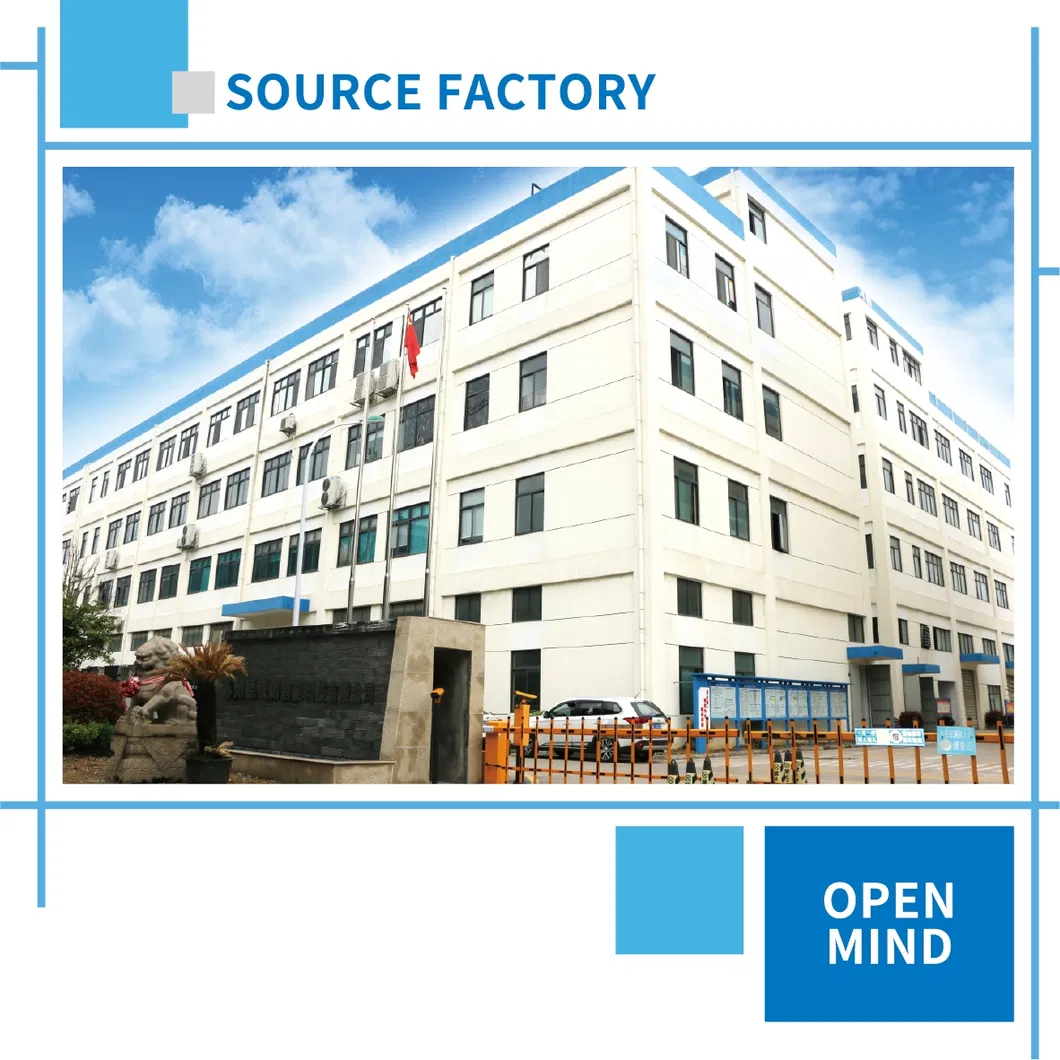

Facility Image
Frequently Asked Questions
What is the battery capacity and can it be expanded?
The unit comes with a built-in 7680Wh LiFePO4 battery. It is highly expandable; you can stack and connect up to 31 extra batteries for a total capacity of 245kWh.
How fast can the EP12000iL be charged?
It supports super-fast charging, allowing the system to be fully charged in approximately 70 minutes via utility AC or high-voltage solar input.
Does this system support three-phase power output?
Yes, it supports a continuous output of 12kW AC three-phase (220~415V), as well as single-phase and split-phase configurations.
Can I use this to charge my Electric Vehicle (EV)?
Absolutely. It features a built-in electric vehicle charger that can replace traditional charging stations, supporting car charging up to 22kW.
Is the unit durable for outdoor or harsh environments?
Yes, the main unit has an IP53 protection grade, while the battery packs are rated IP66. It also features a V-0 level flame-retardant casing and an anti-collision rubber pad.
What kind of warranty is provided?
The product is built for high quality and reliability, backed by a 5-year warranty for peace of mind.
