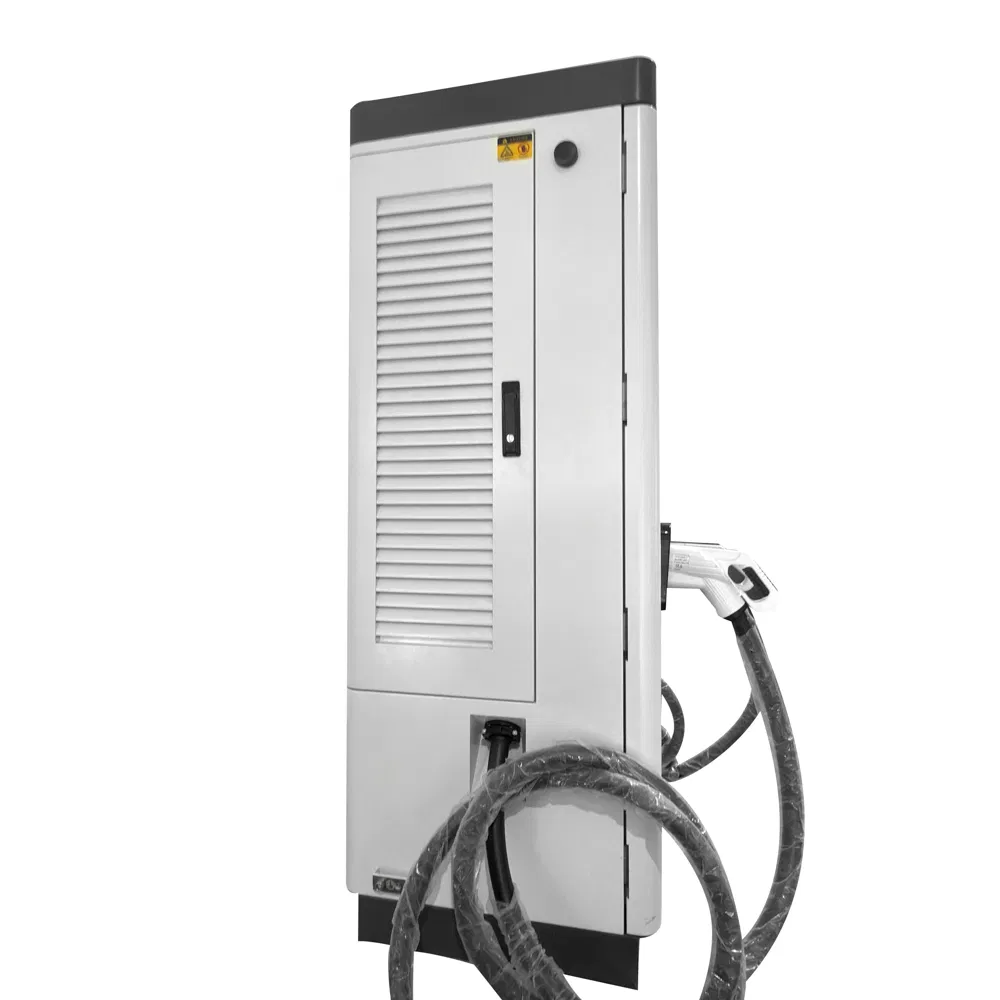

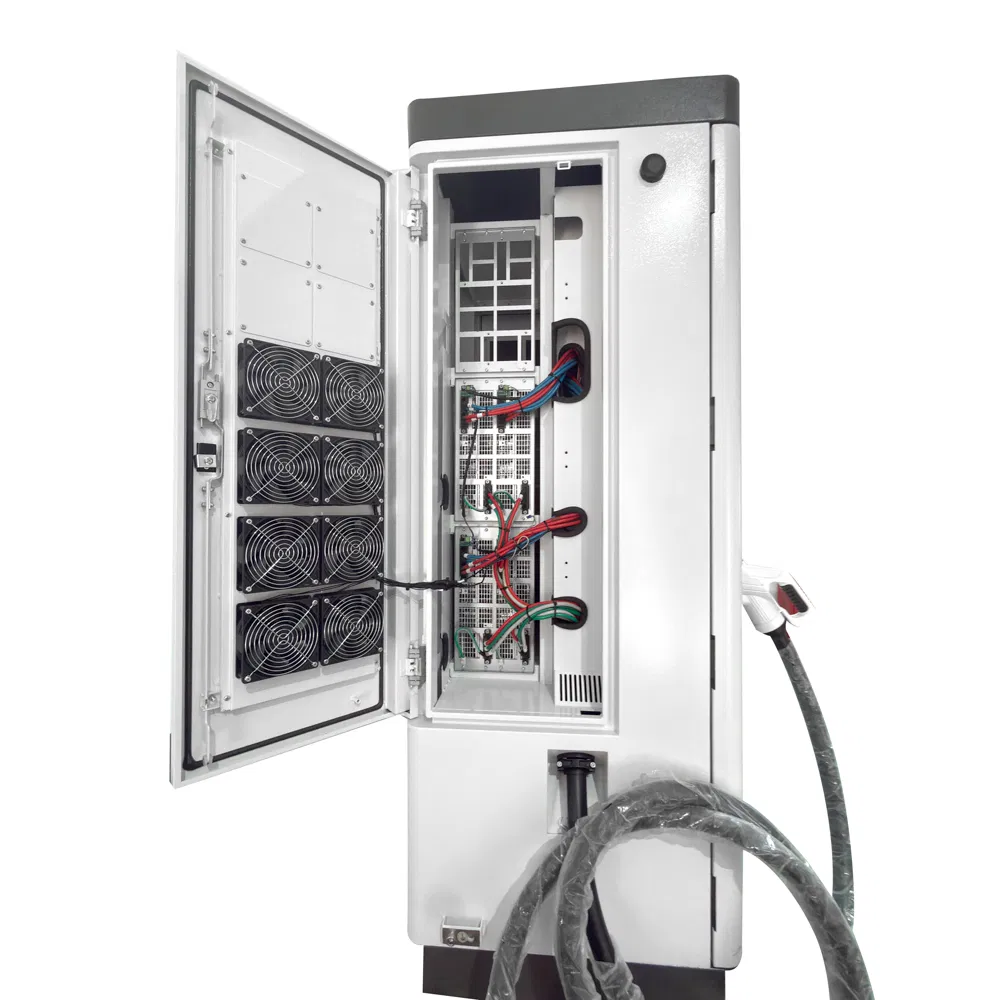

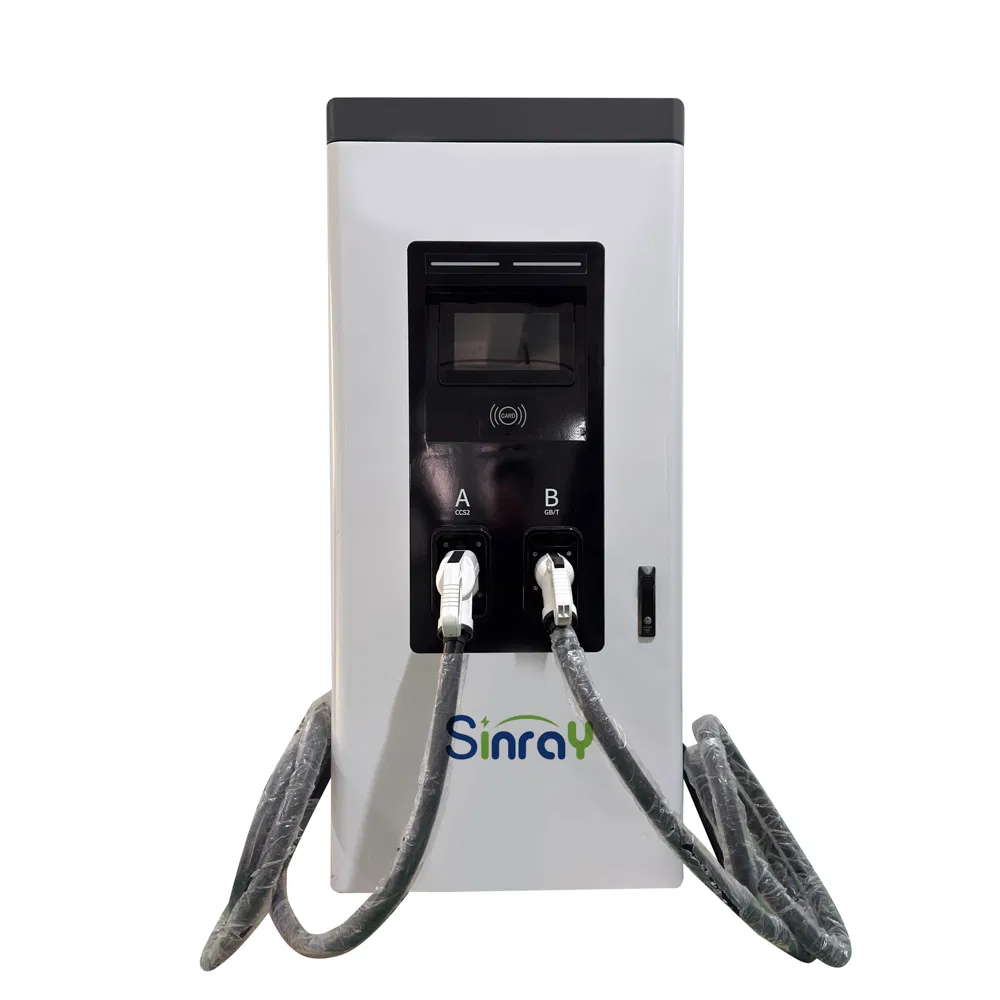

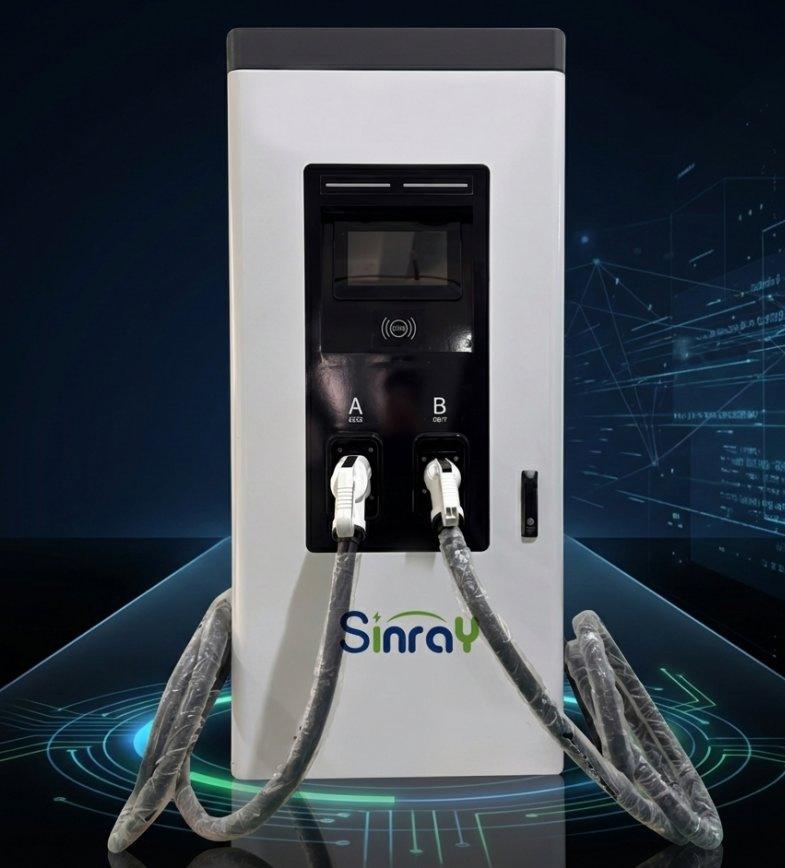

K072 120kw Commercial EV Charging System with Dual Power Output for Public Charging Projects
K072 120kw Commercial EV Charging System with Dual Power Output for Public Charging Projects
K072 120kw Commercial EV Charging System with Dual Power Output for Public Charging Projects
K072 120kw Commercial EV Charging System with Dual Power Output for Public Charging Projects
K072 120kw Commercial EV Charging System with Dual Power Output for Public Charging Projects
1 / 5
K072 120kw Commercial EV Charging System with Dual Power Output for Public Charging Projects
K072 120kw Commercial EV Charging System with Dual Power Output for Public Charging Projects
K072 120kw Commercial EV Charging System with Dual Power Output for Public Charging Projects
K072 120kw Commercial EV Charging System with Dual Power Output for Public Charging Projects
K072 120kw Commercial EV Charging System with Dual Power Output for Public Charging Projects

K072 120kw Commercial EV Charging System with Dual Power Output for Public Charging Projects

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📋 Basic Information
Model NO.
K072 DC-120kw Double Guns
Location
Public Use
Charging Interfaces
One Pile with Multiple Charges
Start Mode
RFID, Credit Card, Scanning Codes
Input Voltage
AC 380V±20% 3 Phase
Output Voltage
DC 60-320kw
Protection Level
IP54
Product Size
1000*925*1950mm
Certification
CCC, CE, ISO, TUV
Warranty
24 Months

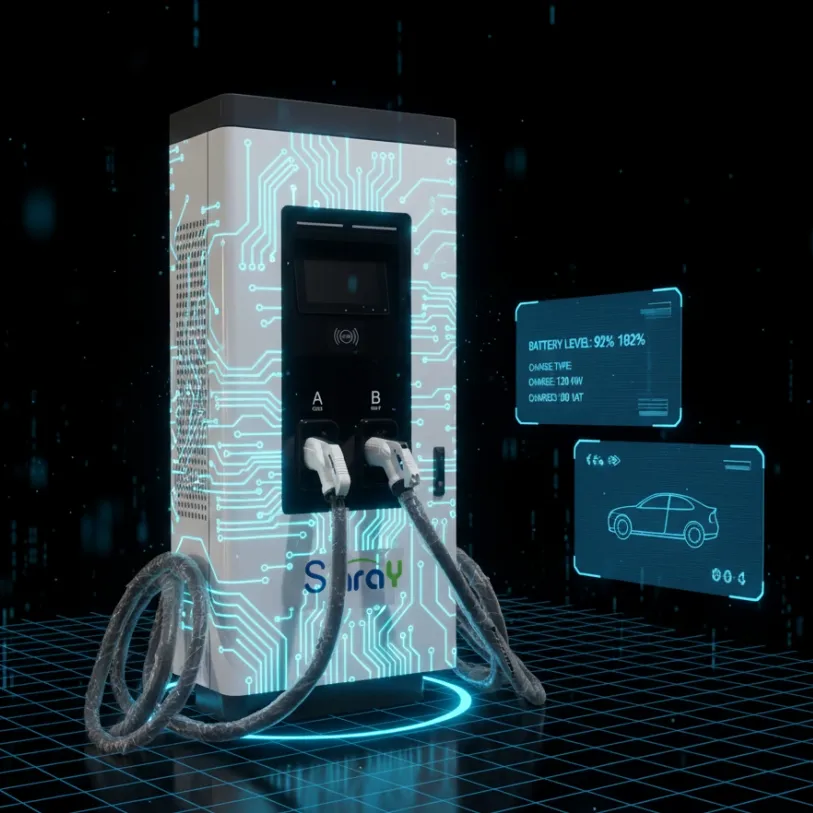

EV Charging System 1
EV Charging System 2
⚡ Product Highlights
  • High-Efficiency Fast Charging Performance
    Charging most EVs to 80% in 30 minutes or less. Features three-phase PFC topology and full-bridge soft-switching technology to minimize energy loss.
  • Smart & User-Centric Design
    Equipped with 2 independent charging guns (CCS standards) for simultaneous charging. Features a 7-inch touchscreen display and OCPP communication for remote management.
  • Extreme Environmental Adaptability
    IP54 protection rating with an operating temperature range of -30°C to +60°C, making it ideal for harsh outdoor conditions.
  • Industry-Leading Safety
    Built-in safeguards for over-voltage, current, and heat protection. Certified by UL, CE, TUV, and UKCA.

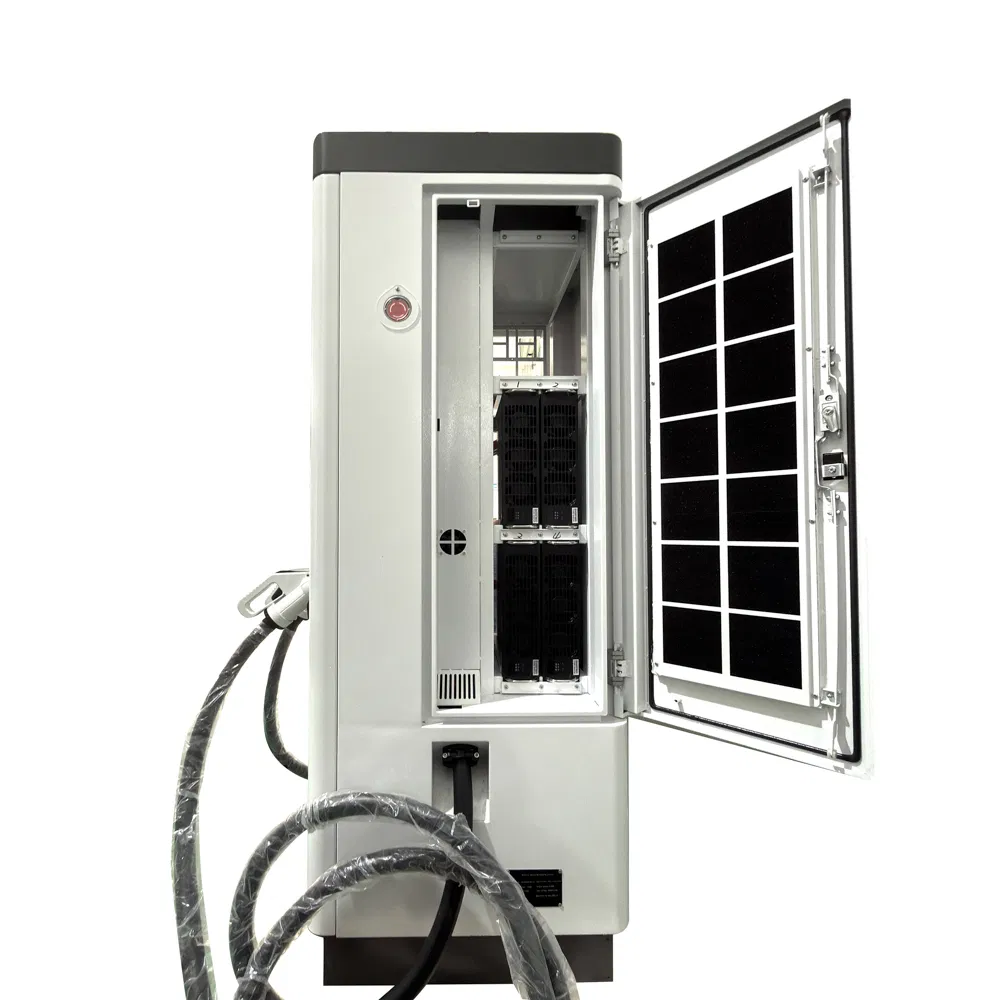

Product Layout
📊 Technical Specification
Power OutputDC 60-320KW
Input VoltageAC 380V±20% 3 Phase
Rated Output VoltageDC 150-1000V
Frequency50-60Hz
Communication ProtocolOCPP 1.6J
HMI10-Inch touch screen
Cable Length5m
Charging Method4G / Ethernet / RFID etc.
Connector TypeCCS1 / CCS2 / CHADEMO / GBT
Protection LevelIP54
Operating Temperature-30°C to +60°C
Net Weight320KG
Gross Weight400KG

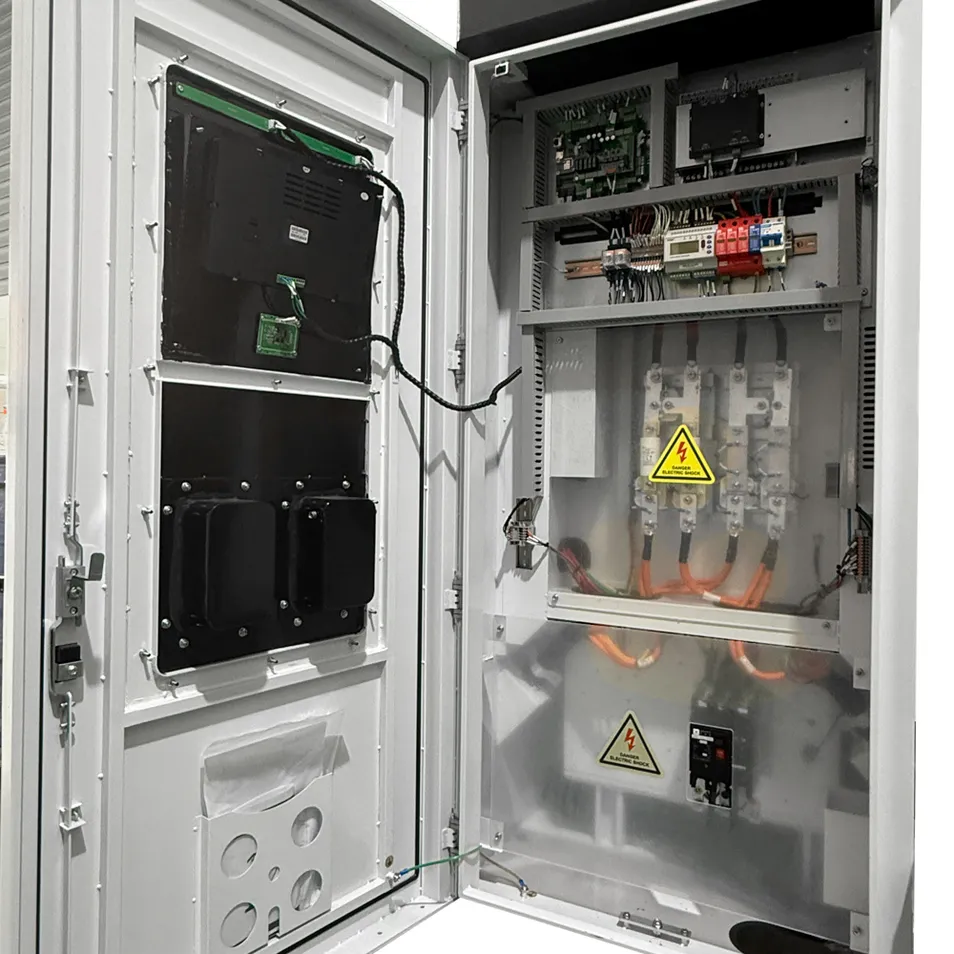

Charging Detail 1

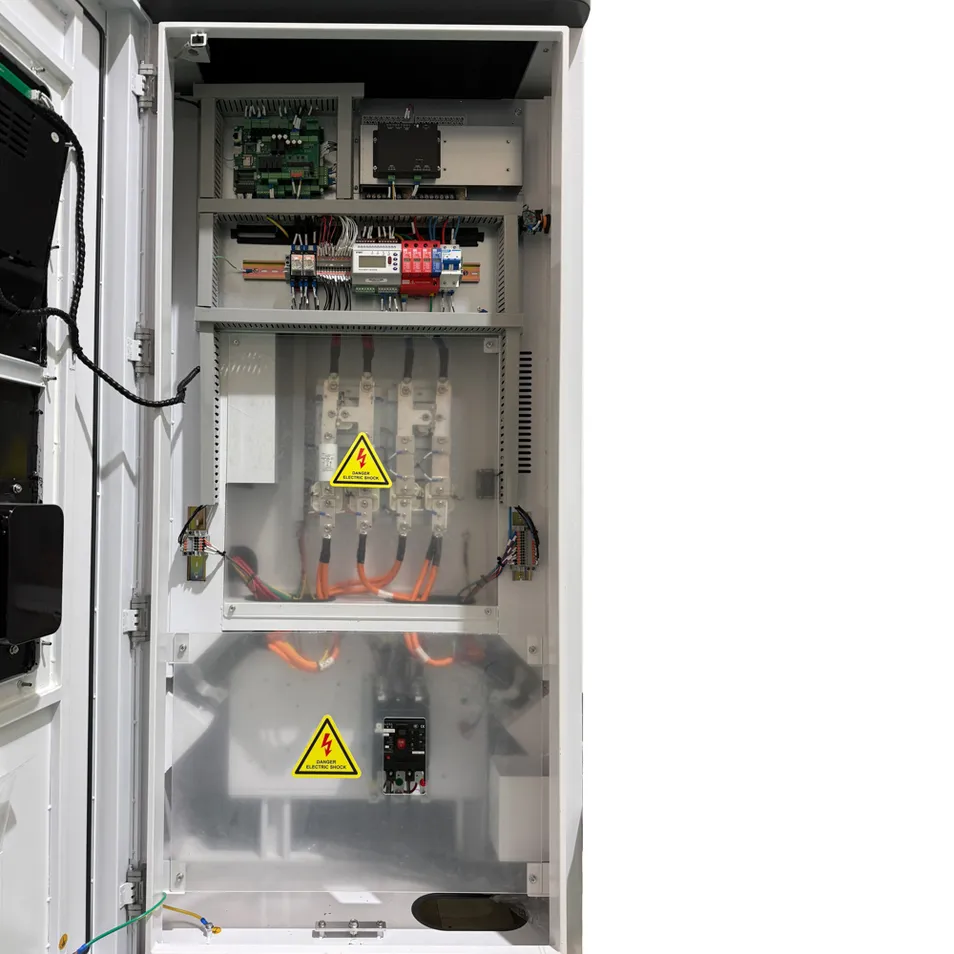

Charging Detail 2
🏭 Production & Quality Control
Factory View Production Line Certificates
📦 Packaging & Delivery
Package Type
Cardboard shells + wooden stakes
Package Size
120cm * 110cm * 227cm
Gross Weight
400.00kg
Frequently Asked Questions
1. How fast can this station charge an electric vehicle?
The K072 DC-120kw station can charge most electric vehicles to 80% capacity in approximately 30 minutes or less, depending on the vehicle's battery capacity.
2. Can two vehicles charge at the same time?
Yes, the system is equipped with a dual-gun configuration, allowing two vehicles to be charged simultaneously with intelligent power distribution.
3. Is this charging station suitable for outdoor installation?
Absolutely. It features an IP54 protection rating and is designed to operate in temperatures ranging from -30°C to +60°C, making it durable for harsh outdoor environments.
4. What payment and access methods are supported?
The station supports multiple modes of operation including RFID card authentication, mobile app scanning codes, and credit card payments.
5. Does the station support remote management?
Yes, it uses the OCPP 1.6J communication protocol, which allows for remote monitoring, management, and firmware updates via 4G or Ethernet.
6. What is the warranty period for this product?
We provide a comprehensive 24-month (2-year) warranty and dedicated after-sales service for the charging system.
