Sunpal Solar Energy Storage System Kit 100kWh 65kW 55kW 50 kW Off Grid Pv Commercial Solar Power System

1 / 5

Sunpal Solar Energy Storage System Kit 100kWh 65kW 55kW 50 kW Off Grid Pv Commercial Solar Power System

Customization:	Available
Application:	Mine Off-Grid Power Supply
Installation:	Cabinet Floor-Mounted

Send Inquiry

Product Description

Basic Specifications

Model NO.	Off Grid Commercial System	Power Configuration	100kW-250kW
Cooling Method	Air Cooling System	Solar Panel Type	Monocrystalline Silicon
Controller Type	MPPT	Solar Inverter	Hybrid 100KW
Battery Type	Lithium Ion	Mounting Type	Roof/Ground Mounting
Output Voltage	230V/400V, 127V/220V, 277V/480V	Output Frequency	50/60Hz
Monitoring System	App for PC and Phone	Certificate	CE/TUV
HS Code	8501722000	Production Capacity	50000 sets/Year

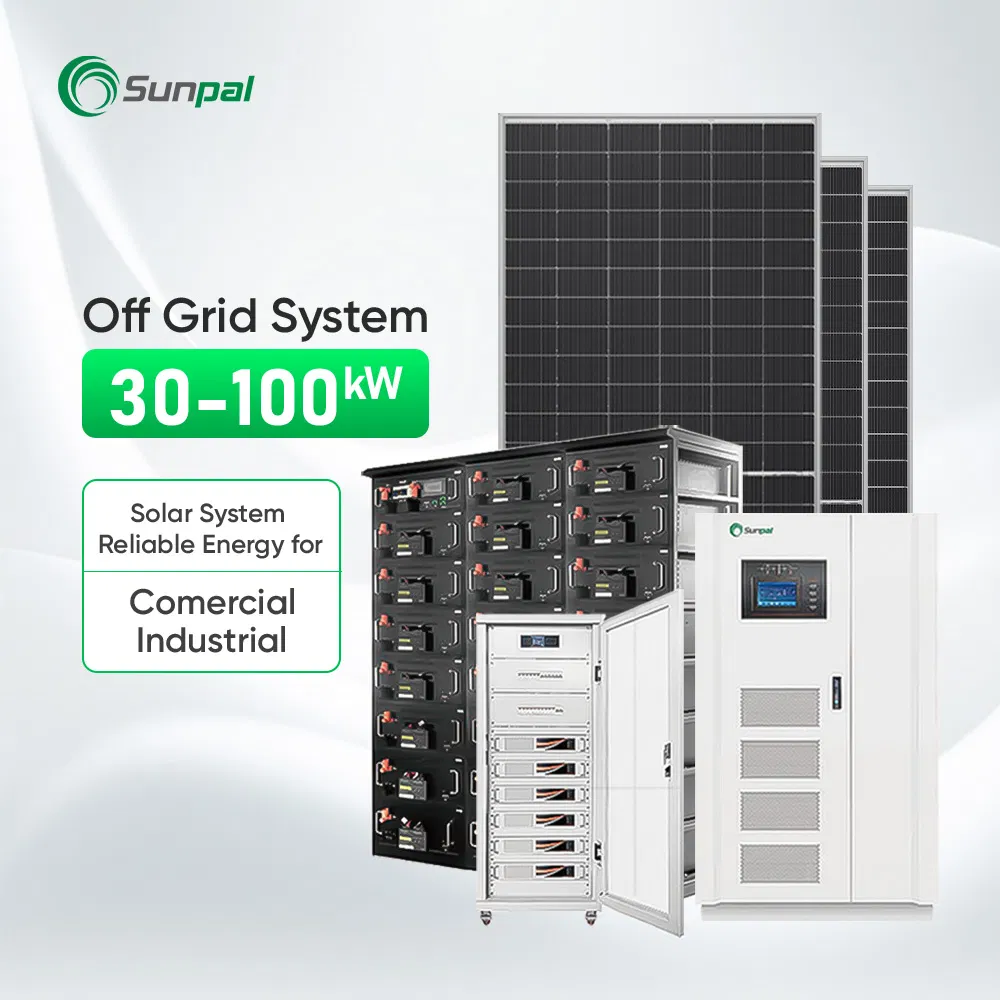

Product Overview

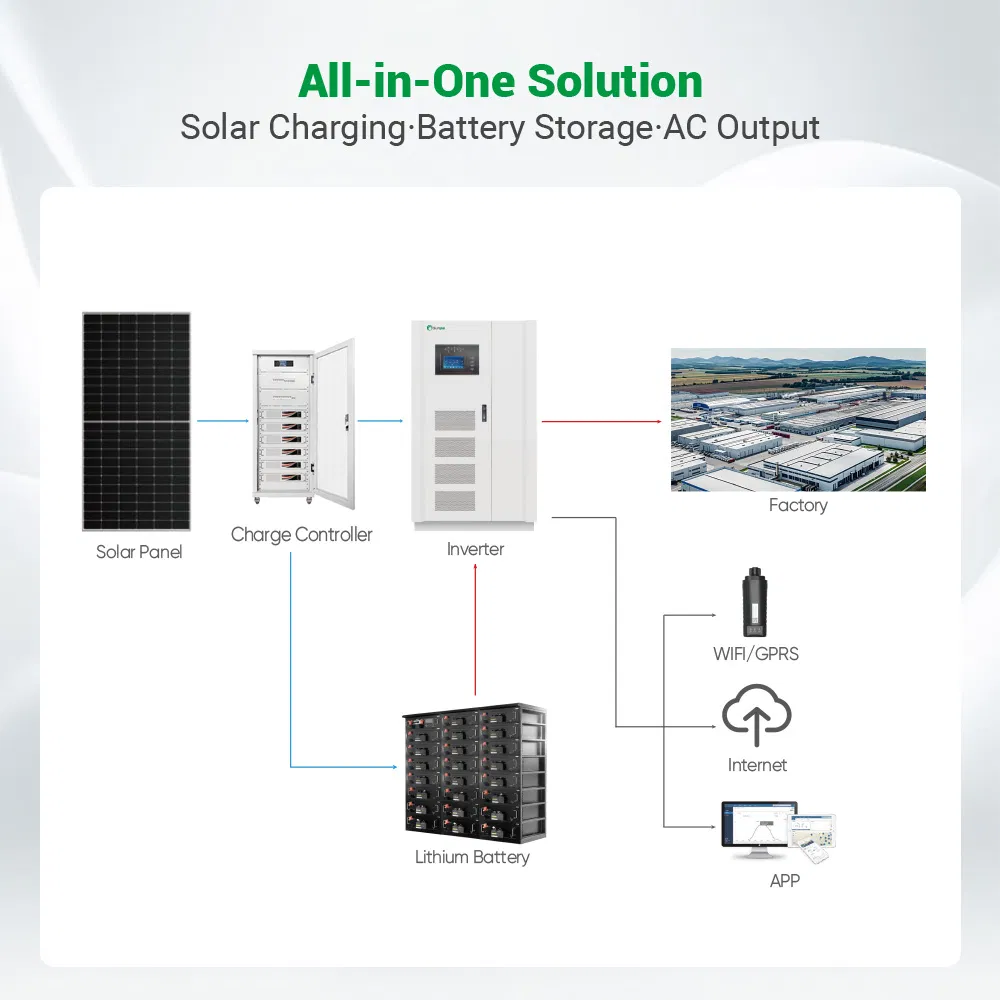

Our 30kW to 100kW Off-Grid Solar Power System is designed for commercial and industrial applications in remote areas, microgrids, or facilities seeking full energy independence. This integrated system includes high-efficiency solar panels, lithium battery storage, and an intelligent off-grid inverter with an advanced energy management system (EMS).

Power Range: 30kW / 50kW / 100kW (customizable)
Scalable Storage: Lithium battery packs from 50kWh to 500kWh+
Energy Autonomy: Supports up to 8 hours to 3 days of backup without sunlight
Compatibility: Integration with diesel gensets, wind, or hydro backup
Smart EMS: Real-time remote monitoring and load optimization

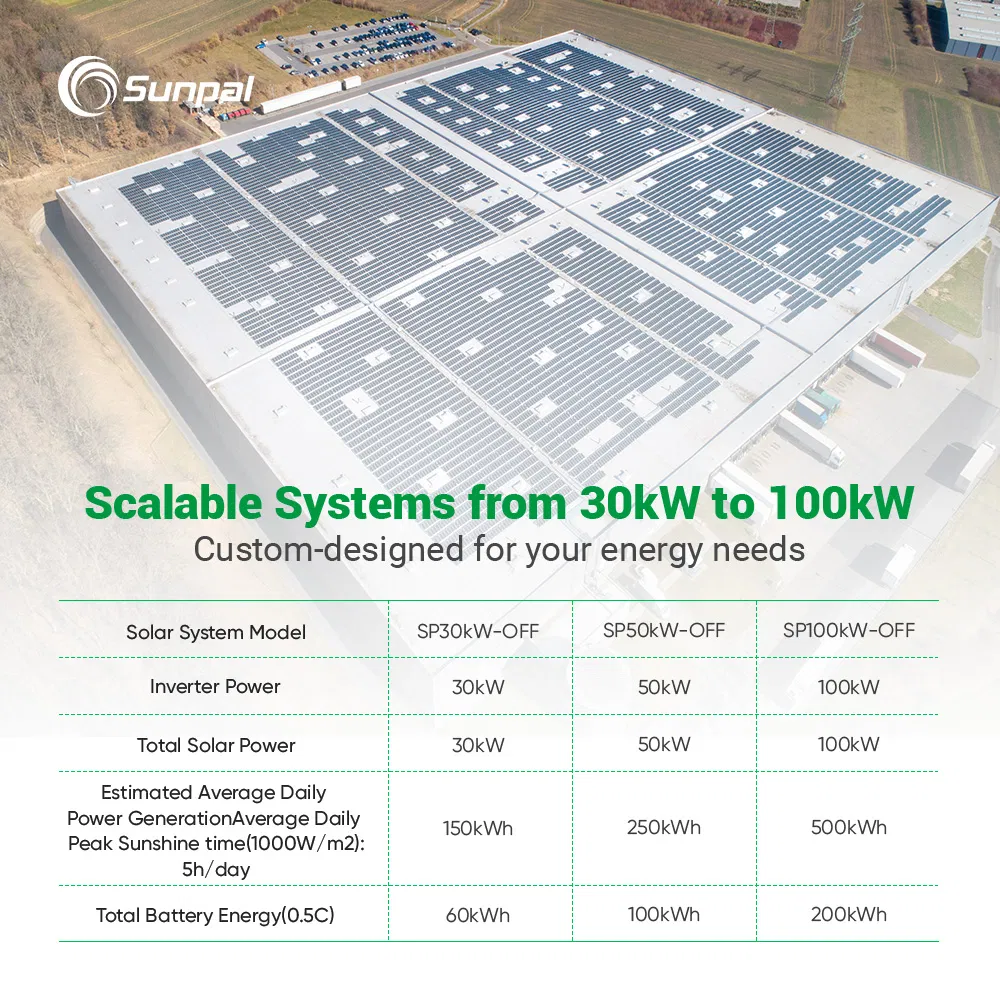

Technical Configuration (30-100KW)

Component	30KW	50KW	60KW	80KW	100KW
580W Solar Panel	60 Pcs	90 Pcs	108 Pcs	144 Pcs	180 Pcs
MPPT Controller	360V 100A	360V 150A	360V 200A	360V 200A	2*150A
Off Grid Inverter	30KVA	50KVA	60KVA	80KVA	100KVA
Lithium Battery	360V 200AH	360V 300AH	360V 300AH	360V 400AH	360V 600AH

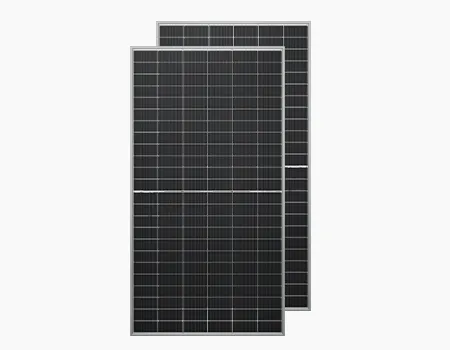

● Topcon Bifacial Solar Panels

Peak Power: 580W (SP580M-72H)
Max Power Voltage: 43.09V
Short Circuit Current: 14.33A
Efficiency: Optimized for high energy yield in varied conditions.

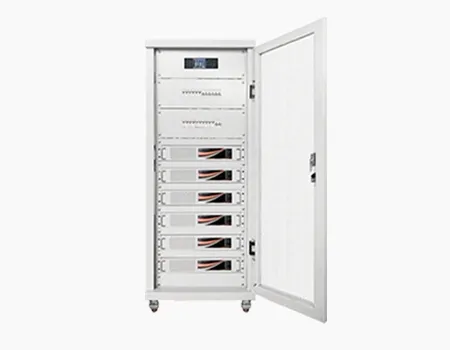

● High Efficiency MPPT Controller

Rated Voltage: 360VDC
Charging Current: Up to 200A
MPPT Range: 420-720 VDC
Display: LCD+LED for real-time data tracking.

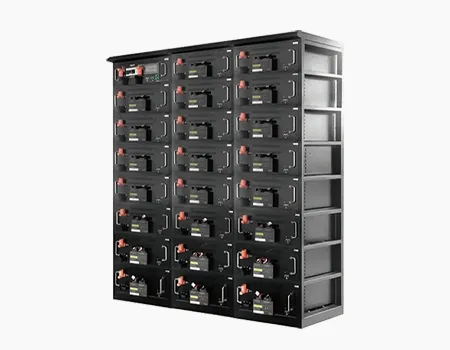

● Deep Cycle Lithium Battery

Capacity: 50-500KWH scalable
Nominal Voltage: 360Vdc
DOD: 80% for long-term reliability
Safety: Integrated BMS for cell protection.

Global Applications

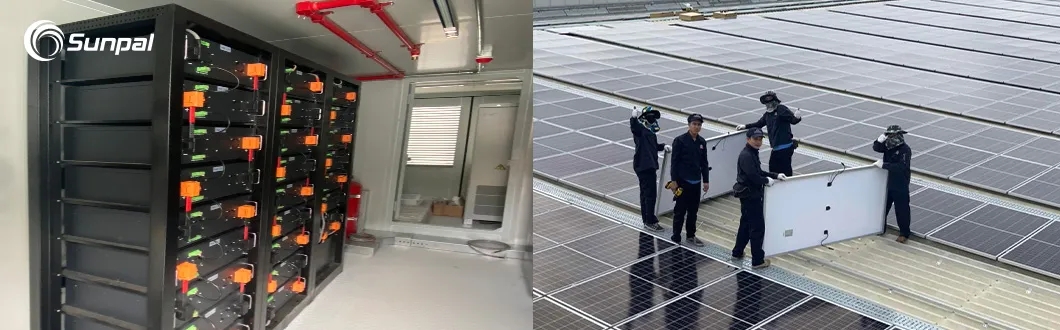

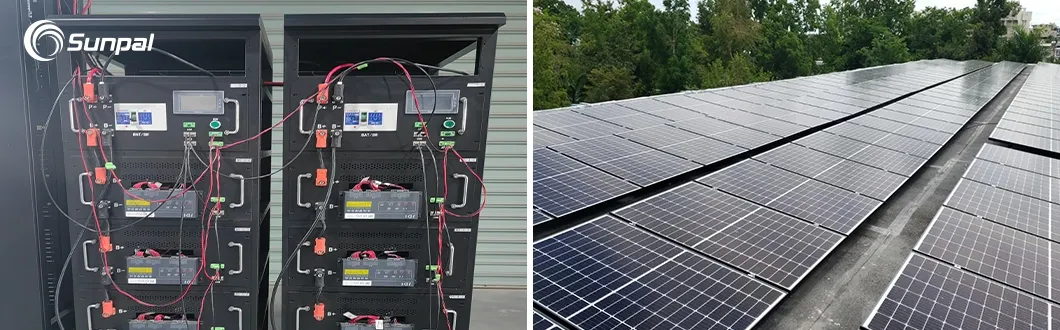

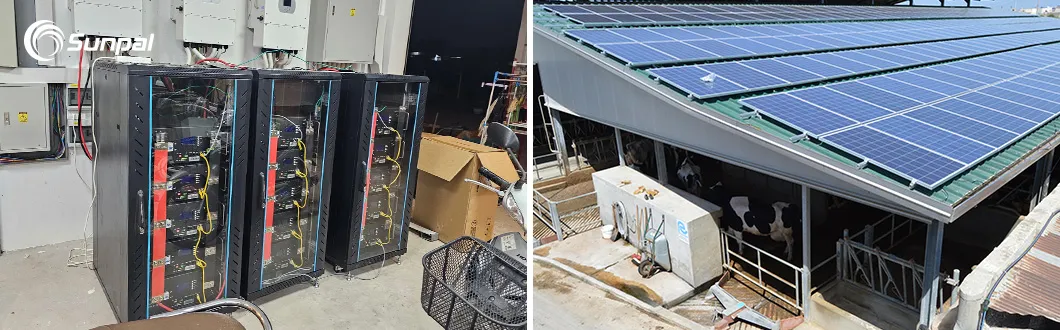

Reliable power for Poultry Farms (Ghana), Educational Centers (Philippines), and Industrial Warehouses (South Africa).

Advanced Manufacturing

Founded in 2008 with 15 years of industry experience, our facilities specialize in one-stop solar system solutions. We manufacture high-efficiency cells (166mm-210mm) and comprehensive PV modules including PERC, Topcon, and HJT technologies ranging from 10W to 720W.

Frequently Asked Questions

What is the expected lifespan of the battery system?

The system utilizes high-quality lithium-ion batteries designed for deep cycle use, typically offering a long service life with over 2000-6000 cycles depending on discharge depth.

Can the system power industrial machinery?

Yes, the 100kW-250kW range is specifically engineered for commercial and industrial loads, providing stable 3-phase AC output for motors, pumps, and factory equipment.

How many days of autonomy does the system provide?

Depending on the battery configuration, the system can provide between 8 hours and 3 full days of power without any sunlight exposure.

Is the system compatible with existing diesel generators?

Absolutely. Our intelligent off-grid inverters can integrate with diesel generators, wind turbines, or hydro sources as secondary backup to ensure 24/7 reliability.

How can I monitor the system's performance?

The system includes a smart monitoring gateway compatible with both PC and mobile applications, allowing you to track energy production and battery status in real-time.

What kind of maintenance is required for the solar panels?

Solar panels are low-maintenance. Occasional cleaning of dust or debris is recommended to ensure maximum light absorption and system efficiency.
