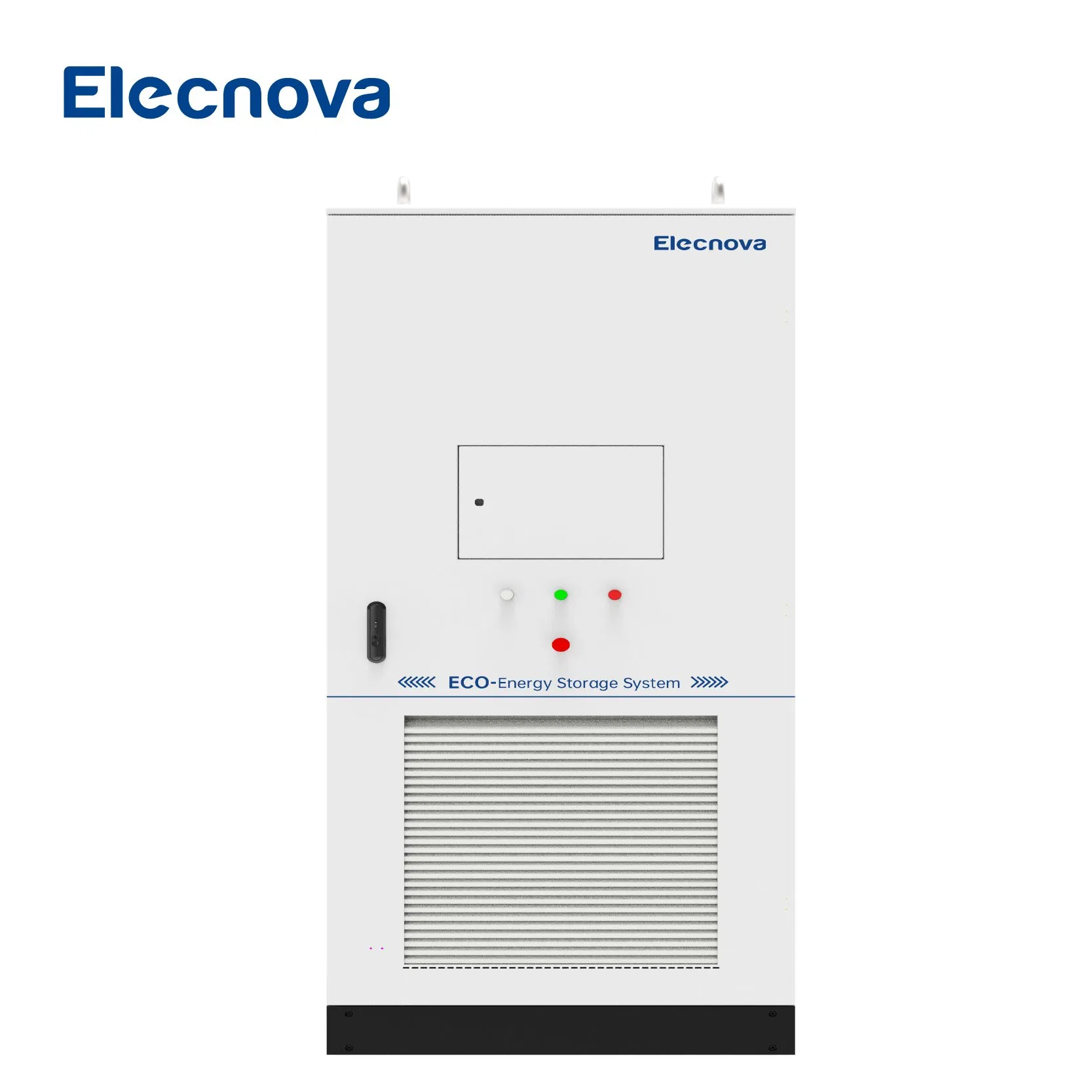

233kwh Liquid Lithium 1000kwh Solar Power Battery Energy Storage Outdoor Charging Cabinet for Microgrid

📊

Basic Specifications

Model NO.

ECO-E233LS

Nominal Capacity

233kwh

Cycle Life

8000 Cycles

Application

Industrial Commercial Factory

Cooling

Liquid-Cooled

OEM/ODM

Yes (Accepted)

Communication

RS485

Grid Type

On Grid / Off Grid

BMS

Built-in BMS Protection

Dimension

1250*1300*2400mm

🔋

Product Overview

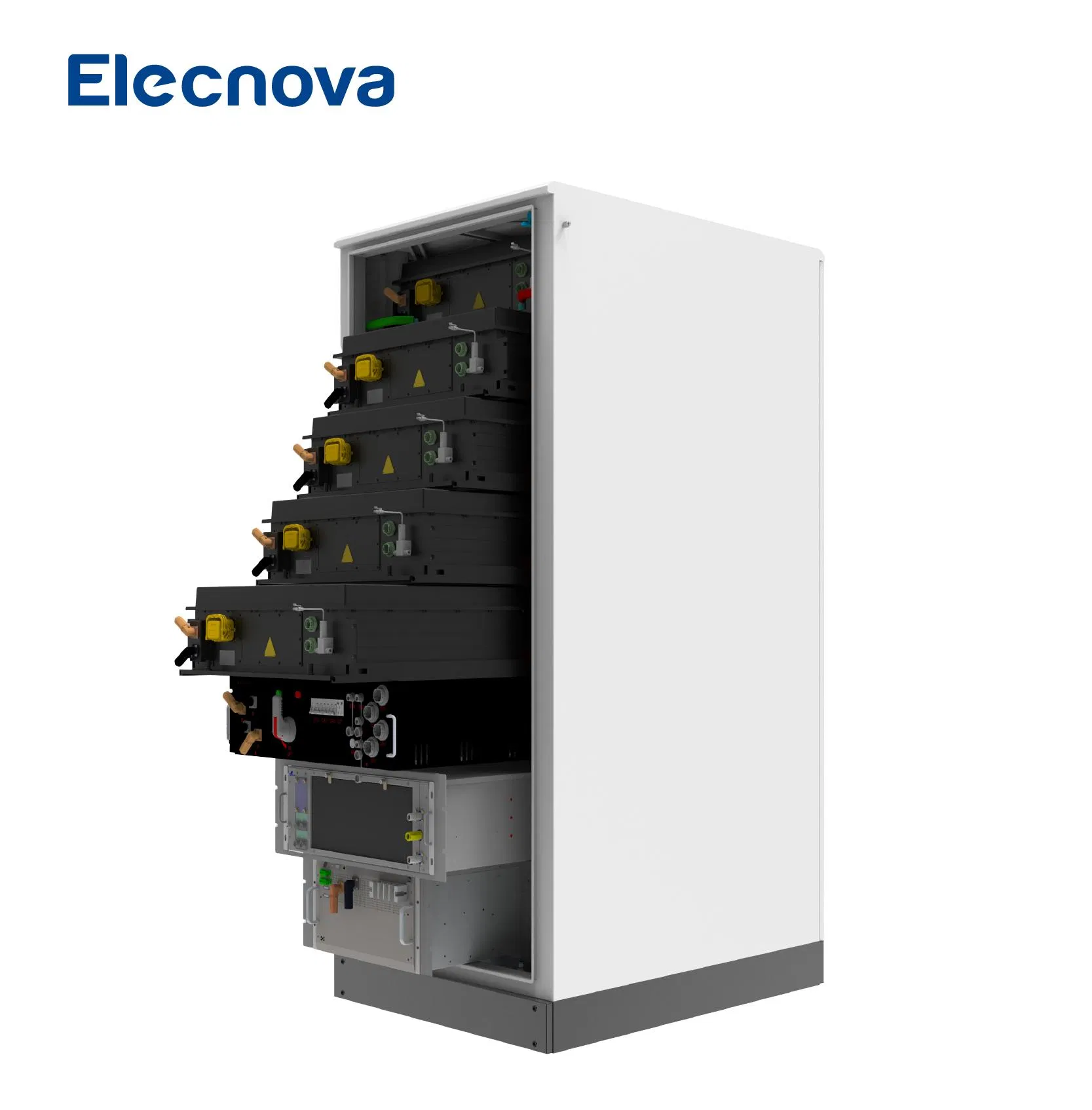

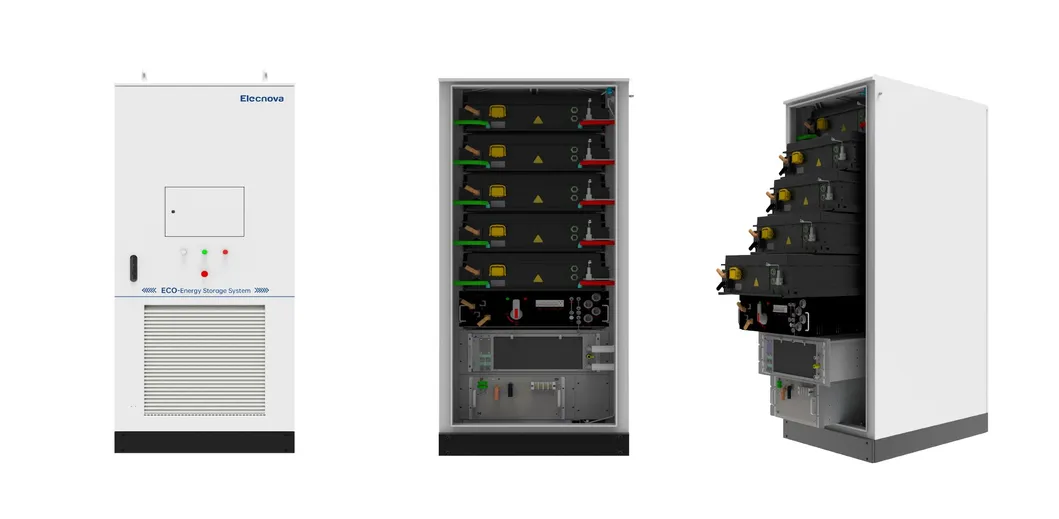

The 233KWH commercial & industrial energy storage system adopts advanced cabinet-level liquid cooling and temperature balancing strategy. The cell temperature difference is less than 3°C, which further improves the consistency of cell temperature and extends the battery life. The modular design makes the parallel solution more flexible and has higher energy density.

⚡ High Integration: All-in-one design for easy integration and fast installation.

🧩 Modular Design: Flexible expansion for capacity up to 233kWh and power up to 100kW.

🔄 Black Start: Capability for independent power restoration during emergencies.

❄️ Efficient Cooling: Optimal in-PACK duct design for low energy consumption.

⚙️

Key Components

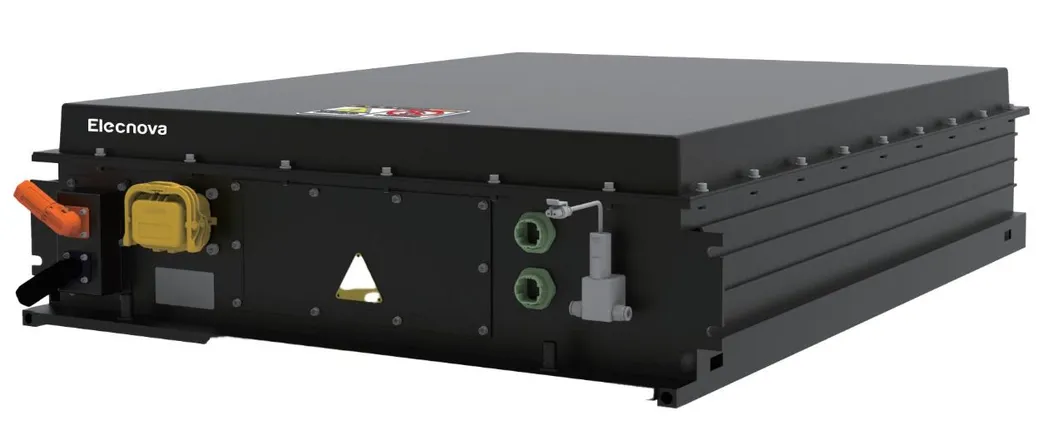

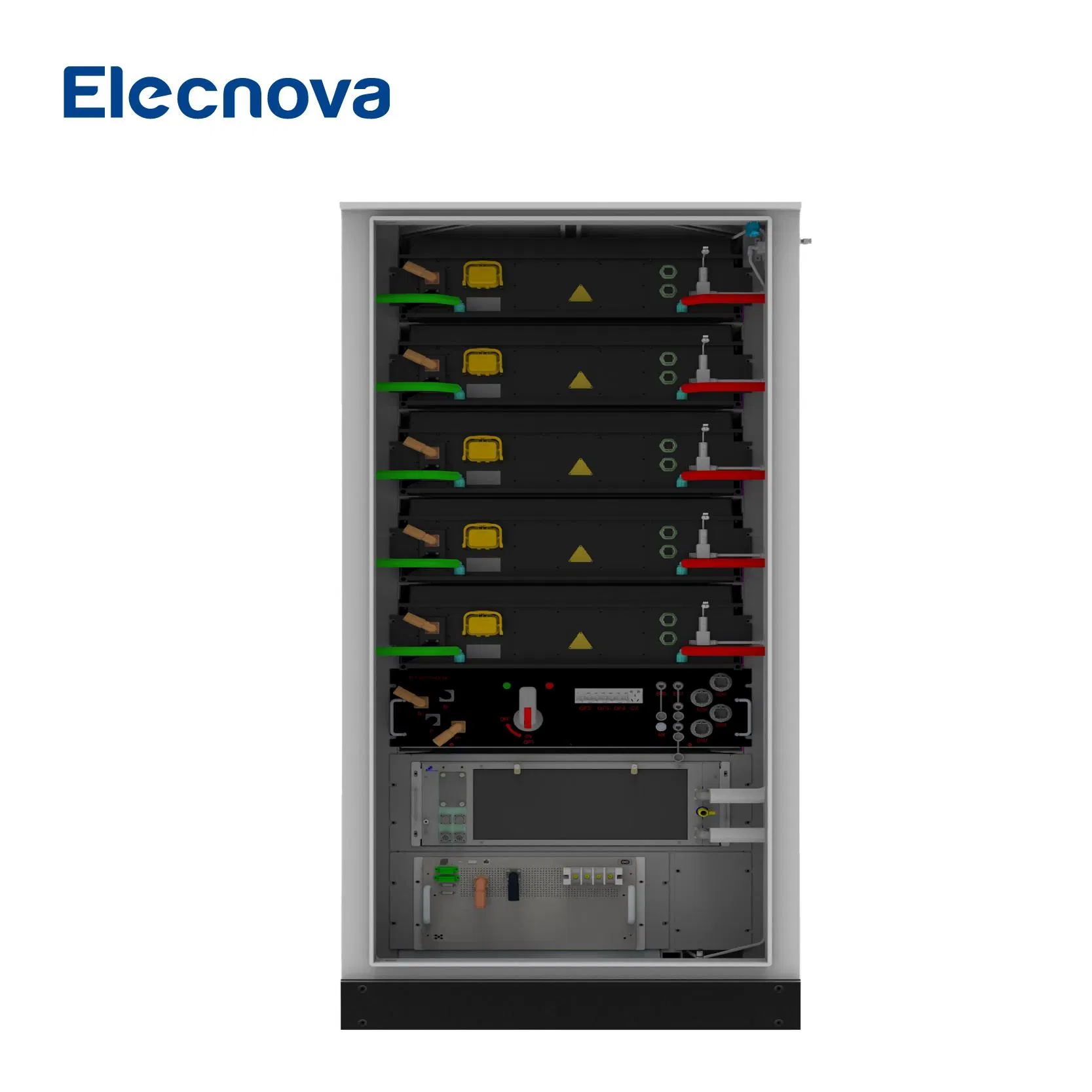

Liquid-Cooled PACK

Consists of LFP cells (1P52S). Features built-in BMU, HV connectors, and liquid cooling plate modules. Provides protection against overvoltage, undervoltage, overcurrent, and overheating.

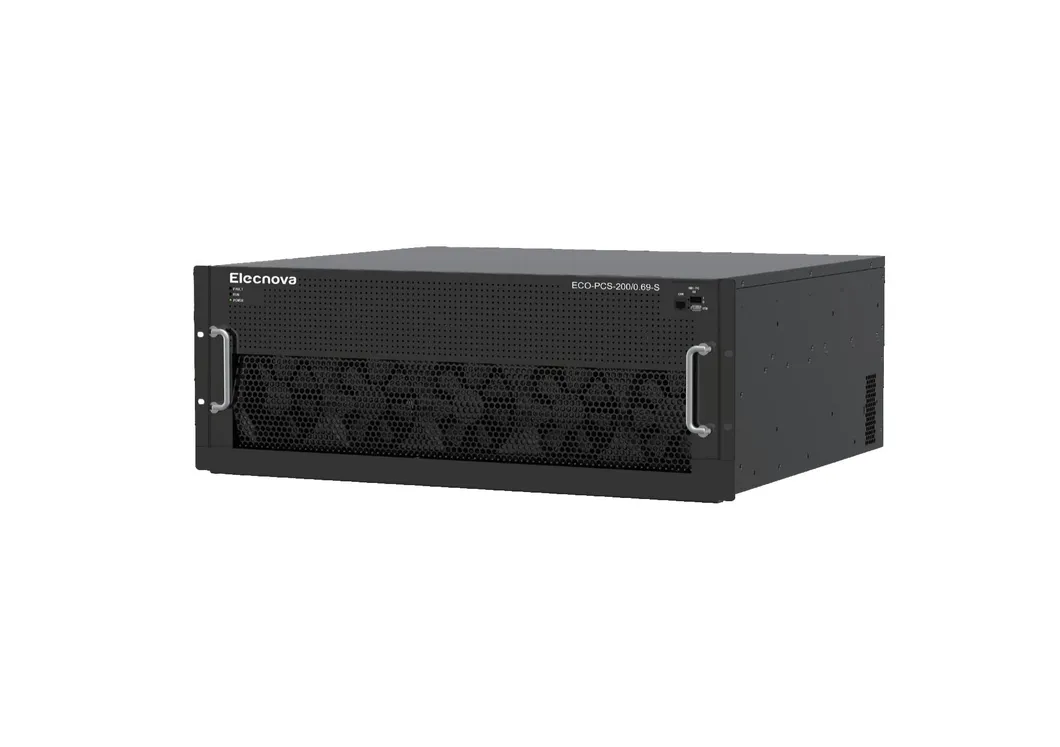

Power Conversion System (PCS)

Bidirectional energy conversion inverter designed for user-side ESS, substation energy storage, and PV-plus microgrids.

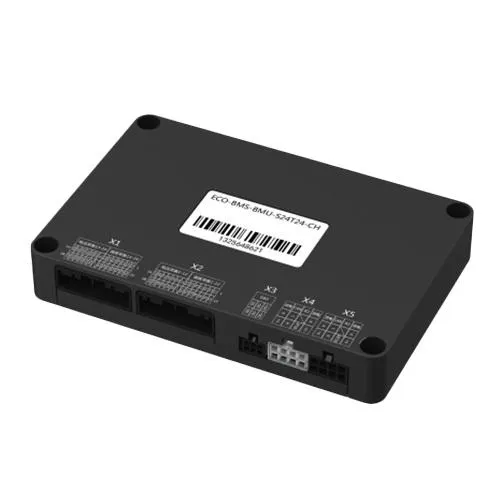

BMS & EMS

Real-time monitoring of battery safety, fault diagnosis, and integrated architecture for microgrid and PV-plus ESS optimization.

📋

Technical Parameters

DC Side Specifications
Cell Type	LFP 280Ah
Battery System	233.96kWh / 1P260S
Voltage Range	728~936Vdc
PACK Ingress Rating	IP65
AC Side Specifications
Rated Power	100kW
Nominal Voltage	400Vac / 3P+N+PE
Nominal Frequency	50/60 Hz
General Data
System Efficiency	≥90%
Cycle Life	≥8,000 times
Operating Temperature	-25ºC~55ºC
Fire Safety	NOVEC1230 / Aerosol
Dimensions (WDH)	1,0501,3502,400 (mm)

🌍

Wide Applications

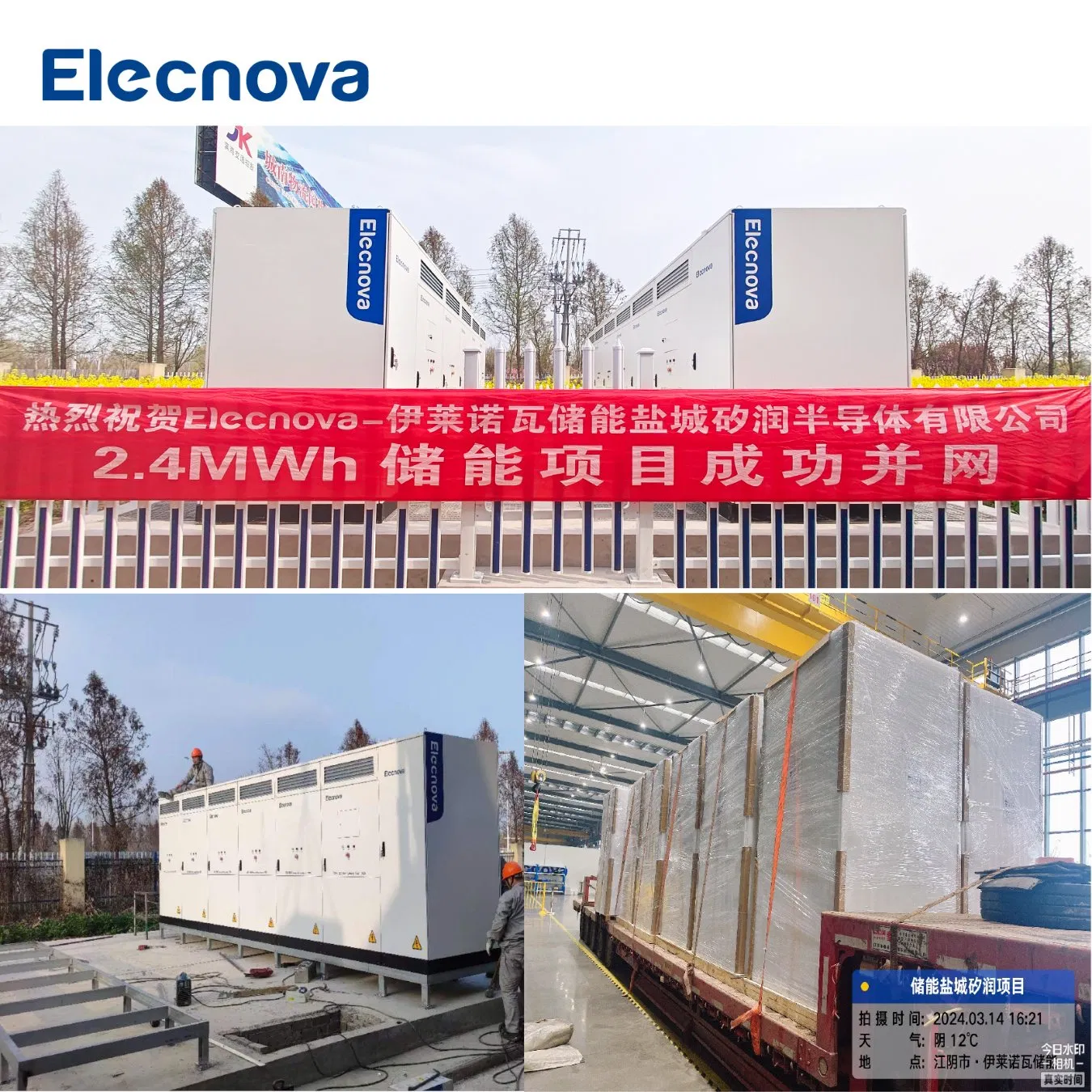

Suitable for Industrial Parks, Factories, Microgrids, EV Charging Stations, Data Centers, and Commercial Complexes.

📦

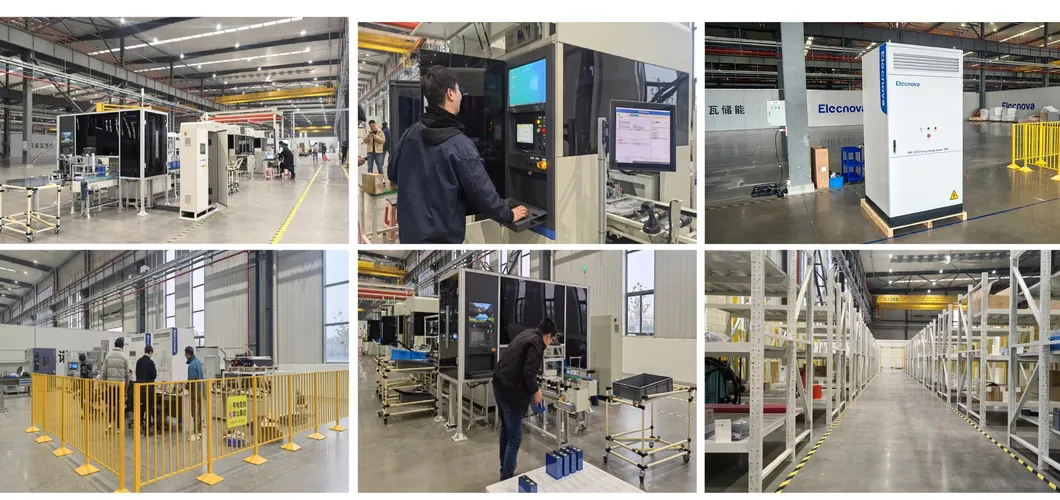

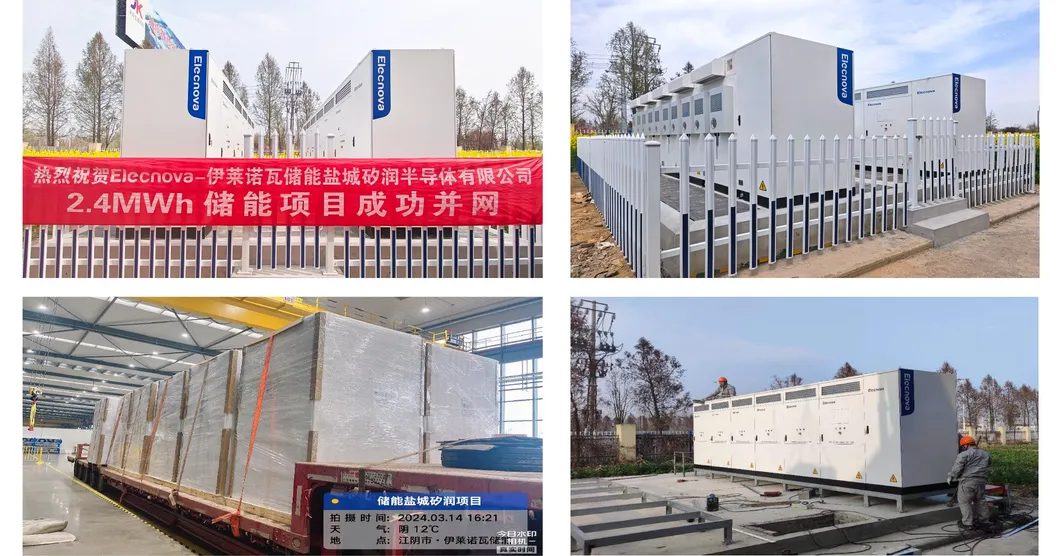

Packing & Exhibition

❓

Frequently Asked Questions

🔹 What is the manufacturing experience of your company?

We are a professional manufacturer based in Shanghai, China, established in 1998, with a team of over 600 experts specializing in energy storage.

🔹 Can you provide OEM and ODM services?

Yes, we provide both OEM and ODM customized services based on specific project requirements and minimum order quantities.

🔹 How long is the warranty for the energy storage system?

Our standard warranty ranges from 5 to 10 years, depending on the specific configuration and application environment.

🔹 What components are included in the all-in-one cabinet?

The system is fully integrated, including the PCS (Power Conversion System), Battery PACKs, BMS (Battery Management System), and EMS (Energy Management System).

🔹 How is after-sales service handled globally?

We have overseas branches and support networks that can provide technical assistance, repair, and replacement services.

🔹 Is the cooling system efficient for high-temperature areas?

Yes, our active liquid cooling strategy maintains a cell temperature difference of less than 3°C, ensuring safety and longevity even in demanding climates.
