51.2V 6.656kwh 130ah LiFePO4 Energy Storage System Battery-Byd Blade Cell

1 / 5

51.2V 6.656kwh 130ah LiFePO4 Energy Storage System Battery-Byd Blade Cell

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

VTE5126LFP-BL

Nominal Capacity

130ah

Cycle Life

>5000 Times (25°C/77F)

Max. Constant Charging

130A @ 25°C

Max. Constant Discharging

130A @ 25°C

Communication

CAN/RS485

Weight

82kg

DOD

80%

Specification

1075*420*140MM

Origin

China

Product Features

⚙️

Flexible & Scalable

Scalable battery design for easy expansion, max. 16pcs in parallel.

🛠️

Easy Installation

Stylish, ultra-thin design. Easy connection, saving installation time and cost.

🛡️

Safe & Reliable

BYD blade lithium cell, vehicle grade quality. Longer life cycle and wide operating temperature range.

🔌

Perfect Compatibility

Compatible with residential 48V hybrid and off-grid inverters via CAN/RS485.

Technical Specifications

Model		VTE5126LFP-BL
Performance
Battery Type		BYD Blade Lithium-iron phosphate (LiFePO4)
Battery Energy (KWH)		6.656 KWH
Nominal Capacity (AH)		130 AH
Nominal Voltage (V)		51.2V
Operating Voltage Range		43.2V-57.6V
Standard Charging Current		30A @ 25°C
Max. Constant Discharging		130A @ 25°C
Scalability		Max. 16 strings in parallel
Design Life		>5000 times (25°C/77F)
Protection & Communication
Protection	Over-temperature, overcharge, under-voltage, over-current, short circuit alarm
Display		LED indicator
Communication		CAN / RS485
General Data
Dimension (HWD)		1075420140 MM
Weight		About 82 KG
Installation		Wall Mount
Protection Degree		IP21, Indoor installation
Certificate		CE, IEC62619, UN38.3, UL

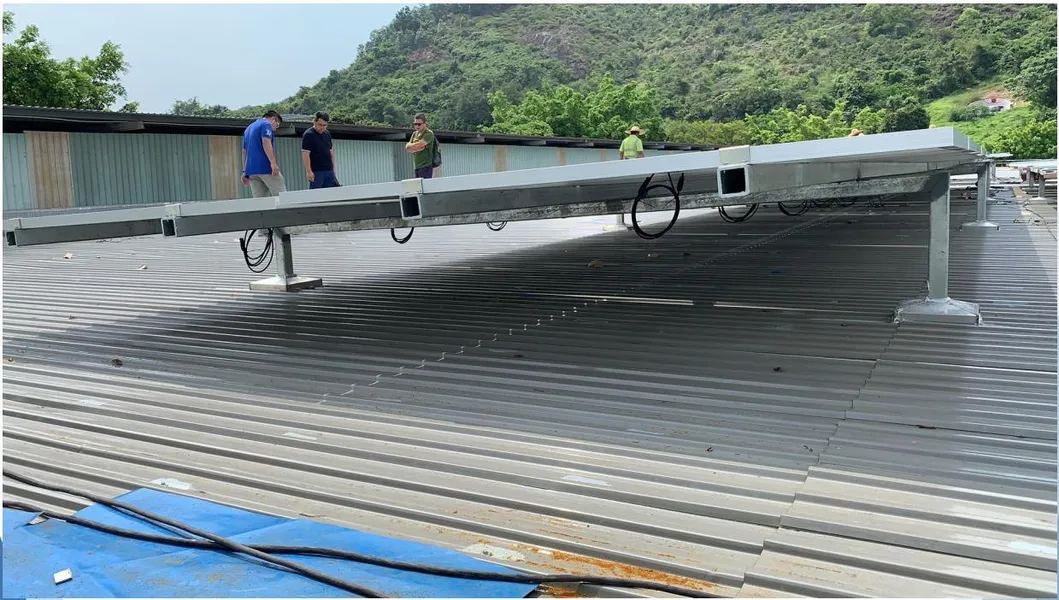

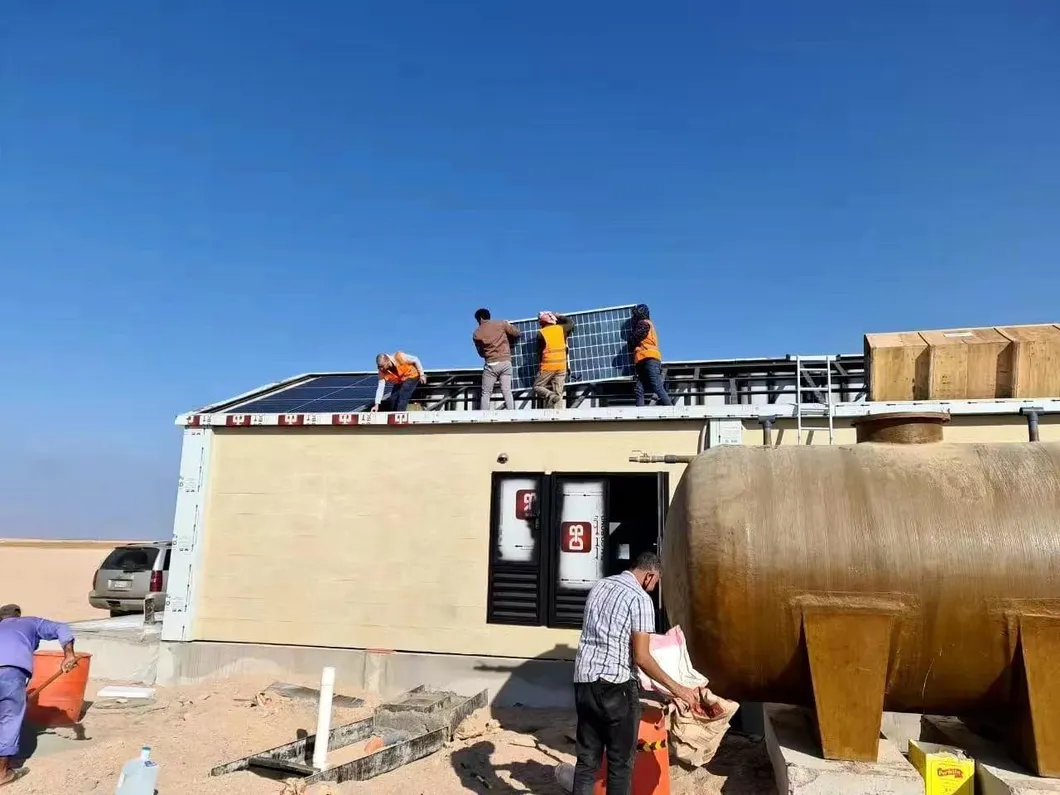

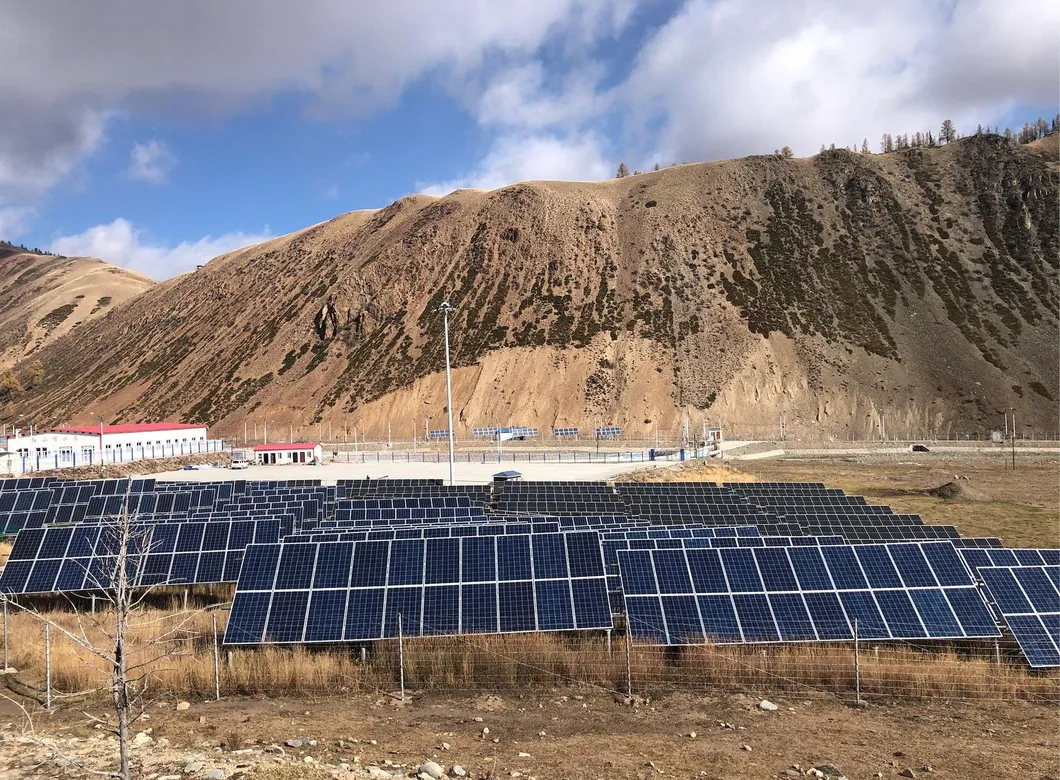

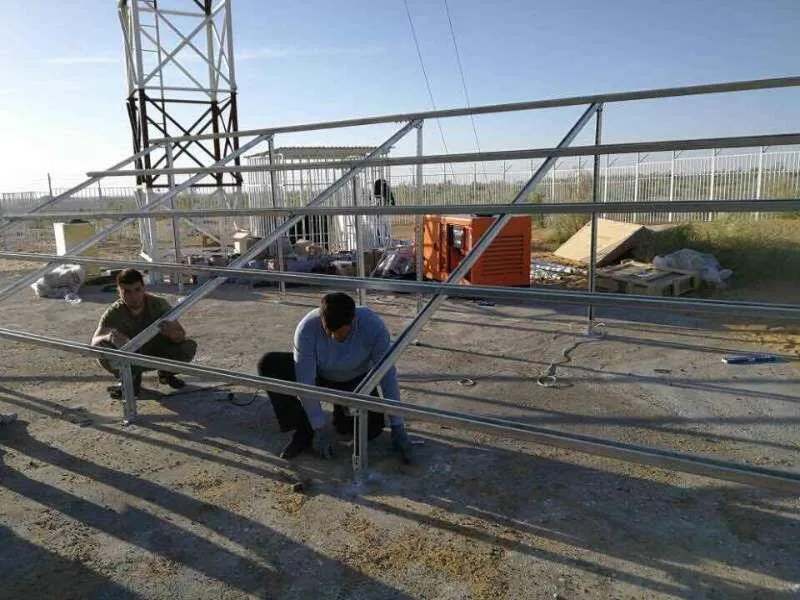

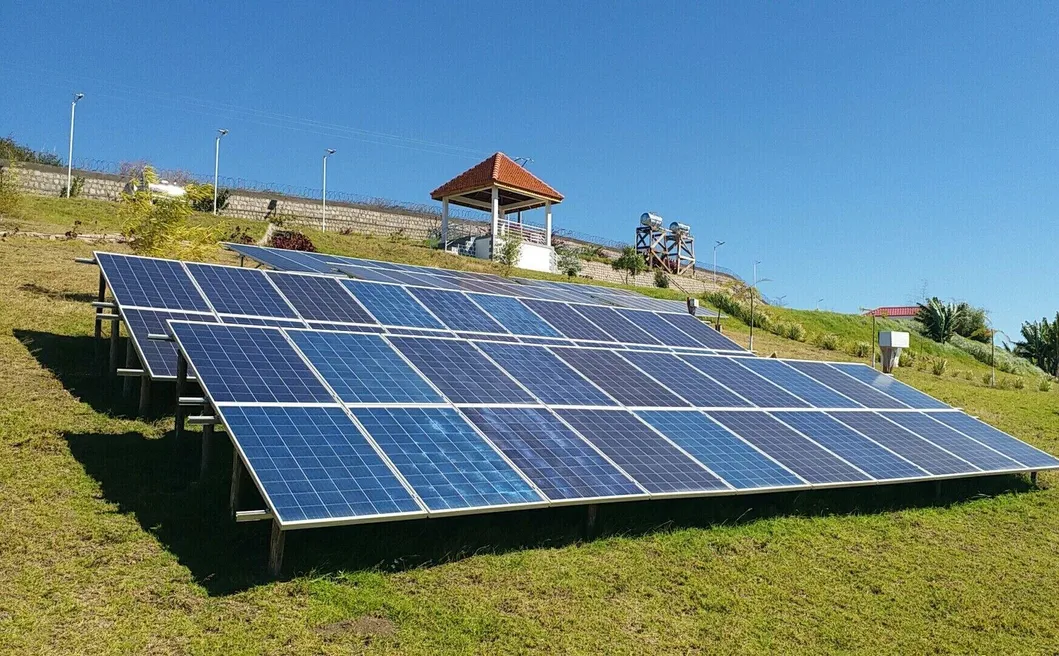

Projects Display

Frequently Asked Questions

What type of battery cell is used in this system?

This system utilizes premium BYD Blade Lithium-iron phosphate (LiFePO4) cells, known for high safety standards and long cycle life.

How many units can be connected in parallel?

The design is highly scalable, allowing for a maximum of 16 units to be connected in parallel for increased capacity.

What is the expected lifespan of the battery?

The battery is designed for a cycle life of over 5000 times at 25°C, ensuring reliable long-term energy storage.

Which inverter brands are compatible?

It is compatible with most leading residential 48V hybrid and off-grid inverters in the market via CAN and RS485 communication.

Is the battery suitable for outdoor installation?

The protection degree is IP21, which is specifically designed for indoor wall-mount installations.

What safety protections are included?

The system includes integrated protection against over-temperature, overcharge, under-voltage, over-current, and short circuits with an alarm function.
